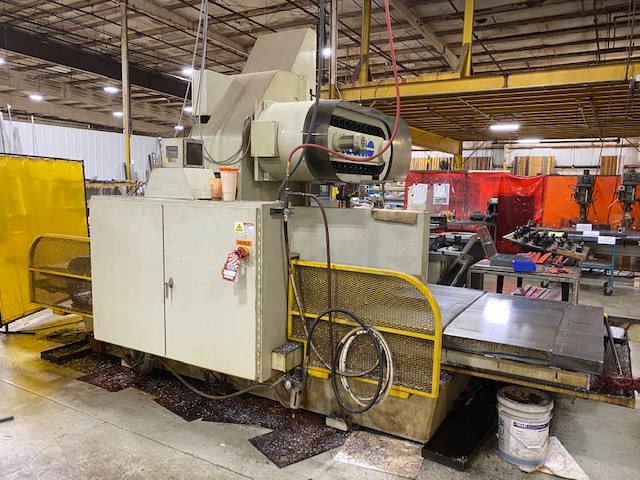

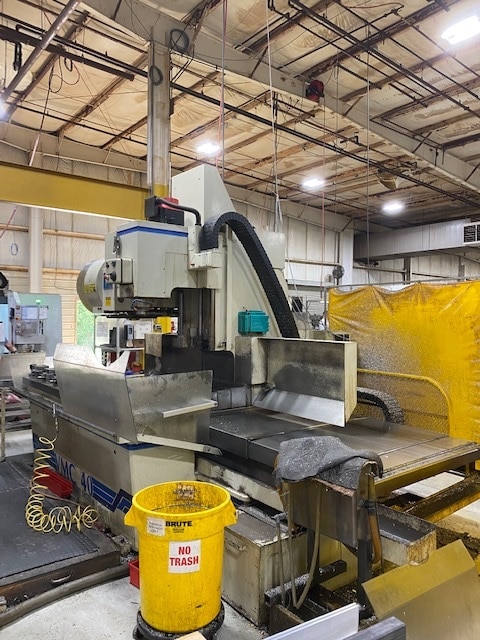

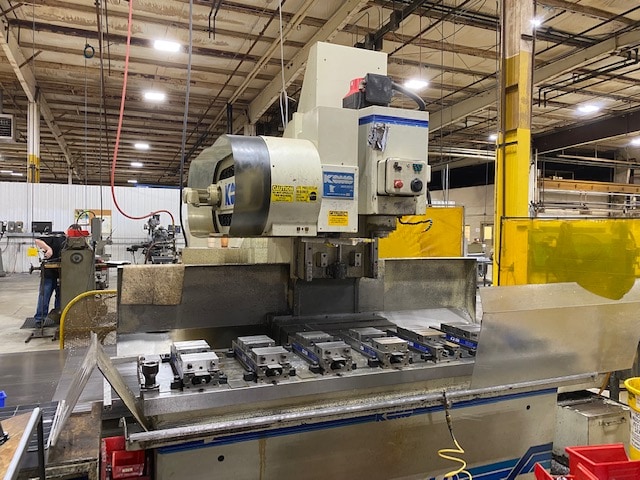

Komo VMC 40 Vertical Machining Center, 1995 – 96″ x 24″ Travels, 30 ATC, Fanuc
$5,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 96”
Y-Axis Travel: 24”
Z-Axis Travel: 22”
Table Size: 20″ x 96″
Rapids Travel: 600 IPM
Spindle Speed: 0 – 6,000 RPM
Spindle Taper: Cat 40
Spindle Power: 10 HP Continuous (12 HP peak)
Automatic Tool Changer: 30 Positions
Electrical Requirements: 208/240 V; 3 Ph; 60 Hz
Approx Dimensions: 120” x 230” x 120”
Approx Machine Weight: 25,000 lbs
Equipped With:

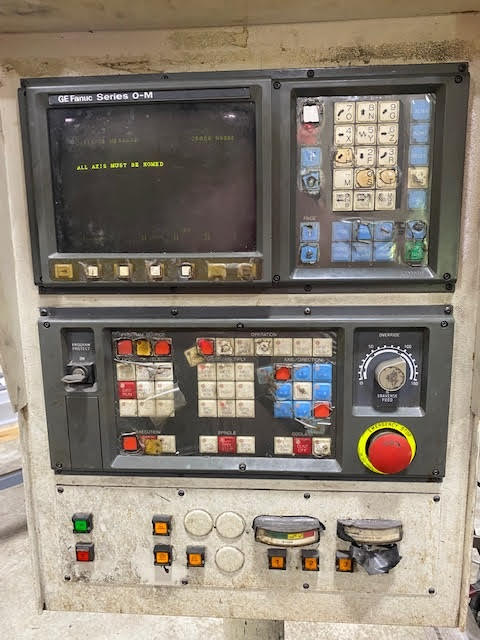

GE Fanuc Series O-M CNC Control

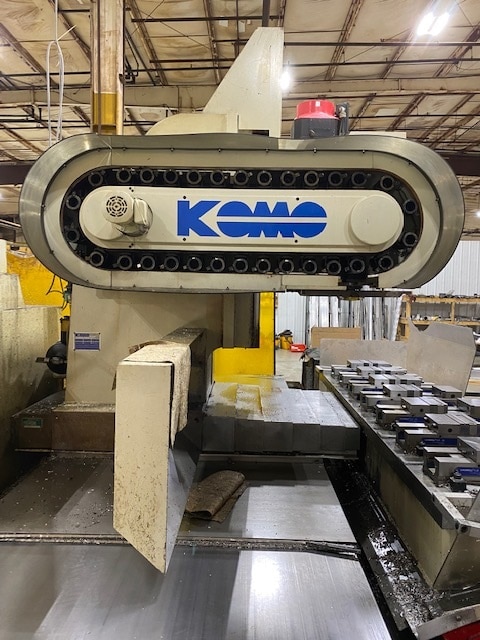

Side Mounted 30 Position Auto Tool Changer
Rigid Tapping
Fixed Table Machining
Machine Manuals
