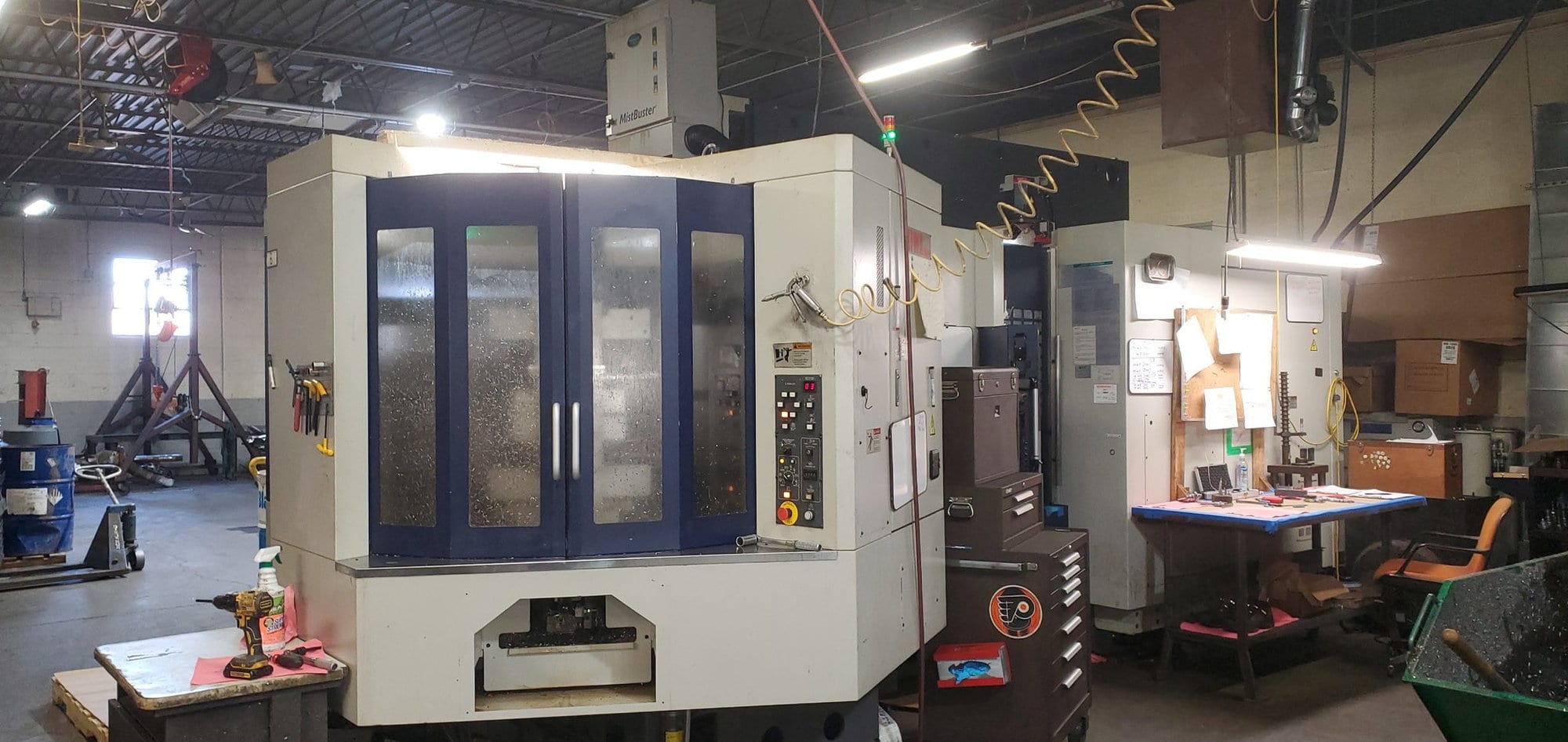

Kiwa KH-4500 HMC, 2017 – 15,000 RPM, 8 Pallets, 4th Axis, HP Coolant, 240ATC, Probe, Chip Conveyor, Auto Tool Breakage Detection
$284,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 25.2
Y-Axis Travel: 25.0
Z-Axis Travel: 26.8
Pallet Surface to Spindle Center: 2.0-26.0 (50-660) in (mm)
Pallet Center to Spindle Nose: 3.9-30.7 (100-780) in (mm)
Pallet Size: 15.7×15.7 (400×400) in (mm)
Pallet Load Capacity: 1100 (500) lbs (kg)
Max. Workpiece Size: ø 29.5 (750) for 2/6APC / ø 25.6 (650) for 8APC in (mm)
Pallet change Time: 7.6 sec
X-Axis Rapid Traverse: 3149ipm
Y-Axis Rapid Traverse: 3149ipm
Z-Axis Rapid Traverse: 3149ipm
4Th Axis: 66 rpm
Cutting Feed (X/Y/Z): 1181 (30) in/min (m/min)
Spindle Power: 50 (37.5) HP
Spindle Speed: 15,000RPM
Spindle Taper: Cat 40
Number of Tools: 240
Machine Control: FANUC 31iB
Equipped With:

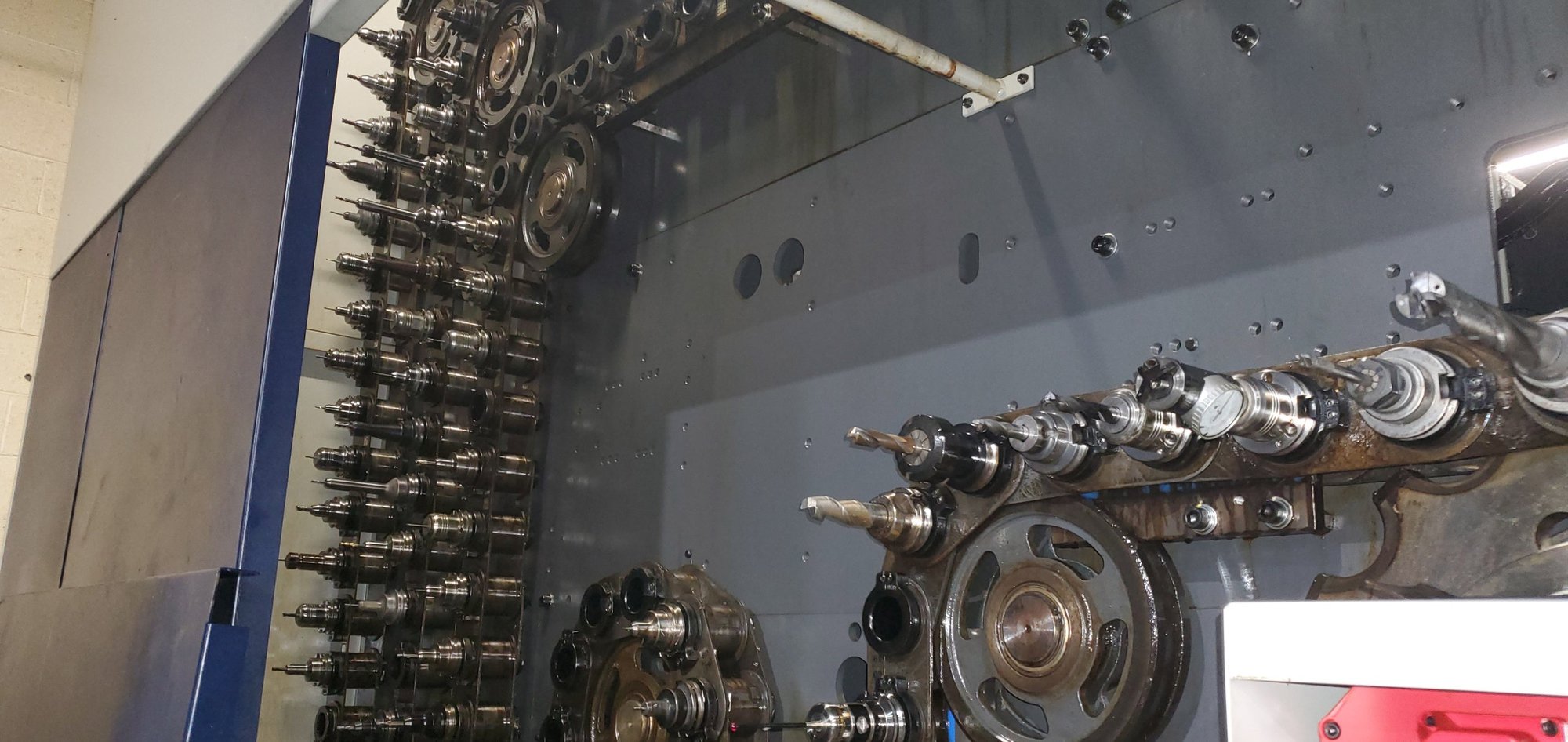

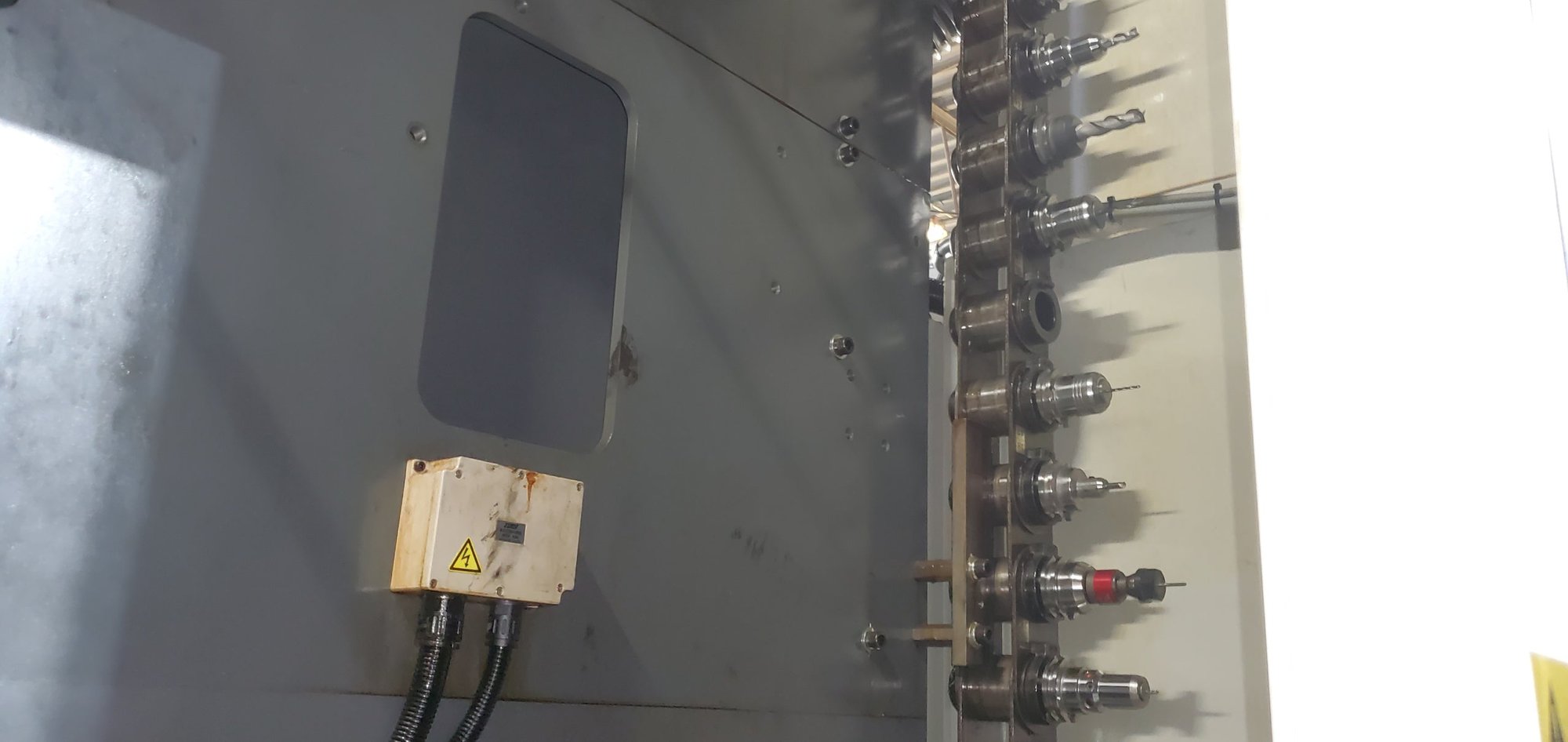

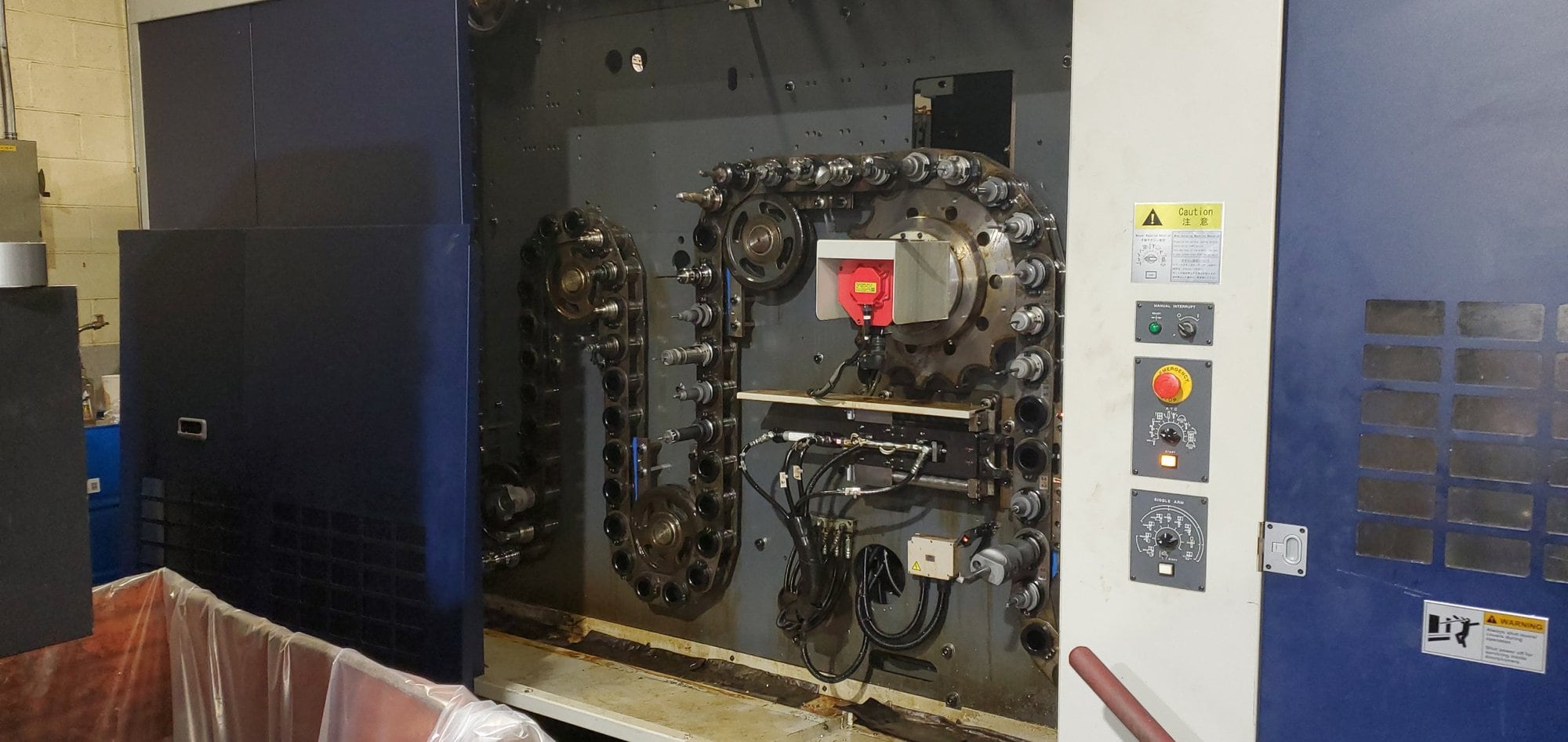

240 ATC

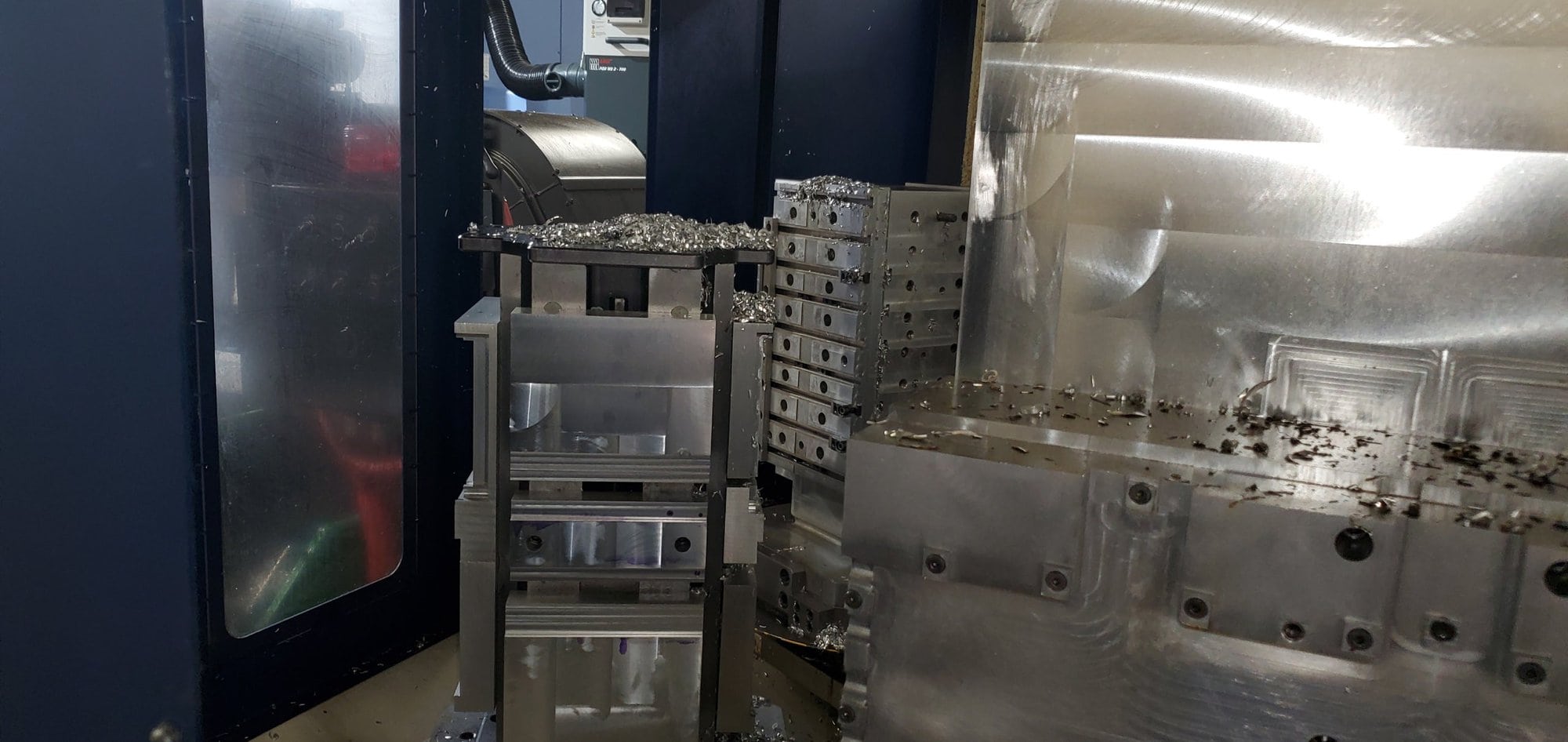

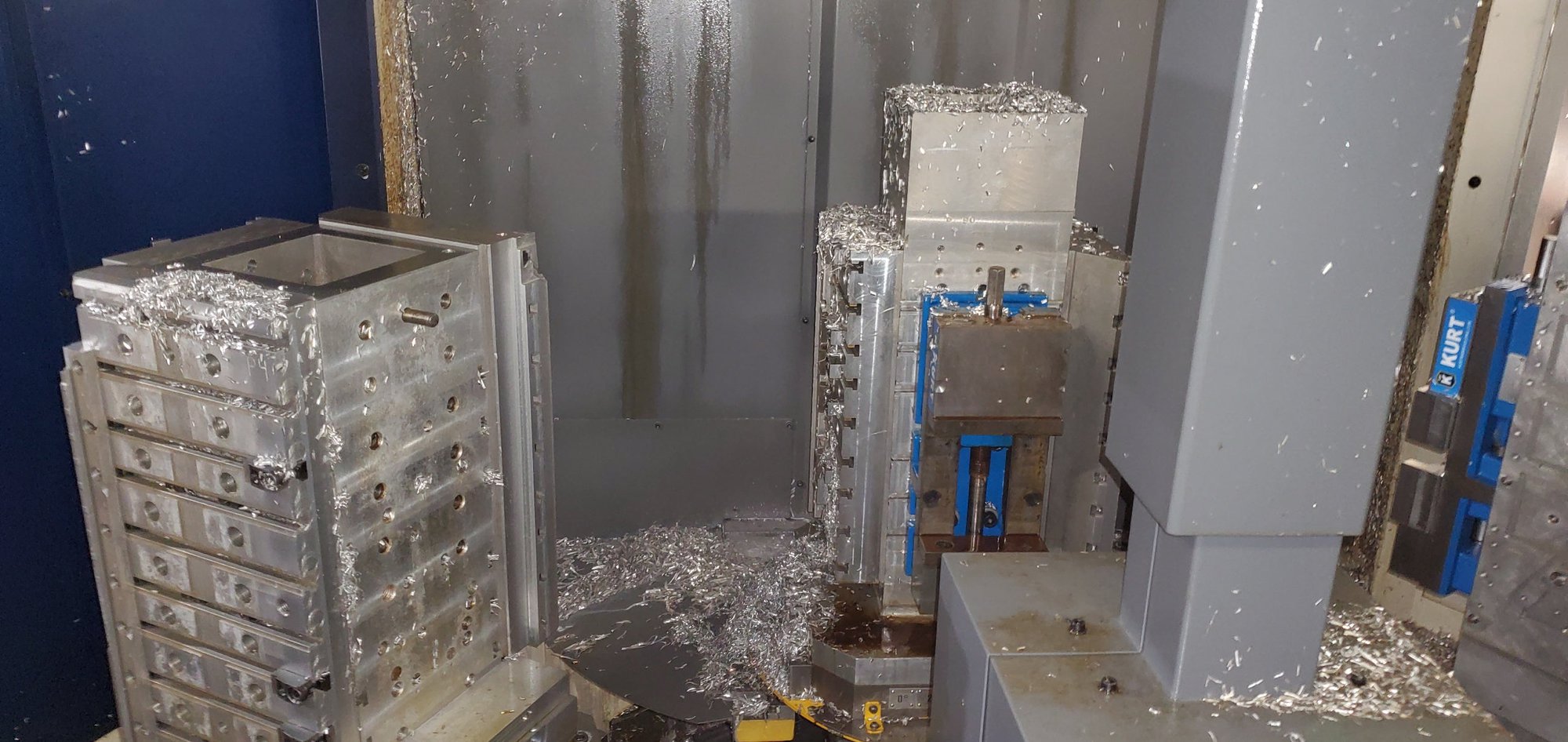

8 Pallet Pool
Part Program to 8mb
Additional Custom Common Variable
LNS Microfine Chip Conveyor
OMP-400 Renishaw Probe
Chipblaster J30 HP Coolant Thru Spindle (1000PSI)
Automatic Tool Breakage Detection
