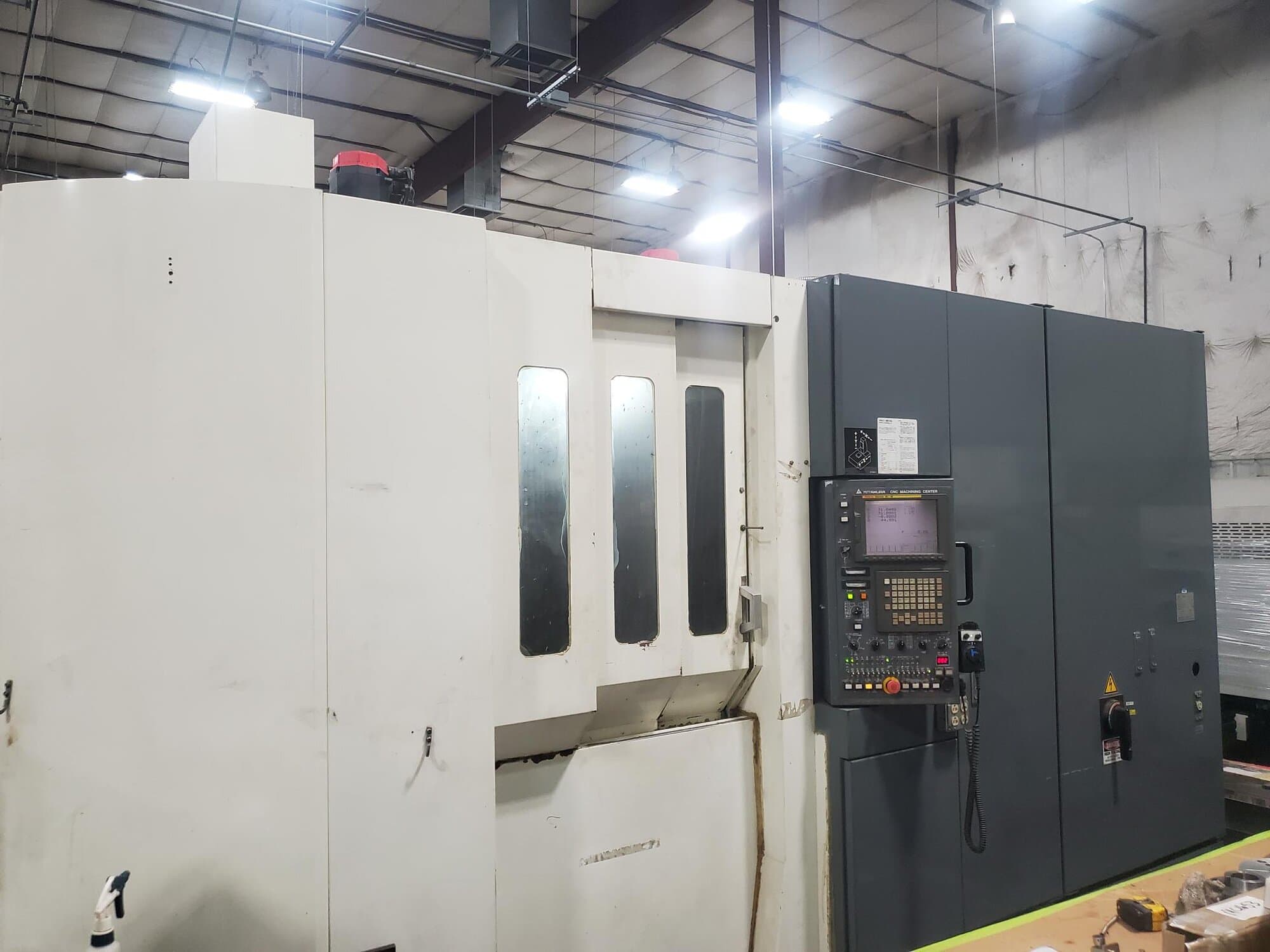

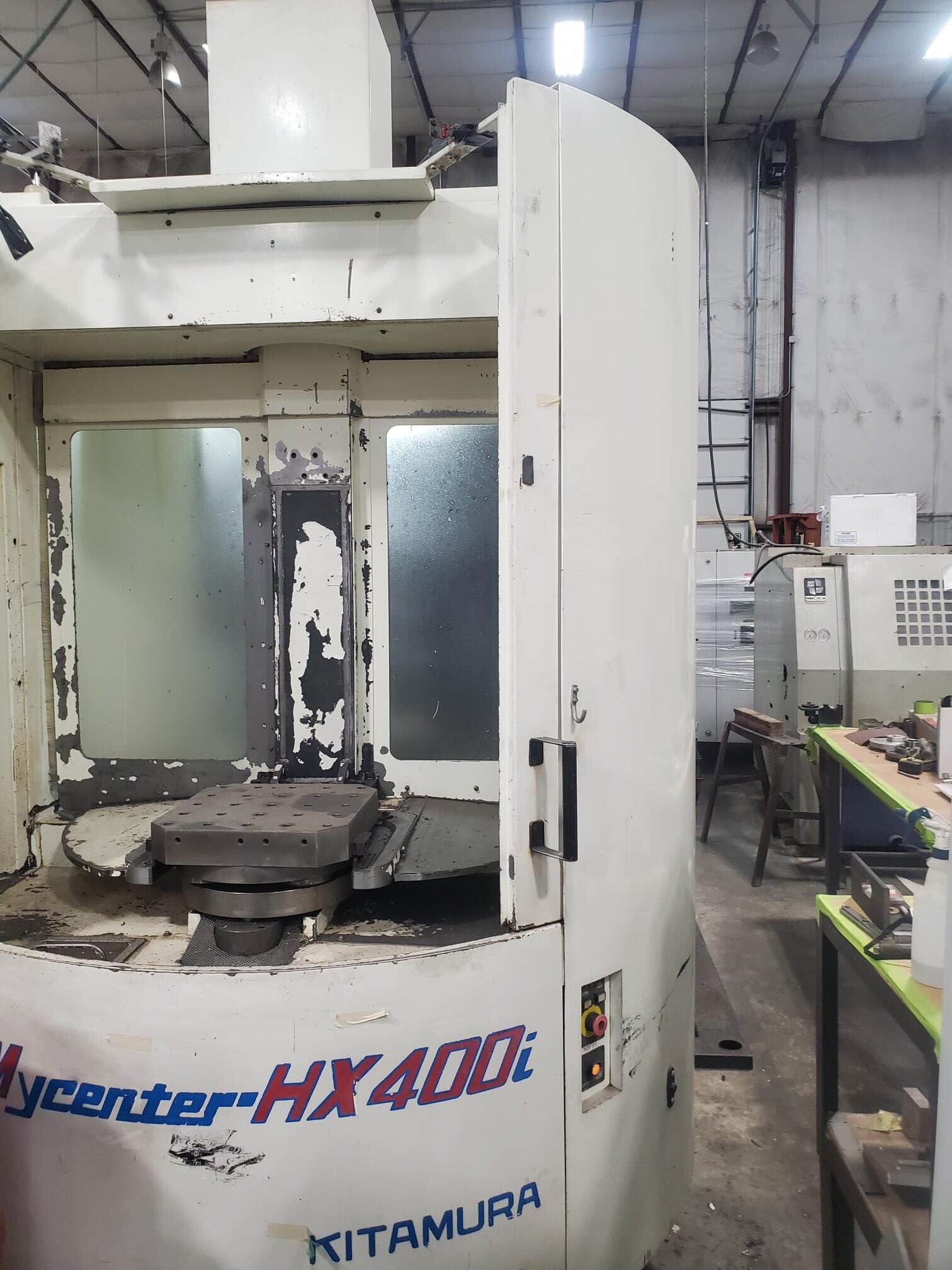

Kitamura MyCenter HX400i CNC HMC, 2000 – Fanuc Control, 4th Axis

X Axis: 28.93″
Y Axis: 24.01″
Z Axis: 24.01″
B Axis: 0.001° (Full 4th)
Table Size: 15.7″ x 15.7″
Max Weight: 882 lbs
Max Diameter: 27.5″
Max Height: 37.8″
Index Time: 6 seconds
Taper: CAT 40
Max Speed: 13,000 RPM
Power: 30 HP
Torque: 76.7 ft-lbs
Rapid X/Y: 1968 IPM
Rapid Z: 1968 IPM
Cutting: 984 IIPM
Capacity: 50 Tools
Taper: 40
Max Size: 5.9″
Max Length: 17.7″
Max Weight: 22 lbs
Change Time: 0.9 seconds
Air: 90 psi, 4 scfm
Power: 45 kVA, 205-220V, 3-Phase
Dimensions: 165″ x 105″ x 120″
Weight: 28,700 lbs

Equipped With:

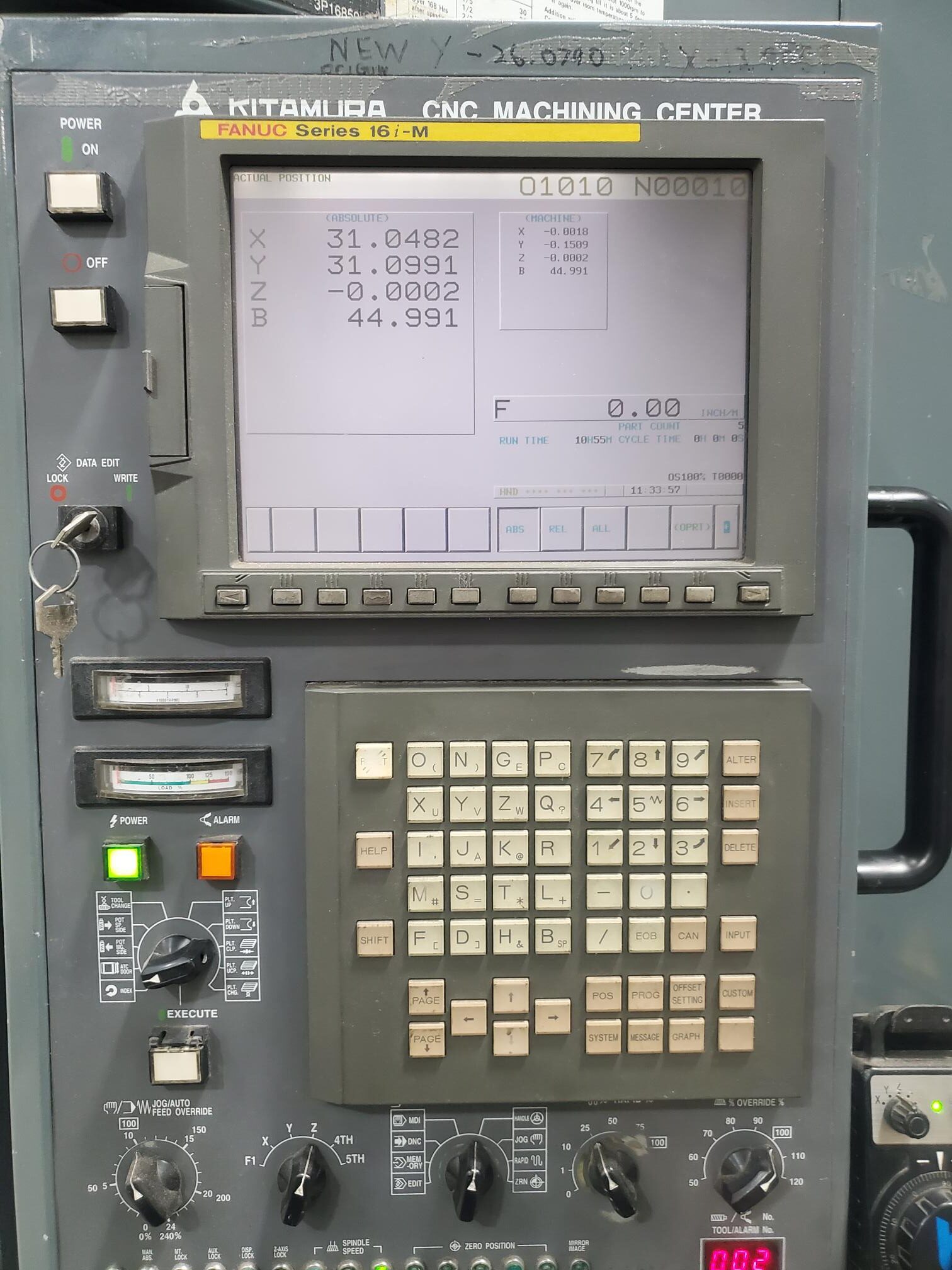

Fanuc 16iM CNC Control

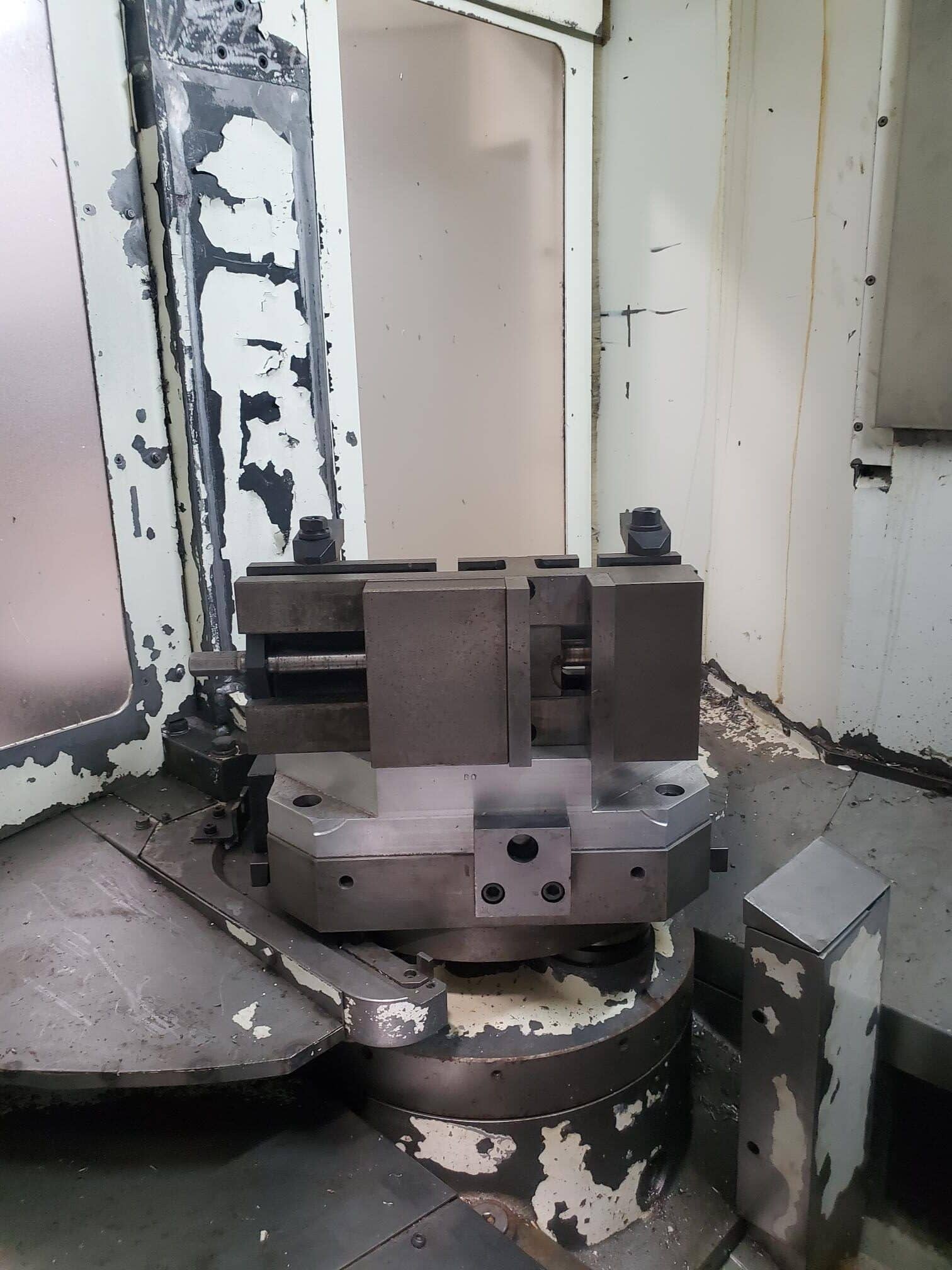

Full 4th Axis
