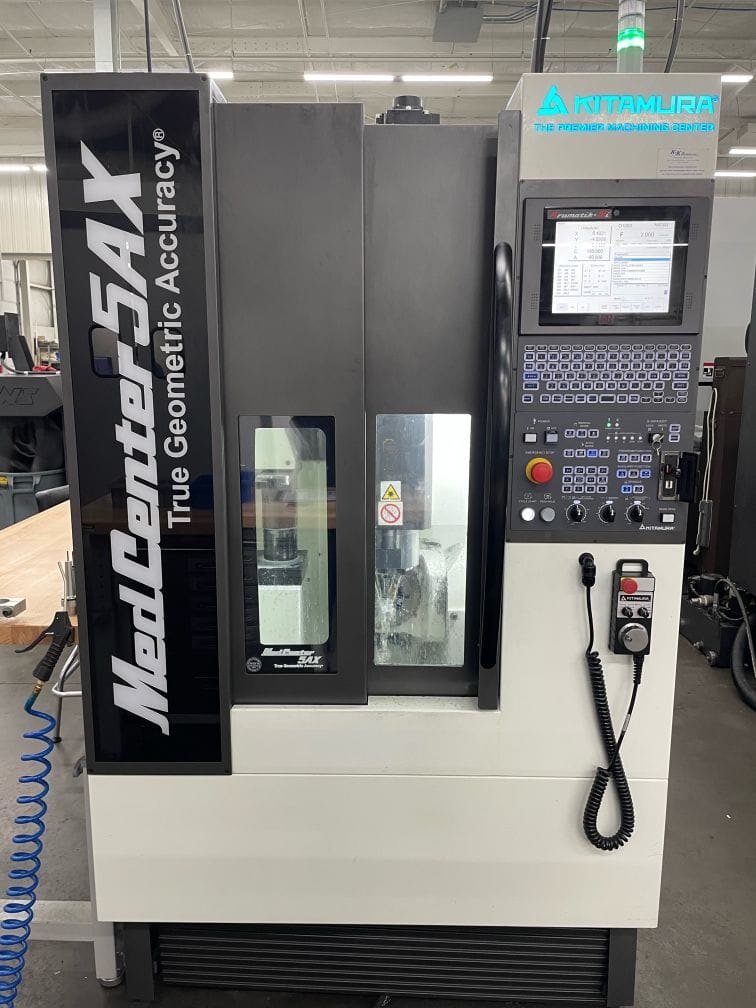

Kitamura MedCenter 5AX CNC UMC, 2020 – 30k Spindle, Probs, TSC, TSA, UNDER POWER
$189,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size 6.7” round dia.
Travel (X, Y, Z) 10” x 13” x 13”
Travel (A, C) -120~+120 Deg/0 ~ 360 Deg
Spindle Taper HSK- E40
Spindle Speed 300~30,000rpm
Tool Storage Capacity 40 Pcs.(120 Optional)
Tool Change Time (T-T) 1.5 Sec.
Rapid Feed (X, Y, Z) 2362ipm (60m/min
Rapid Feed (A, C): 36,000 deg. /min (100rpm), 72,000 deg./min (200rpm)
Power Requirement: 30KVA
Control Arumatik-Mi
Equipped With

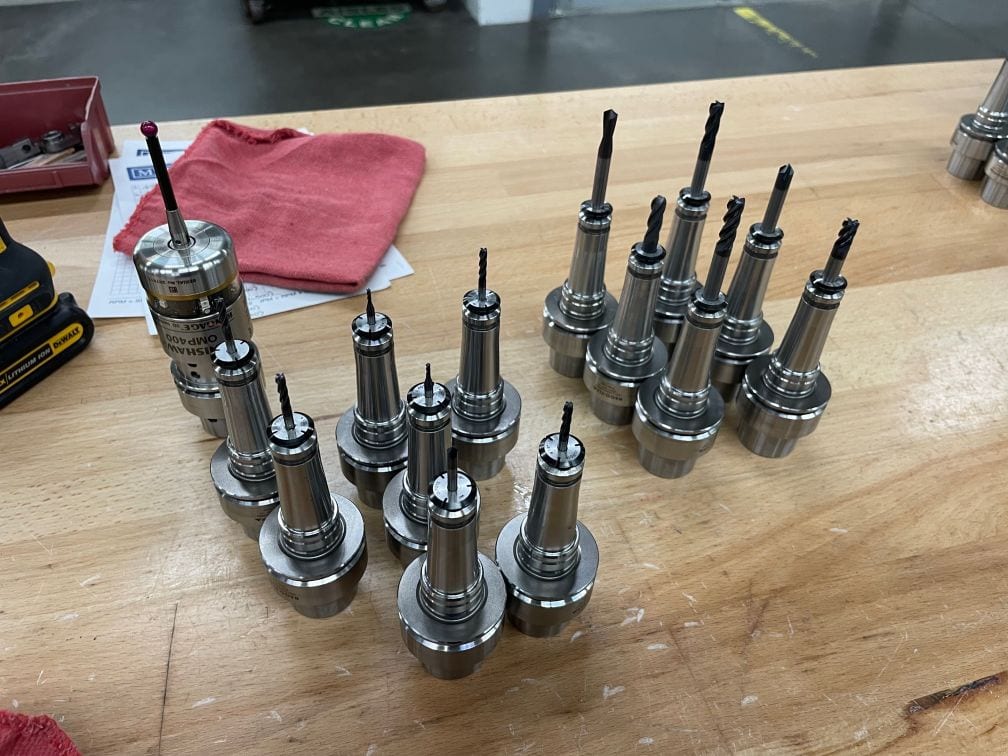

Renishaw Work Offset Probing System
Renishaw Tool Length & Diameter Probing System
Through Spindle Coolant
Through Spindle Air
Air At Spindle
CAMPlete True Path
10.4″ Touch Screen Control
