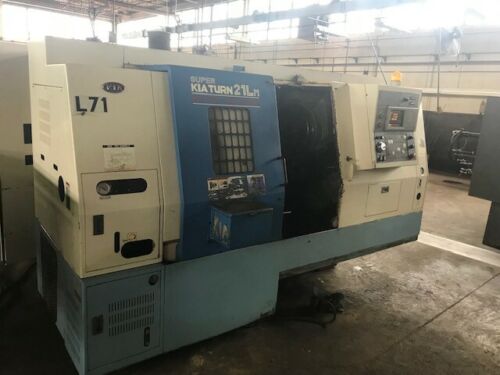

Kia Super Kia Turn 21L CNC Lathe, 2002 – Bar Feeder, Tailstock
$17,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Machining Diameter: 13.78”
Maximum Machining Length: 20.8″
Swing Over Bed: 21.65”
Swing Over Cross Slide: 13.78”
Spindle bore: 3.00″
Spindle Motor: 15/20 HP
Spindle Speed: 4,000 RPM
X Axis Travel: 8.27″
Z Axis Travel: 21.5″
X & Z Axis Traverse: 1,417 IPM
Bar capacity: 2.60″

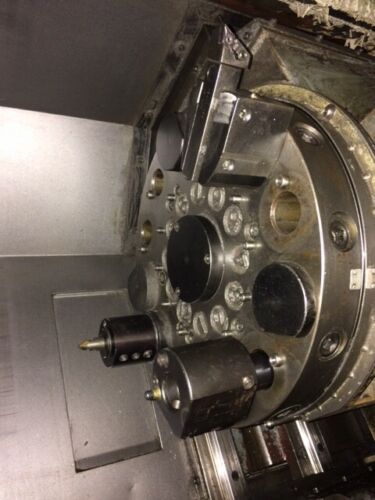

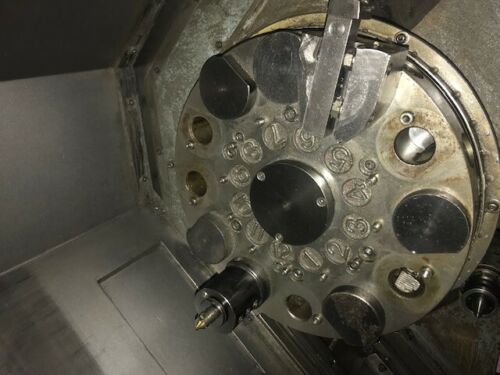

Turret: 12 Positions
EQUIPPED WITH:

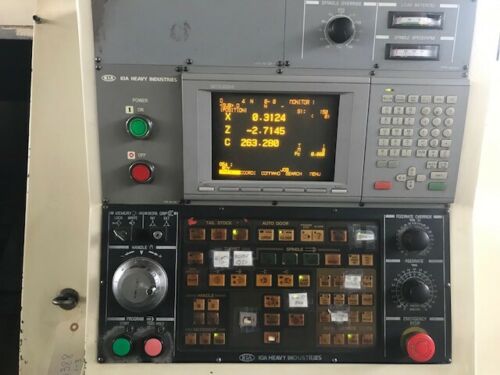

Mitsubishi 520 Control

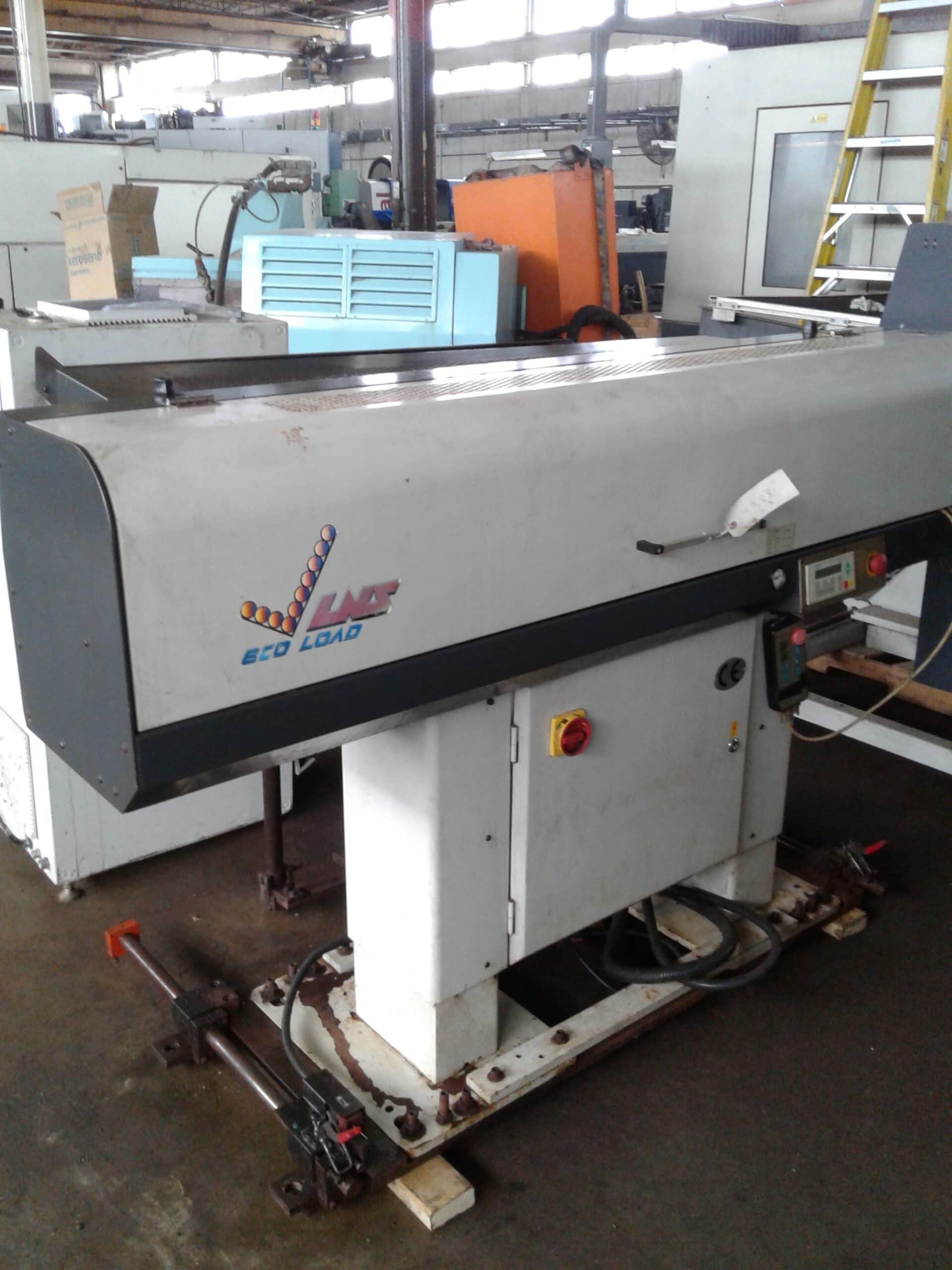

LNS Bar Feeder

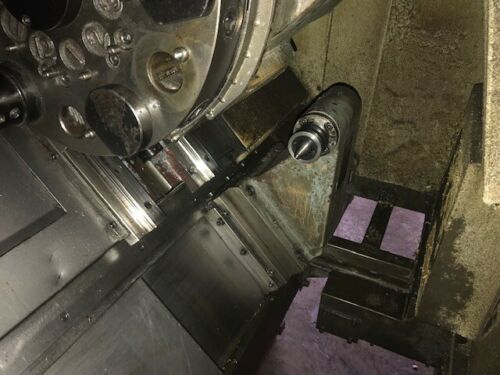

Programmable Tailstock

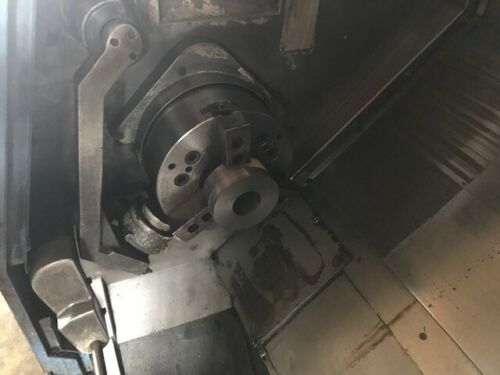

3 Jaw 10″ Chuck
Parts Catcher
Tool Presetter Arm
2 Live Tool Holders
12 Assorted Tool Holders
