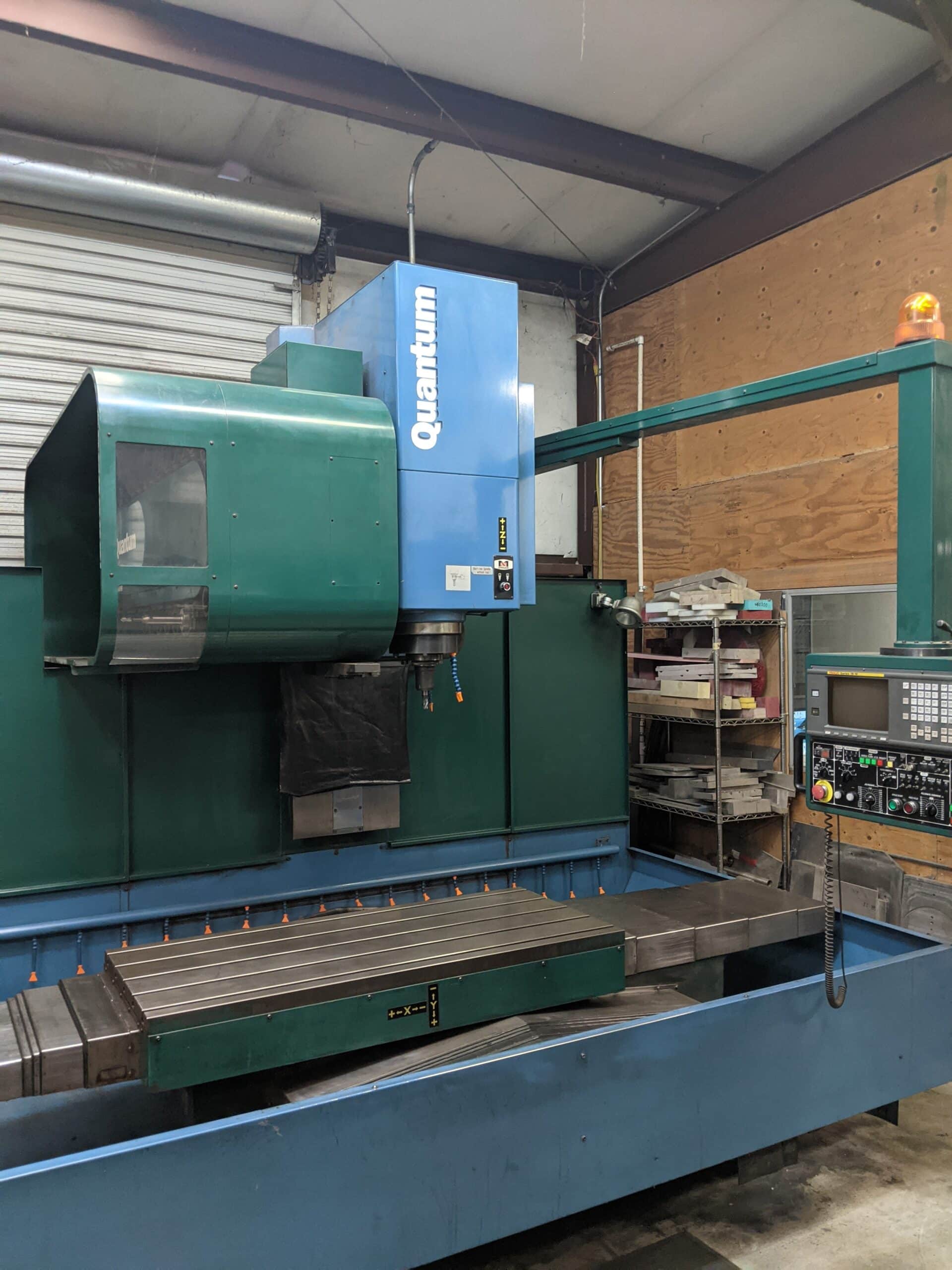

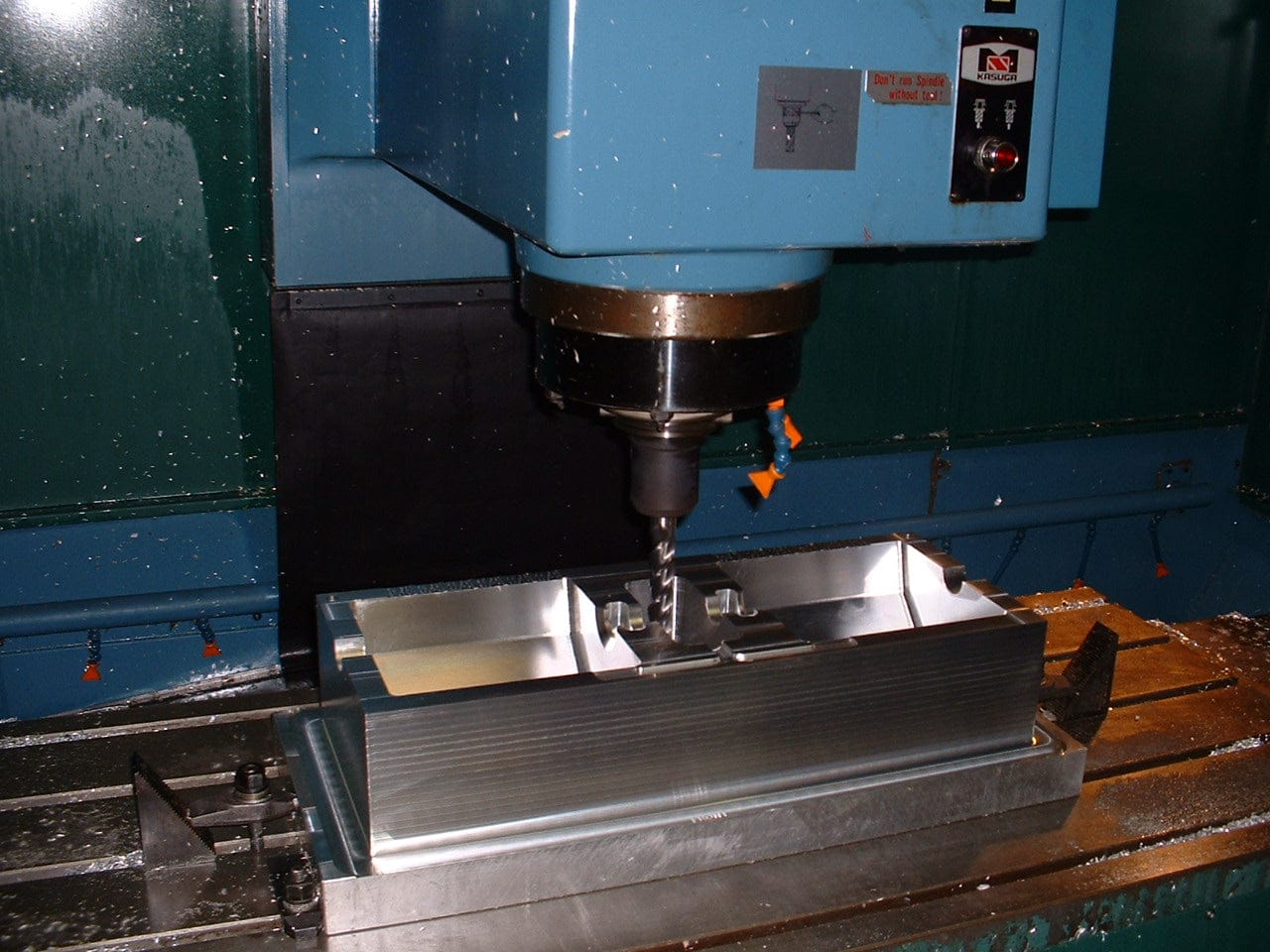

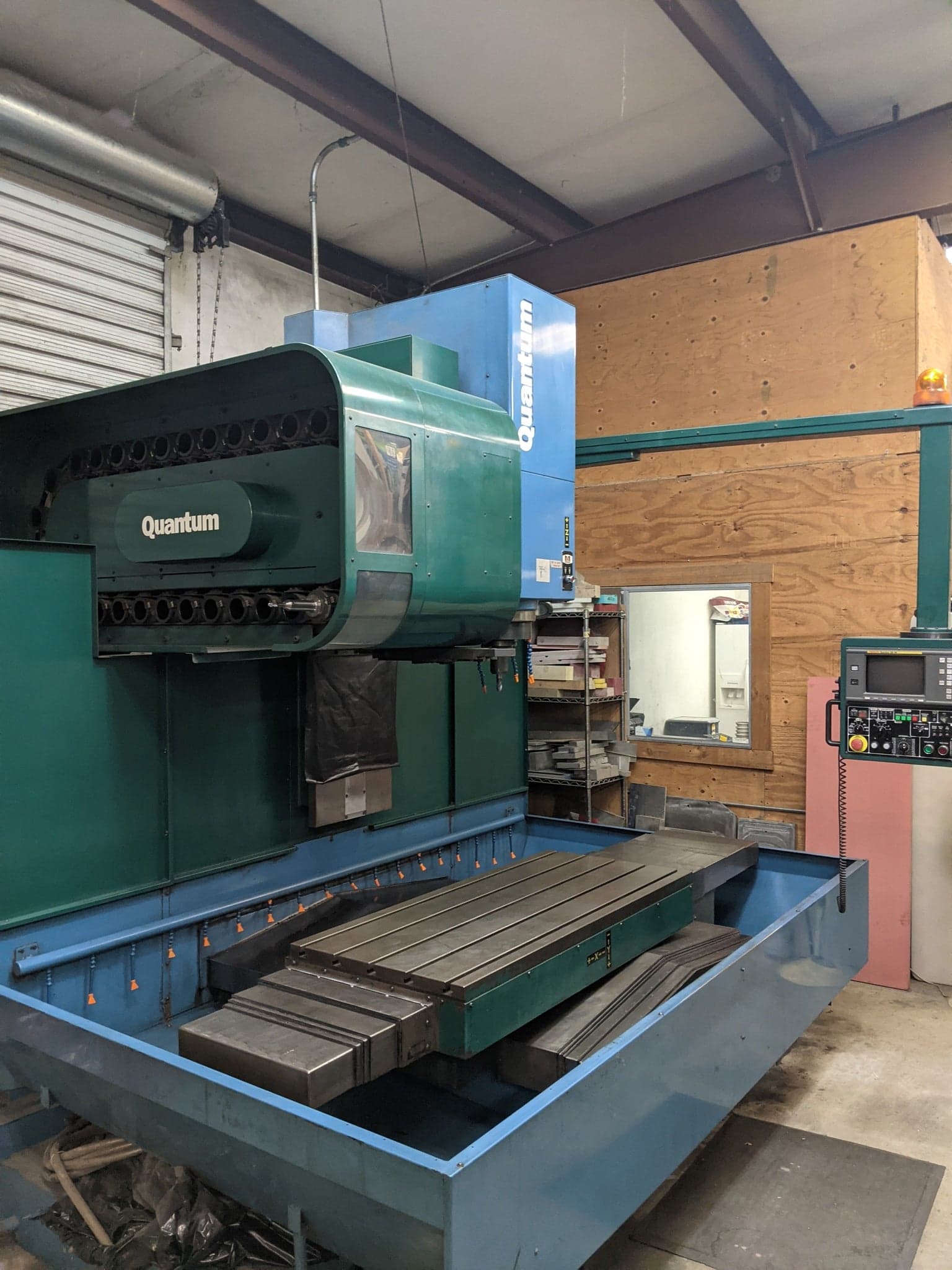

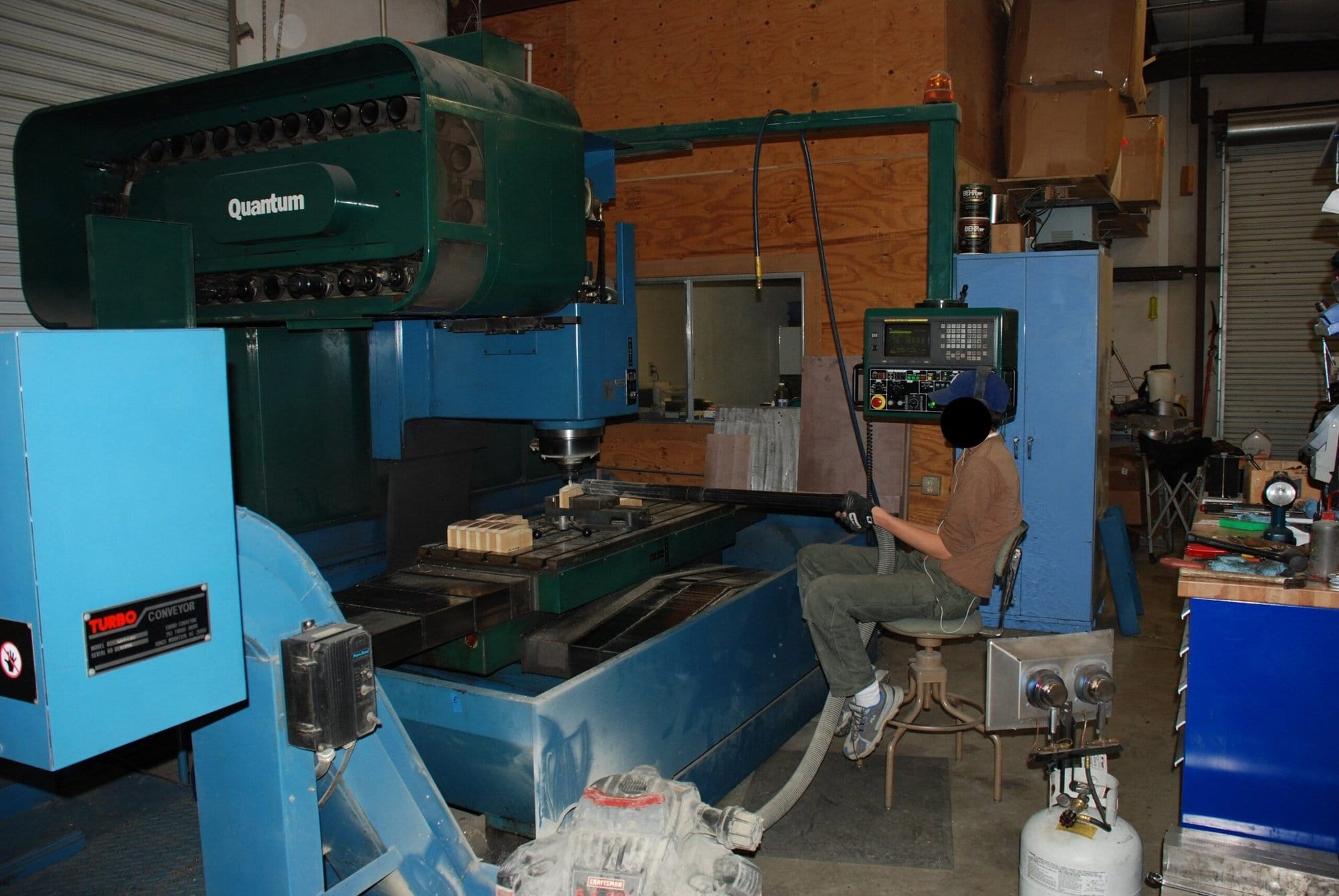

Kasuga Quantum Q-1000V CNC Mill, 1997 – Coolant Thru Ready, Chip Conveyor, 30-Tool Changer
$18,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X-Axis: 42″
Y-Axis: 24″
Z-Axis: 25.6″
Rapid Traverse Rates: 787 Inch Per Minute
Cutting Feed Rates: 590 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.3″ – 31.9″
Table:
Length: 55″
Width: 23.6″
Max Weight on Table: 2200 lbs
Spindle:
Taper Size: CAT 50
Speed Range: 50 – 6,000 RPM Geared Head
Spindle Power: 25 HP
Max Torque: 90ft-lb @ 2000RPM
Automatic Tool Changer:
Capacity: 30
Max Tool Weight: 33 lbs
Max Tool Dia: 9″
Max Tool Length: 16″
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions:
Weight: 19,000 lbs
Spindle replaced in 2010 by Selway
Equipped With:
Coolant Thru Ready
Chip Conveyor
30-Tool Changer
Rigid Tapping
All specifications are assumed to be correct but must be confirmed by purchasing entity
