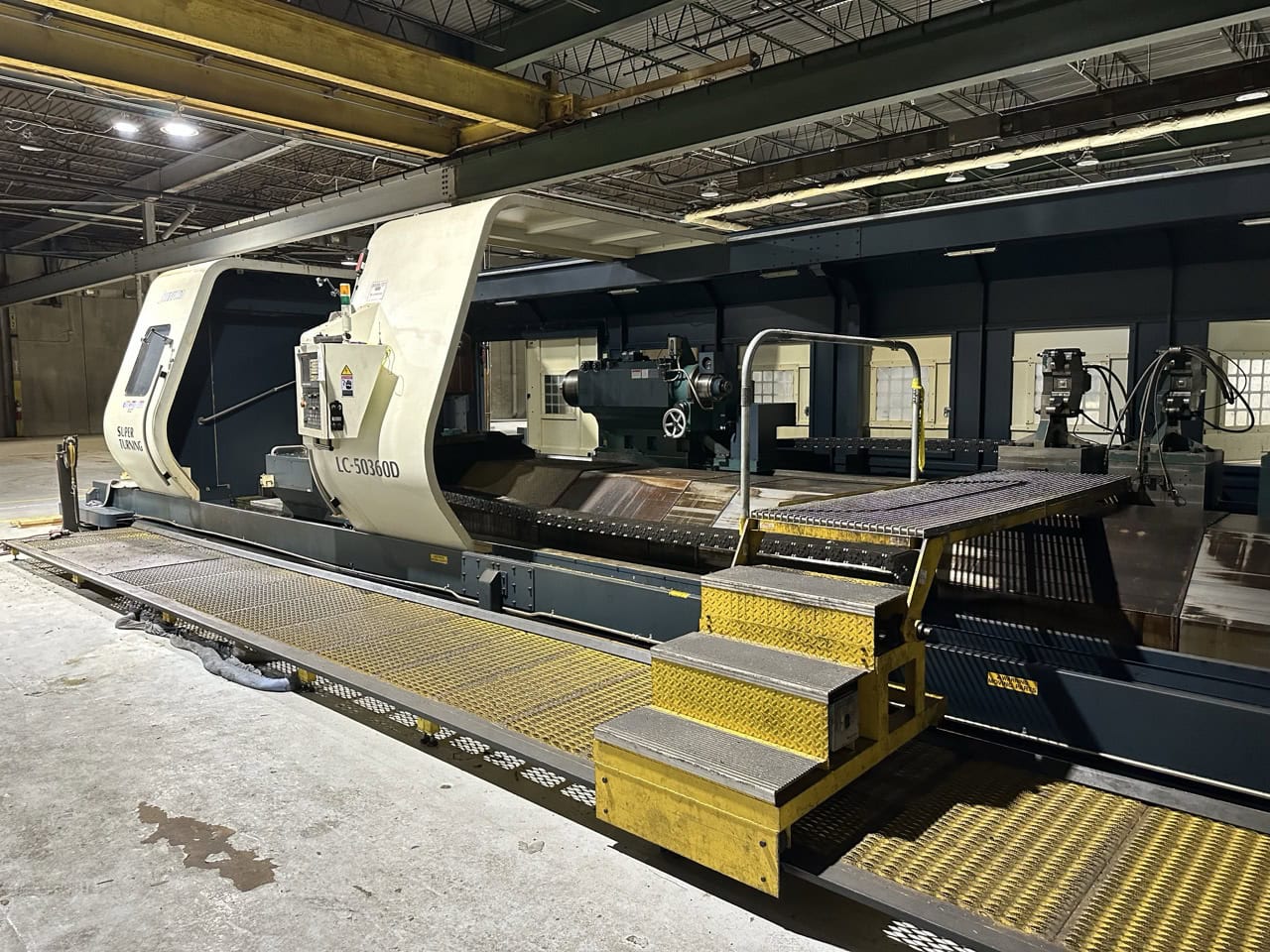

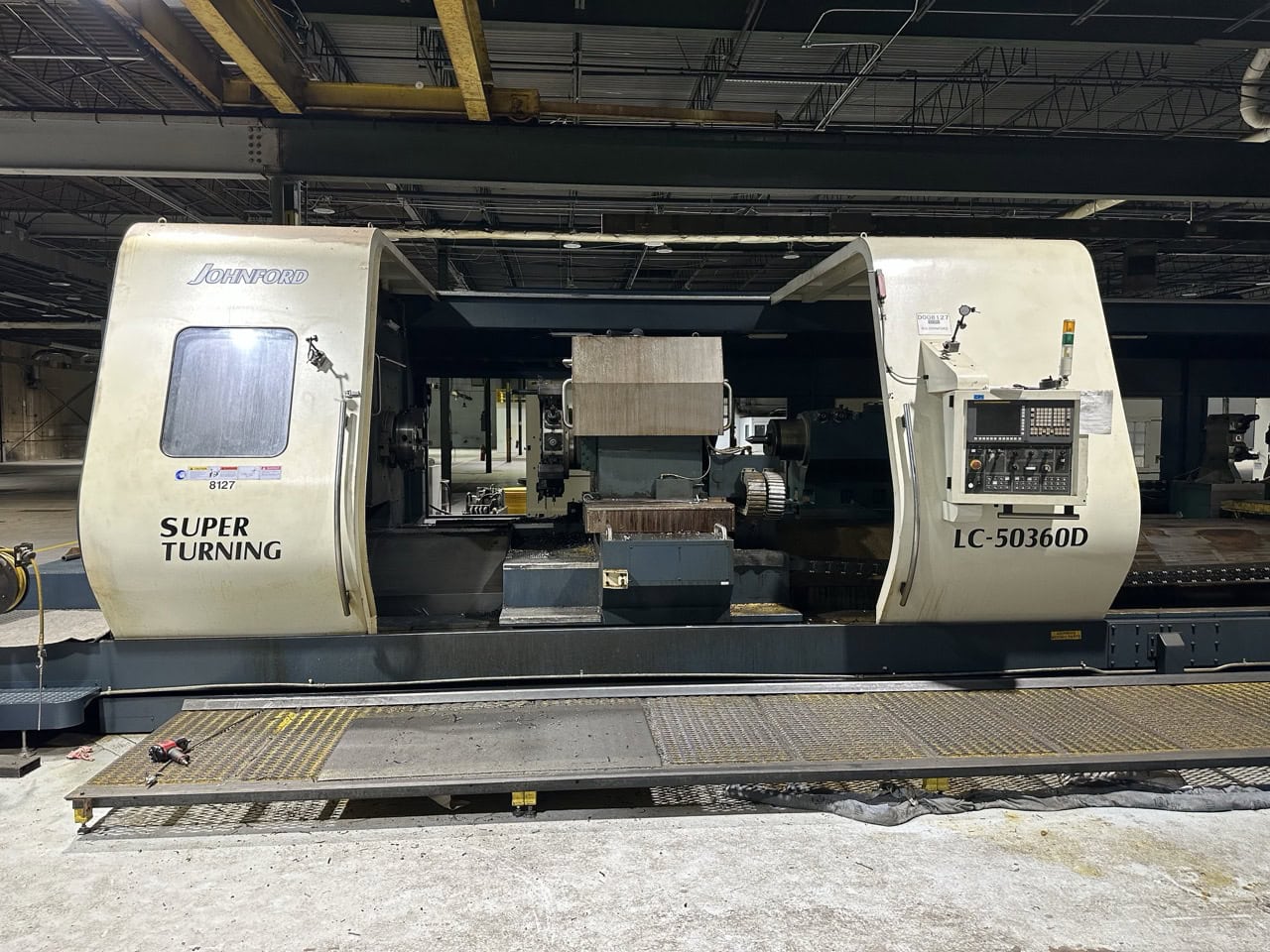

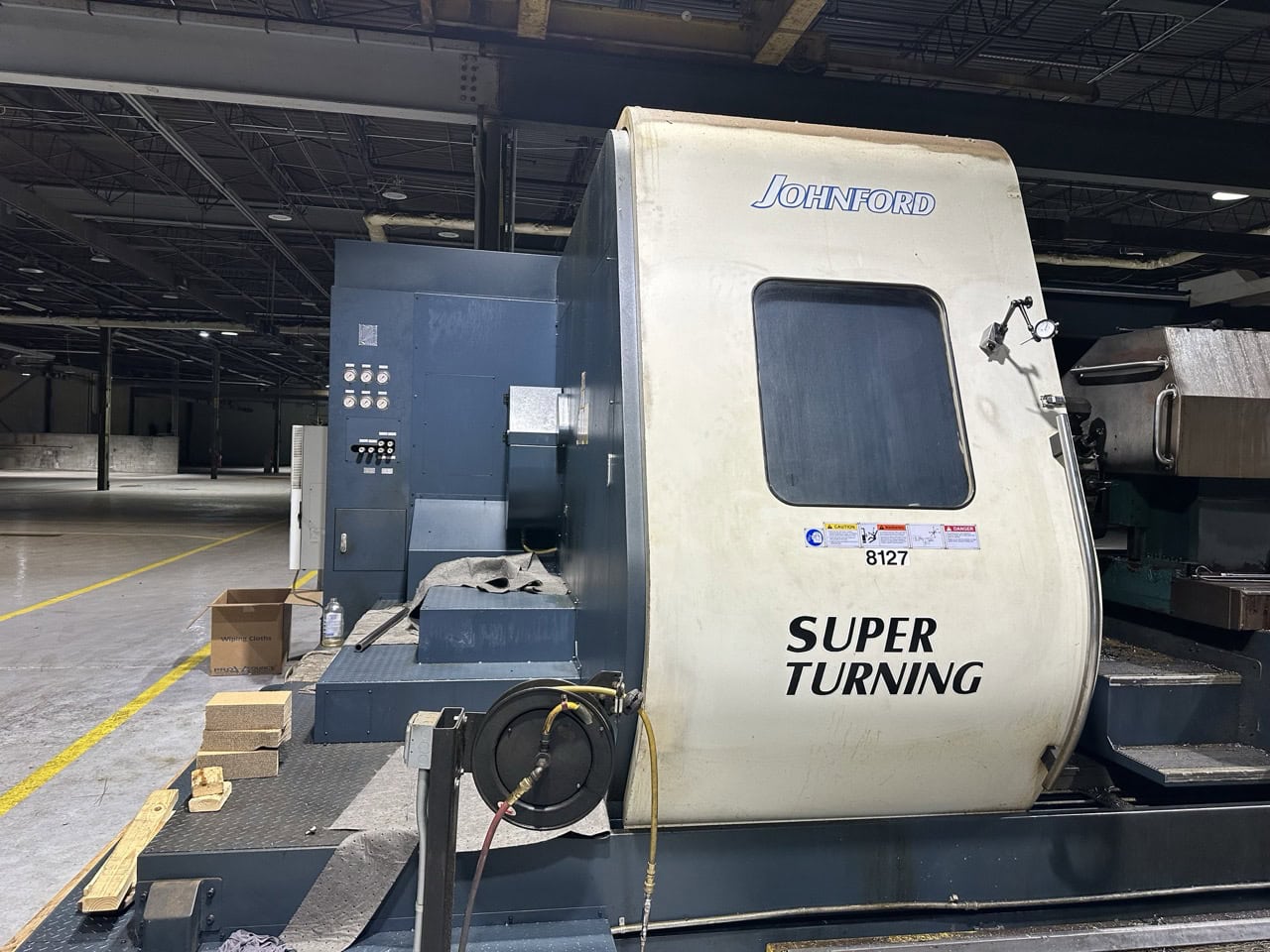

Johnford LC-50360D CNC Turning & Milling Flatbed CNC Lathe, 2016 – Milling, Y-Axis
$299,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Chuck: 20” 3-Jaw Chuck & 20″ 3-Jaw Rear Mounted Chuck
Swing Over Bed Ways: 50.19”
Swing Over Cross Slide: 35.82”
Center Distance: 354”
Bed Width: 45”
Headstock Spindle Bore: 6.92”
Auto Headstock Spindle Speed: 1,000 RPM
Headstock Bearing Diameter: 9.44”
Turret Positions: 12 Auto-Indexing
Milling Spindle: 4” Y-Axis Travel.
Rotary Spindle Tailstock Quill: 7.87” Quill Diameter.
Quill Travel: 9.84”
Rated Power: 71 kW
Power Supply: 3 ~ 220V, 60Hz
Full Load Current: 250 A
Short-Circuit Current: 65 kA
Equipped With:

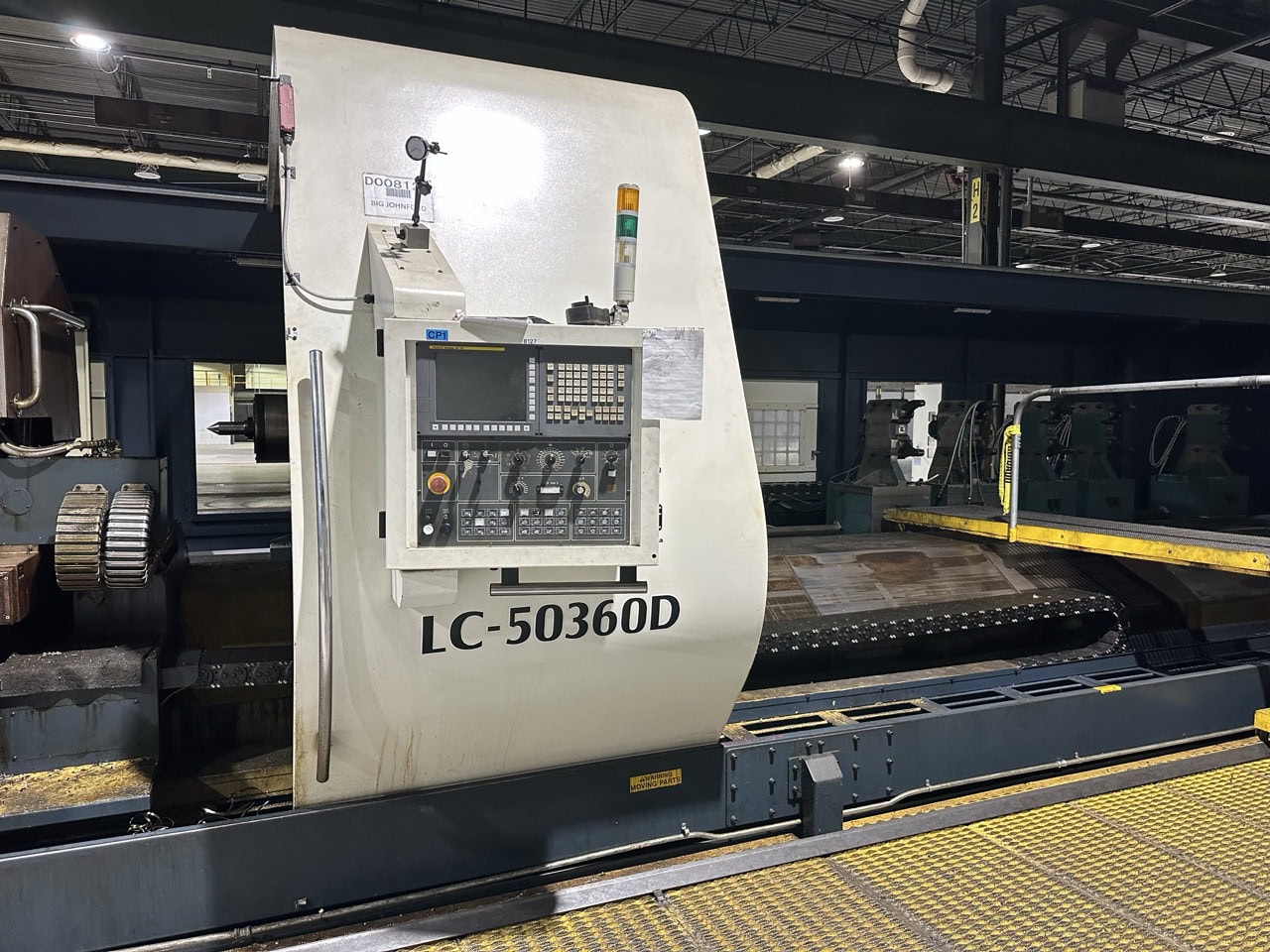

FANUC Oi-TF PLUS CNC Control,
(4) Hydraulic Steady Rests
Enclosure
Coolant

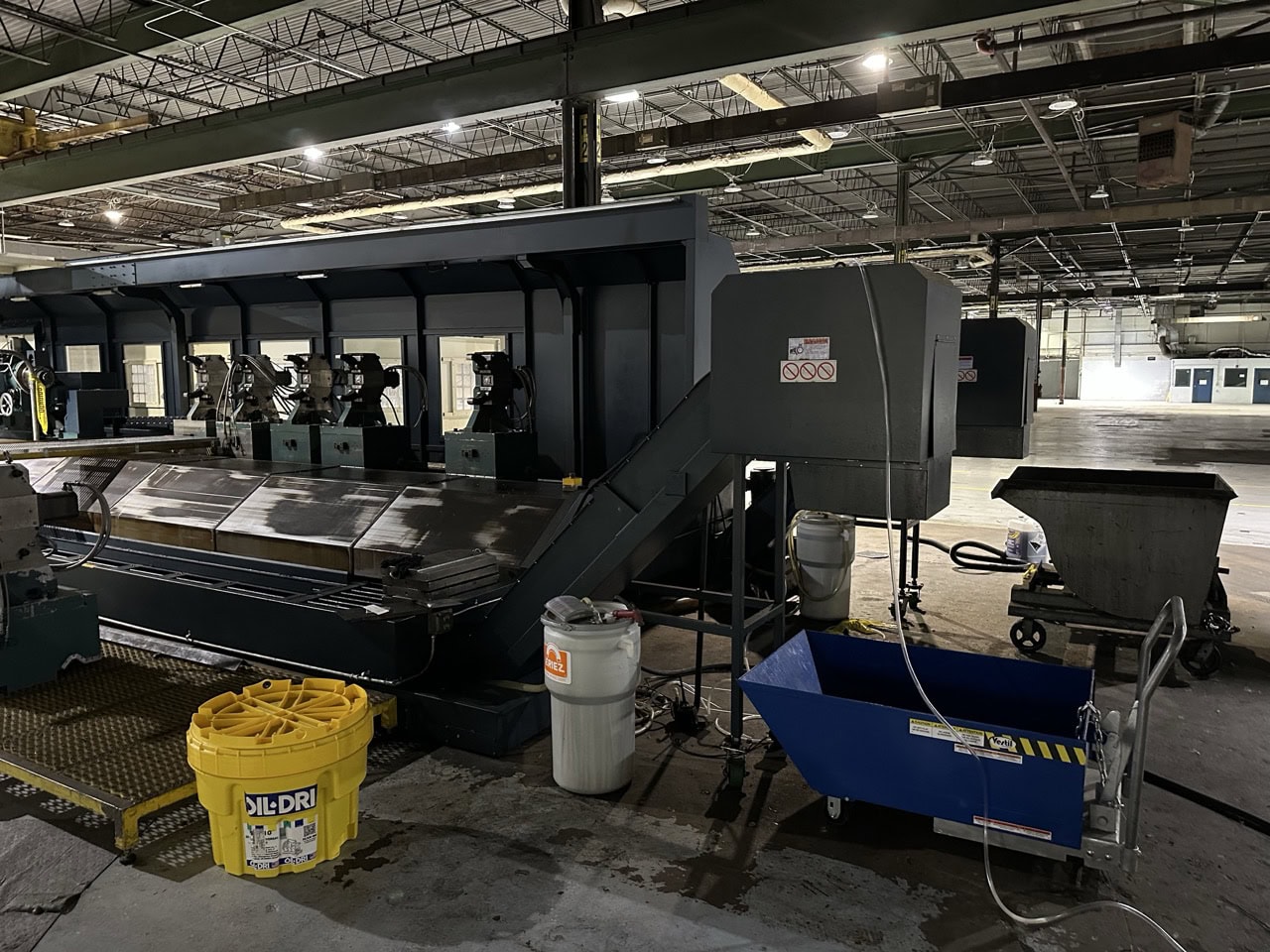

Chip Conveyor
*APPROXIMATELY 2,250 TOTAL HOURS
