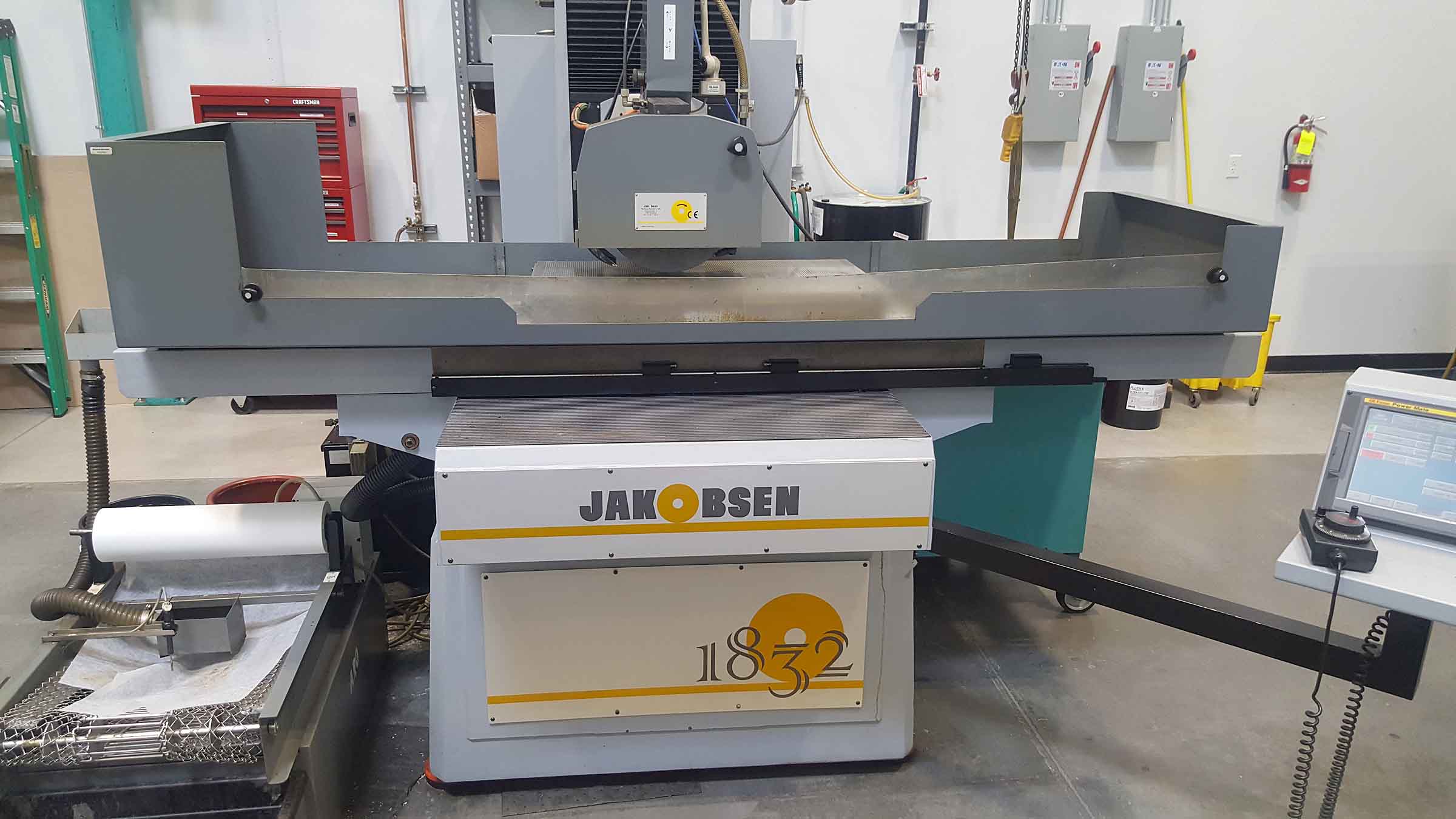

Jakobsen 1832 F CNC Surface Grinder, 2006 – Fanuc, Filter, Dresser & Tooling
$17,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Grinding Capacity: 32″ x 20″
Max Height: 26″
Table Size: 32″ x 18″
Table to Wheel Centerline: 33″
Longitudinal X-Axis Travel: 32.0″
Cross Z-Axis Travel: 20.4″
Vertical Y-Axis Travel: 26.0″
Grinding Wheel Diameter: 14″
Grinding Wheel Width: 2″ (3″ option)
Grinding Wheel Bore: 5″
Motor: 10 HP
Wheel Head Speed: 1,700 RPM @ 60 Hz (1,400 RPM @ 50 Hz)

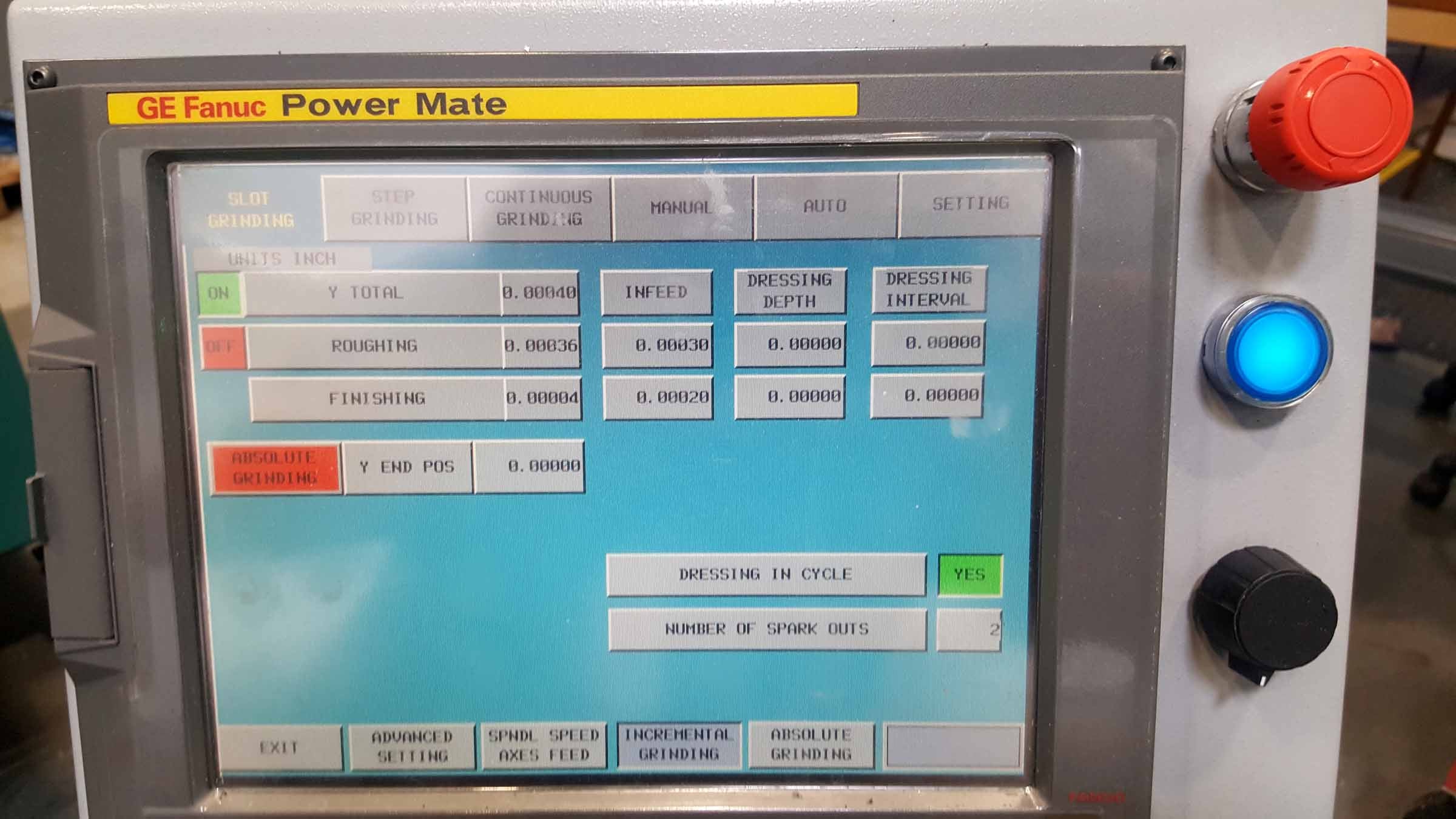

CNC Control: GE Fanuc Power Mate
Approx Machine Dimensions (l x w x h): 157″ x 106″ x 79″
Approx Machine Weight: 10,000 LB
Equipped With:
Fanuc CNC Control

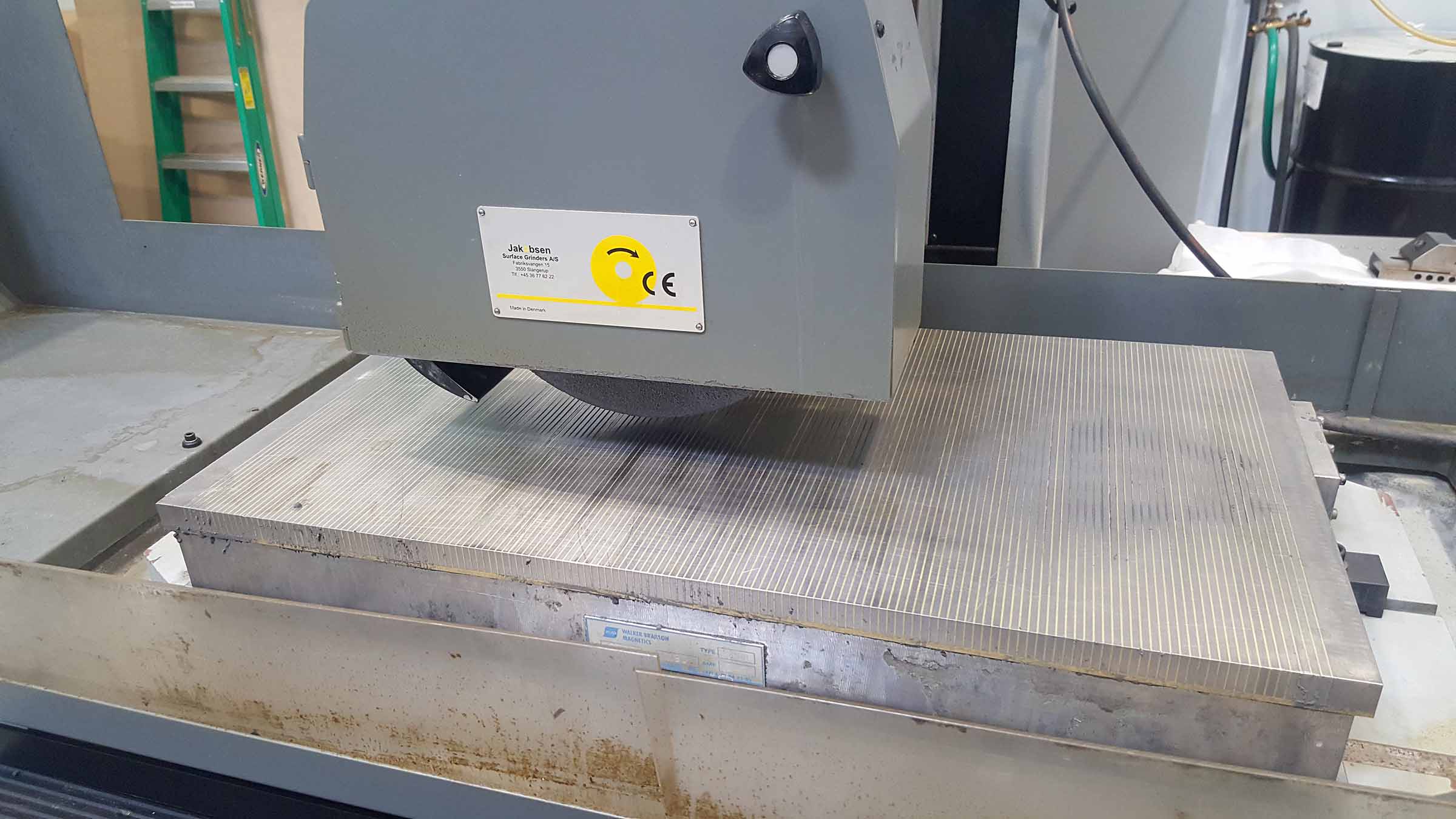

Walker Braillon EPUB Magnetic Chuck

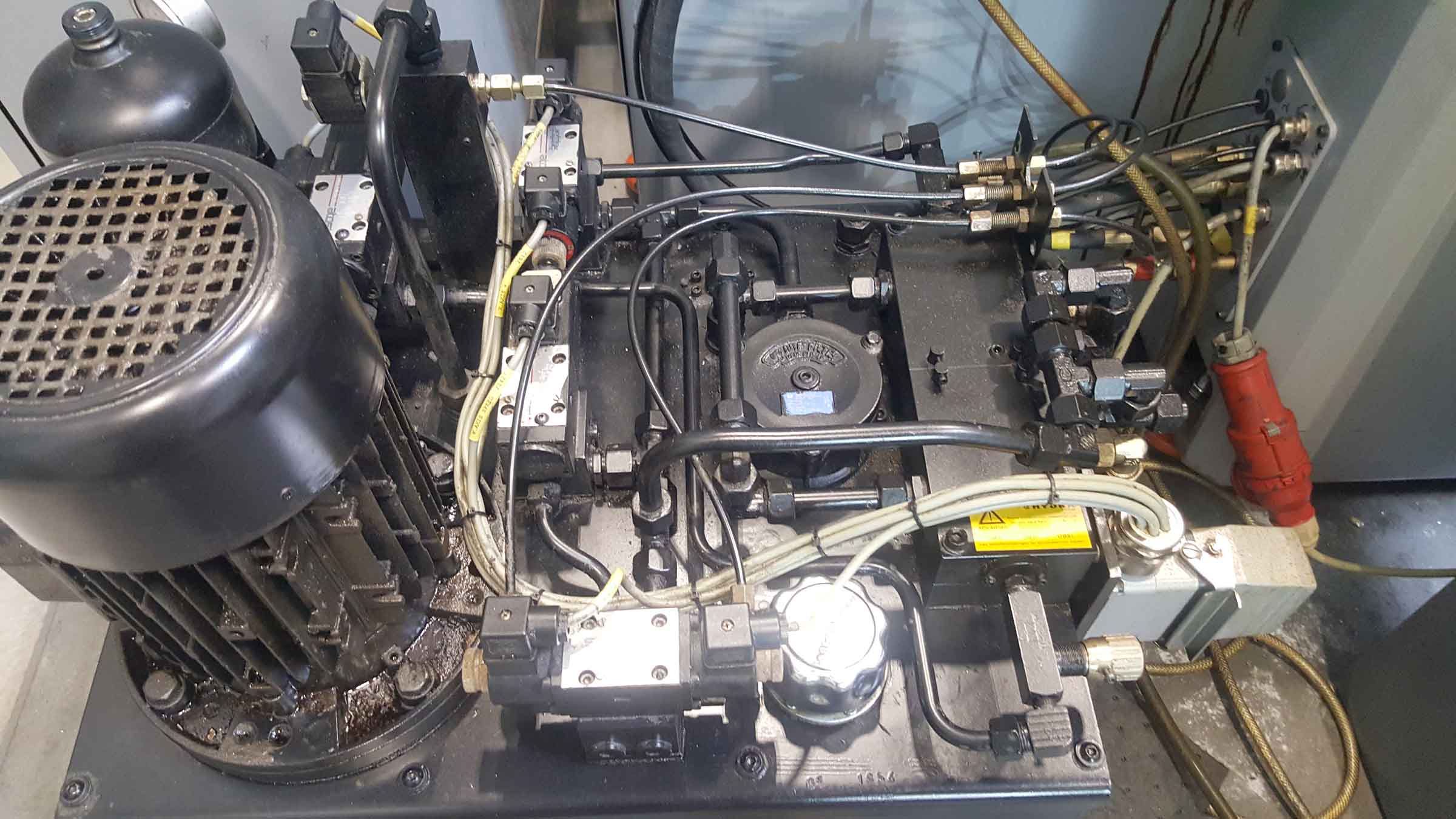

Servo Controlled Hydraulic Dresser
2x Extra Grinding Wheels
Balancing Arbor
Dual Disc Balancing Saddle
Diamonds
Clamp Down Bars

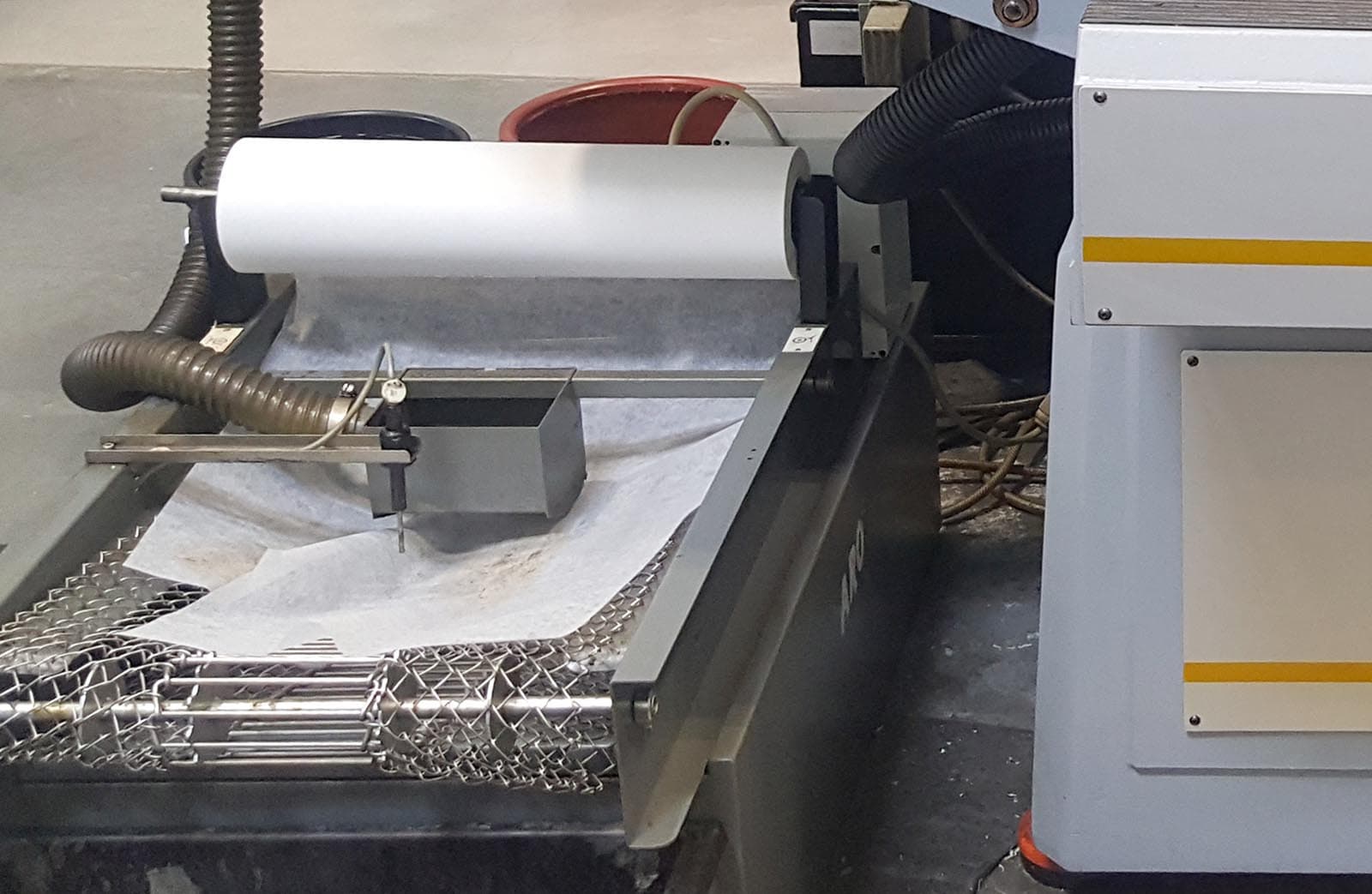

Paper Coolant Filter System
Roll of Filter Paper
Manuals
In very good, working condition. Low hours; has not seen enough use to keep on floor.
