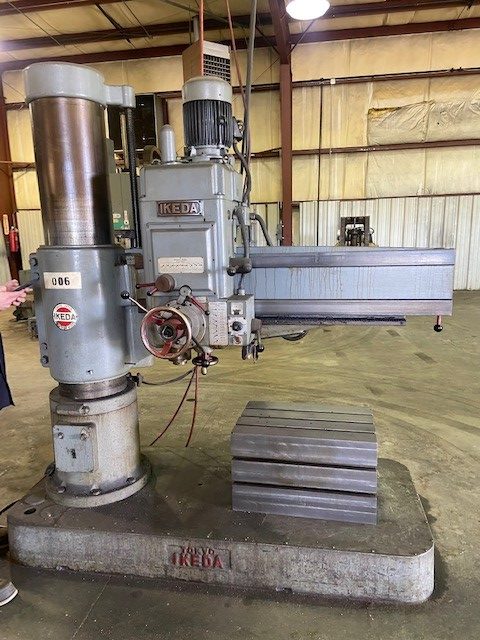

IKEDA RM-1375 Radial Drill, 1978- 4 FT x 14″ Column
$3,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Column To Spindle Base (Min/Max): 12.5″ / 54.5″
Column Diameter: 13-5/8″
Arm Length: 4′
Spindle Stroke: 14.5″
Usable Space Of Base: 57.25″ X 36″
Height Of Base: 8.5 In
Bearing Diameter: 2-5/8 In
Quill Diameter: 3-5/8 In
Spindle Speeds: (12) 30 – 1,500 Rpm
Spindle Taper: Morse No. 5
Spindle Feeds: (9) 0.003″ – 0.40″
Motor: 7.5 Hp
Electrics: 220/440v; 3 Ph
Approx. Machine Weight: 8,000 Lbs.
