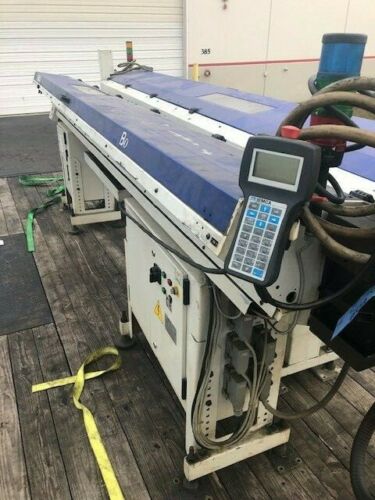

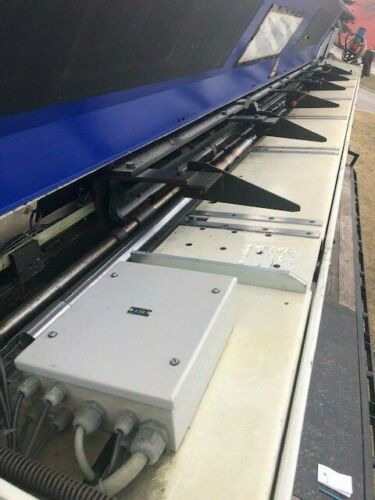

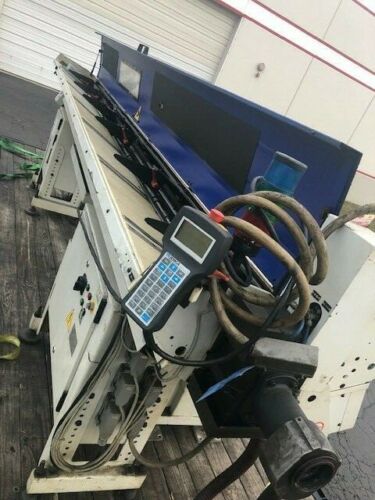

IEMCA BOSS 547/37 Bar Feeder, 2002
$5,300.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Bar Size Capacity: 3/16″-2″(5mm-51mm)
Bar Length Capacity: 12′
Magazine Max. Capacity: 11 Linear inches
Total Power Required: 2 HP
Operating Voltage: 230 Vac 3 phase,60hz
Max. Feed Speed: 29.5″ per Sec.
Return Speed: 31″ per Sec.
Bar Change Time: 20-25 sec. for 12′ Bar
Machine Dimensions (approx.): 156″x24″x58″H
Weight (approx): 2,200 Lbs.
Motor Specifications
3/60/230 Volts
EQUIPPED WITH:
33mm Guide Channel
Automatic Remnant Retract
Fixed Headstock Type
Pendant Control
