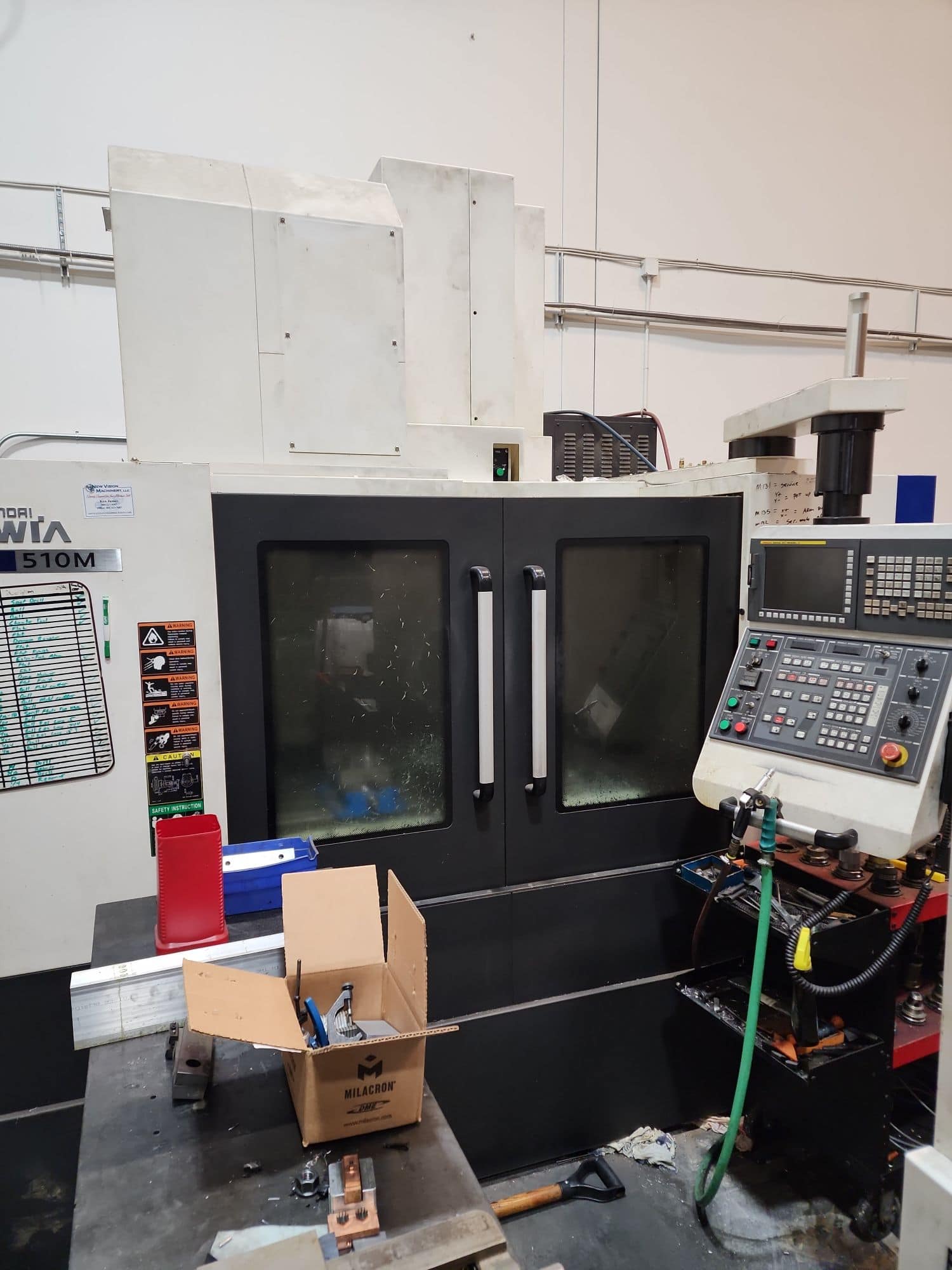

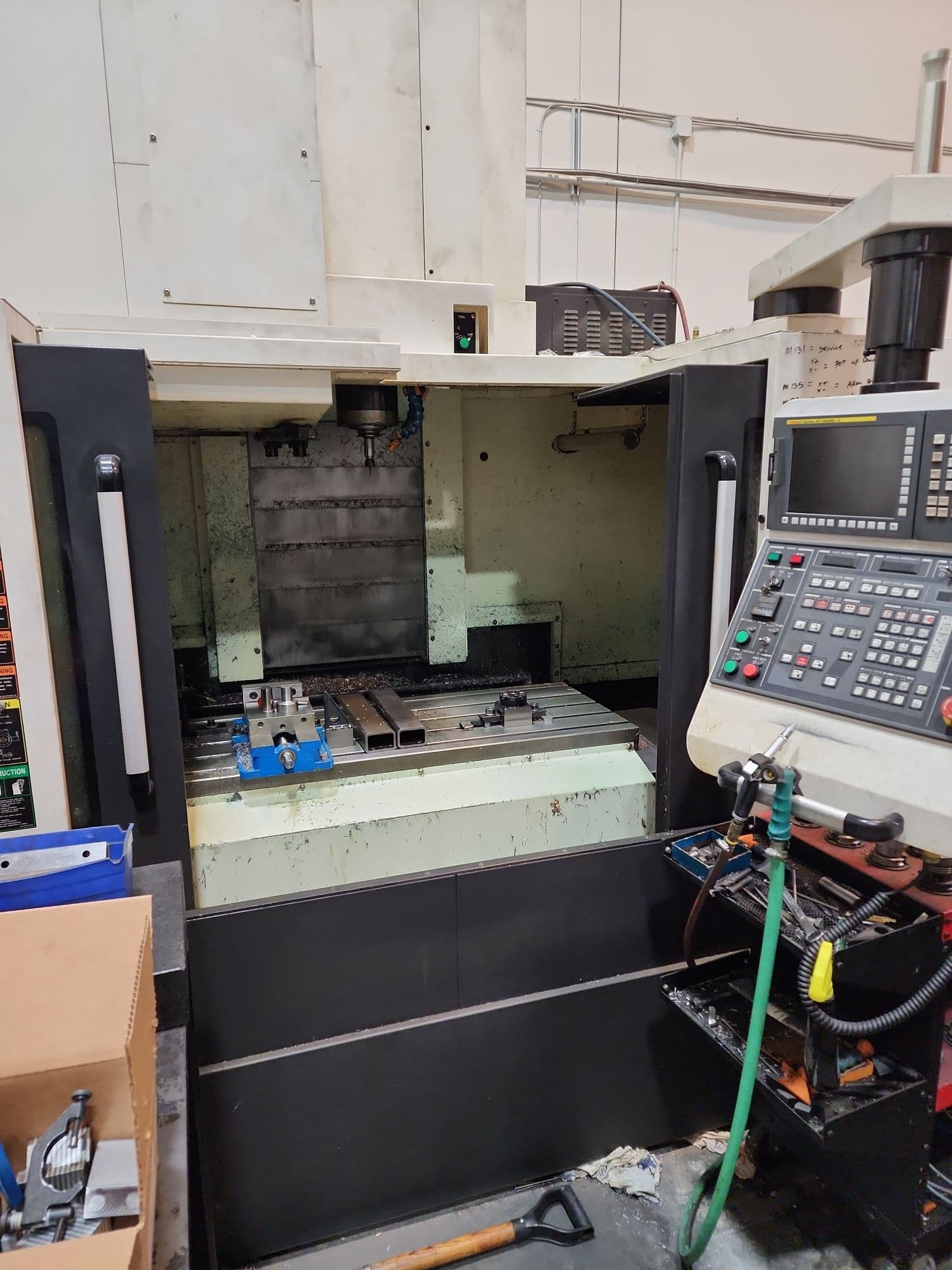

Hyundai Wia F510M VMC, 2016 – 4th Axis, Chip Conveyor, Fanuc Control
$54,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table size: 47.2″ x 21.3″
Maximum table load: 2,646 lbs
X-axis travel: 41.3″
Y-axis travel: 22.0″
Z-axis travel: 25.6″
Spindle nose to table surface distance: 5.9″ to 31.5″
Spindle speed range: 15,000 RPM
Spindle taper: BT40
Spindle motor: 20 HP
Rapid traverse rate (X/Y/Z): 1,574 IPM
Cutting feed rate: 0.04 to 393.7 IPM
ATC: 30
Tool-to-tool time: 1.6 seconds
Maximum tool diameter: 3.14″
Maximum tool length: 11.8″
Maximum tool weight: 17.6 LBS
Machine dimensions: 118.5″ x 104.5″ x 122.8″
Machine weight: 14,330 lbs

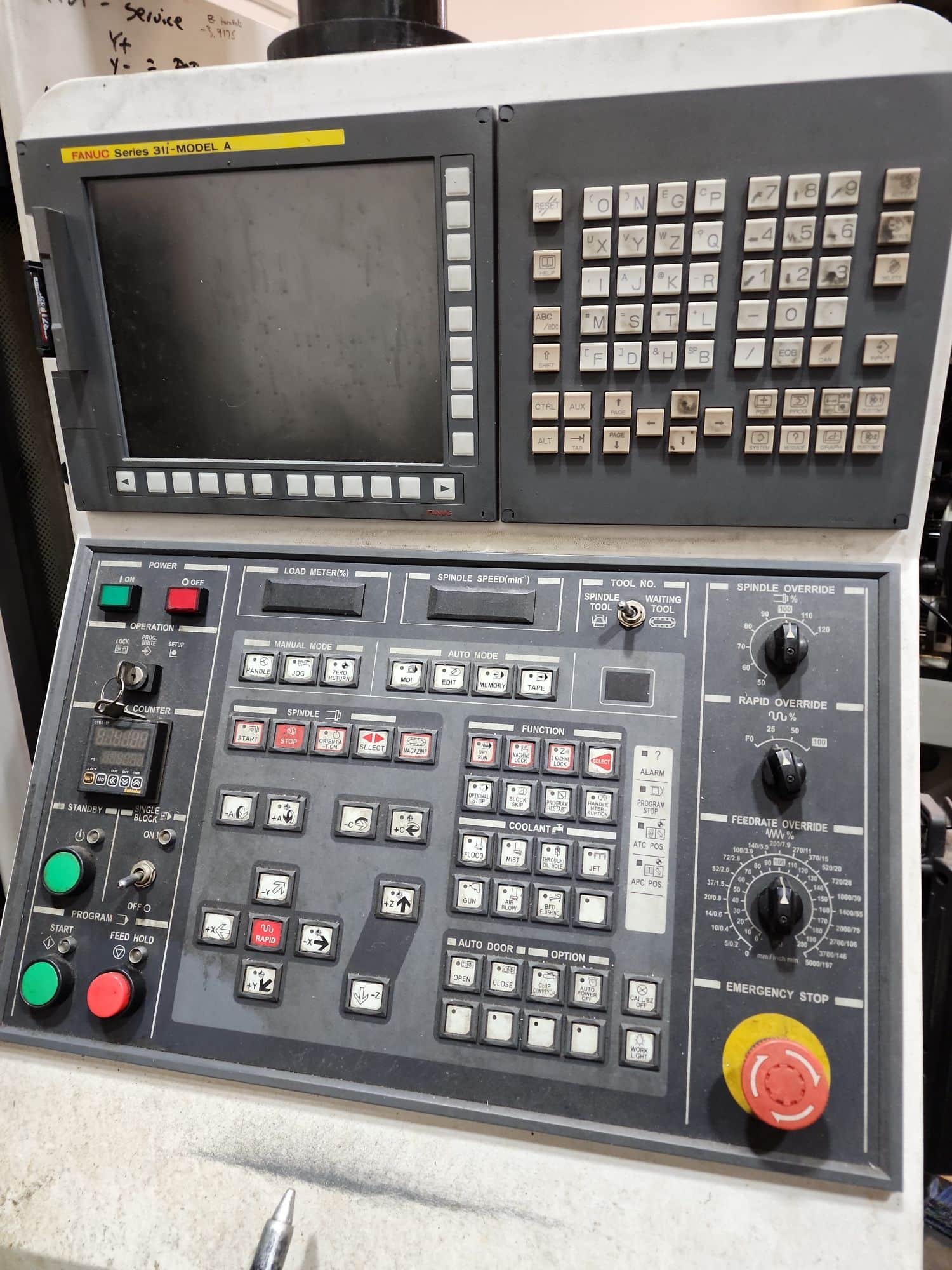

Control system: Fanuc 0i-MF
Equipped with:
Chip Conveyor
4th axis prep
Tooling Included
