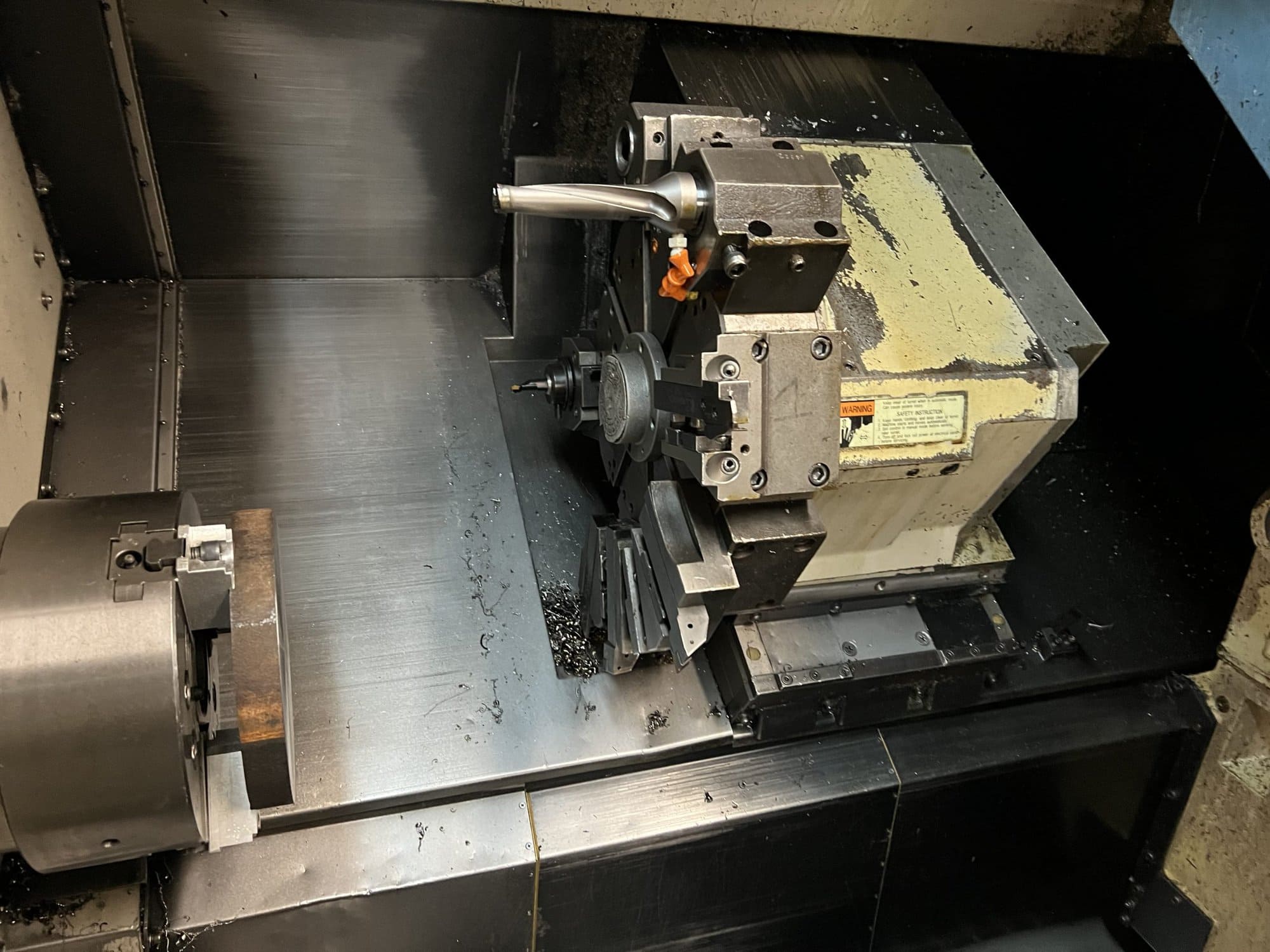

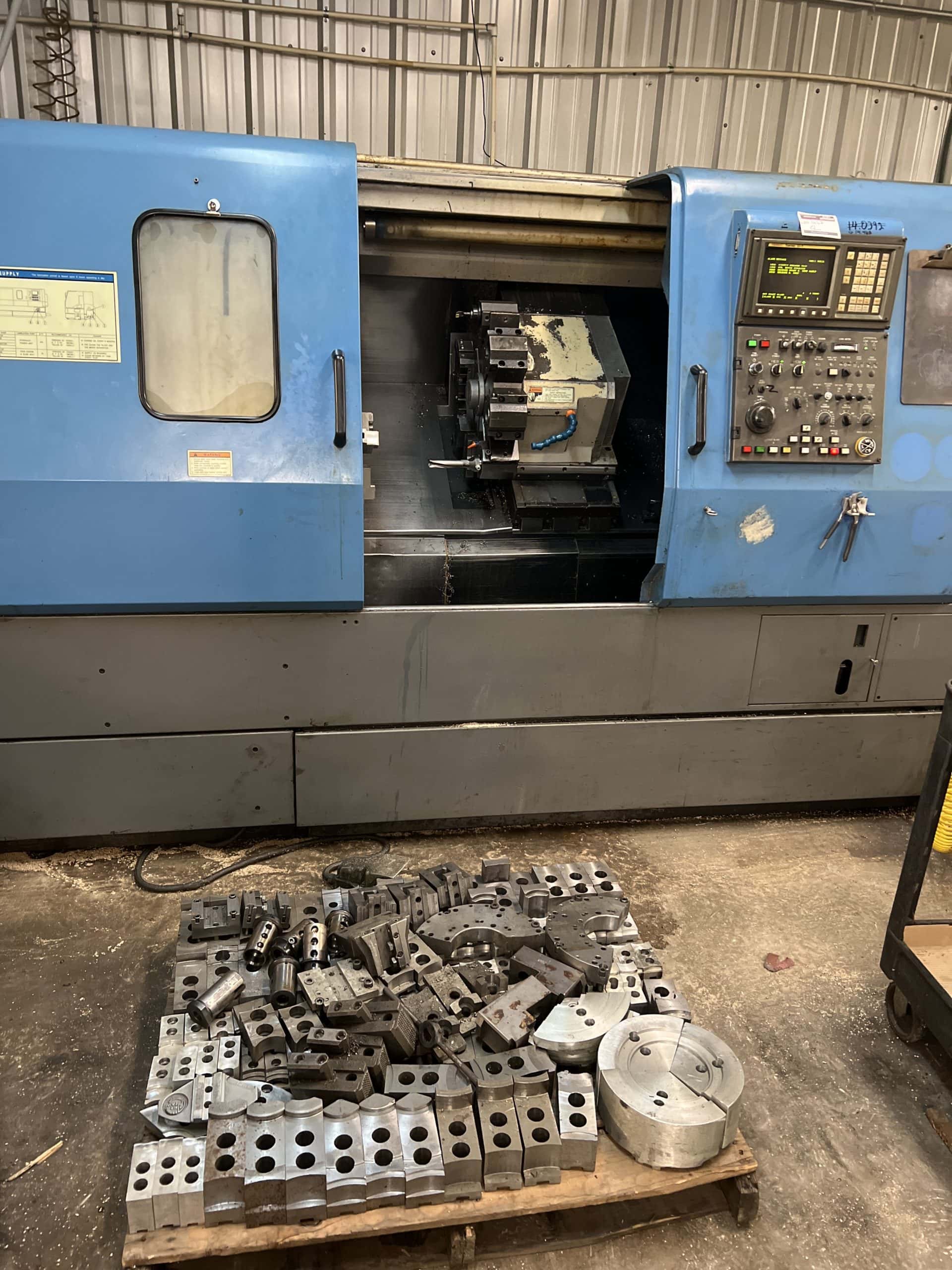

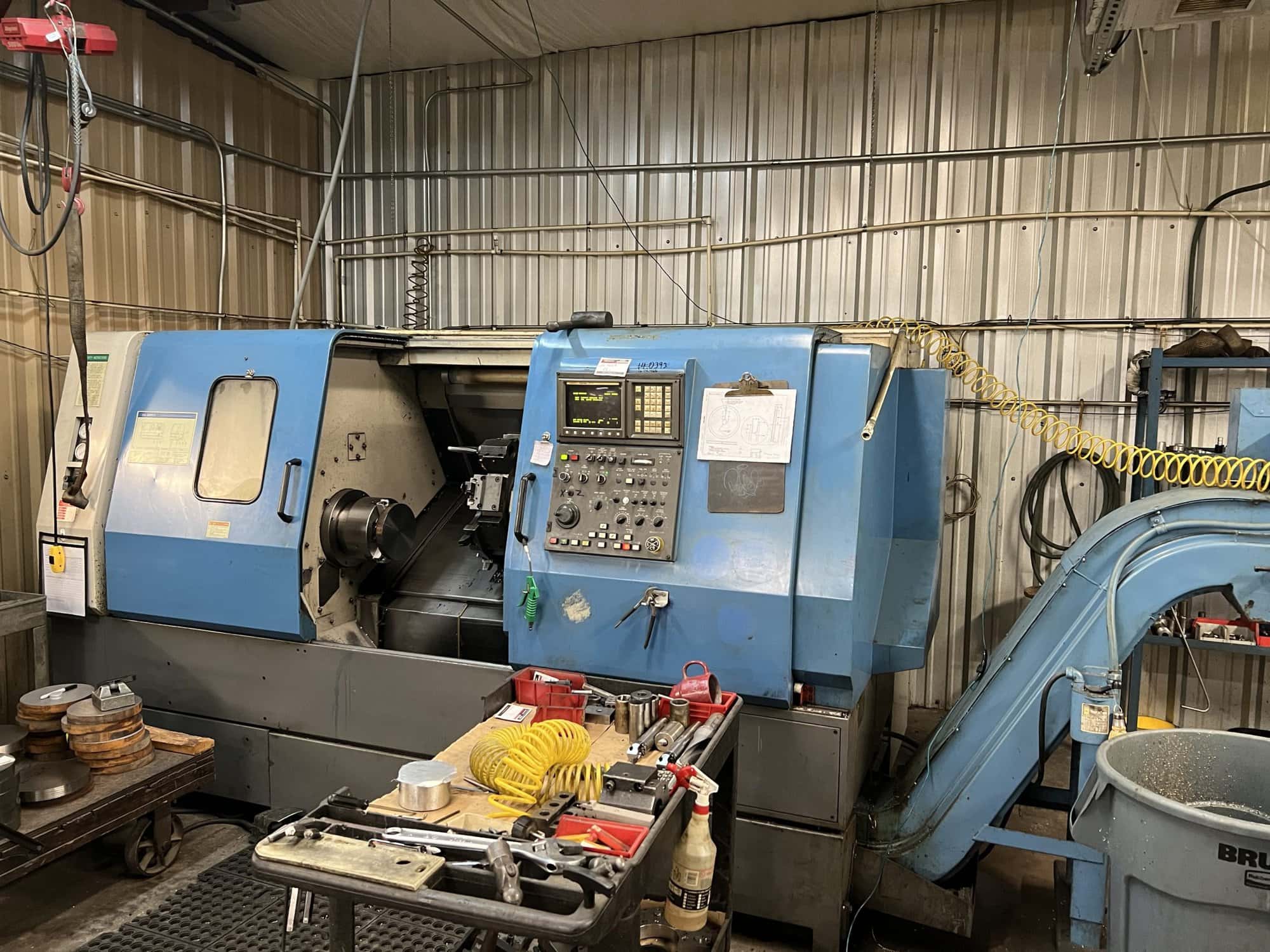

Hyundai Hit-30F CNC Lathe, 1998 – Equipped with Tooling and Tailstock
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
12″ 3 Jaw Hydraulic Chuck
RS 232 Port Interface
Complete Coolant System with Tank & Pump

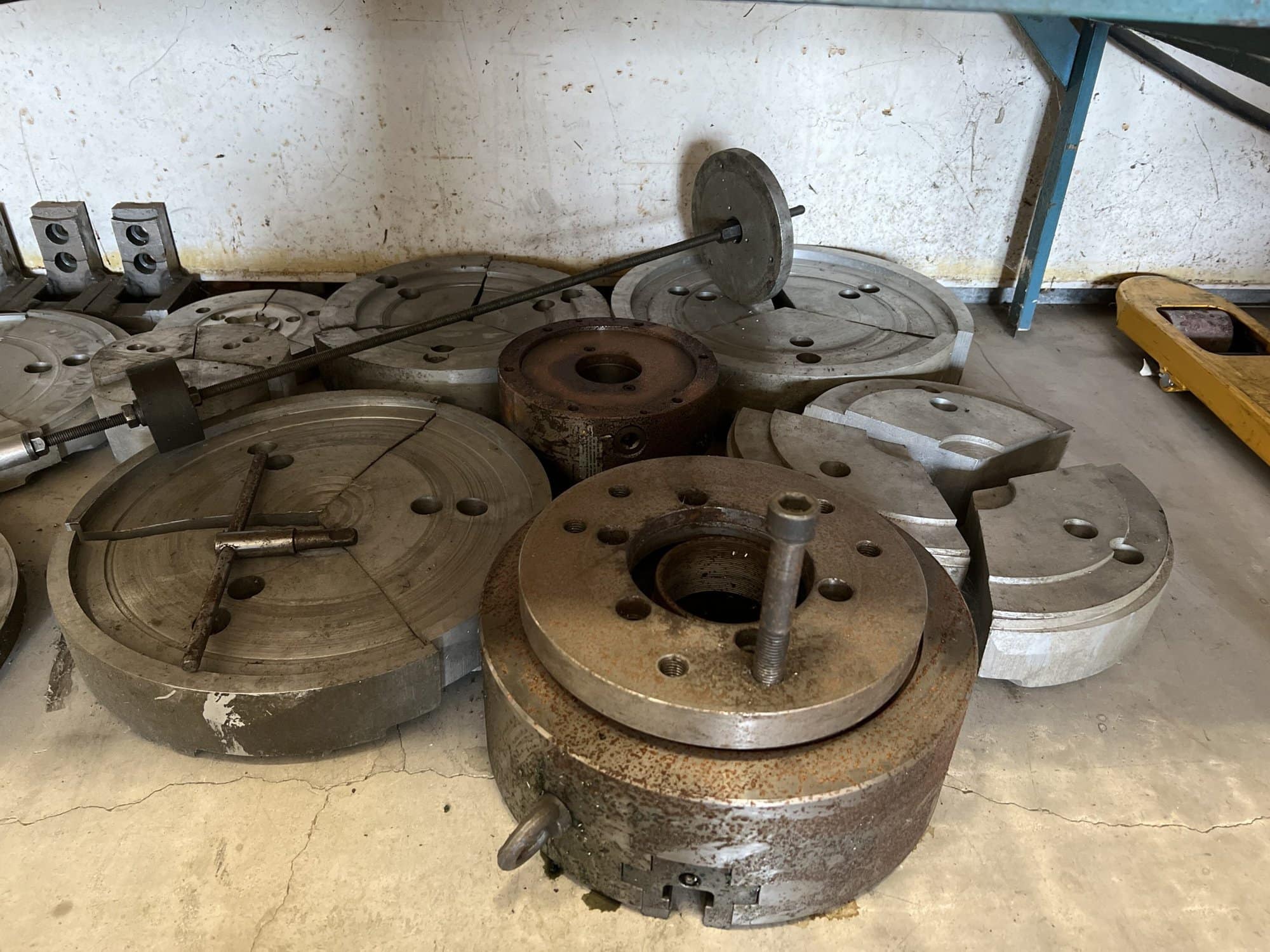

All Available Tooling
All Available Manuals
Specifications
Machine Control: Fanuc O-T
Chuck Size: 12″ 3-Jaw Hydraulic
Maximum Swing: 20.8″
Maximum Swing Over Cross Slide: 12.6″
Distance Between Centers: 39.37″
X-Axis Travel: 7.87″
Z-Axis Travel: 40.16″
Maximum Cutting Diameter: 12.6″
Spindle Nose: A2-8
Bore: 3.15″
Bar Capacity: 2.75″
Spindle Speeds: 30-3,000 rpm
Spindle Motor: 30 hp
Number of Turret Positions: 16
Tailstock Center: #4MT
Rapid Traverse Rates: X/Z 945 ipm / 708 ipm
Machine Dimensions LxWxH: 136″x70:x75″
Machine Weight: 13,000 lbs.
