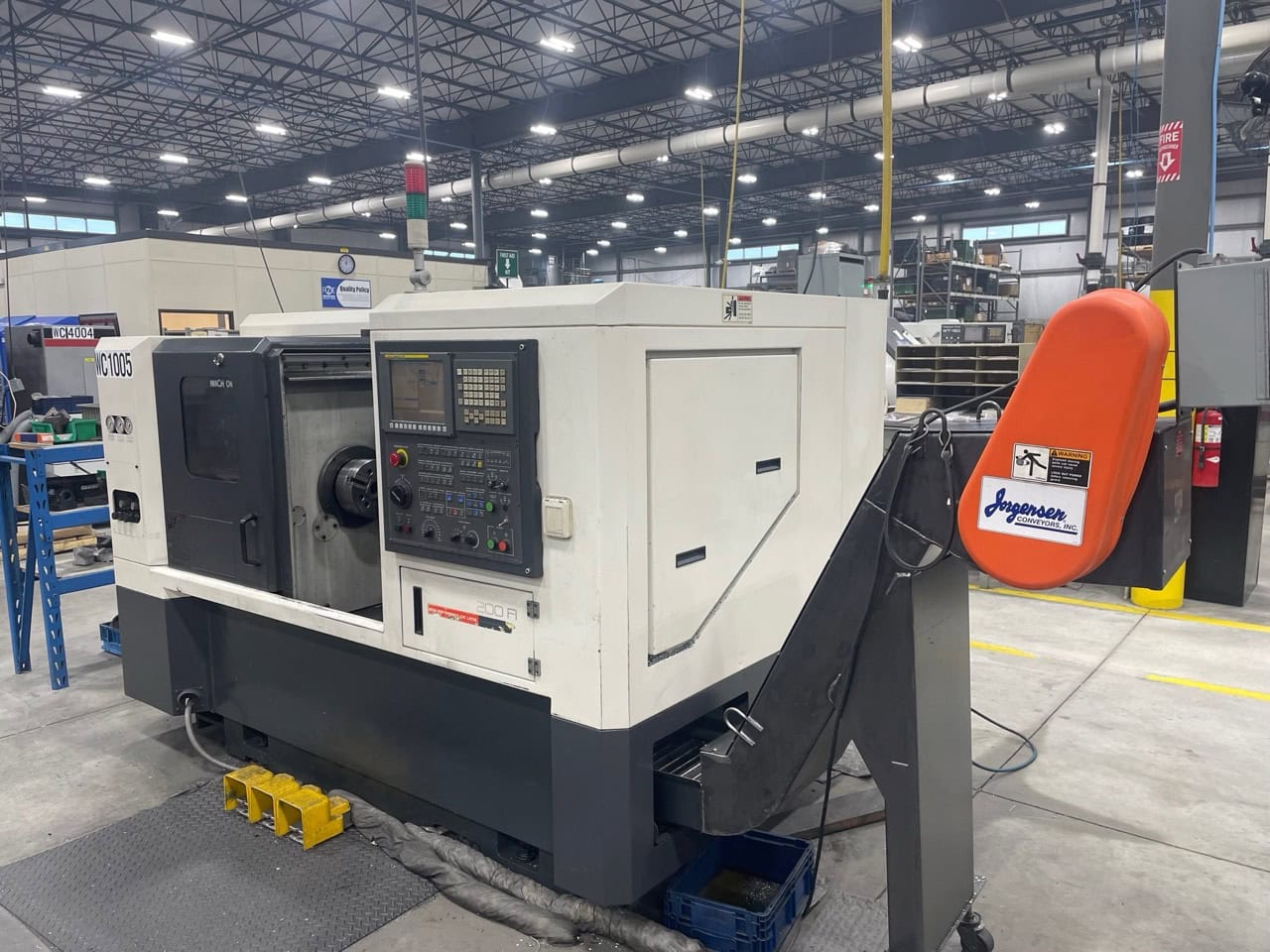

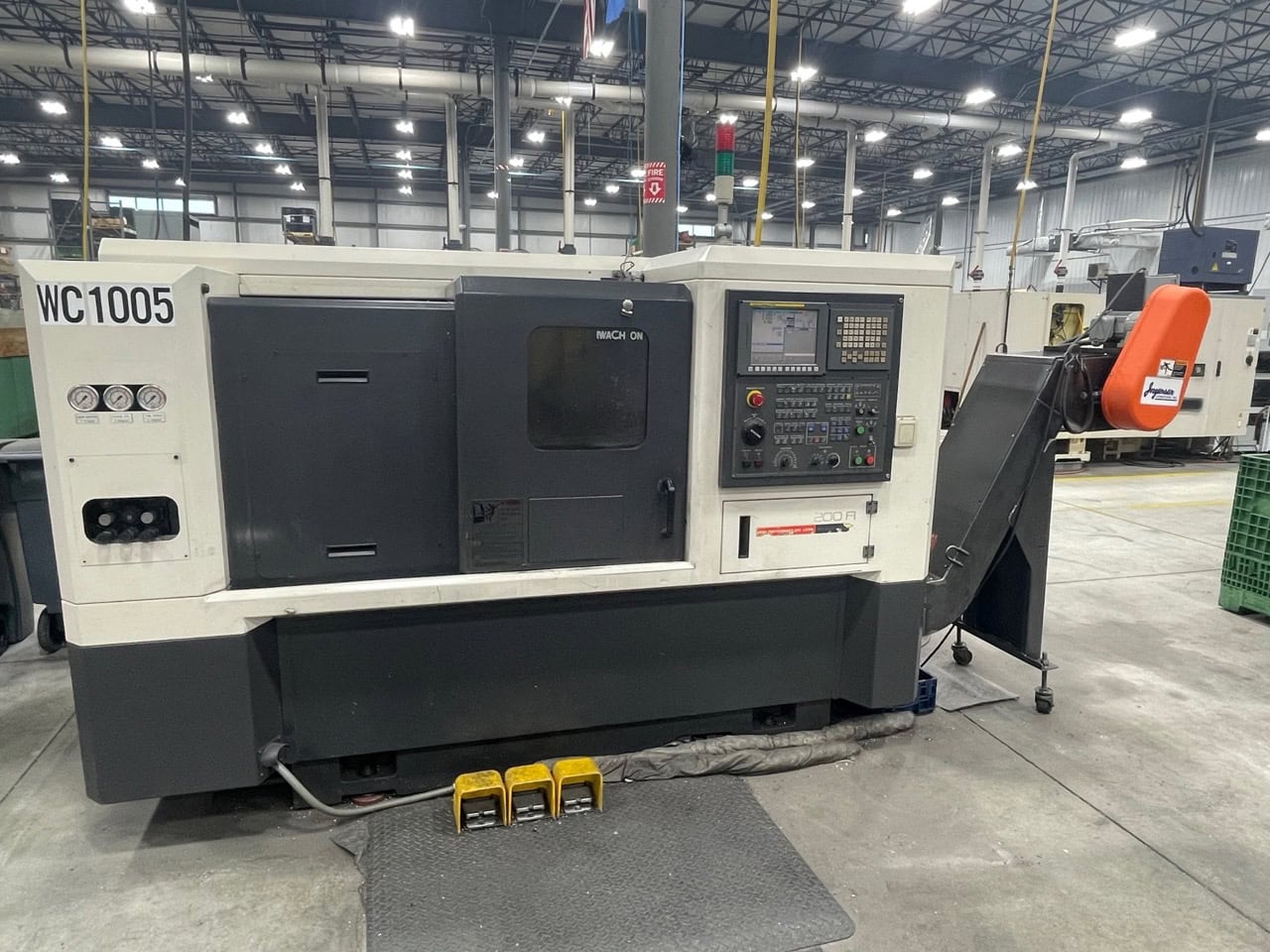

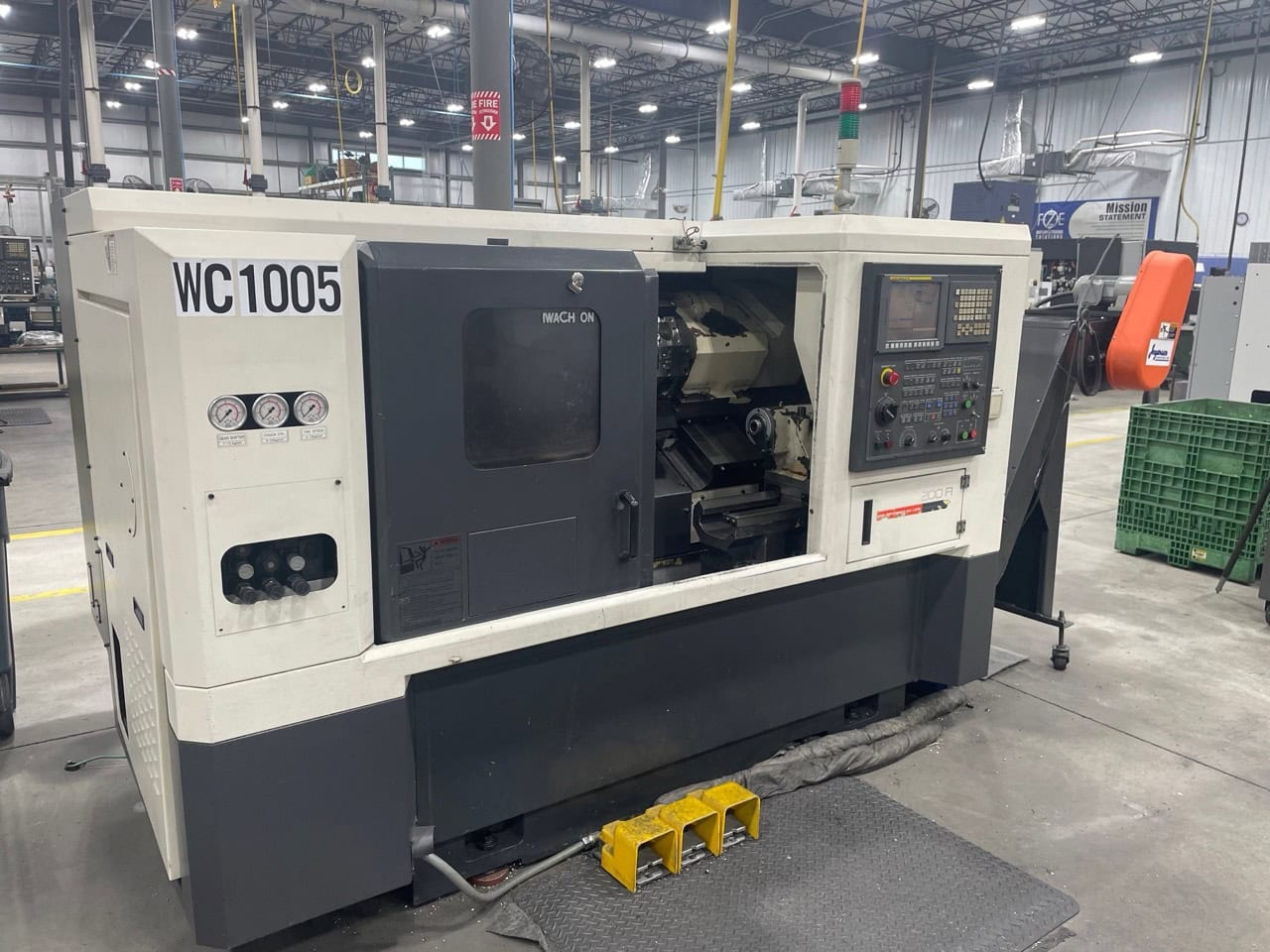

Hwacheon Hi-Tech 200A CNC Lathe, 2008 – Tailstock, C Axis, Live Milling
$29,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Turning Diameter: 13.81″
Max Turning Length: 15.75″
Max Bar Capacity: 2.9″
Distance Between Centers: 20.5″
Swing Over Bed: 18.7″
X Axis Travel: 7.69″
Z Axis Travel: 16.90″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle Nose: A2-6

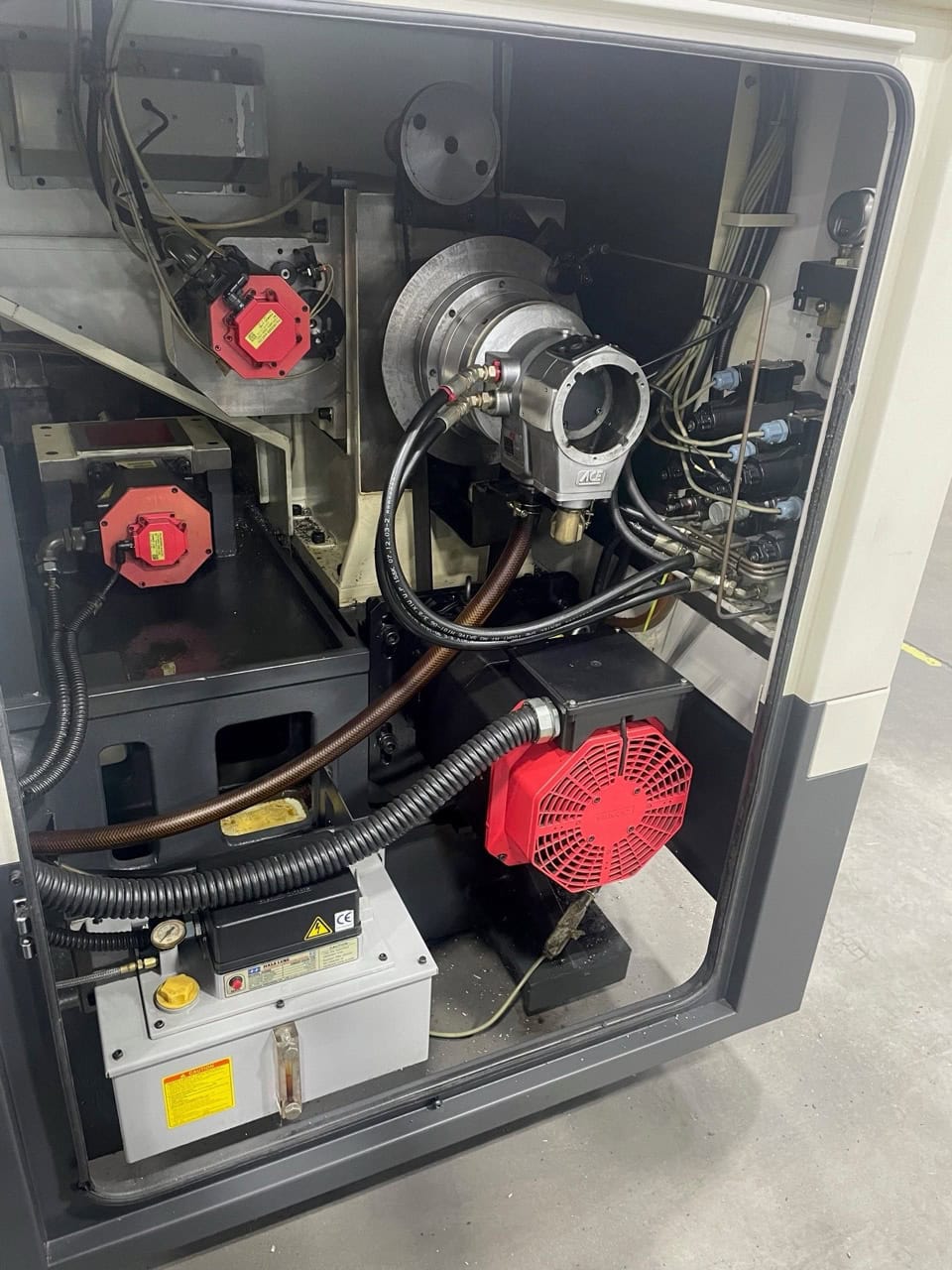

Spindle Bore: 2.95″
Spindle Speed: 50 – 5000 RPM
Spindle Motor: 15/20 HP

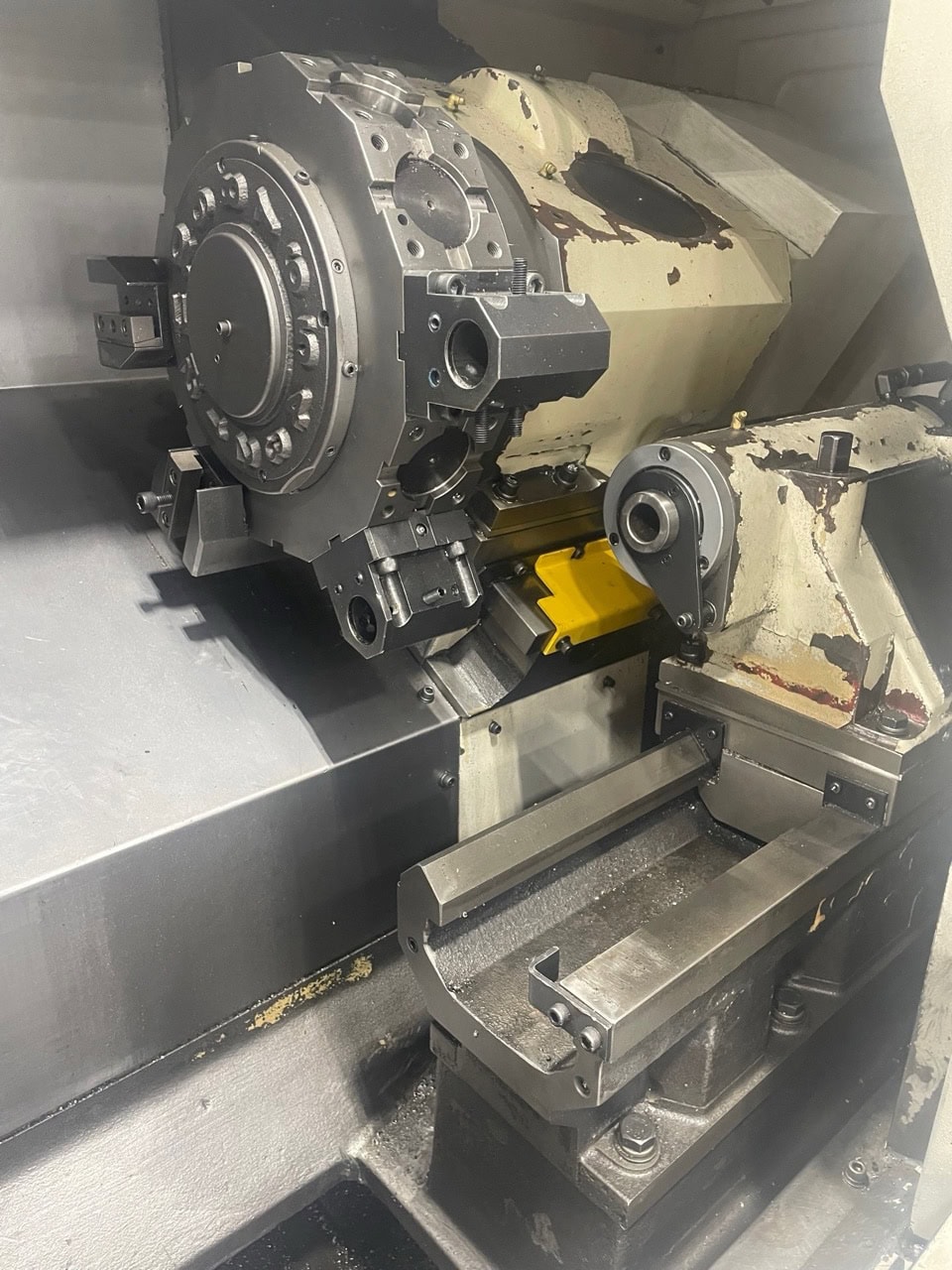

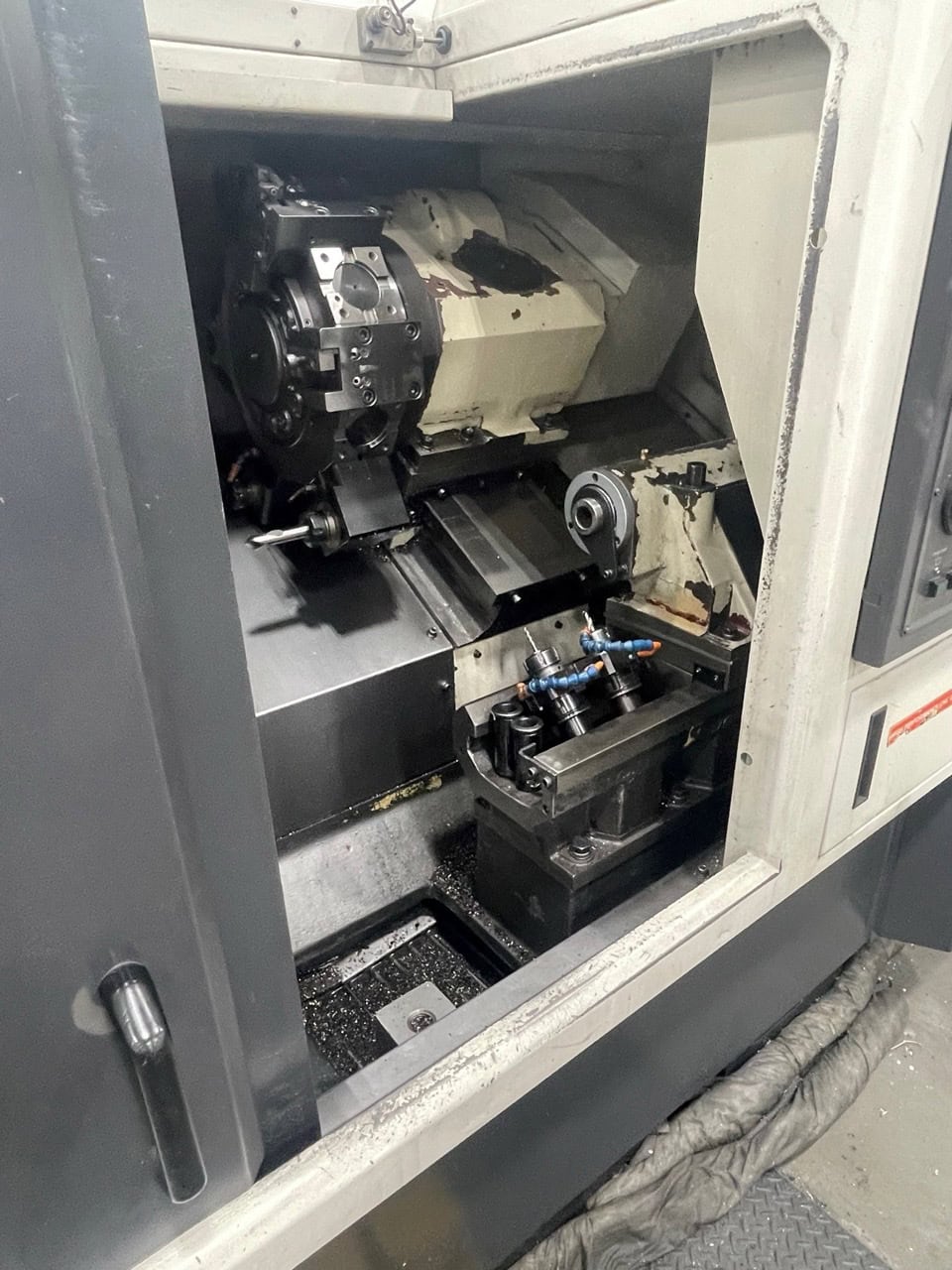

Turret Capacity: 12 Live Tool Stations
Turret Index Time: 0.20 Second
Tailstock Taper: MT-3
Tailstock Quill Dia.: 2.362″
Tailstock Quill Travel: 4.72″
Tailstock Body Travel: 13.7″
Power: 220v / 3-Phase
Overall Dimensions: 90″ x 70″ x 72″ High
Machine Weight: 8500 lbs
Equipped With:

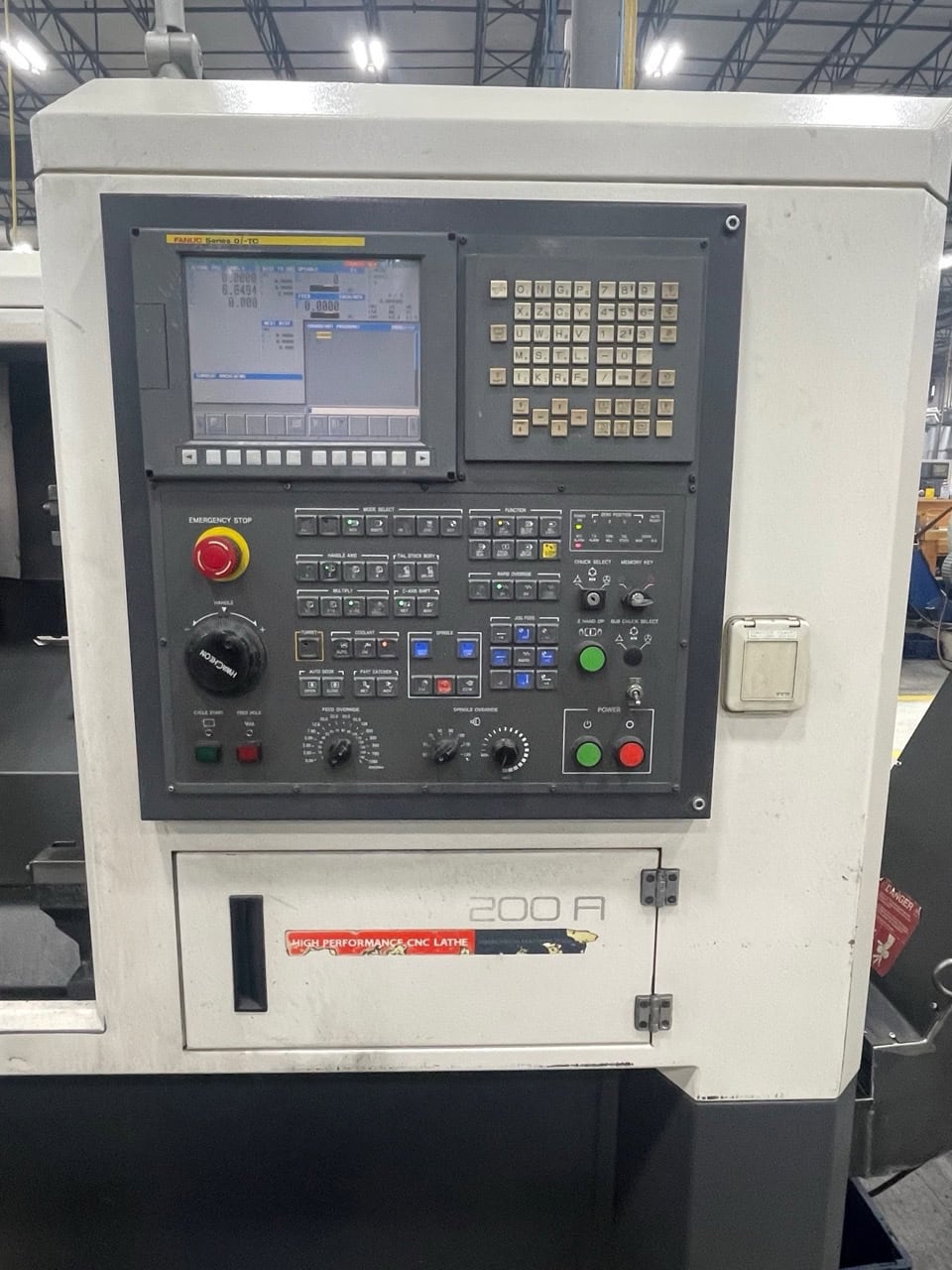

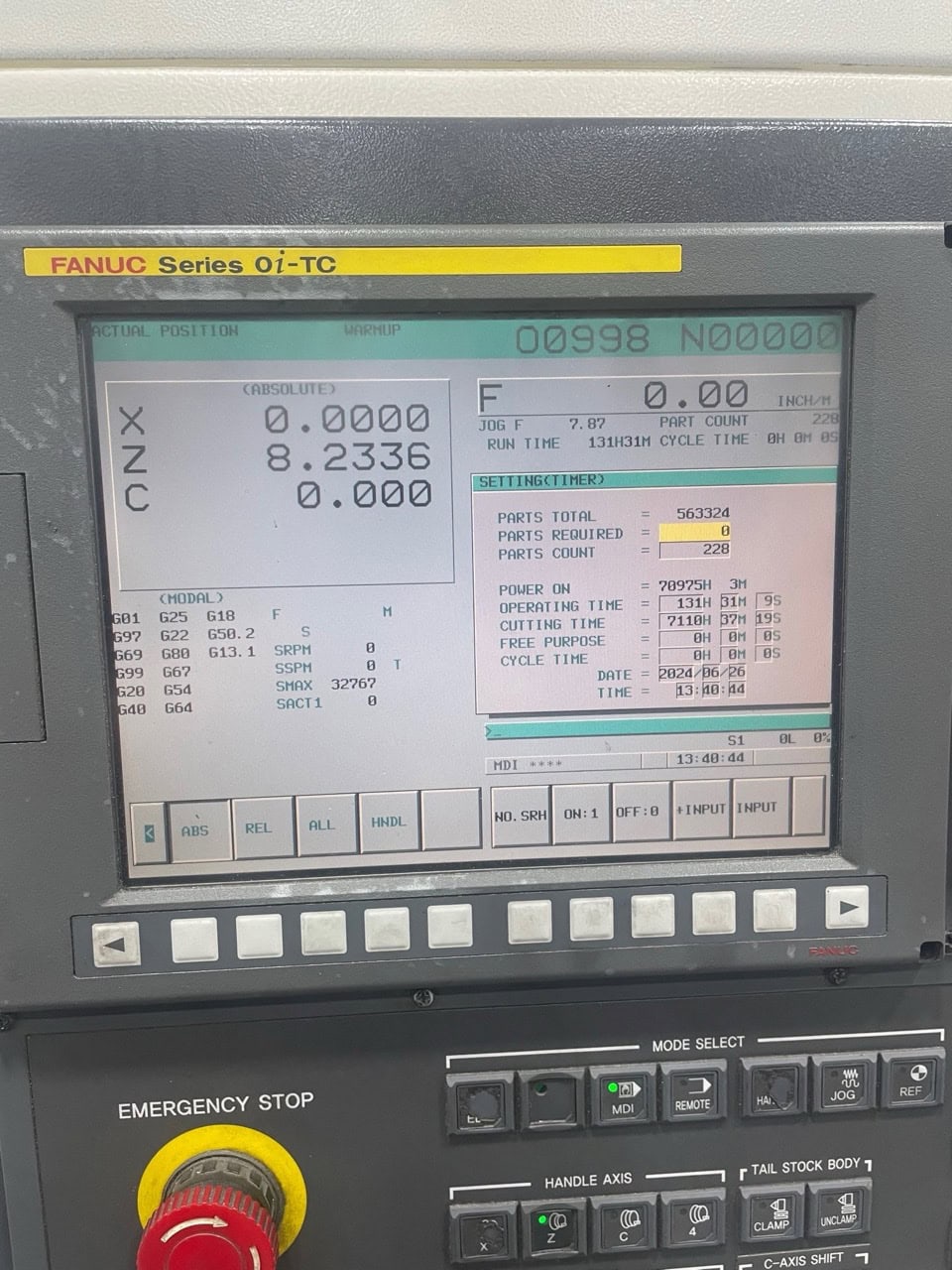

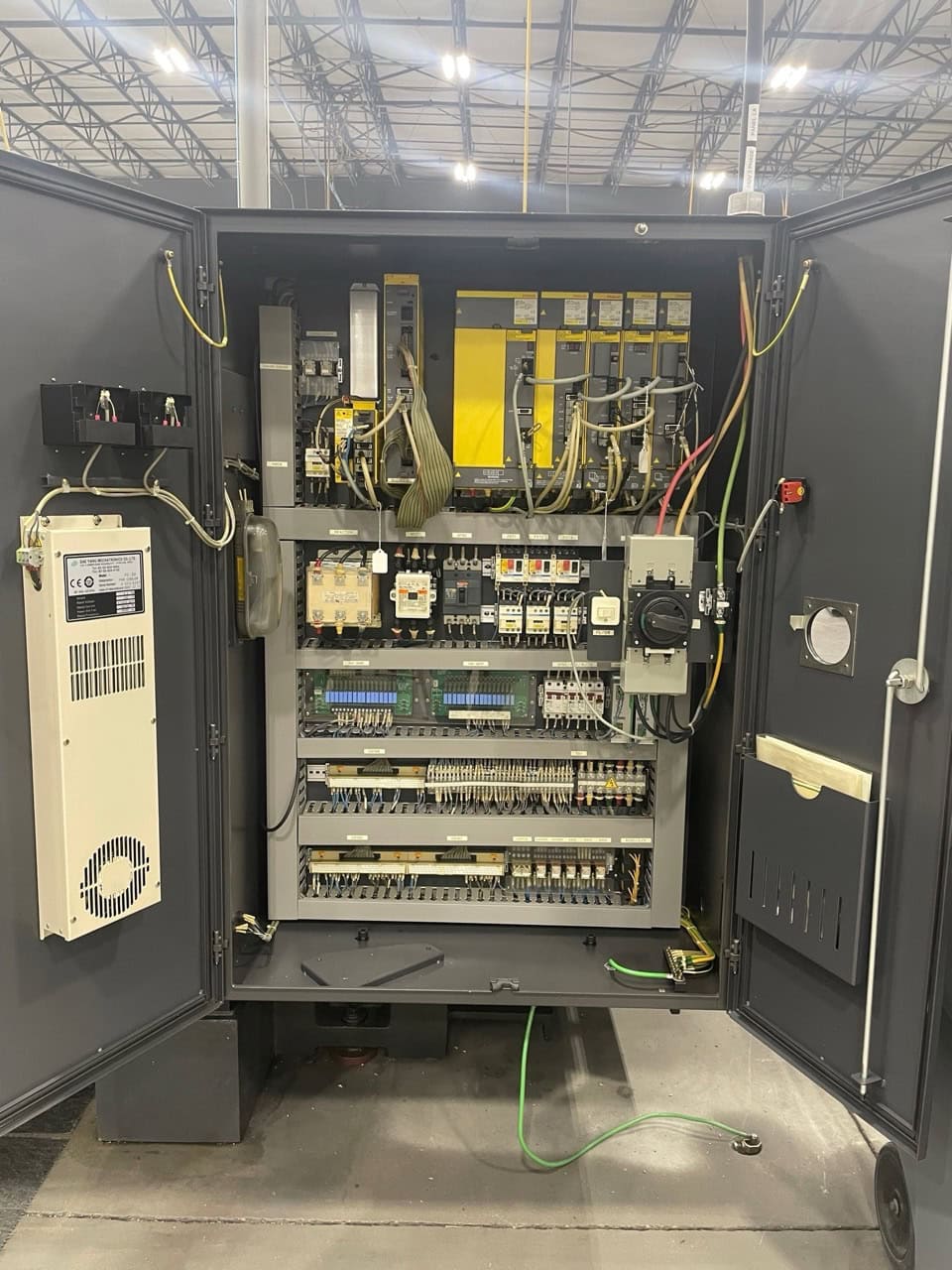

Fanuc Oi-TC Control
10″ Hydraulic Chuck

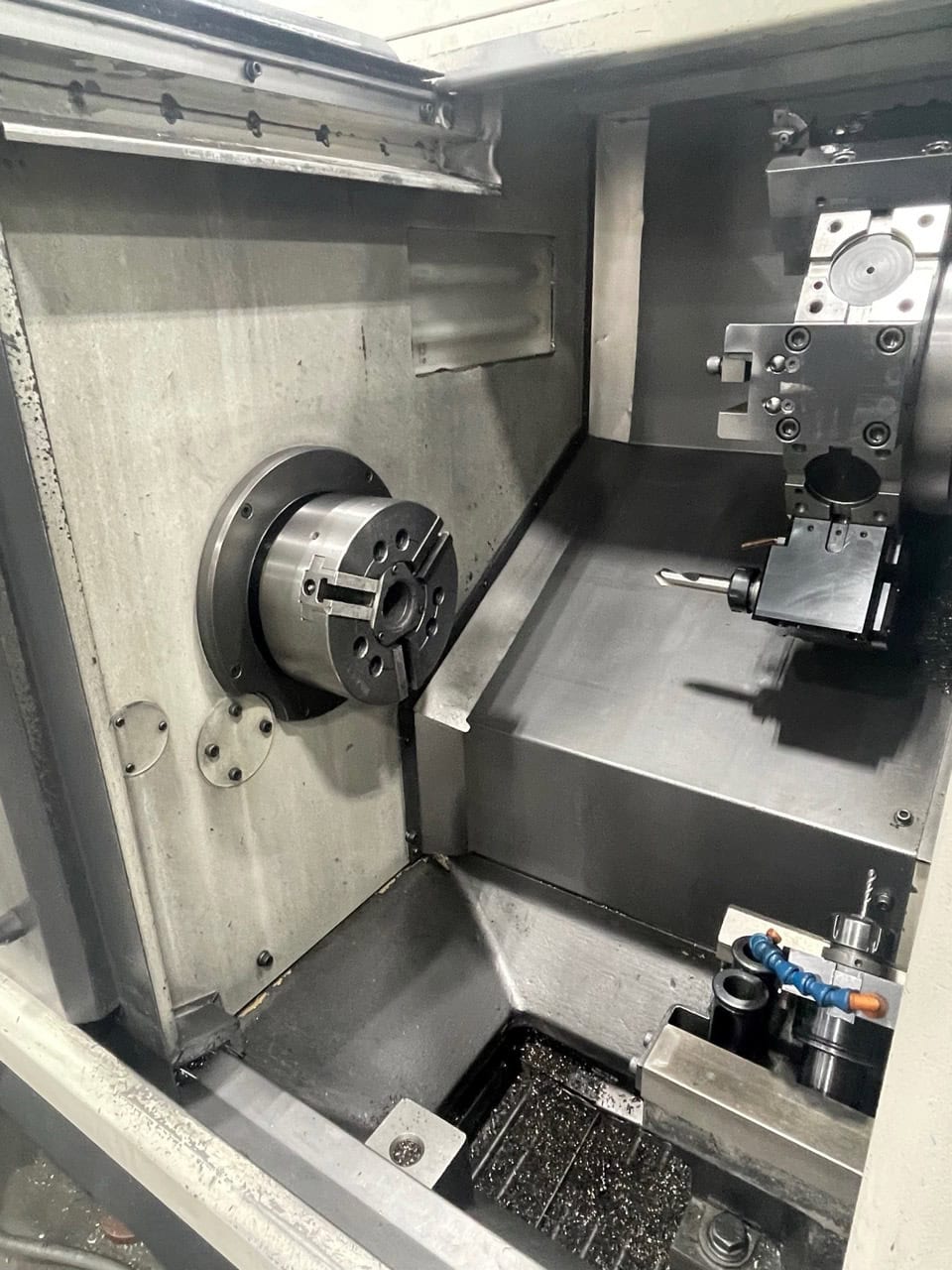

C Axis on Main Spindle
Tailstock

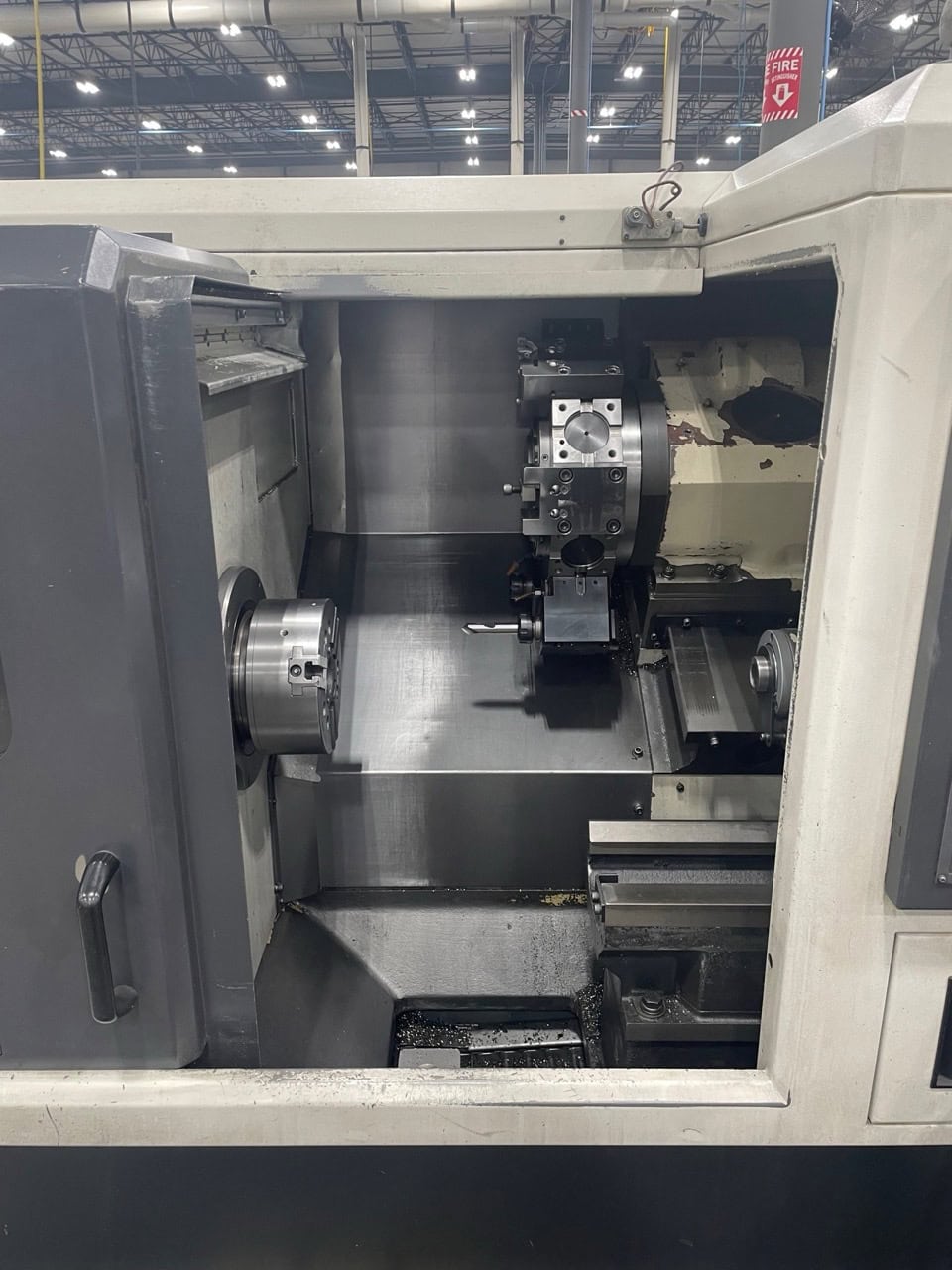

Live Milling & Drilling on the Turret

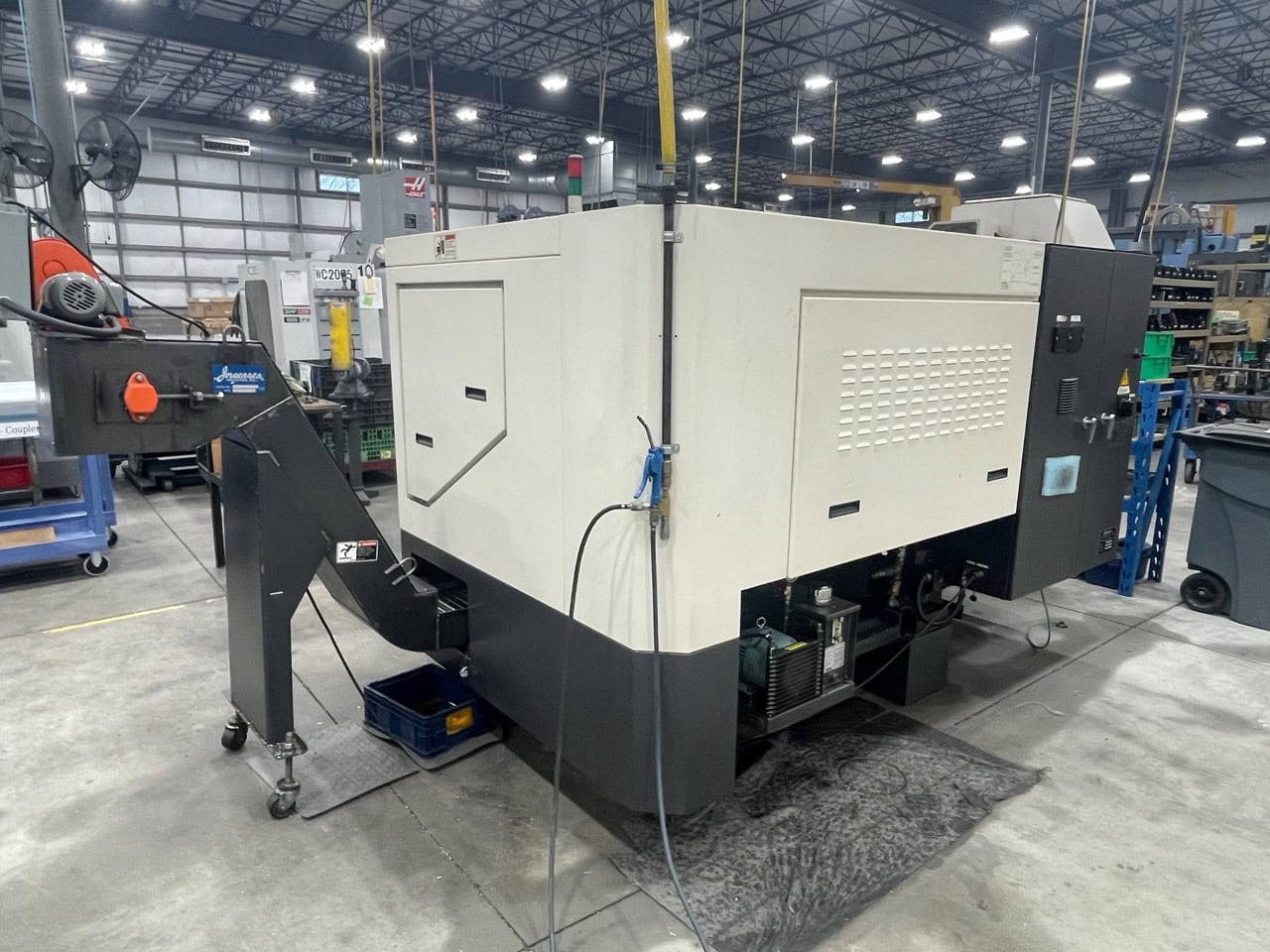

Jorgensen Chip Conveyor
Barfeed Interface
RS-232 ports

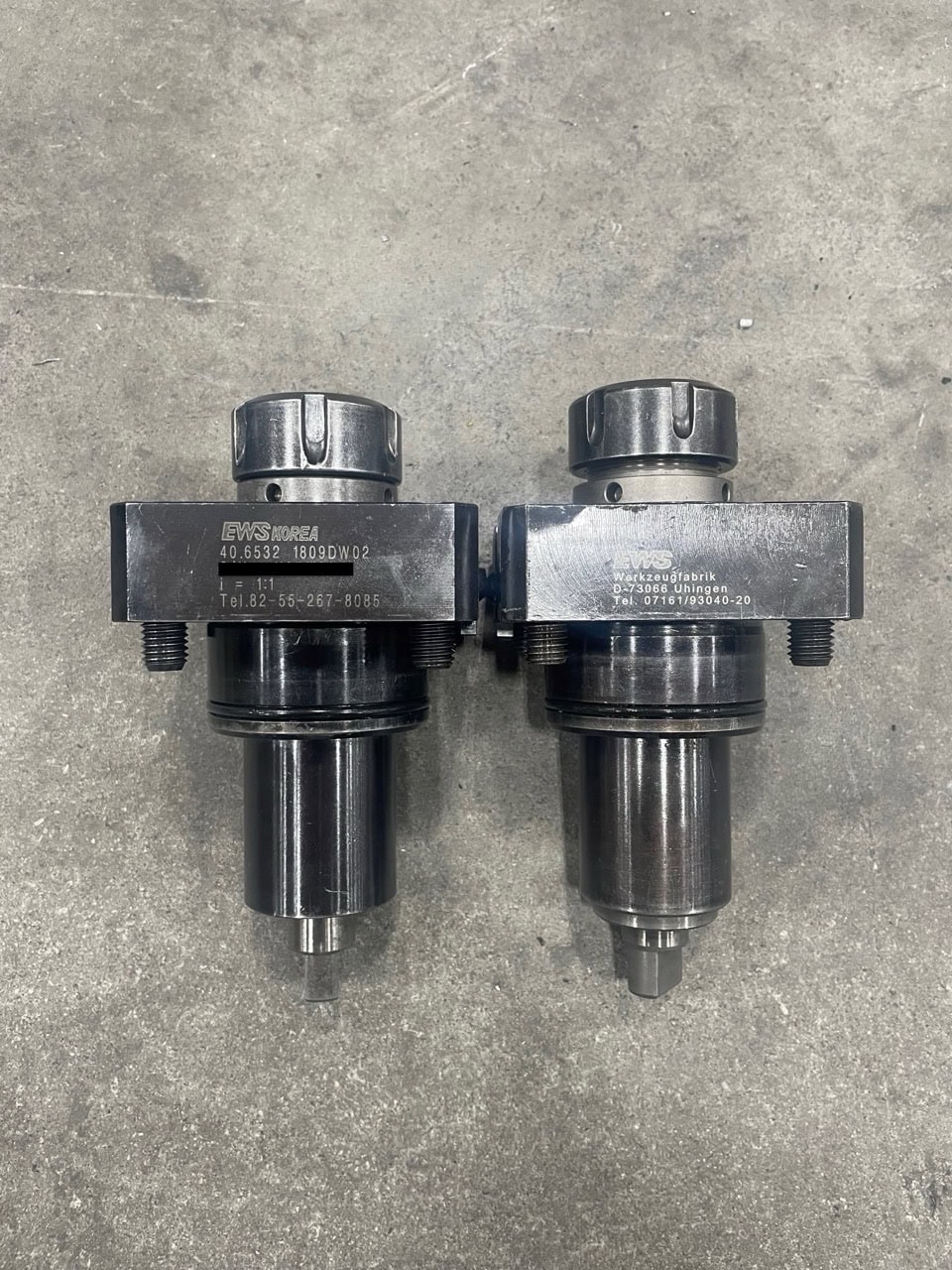

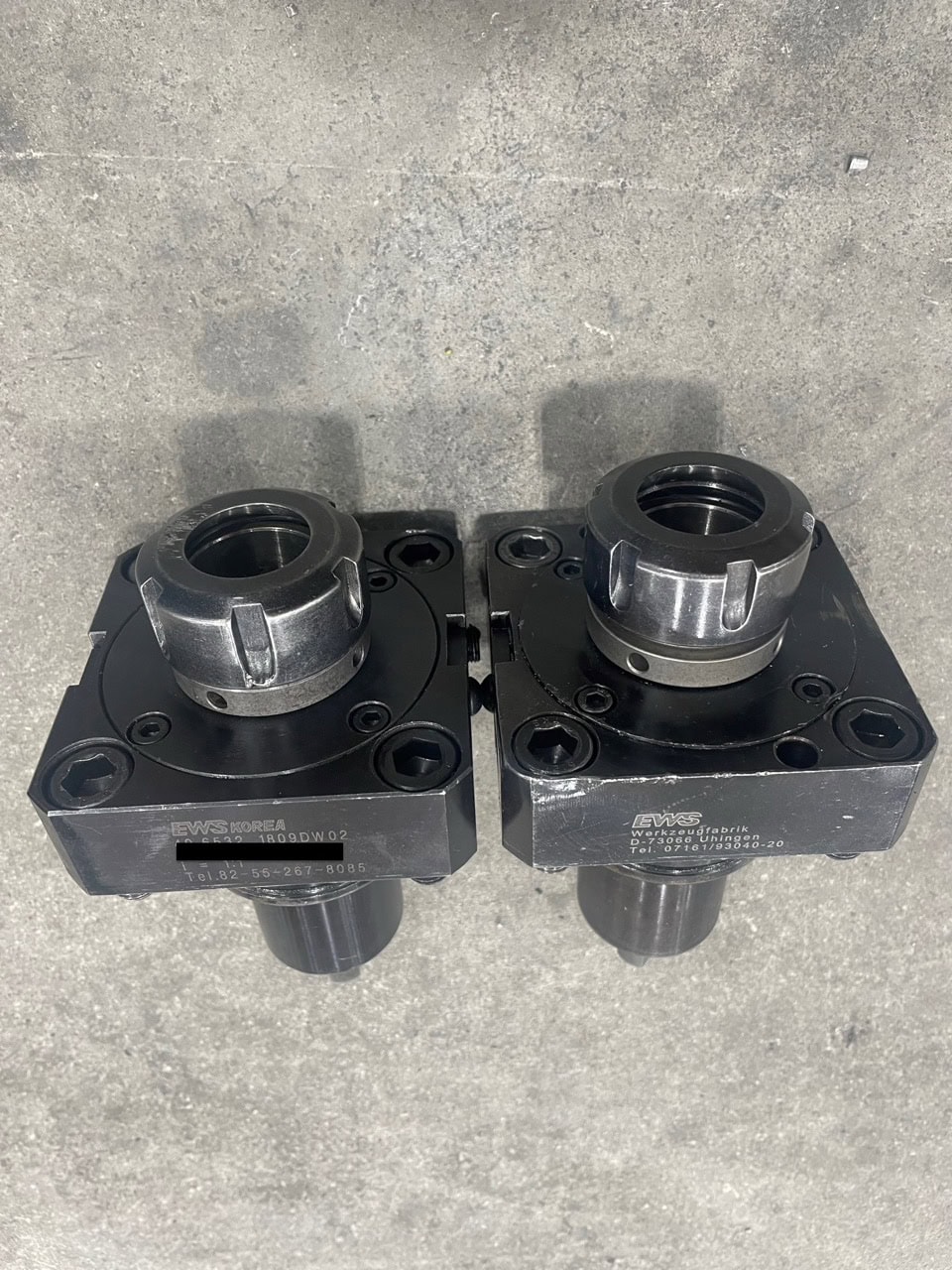

2 Live Tool Holders
