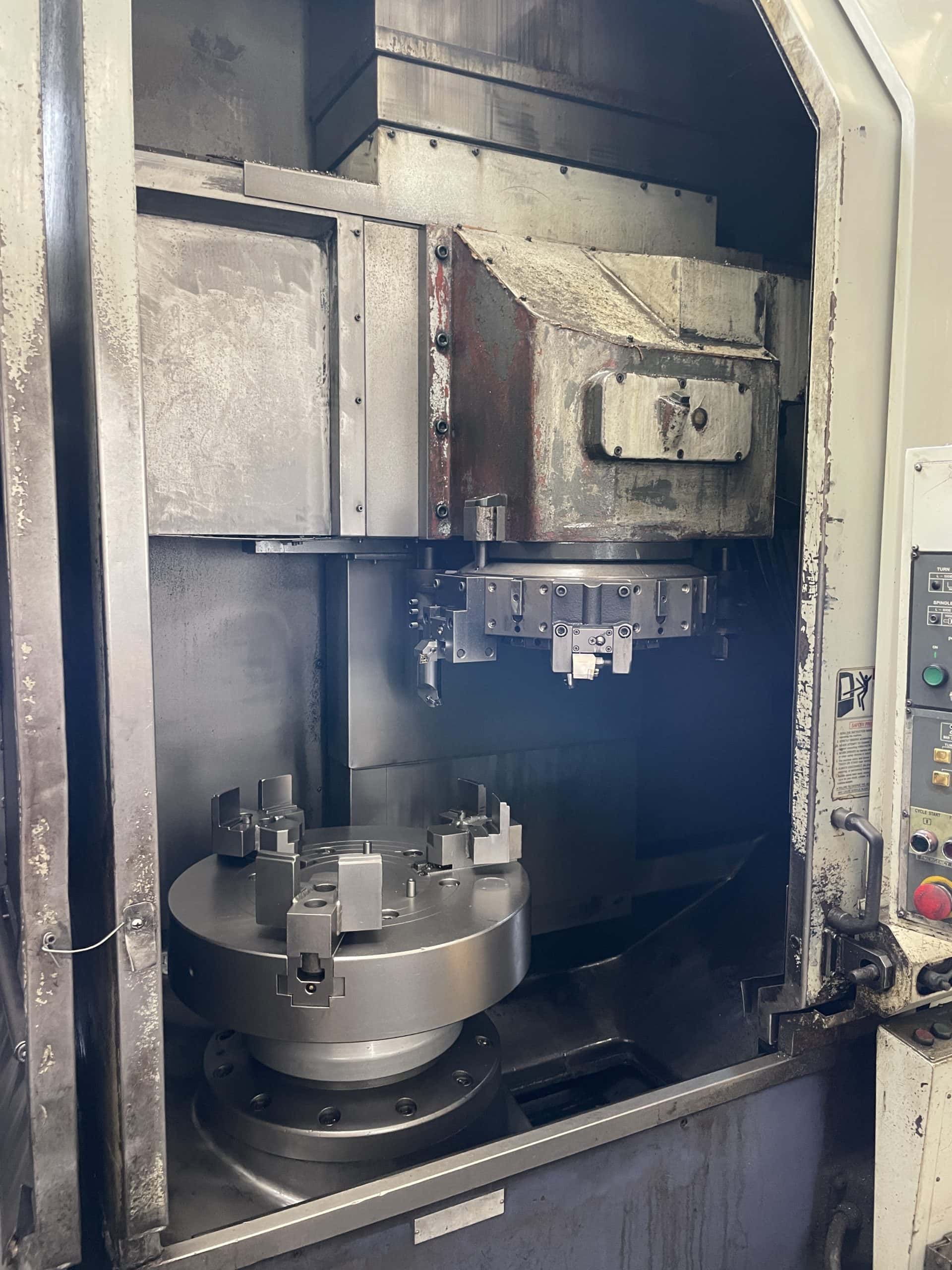

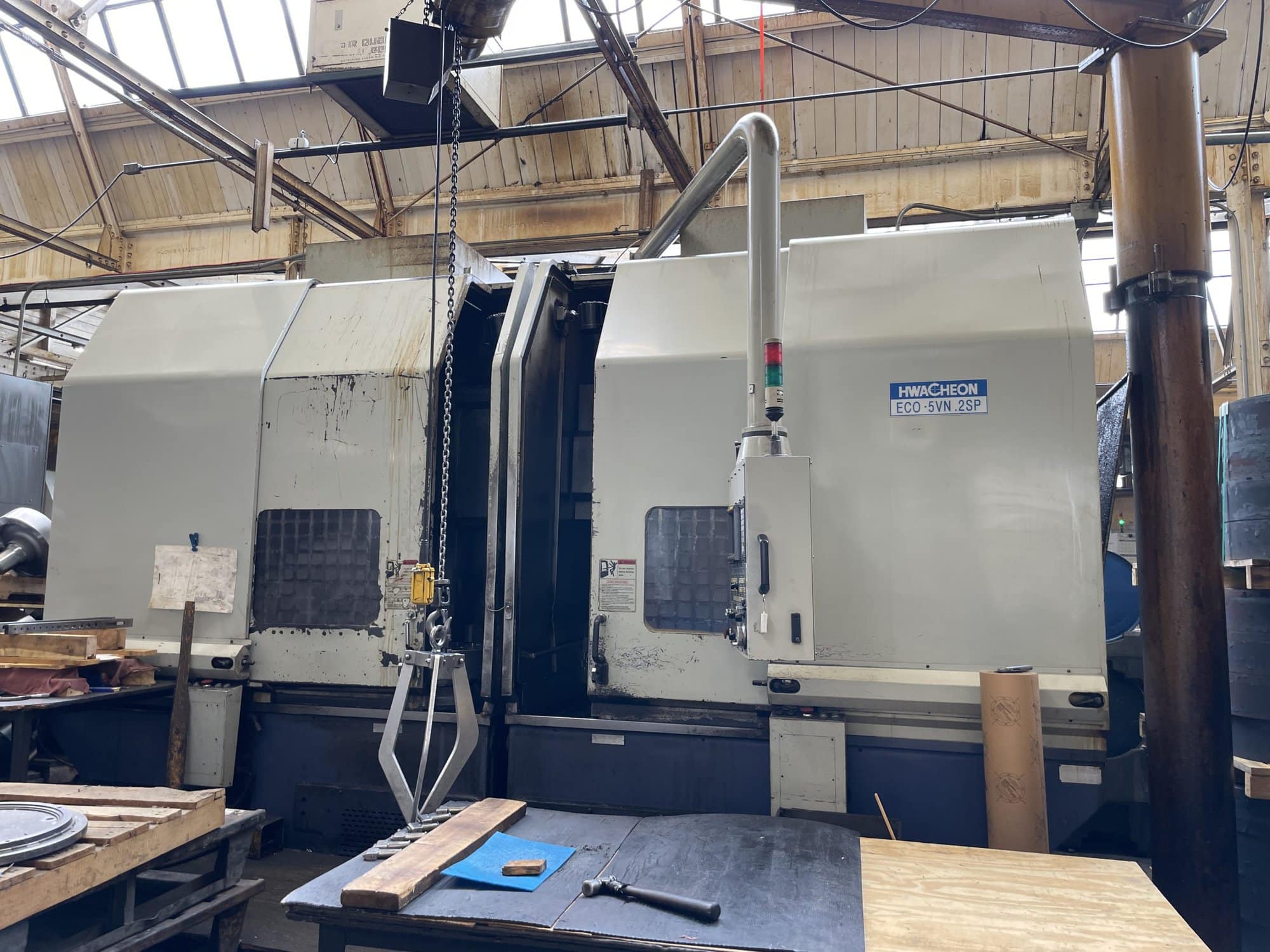

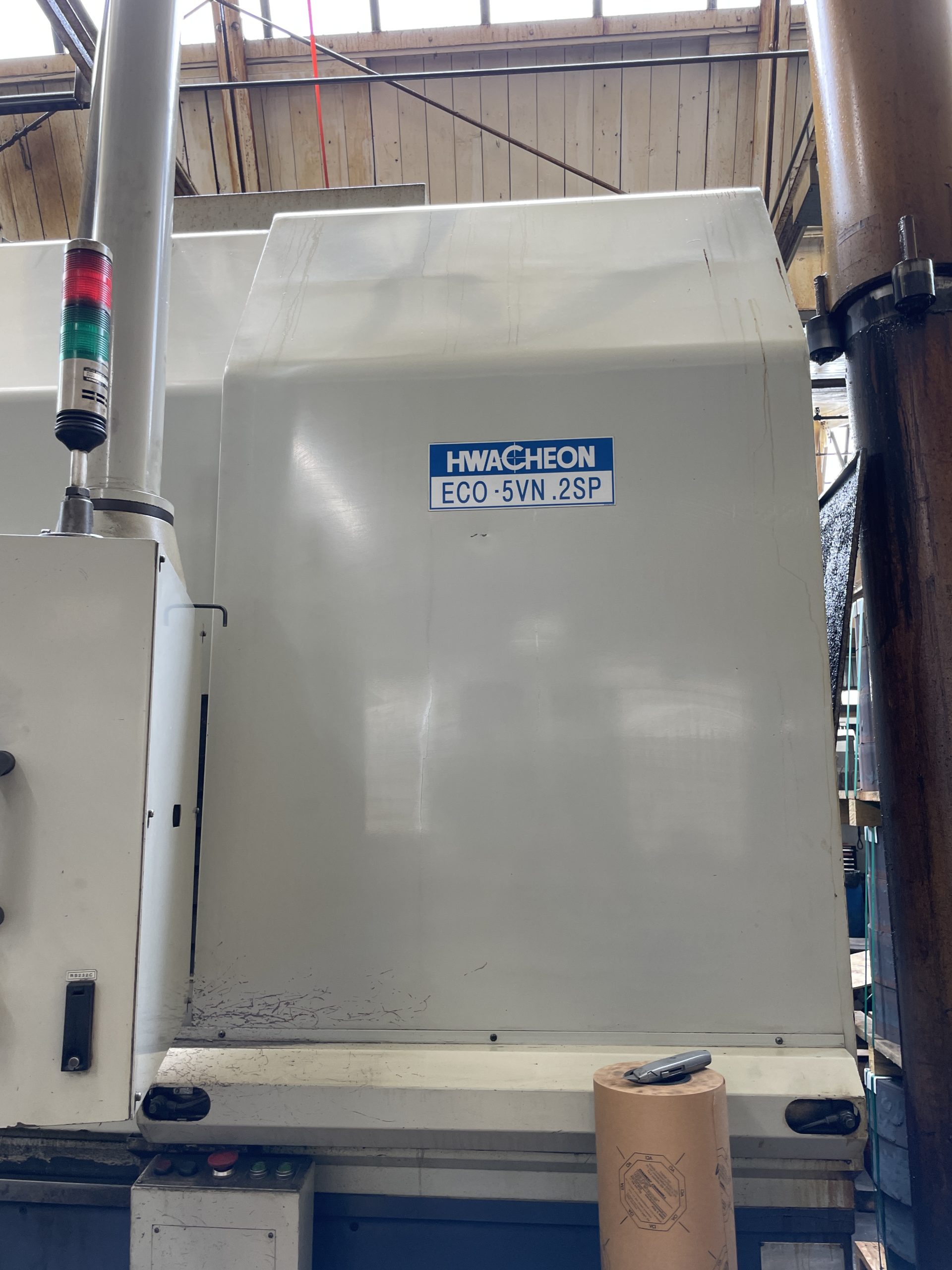

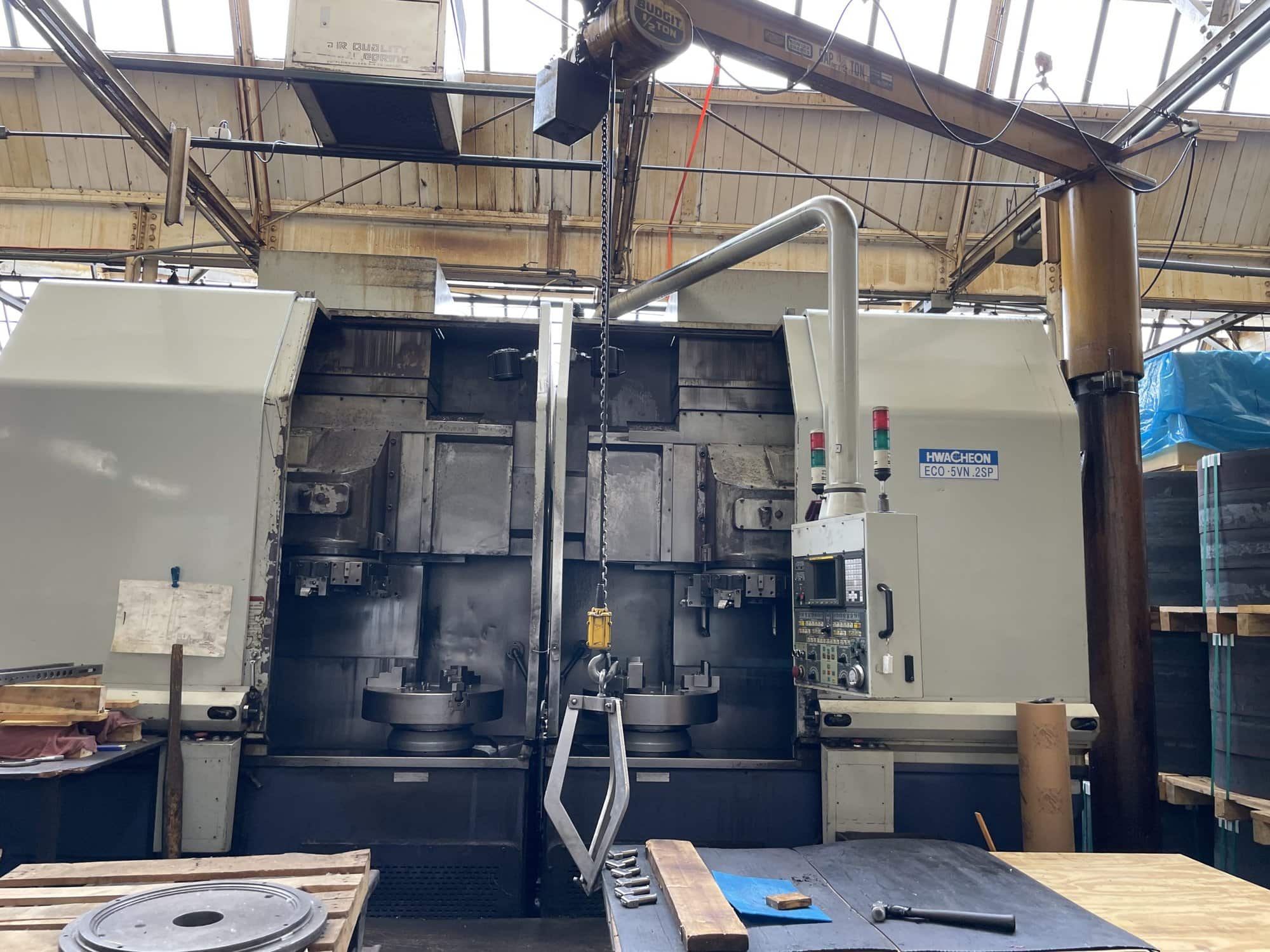

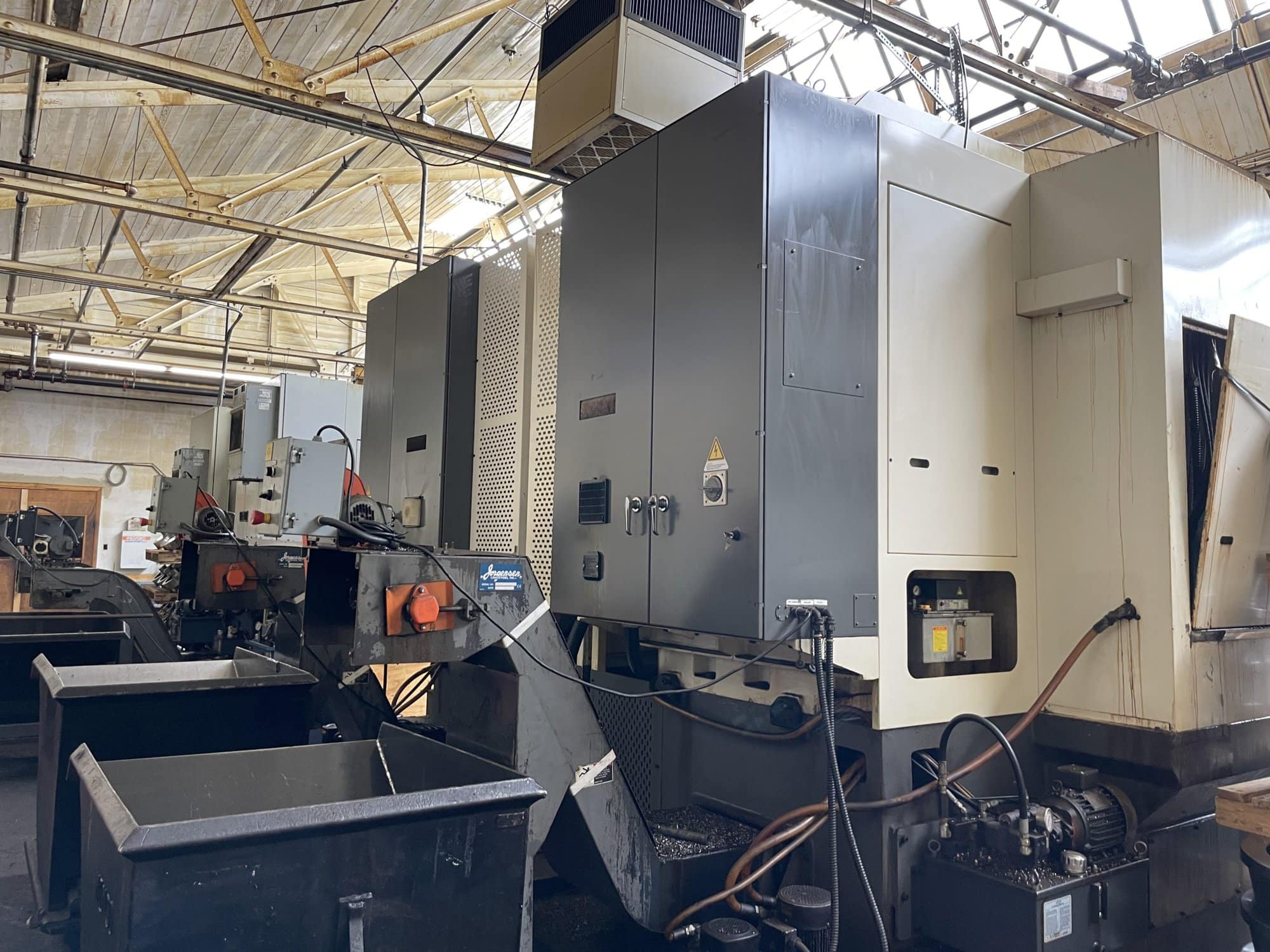

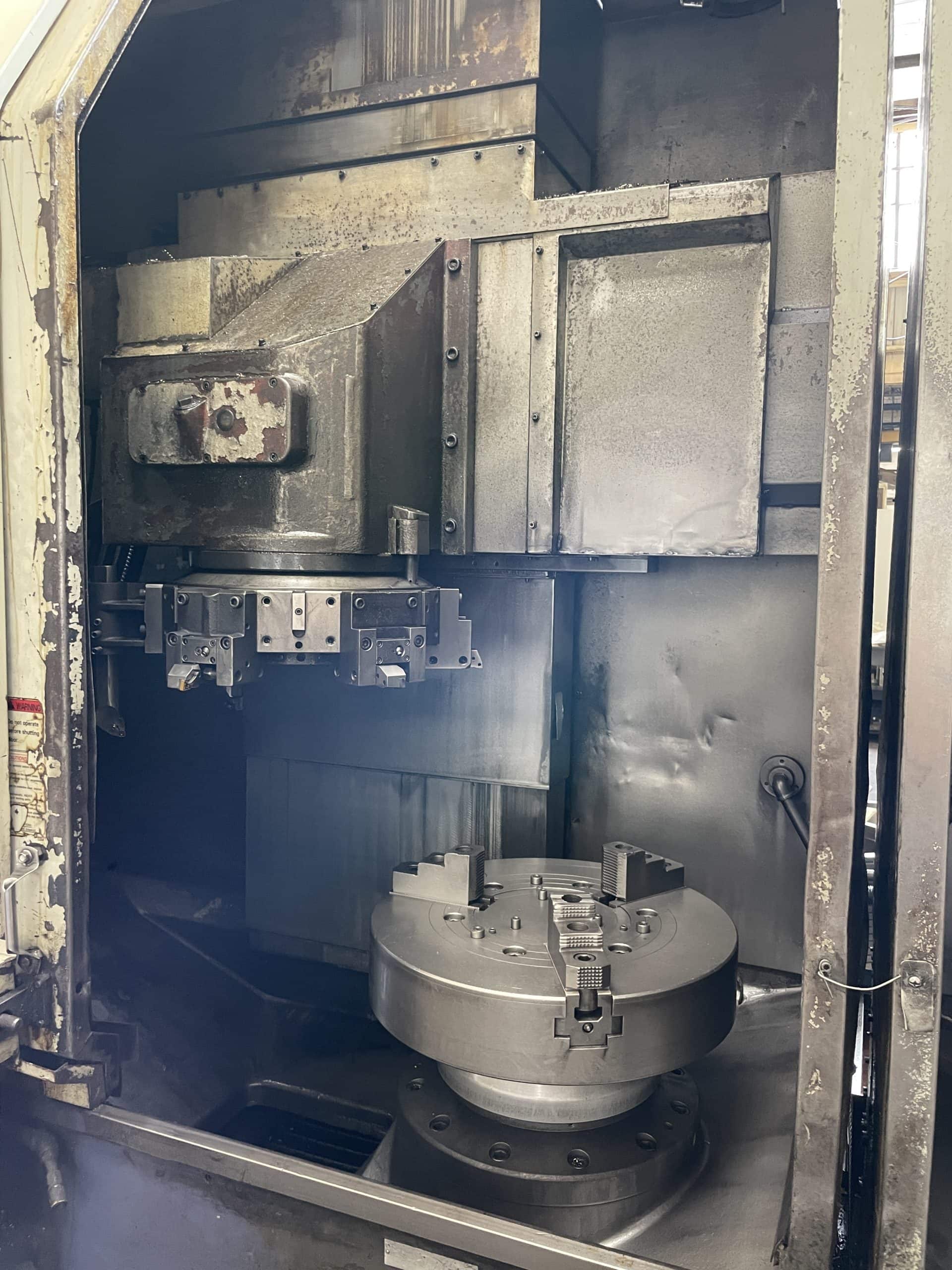

Hwacheon ECO-5VN.2SP CNC VTL ,2001-24″ Chucks, Dual Spindle, Chip Conveyor, Fanuc Control
$109,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Turning Diameter: 27.6″
Turning Length: 27.5″
Maximum Swing: 32.2″
Spindle Height: 48.25″
Spindle Nose: A2-11
Spindle Hole Size: 4″
Spindle Bearing Dia(Inner): 6.63″
Drive Motor: 30 Hp.Each Spindle
Spindle Speeds: 1500 Rpm
Spindle Range: (2)
Chuck Size: 24″ (2)
Turrets: 12 Atc (2)
Turret Travels..(X): 13.7″ Each
Turret Travels..(Z): 31.5″ Each
Turret Feeds: 787 Ipm (Z)
Turret Feeds: 350 Ipm (X)
Weight: 57,500 Lbs.
Dimensions: 132″Ht.
Floor Dimensions: 118″L-R X 187″Width
