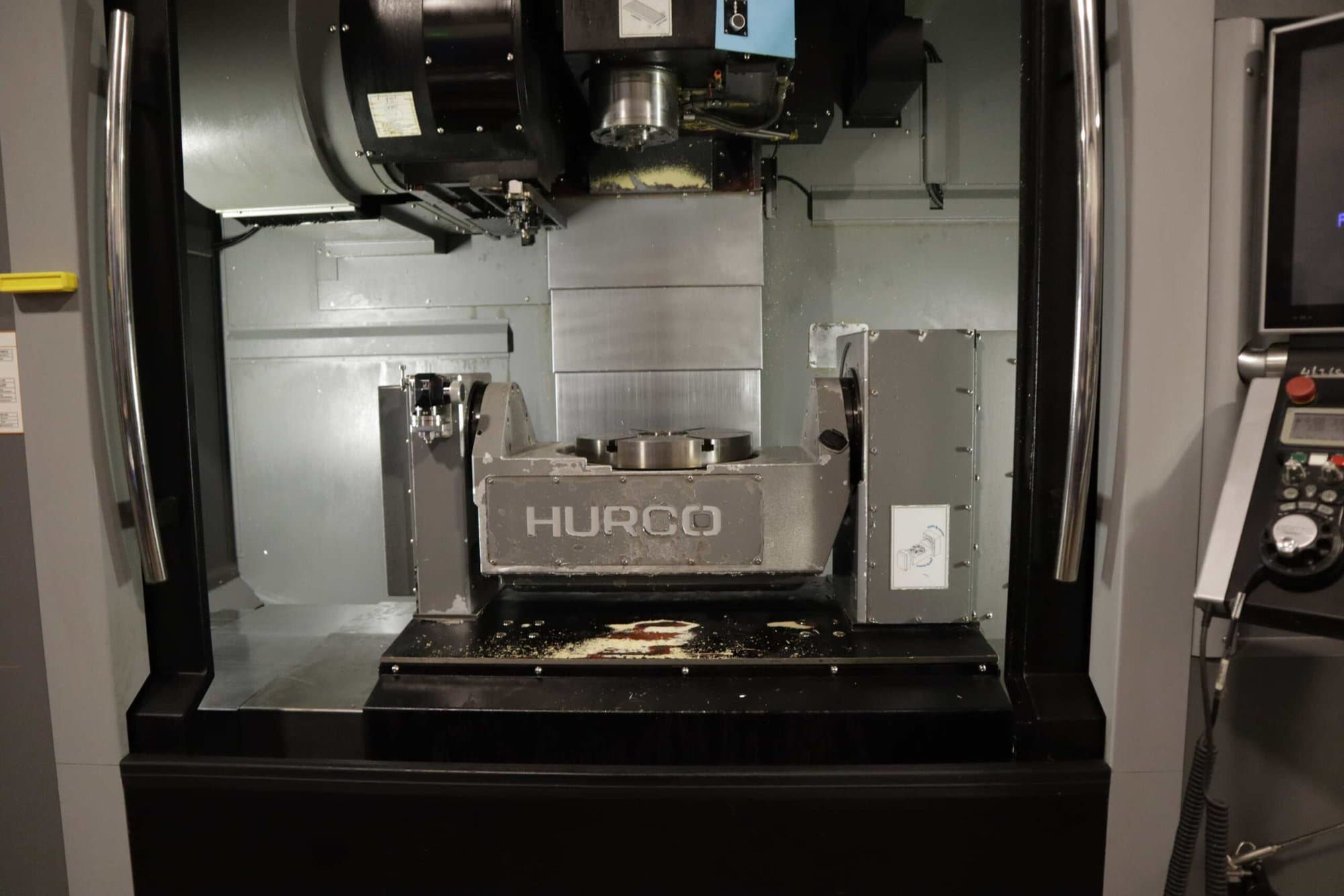

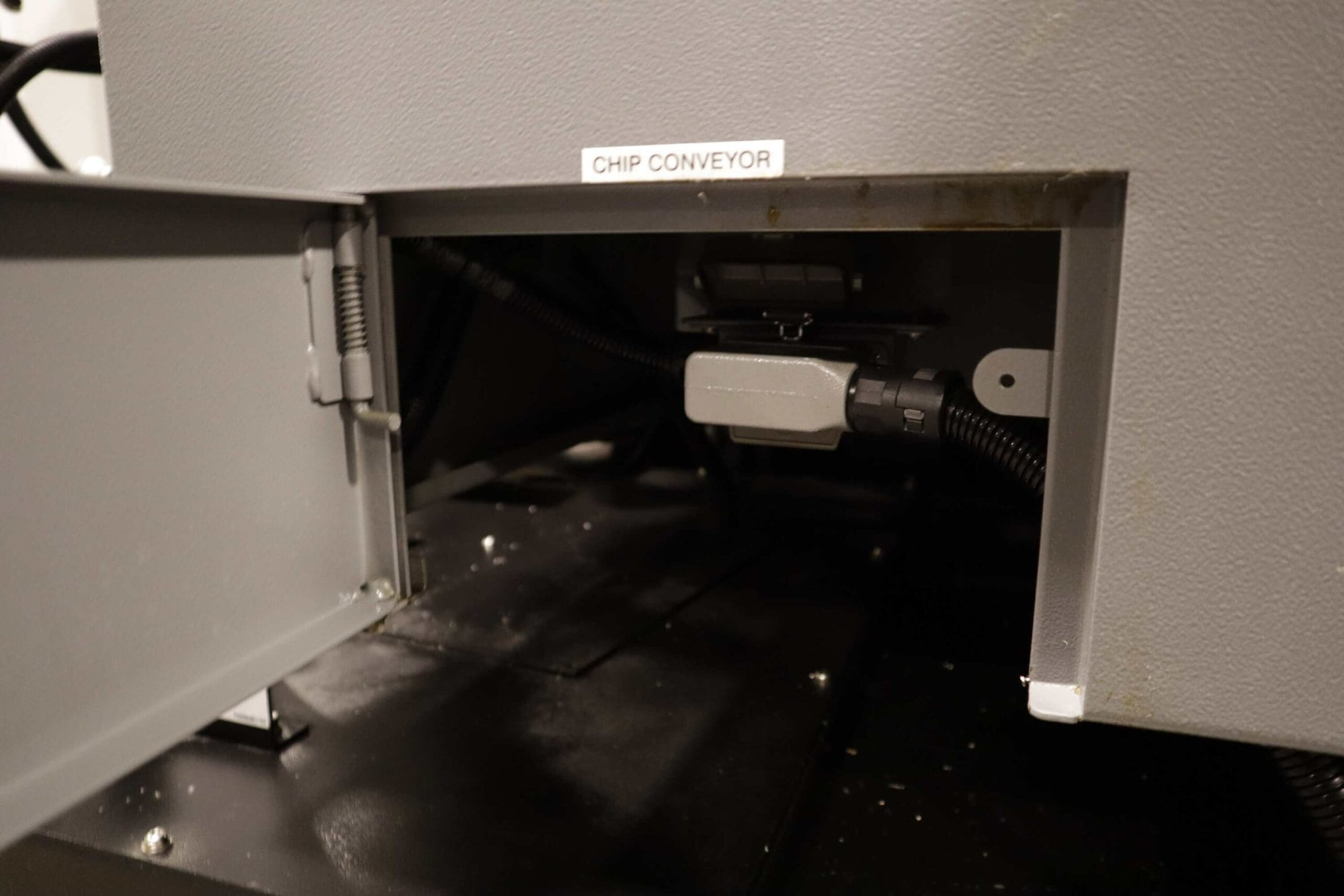

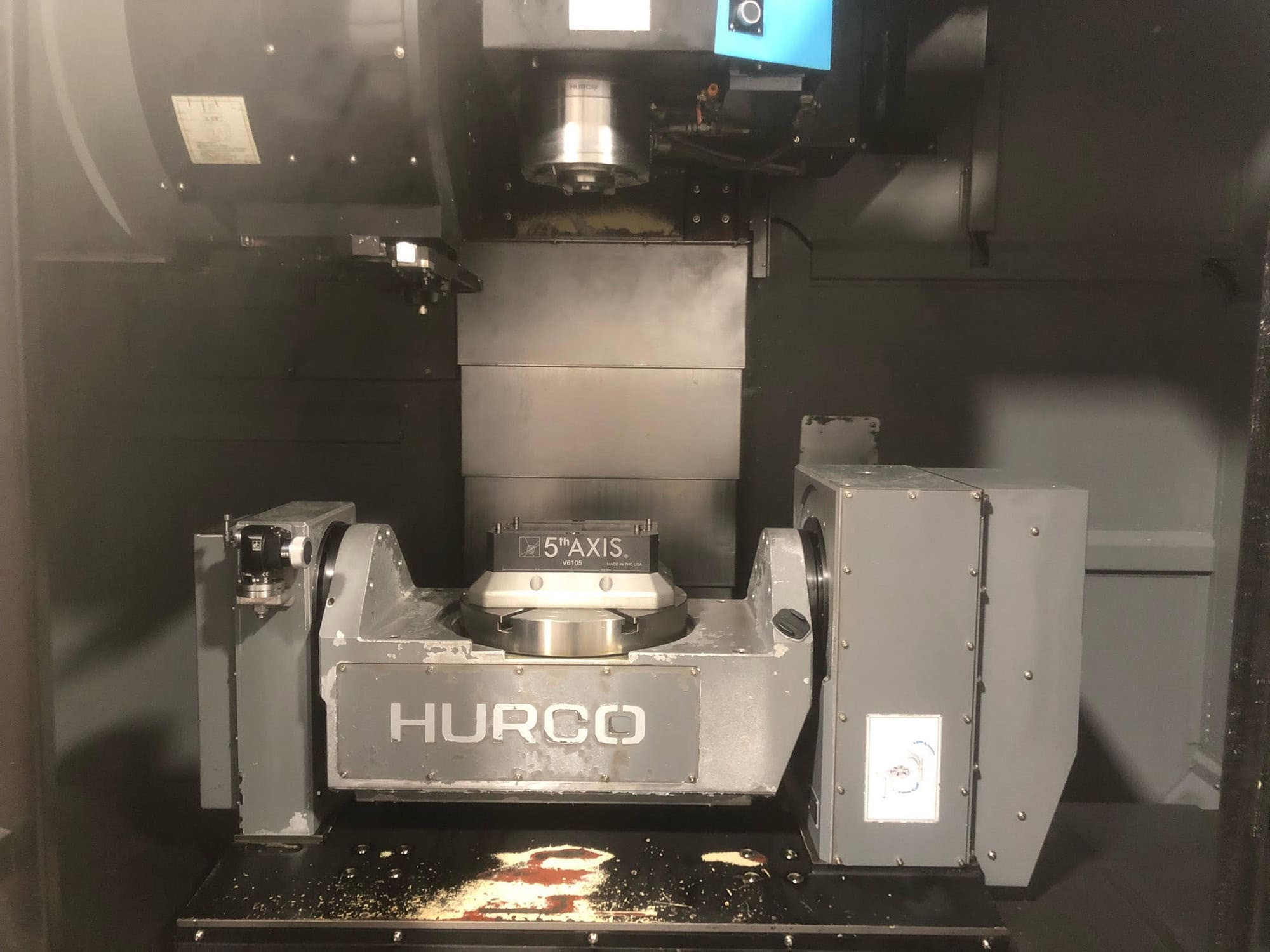

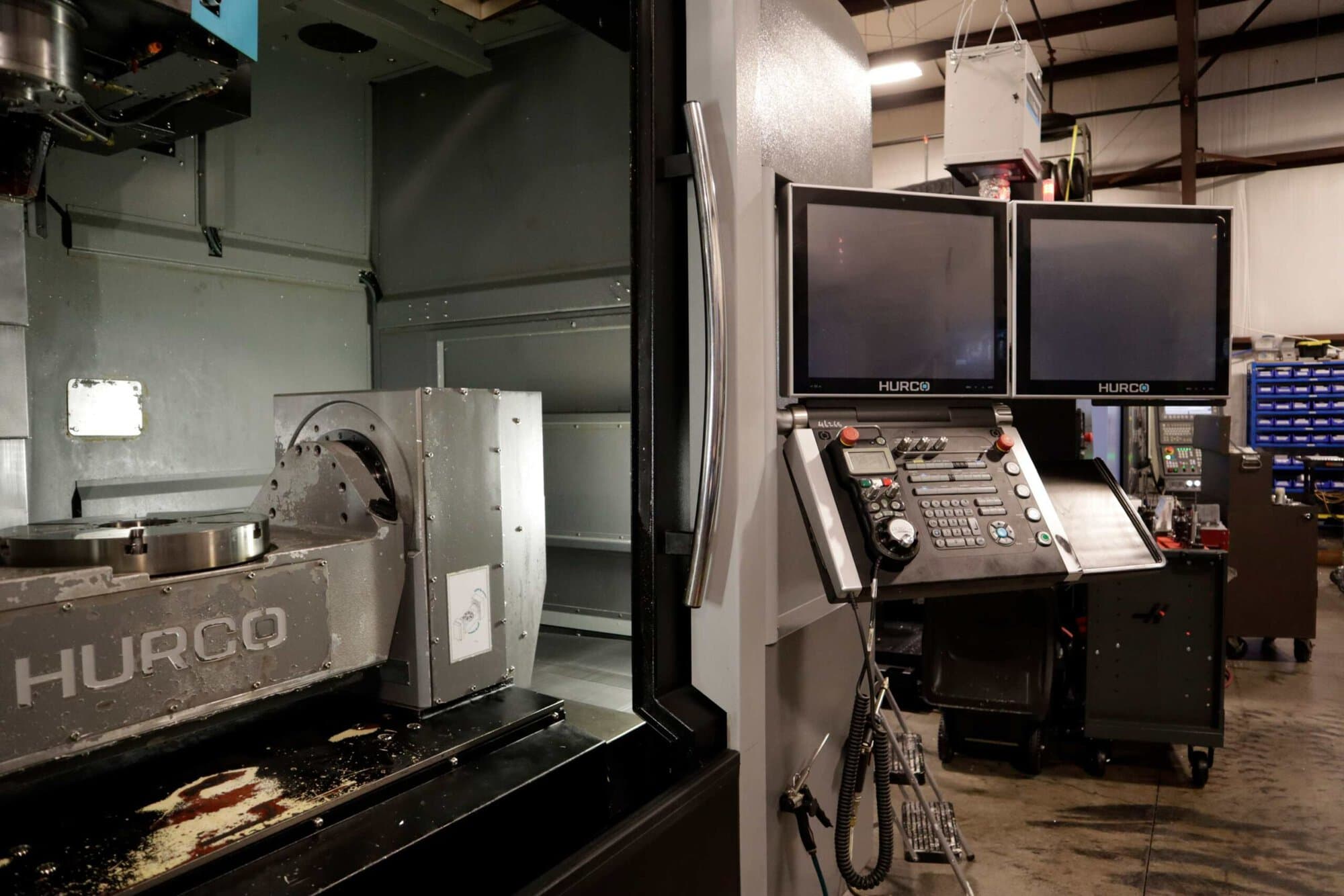

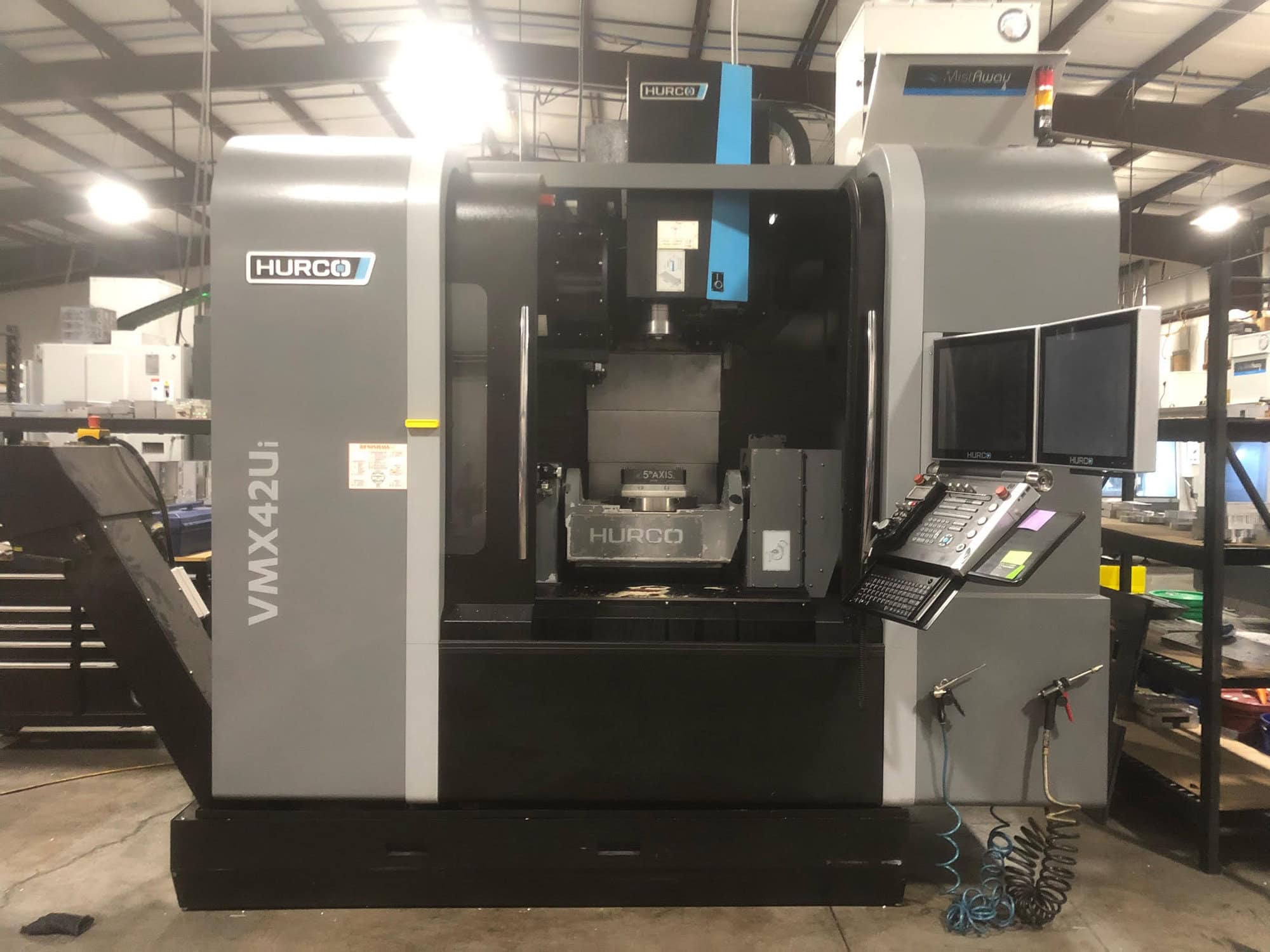

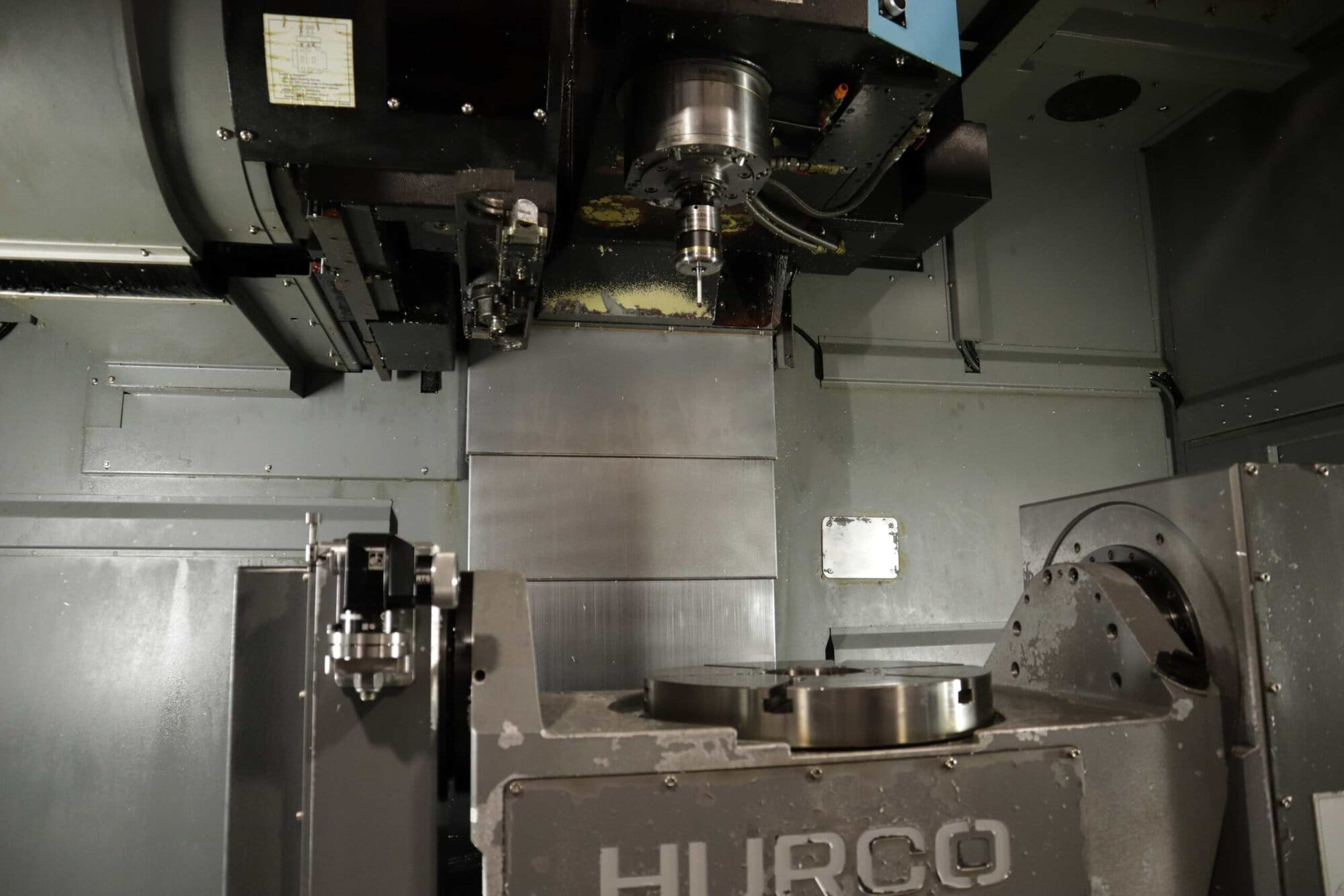

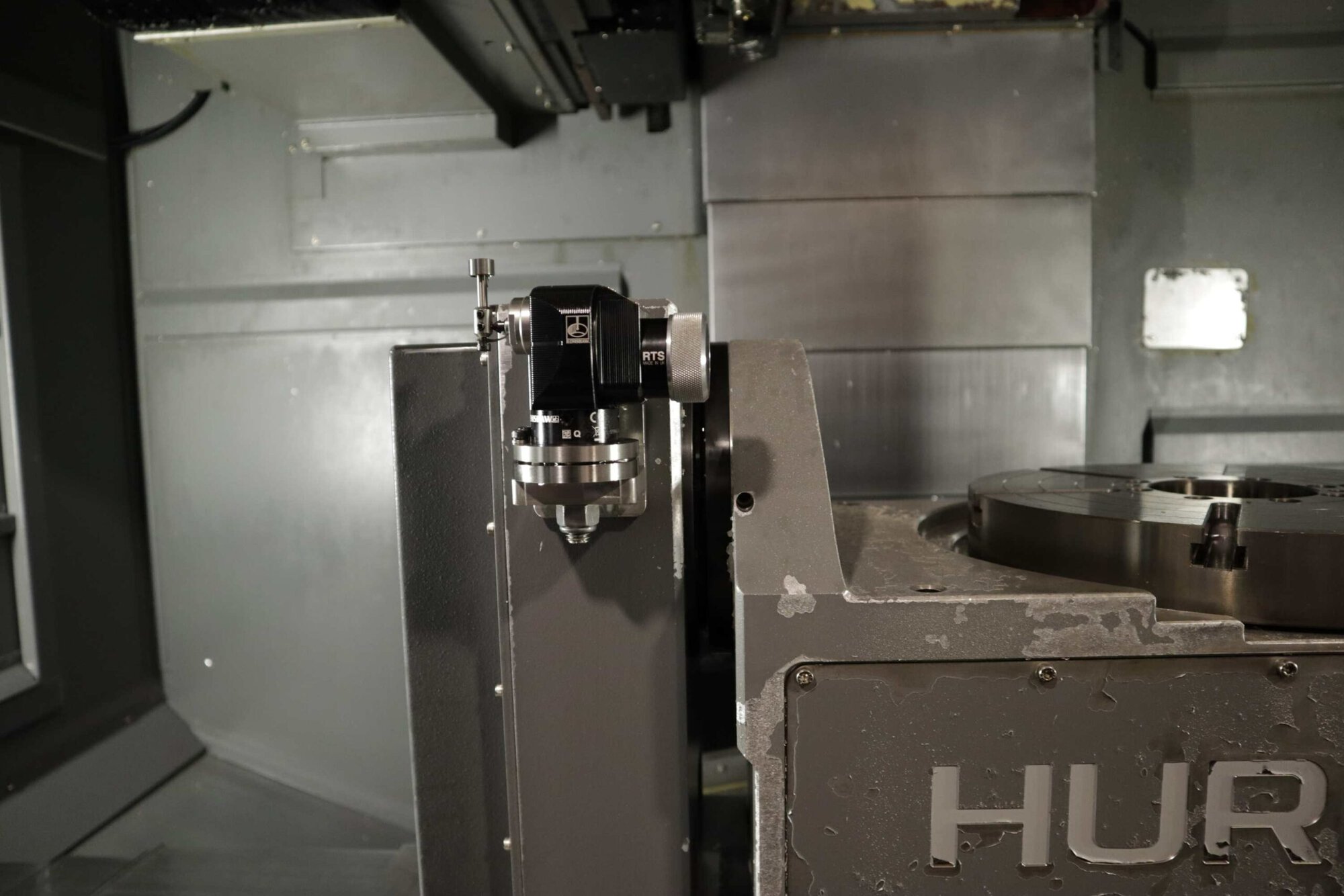

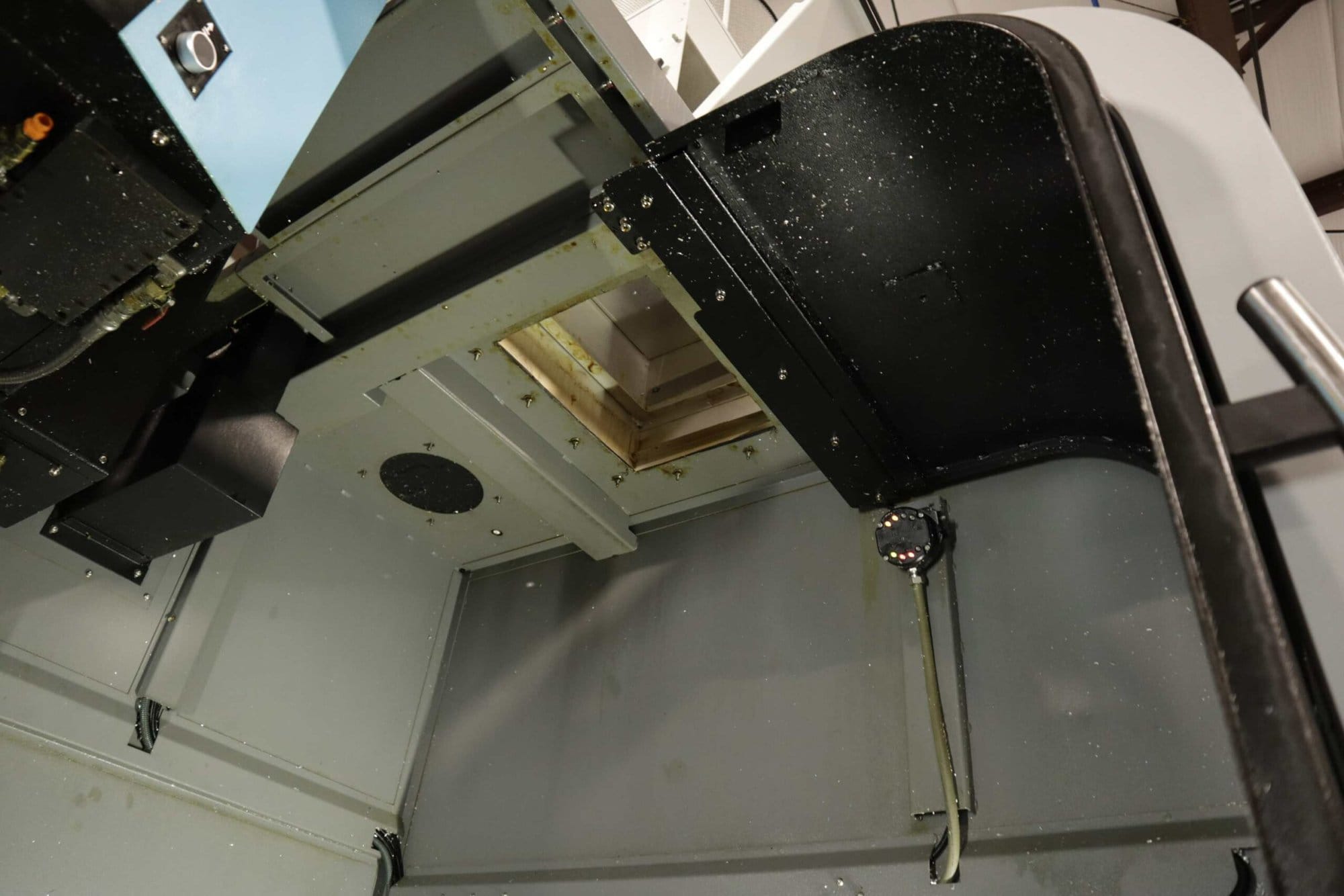

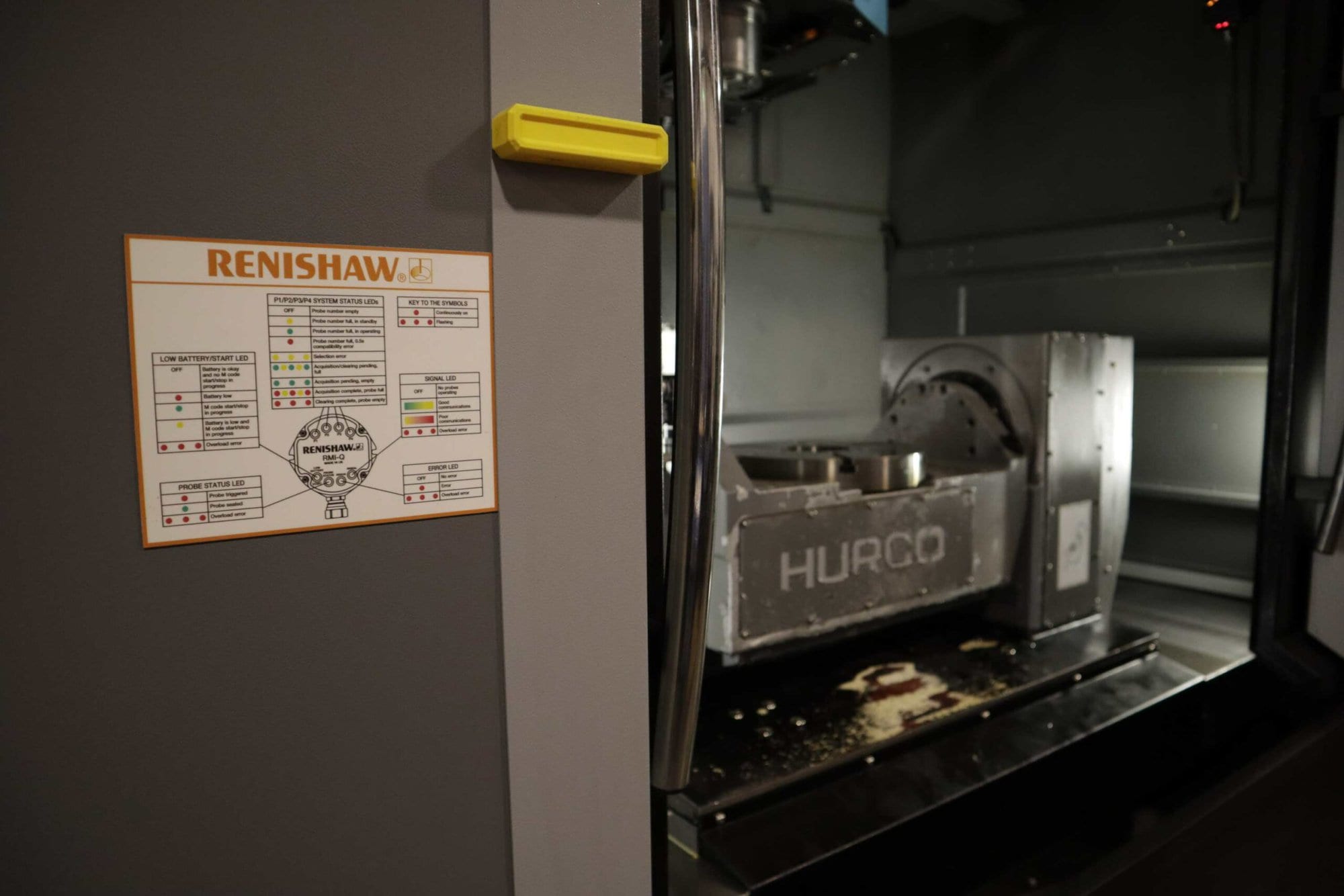

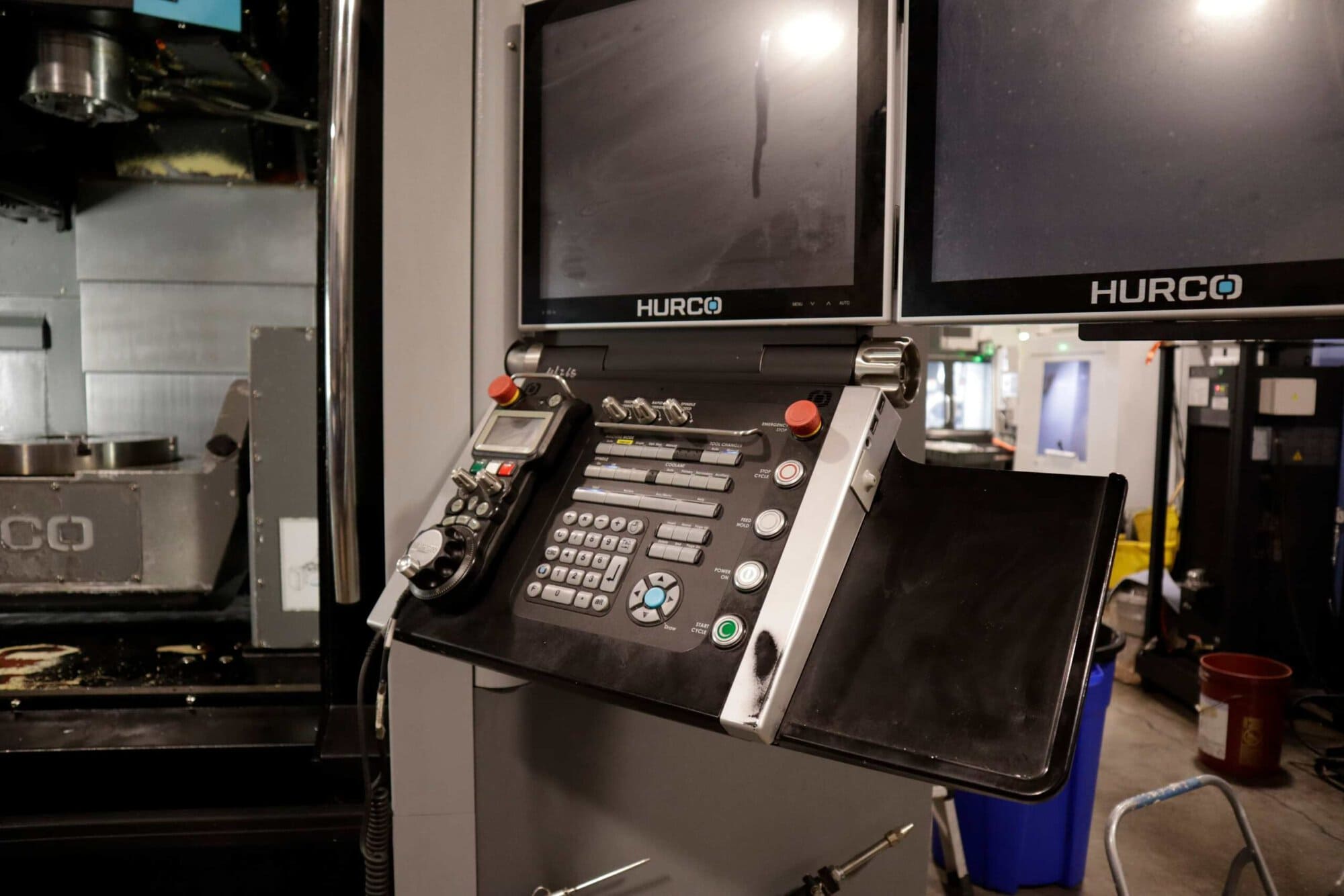

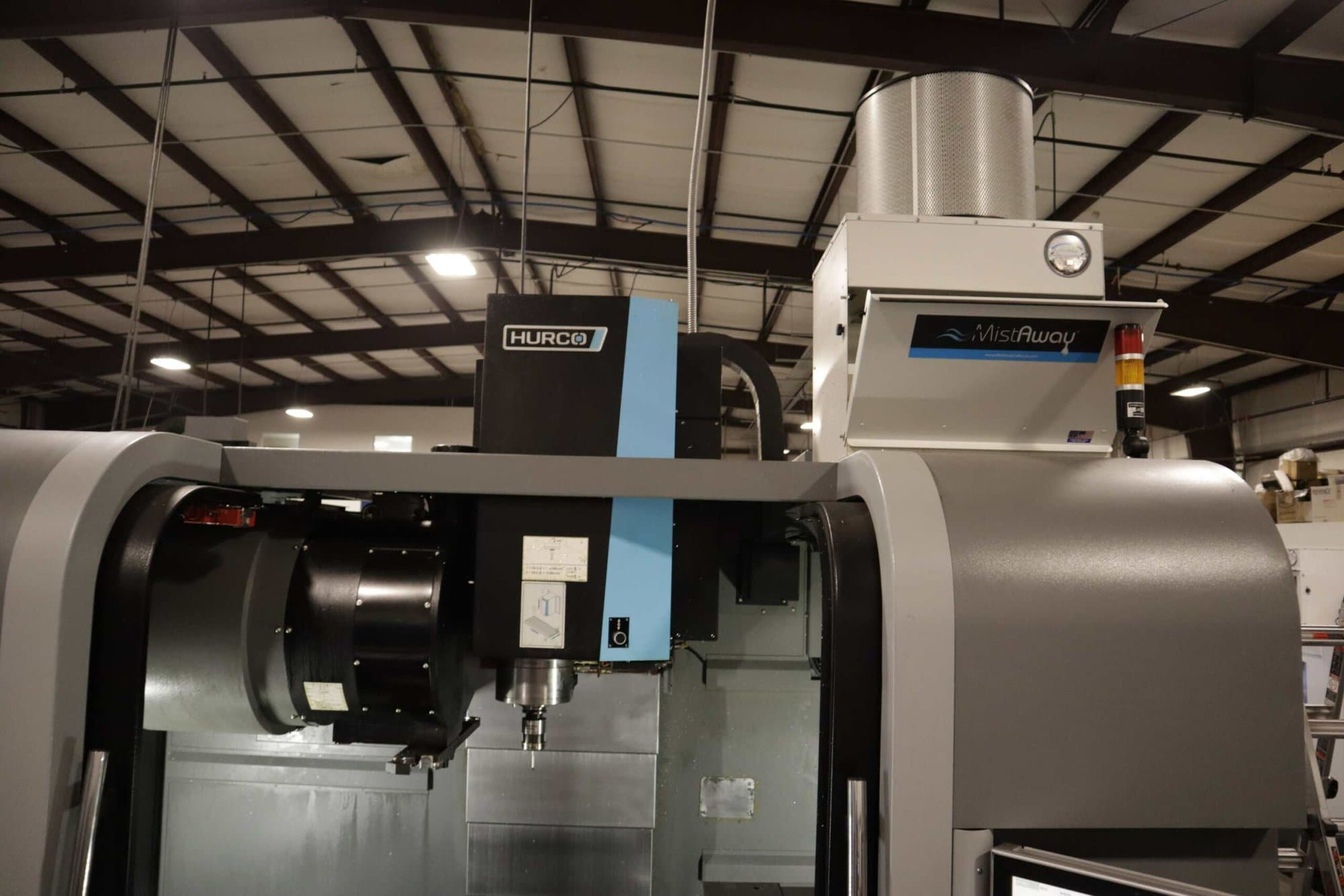

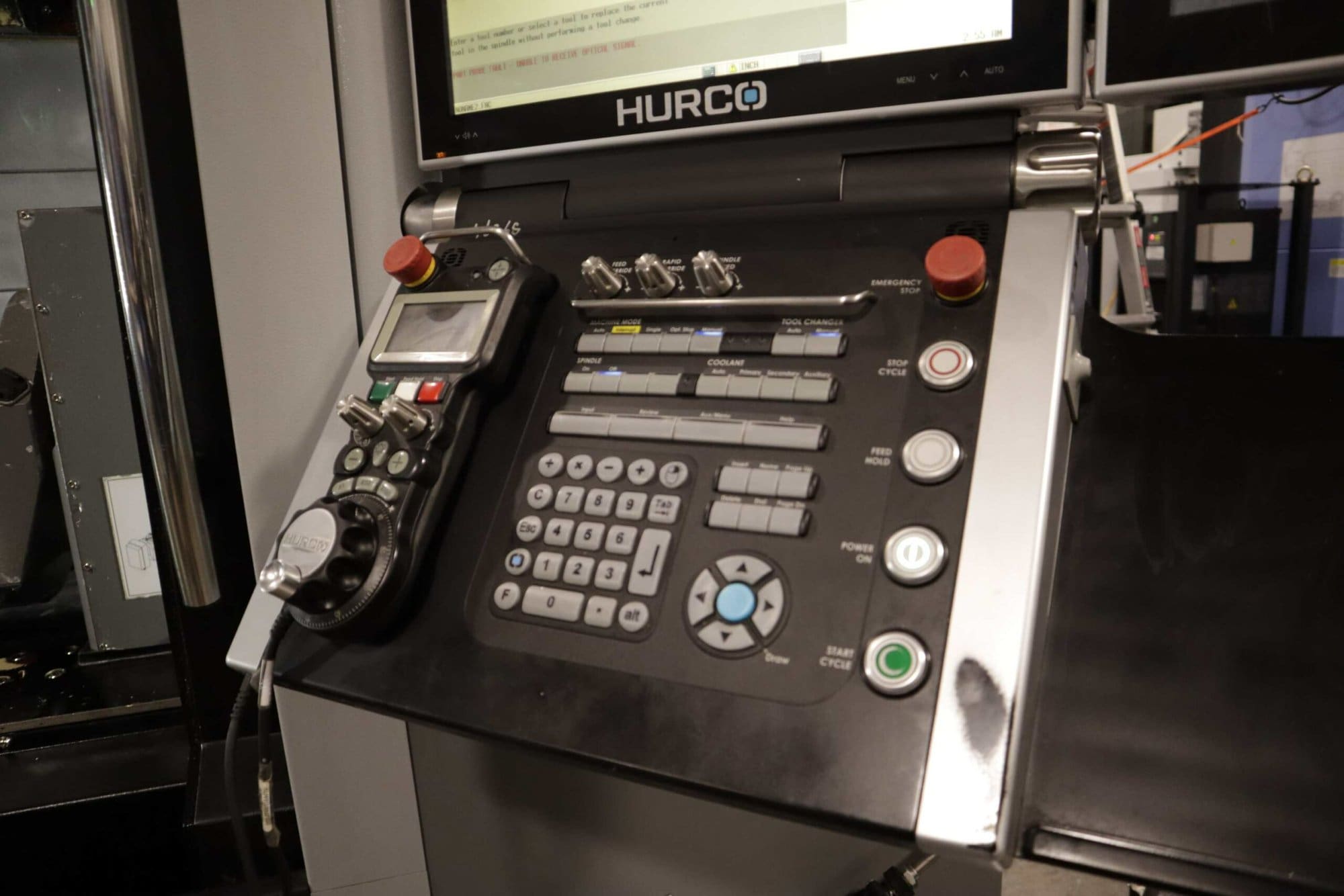

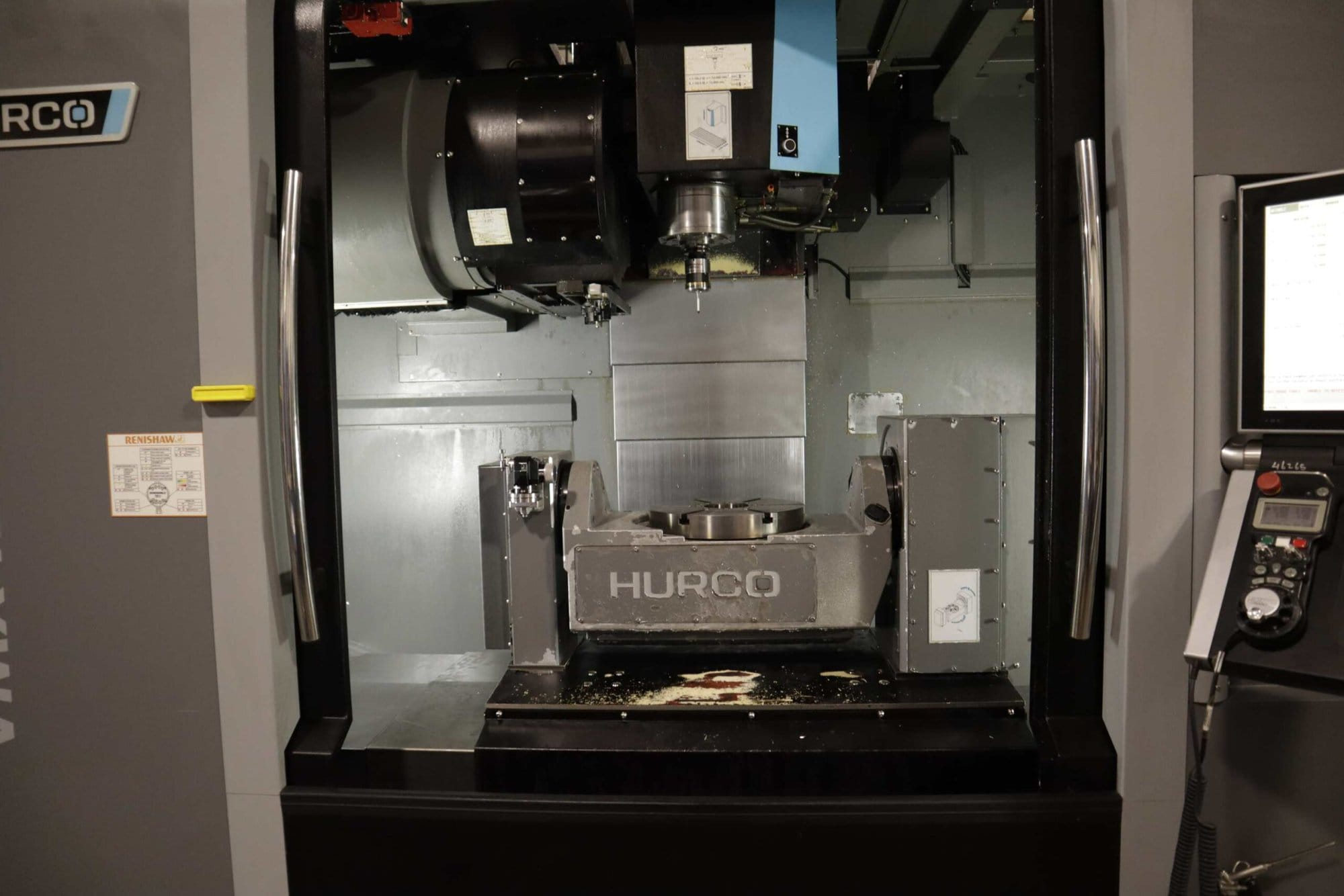

Hurco VMX42Ui 5 Axis Vertical Machine Center, 2016 – Chip Conveyor Included, Wired for 4th/5th Axis
$99,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels & Capacity
X-Axis Travels: 42″
Y-Axis Travels: 24″
Z-Axis Travels: 20.5″

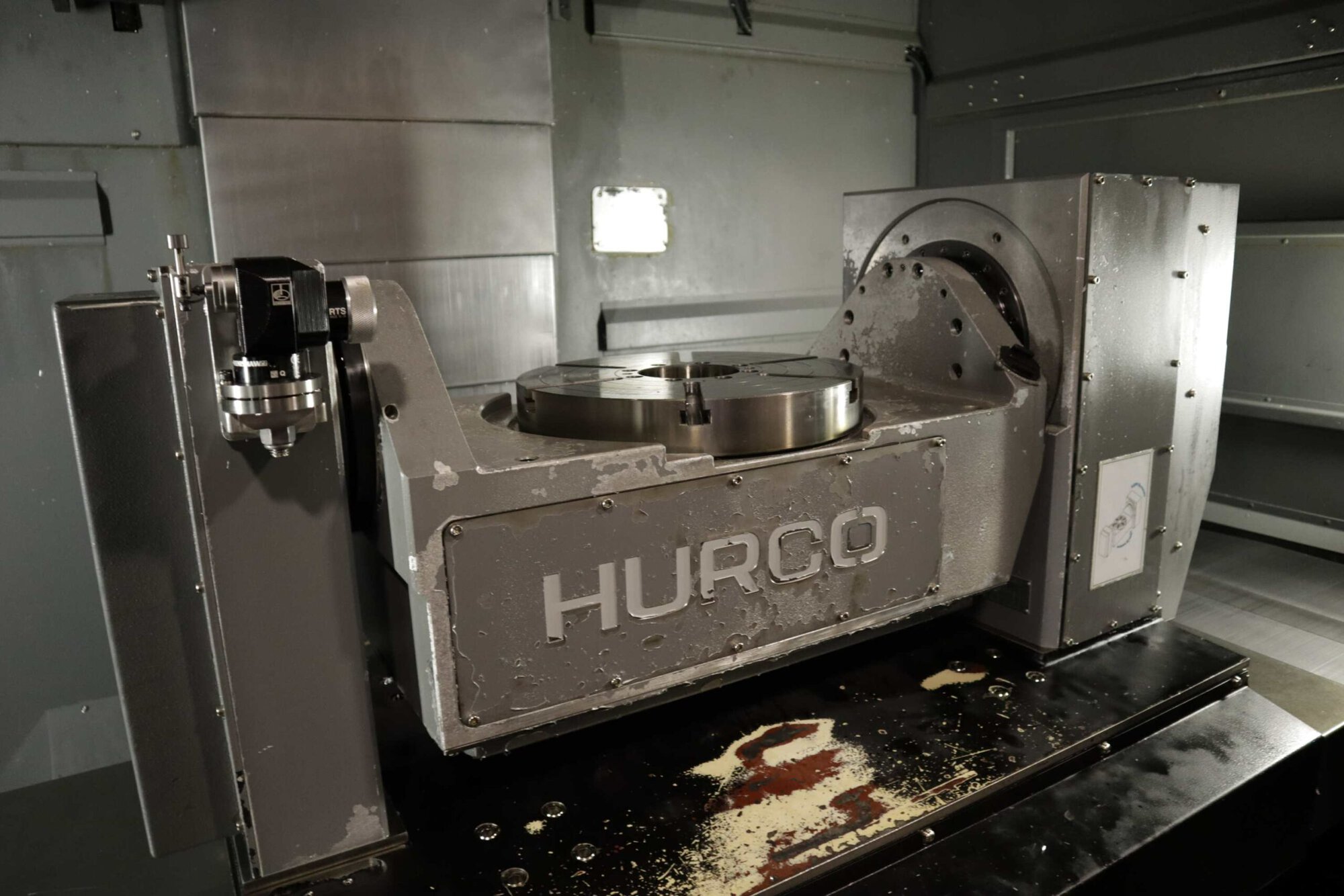

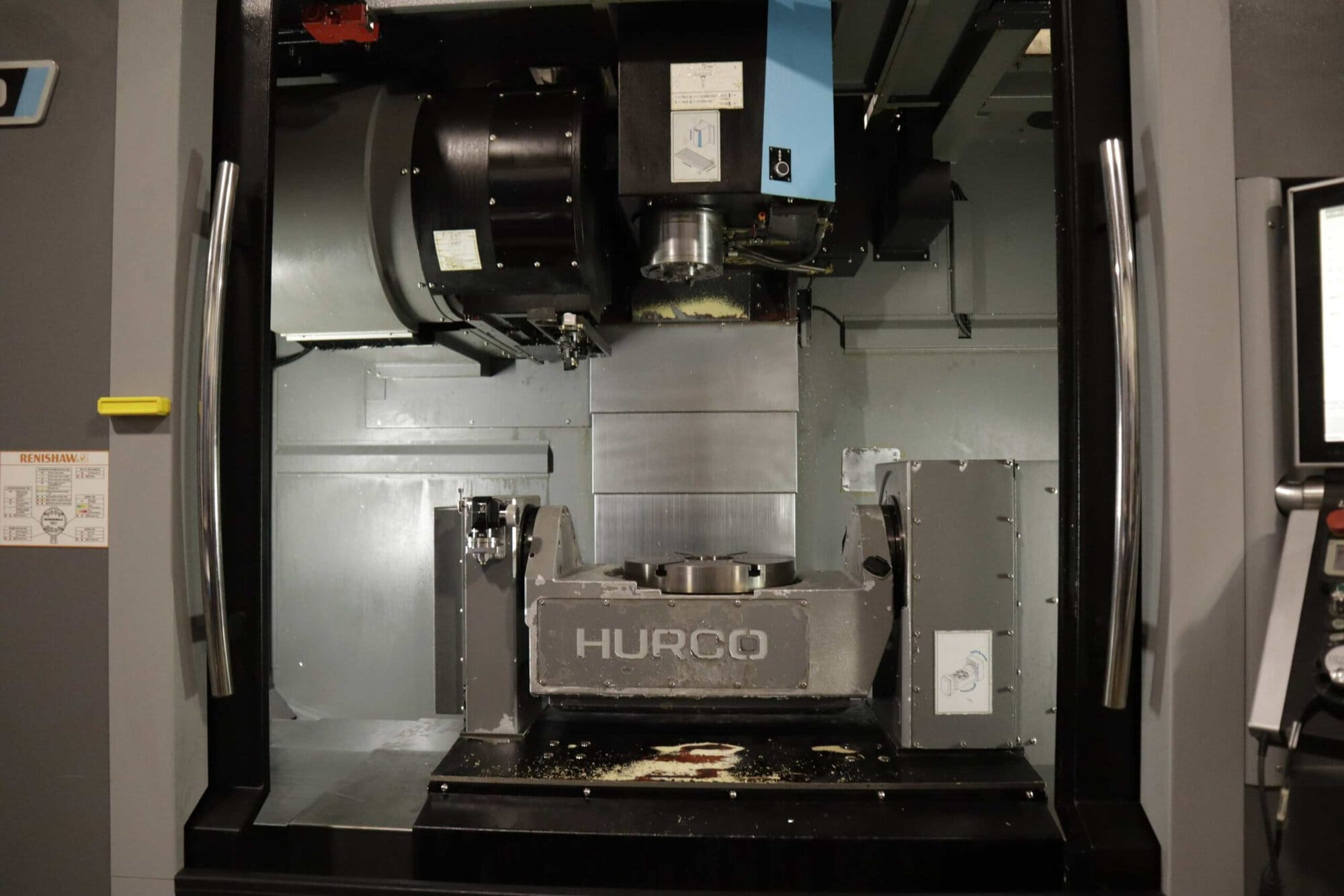

C-Axis Travels: 360°
Spindle Nose to Table: 3.5″/24″

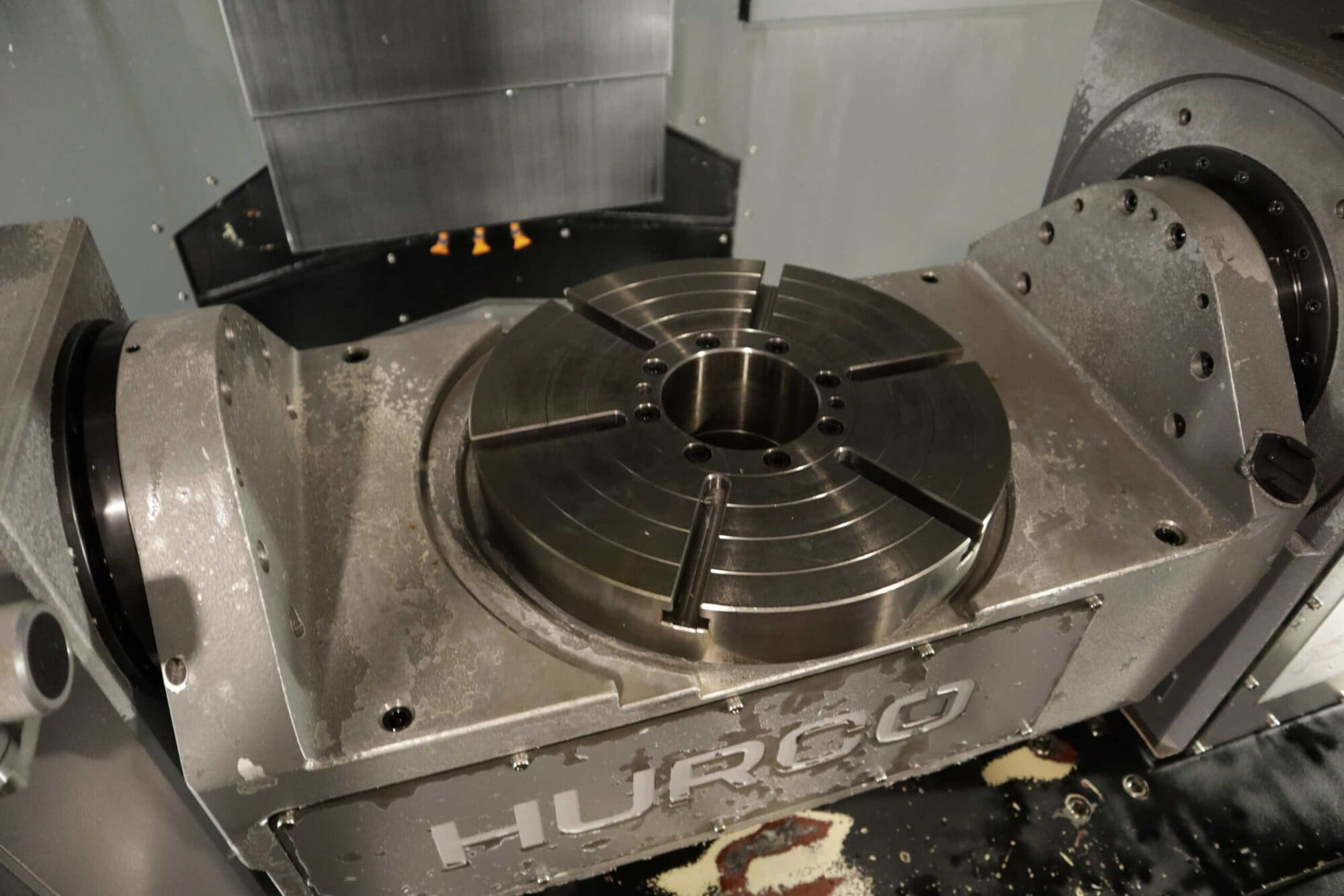

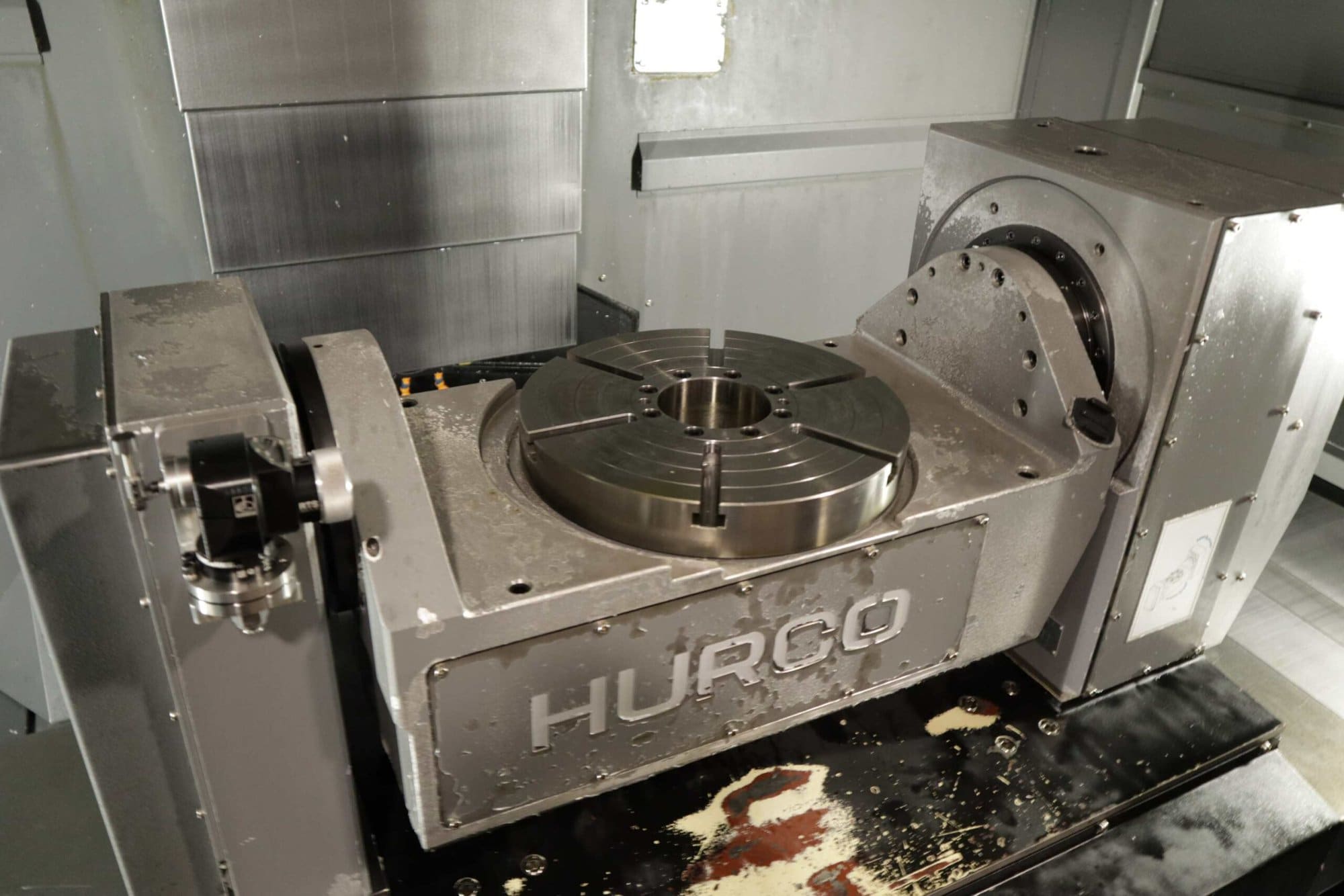

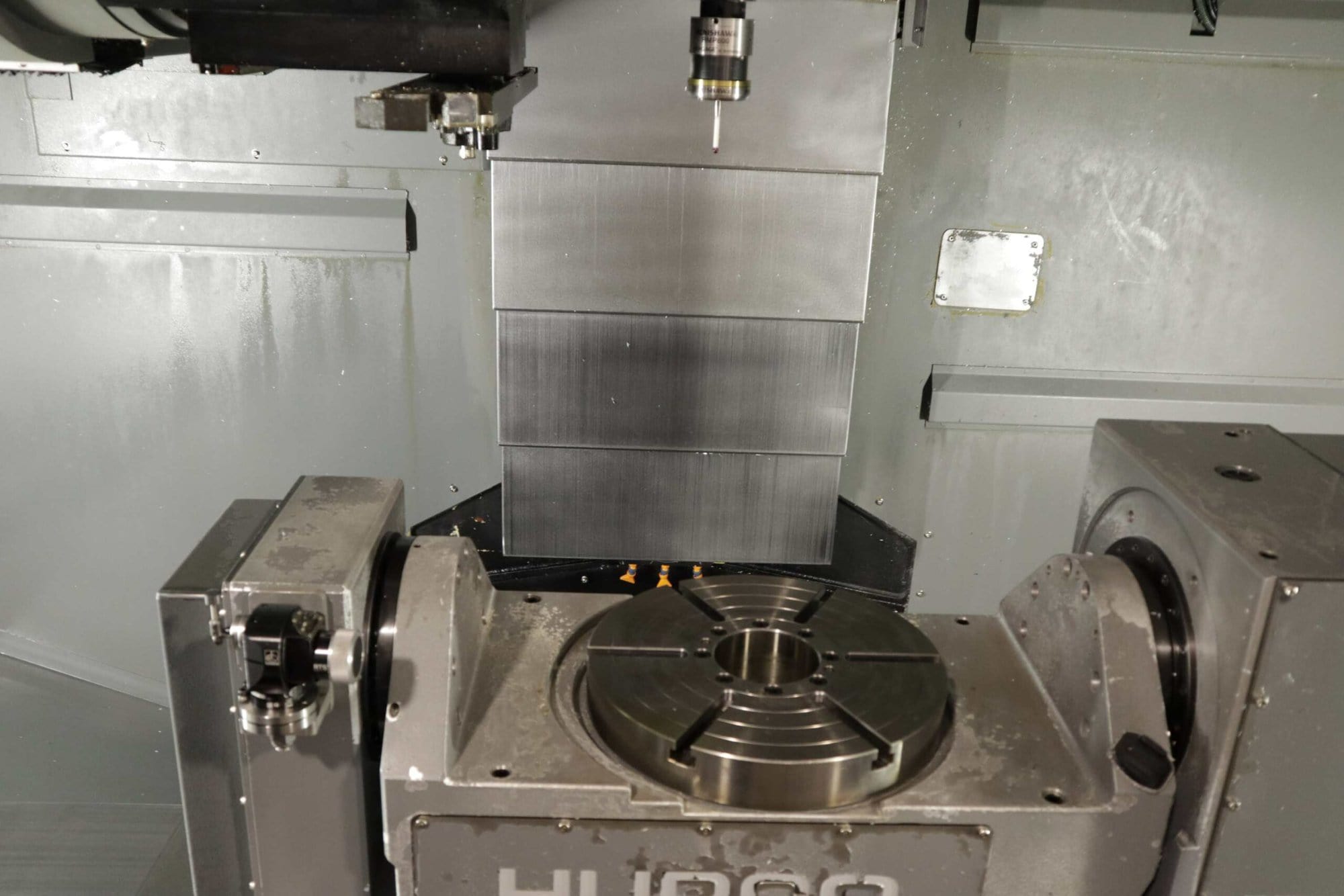

Table Diameter: 13.7″

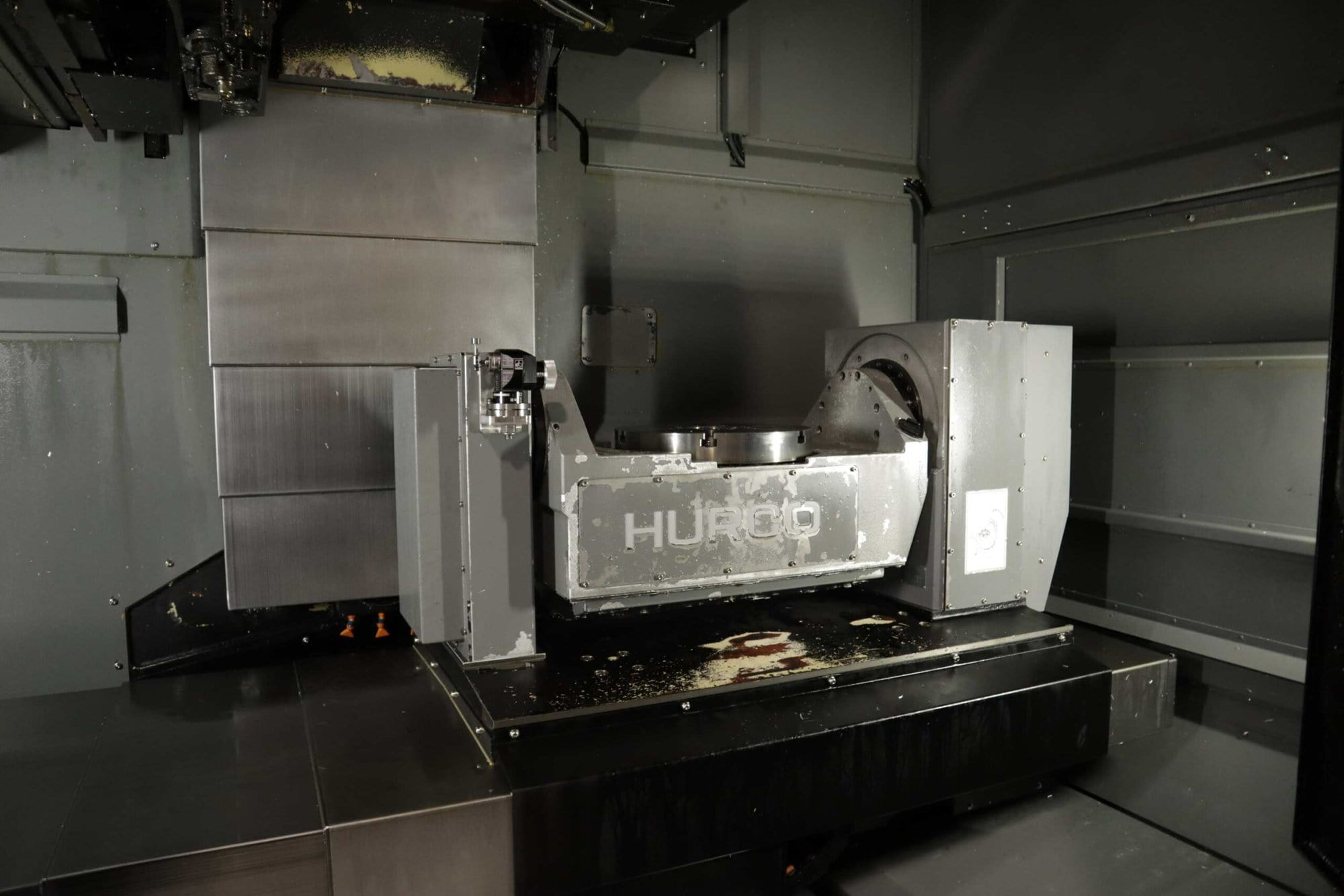

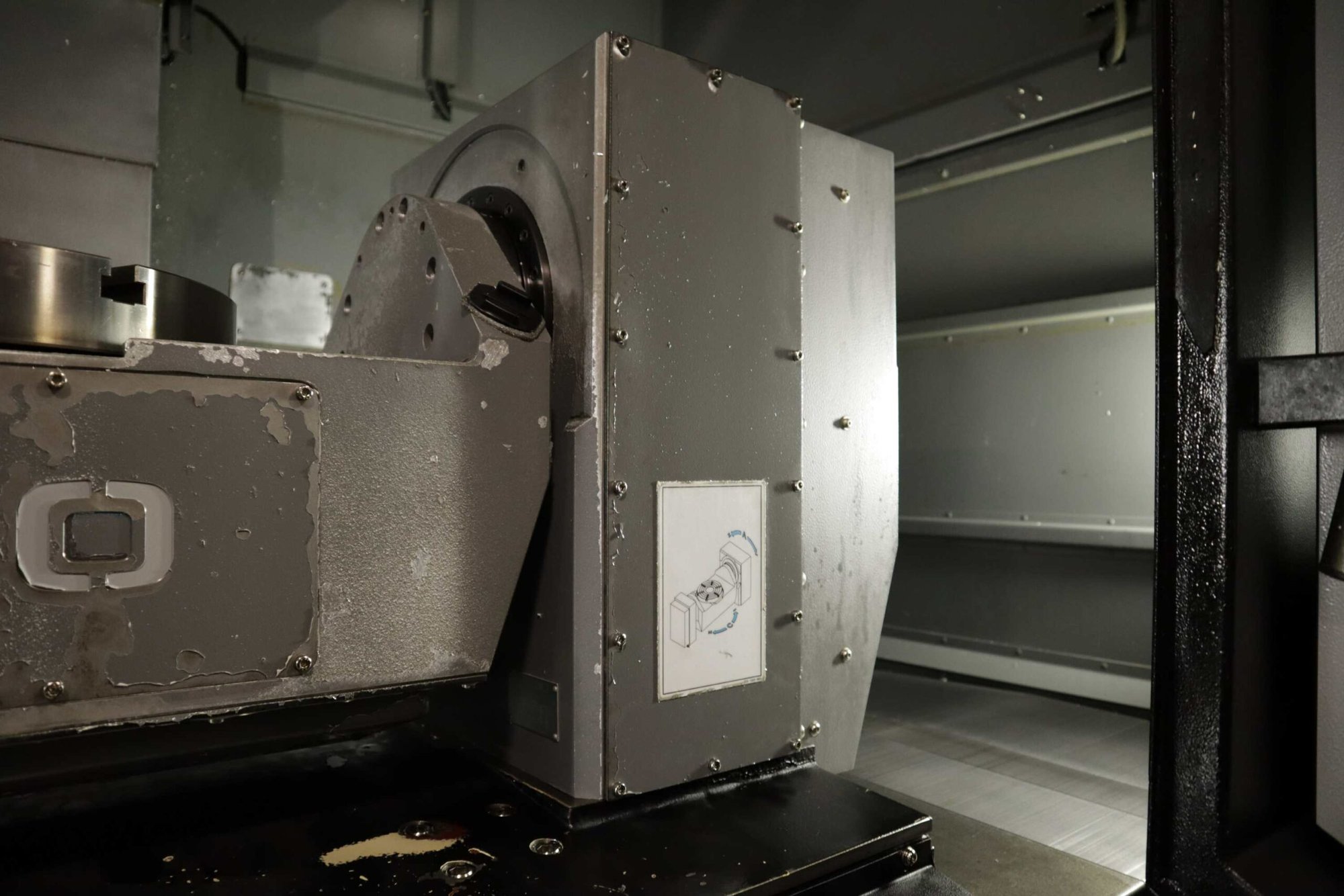

Max Weight on Rotary/Trunnion Table: 550lbs
T-Slot Size: 6″ x .56″ x 60°

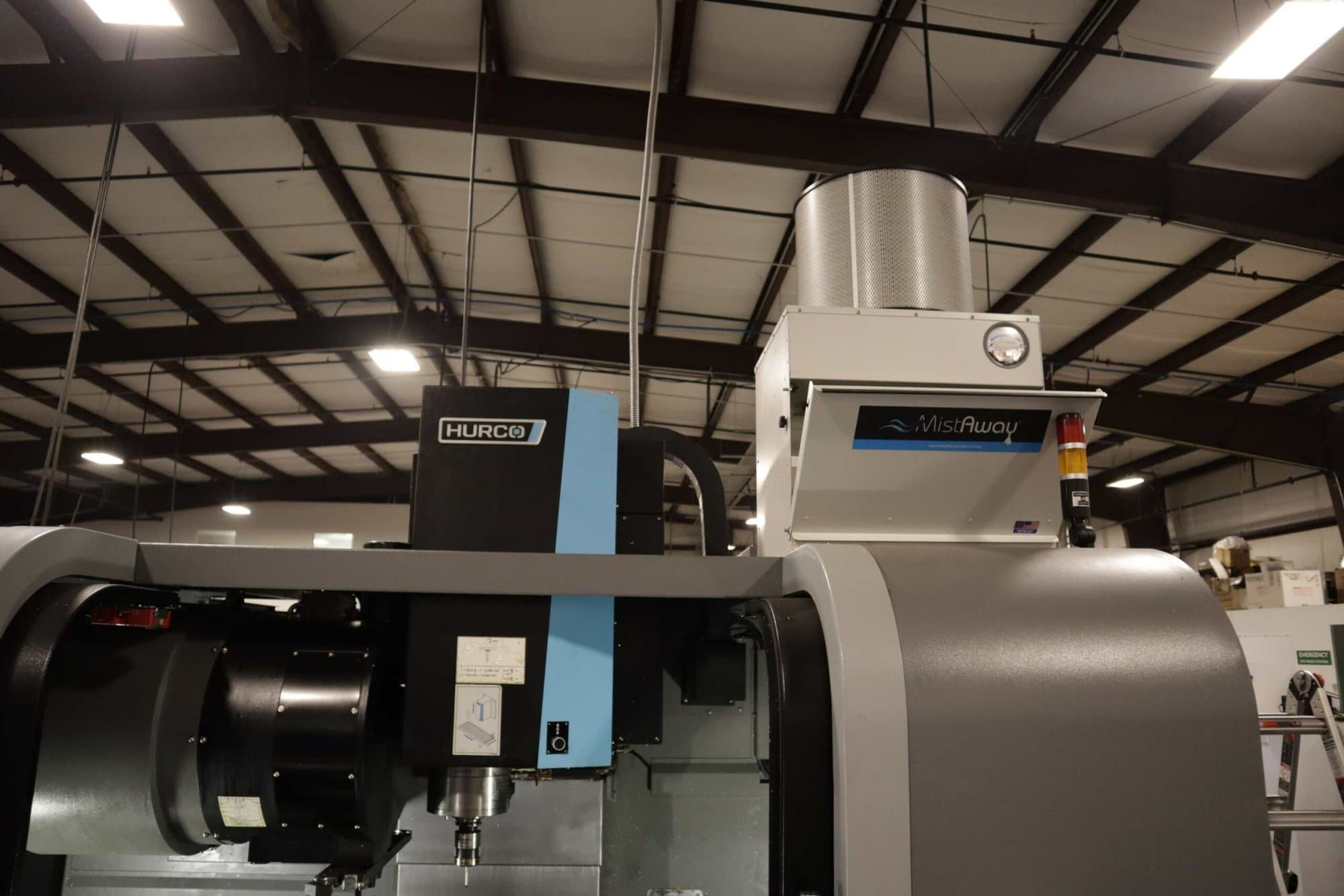

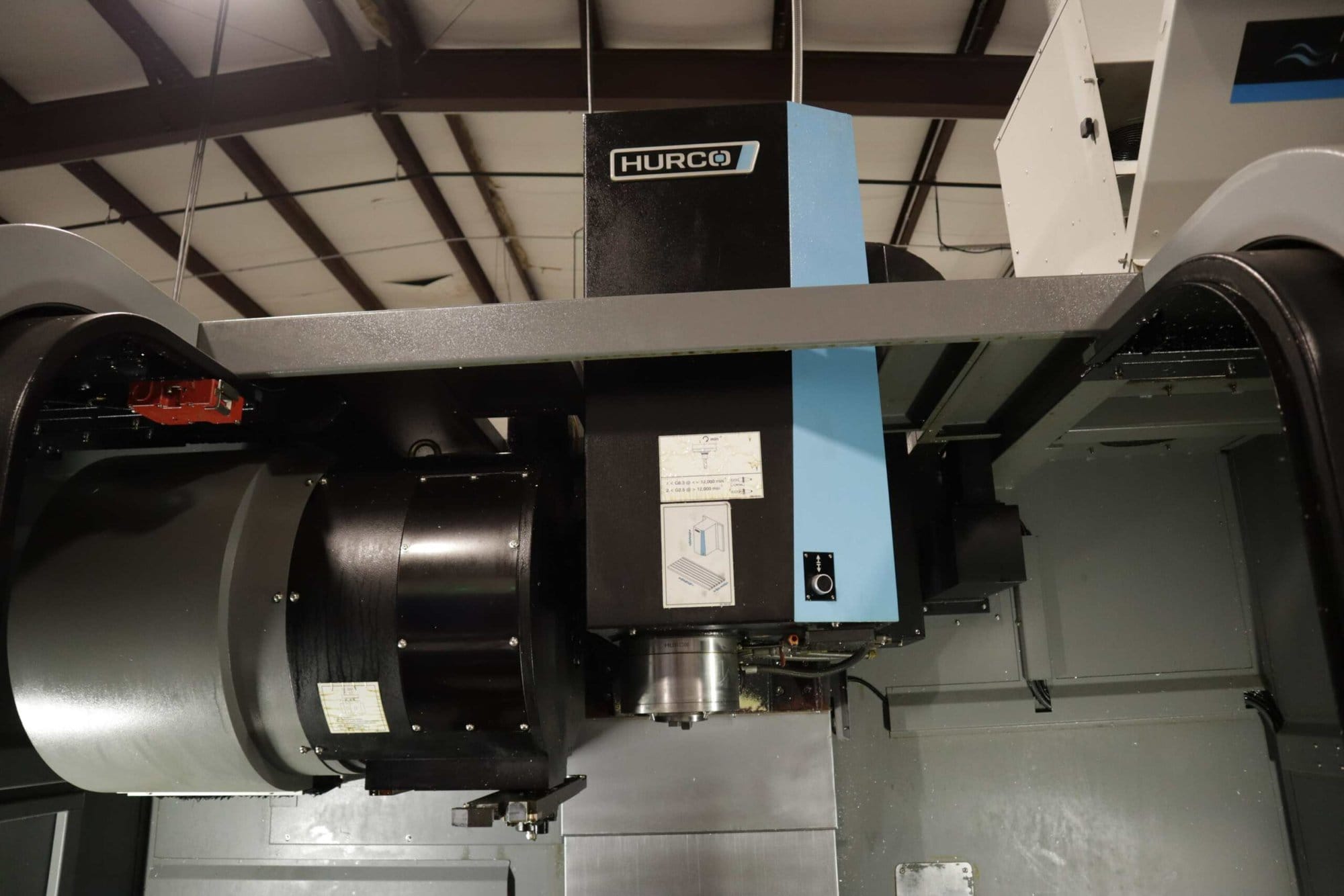

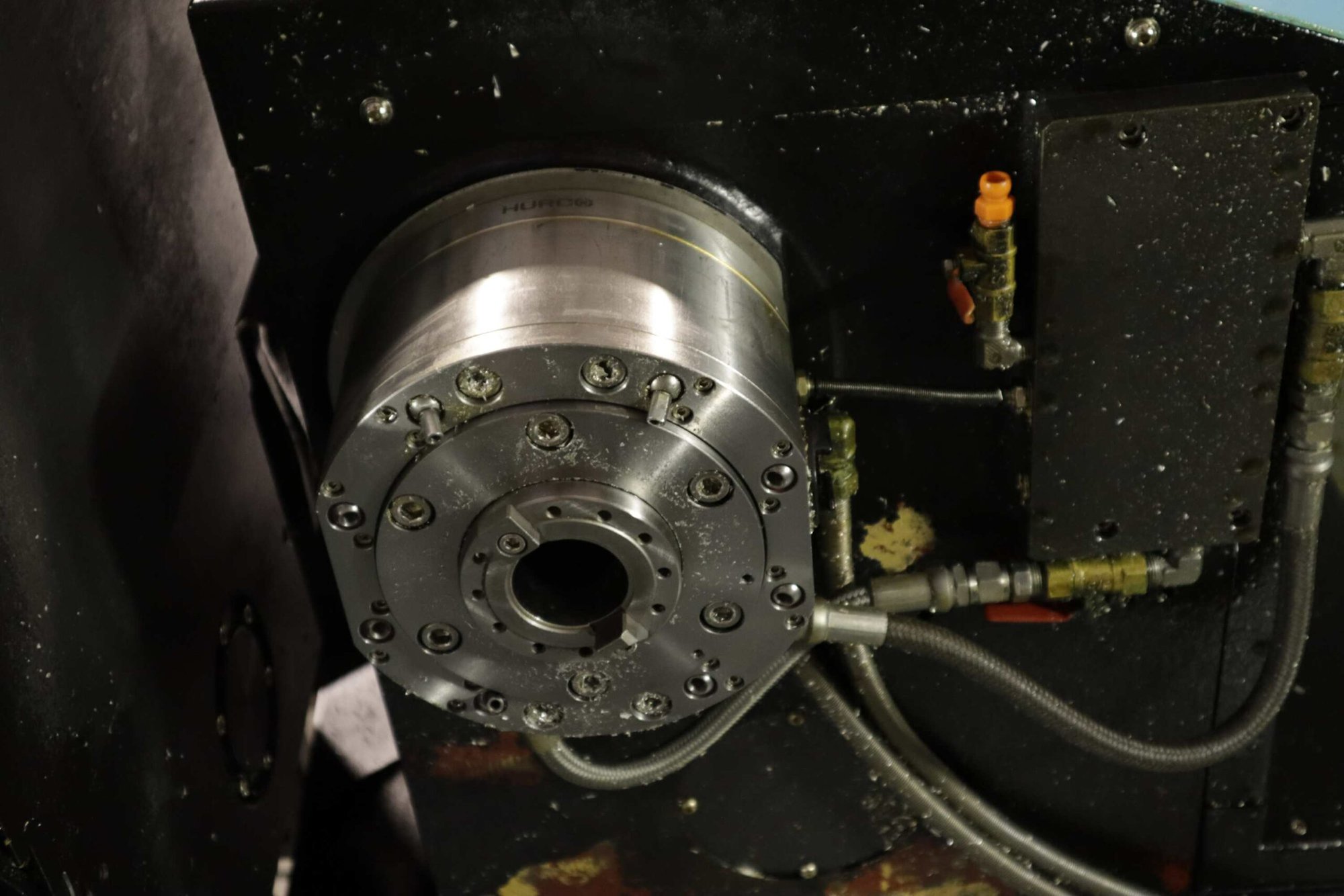

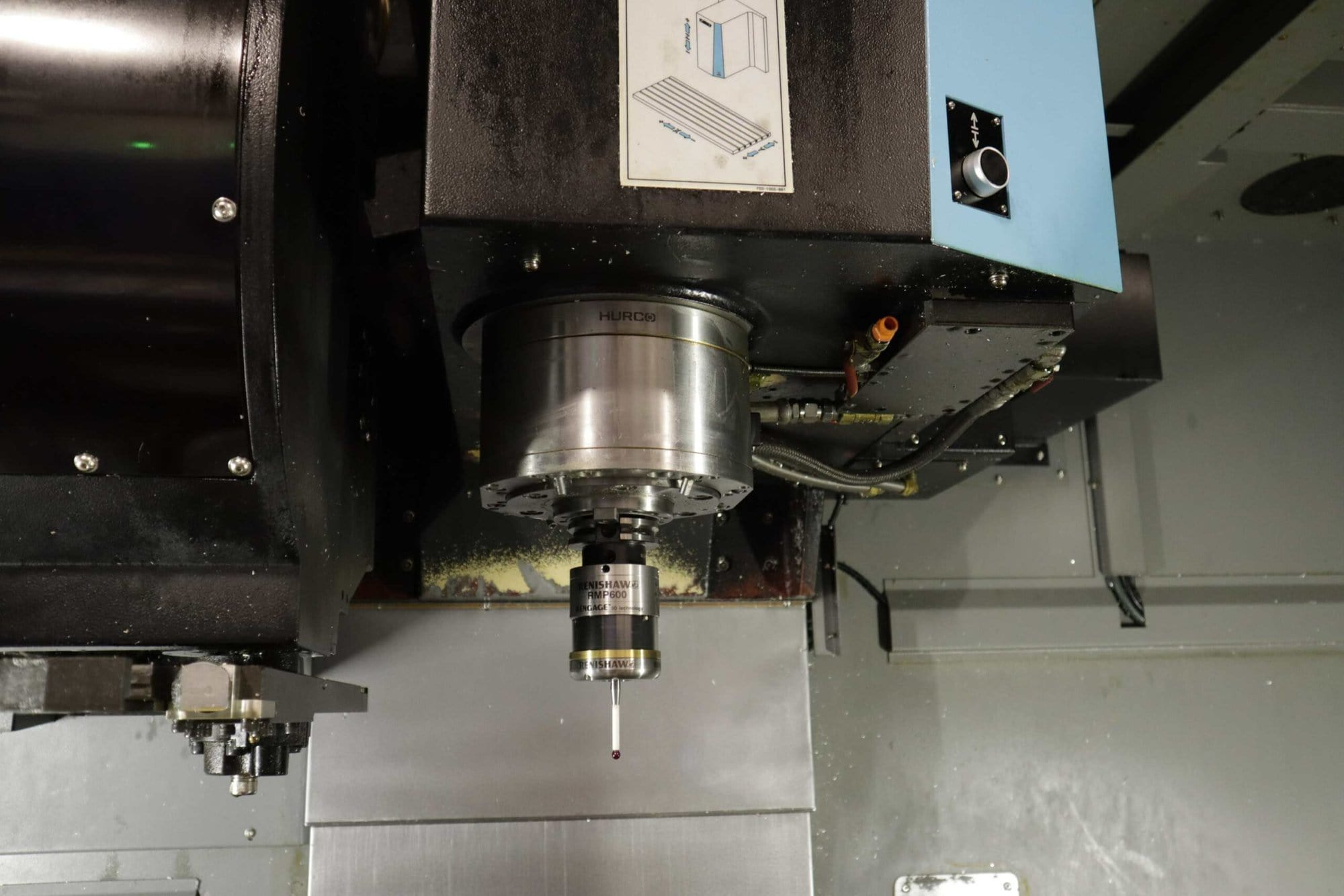

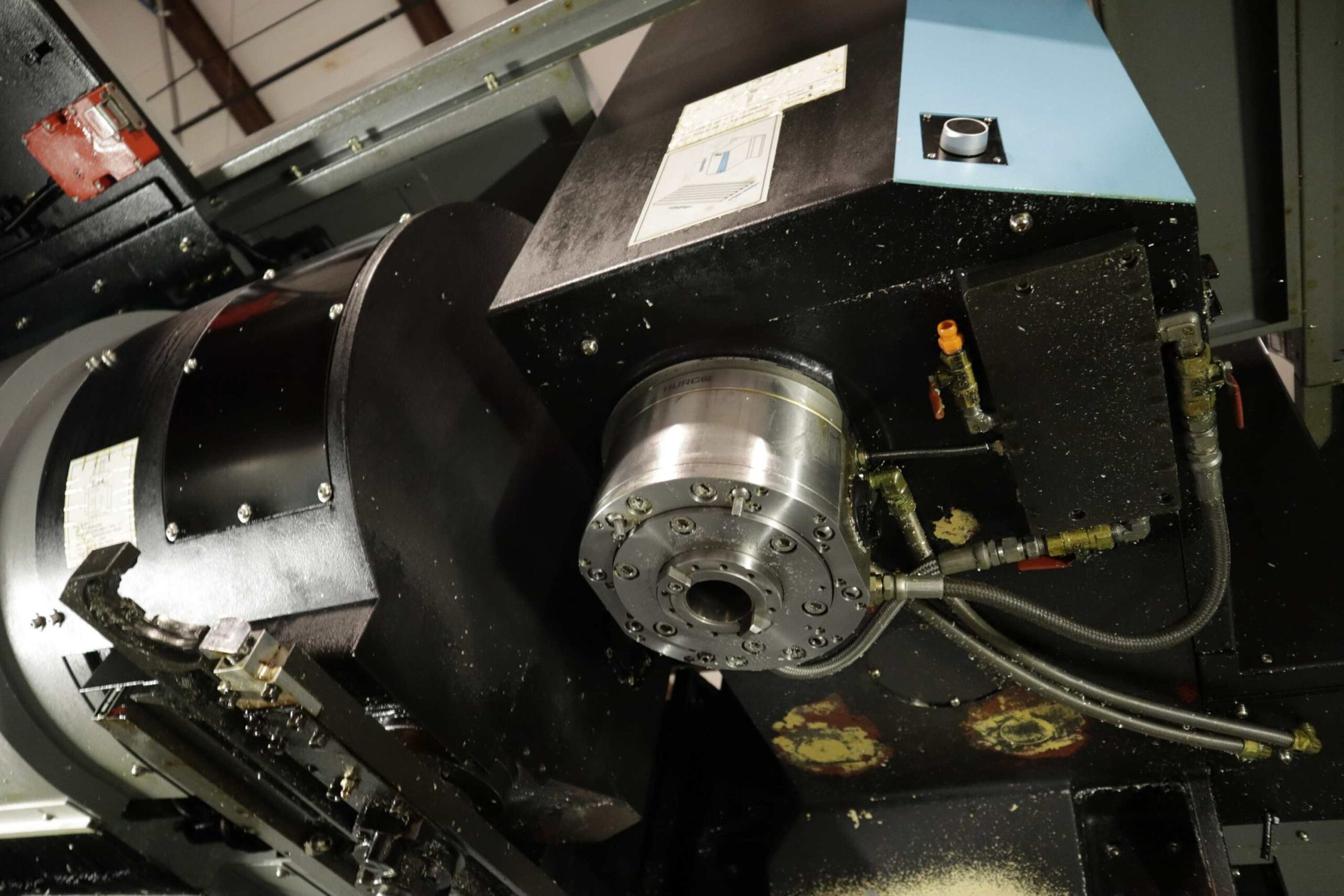

Spindle
Max Spindle Speed: 12,000RPM
Peak Spindle Motor: 24HP
Spindle Torque: 176′ @ 720RPM

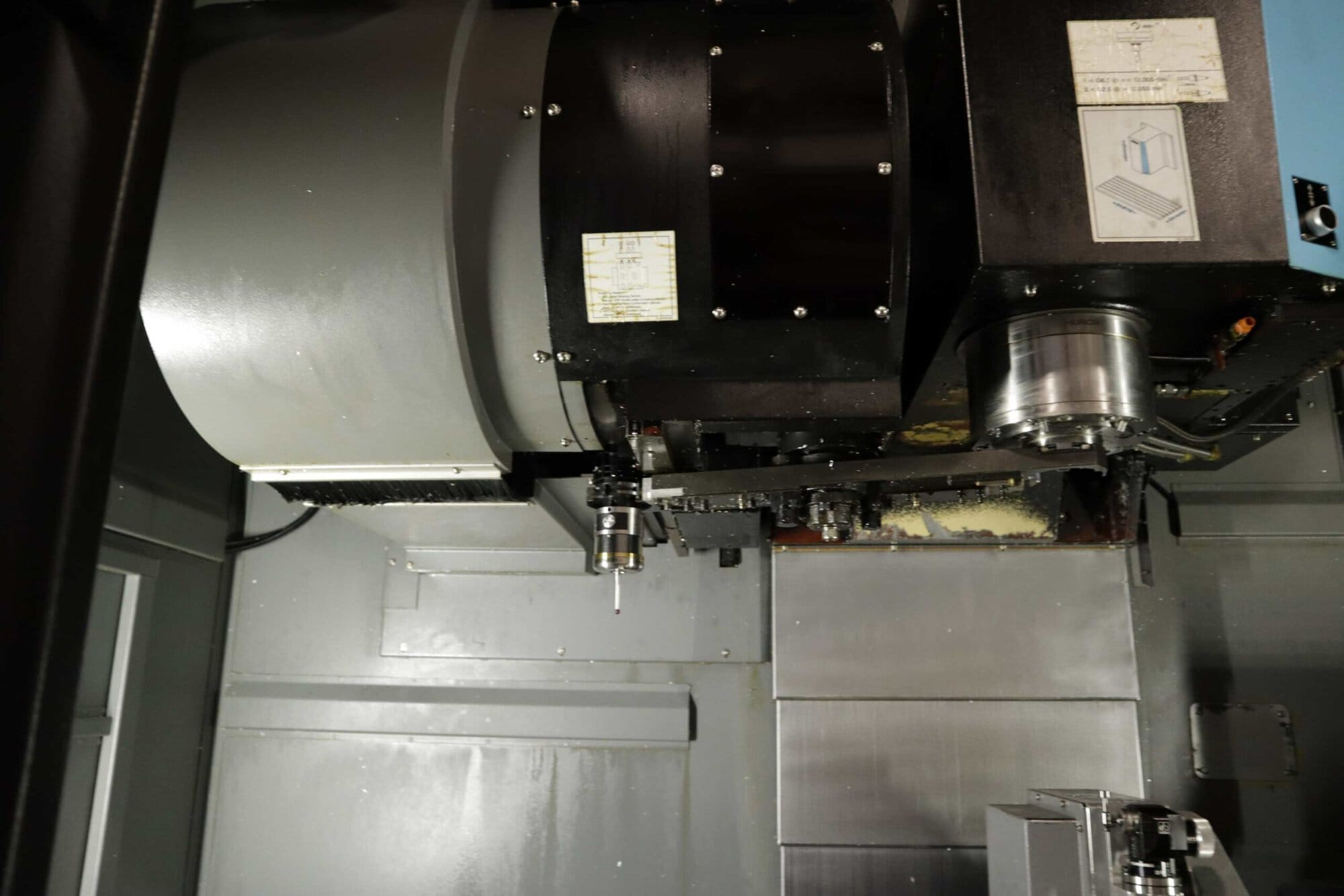

Tool Changer
Tool Type: CAT, BT, DIN40
Number of Tools: 40
Max Tool Diameter: 2.95″
Max Tool Length: 11.8″
Max Tool Weight: 15.4lbs
Feedrates
Rapid Traverse X-Axis: 1496″/min
Rapid Traverse Y-Axis: 1496″/min
Rapid Traverse Z-Axis: 1260″/min
Max Programmable Feedrate: 1260″/min
Rapid Traverse A, C Axis: 25RPM
Electrical
Voltage: 230V, 3Phase
Dimensions
Approx. Machine Length: 179″
Approx. Machine Width: 148.5″
Approx. Machine Height: 117.75″
Approx. Machine Weight: 15,840lbs
