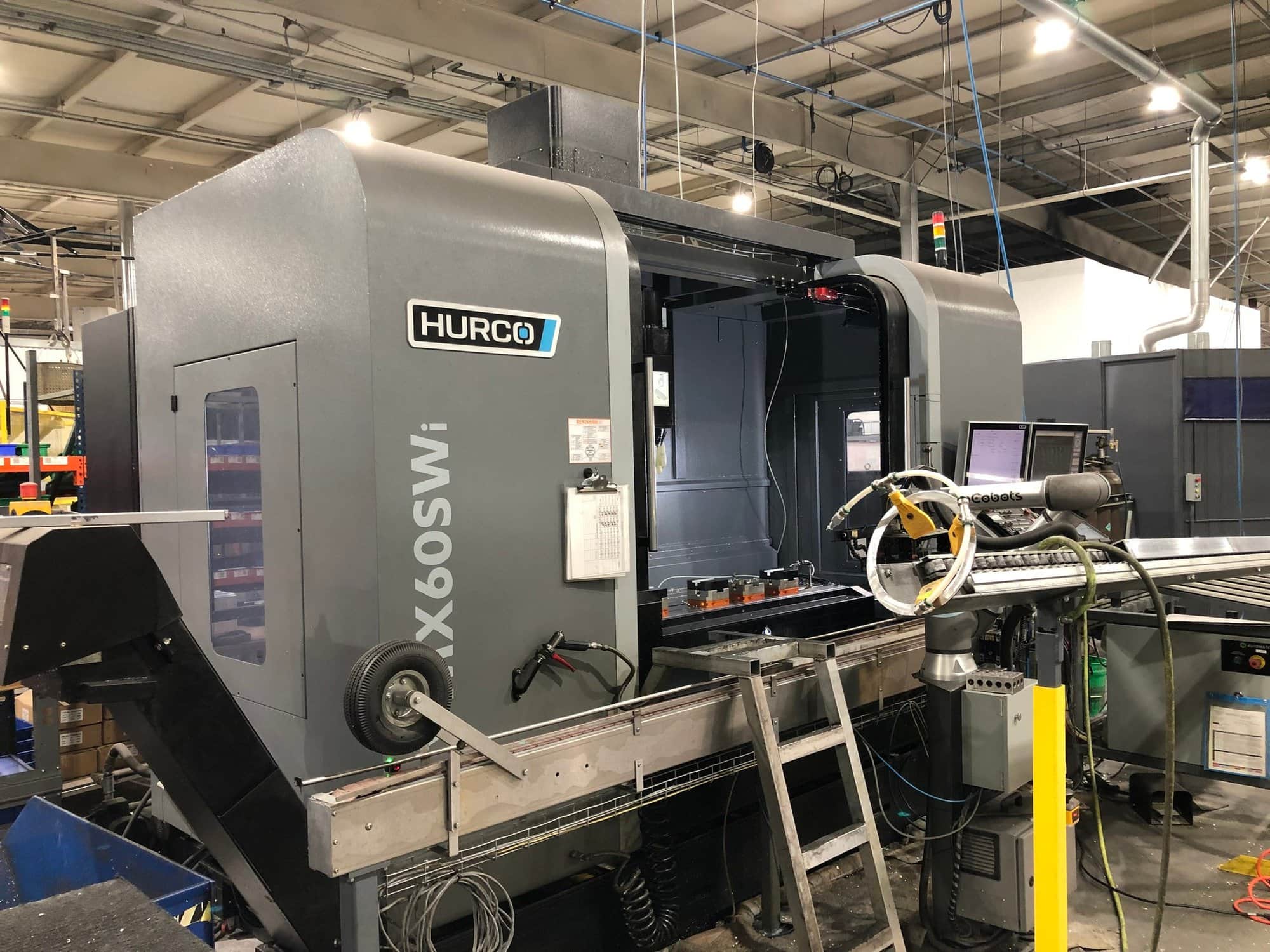

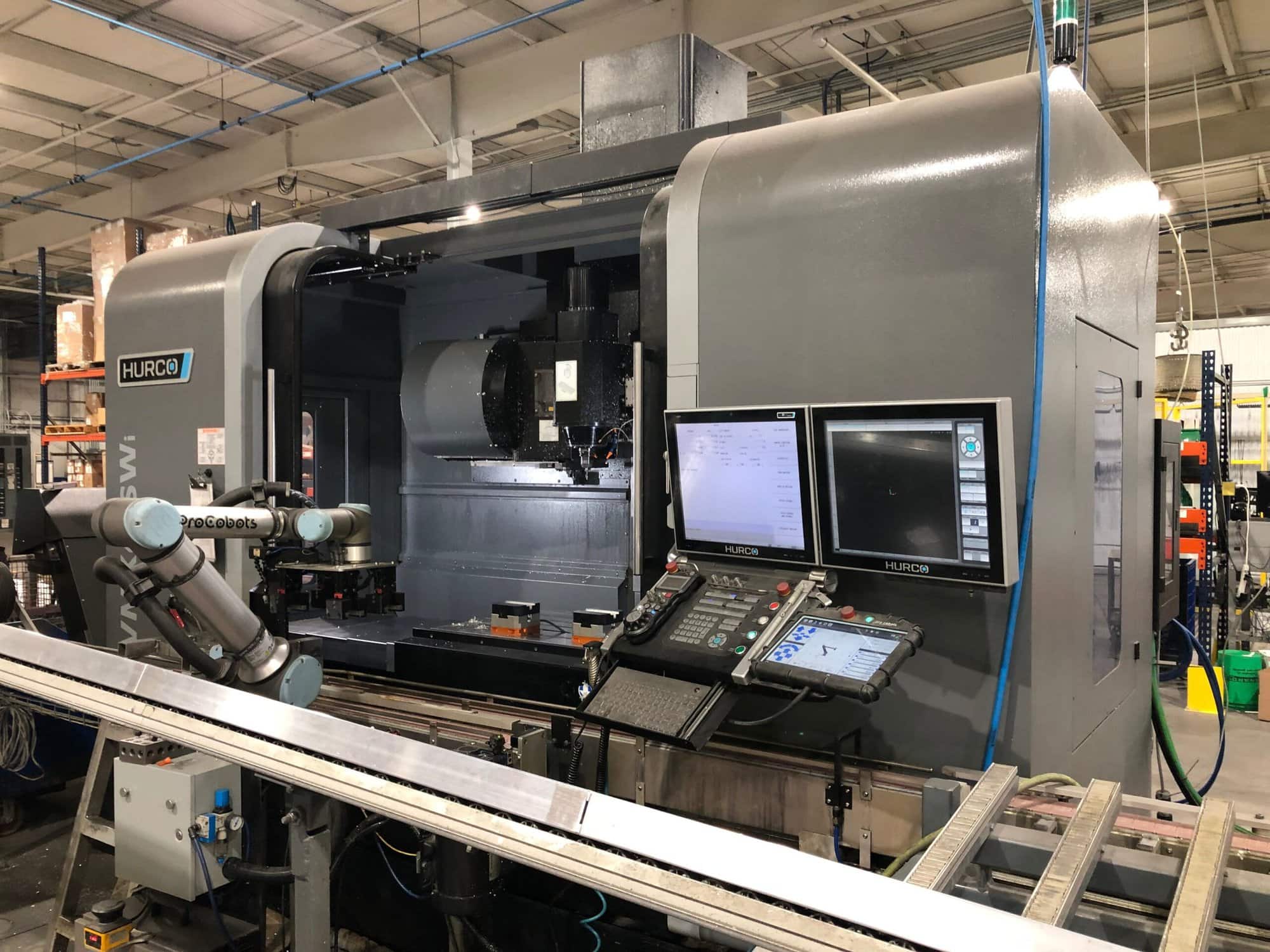

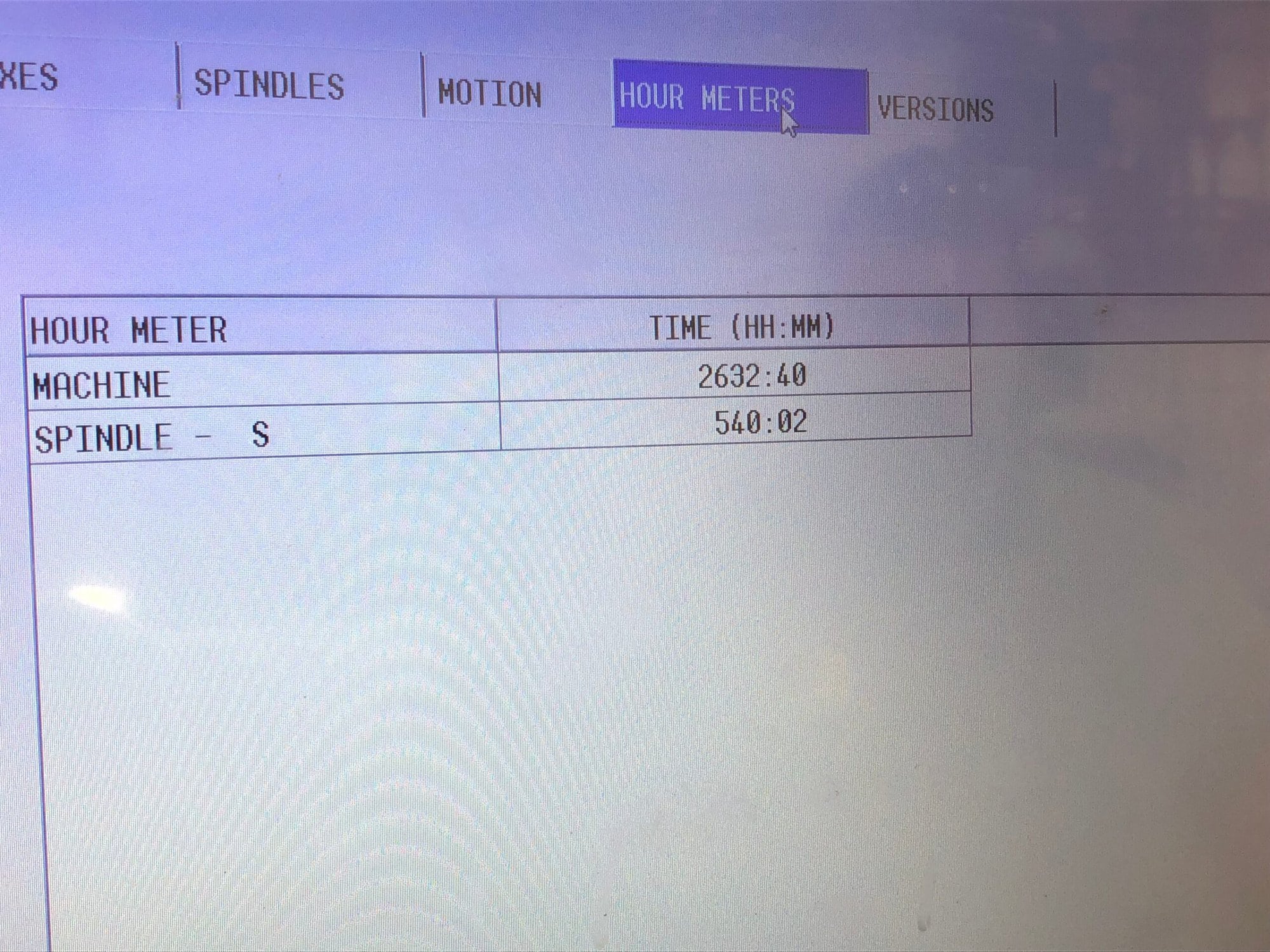

Hurco VMX-60SWi VMC, 2019 – 5 Axis, Probe, Low Hours, Available Immediately
$140,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis-60″
Y-Axis-26″
Z-Axis-24″
B Axis Travel +/-90° ( +/-90°)
Spindle Nose to Table 4″ / 28″
Table Size 66″ x 26″
Max. Weight on Table 4,410 lbs
SPINDLE
Max. Spindle Speed-12,000 rpm
Spindle power-(peak – 1 min) 48 hp @ 2,900 rpm
Spindle Torque- (peak – 1 min) 87 ft. lbs @ 2,900 rpm
TOOL CHANGER
Tool Type-CAT 40
Number Of Tools-40
Max Tool Diameter-3″
Max Tool Length-9.8″
Max Tool Weight-15.4 lbs
FEEDRATES
Rapid Traverse X,Y,Z Axis- 1260, 1260, 945 in/min
Max Programmable Feedrate- 945 inches/minute
Rapid Traverse B Axis-50 rpm (50rpm)
Max. Operating Floor Space 218.8″ x 157.9″
Machine Height 118.5″
Machine Weight 19,074 lbs
ELECTRICAL
Power Rating/ Full Load KVA 54 KVA
Equipped With:
Ultimotion
Rigid Tap
Air Blow
Kit, Ats, for Cts Machines
Kit, Display, Aux+shelf, Max5
Renishaw Rmp60 Part Probe
