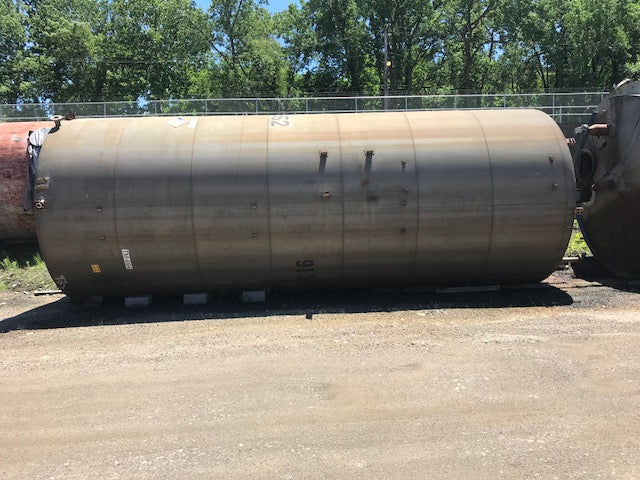

Hamilton - Vertical, S/S Tank - 20,000 Gal. with Bottom Steam Coils

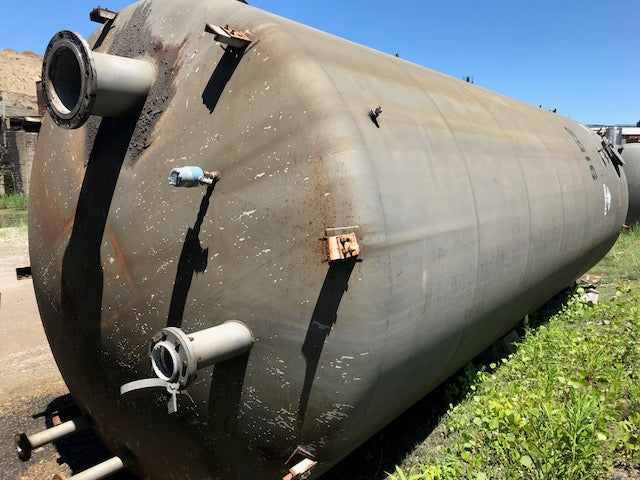

Hamilton - Vertical, S/S Tank - 20,000 Gal. with Bottom Steam Coils - Image 2

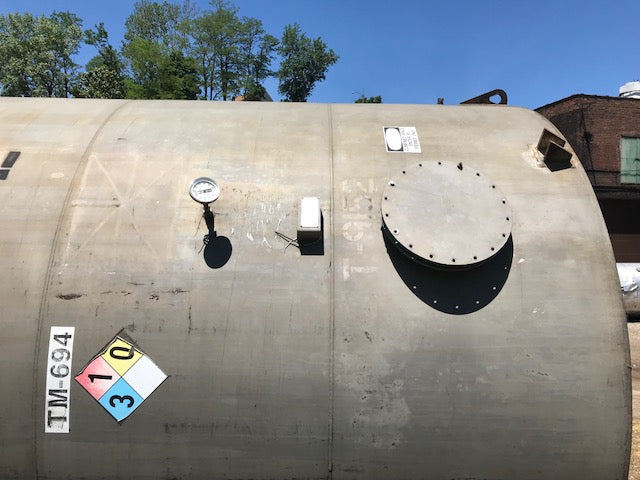

Hamilton - Vertical, S/S Tank - 20,000 Gal. with Bottom Steam Coils - Image 3
JR
5902160132

Hamilton – Vertical, S/S Tank – 20,000 Gal. with Bottom Steam Coils

$42,500.00

Hamilton - Vertical, S/S Tank - 20,000 Gal. with Bottom Steam Coils
Hamilton - Vertical, S/S Tank - 20,000 Gal. with Bottom Steam Coils - Image 2
Hamilton - Vertical, S/S Tank - 20,000 Gal. with Bottom Steam Coils - Image 3

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Used; Hamilton 20,000 gallon Stainless Steel vertical tank.11′ diameter x 28′ long. Equipped with steam pipe coils at bottom of unit. Tank has the following openings;
One – 1 inch temperature gauge on the side
One – Man way side bottom
Three – 3 inch inlet/outlet side bottom
Two – 1 inch inlet/outlet side
One – View port top
One – Mixing port top
Two – 3 inch inlet/outlet top
Three – 1 3/4 inch inlet/outlet top
One – Drexelbrook Engineering measuring device top Approximate overall dimensions inches Diameter x 336 inches tall
