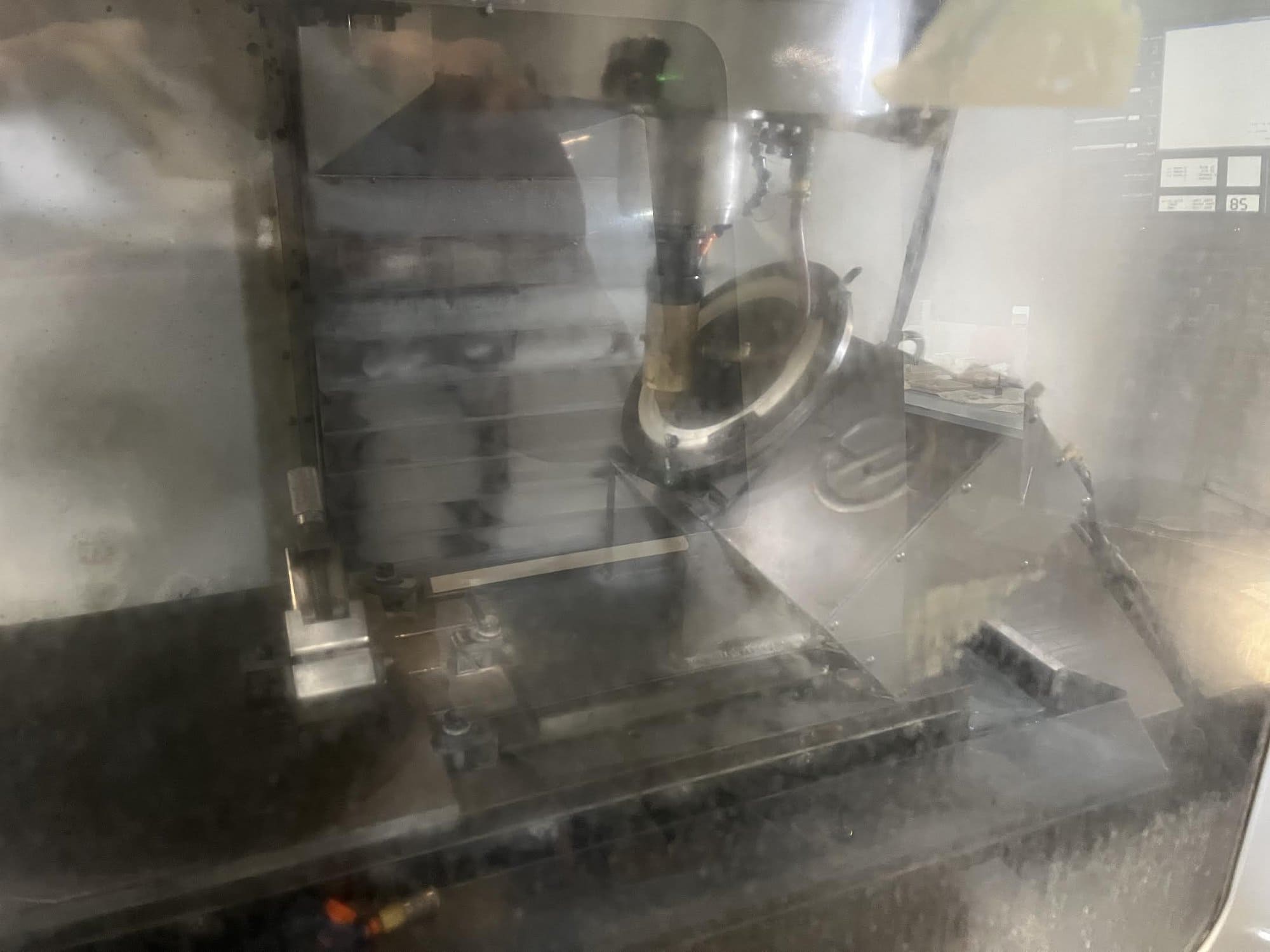

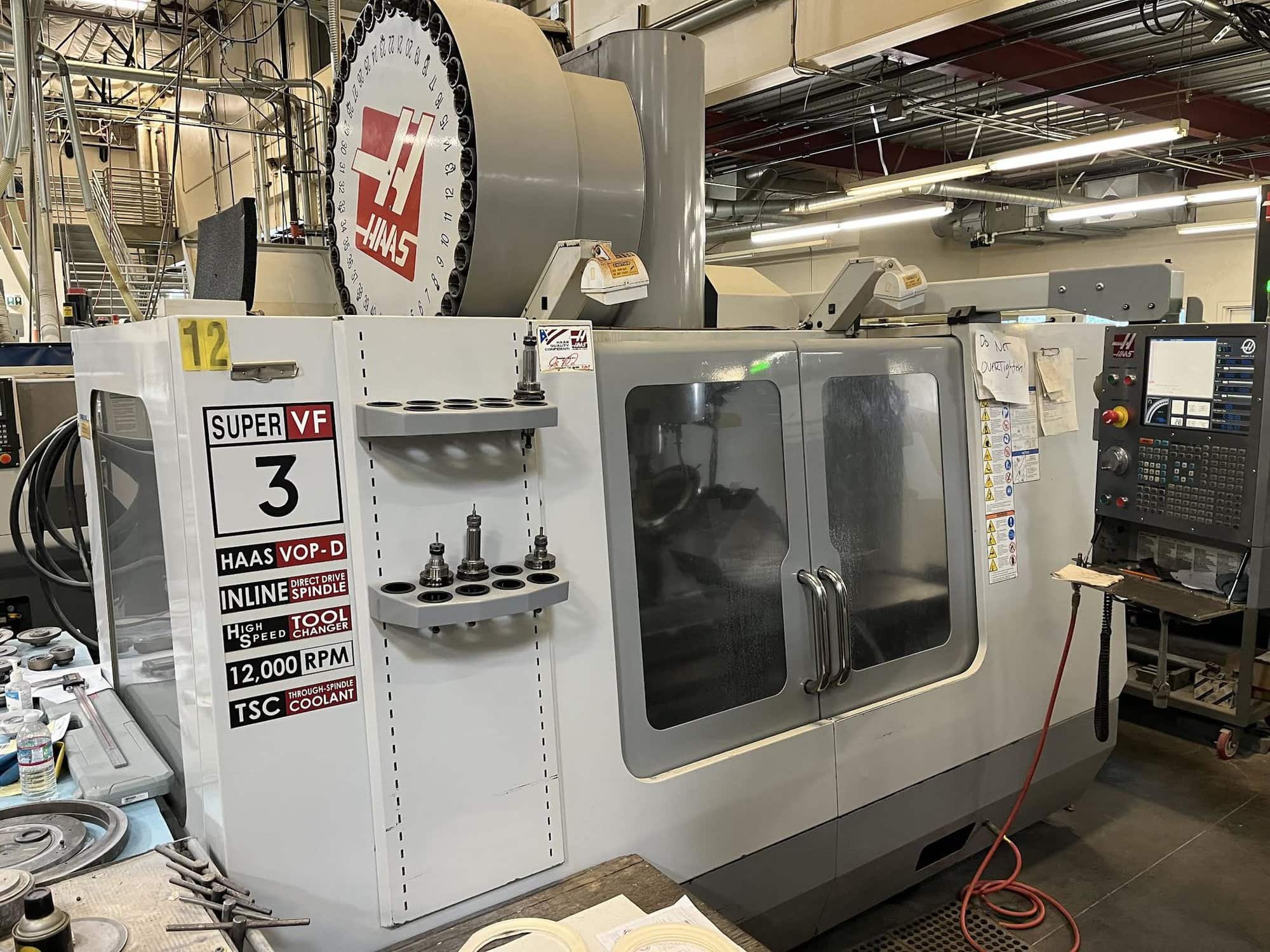

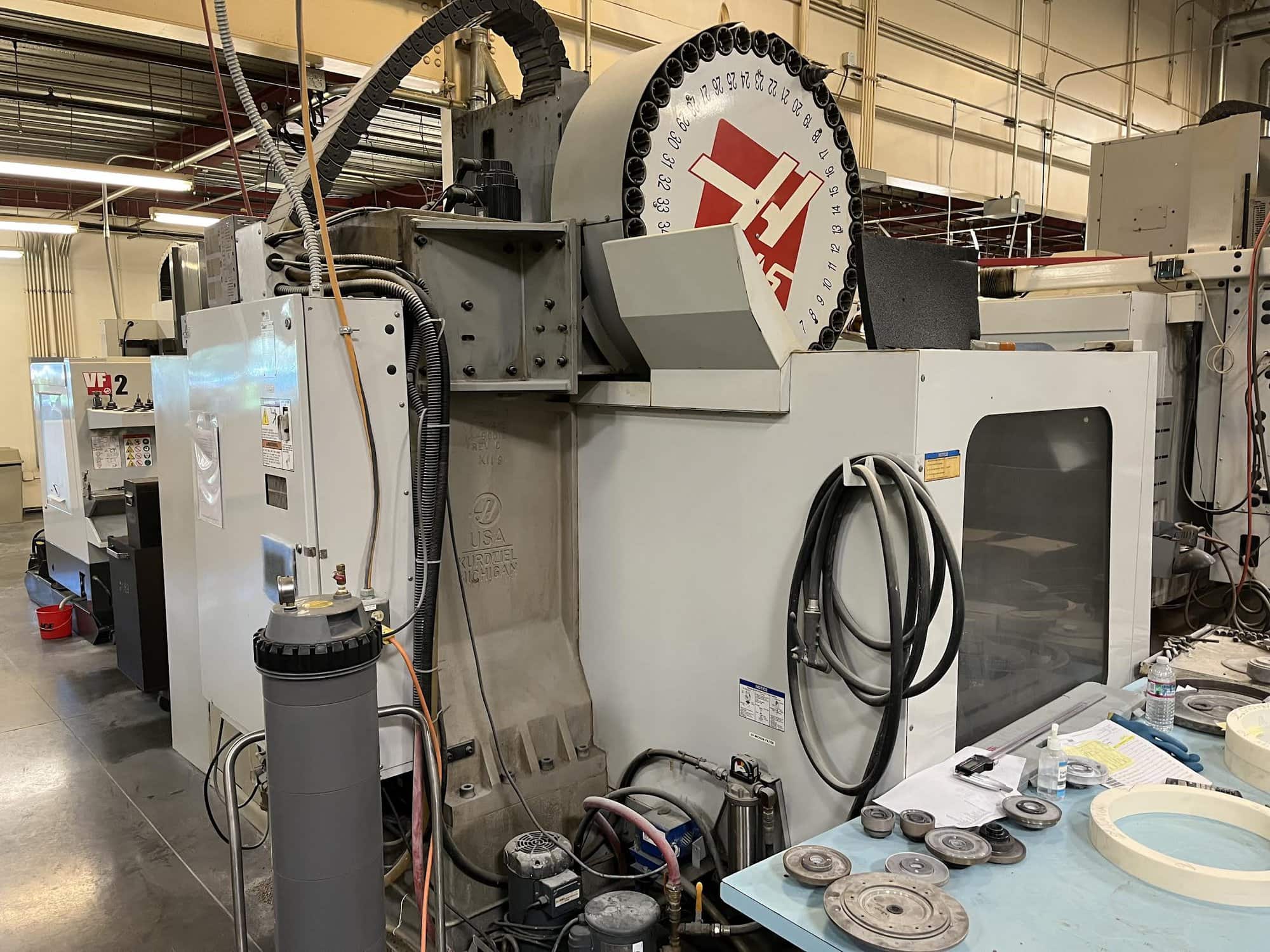

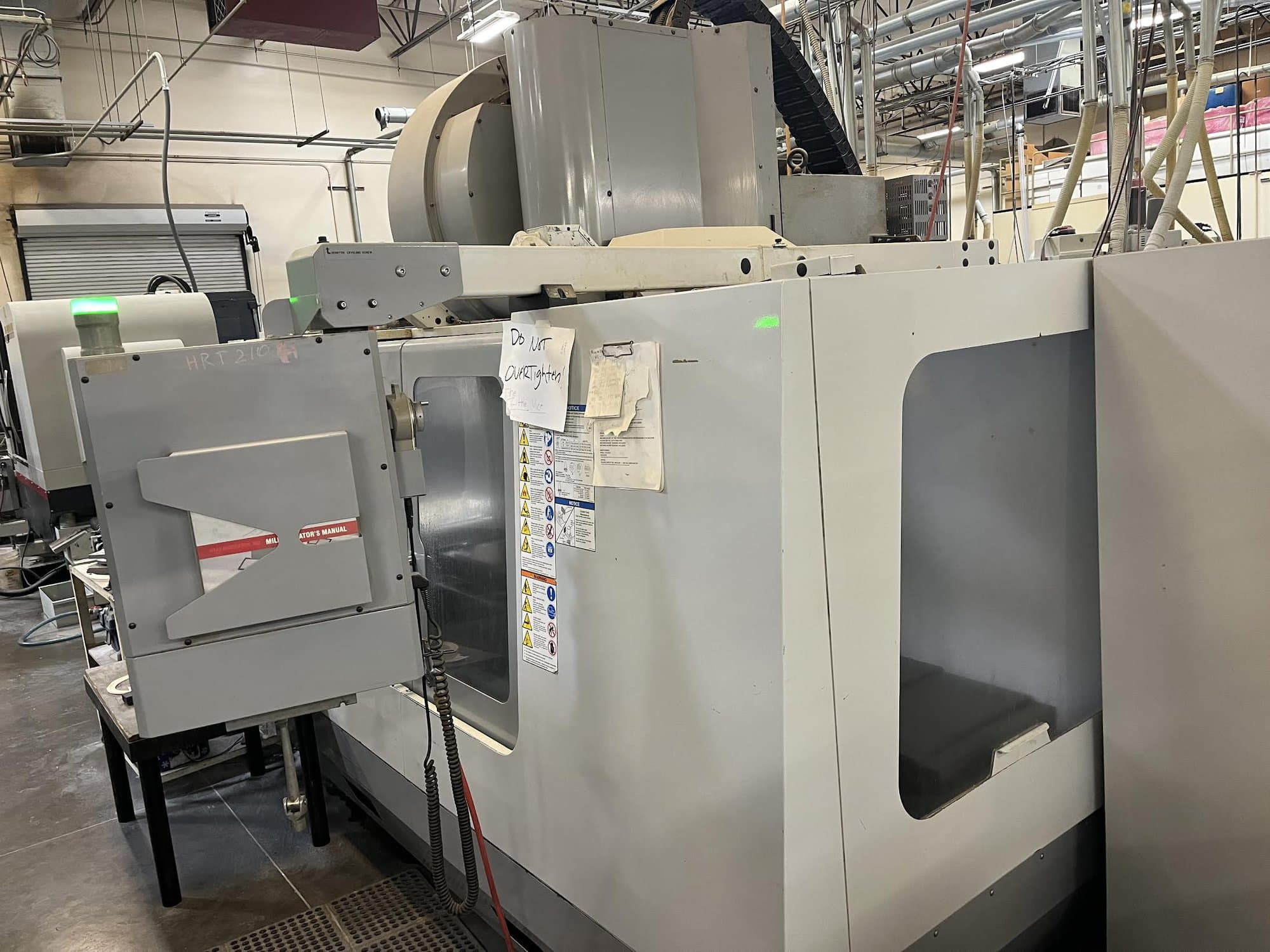

Haas VF-3SS VMC, 2007 – TSC, 40 Tool Side-Mount, HSM, 4th and 5th Axis Drive and Wire
$42,810.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size 48″ x 18″
Maximum Weight on Table 1,750 lbs.
X-Axis Travel: 40″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Nose to Table: 4″ – 29″
Number of Tool Positions: 40 + 1 Side Mount
Maximum Tool Diameter: 3.0″
Tool Change Time: t to t / ch to ch 1.6 sec./2.2 sec.
Rapid Traverse Rates: 1400 IPM
Machine Dimensions: 139″x110″x123.5″
Machine Weight: 13,300 lbs.
Equipped With
TSC
40 Tool Side-Mount
HSM
4th and 5th Axis Drive and Wire
Intuitive Programming System
Macros
Rotational & Scaling
16MEG Expanded Memory
M19 Spindle Orientation
Rigid Tapping
