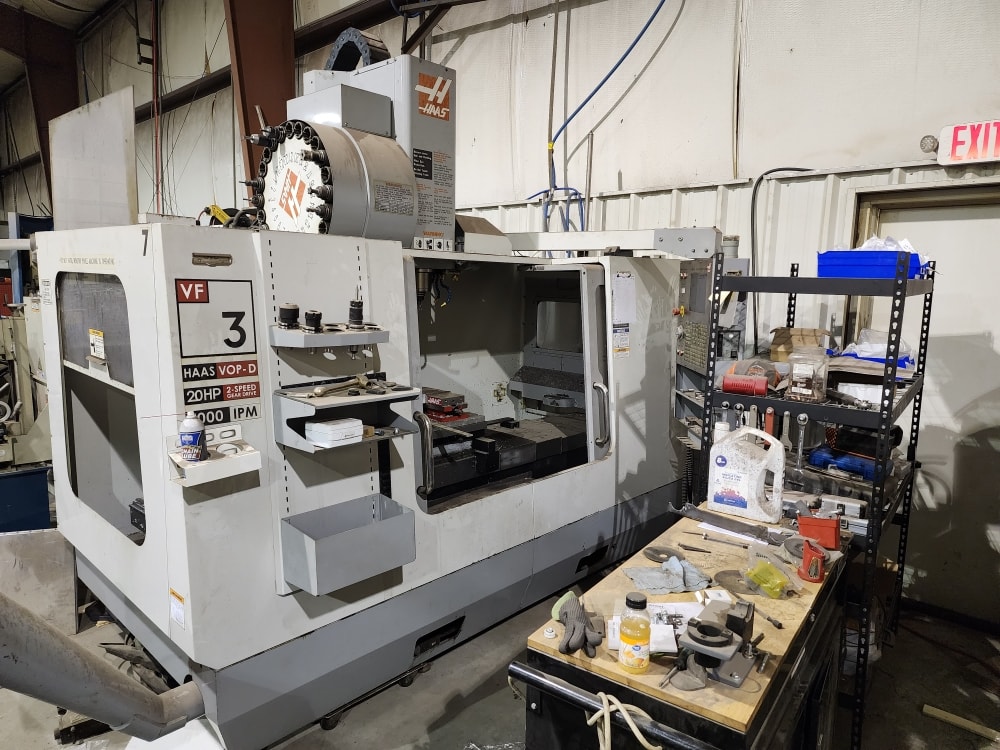

Haas VF-3B-APC VMC, 2005- 4th Axis Table, Rigid Tapping, Pallet Changer
$39,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 IPM
Spindle Nose to Table (Min.- Max.): 4″ – 29″

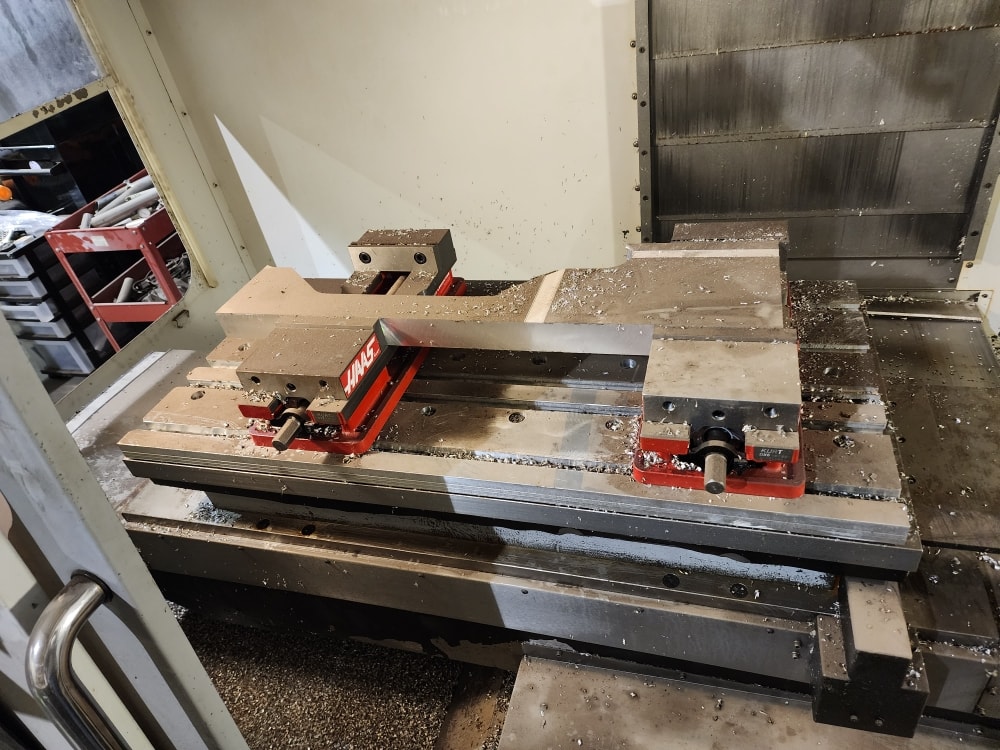

Table:
Length: 48″
Width: 18″
Max Weight on Table: 3500 lbs.

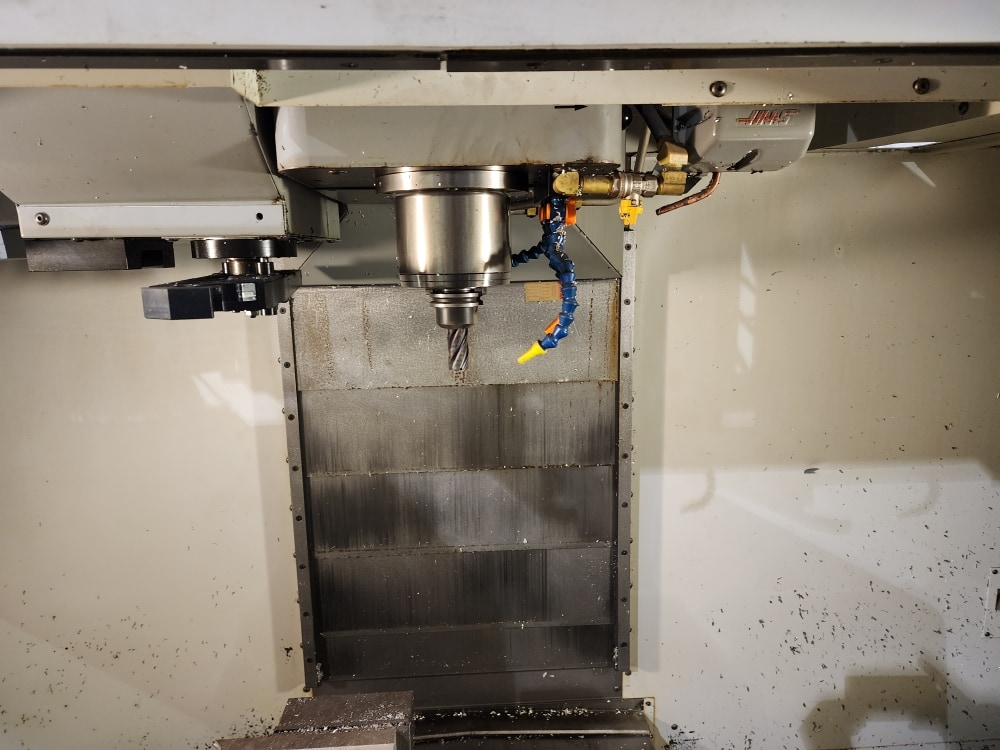

Spindle:
Taper Size: No. 40
Speed Range: 60 – 7500 RPM
Spindle Power: 20 HP

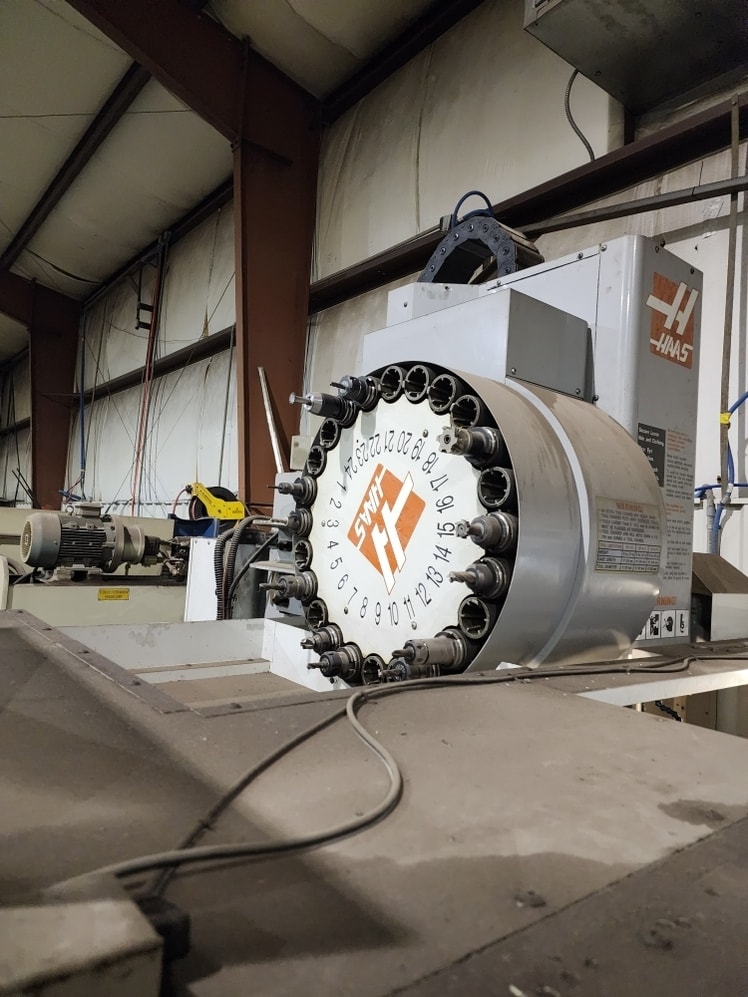

Automatic Tool Changer:
Capacity: 24
Max Tool Weight: 12 lbs.
Max Tool Length: 16″
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 120″ x 110″ x 105″ High
Weight: 12500 lbs.
Equipped with:
4th Axis Ready
Thru Coolant Spindle
Haas VOP-D Package
1000 Inch Per Minute
2-Speed Gear Box
220HP High Torque Spindle
Brushless Servo Motors
Remote Jog Handle
Full Enclosure
Rigid Tapping
24+1 Tool Automatic Tool Changer
Quick Code Programming
Coolant Filtration System
Chip Auger
Floppy Drive
Extended Memory
RS-232 Port
Comes with All Original Manuals
