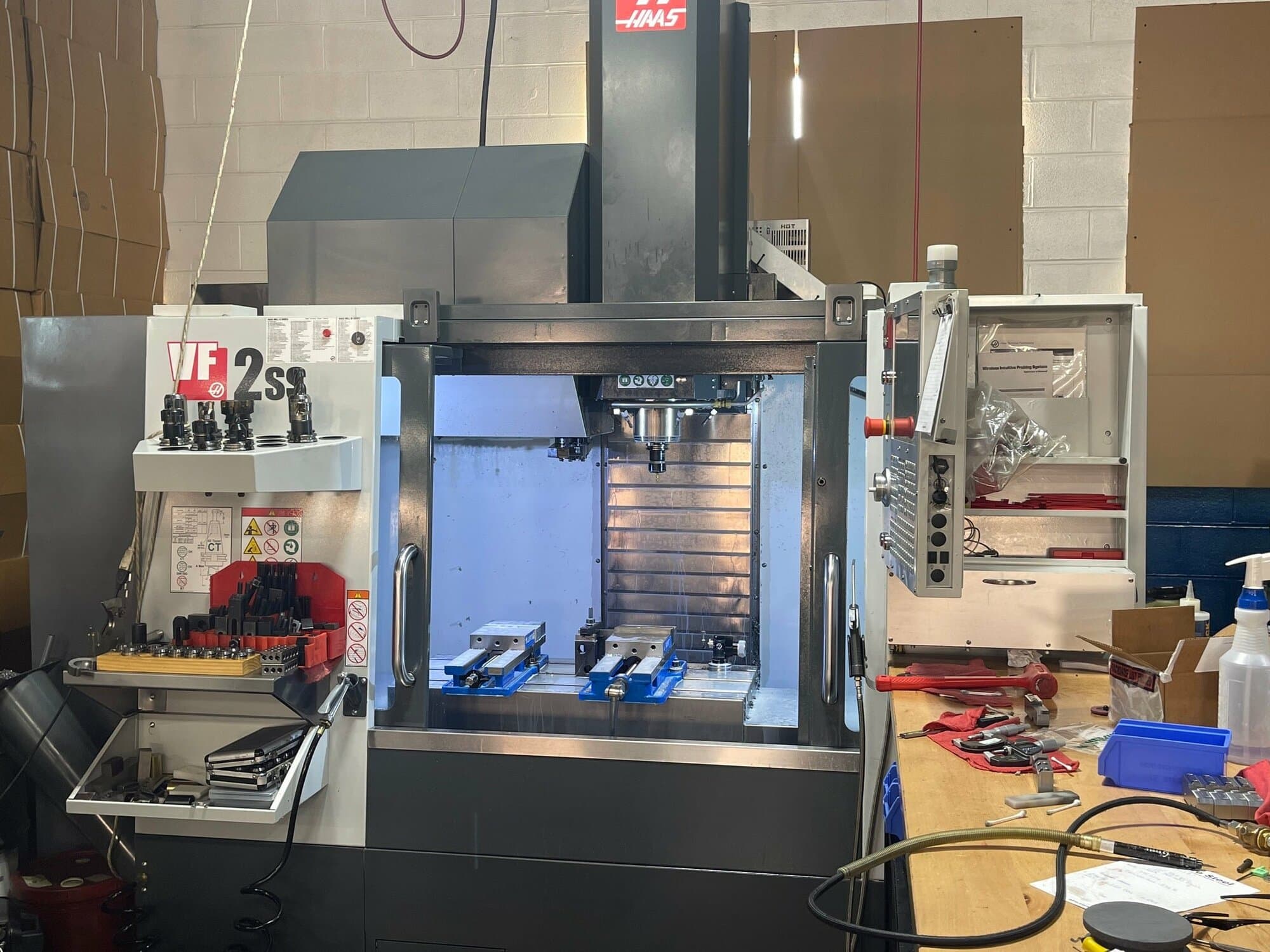

Haas VF-2SS VMC, 2018 – 12k RPM, 30 Tool, Available Immediately
$66,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X Axis: 30.0 in
Y Axis: 16.0 in
Z Axis: 20.0 inm
Spindle Nose to Table (~ max): 24.0 in
Spindle Nose to Table (~ min): 4.0 in
Spindle:
Max Rating: 30.0 hp
Max Speed: 12000 rpm
Max Torque: 90 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT 40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled
Table:
Length: 36.0 in
Width: 14.0 in
T-Slot Width: 0.630 in
T-Slot Center Distance: 4.92 in
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed): 1500 lb
Feedrates:
Max Cutting: 833 ipm
Rapids on X: 1400 ipm
Rapids on Y: 1400 ipm
Rapids on Z: 1400 ipm
Axis Motors:
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Tool Changer:
Type SMTC
Capacity 30+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 11 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6
General:
Coolant Capacity 55 gal
Air Requirements:
Air Required 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi
Electrical Specifications:
Input AC Voltage (3 Phase) – Low 220 VAC 220 VAC
Full Load Amps (3 Phase) – Low 70 A 70 A
Input AC Voltage (3 Phase) – High 440 VAC 440 VAC
Full Load Amps (3 Phase) – High 35 A
Equipped With
12k RPM Spindle
No Tooling or Vises
Chip Auger and Chute
CAT 40
Available Immediately
