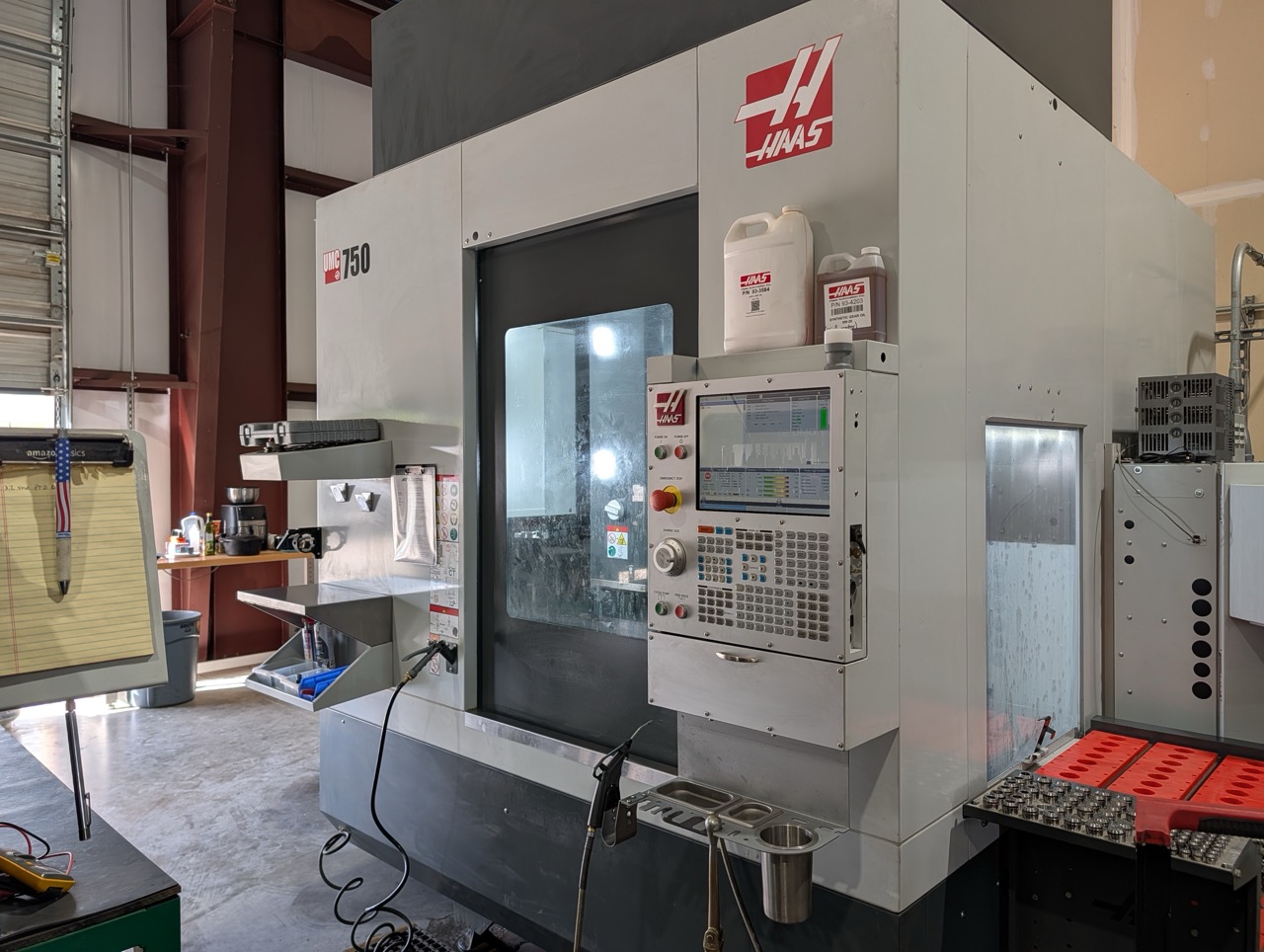

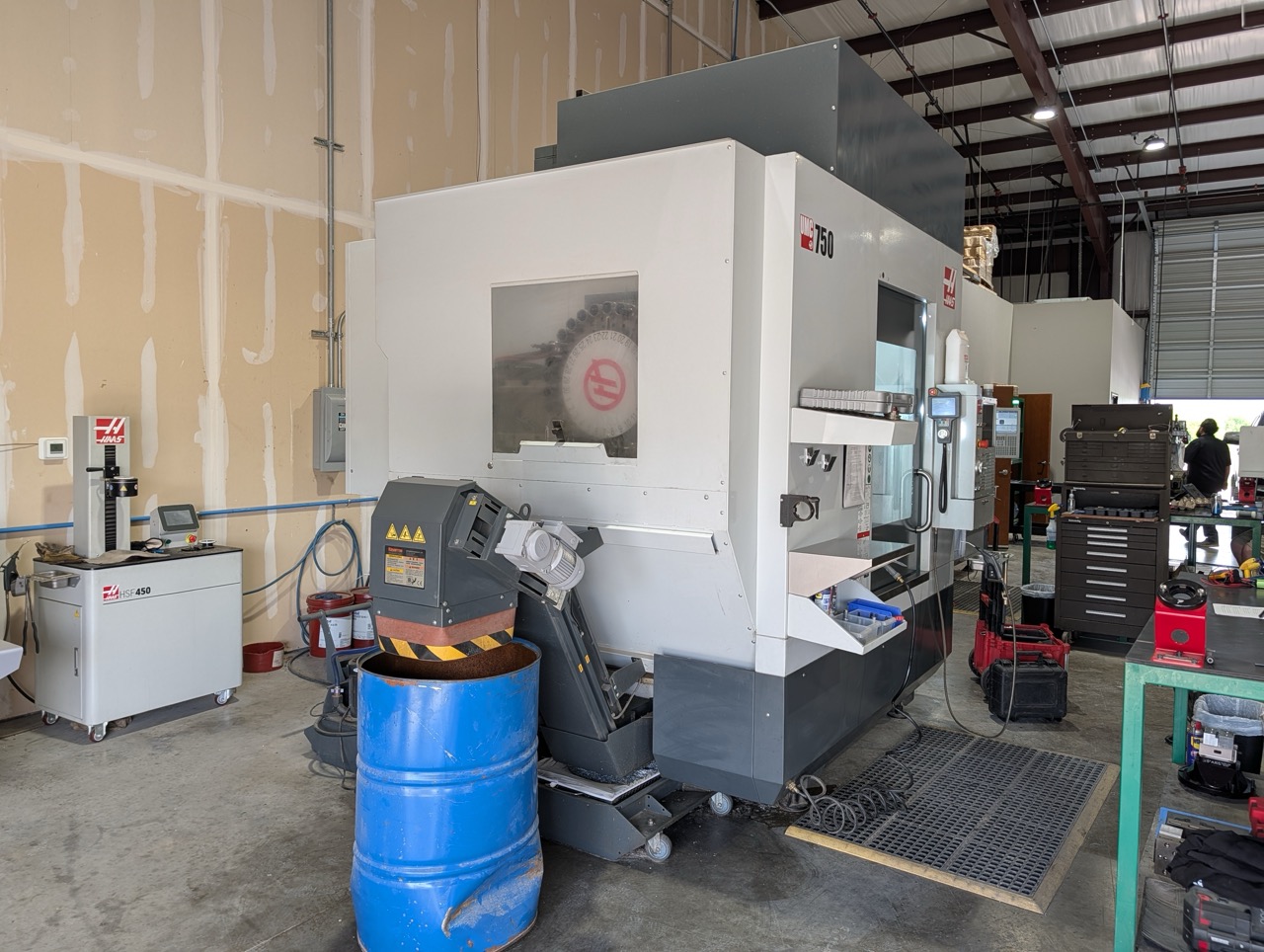

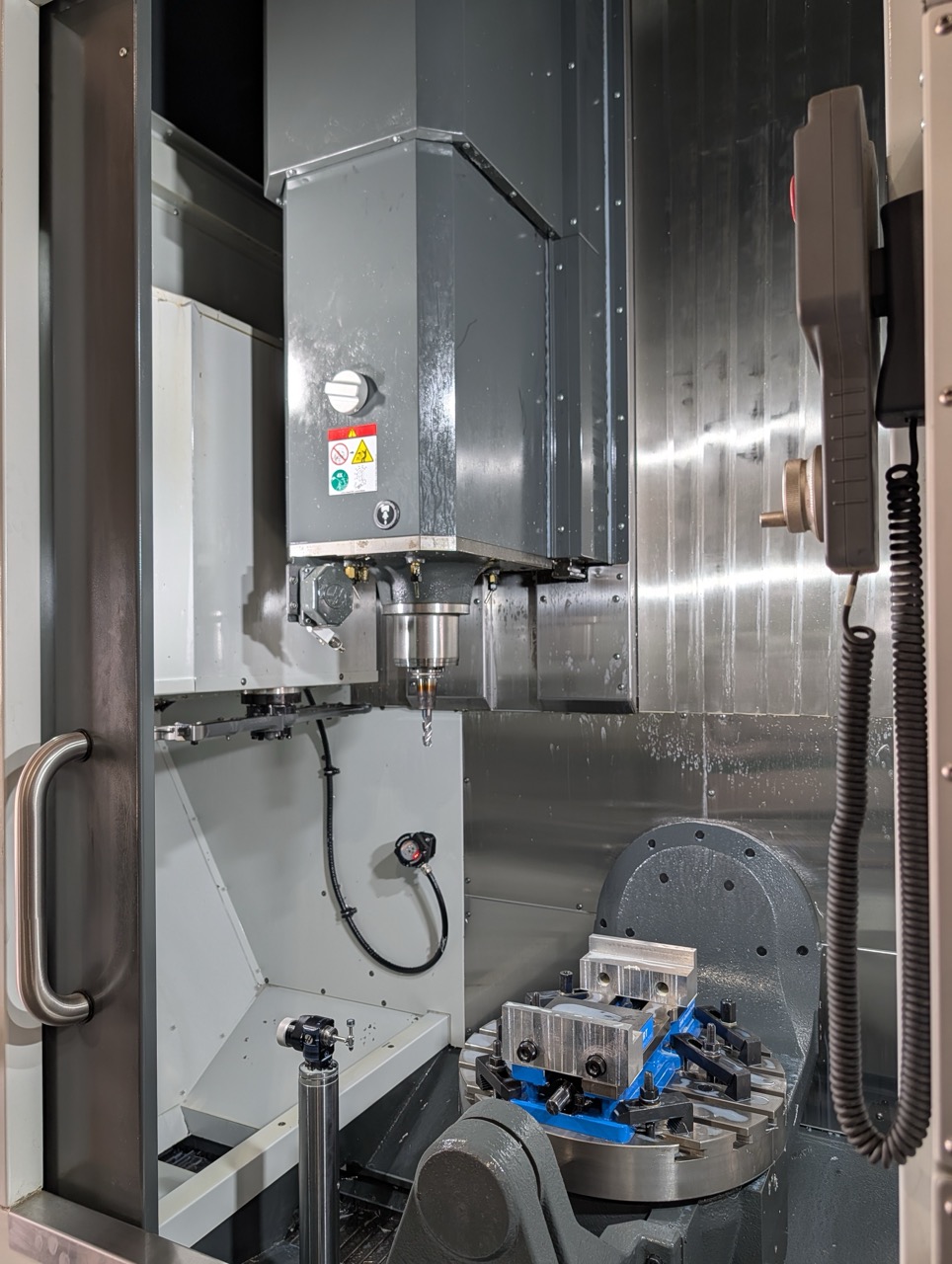

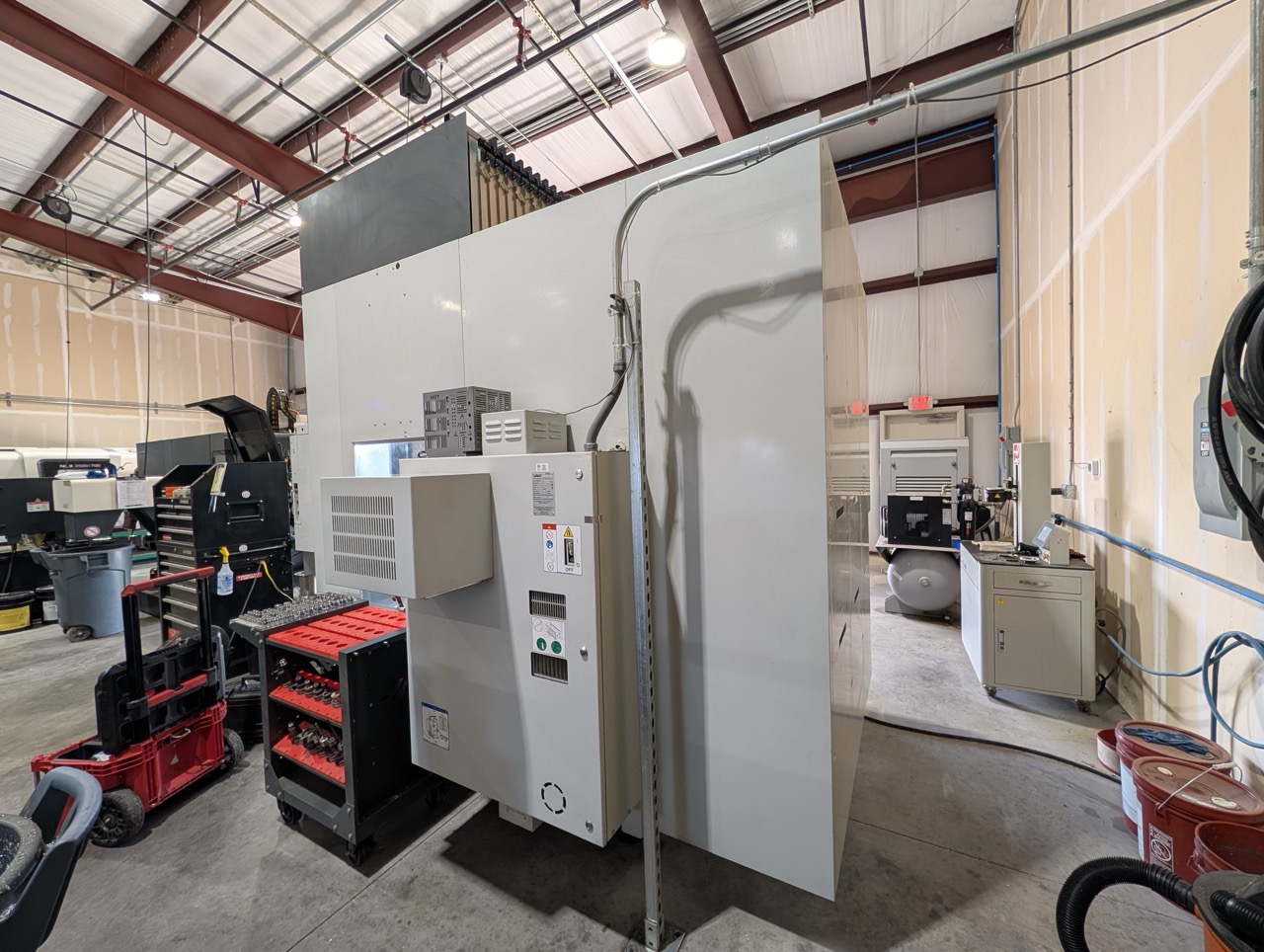

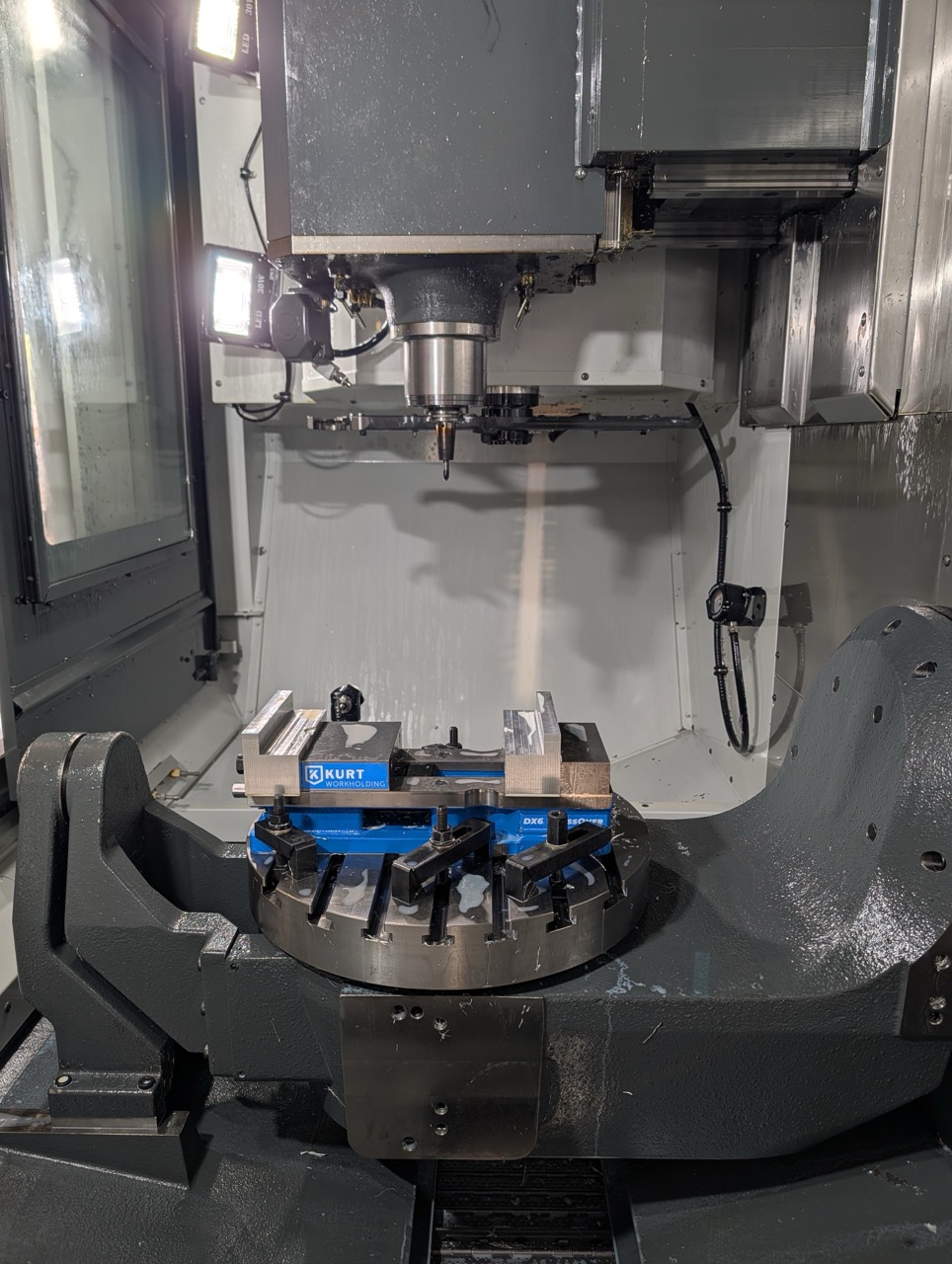

Haas UMC-750 5-Axis UMC, 2023 – 15,000 RPM Spindle, Chip Conveyor, Rigid Tapping

Travels
X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Platter: ~4″ to 24″

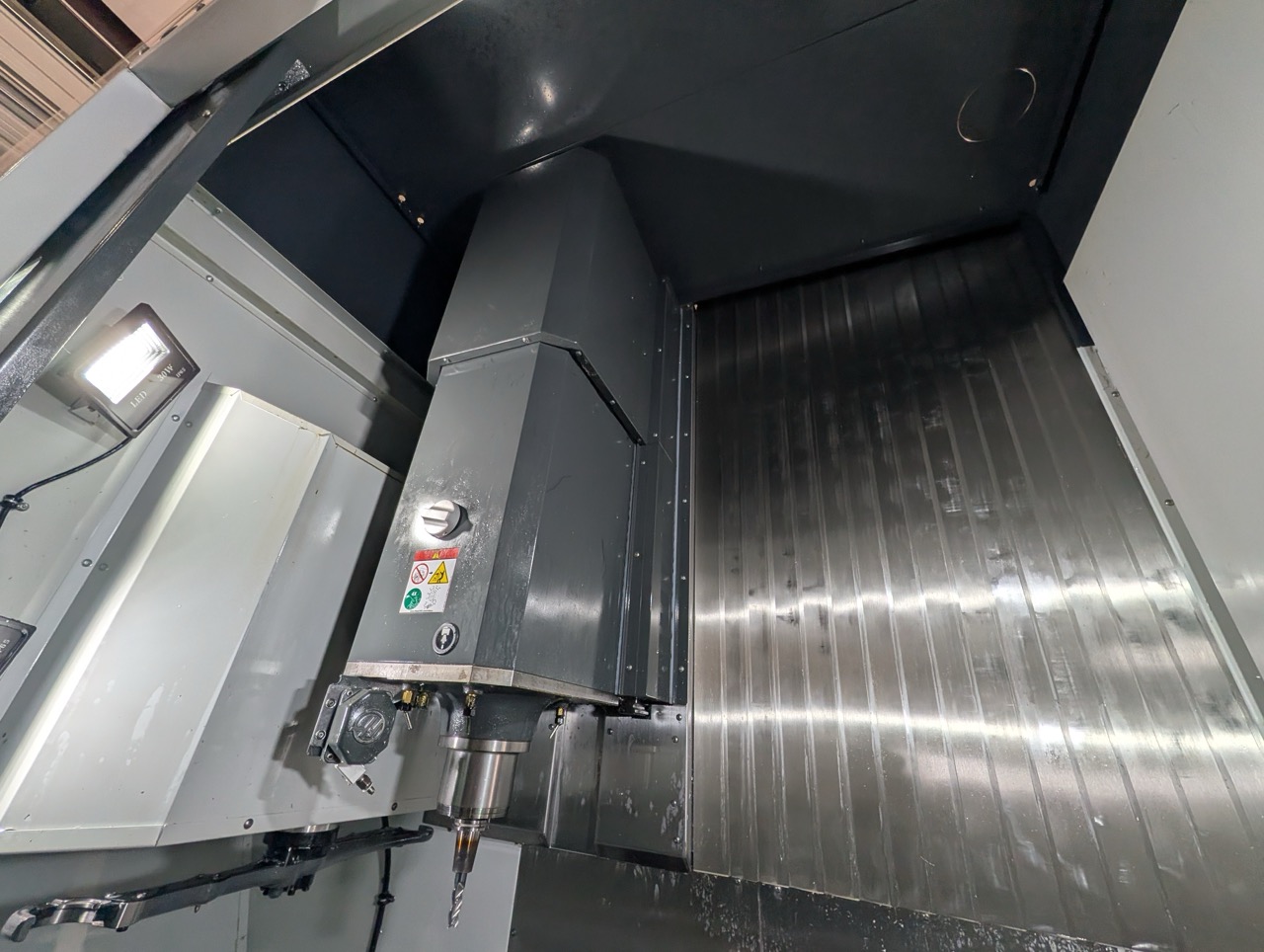

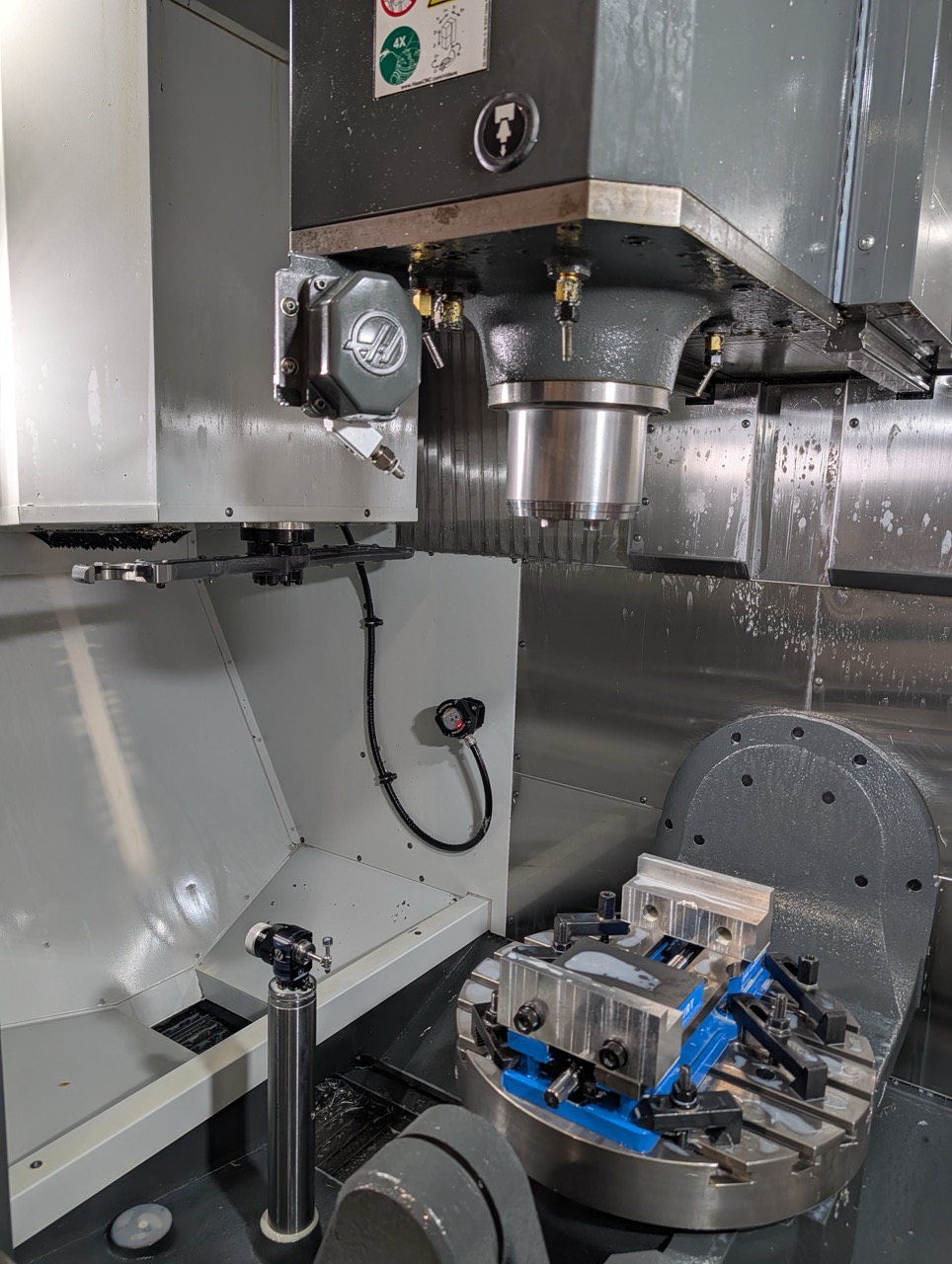

Spindle
Max Power: 30 HP
Max Speed: 15,000 RPM
Taper: CAT 40

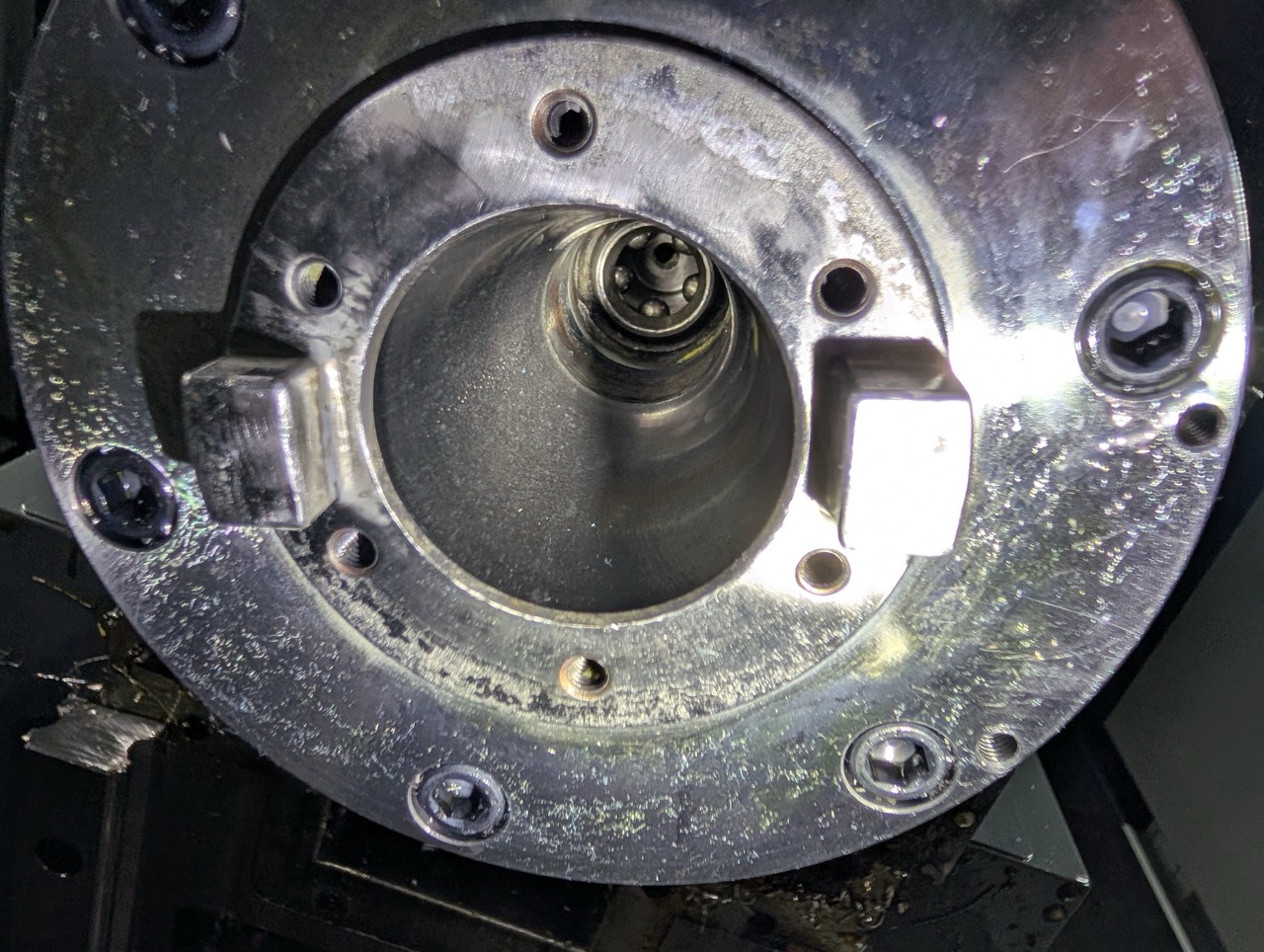

B Axis – Tilt
Travel: 120º to 35-º
Max Speed: 50º/sec

C-Axis – Rotation
Travel: 360º
Max Speed: 50º/sec
Max Part Swing: 27″

Platter
Diameter: 19.7″
Max Weight: 660lbs
Max Weight w/ Pallet Pool: 200lbs
T-Slot Width: 0.626″ to 0.630″
T-Slot Center Distance: 2.48″

Feedrates
Max Cutting: 650 ipm
Rapids (X/Y/Z): 900 ipm

Dimensions
Shipping: ~ 168″ x 93″ x 110″
Weight: ~14,250lbs

Equipped With:
Rigid Tapping
Chip Tray Filter Kit

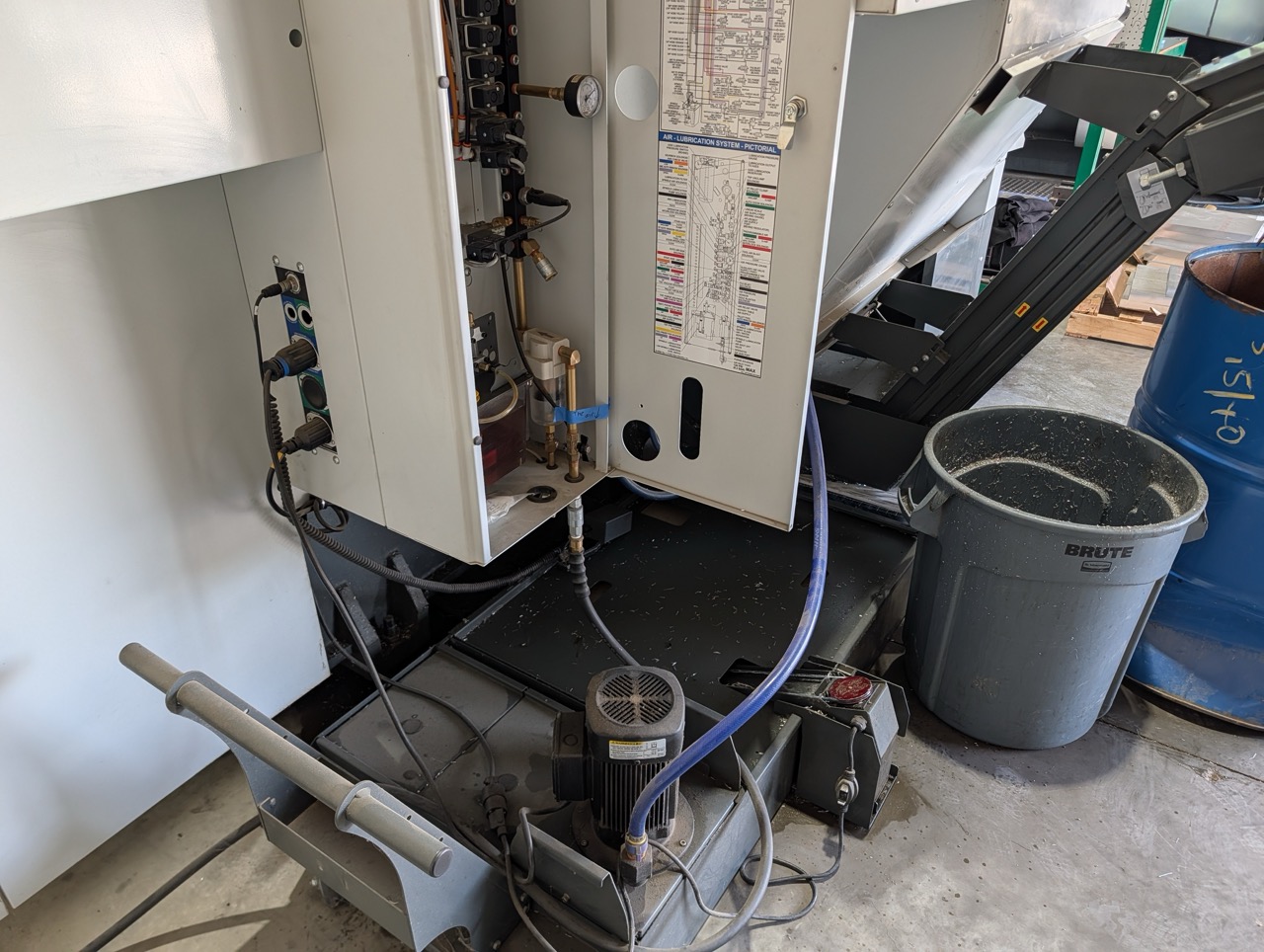

Chip Conveyor
Programmable Coolant Nozzle
High-Speed Machining
55-Gallon Coolant Tank

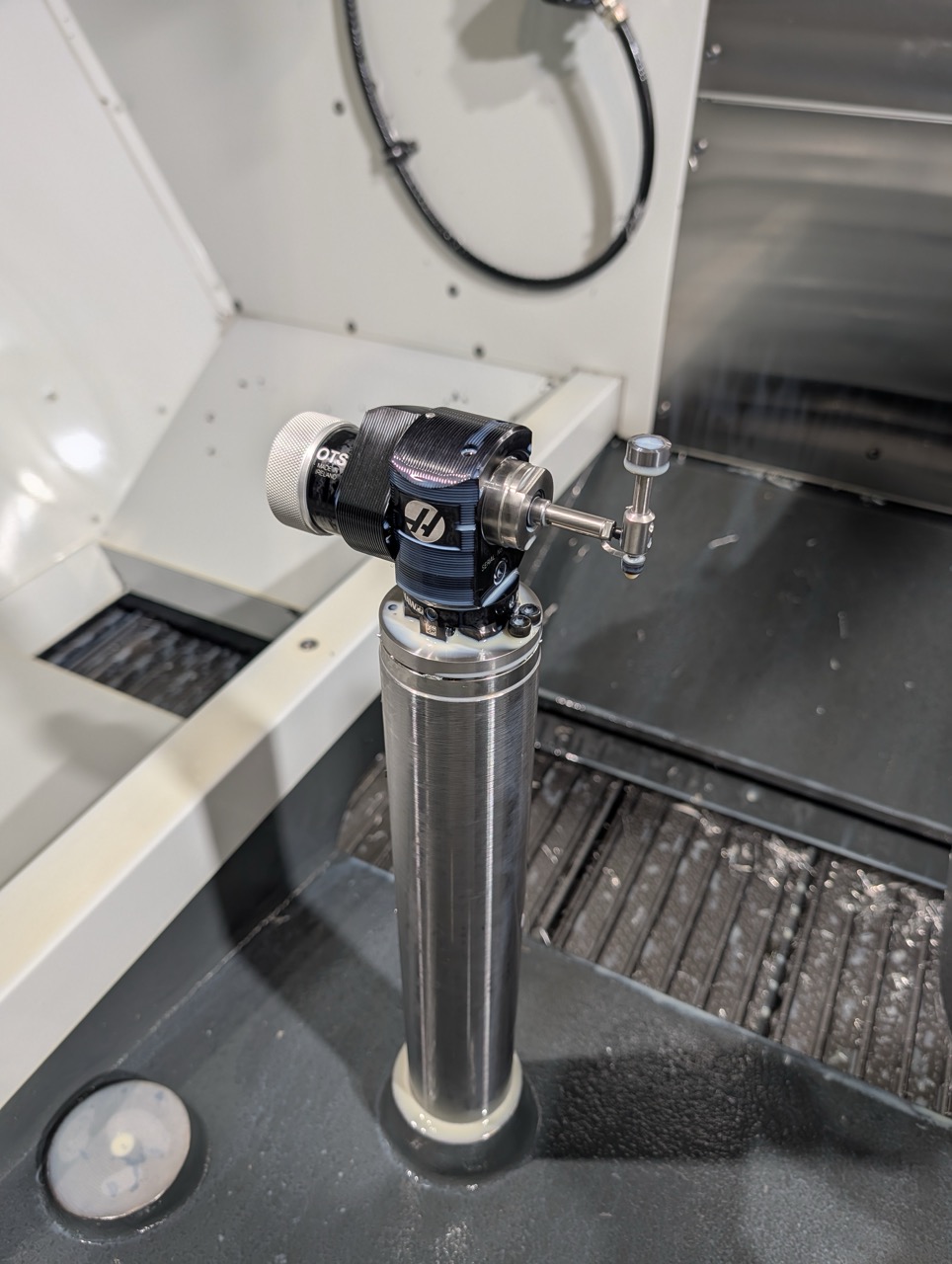

Wireless Intuitive Probing System

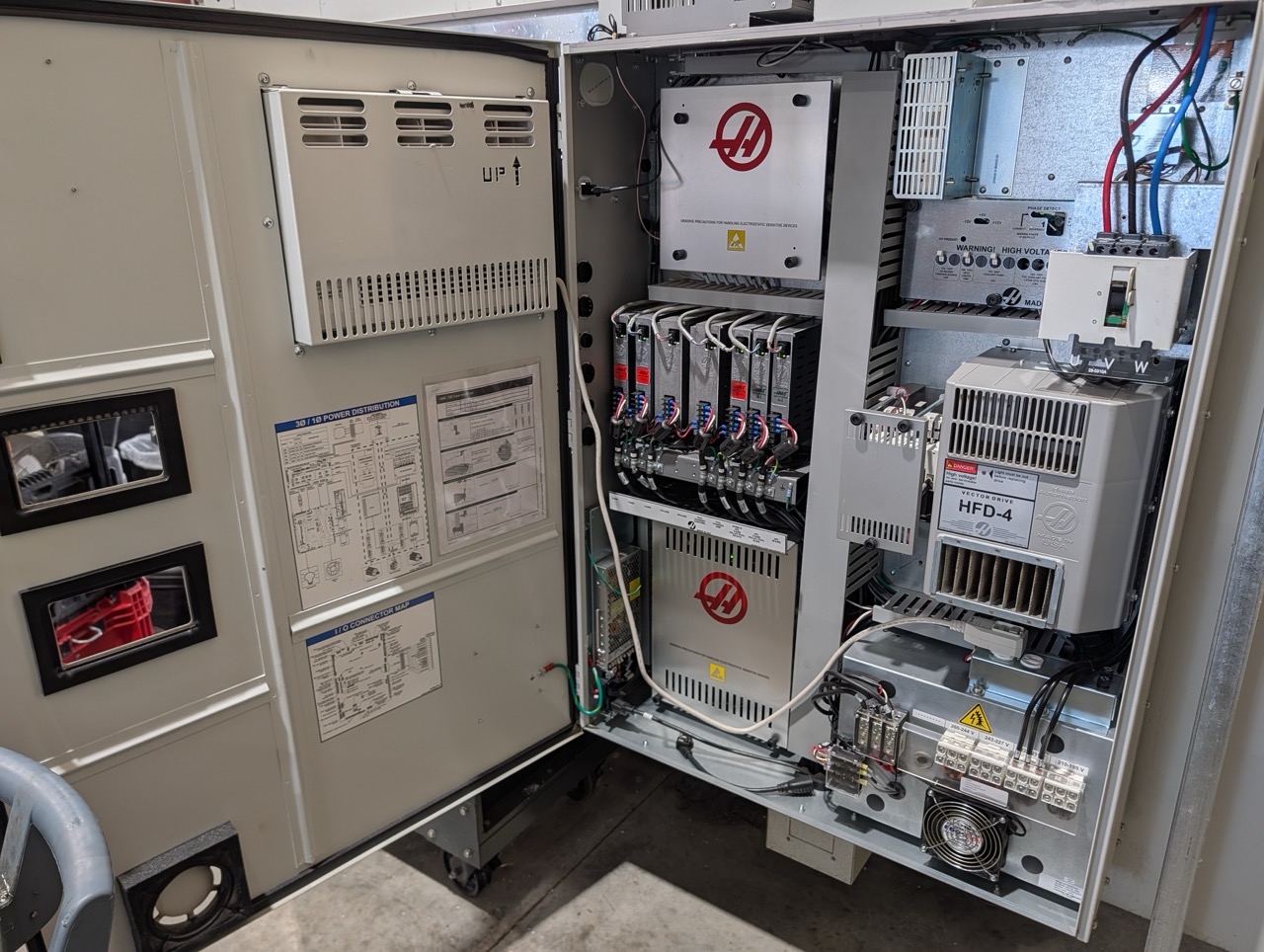

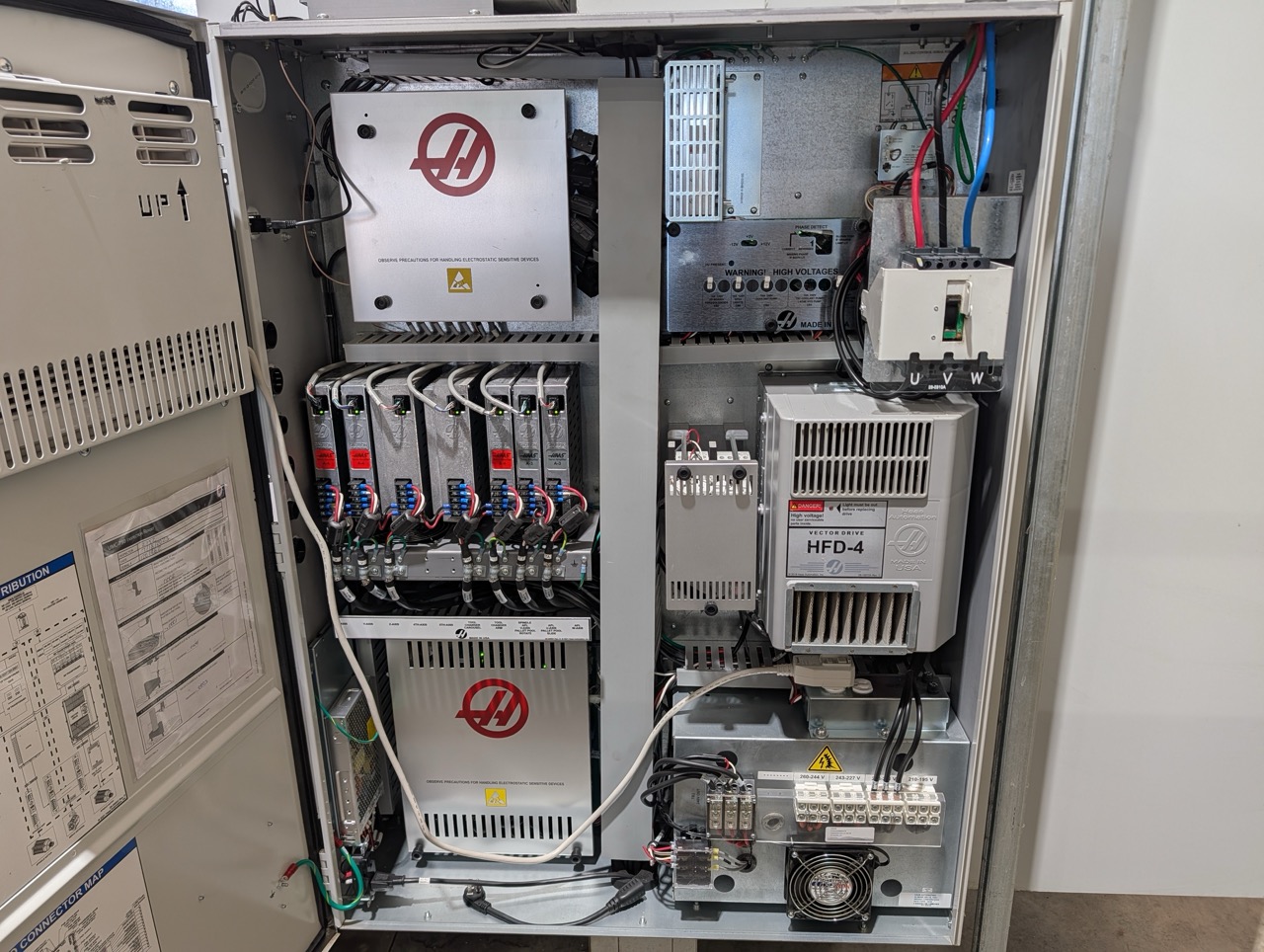

CNC Control Cabinet Cooler
Dynamic Work Offsets and Tool Center Point Control Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
HaasDrop
Second Home Position
Media Display M-Code; M130

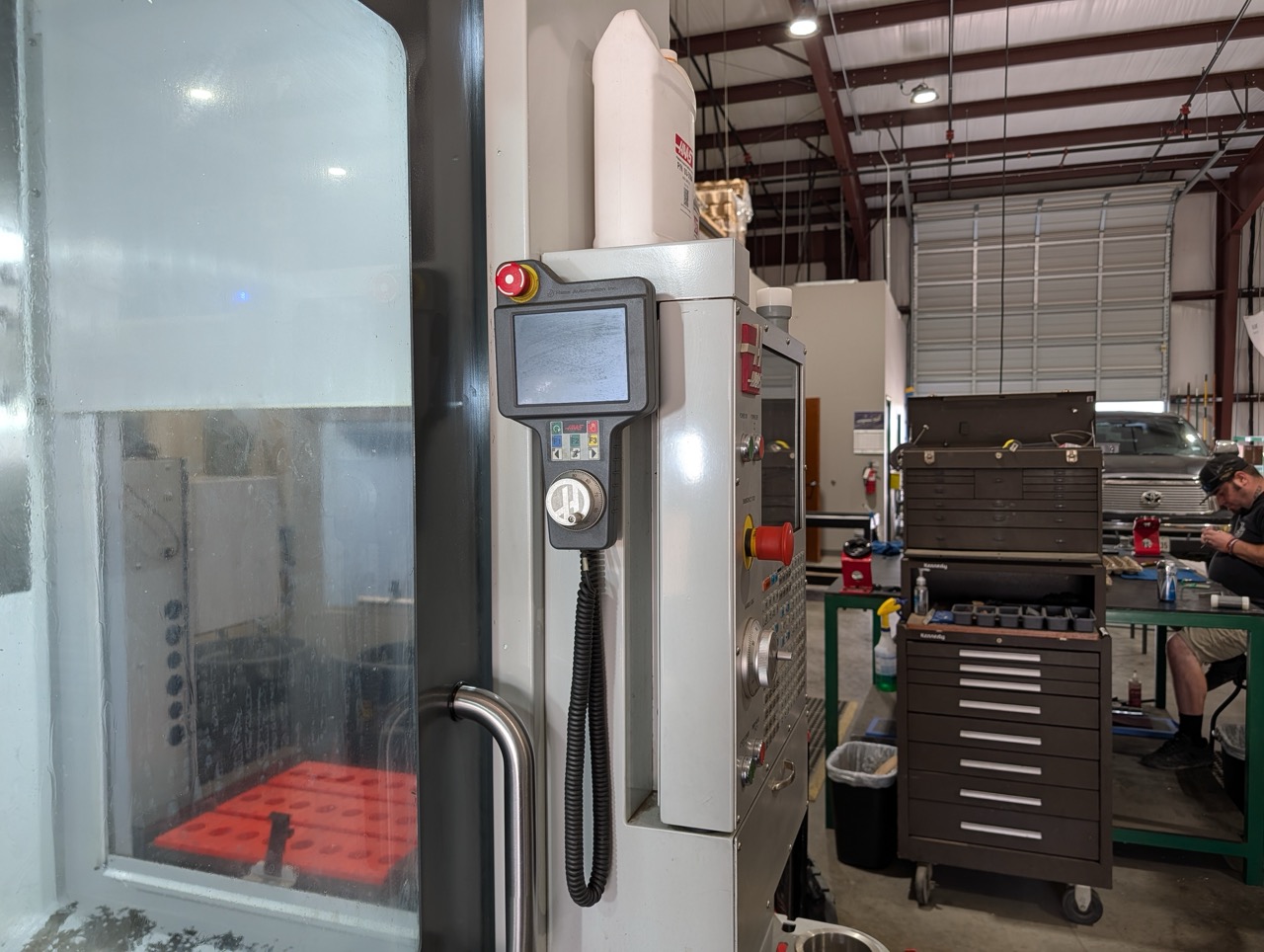

Large Remote Jog Handle with Touchscreen Display Rotary Scales
Safe Run

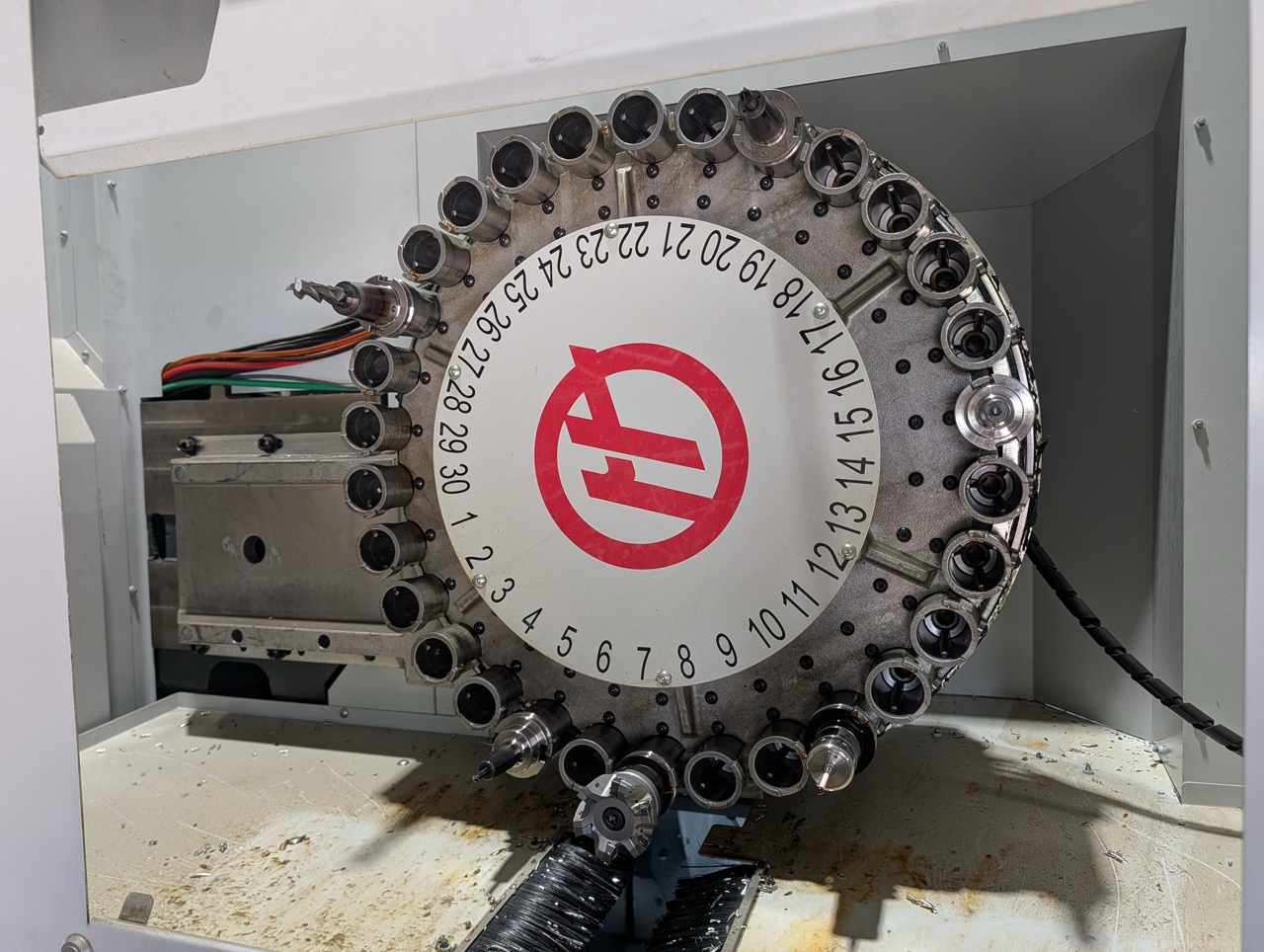

30+1 Side-Mount Tool Changer
Power Surge Protection
Top Cover for UMC Series

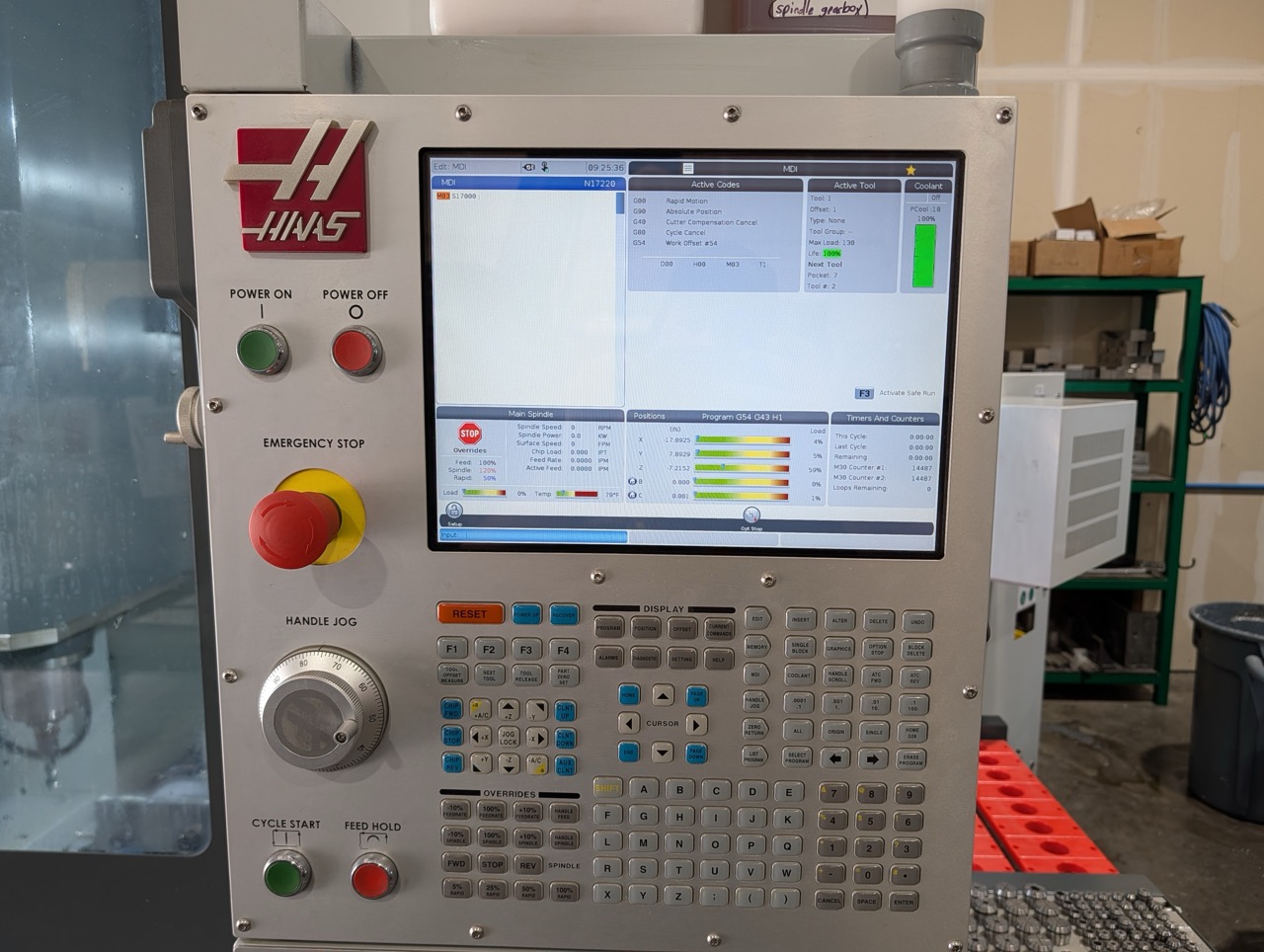

Control Touch Screen
WiFi Connection for the Haas Control
Power On Hours: 5805
