Haas TRT160, 2020 – Never Used Before!
$23,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Platter Diameter: 6.30″
Max Weight on Platter: 150 LBS
Part Swing Max: 10.5″
SPINDLE – A (TILT)
Max Speed: 104 °/sec
Max Torque: 210 ft-lbf
Center Height: 6.90″
Brake Torque @ 100 psi/6.9 bar: 200 ft-lbf
SPINDLE – B (ROTARY)
Max Speed: 104 °/sec
Max Torque: 112 ft-lbf
Center Height: 6.900″
Brake Torque @ 100 psi/6.9 bar: 100 ft-lbf
INDEXING – A (TILT)
Max Rotation/Step: ± 120°
Resolution: 0.001 °
Accuracy: ± 25 arc-sec
Repeatability: 10 arc-sec
INDEXING – B (ROTARY)
Max Rotation/Step (with rotary control): 999.999 °
Resolution: 0.001 °
Accuracy: ± 15 arc-sec
Repeatability: 10 arc-sec
Weight: 305 LBS
Equipped With:

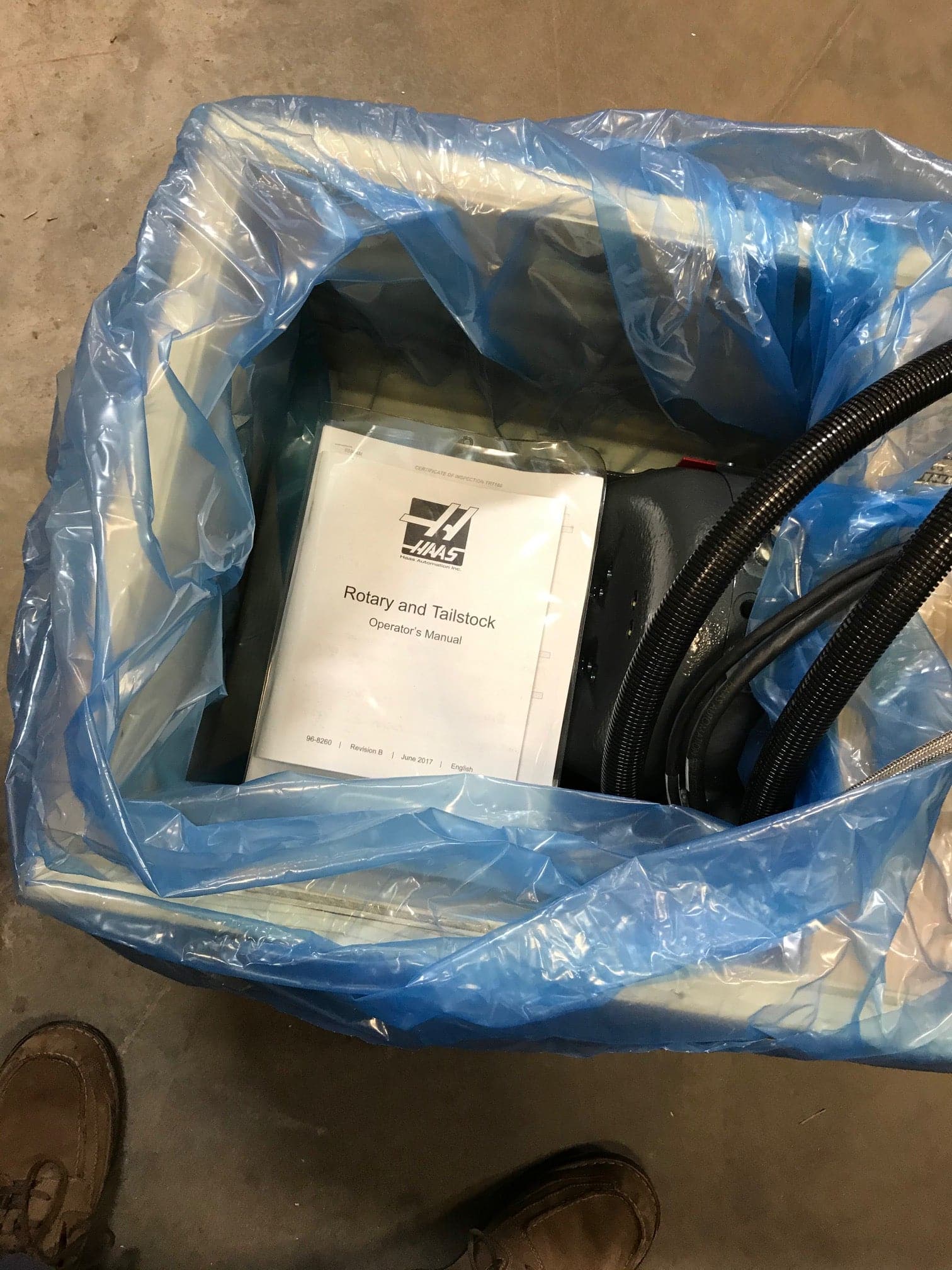

Manuals

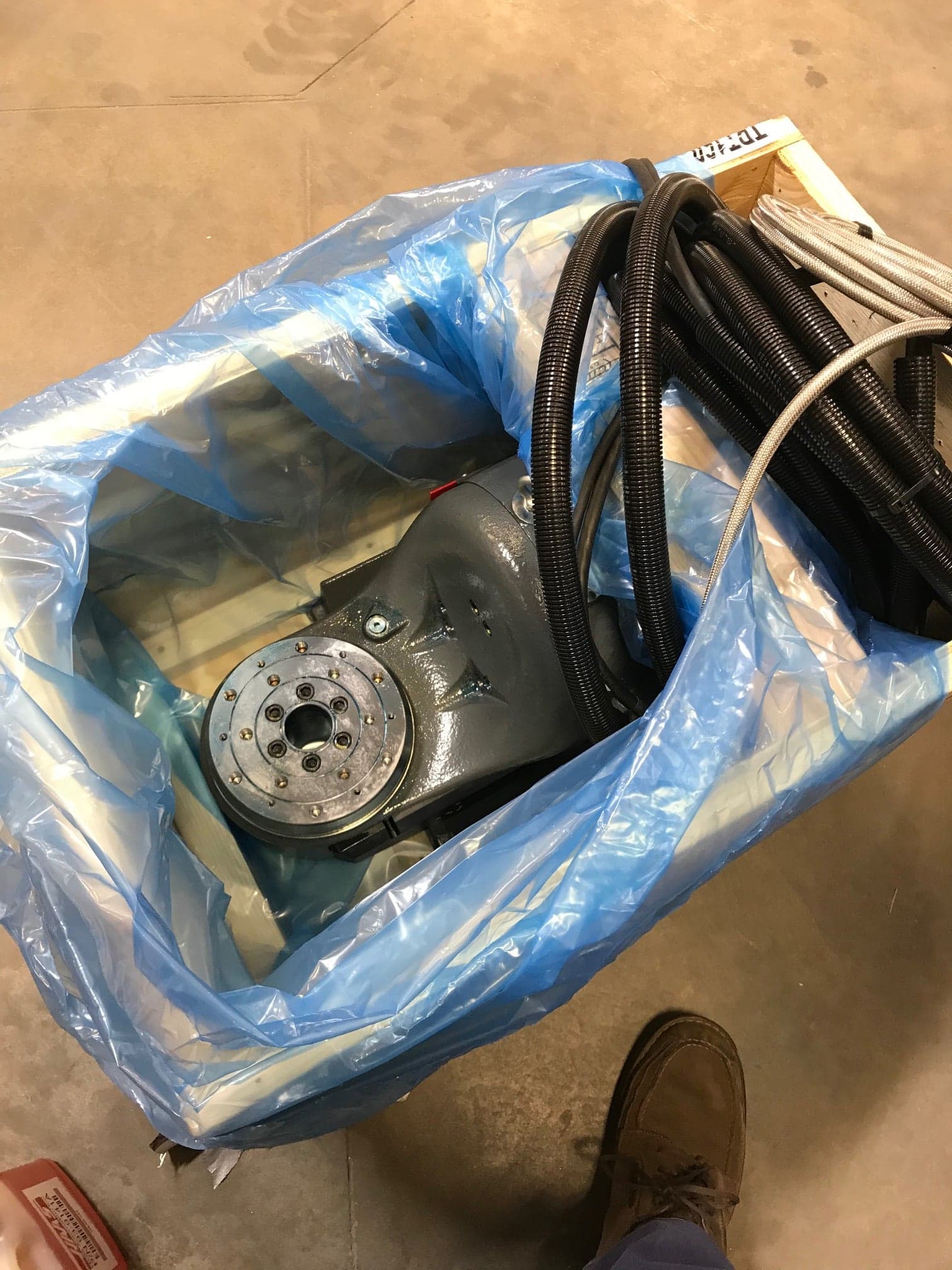

Note: * Brand new in Crate, never has been used!
