Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 – ~ 100 HRS, Excellent Condition

Name: Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 - ~ 100 HRS, Excellent Condition
SKU: 9946875455
Availability: OutOfStock

$20,900.00

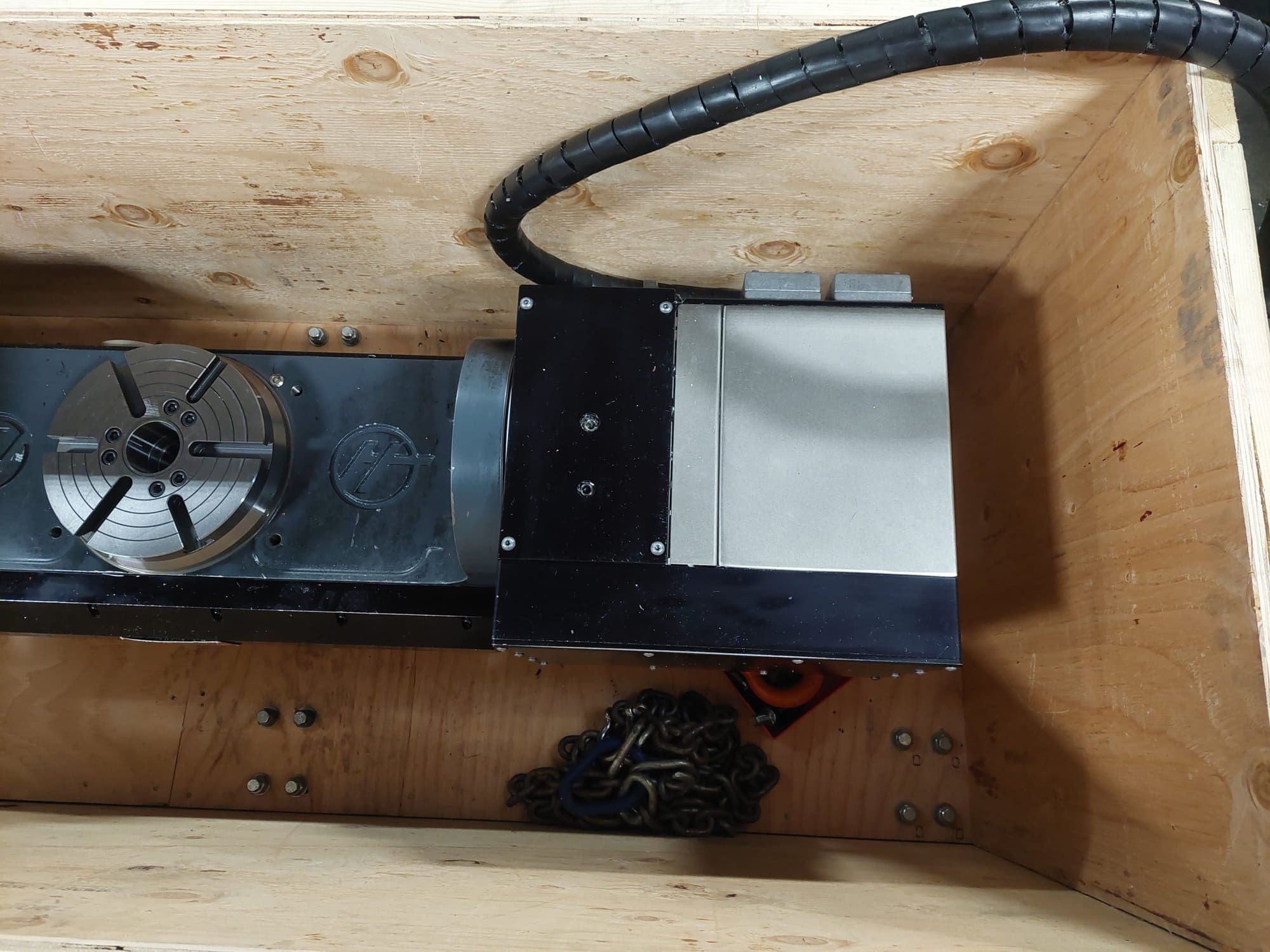

Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 - ~ 100 HRS, Excellent Condition - Image 2

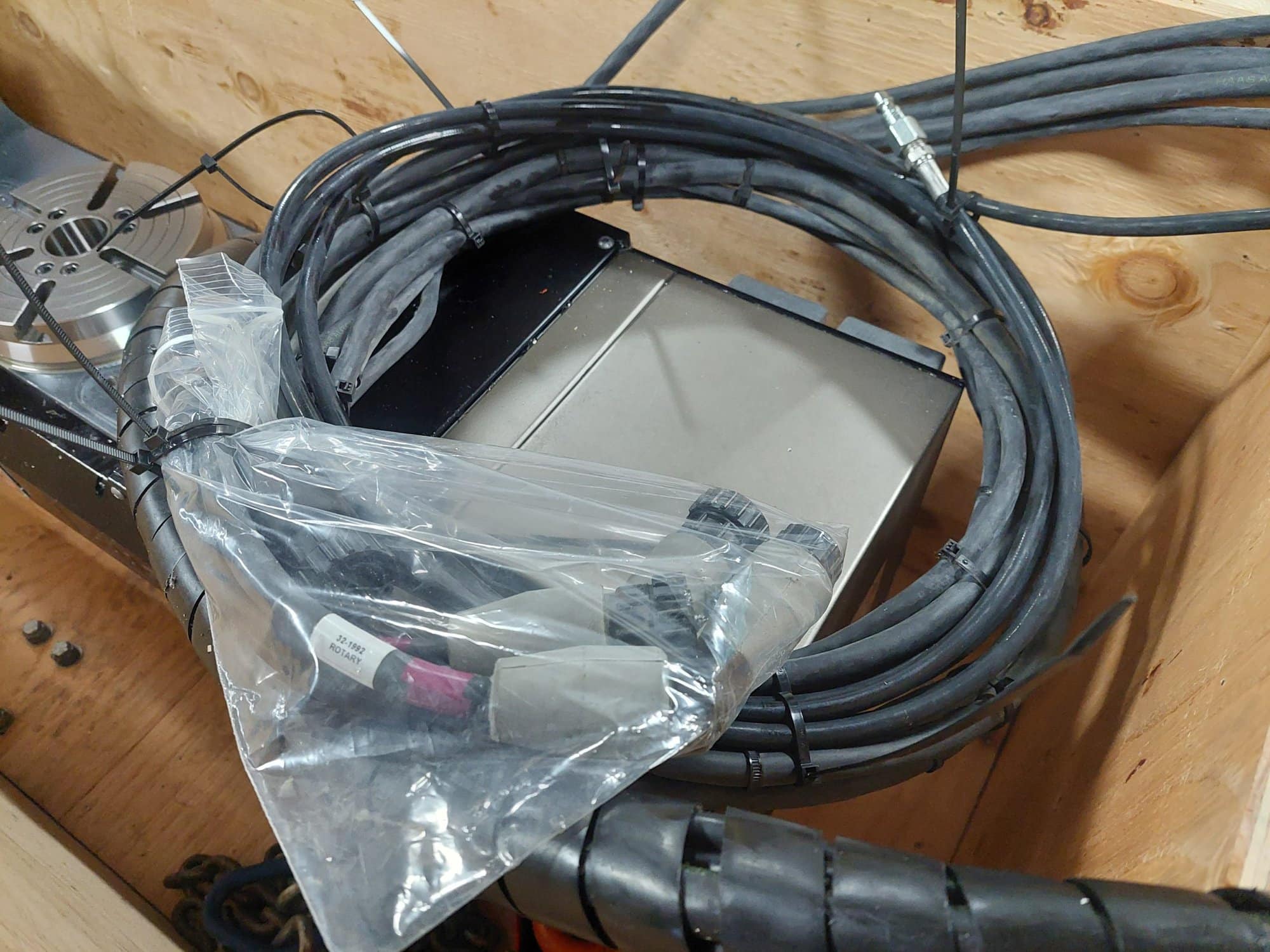

Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 - ~ 100 HRS, Excellent Condition - Image 3

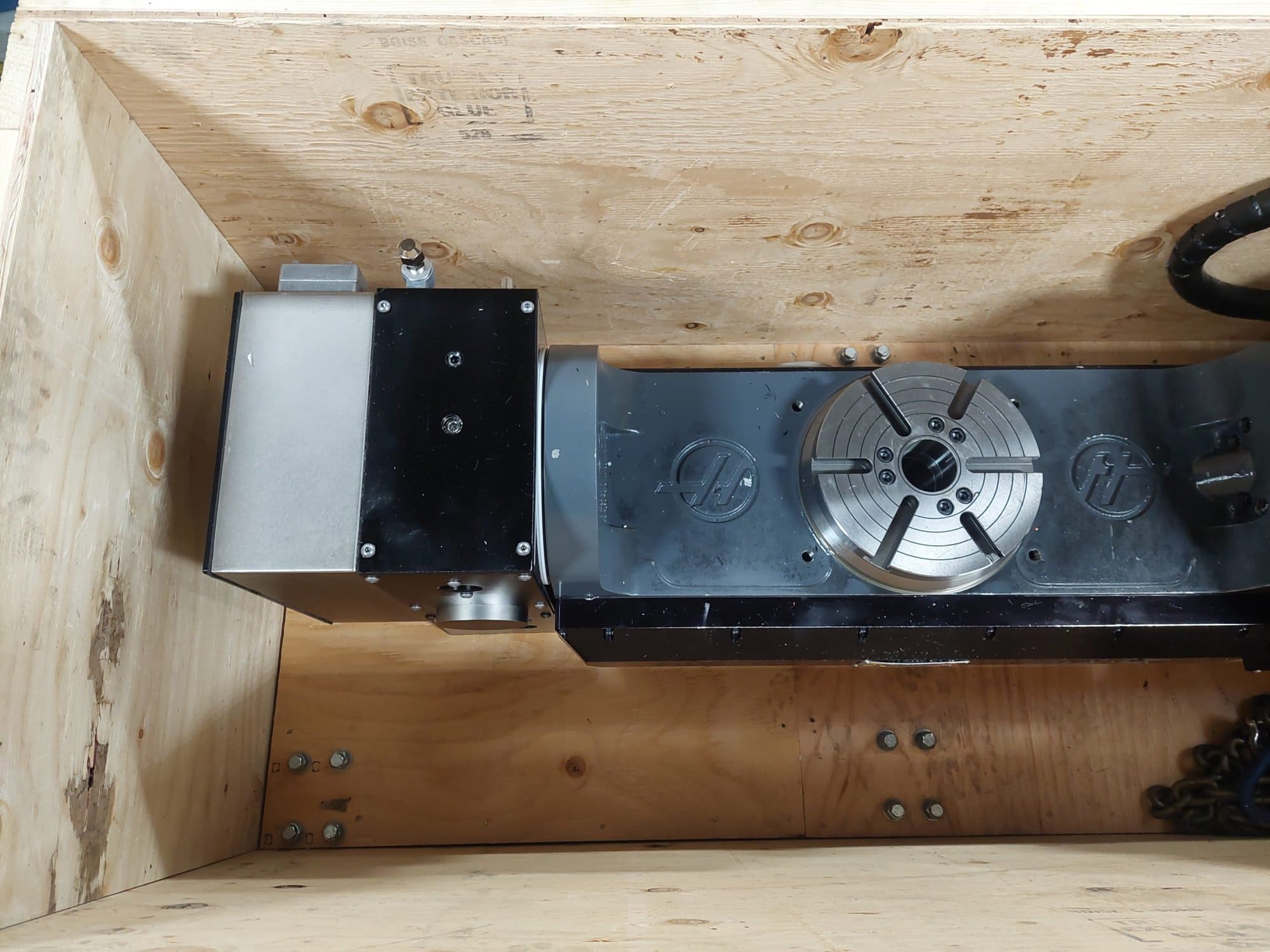

Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 - ~ 100 HRS, Excellent Condition - Image 4

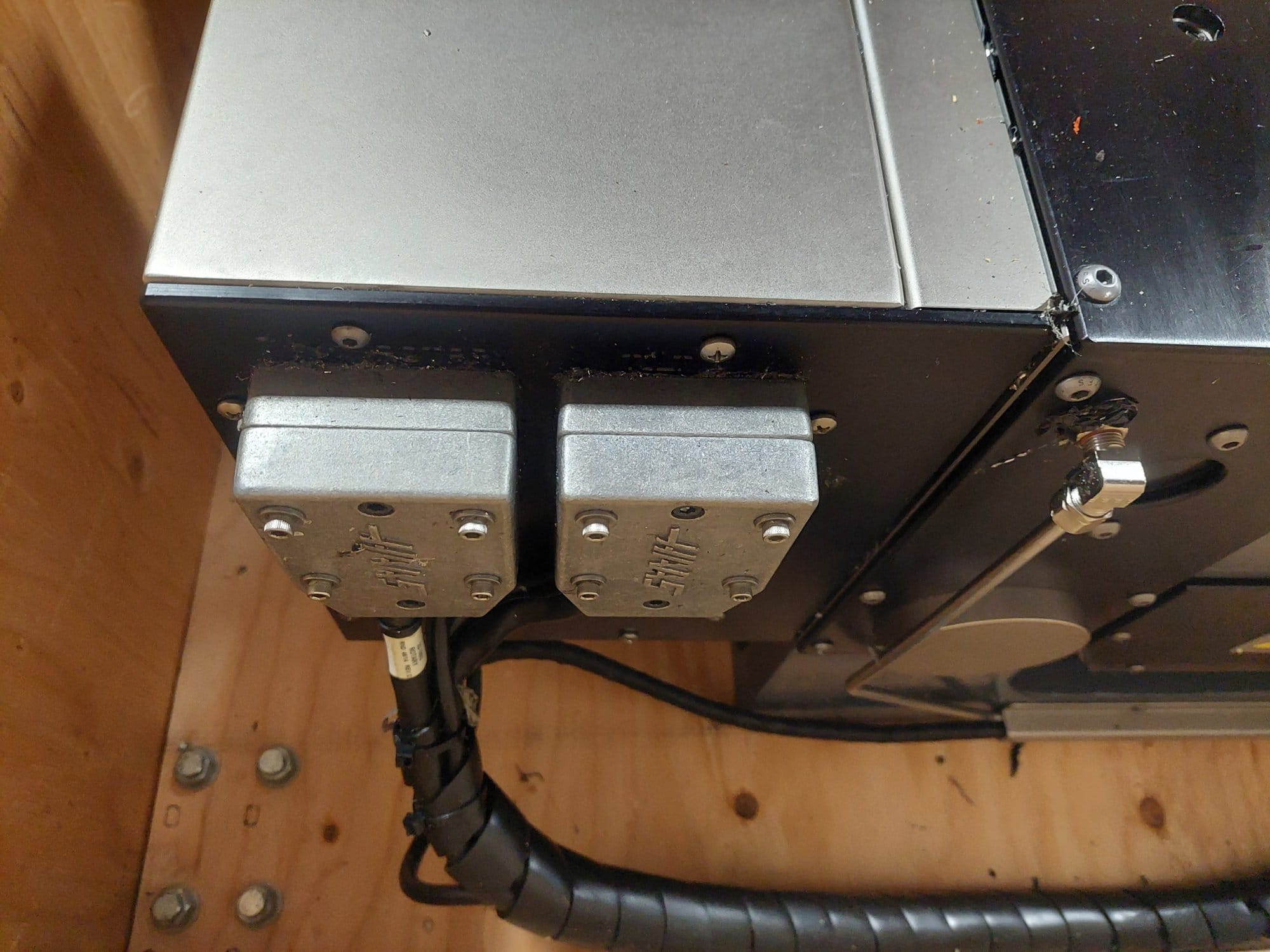

Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 - ~ 100 HRS, Excellent Condition - Image 5

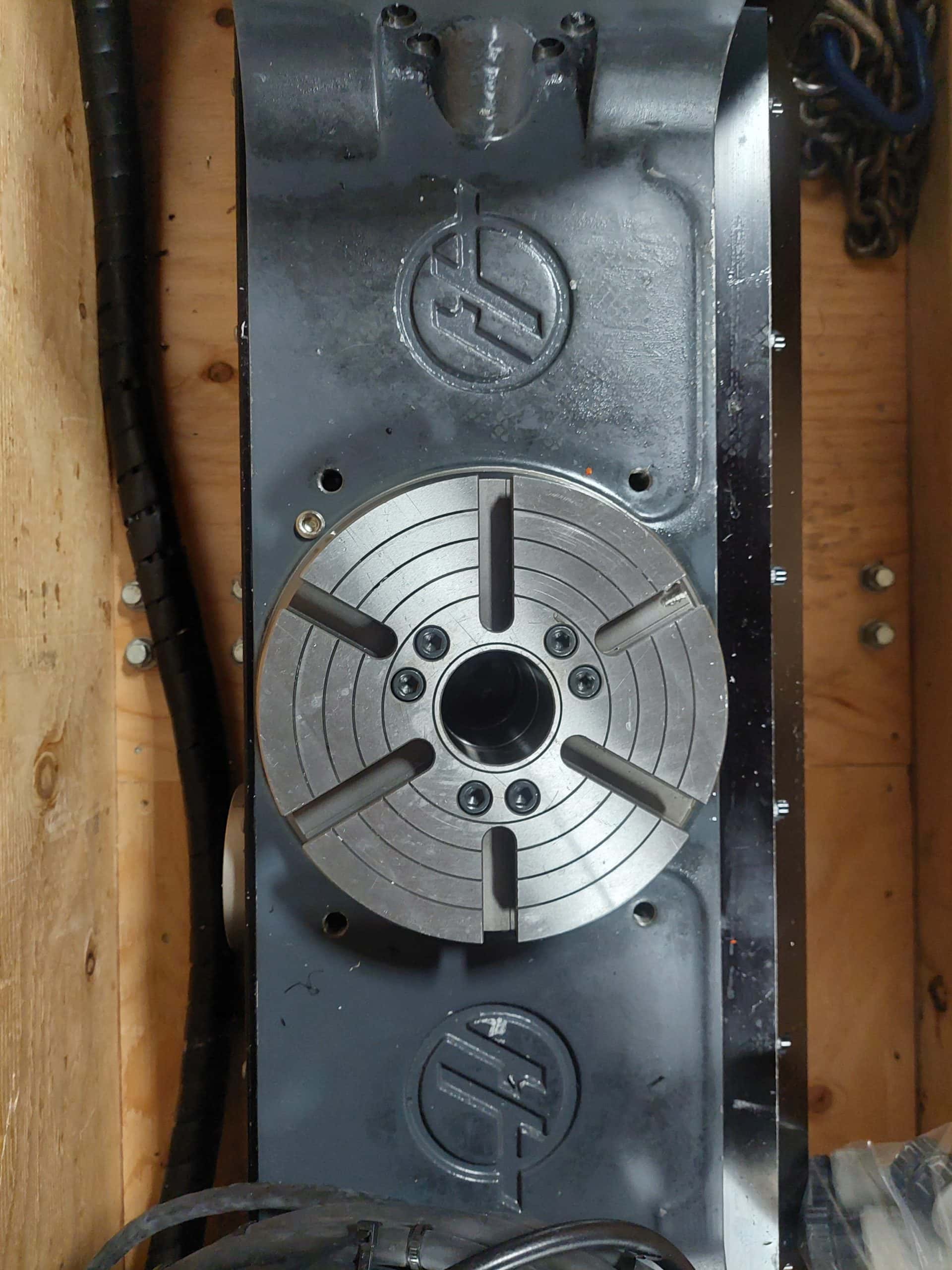

Haas TR-210 Dual Axis Trunnion Rotary Table, 2012 - ~ 100 HRS, Excellent Condition - Image 6

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

PLATTER
Platter Diameter: 8.30″
Max Weight On Platter: 200 LBS
Part Swing Max: 23.5″
Number of Std T-Slots: 6 @ 60°

SPINDLE – A (TILT)
Max Speed: 60 °/sec
Max Torque: 300 FT-LBF
Backlash: 30 ARC-SEC
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 400 FT-LBF

SPINDLE – B (ROTARY)
Max Speed: 60 °/sec
Max Torque: 210 FT-LBF
Runout Max: 0.0005″
Backlash: 30 ARC-SEC
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 200 FT-LBF

INDEXING – A (TILT)
Max Rotation/Step: +-120°
Resolution: 0.001 °
Accuracy: 15 ARC-SEC
Repeatability: 10 ARC-SEC

INDEXING – B (ROTARY)
Max Rotation/Step: 999.999 °
Resolution: 0.001°
Repeatability: 10 ARC-SEC

Air Pressure Max: 150 PSI
Weight: 810 LBS
Dimensions: 58″ x 23″ x 27″ (In Box)
