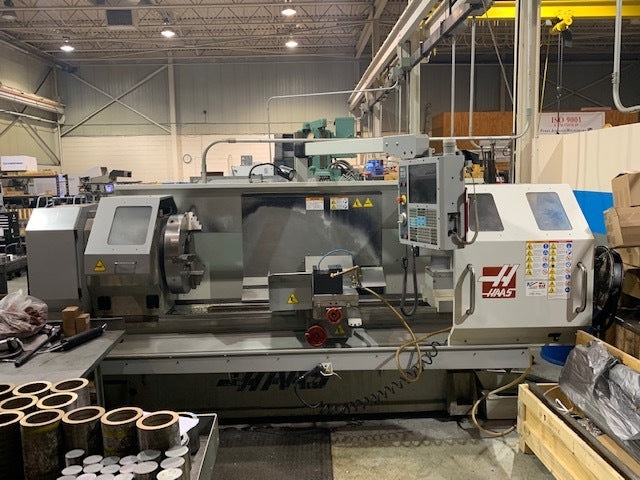

Haas TL-3B CNC Lathe, 2008 – 24″ Chuck
$48,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

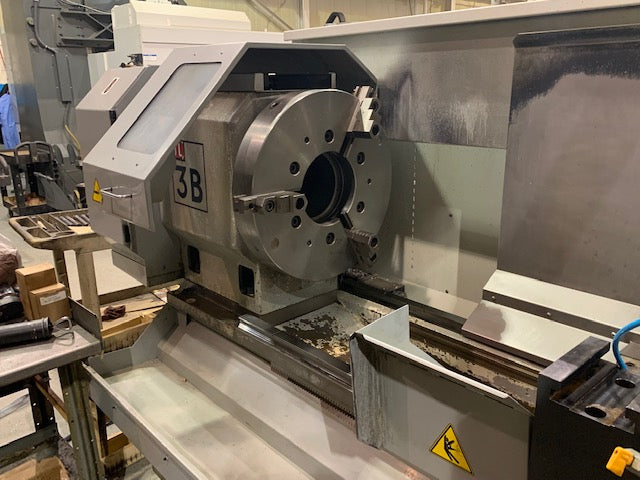

Chuck Size: 24″
Distance Between Centers: 60″
Max. Cutting Diameter: 30″
Max. Cutting Length: 60″
Swing Over Front Apron: 30″
Swing Over Cross Slide: 18.5″
Spindle Bore: 8.5″
Spindle Nose: A2-15
Spindle Speed: 650 IPM
Spindle Motor: 30 HP
X-Axis: 16″
Z-Axis: 60″
X-Axis Rapids: 75 IPM
Z-Axis Rapids: 150 IPM
Approx Machine Dims (LxWxH): 147″x97″x79″
Approx Machine Weight: 9,624 LBS
Voltage: 208/230
Phase: 3
Hertz: 50/60
Full Load: 80 Amps
Equipped with:
New X and Y rails and guides installed 2019
All specifications are assumed to be correct but must be confirmed by purchasing entity
