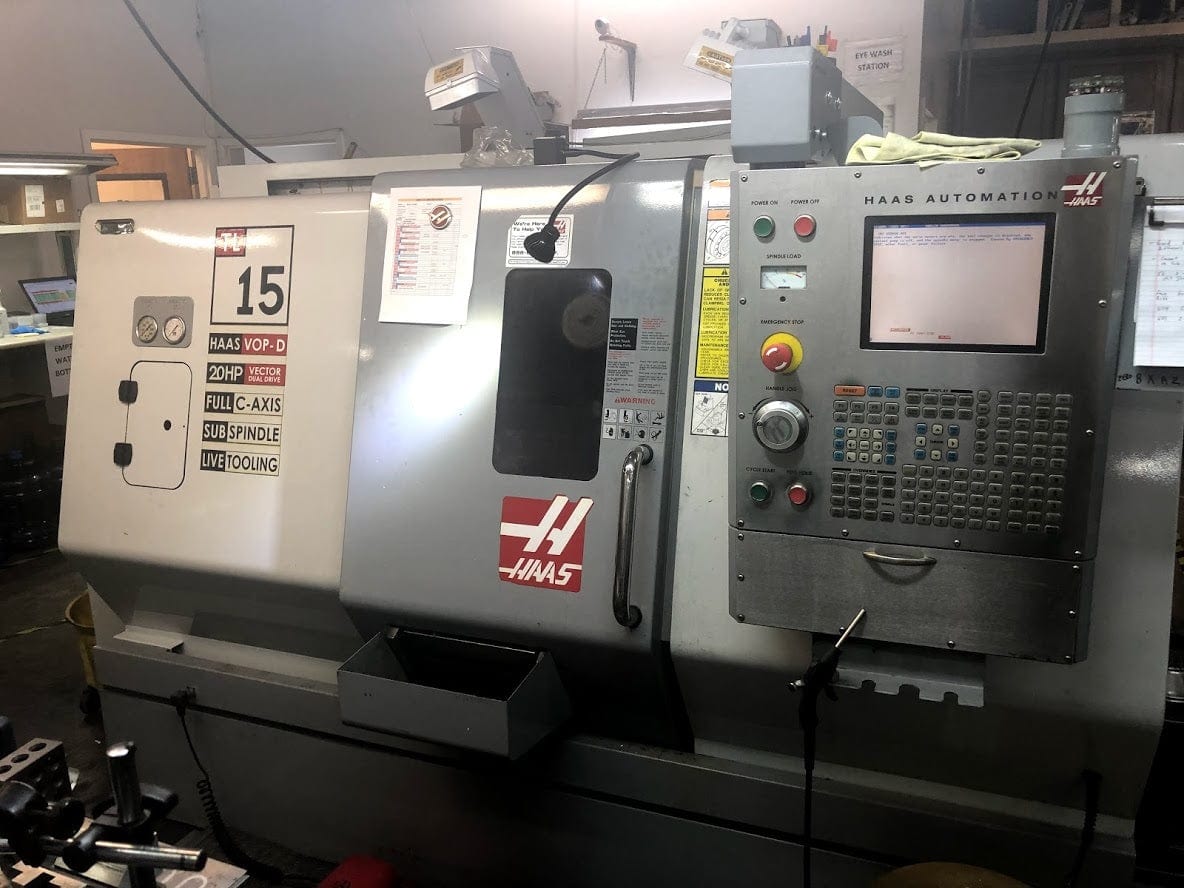

Haas TL-15 CNC Lathe, 2005 – Sub Spindle, Full C-Axis
$25,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Turning Diameter: 8.2″
Max Turning Length: 17.5″
Max Bar Capacity: 2.0″
Max Swing: 21.65″
Travels:
X Axis Travel: 7.5″
Z Axis Travel: 17.5″
B Axis Sub Spindle Travel: 17.90″
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Main Spindle Bore: 2.0″
Sub Spindle Bore: 1.18″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP

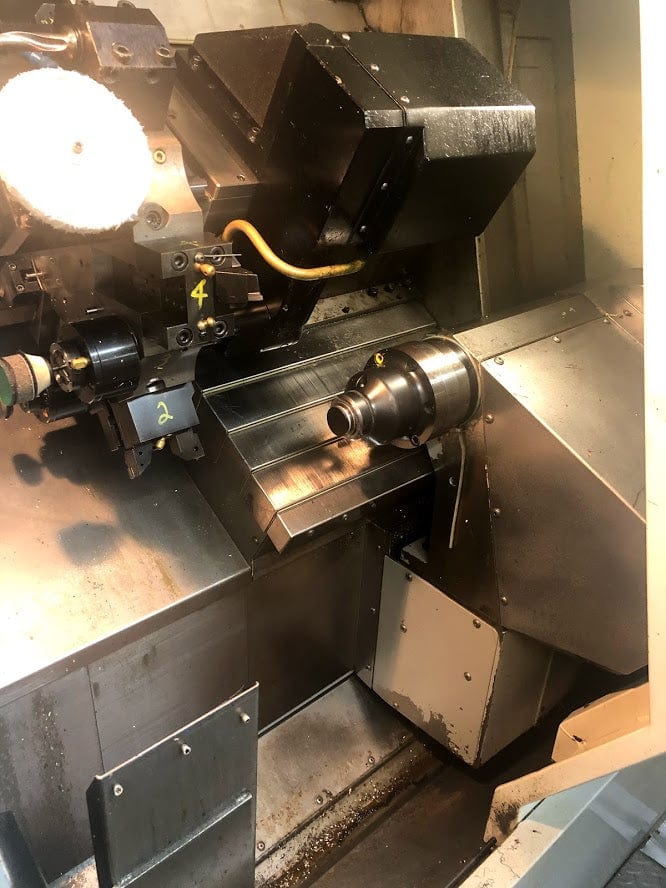

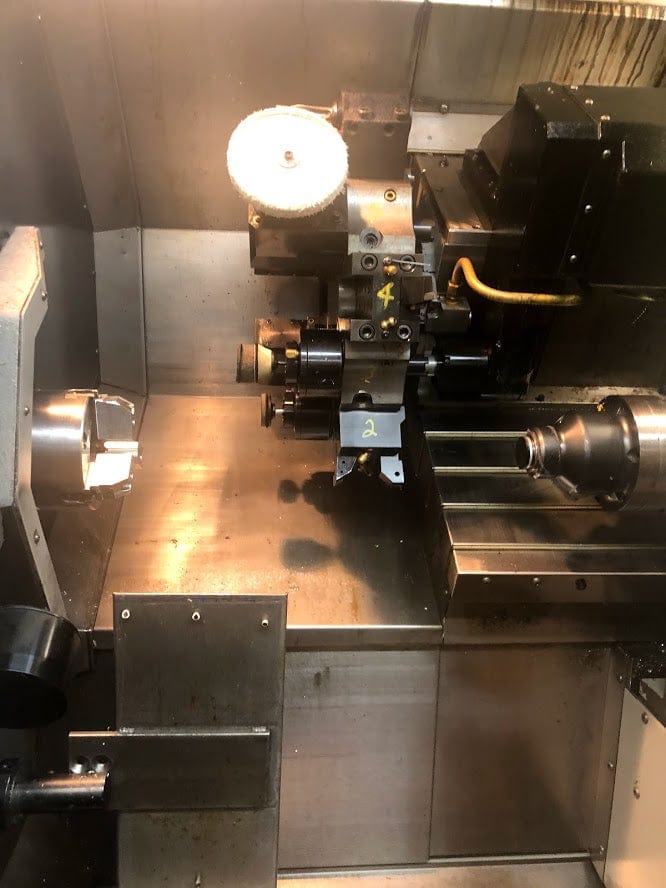

Turret:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Live Tool Speed: 30-3,000 RPM
Equipped With:
Sub Spindle
Live Tooling
C-Axis
Bar Feeder
