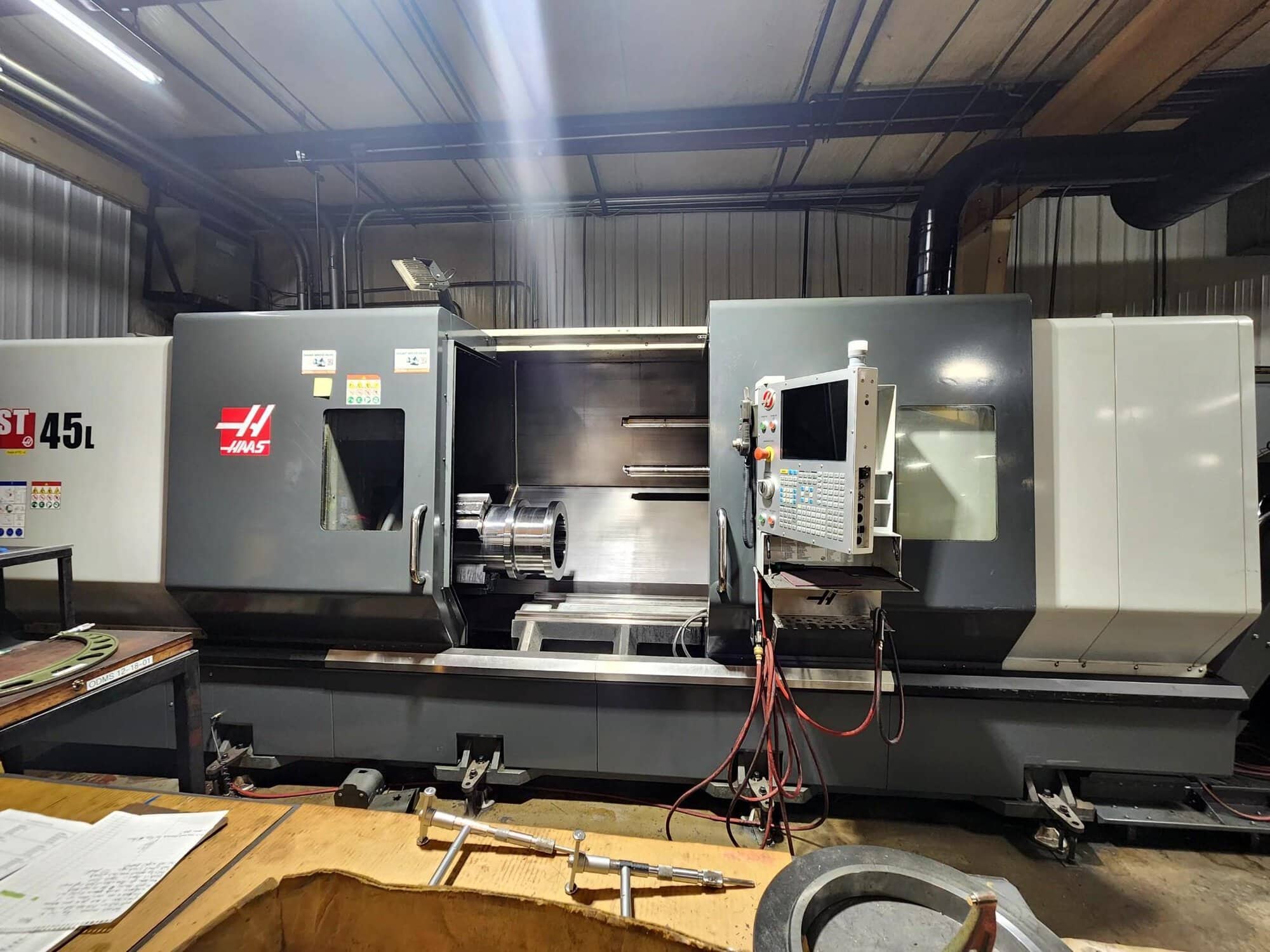

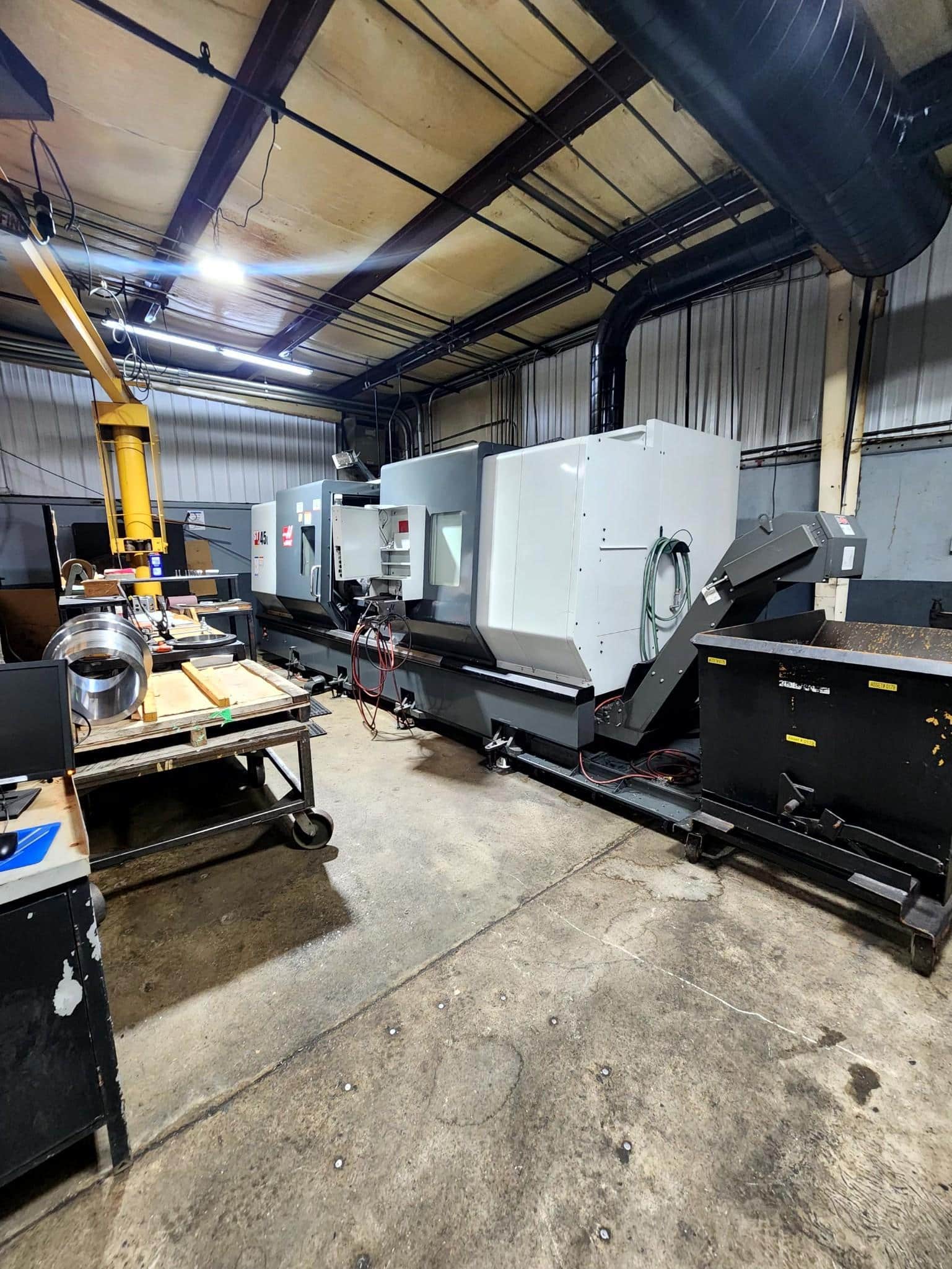

HAAS ST-45L CNC LATHE, 2018 – LONG BED, HYDRAULIC STEADY REST, 20″ CHUCK, TAILSTOCK
$120,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
MAX SWING 34.5″
MAX CUTTING DIAMETER 25.5″
MAX CUTTING LENGTH 80″
X-AXIS TRAVEL 17″
Z-AXIS TRAVEL 80″

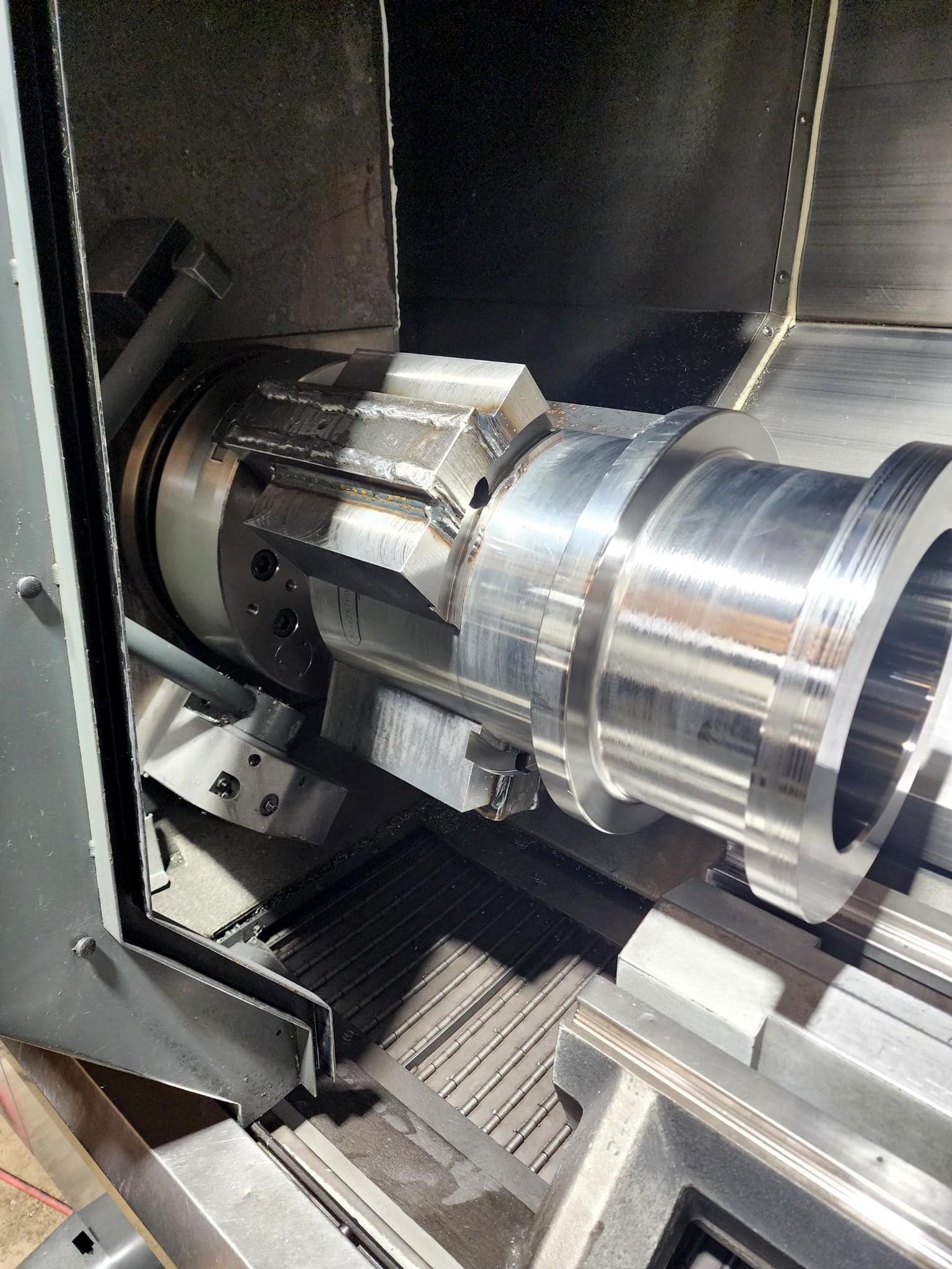

CHUCK SIZE 20″
BAR CAPACITY 6.5″
SPINDLE BORE 7″
SPINDLE NOSE A2-11
SPINDLE MOTOR 40 HP
SPINDLE SPEED 1,400 RPM

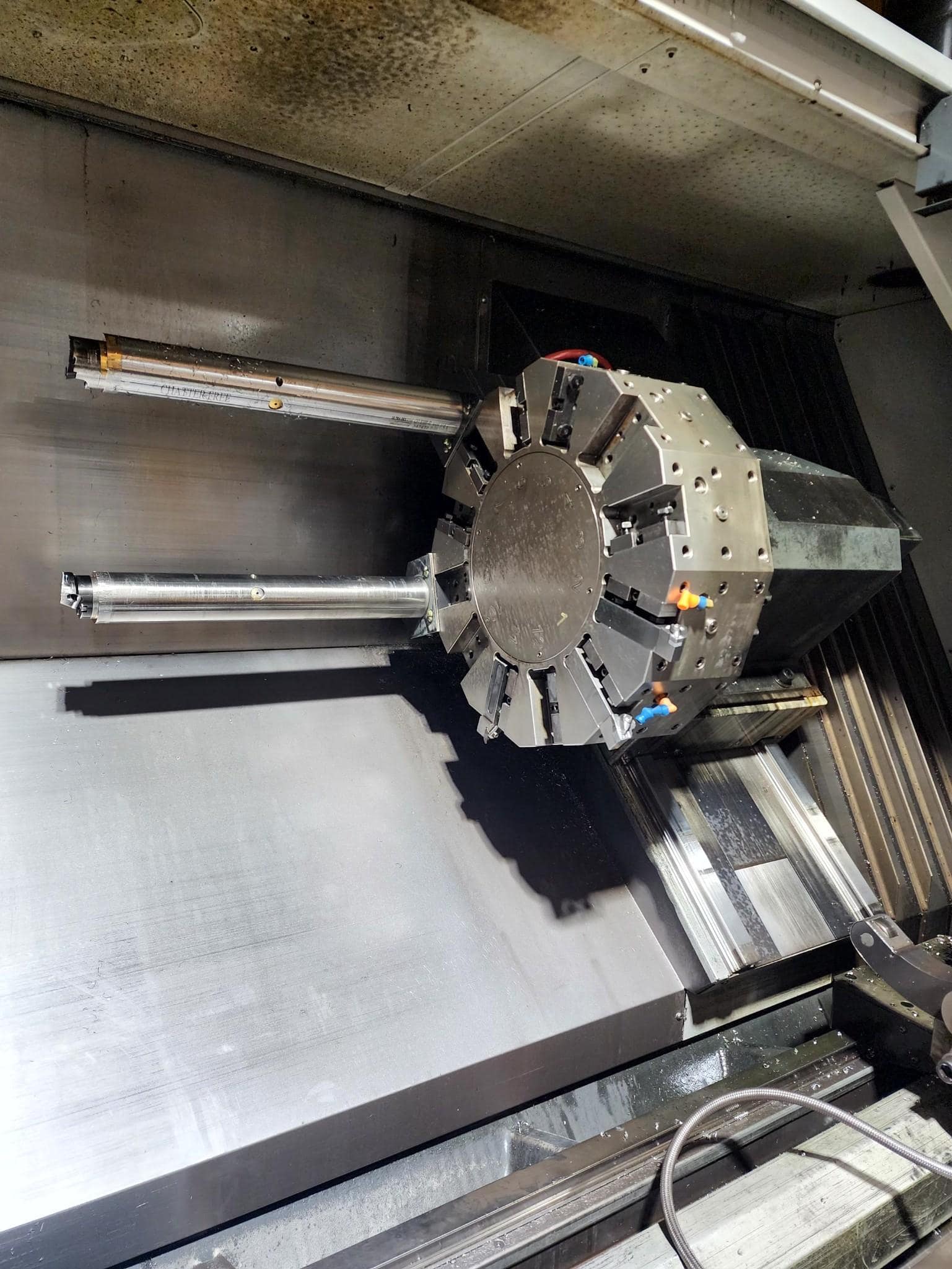

RAPID TRAVERSE RATE X-AXIS 710 IN/MIN. RAPID TRAVERSE RATE Z-AXIS 710 IN/MIN. TURRET POSITIONS 12
MACHINE DIMENSIONS 254.0”x95.0”x105.0”
MACHINE WEIGHT 29,900 LBS
EQUIPPED WITH:
7″ SPINDLE BORE
2-SPEED GEARBOX

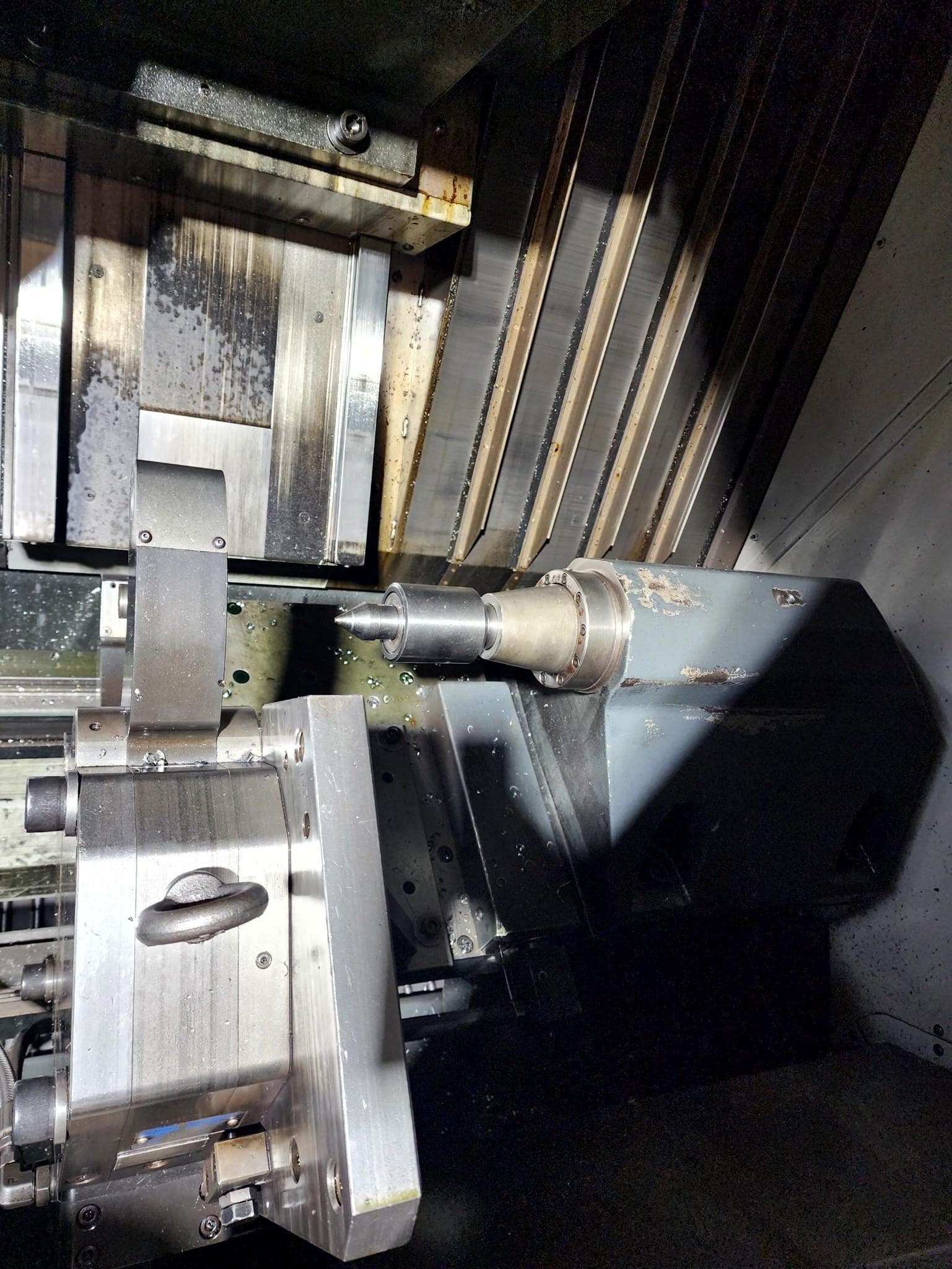

TAILSTOCK
CHIP CONVEYOR

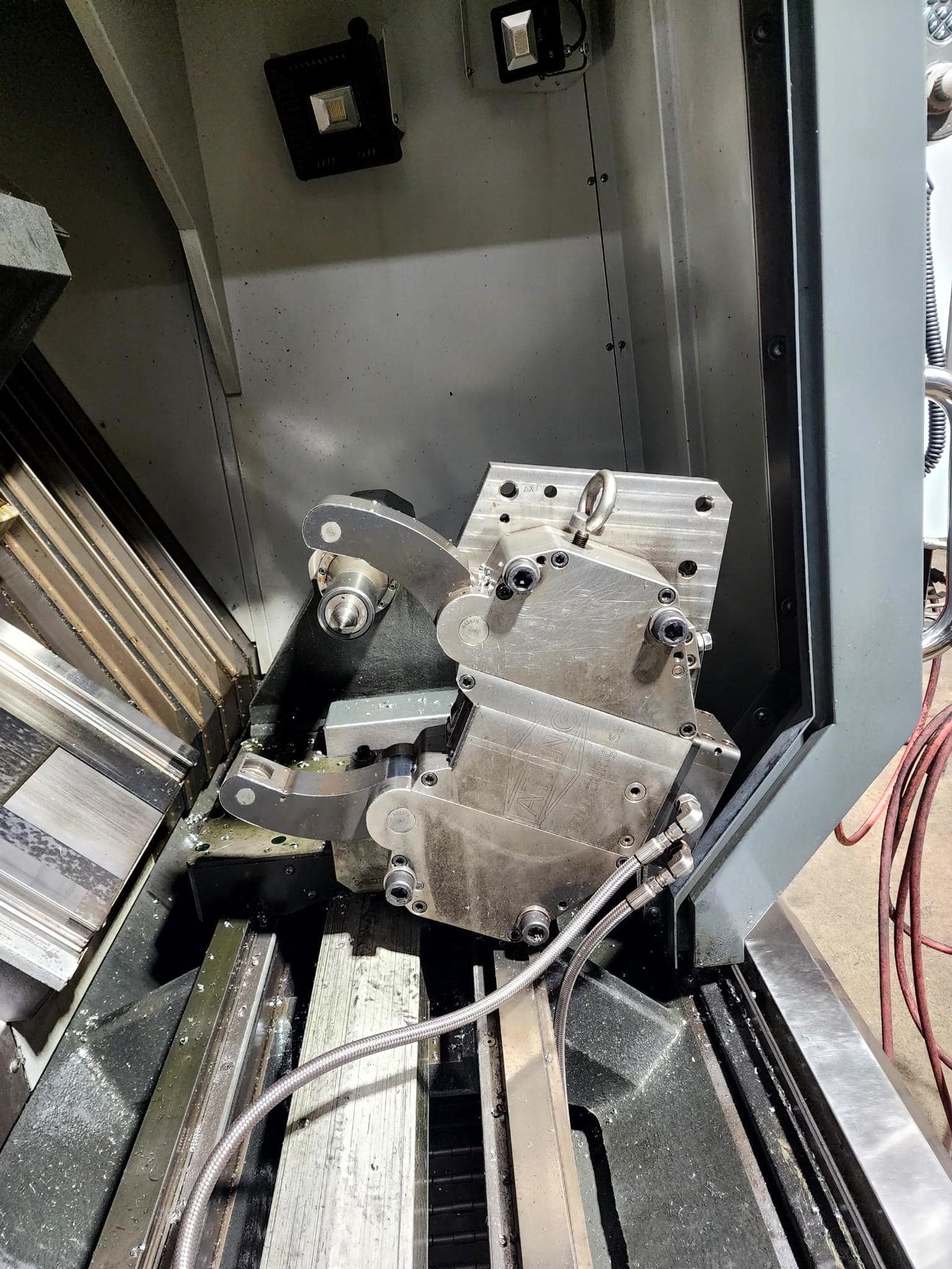

ATLING AX6I-NAOS 30-255 STEADY REST
TOOL SETTER
