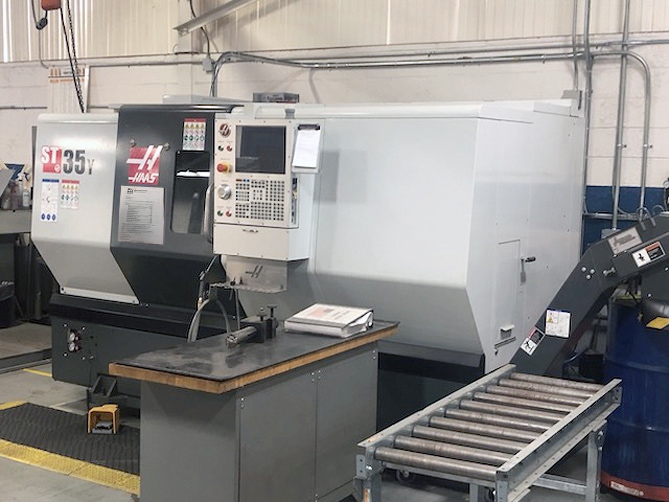

Haas ST-35Y CNC Lathe, 2018- Live Tool, Tailstock, Y-Axis, Presetter, Conveyor, Very Light Use
$117,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

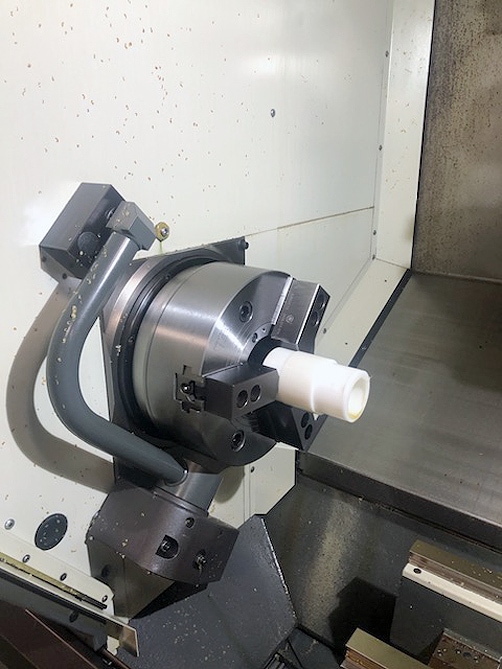

Chuck Size: 12.0 in
Max Part Swing: 21.0 in
Max Cutting Diameter (with BMT65 turret): 13.75 in
Max Cutting Length (varies with workholding): 32.5 in
Bar Capacity: 4.00 in
Between Centers: 32.5 in
X-Axis: 9.4 in
Y-Axis: ± 2.0 in
Z-Axis: 32.5 in
Rapids on X/Y: 472 ipm
Rapids on Z: 945 ipm
Spindle Speed: 3,200 rpm
Spindle Nose: A2-8
Max Rating: 40.0 hp
C-Axis Max Speed: 60 rpm
C-Axis Positioning (±): 0.01 °
Max Rating: 5.0 hp

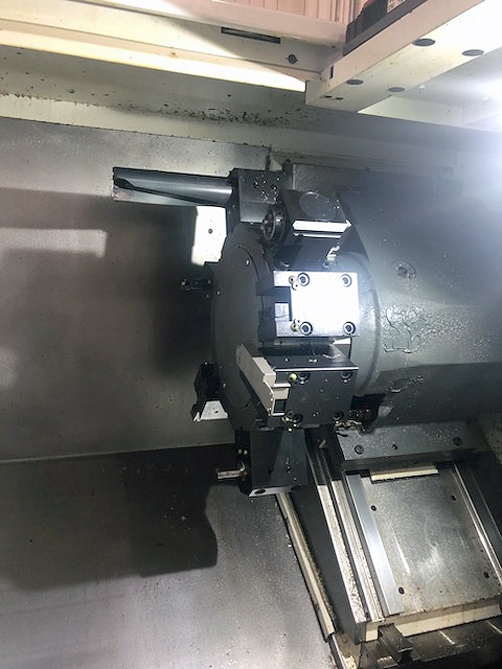

Tool Turret: 12 Stations
Boring Bar Clearance (from back of turret): 4.00 in
Live Tooling Speed: 4,000 rpm
Tooling: BMT65
Electrical Requirements: 220 V; 3 Ph; 50/60 Hz
Approx Dimensions: 171 in x 90 in x 98 in
Approx Weight: 14,300 lb
EQUIPPED WITH:

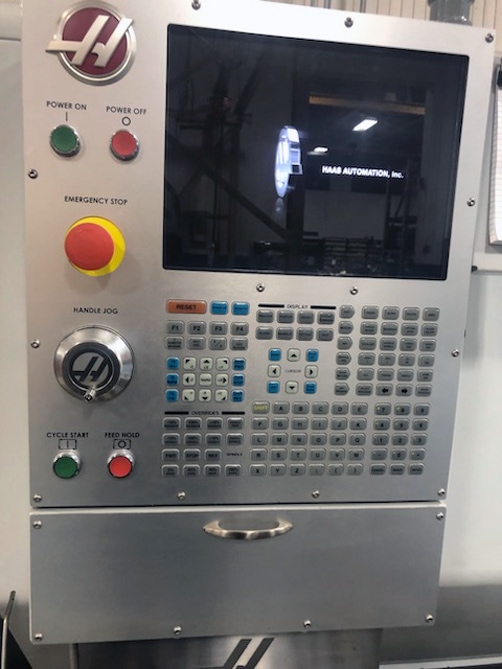

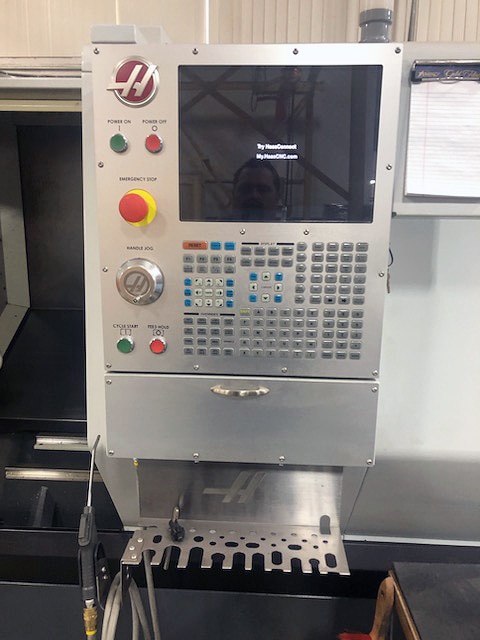

Haas CNC Control
Live Tooling
C-Axis
Y-Axis

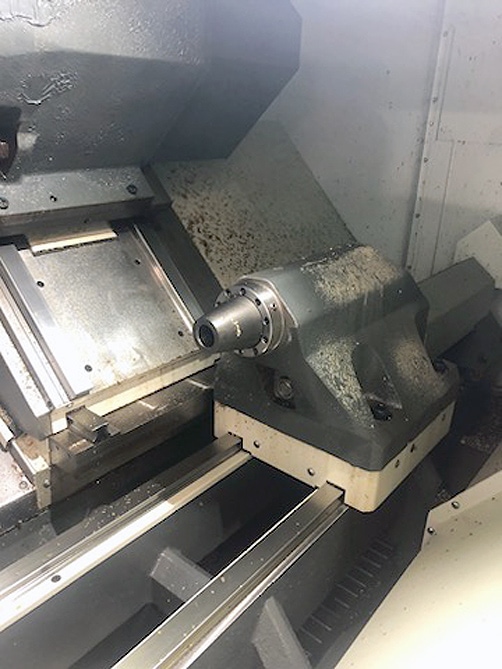

Programmable Hydraulic Tailstock
Auto Tool Presetter
12 Station Tool Turret

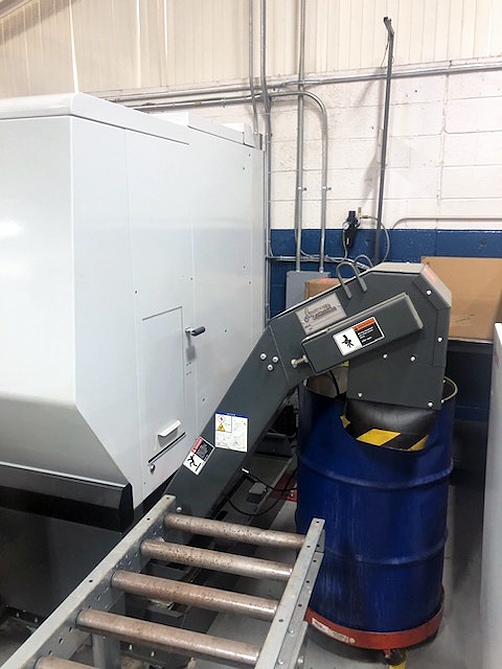

Chip Conveyor
Intuitive Programming System
Spindle Orientation
