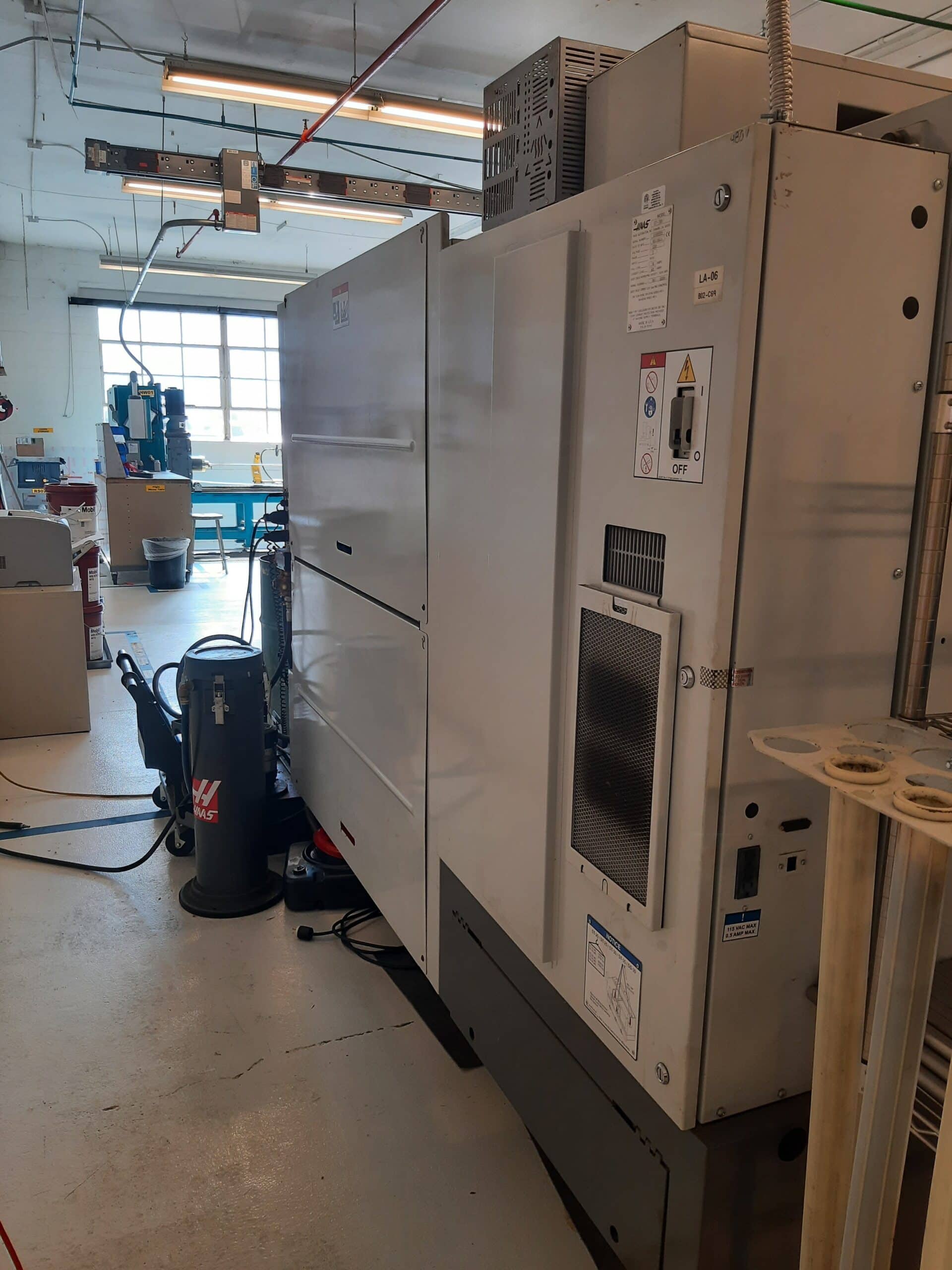

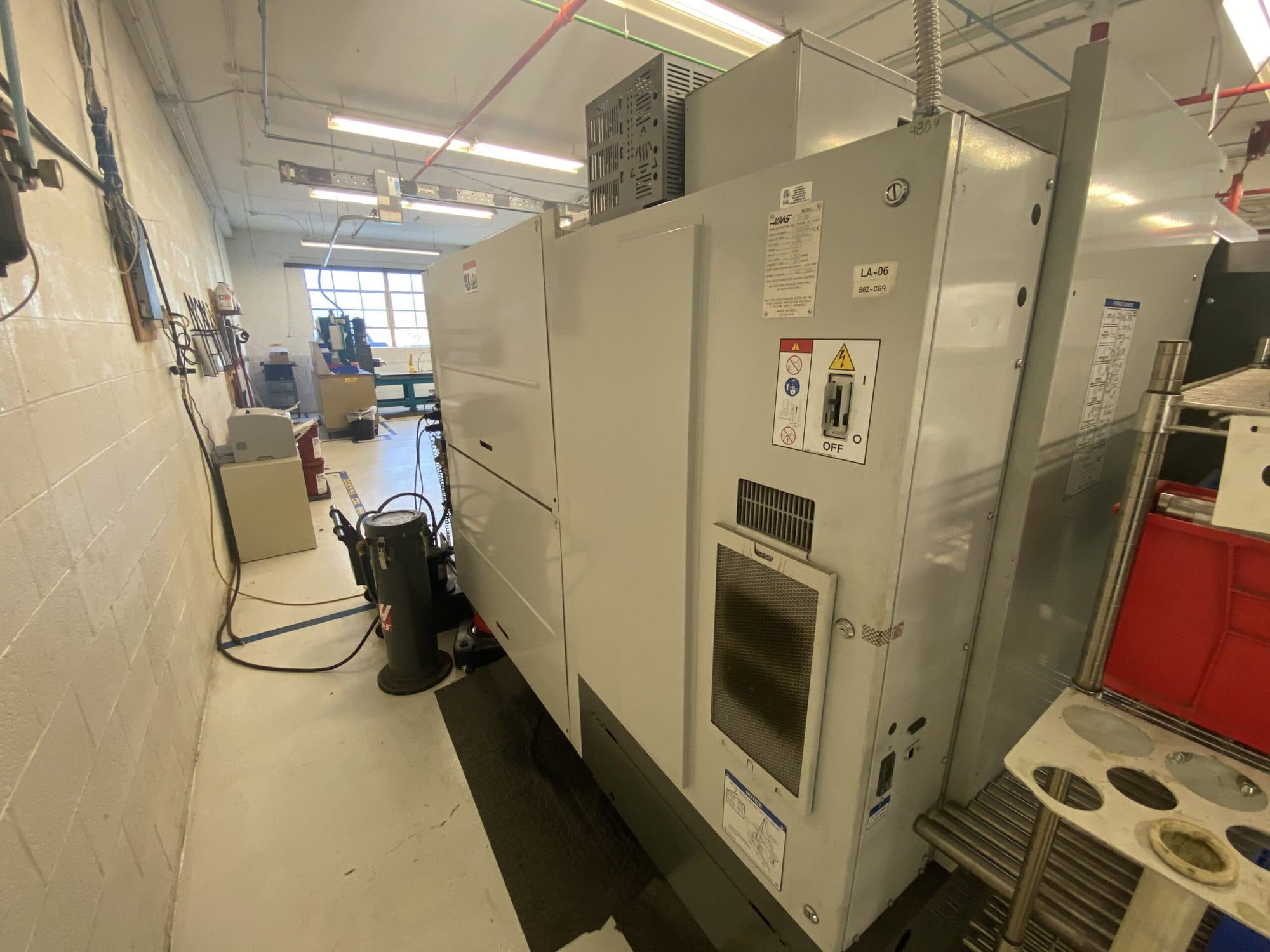

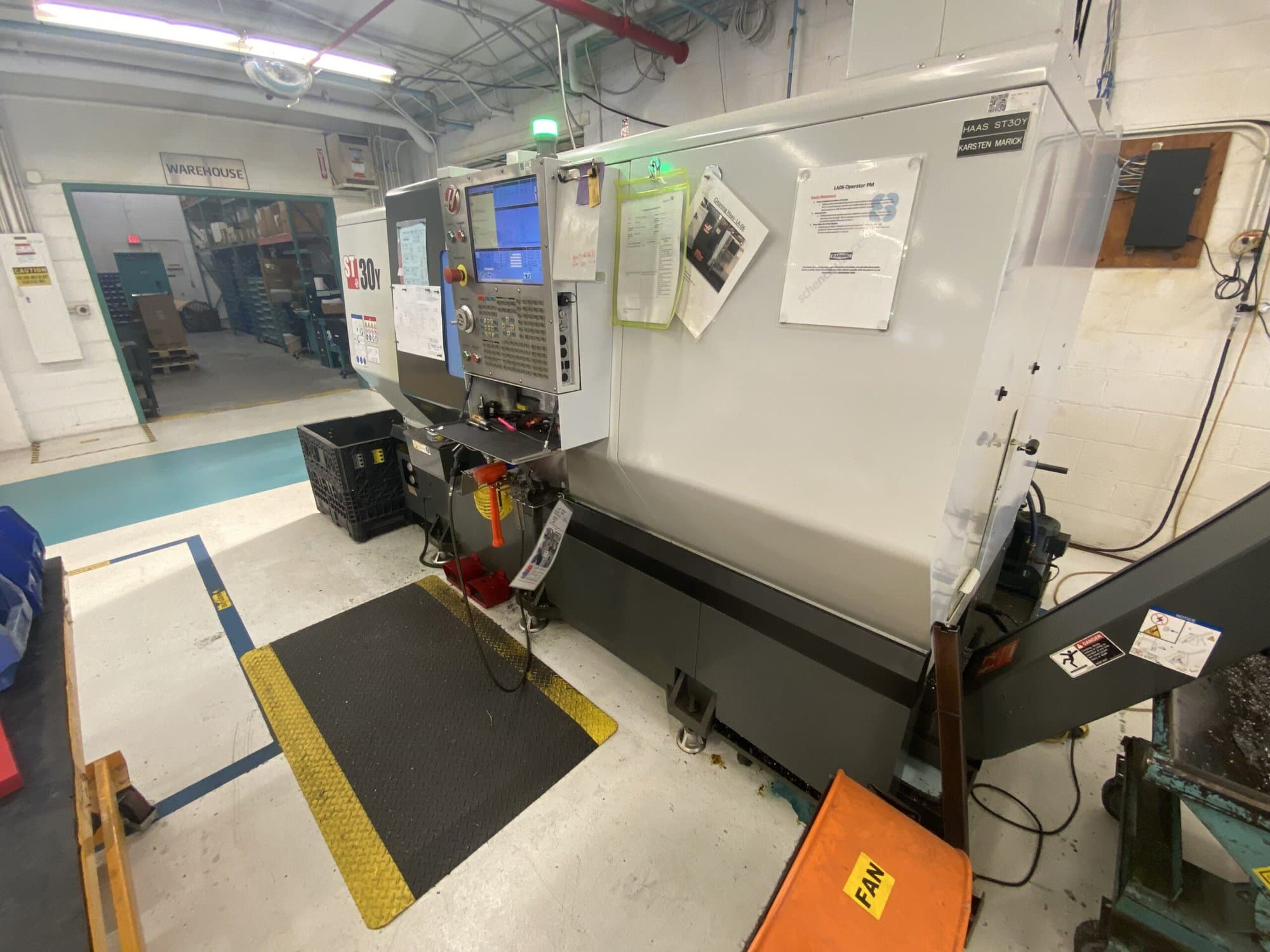

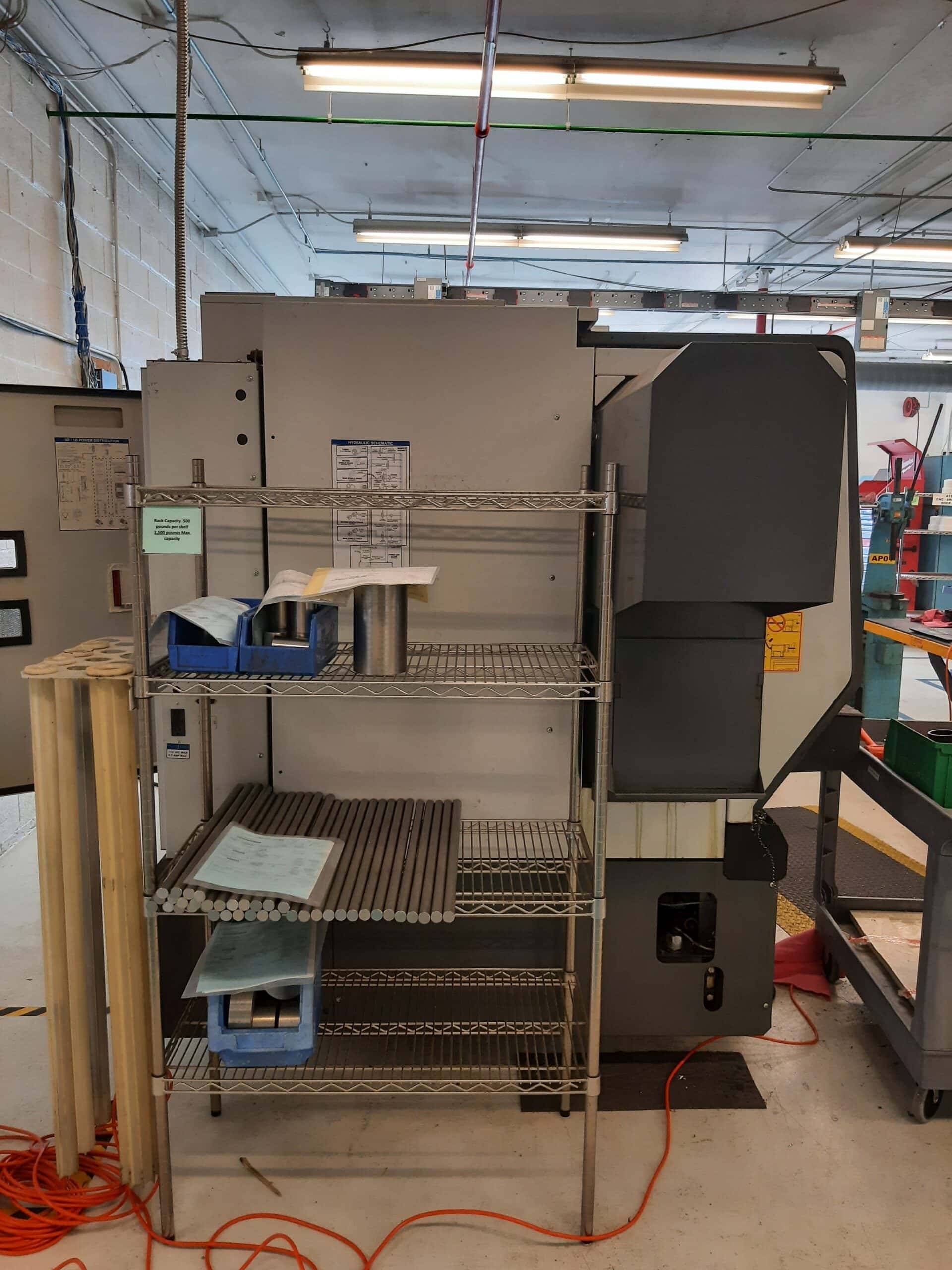

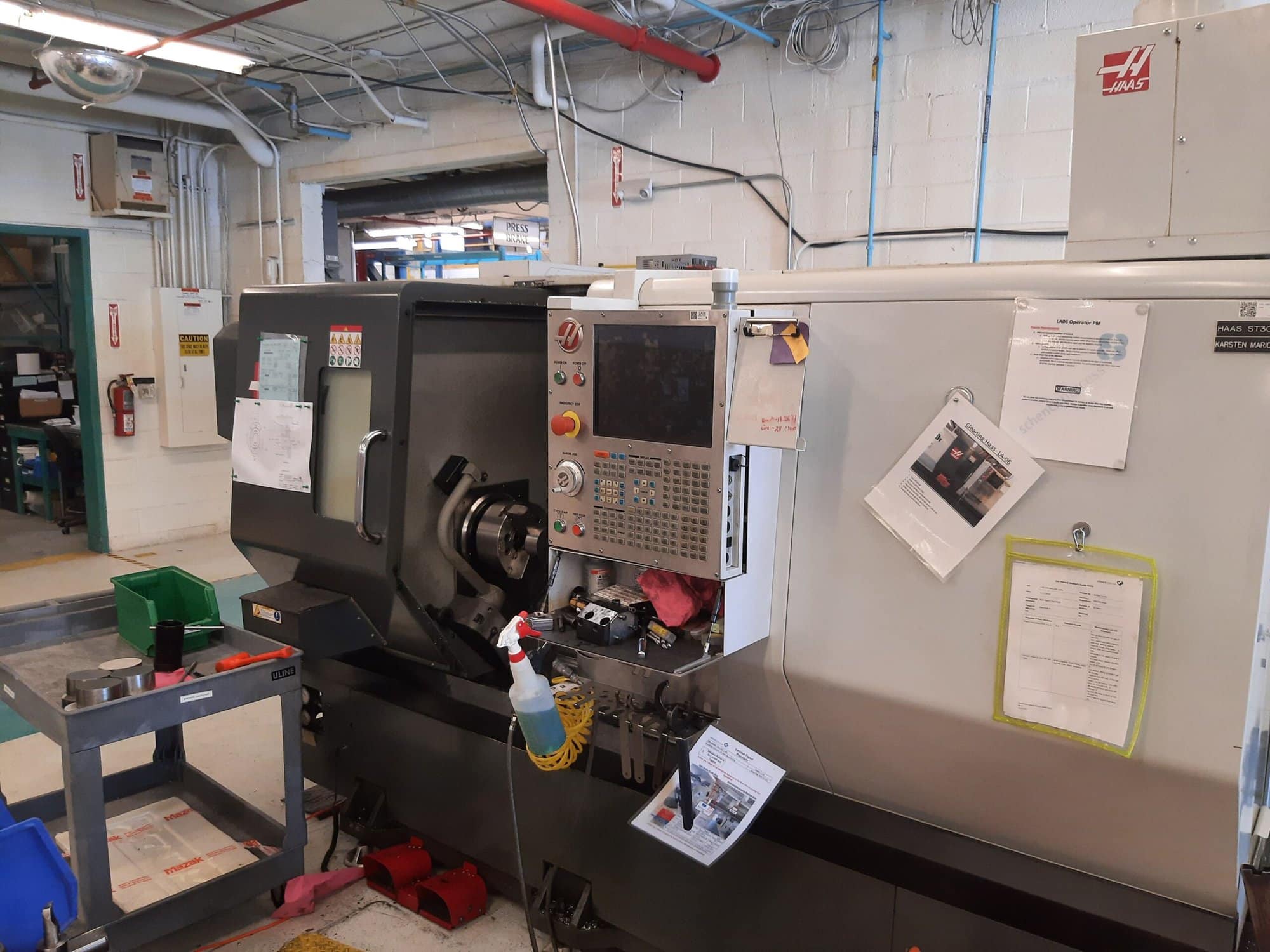

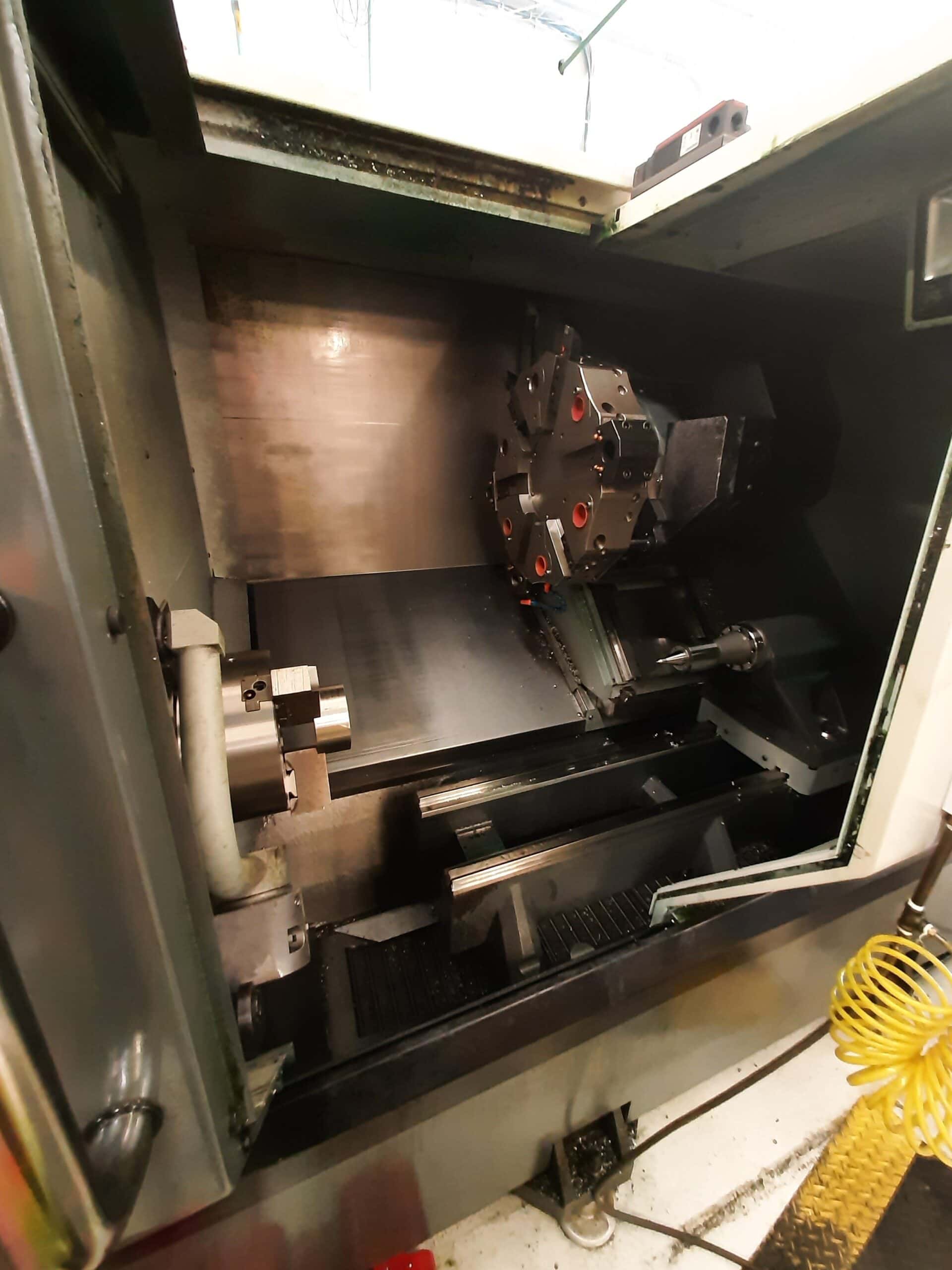

Haas ST-30Y CNC Lathe, 2016 – Gearbox, Y Axis, High Pressure Coolant
$99,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Bar capacity: 3″
C-axis: yes
Chuck size: 10″
Max cutting/turning diameter: 18″
Max turning/cutting length: 23″
Max swing over bed: 31.75″
Max swing over cross slide: 20.75″
Spindle bore: 3.5″
Spindle motor: 30 HP
Spindle nose: A2-6
Spindle speed: 3,400 RPM
Tool positions: 12
Turret max rpm: 6000
X-travel: 12.50″
Z-travel: 23.00″
Equipped with:
Tailstock
Live Tooling
Y Axis
Tool Setter
300 PSI High Pressure Coolant
Coolant filter
Intuitive Programming
All available live and static tool holders
All available manuals
Ethernet

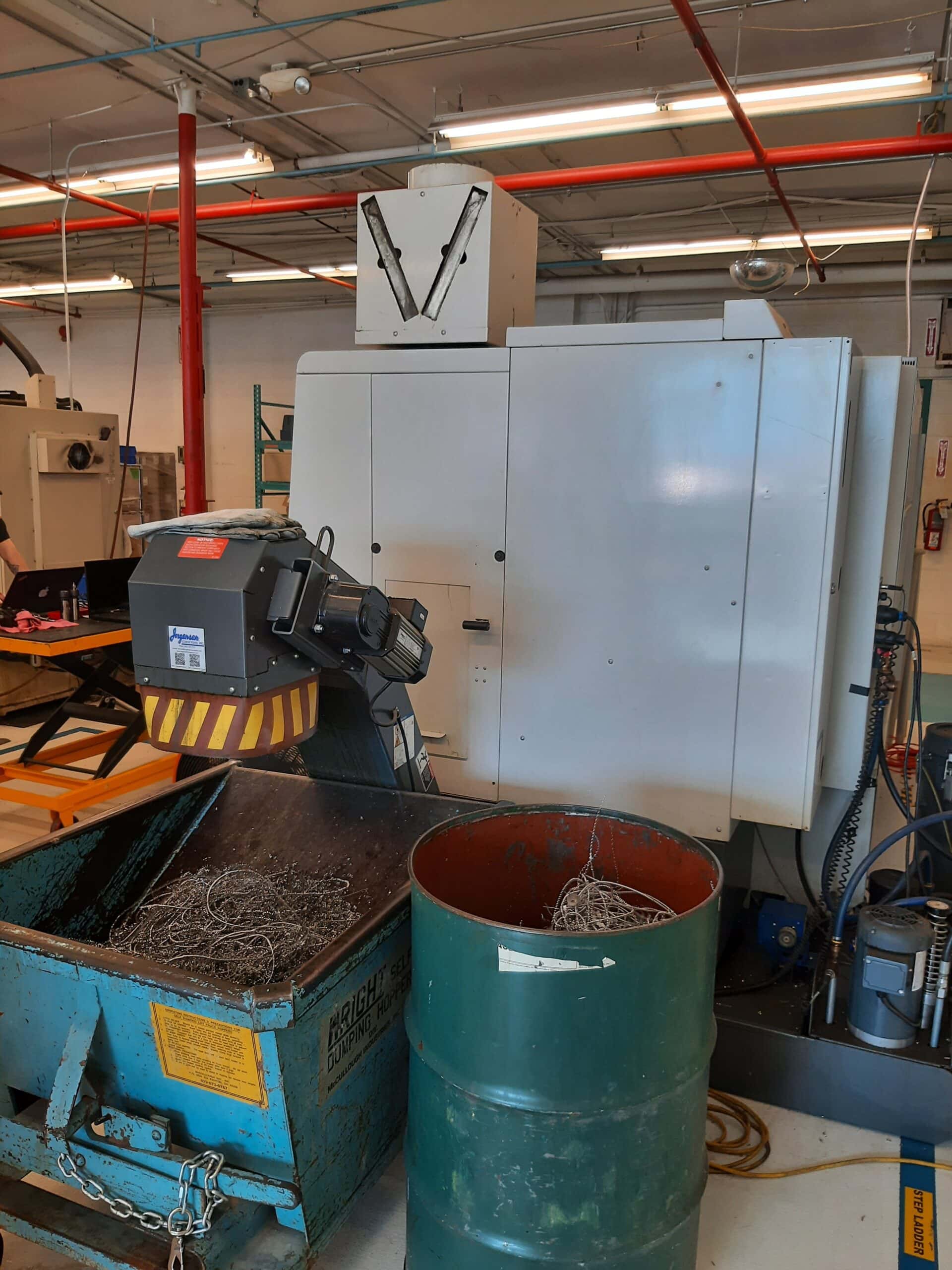

Belt Chip conveyor
2 Speed Gearbox
Parts catcher arm has been removed.
171x90x98, 14,300 lbs
