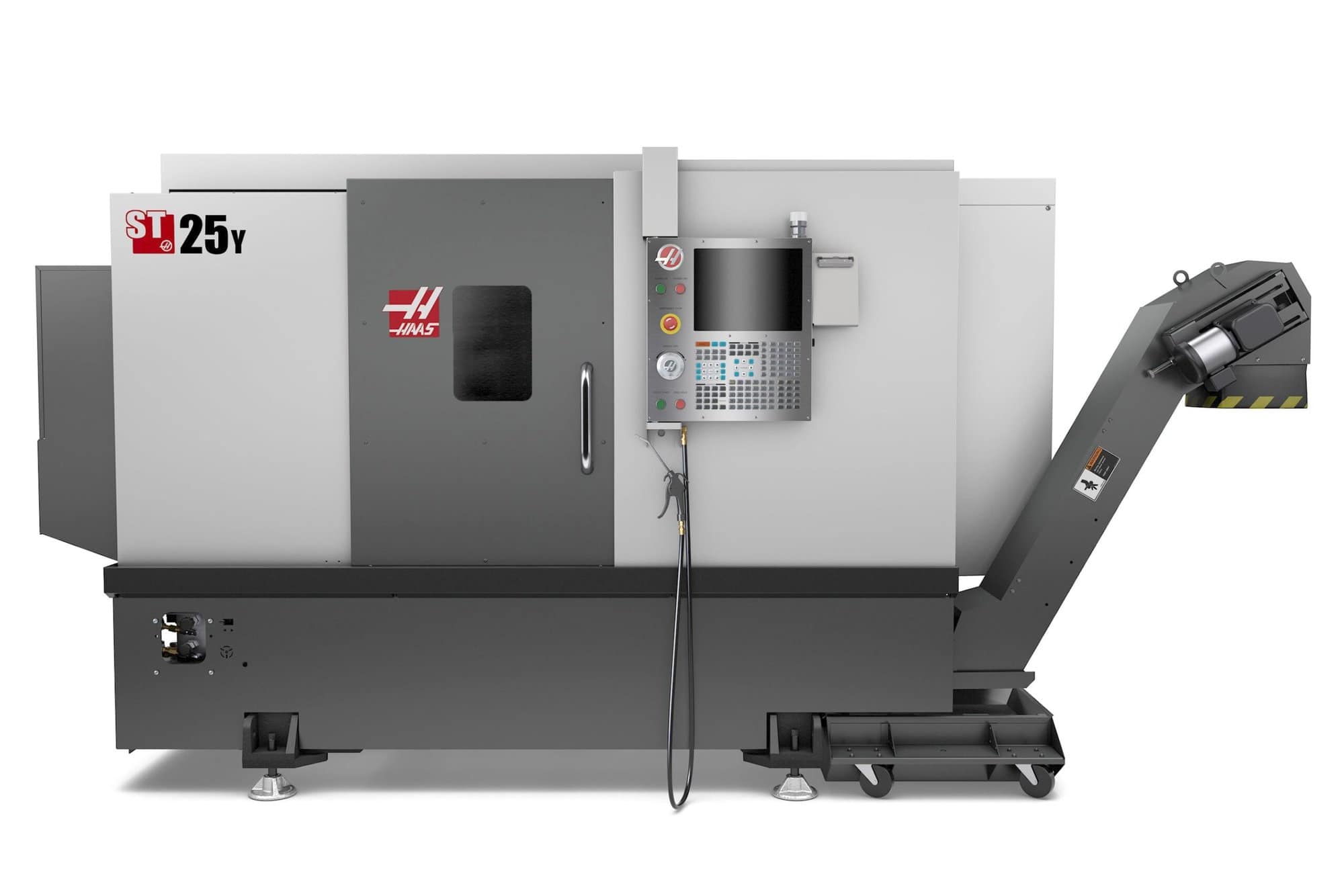

Haas ST-25Y CNC Lathe, 2019 – New, Still in Original Packaging, Never Ran Production

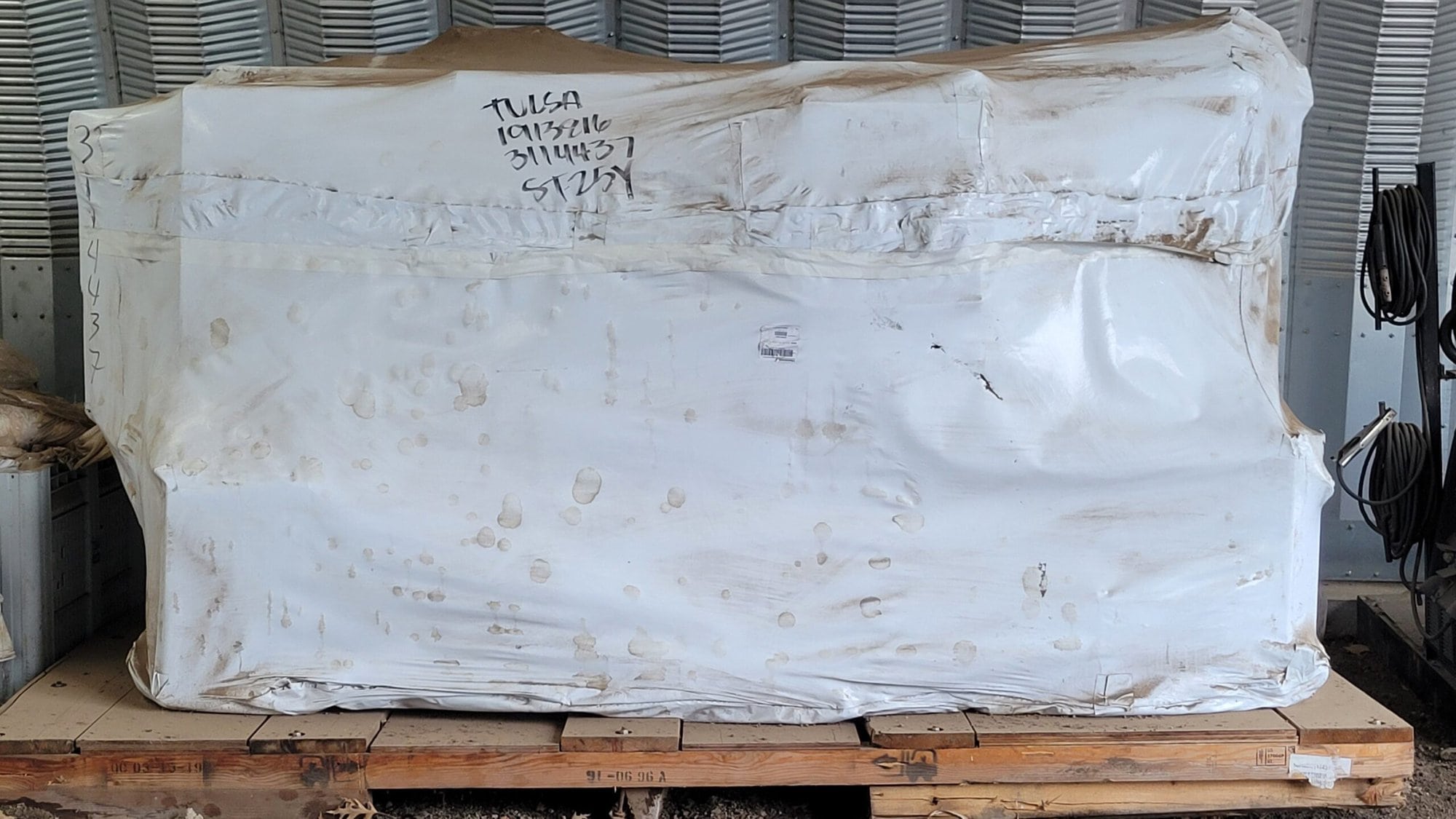

Still in the packaging and never been used.

Swing Diameter:
Over Front Apron: 31.8 in (806 mm)
Over Cross Slide: 20.8 in (527 mm)
Over Tailstock: 23.0 in (584 mm)

Capacities:
Chuck Size: 10.0 in (254 mm)
Max Cutting Diameter (varies with turret): 12.0 in (305 mm)
Max Cutting Length (without workholding): 21 in (533 mm)
Bar Capacity: 3.00 in (76 mm)

Travels:
X Axis: 9.3 in (236 mm)
Y Axis: ± 2.0 in (± 51 mm)
Z Axis: 21.0 in (533 mm)

Feedrates:
Rapids on X: 472 ipm (12.0 m/min)
Rapids on Y: 472 ipm (12.0 m/min)
Rapids on Z: 945 ipm (24.0 m/min)

Axis Motors:
Max Thrust X: 4100 lbf (18238 N)
Max Thrust Y: 2300 lbf (10231 N)
Max Thrust Z: 5100 lbf (22686 N)

Spindle:
Spindle Nose: A2-6
Max Rating: 30.0 hp (22.4 kW)
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf @ 500 rpm (407 Nm @ 500 rpm)
Spindle Bore ø: 3.50 in (88.9 mm)

Main Spindle C Axis:
Max Rating: 5.0 hp (3.7 kW)
Positioning (±): 0.01 °
Brake Clamp Force: 1000 lbf (4448 N)
Brake Diameter: 14.4 in (366 mm)

Turret:
Number of Tools: 12 Stations
Boring Bar Rear Clearance (from back of turret ): 4.00 in (102.0 mm)

Live Tooling:
Max Speed: 4000 rpm
Tooling: BMT65

General:
Coolant Capacity: 55 gal (208 L)

Air Requirements:
Air Required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi (5.5 bar)

Electrical:
Spindle Speed: 3400 rpm
Drive System: Direct Speed, Belt Drive
Spindle Power: 30.0 hp (22.4 kW)
Input AC Voltage (3 Phase) – Low: 220 VAC
Full Load Amps (3 Phase) – Low: 70 A
Input AC Voltage (3 Phase) – High: 440 VAC
Full Load Amps (3 Phase) – High: 35 A

Equipped with:
Live Tooling
Visual Part Programming System
Belt-Type Chip Conveyor; quick, high-volume chip removal for increased productivity
Programmable Hydraulic Tailstock
Inch Or Metric: Inch Measurement Units
Standard Program Memory, 1 GB
3400-rpm Spindle, 30 hp (22.4 kW), A2-6 spindle nose, 3.0″ (76 mm) bar capacity, belt drive
55-Gallon (208 liter) Coolant Tank with 3/4 hp (0.6 kW) pump
Driven Toolholder Kit for the BMT65 Turret, includes 1 each 90-degree driven toolholder and 1 each straight driven toolholder.
Inch Toolholder Kit, BMT65; includes 3 each 1″ OD Toolholders, 1 each 1″ ID Boring Bar Holder, 1 each 1.5″ ID Boring Bar Holder, 1 each 1.5″ ID Split Boring Bar Holder.
10″ (254 mm) Hydraulic Chuck, A2-6 spindle nose
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring of your Haas machine. Requires the machine to be connected to the Internet.
4000-rpm Live Tooling with C Axis; includes 12-station BMT65 turret. Accepts industry-standard base-mount tooling.
Media Display M-Code; M-130 is used within an NC program to call up media files (images, videos, PDF files) from memory and display them on the control screen as the program runs. NextGen Control only.
Rigid Tapping
Spindle Orientation
1-Year Standard Warranty Included **only if purchased in Oklahoma**
