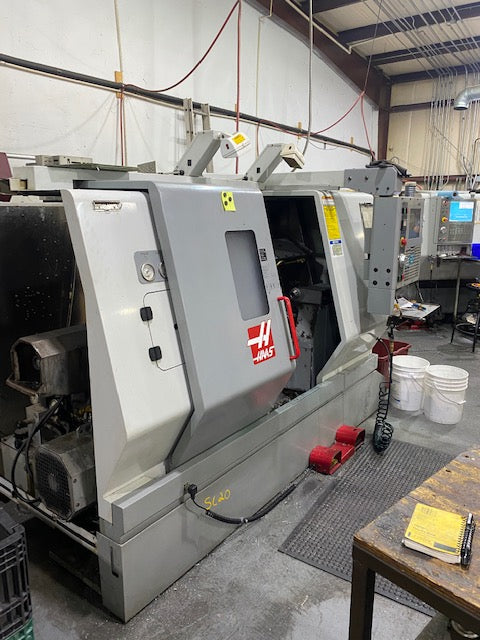

Haas SL-20 CNC Lathe, 2004 – Tailstock, Known Issues
$12,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Bar Capacity: 2″
Chuck Size: 8″
Spindle Speed: 4,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 710″
Z Axis Travel: 21″
Rapid Rate Z Axis: 710 IPM

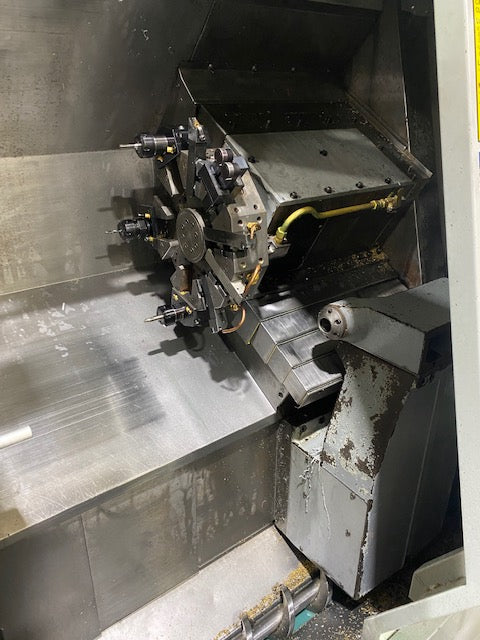

Turret Tools: 12 Station
Rapid Rate X Axis: 710 IPM
Max Turning Dia: 10.3″
Max Turning Length: 20″
Max Swing: 23″
Spindle Nose A2-6
Dimensions: 127″ x 74″ x 70″
Weight: 9,000 LBS
Options:

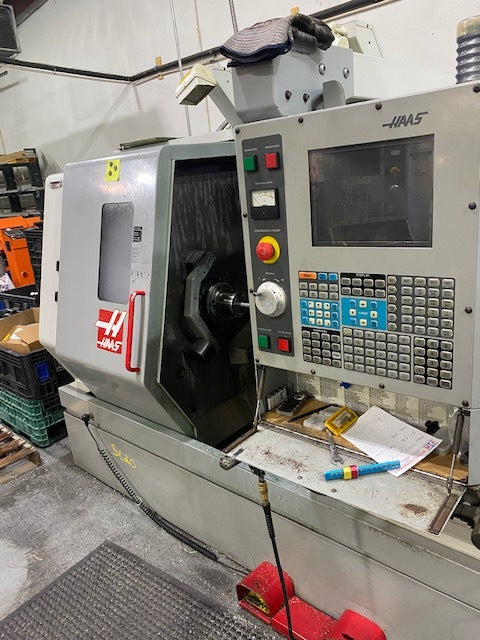

Haas Control
Tool Presetter (Needs Work)

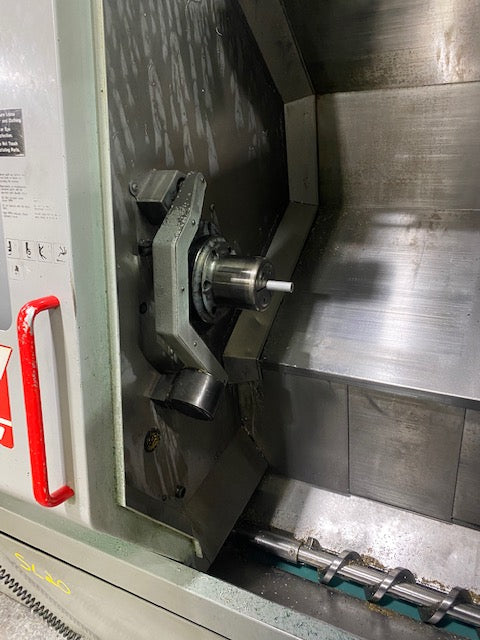

Tailstock
Chip Auger
3 Jaw Chuck
*Collet Chuck and Any Tooling Pictured will Not be Included*
Known Issues:
– Spindle motor bearings going out. Spindle bearings are fine.
– Tool presetter not functional
