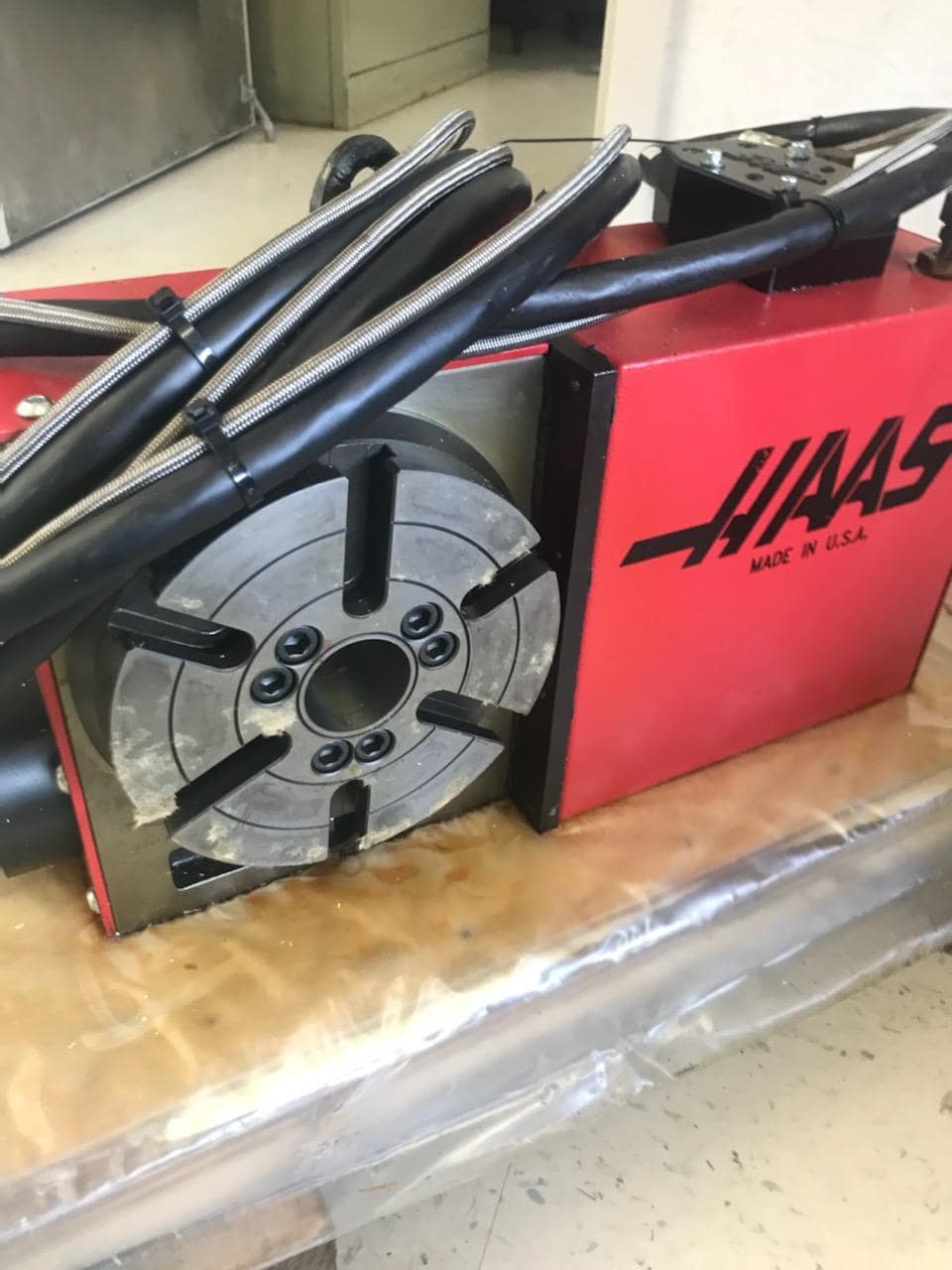

Haas HRT 160 Rotary Indexer, 4th axis
$4,200.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Platter Diameter:6.30 in
Max Weight on Platter (w/support): 90 lb.
Max Weight on Platter (unsupported): 45 lb.
Number of Std T-Slots: 6 @ 60°
Max Speed: 130 °/sec
Max Torque: 150 ft-lbf
Runout Max: 0.0005 in
Center Height: 5.000 in
Backlash: 30 arc-sec
Brake Torque @ 100 psi/6.9 bar: 100 ft-lbf
Gear Ratio: 63:1
Timing: 2:1
Accuracy (±): ± 15 arc-sec
Repeatability: 10 arc-sec
Resolution: 0.001
Worm Gear Dia: 4.7 in
Max Rotation/Step (with rotary control): 999.999 °
Power Requirement: 115 VAC ± 10% @ 15 A
Operating Temp (max ambient): 100 °F
Air Pressure Max: 150 psi
Shipping Dimensions: 27 in x 21 in x 21 in Weight 140 lb.
