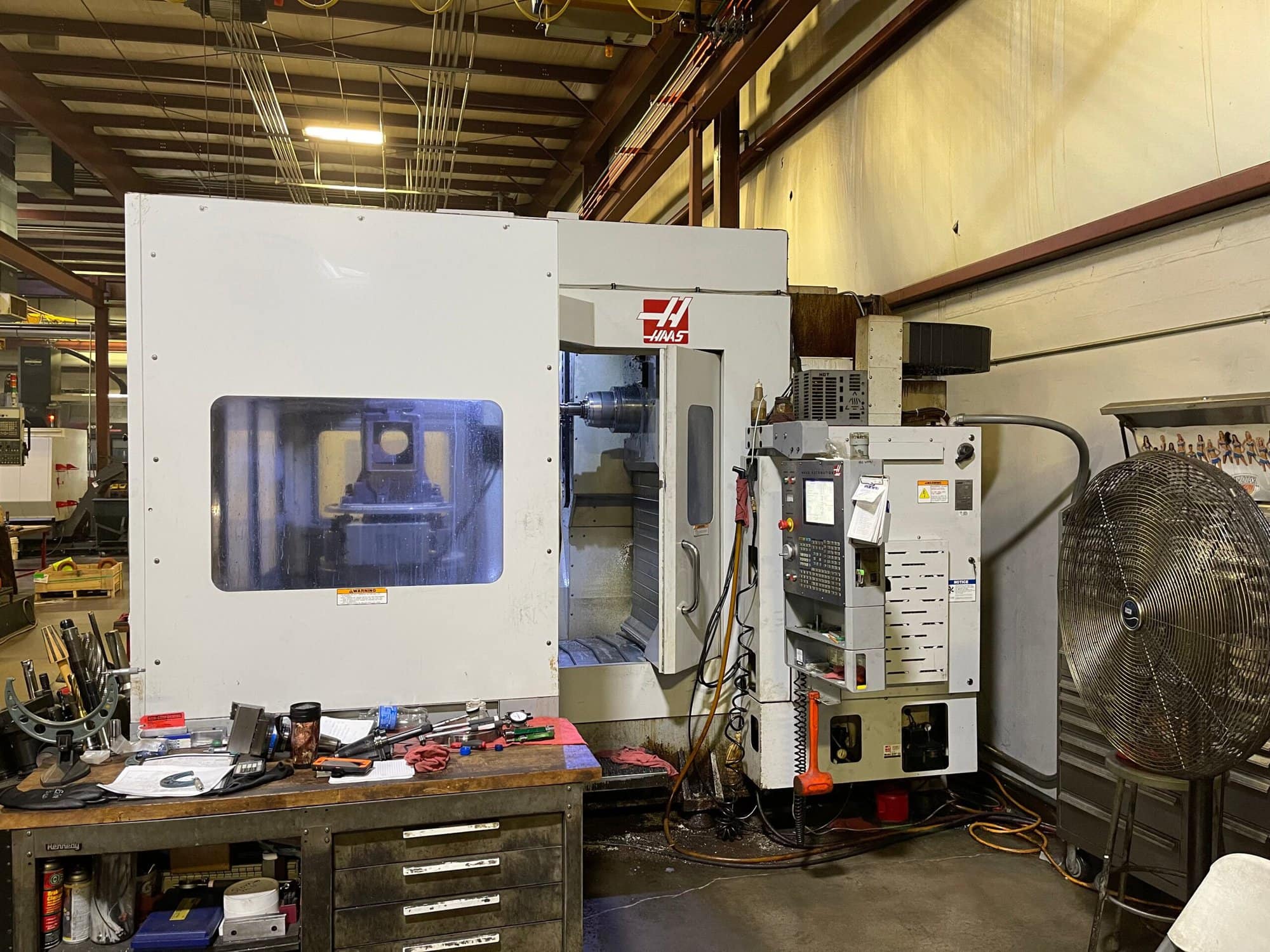

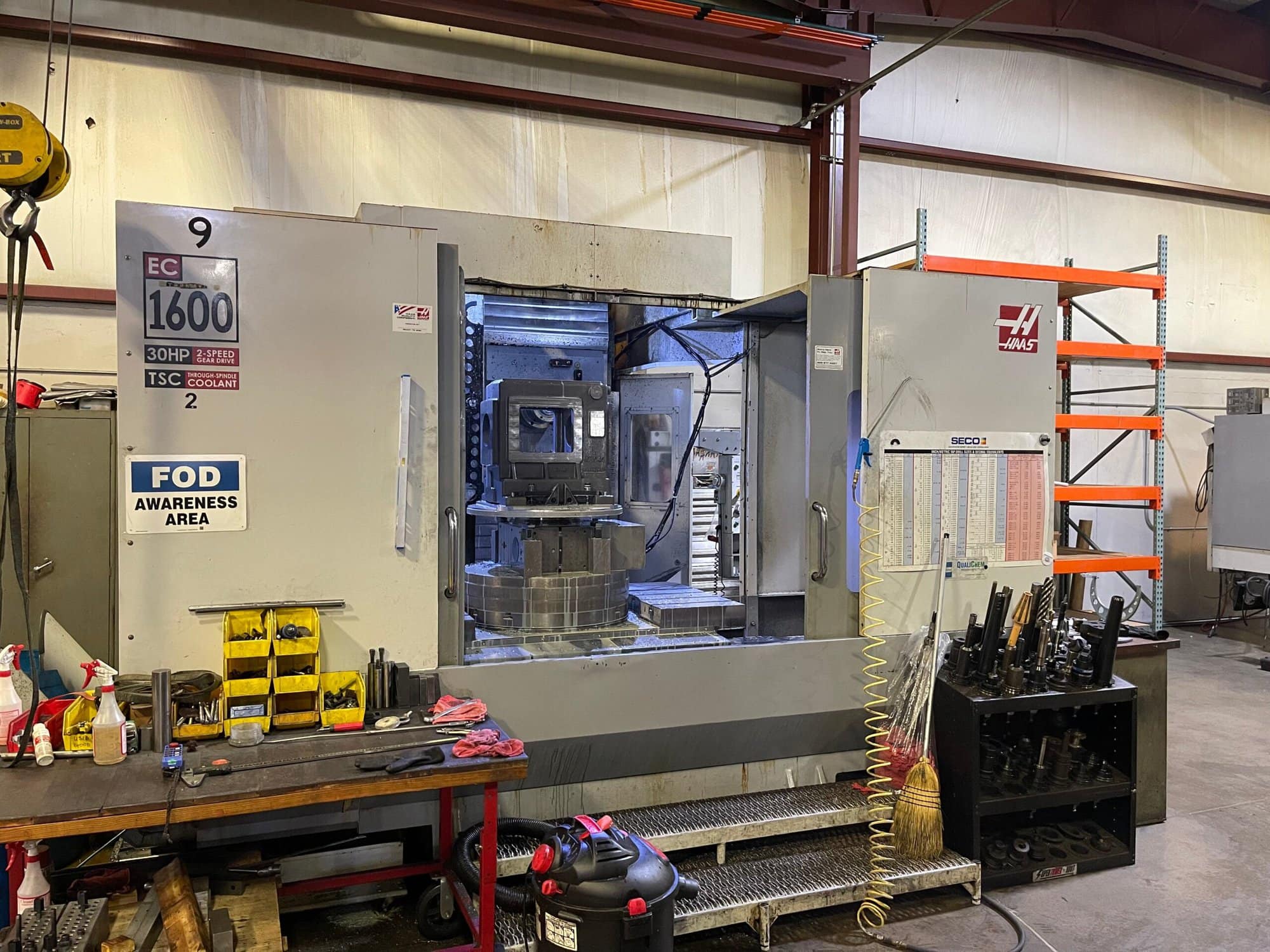

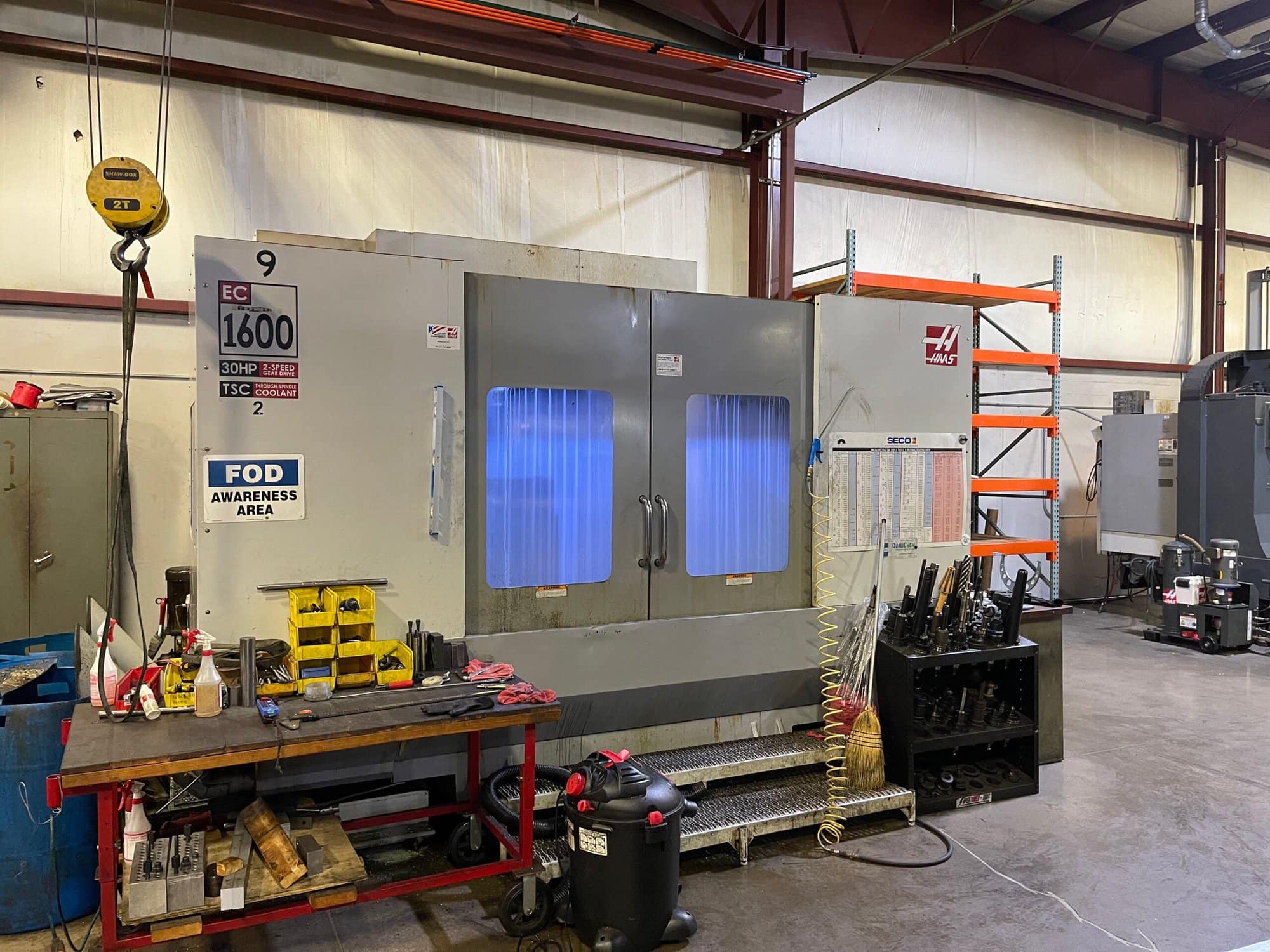

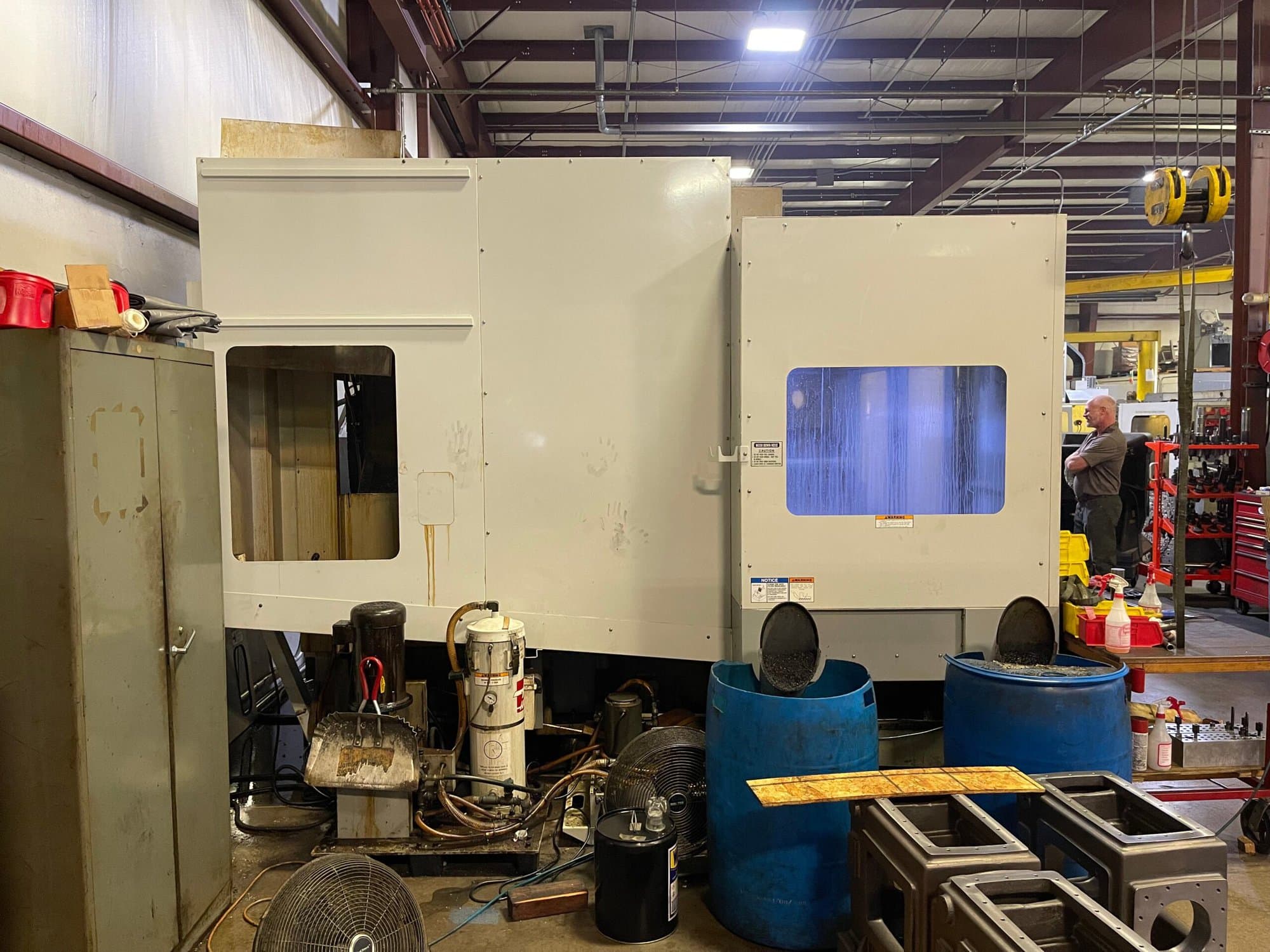

Haas EC-1600 HMC, 2005 – TSC, Full 4th, 5th Axis Ready
$100,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
TRAVELS:
X: 64″
Y: 40″
Z: 32″

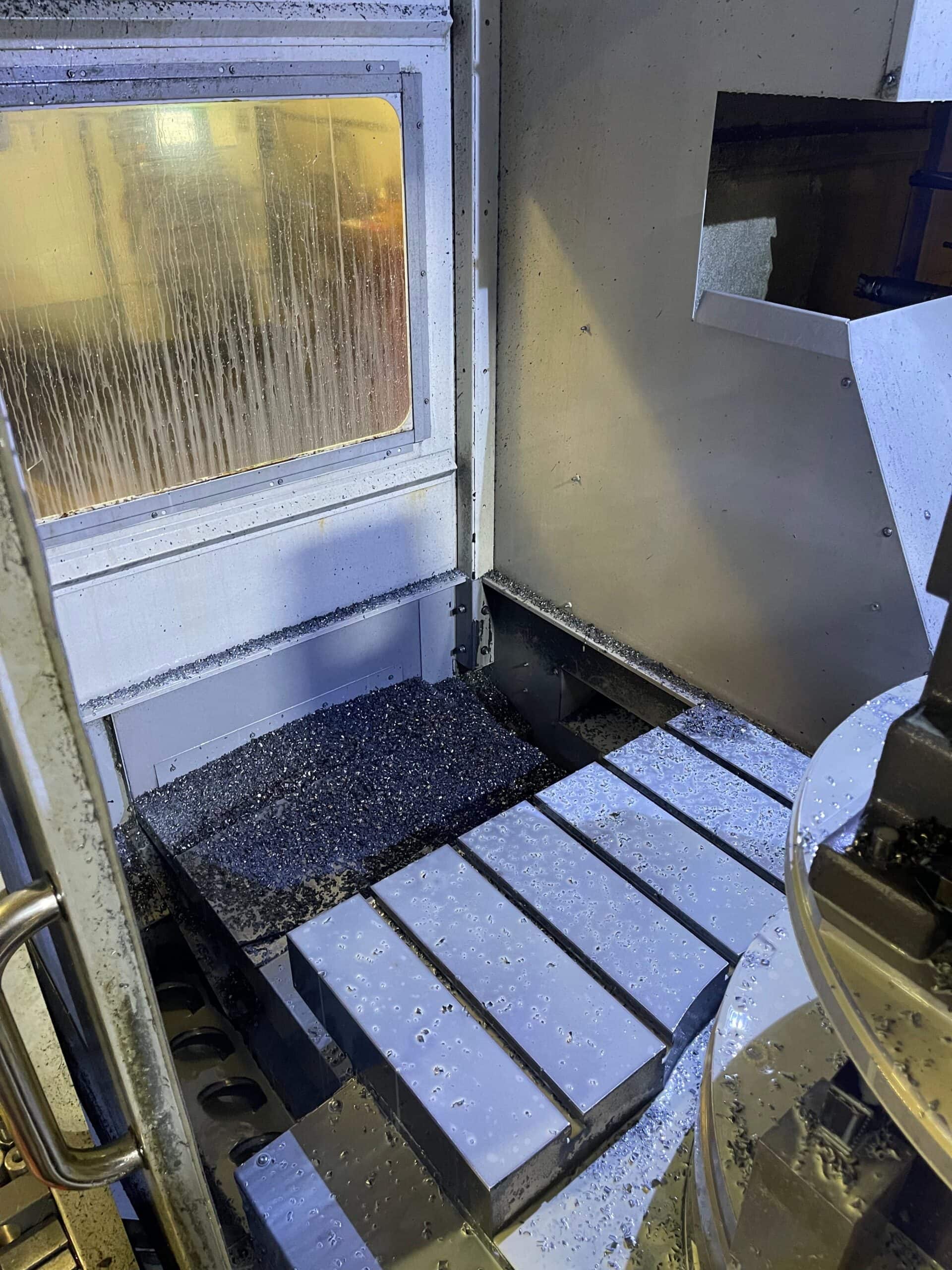

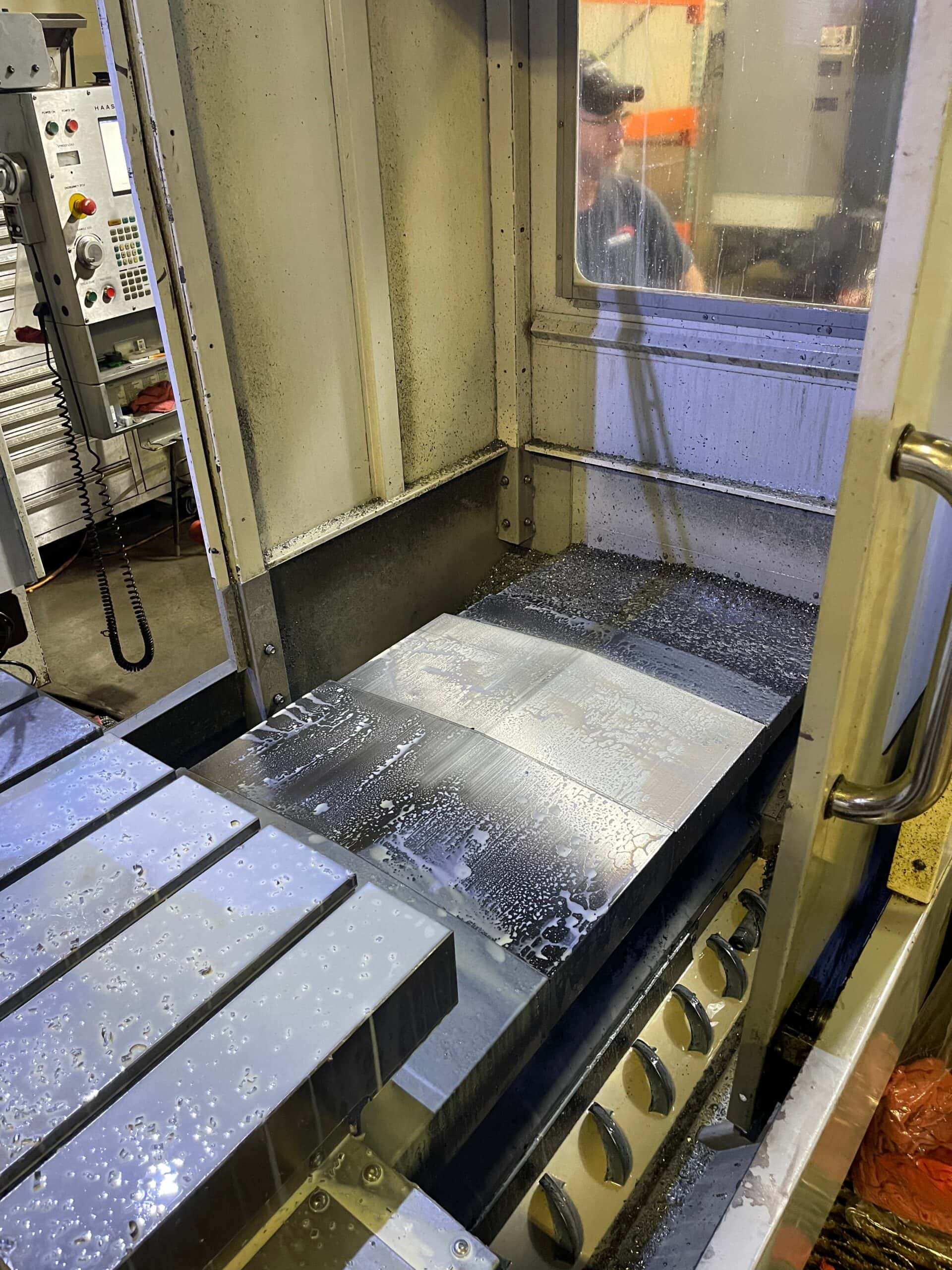

Table:
Length: 64″
Width: 36″
T-Slot Width: 5/8″
T-Slot Center Distance: 4.92″
Max Weight on Table: 10000 Lb

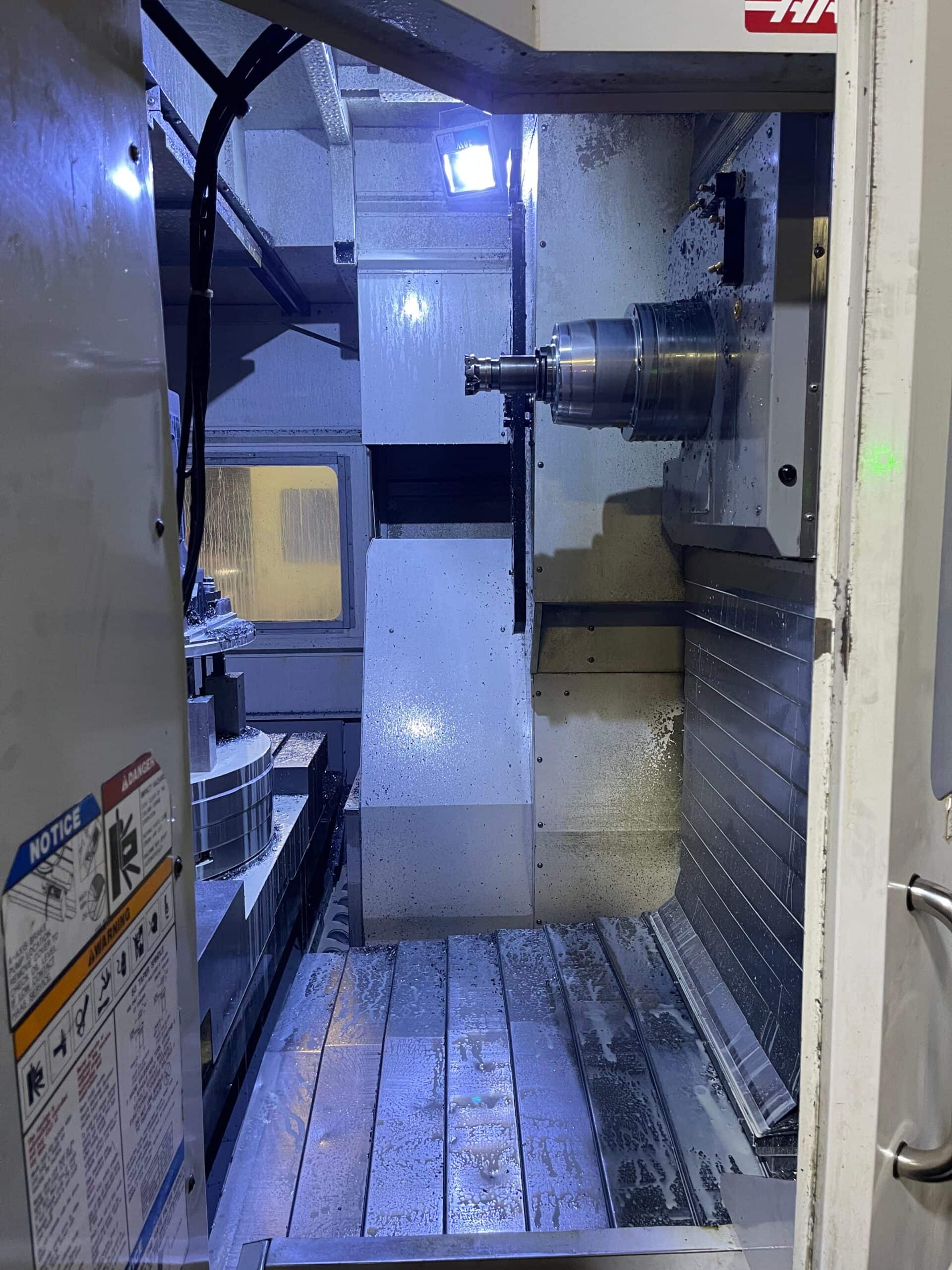

Spindle:
Max Rating: 30 Hp
Max Speed: 10,000 Rpm
Max Torque: 450 Ft-Lb @ 500 Rpm
Drive System: 2-Speed Geared Head
Taper: Cat50
Feedrates:
Rapids on X: 540 In/min
Rapids on Y: 540 In/min
Rapids on Z: 540 In/min
Max Cutting: 500 In/min
Tool Changer:
Capacity: 30+1
Max Tool Diameter (adj Empty): 10″
Max Tool Diameter (full): 4″
Max Tool Length (from Gage Line): 20″
Max Tool Weight: 30 Lb
Tool-To-Tool (avg): 10.3 Sec
Chip-To-Chip (avg): 12.6 Sec
Machine Weight: 30000 Lb
Equipped With:
Haas Control

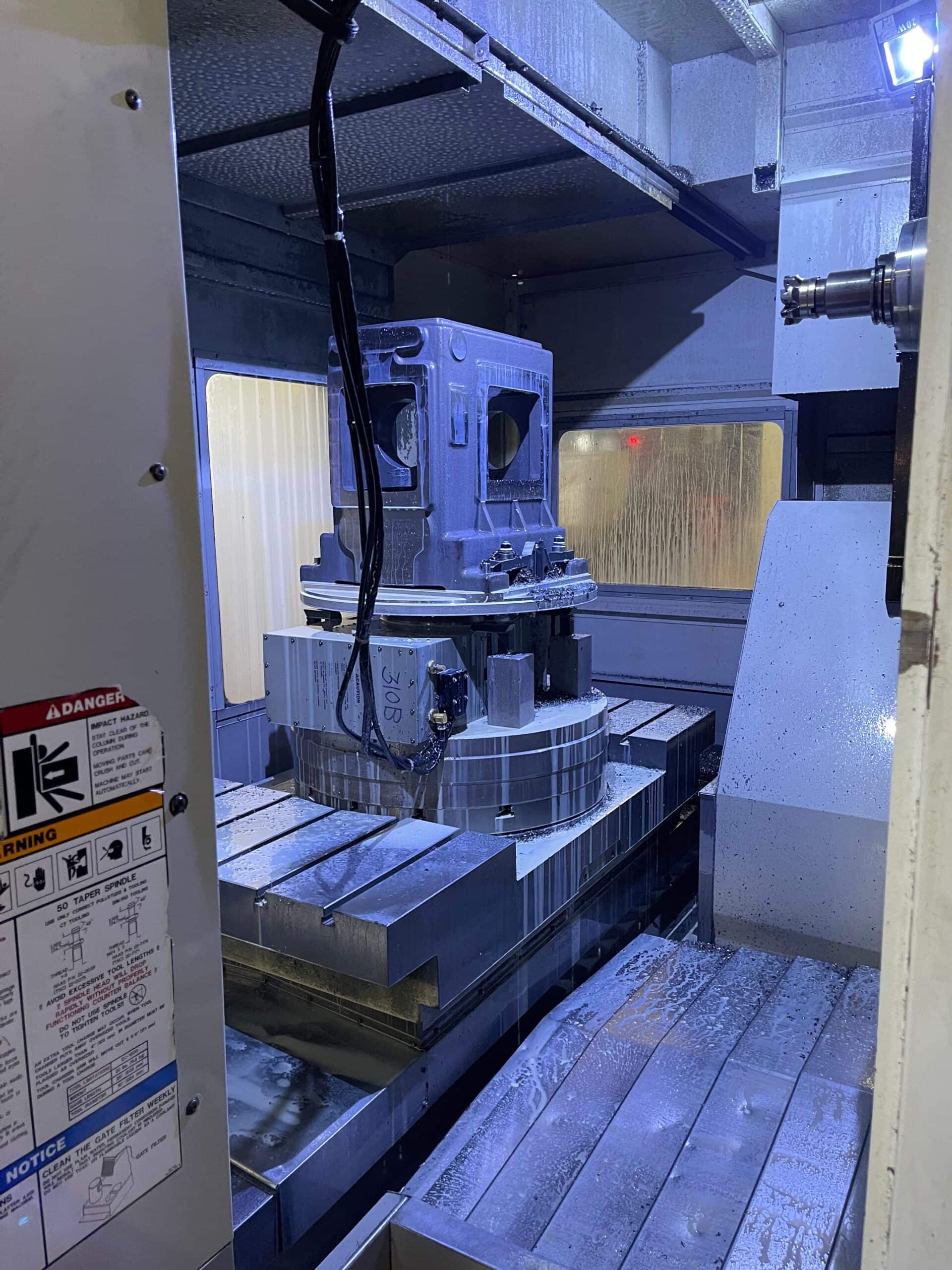

Full 4 Axis

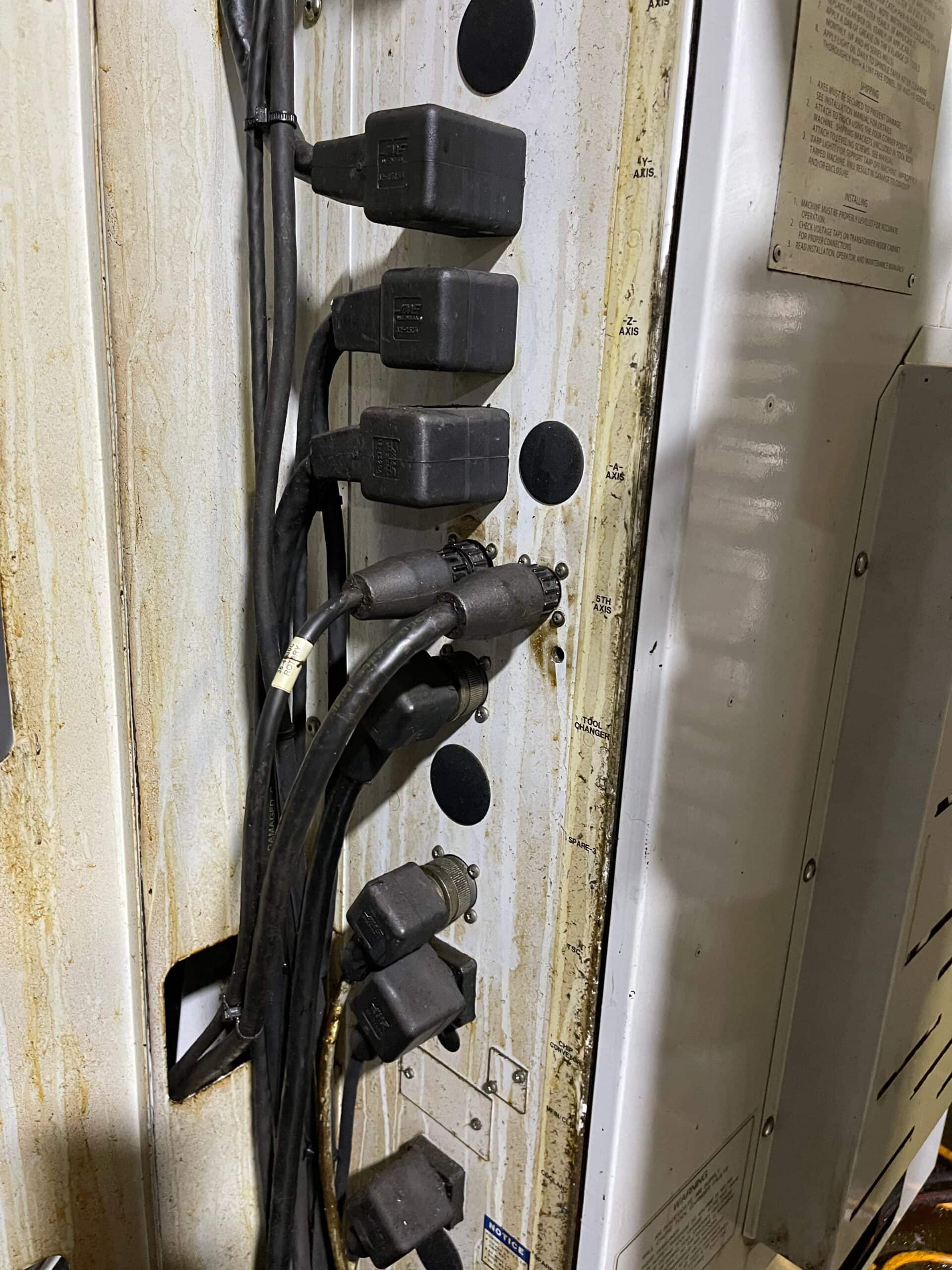

5th Axis Ready
Thru Spindle Coolant
In Great Condition. – New Spindle Last Year. 10,900 Run Time Hours. Less than 1000 on New Spindle.
