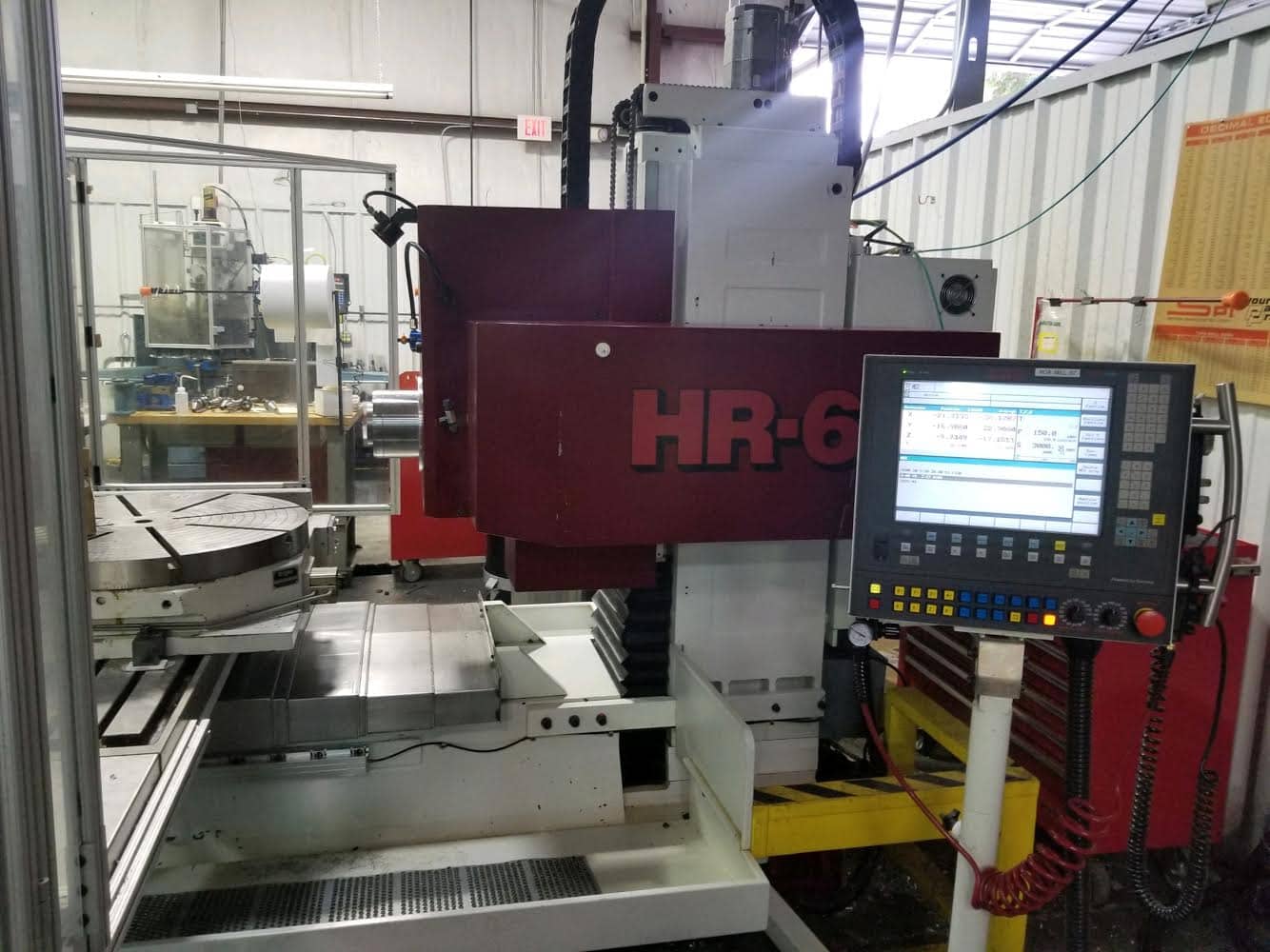

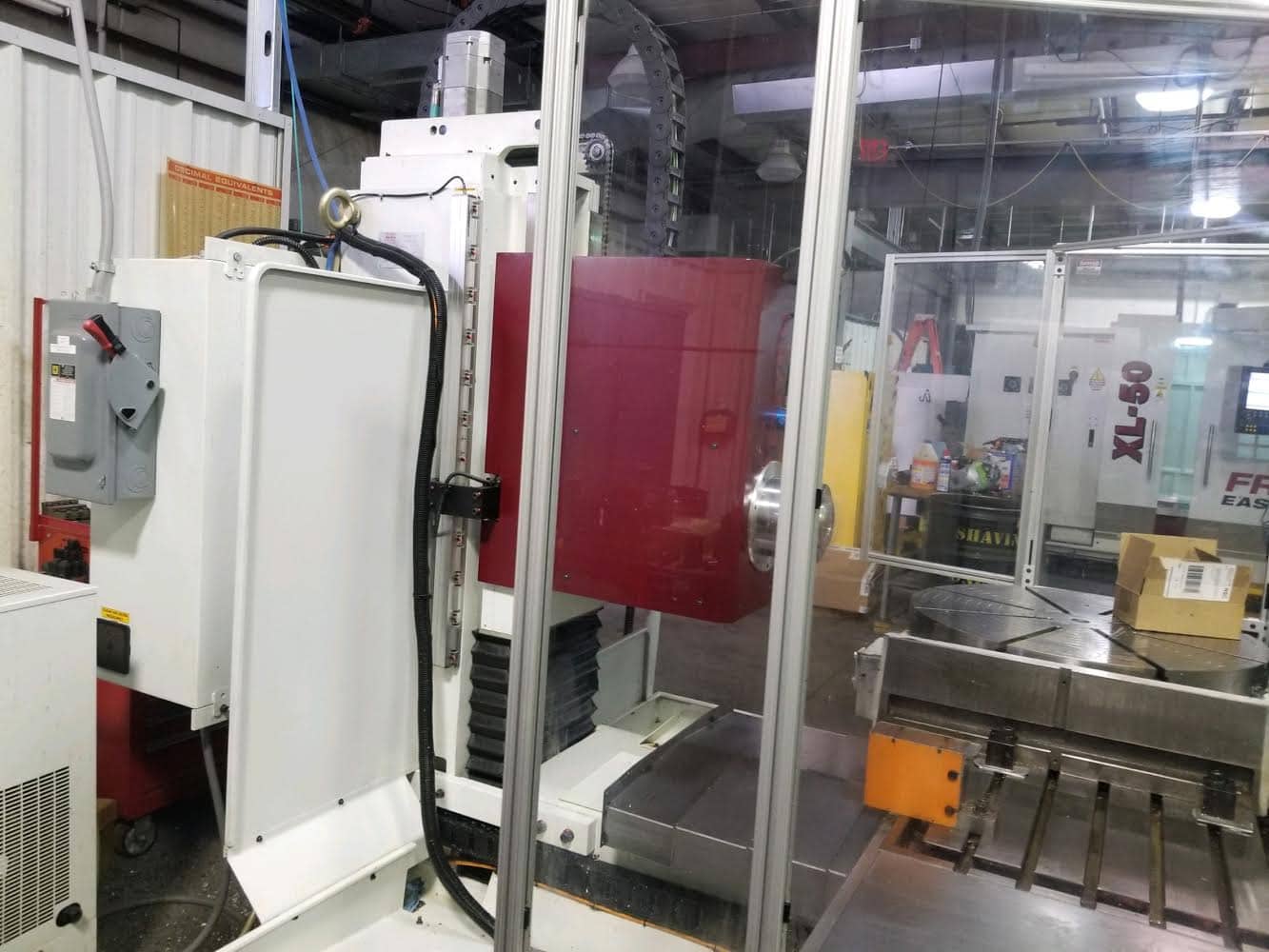

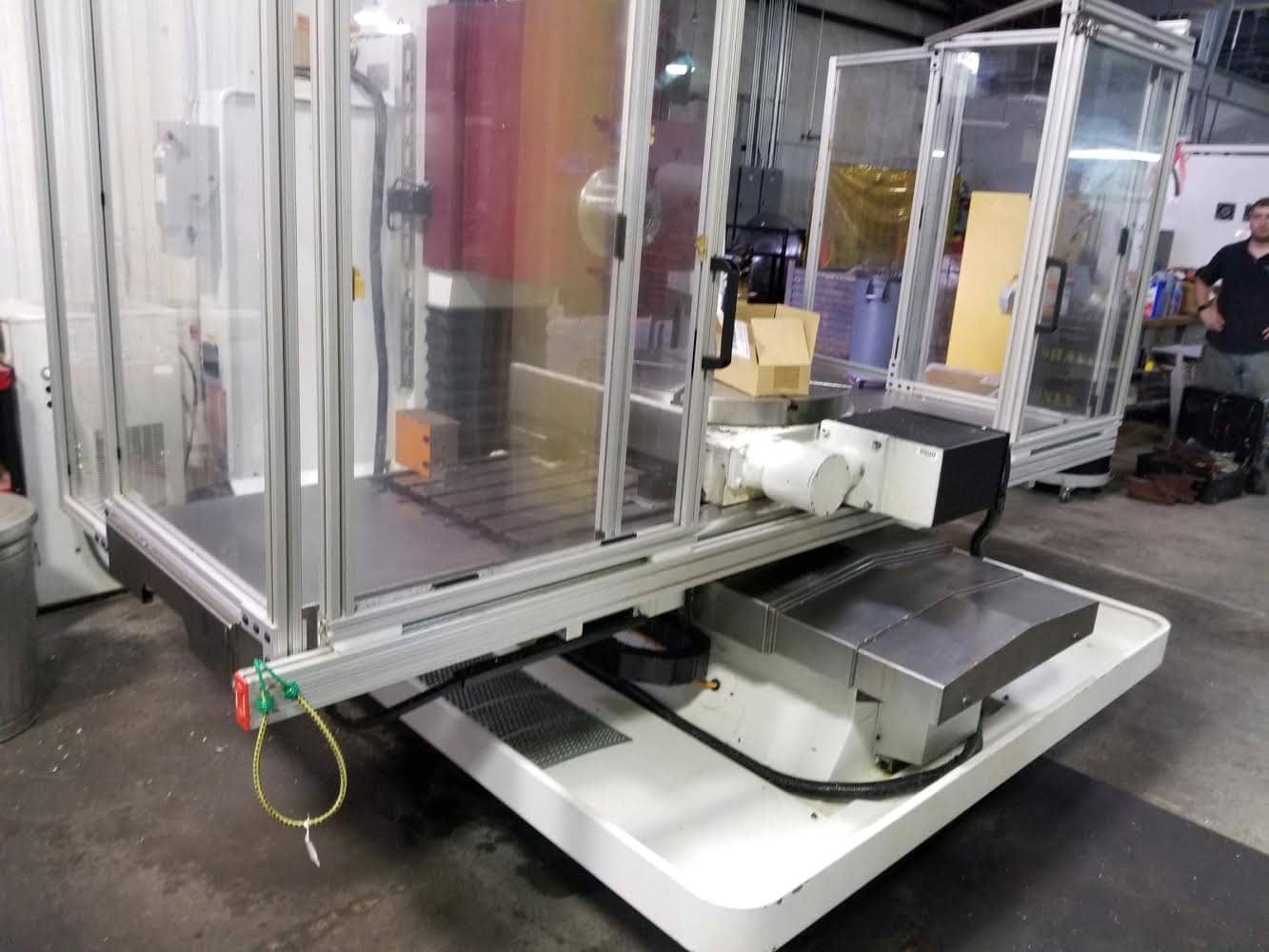

Fryer HR-60 HMC, 2012 – Rotary Table, 4th Axis, 50 Taper, Low Cutting Hours!
$99,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Travel – 60″
Y Travel – 38″
Z Travel – 30″
Tabel Load – 4,000 lbs.
Table Size – 24″ x 73″
Table Top to Floor – 32″
Motor HP (Peak) – 40 HP (55 HP)
Spindle Speed (RPM) – 6,000 RPM
Spindle Torque – 800 ft/lbs.
Tool Type/Taper – Cat 50
Spindle Nose to Table Center – 3″ – 33″
Spindle Center to Table Top – 2″ – 40″
Tooling Storage Capacity – 24 Station Arm Type
Tool Change Time – 4 Seconds
Max Tool Diameter (full) – 5.90″
Max Tool Diameter (adjacent empty) – 9.85″
Max Tool Weight – 33 lbs.
Max Tool Length – 16″
Ballscrew Diameter – 1.57″
Rapid Traverse – 1,000 IPM X, Y, Z
Air Pressure Requirements – 90 PSI
Collant Capacity – 90 Gallons
Power Requirements 80 AMP 430-500 VAC
Shipping Dimensions – 83″x92″x92″
Operating Dimensions – 170″x100″x110″
Machine Weight – 15,000 lbs.
Equipped With:
Comes with Options Listed Below
(OPT-2100) Offline Programming Software
OPT-2122) Heidenhain Glass Scale Feedback X&Y
(OPT-2124) Heindenhain Glass Scale Feedback-Z
Marpos Wireless Tool and Part Probe Package
(OPT-0602) Remote Electronic Handwheel
High Speed Network Interface
(OPT-2154) 4th Axis Surface Cycles
(OPT-9200) Spare M Function
(OPT-4208) 2 Speed Auto Gear Head
(OPT-4212) 50 Taper Spindle
38” Y-Travel
4th axis drive and wiring

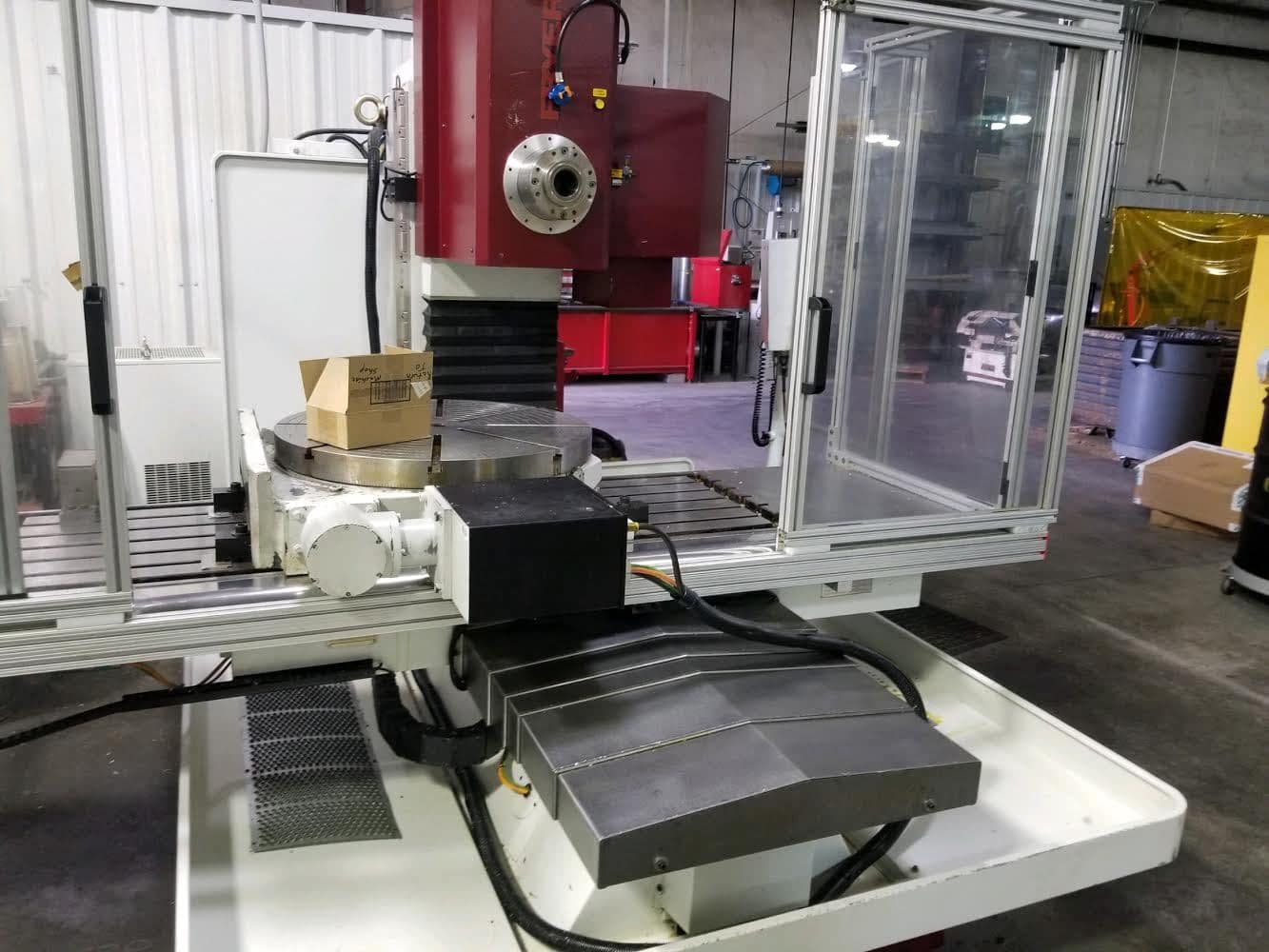

Troyke Model NC-30 Rotary Table
Estimated Run Time 2000 Hours
Siemens Touch 2200
