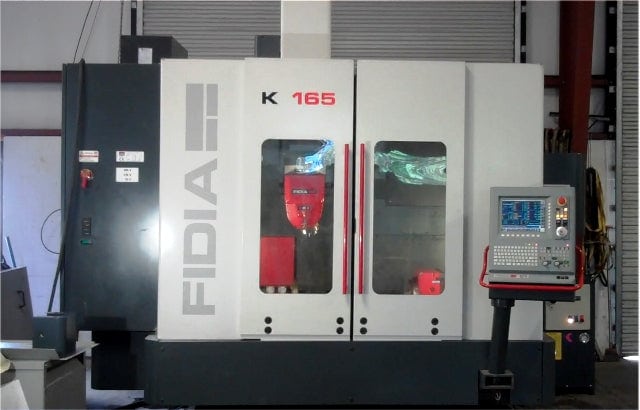

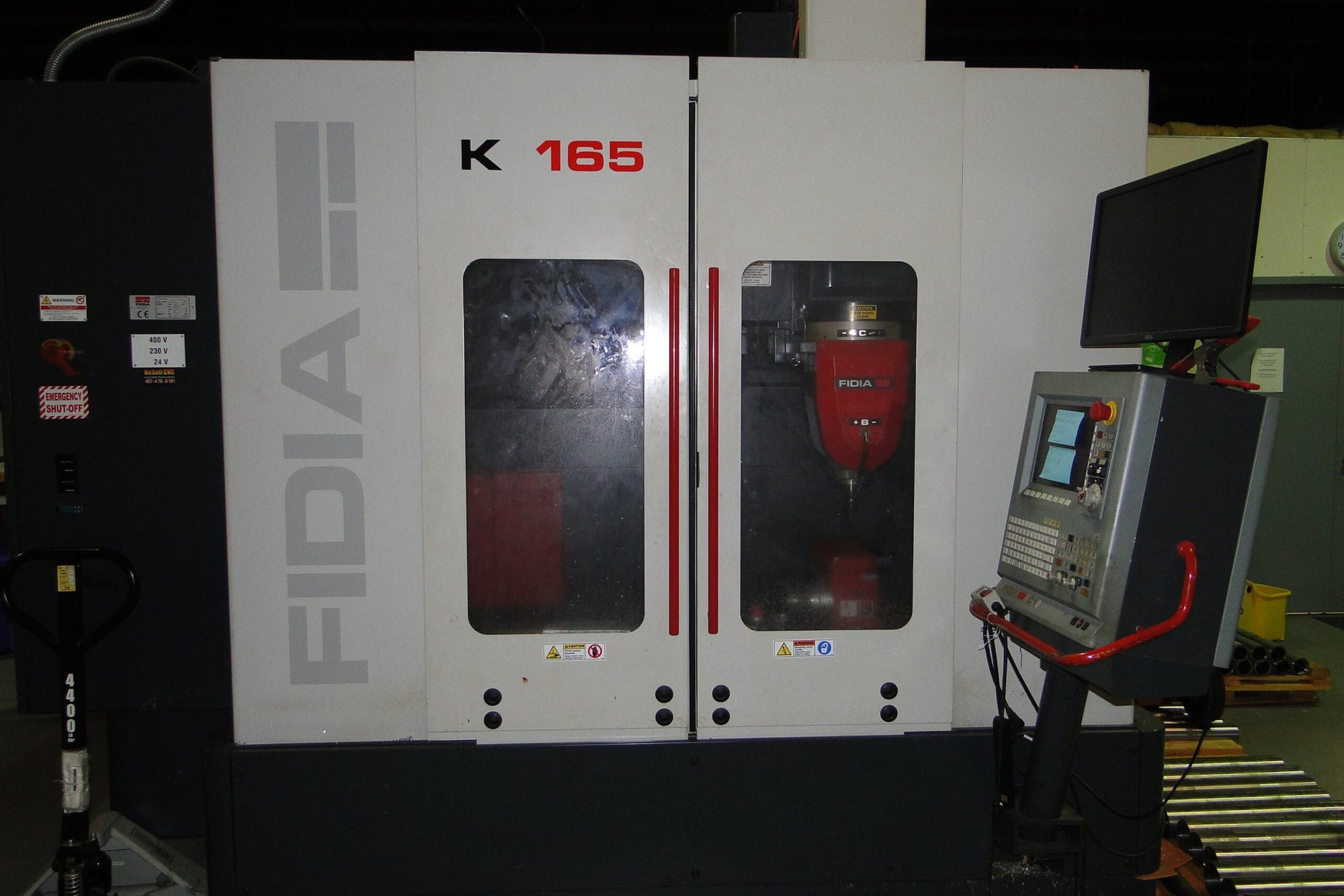

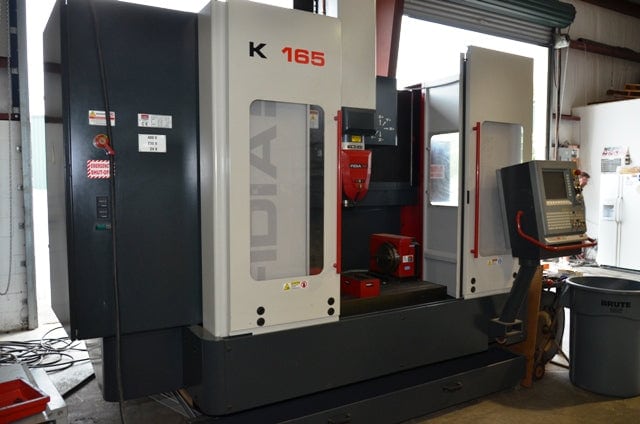

Fidia K165 Vertical Machining Center, 2003 – Equipped with 5th axis
$89,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
SPECIFICATIONS:
TABLE:
Table / Pallet Size: 55.1×32.2″
TRAVELS:
X-Travel: 39″
Y-Travel: 24″
Z-Travel: 20″
Cutting Feed Rate: 1574.8, 1181.1 IPM
SPINDLE:
Spindle Taper Type: Other
Spindle Taper: HSK 40
Spindle Speed: 32,000 RPM
Spindle Motor: 20 HP
TOOL CHANGER:
Tool Magazine Capacity: 32
EQUIPPED WITH:
Rotary Table / Trunnion: 5th Axis; Wired for 4th Axis; 4th Axis; Wired for 5th Axis; 4th Axis Ready; 4th Axis Drive; 5th Axis Ready
Rotary Make/Model: Horizontal 4th Axis Rotary Table

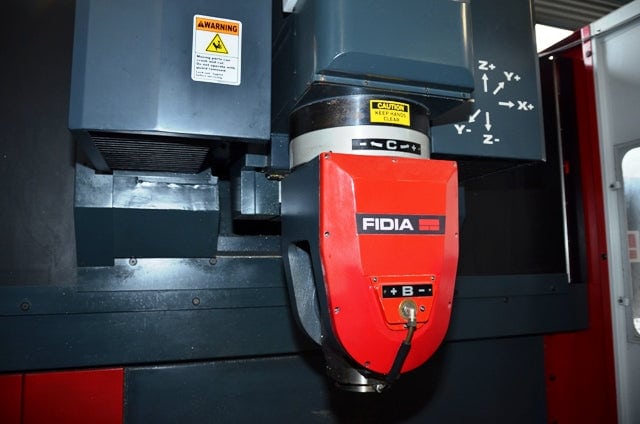

B Axis: +25 Deg – 25 Deg
C Axis: + 180 Deg – 177 Deg
Linear Axis Feed X/Y/Z: 1574.8″/1574.8″/1181.1″
Manual Tailstock
Automatic Preset Device with Fidia Laser Probe
Tooling Kit for HSK40/E Tool Holders
Probe Make/Model: MP10 Digital Renishaw Probe
