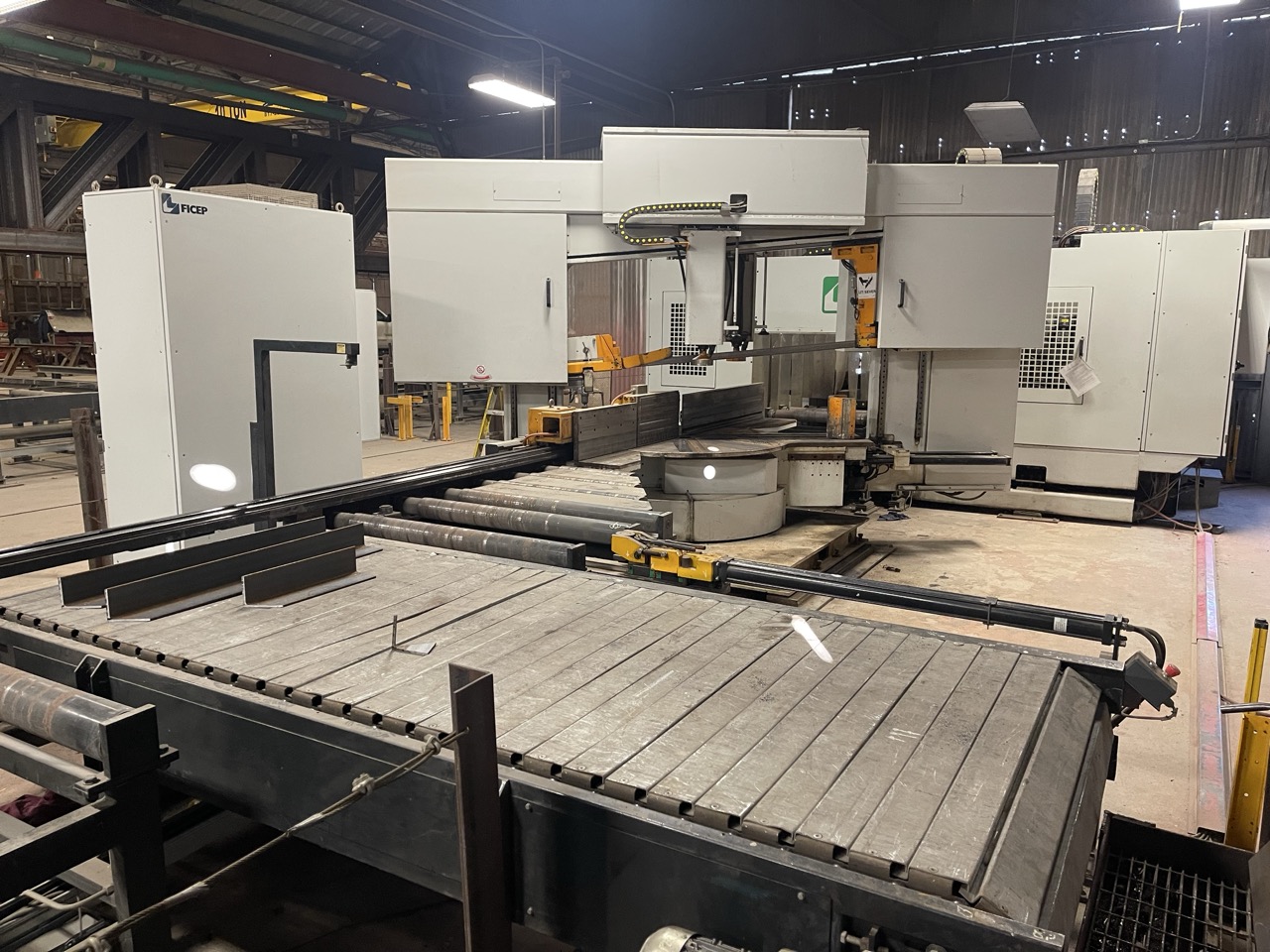

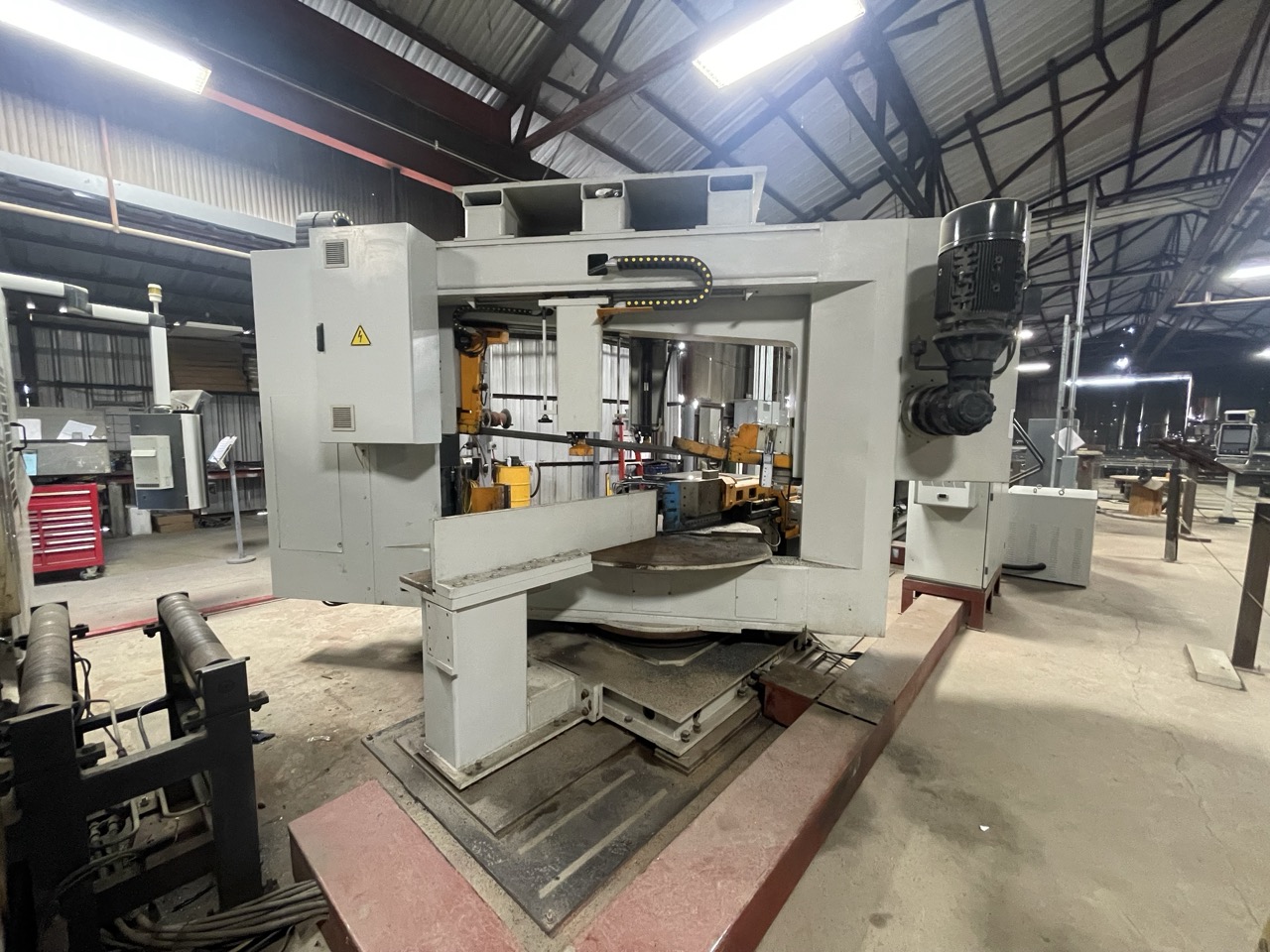

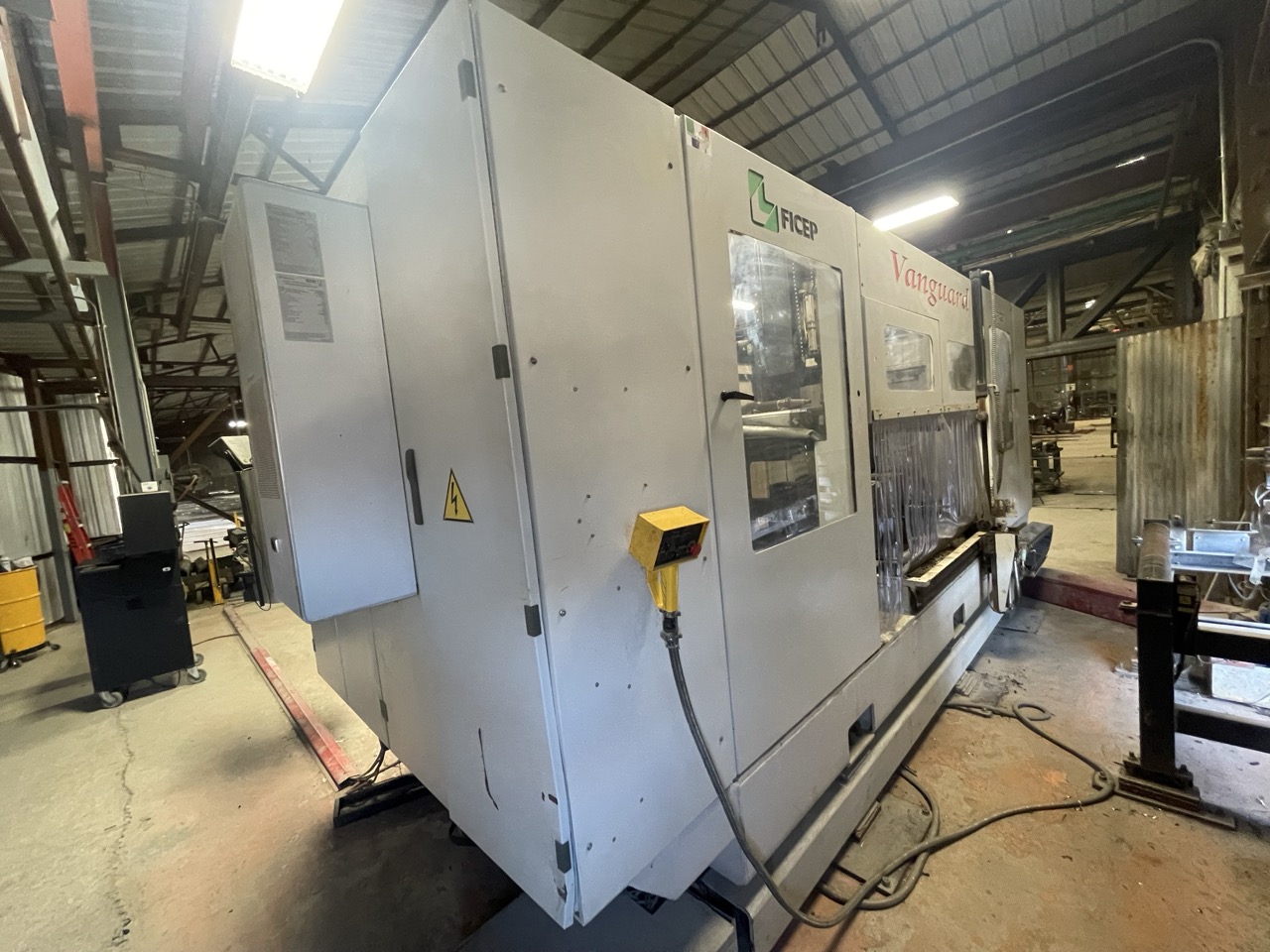

Ficep Beam Line, 2016 – Coper, Drill, Saw

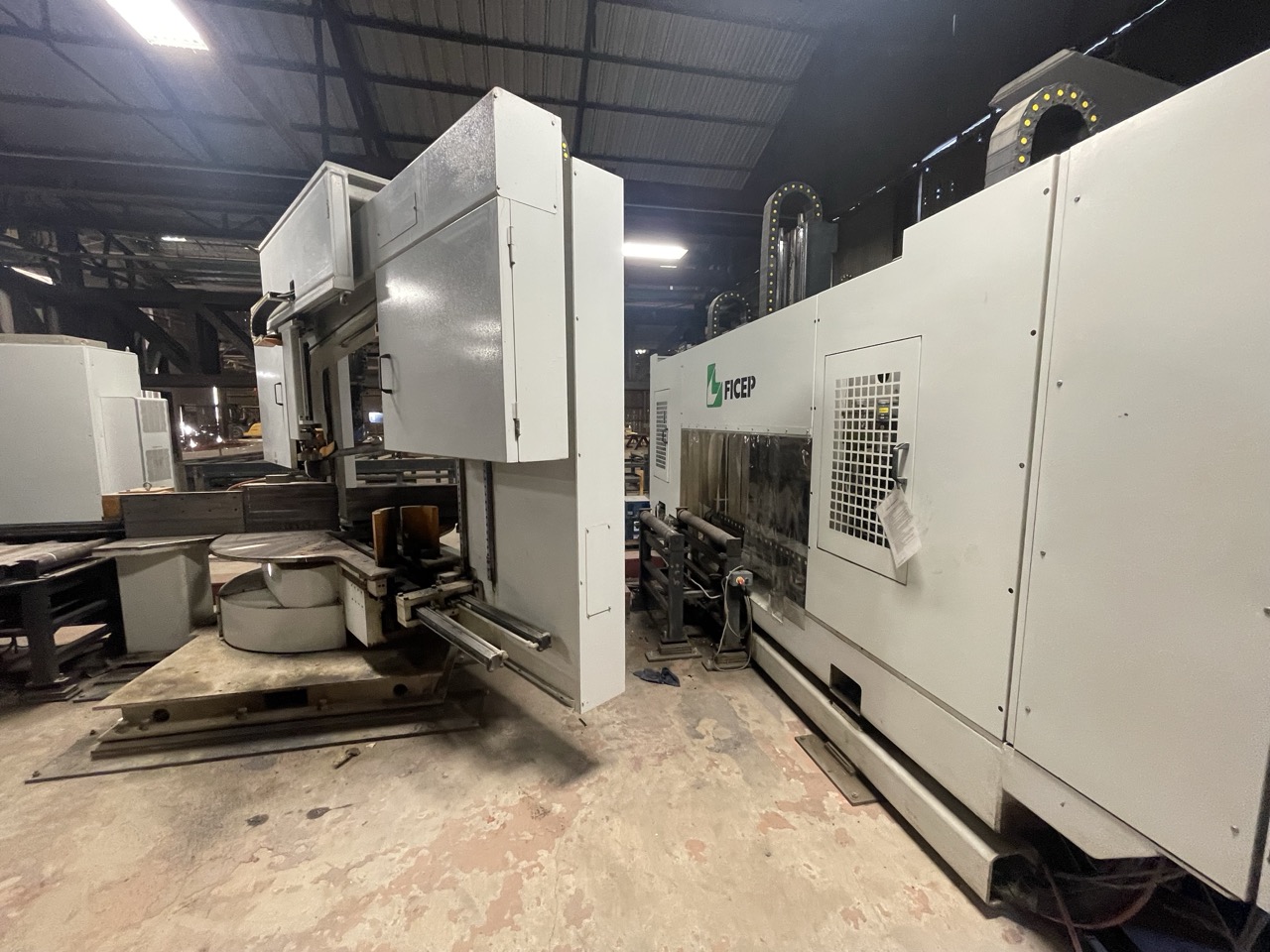

2016 FICEP 1103 DDVB 3-Spindle Drill

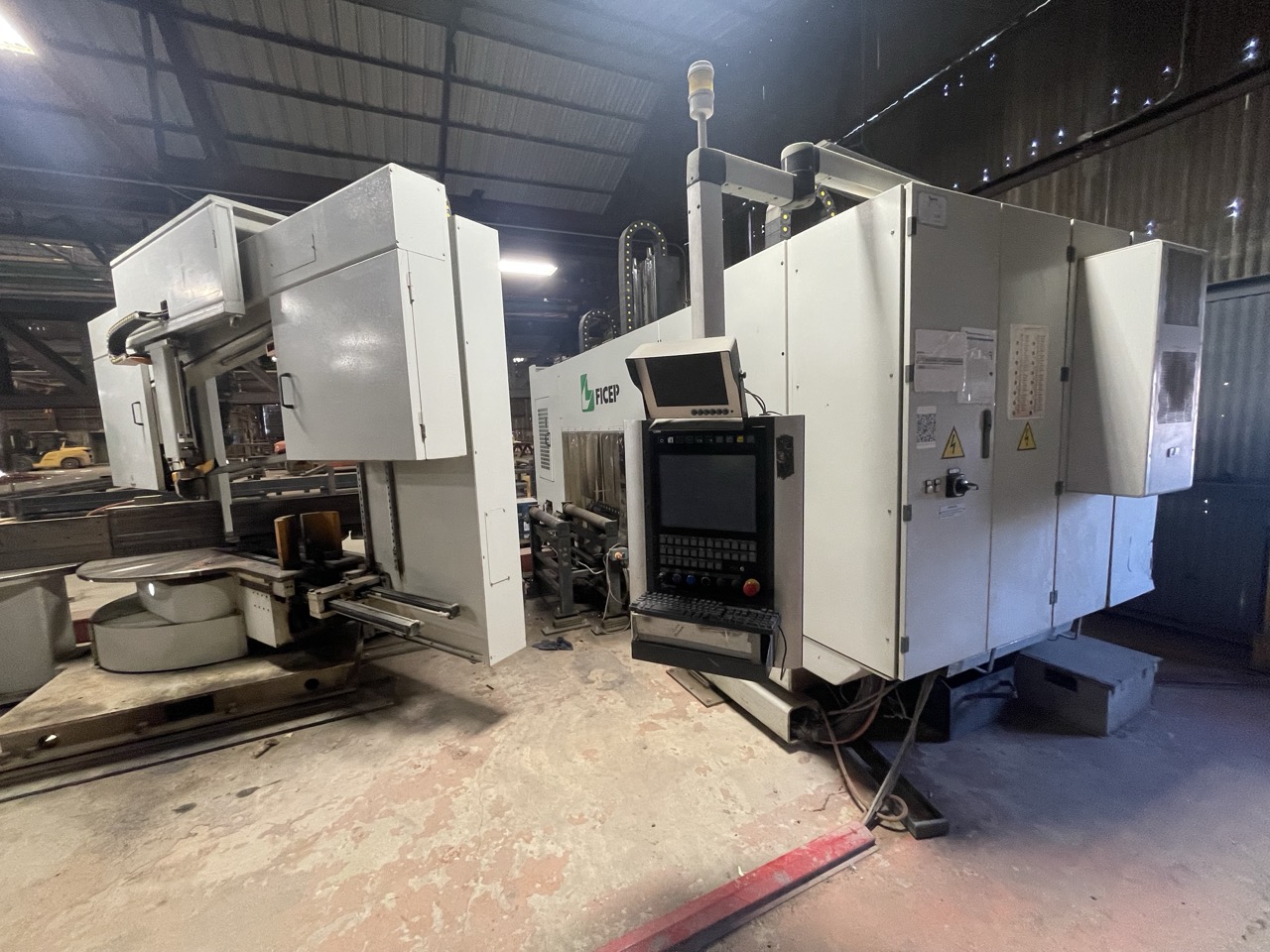

2016 FICEP Katana K115 Automatic CNC Horizontal Band Saw

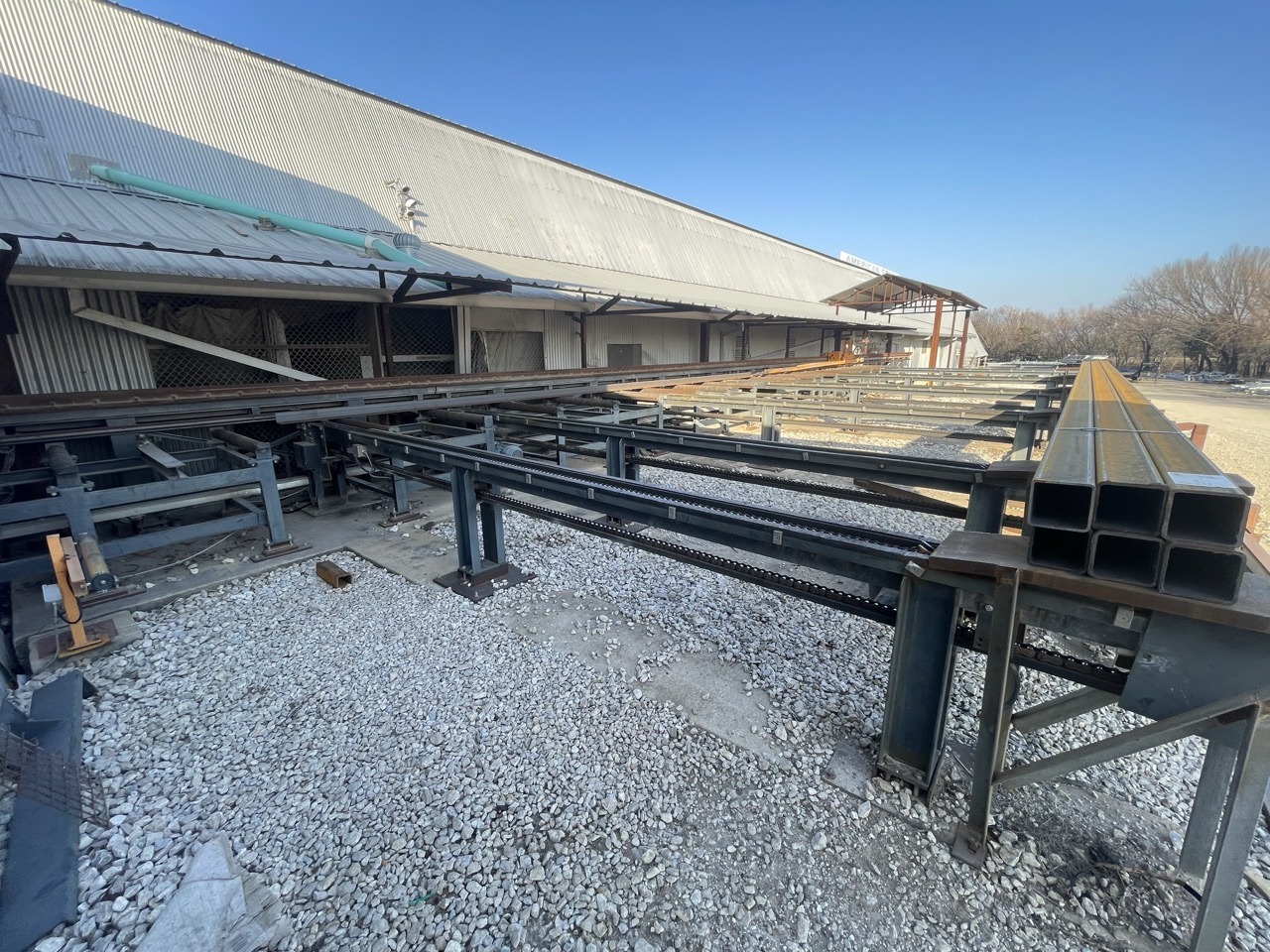

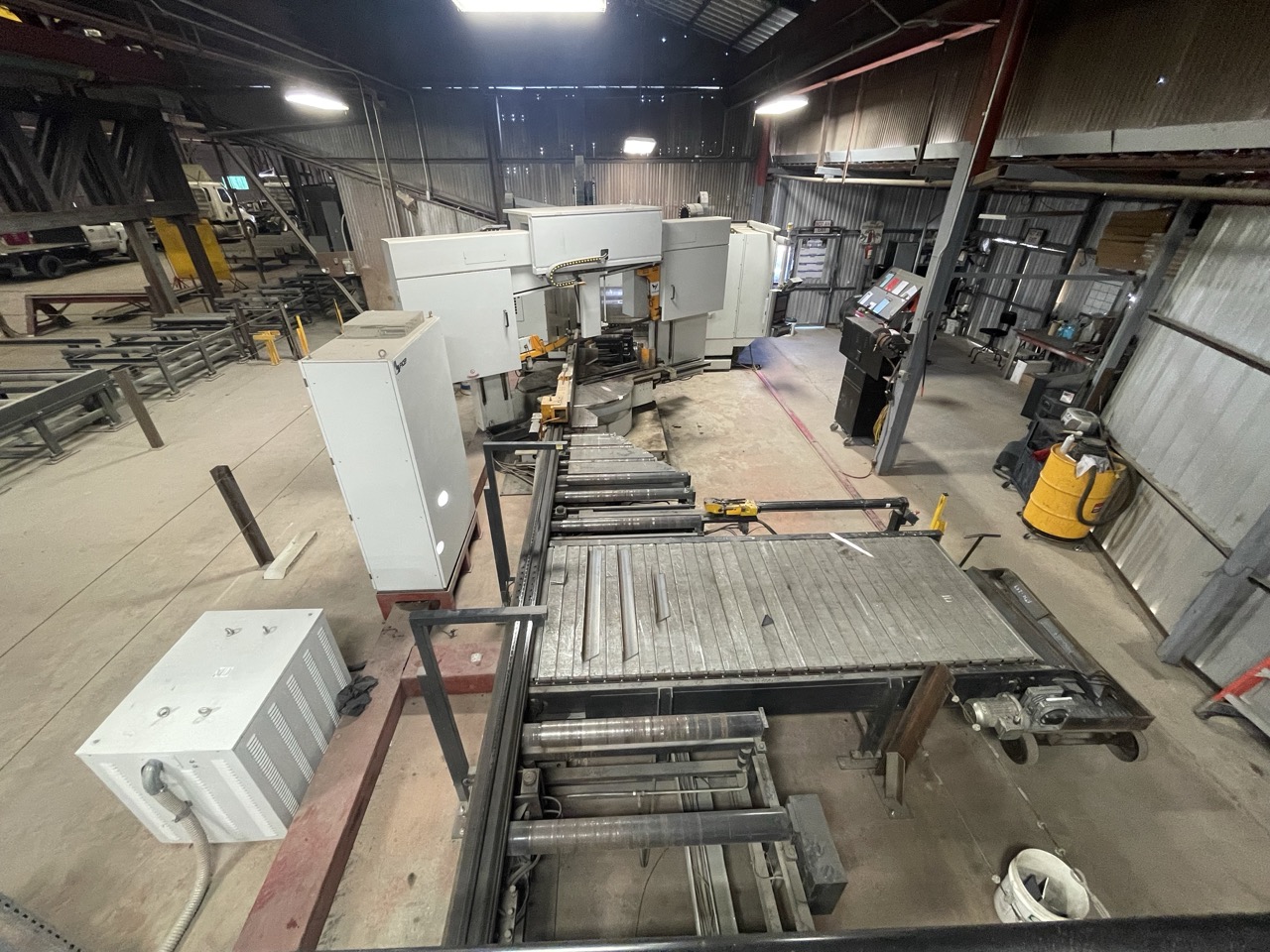

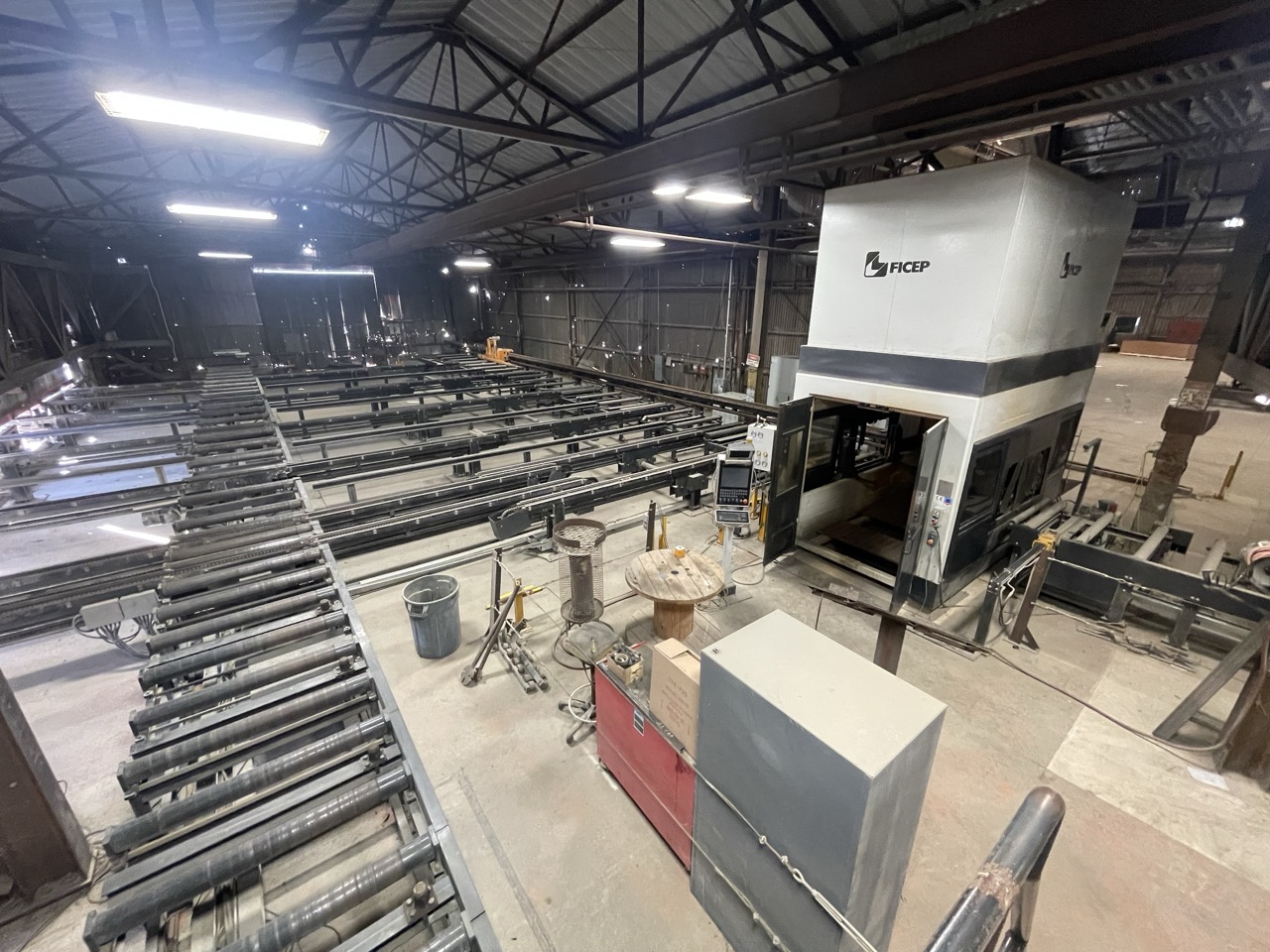

2016 EMS Automated Material Handling

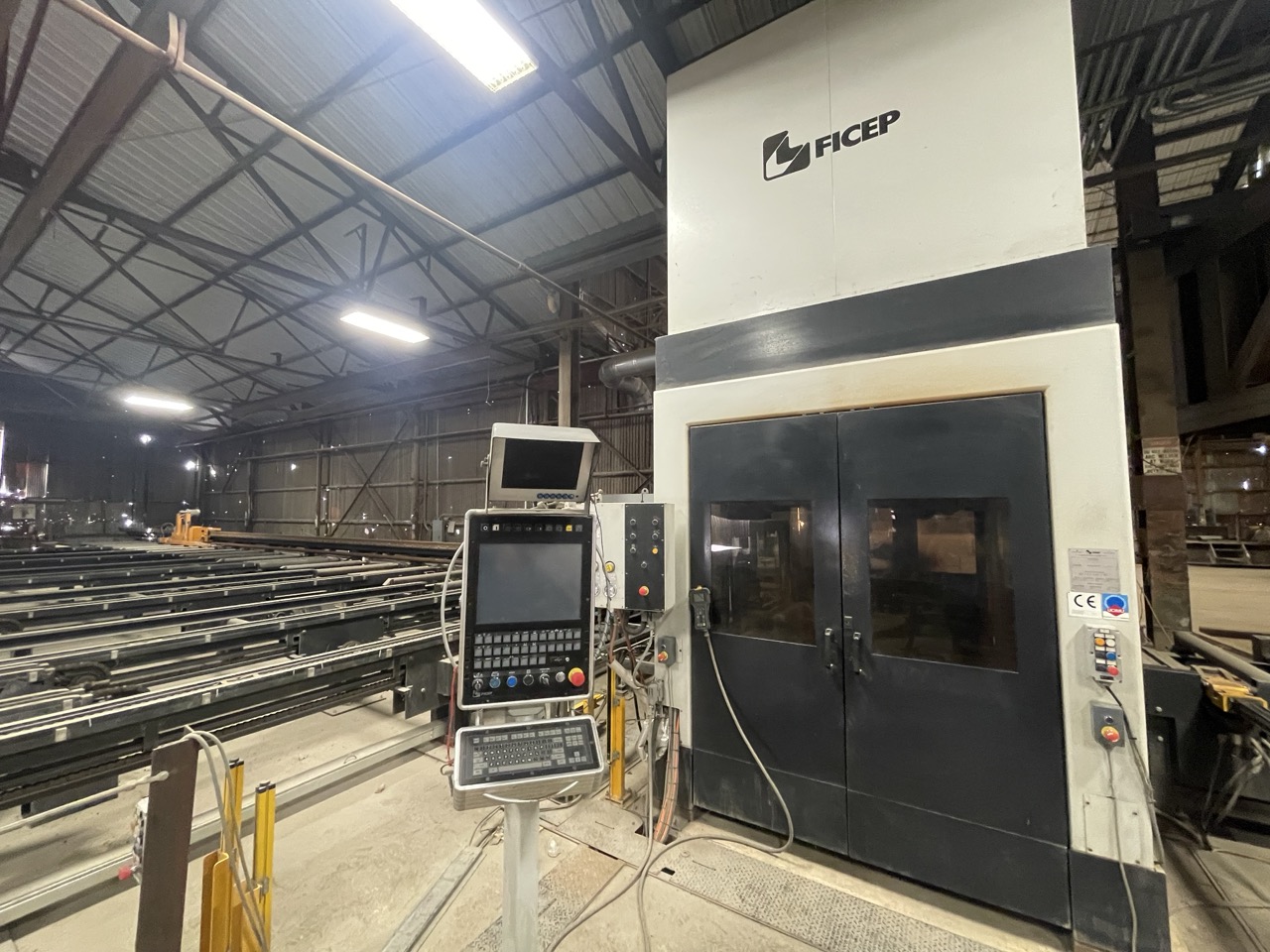

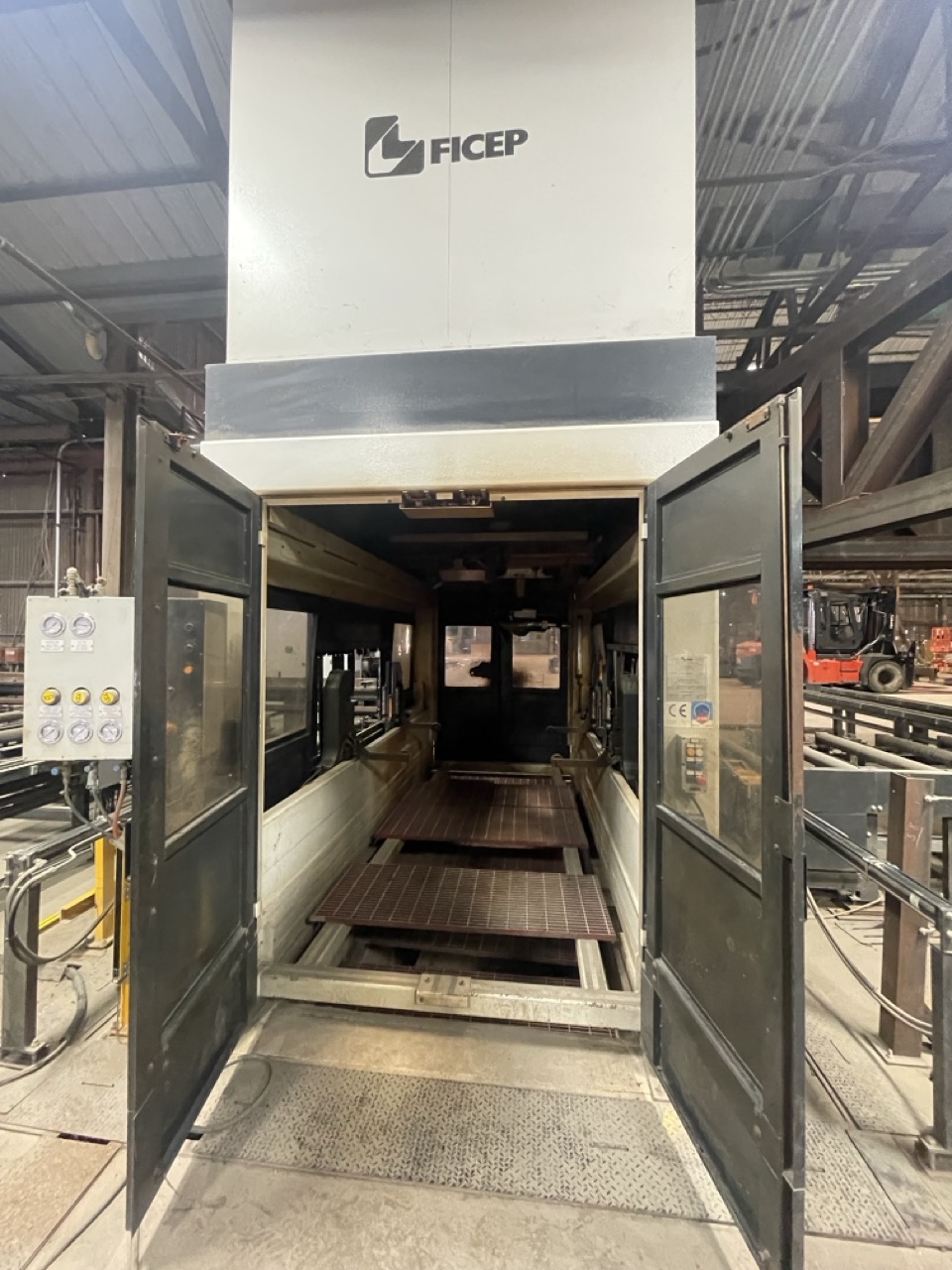

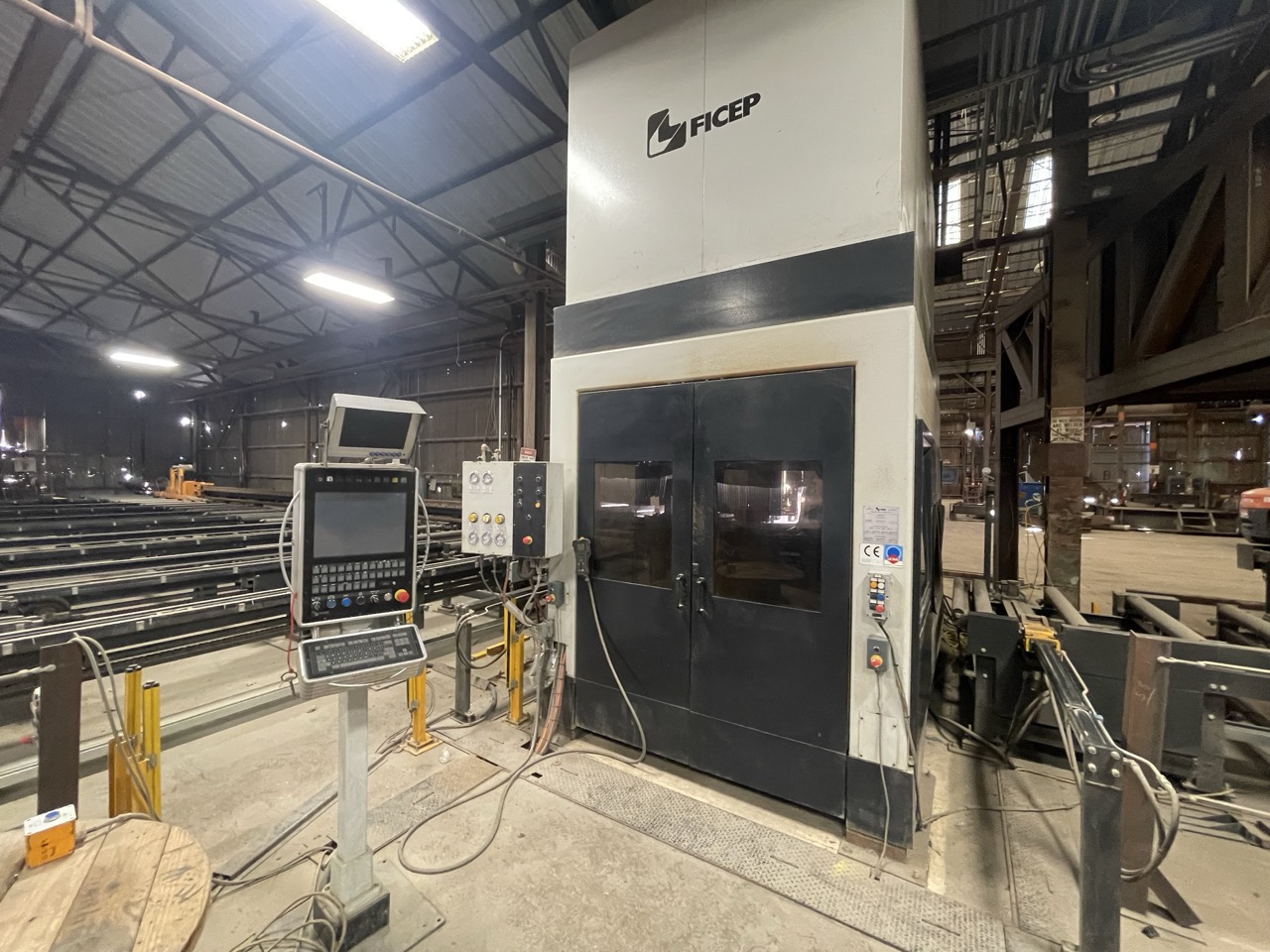

2016 FICEP 1201 FRC CNC Robotic Thermal Coping System

Beam Depth (min-max): 3.125″ – 44″
Flange Height (min-max): 0.375″ – 19.75″
Minimum Length to be Transferred: 98″
Maximum Length to be Transferred: 65′

I-Beams (without camber)
Beam Depth (min-max): 3.125″ – 44″
Flange Height (min-max): 1.625″-19.75″

Channels (w/ flanges oriented downward)
Channel Depth (min-max): 3.125″ – 44″
Flange Height (min-max): 1.75″-11.75″

Angles: Leg Height (unequal legs as well)
Minimum: 3.125″ x 3.125″ x 0.375″
Maximum: 10″ x 10″ x 1.5625″

Flats Width (min-max): 4″ – 43.25″

Square Tubes Size (min-max): 3.125″ x 3.125″ – 19.75″ x 19.75″

Rectangular Tubes Size (min-max): 3.125″ x 1.5625″ – 43.25″ x 19.75″

Drilling Capacities
Vertical Drill Heads: 1
Horizontal Drill Heads: 2
Spindles Per Drill Head: 1
Maximum Hole Diameter: 1.5625″
Maximum Drilling Thickness: 4″
Spindle Rotation Motor Per Head (S6-40%): 22 hp
Tool Holder: ISO 40
Spindle Rotation Speed: 180 – 5000 rpm

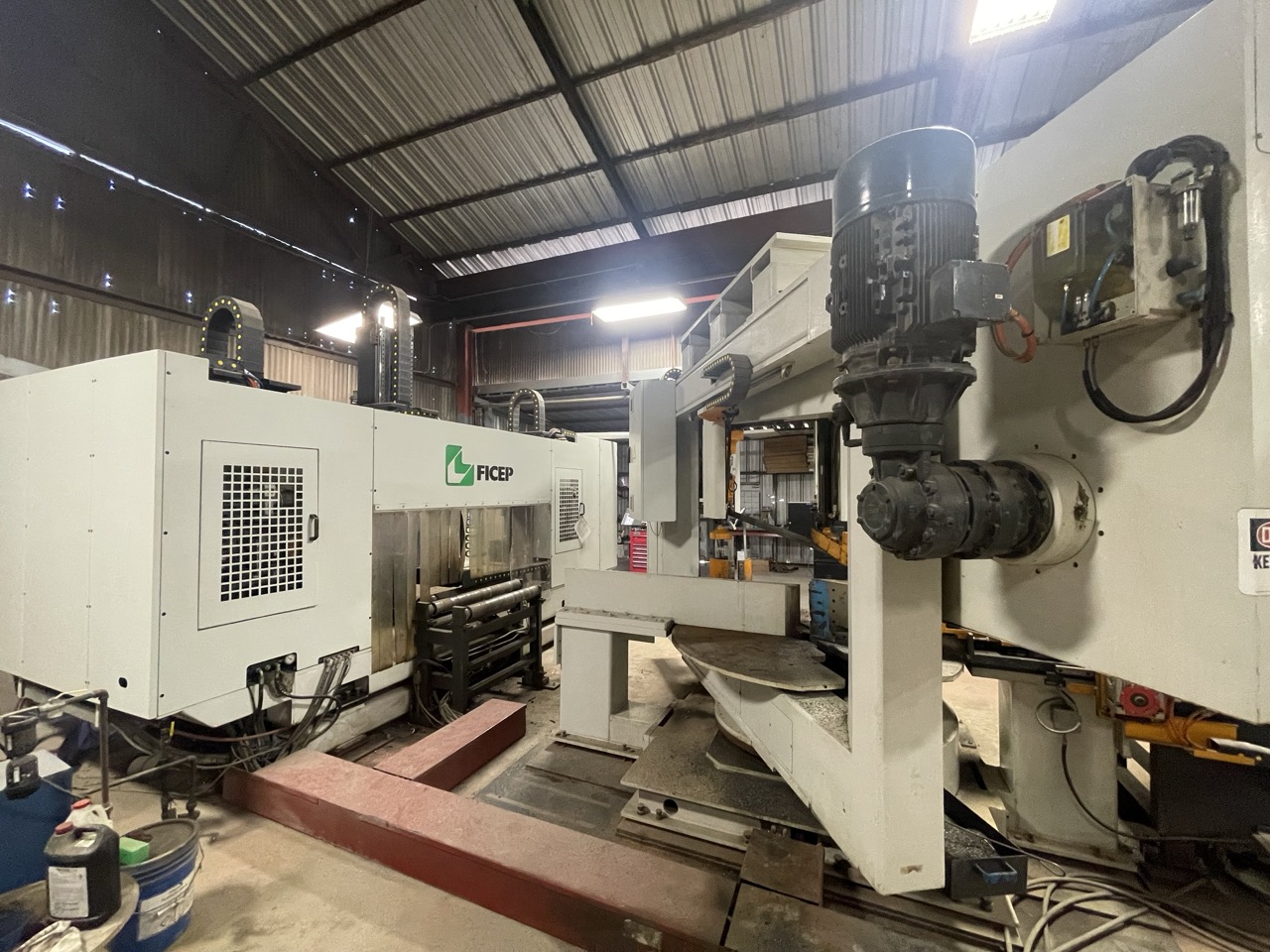

Band Sawing Unit Model K 115
Sawing Capacity at 90° (min-max): 3.125″ x 0.375″ – 43.25″ x 20″
Sawing Capacity at 45°: 27.5″ x 20″
Sawing Capacity at 60°: 19.75″ x 19.75″
Band Motor Power: 20 hp
Toothed Band’s Size: 2.12″ x 0.063″ x 390.55″
Toothed Band’s Speed: 196 – 557 fpm

Maximum Section Weight: 18,000 lbs
Maximum Weight Per Foot As Standard: 300 lbs/ft
Maximum Carriage Speed: 164 fpm
Passline: 33.5″
