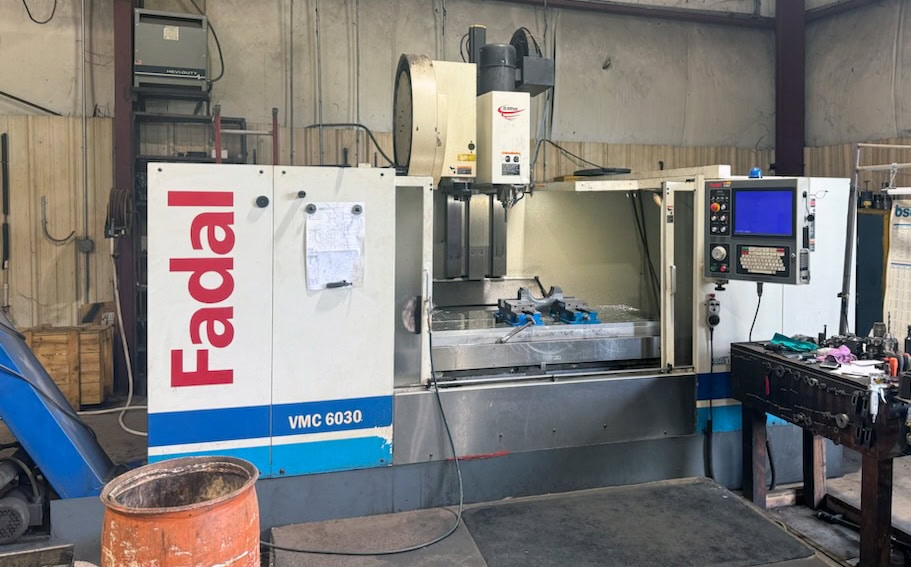

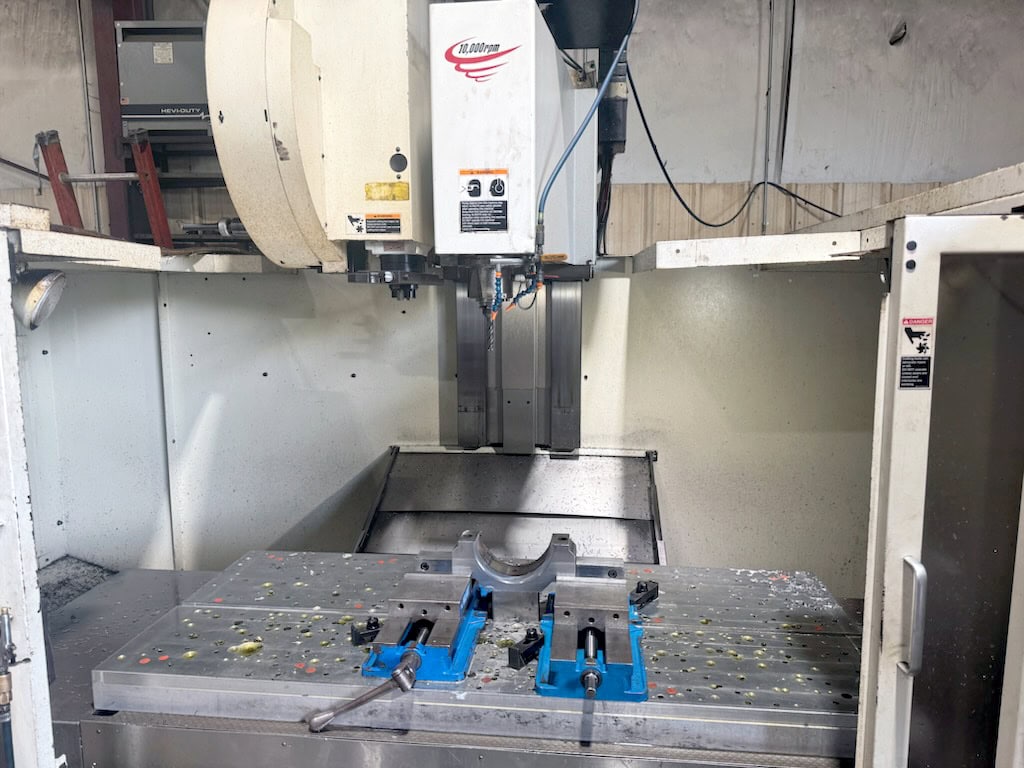

Fadal VMC 6030 VHT Machining Center, 2006 – 4-Axis Rotary & Tailstock, Coolant Thru Spindle, Conveyor
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 60″
Y-Axis Travel: 30″
Z-Axis Travel: 30″
Rapid Feed Rate (X/Y/Z): 400 ipm
Table Size: 62.5″ x 30″
Table Capacity: 4,120 lbs
Floor to Table: 36″
Spindle Nose to Table: 5.5″ – 35.5″
Spindle Center to Column Ways: 16″
Spindle Speed: 10 – 10,000 RPM
Spindle Taper: No. 40
Auto Tool Changer: 24 Tools
Main Motor: 22.5 HP
Torque: 300 Nm/375Nm
Electrics: 240 V, 3 Ph, 50/60 Hz
Full Load: 68 Amp
Approx Machine Dimensions (l x w x h): 158″ x 103″ x 122″
Approx Machine Weight: 17,000 lbs
EQUIPPED WITH:

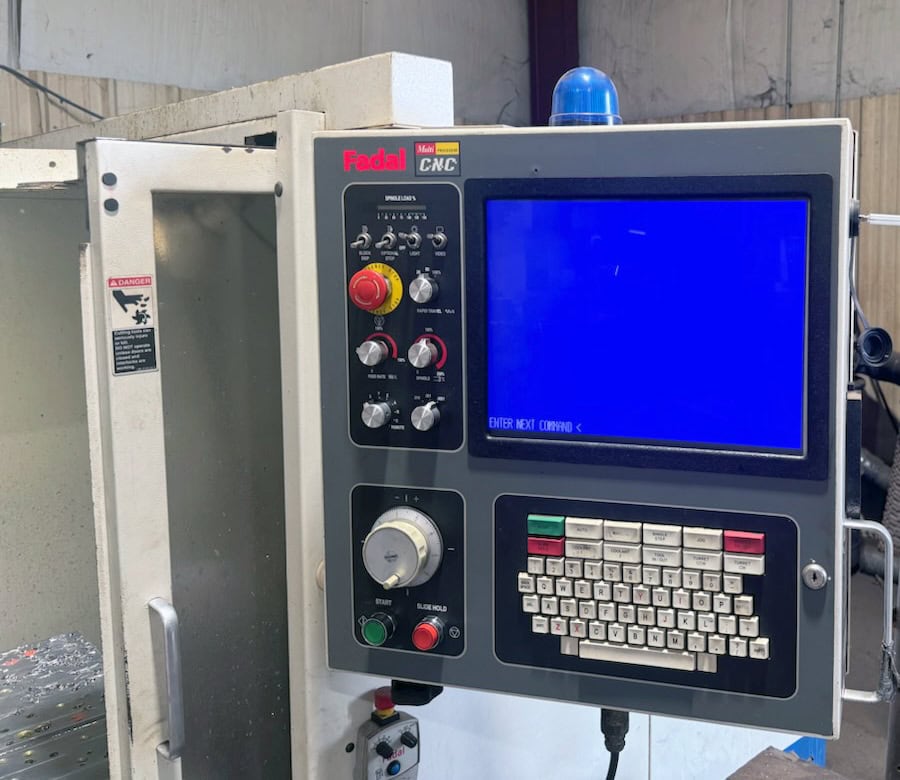

Fadal Multi Processor CNC Control
4th Axis Drive & Wiring
4th Axis Rotary Table
Tailstock
Coolant Thru Spindle
24 Position Side Mount Tool Changer
Chip Conveyor
