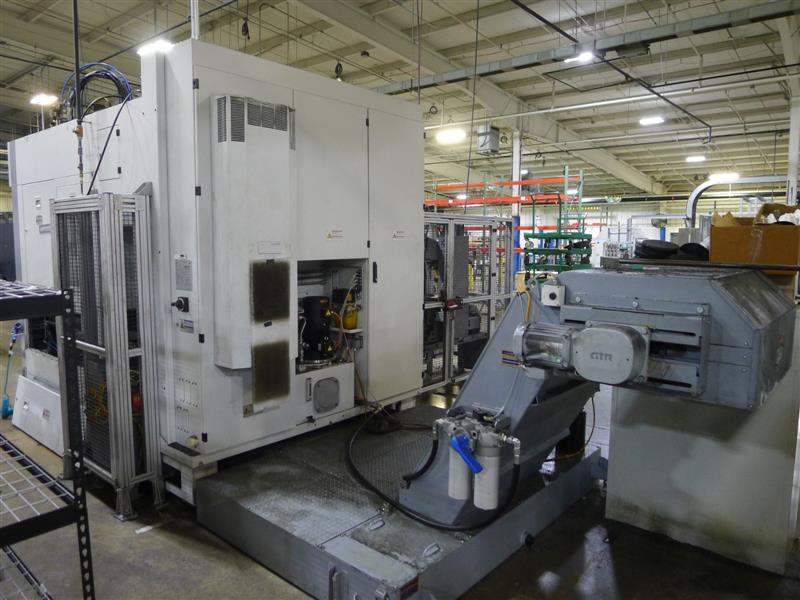

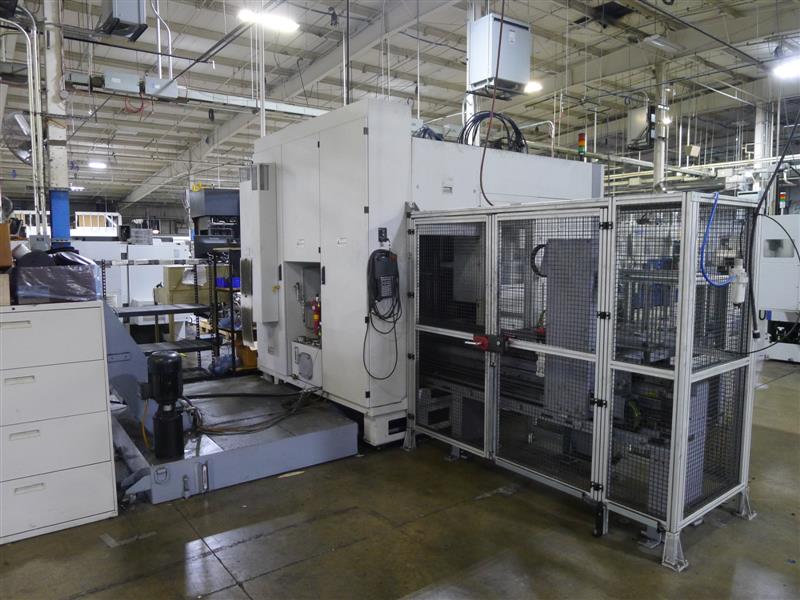

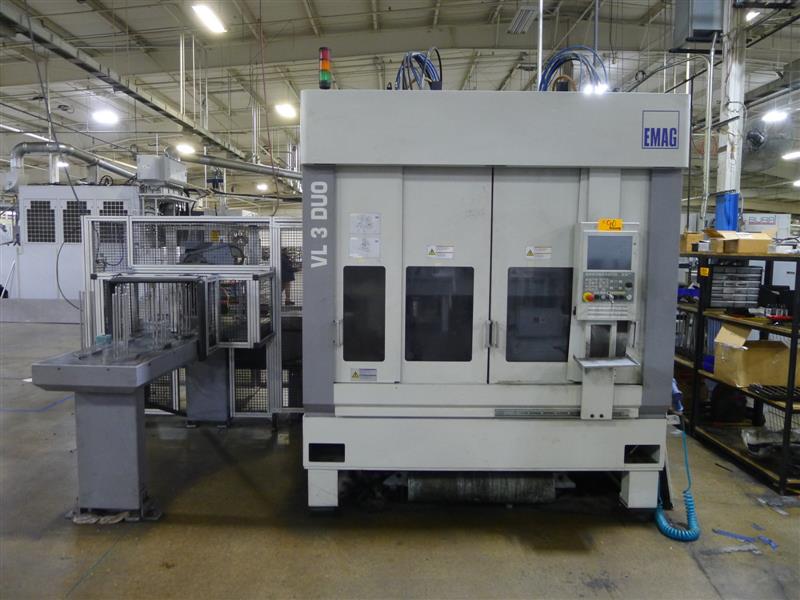

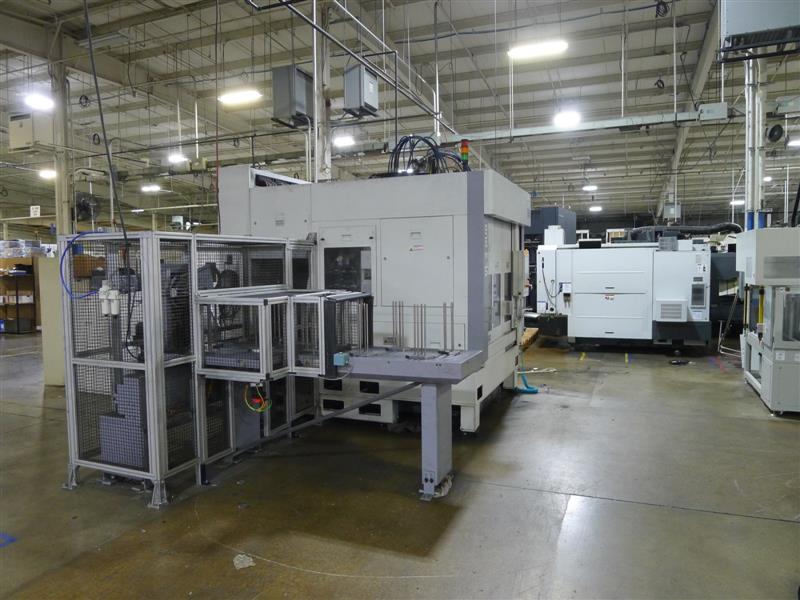

EMAG VL3DUO VTL, 2017- Fanuc Control, Dual Spindle, Manual Guide
$209,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Working Area:
Chuck Diameter-210mm
Weight Max. for Each Main Spindle kg-150*
Swing Diameter mm-250
Workpiece dia. / Height Max. mm -150 / 110
X-Stroke (Working Stroke)mm -500 (-10…170)
Y-Stroke (Optional)-mm ±30
Z-Stroke-mm 250
Loading Time: (Depending on Clamping Chuck) Sec. 6
Main Spindle: Qty 2 Each
Spindle Flange acc. to DIN 55026-size 6
Spindle Front Bearing Diameter-mm 100
Max. Spindle Speed rpm-5,000
Main Spindle Motor kW- 28.1 Each
Main Drive:
See Description in Detail Quotation Qty 2 Each, 37.5 HP
Feed Drive:
Rapid Traverse Feed, X / Y / Z m/min 60 / 30 / 30
Feed Force, X / Y / Z kN 6 / 5 / 7,5
Ball Screw Diameter X / Y /Z mm 40 / 32 / 40
Turret, Live Tools
See Description in Detail Technical Quotation
Electrical Equipment:
According to VDE 0113
Supply Voltage V 400
Control Circuit Voltage – DC V 24
Voltage – AC V 230
Frequency Hz 50
Electrical:
Total Connected Load kVA-36
Basic Current, amps A-64
Input Fuse, amps A-100
Dimensions and Weight:
Depth mm-3000
Depth Incl. Chip Conveyor mm-4500
Width mm-2200
Height mm 2530 -(3100)
Weight kg. (est) -10,000
Equipped with:
Emag Operator Panel 12″ TFT Touch Color Monitor
Fanuc 31i/32B with Integrated SPS
Structured Workpiece Programming
Manual Guide
