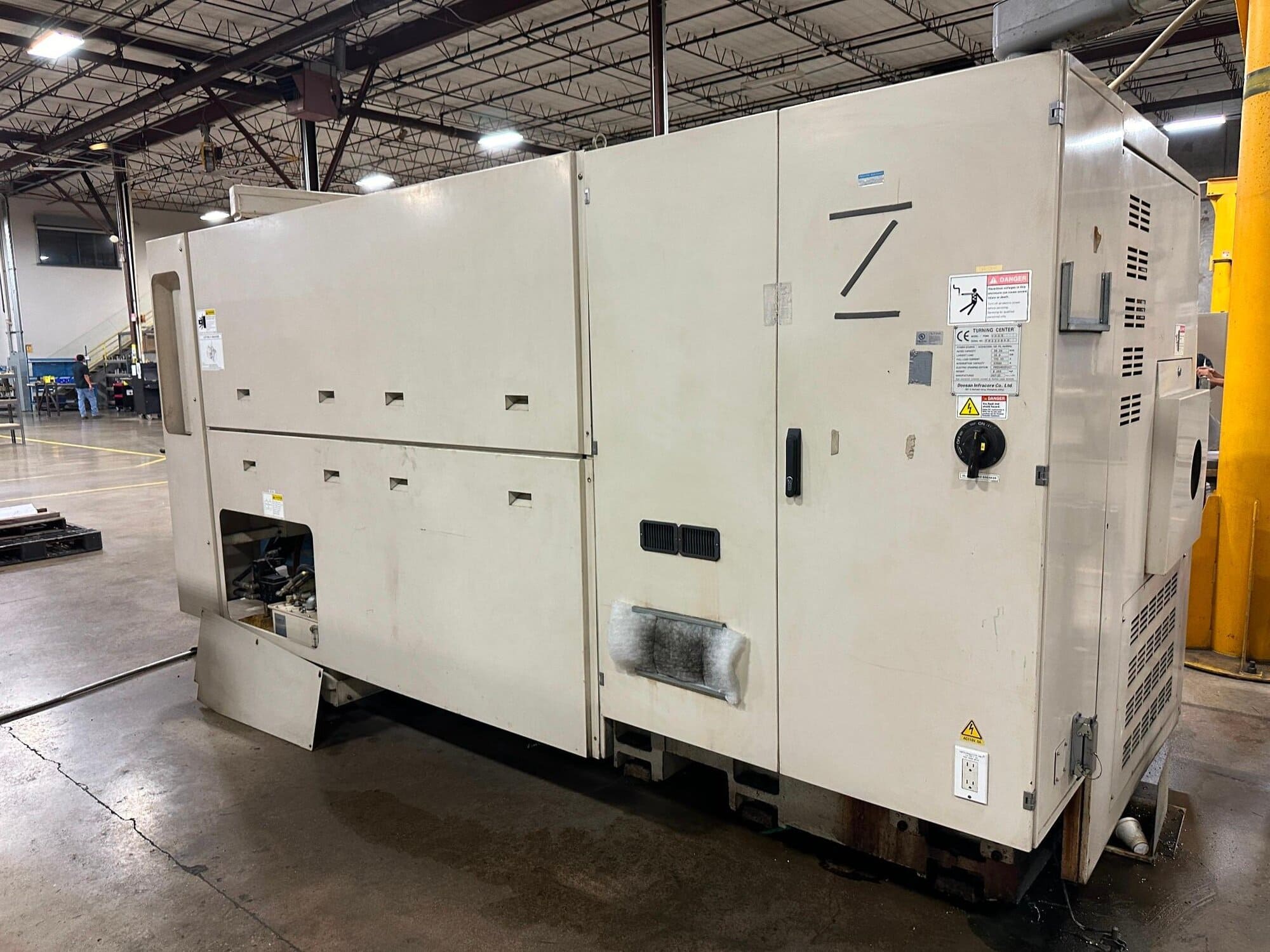

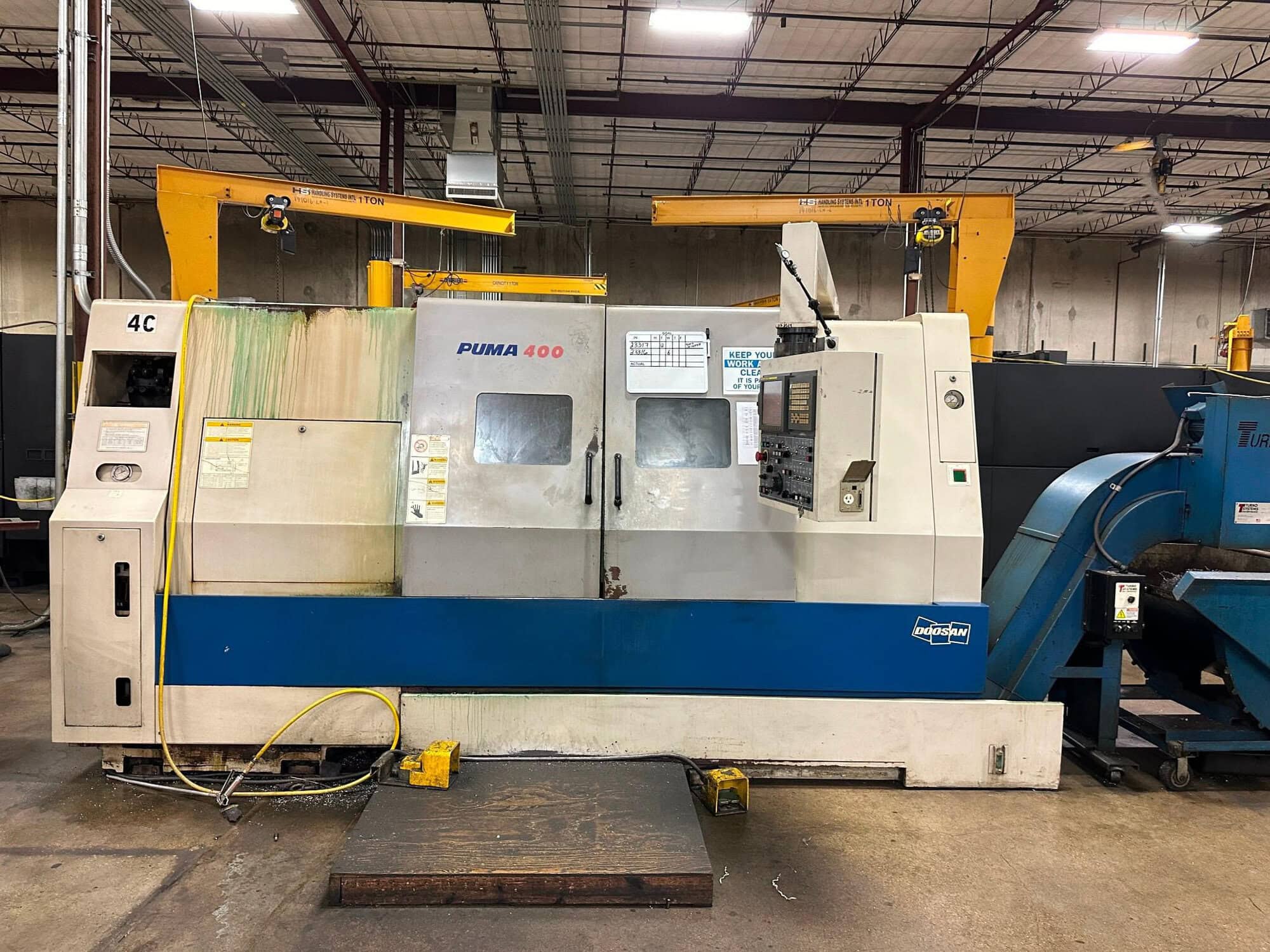

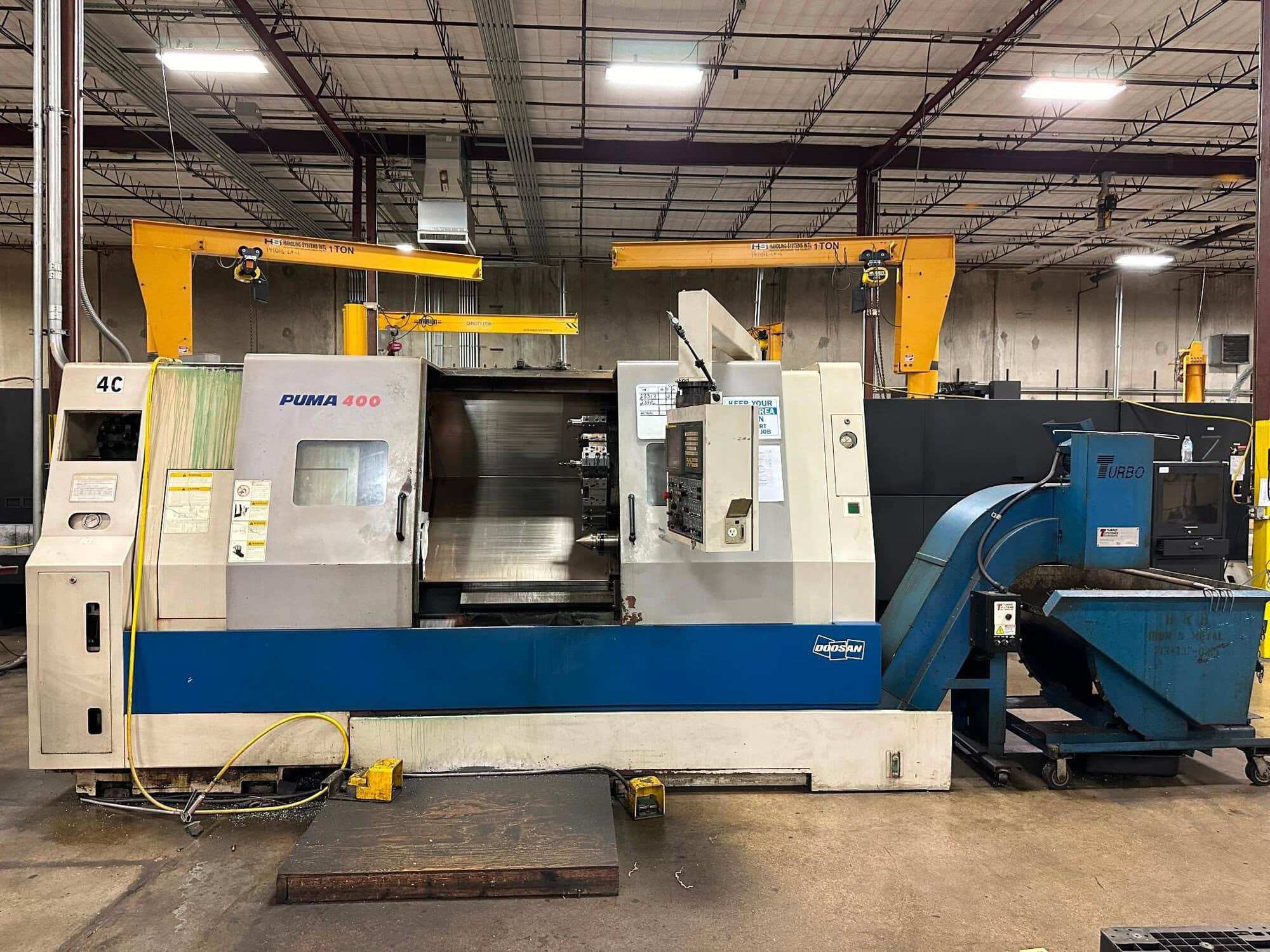

Doosan Puma 400B CNC Lathe, 2007 – Programmable Tailstock, Presetter, Chip Conveyor, 18″ Chuck
$39,900.00
Machine Type: CNC Lathes
Make: Doosan
Model: Puma 400B
Year: 2007
Machine Location: Illinois
Stock #: 447721
Spindle Bore: 4.625″

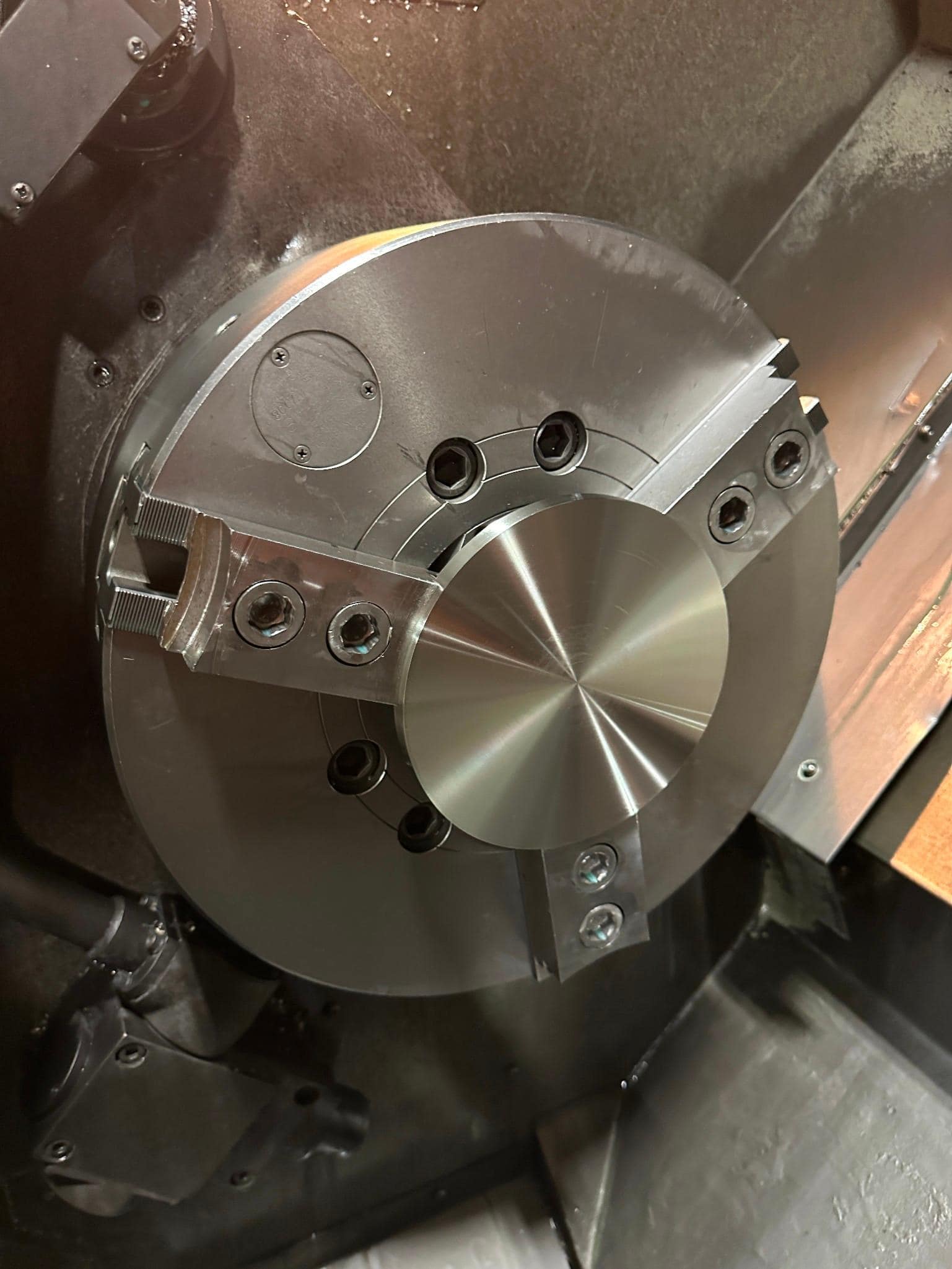

Chuck Size: 18″ (17.5″ actual)
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X-Axis Travel: 14.3″
Z-Axis Travel: 43.5″
Rapid Rate (Z-Axis): 790 IPM
Rapid Rate (X-Axis): 630 IPM

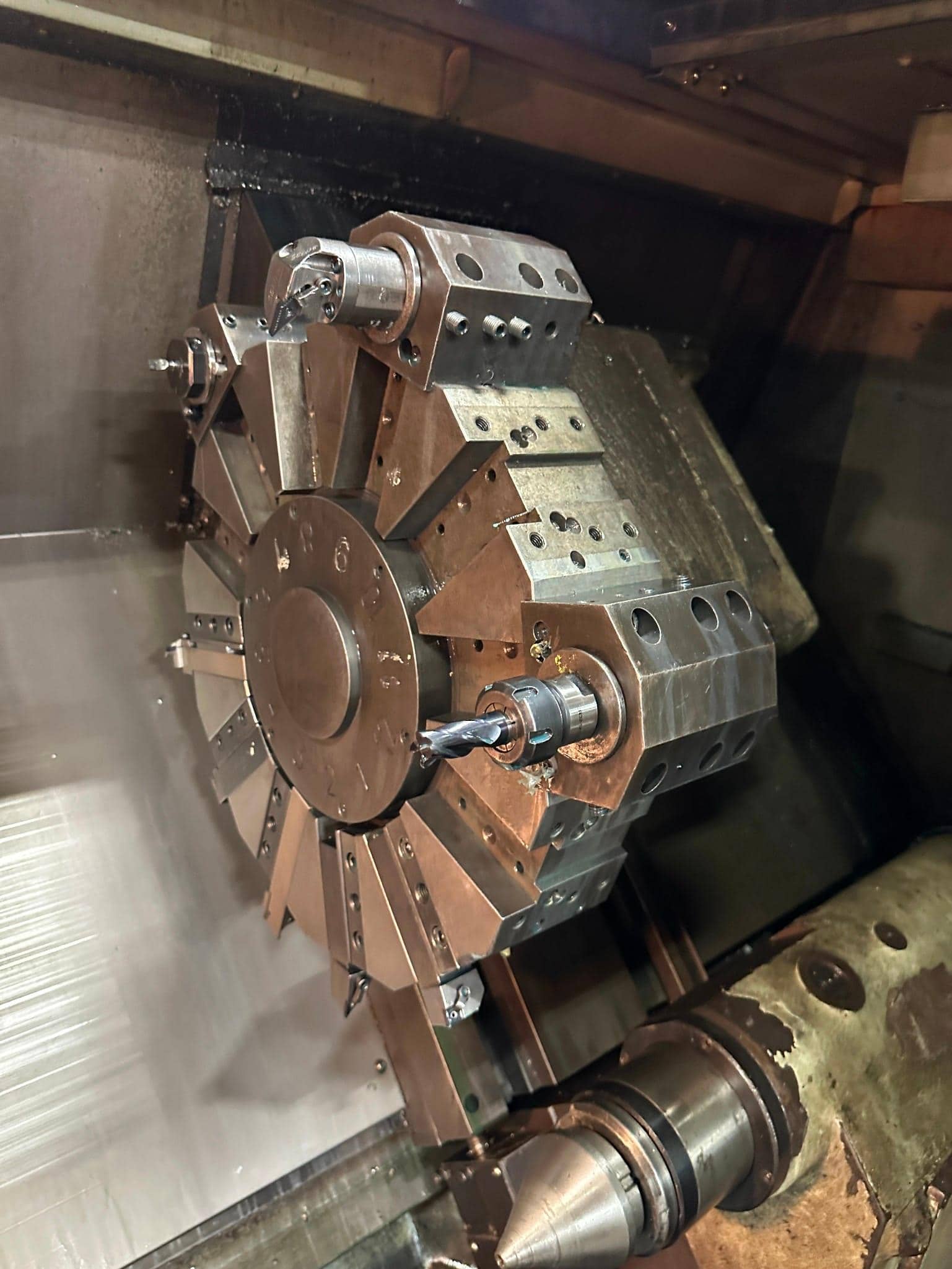

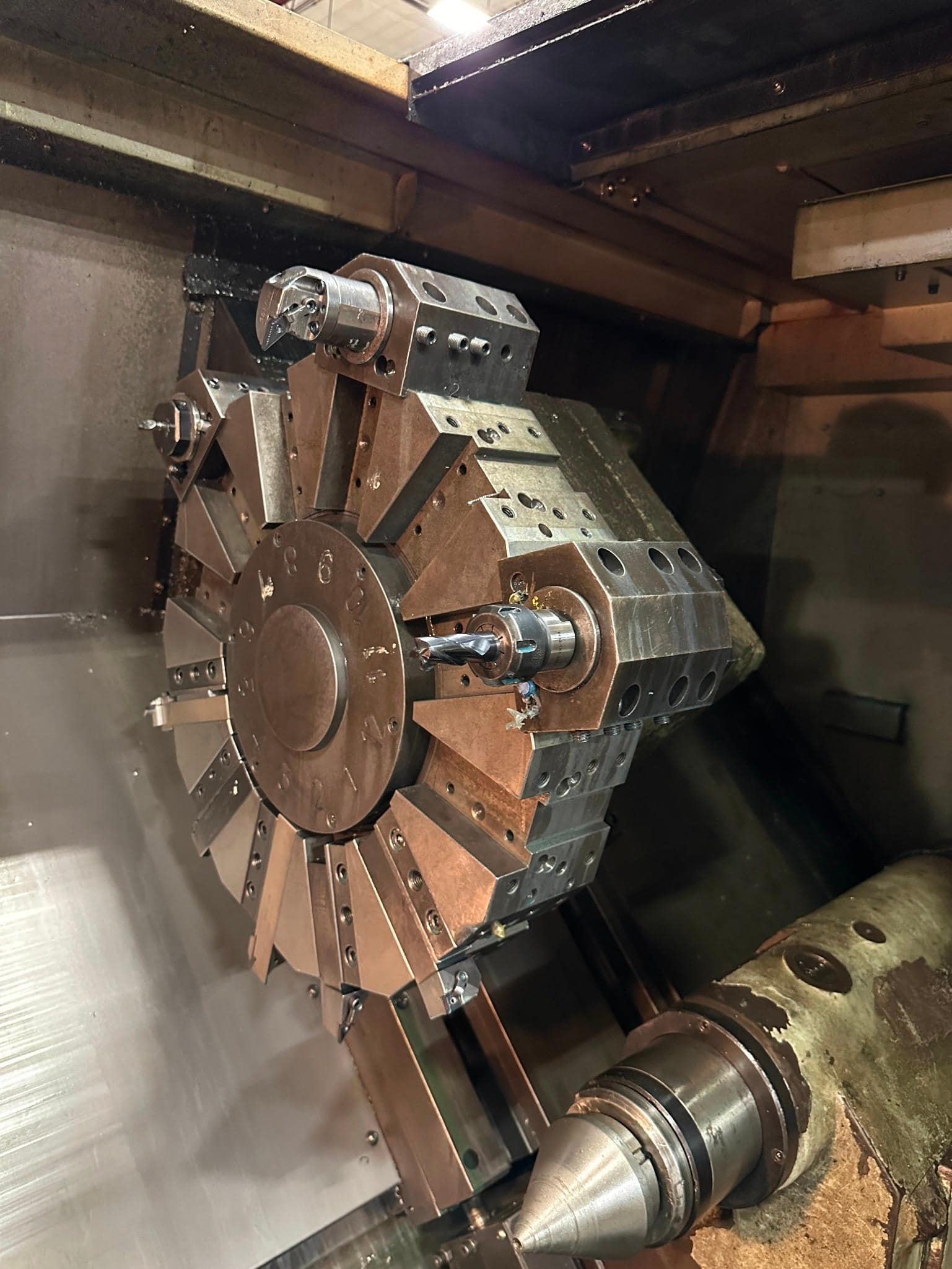

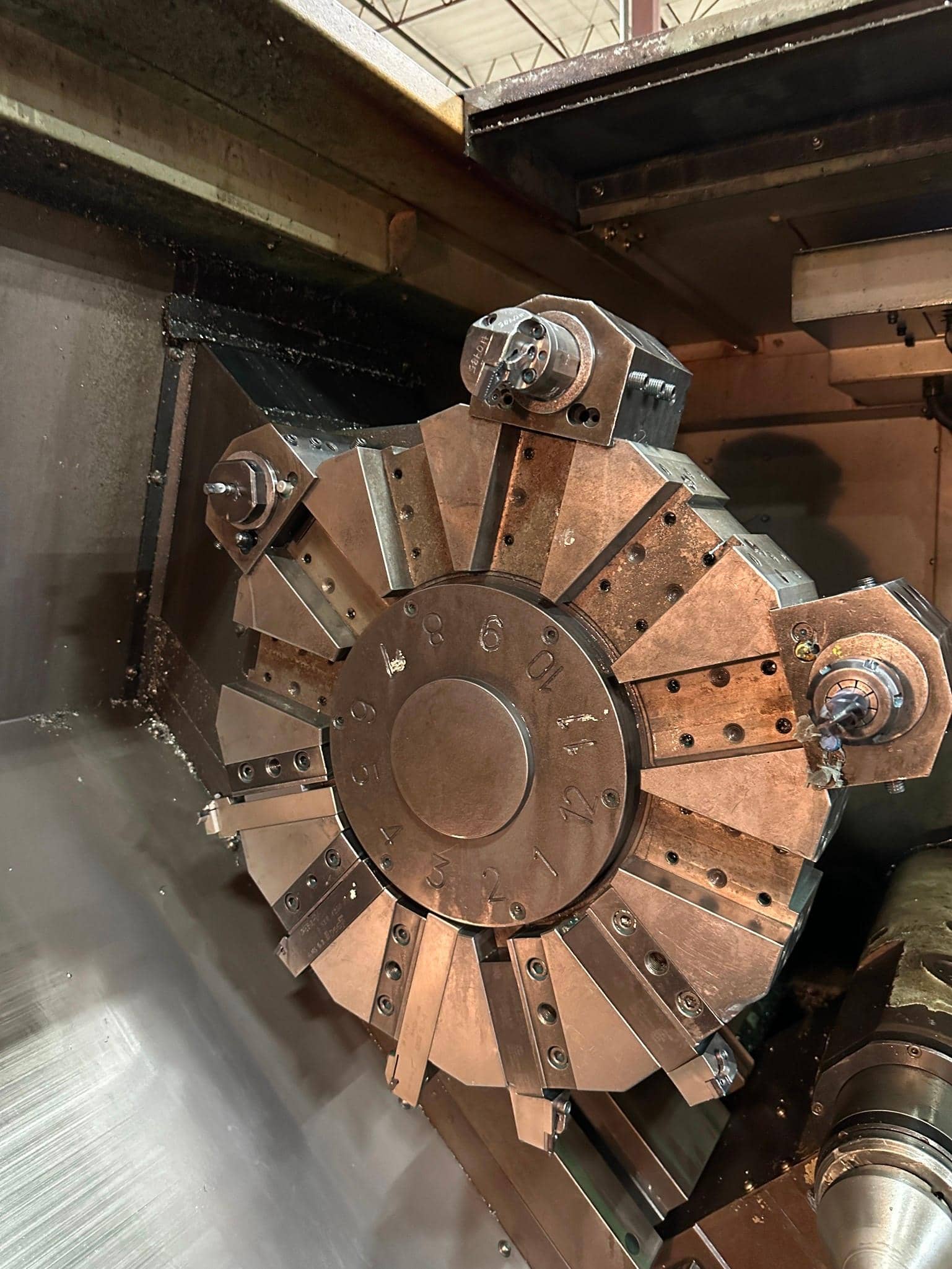

Turret Tools: 10 station
Max Turning Length: 41″
Max Swing: 28″
Dimensions: 201″ × 94″ × 90″
Weight: 19,640 lbs
Equipped With:

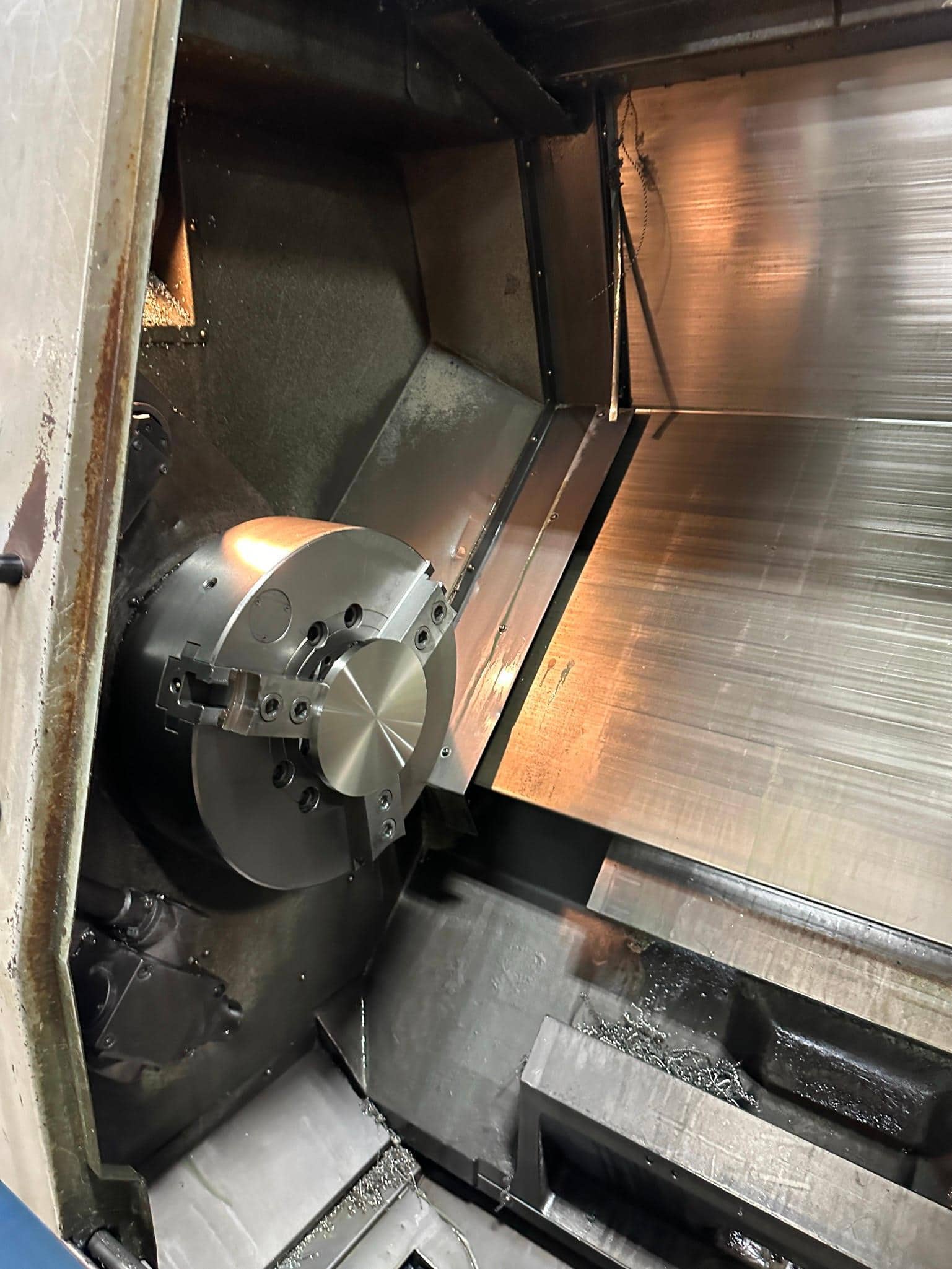

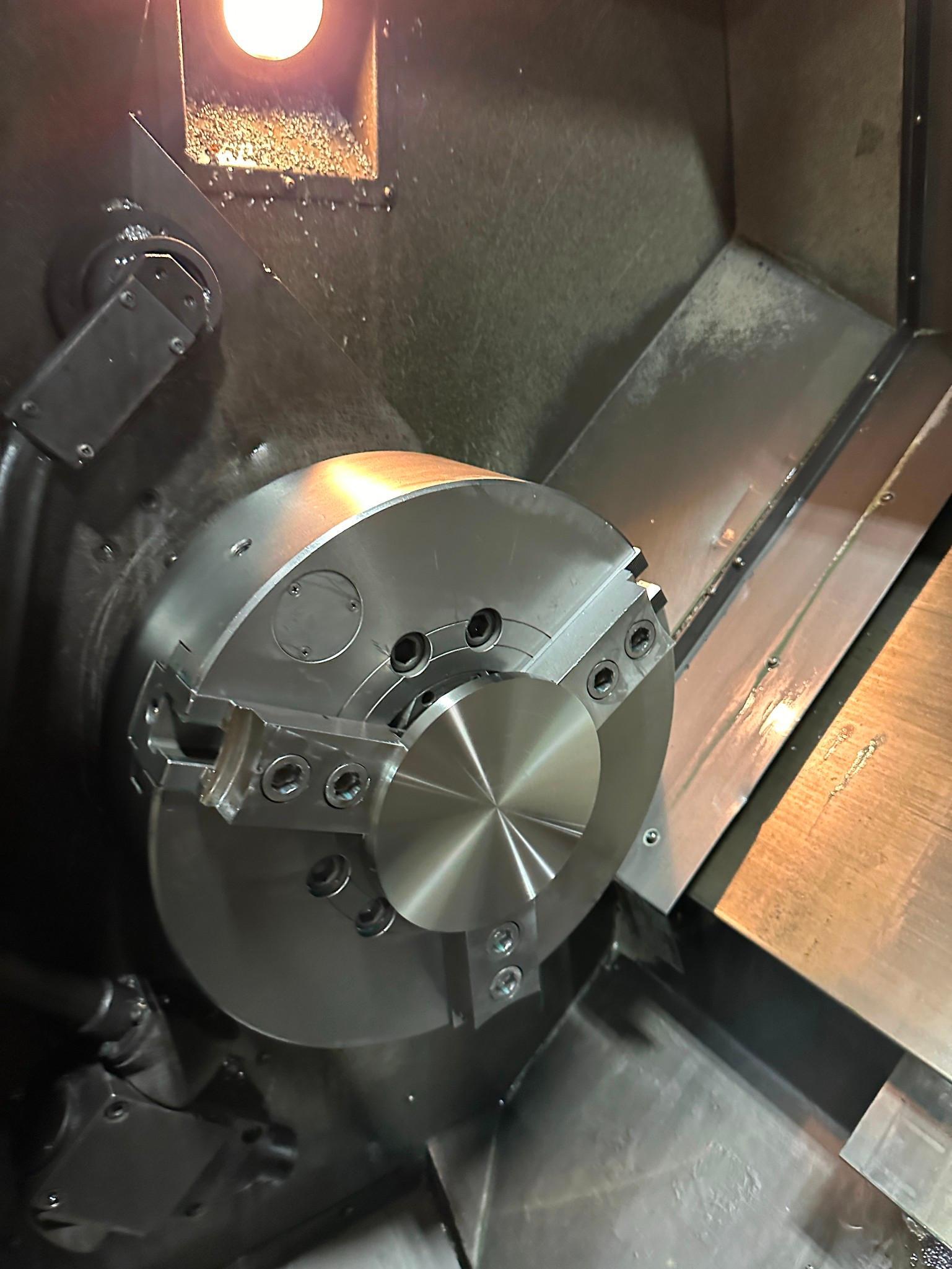

Chuck

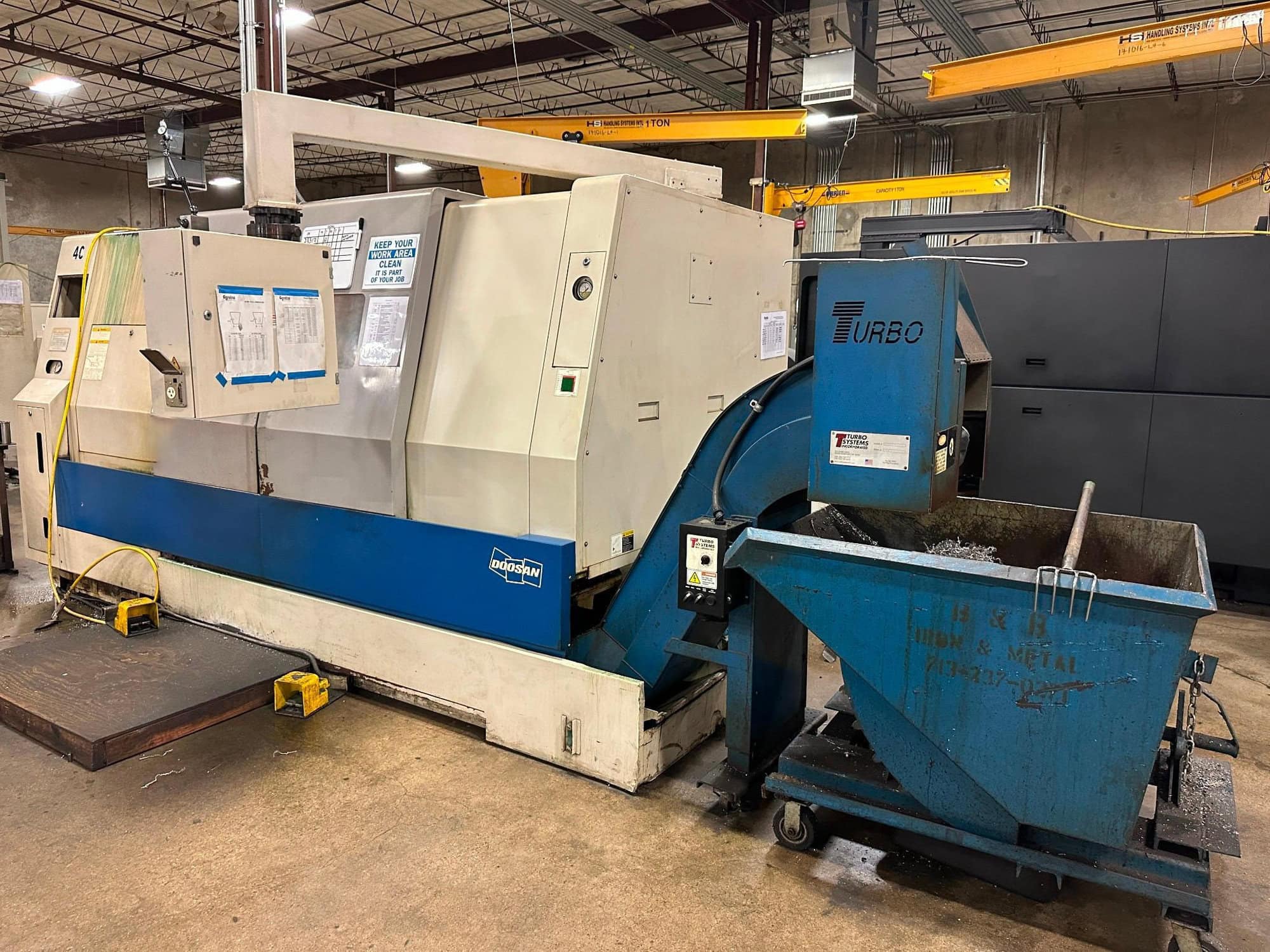

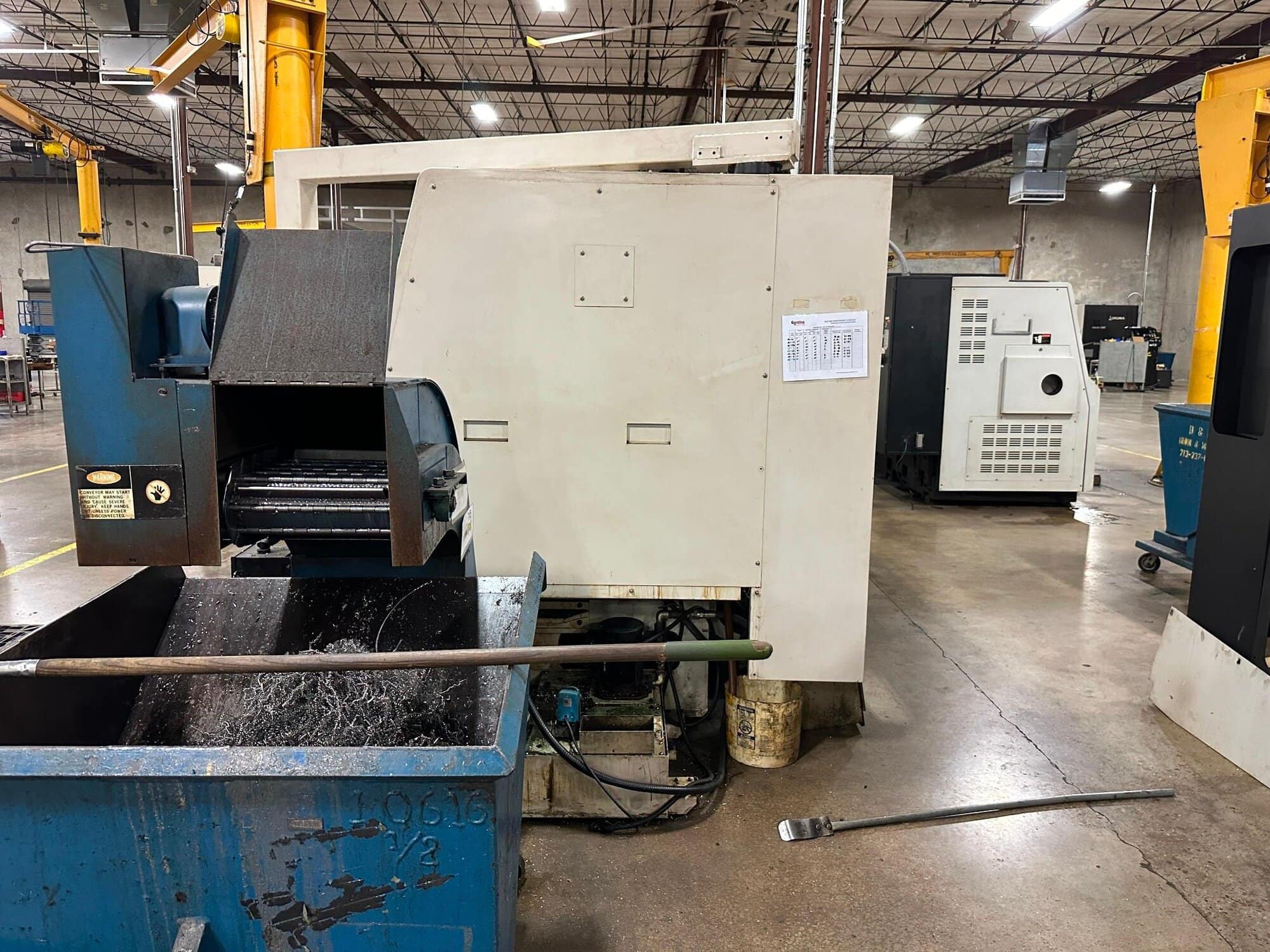

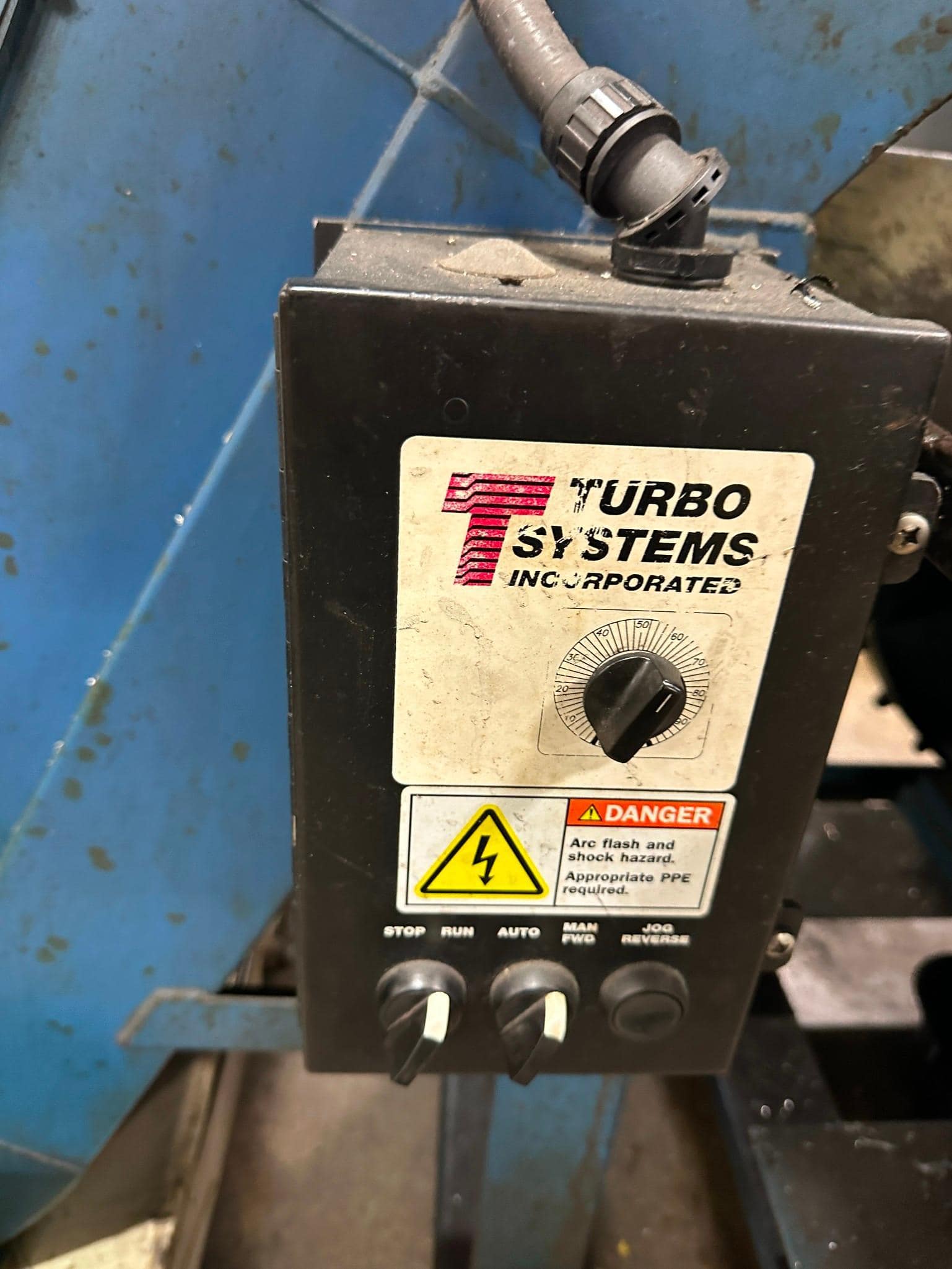

Chip conveyor

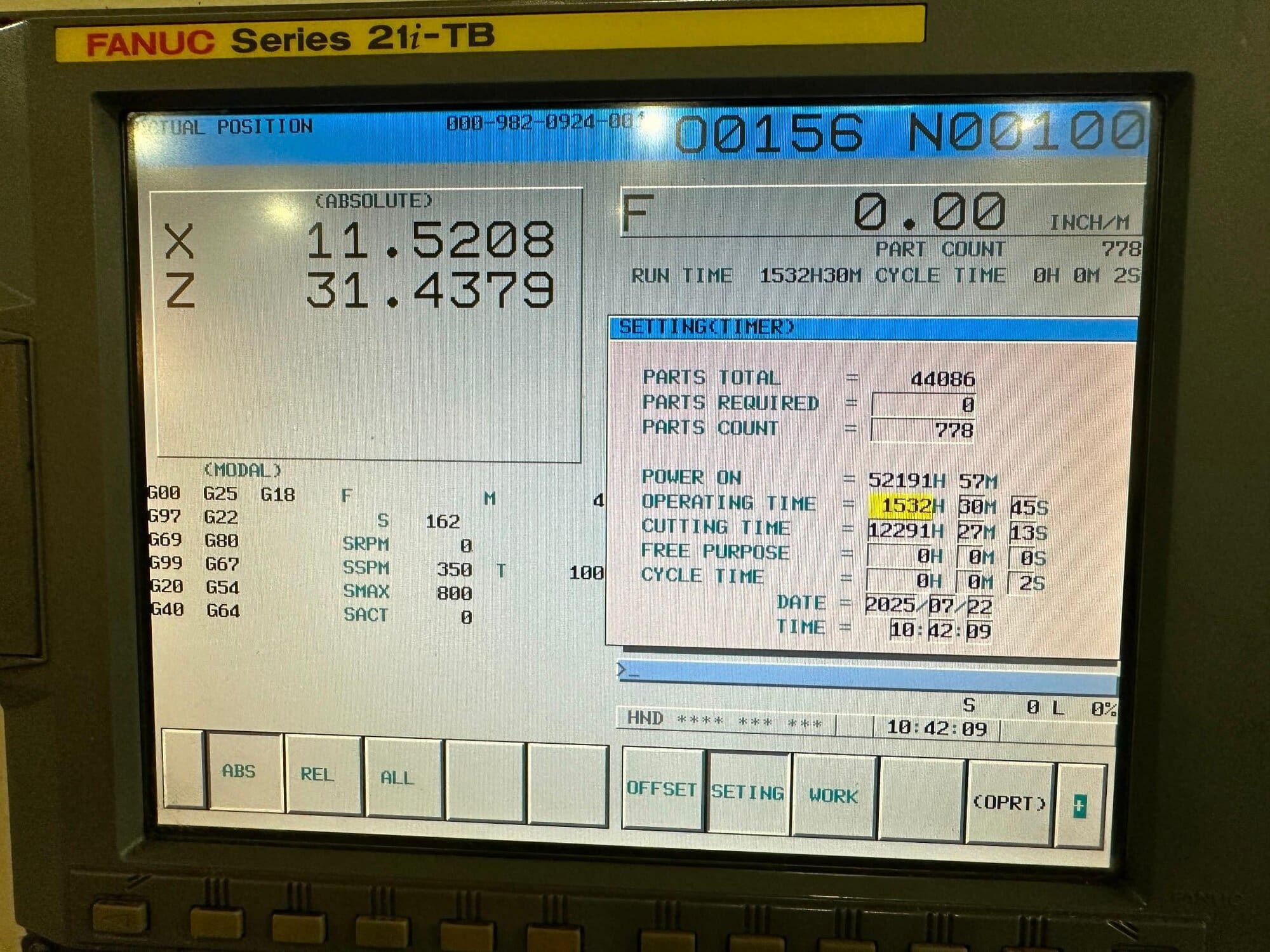

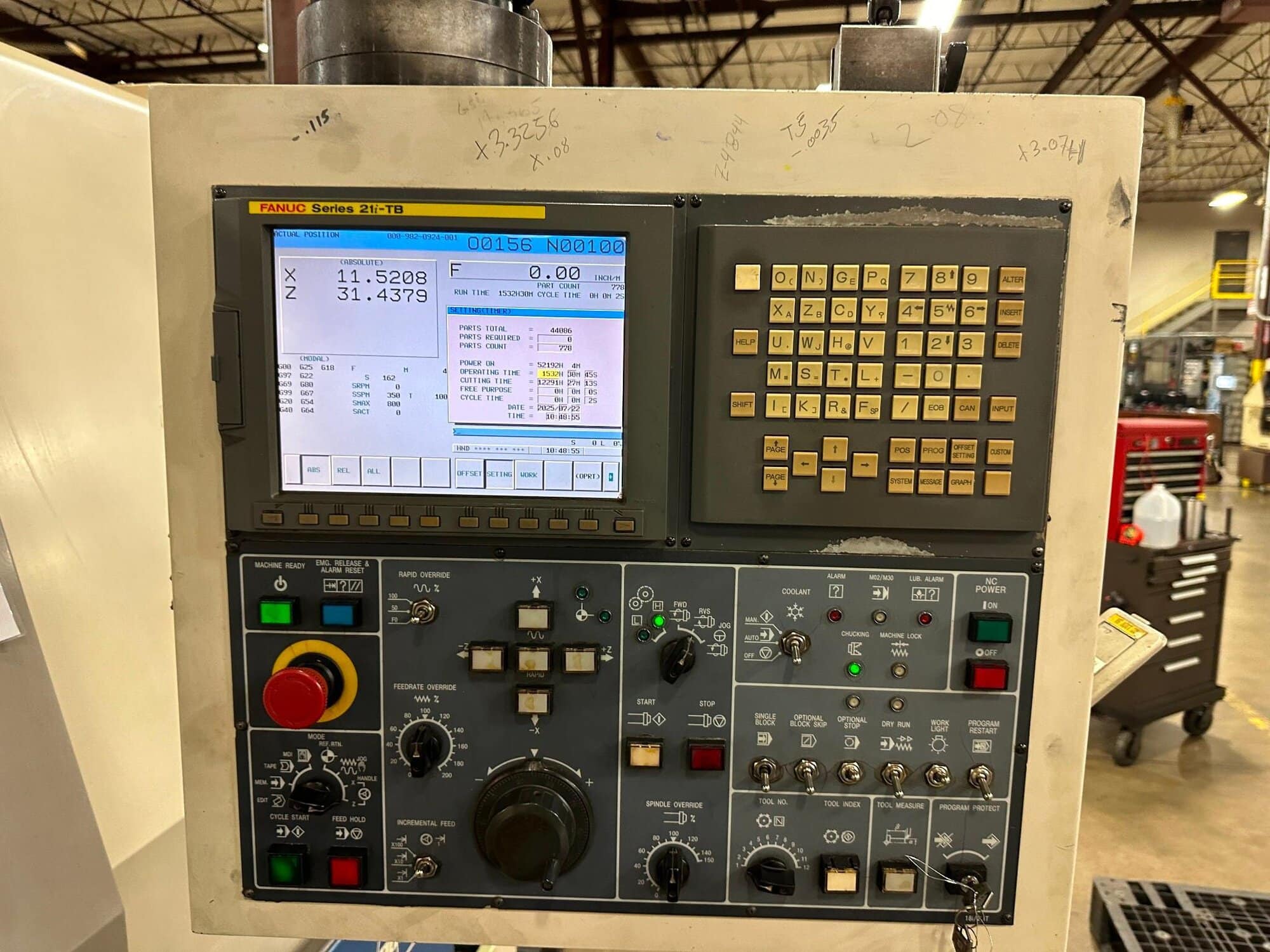

Fanuc 21i-TB CNC control

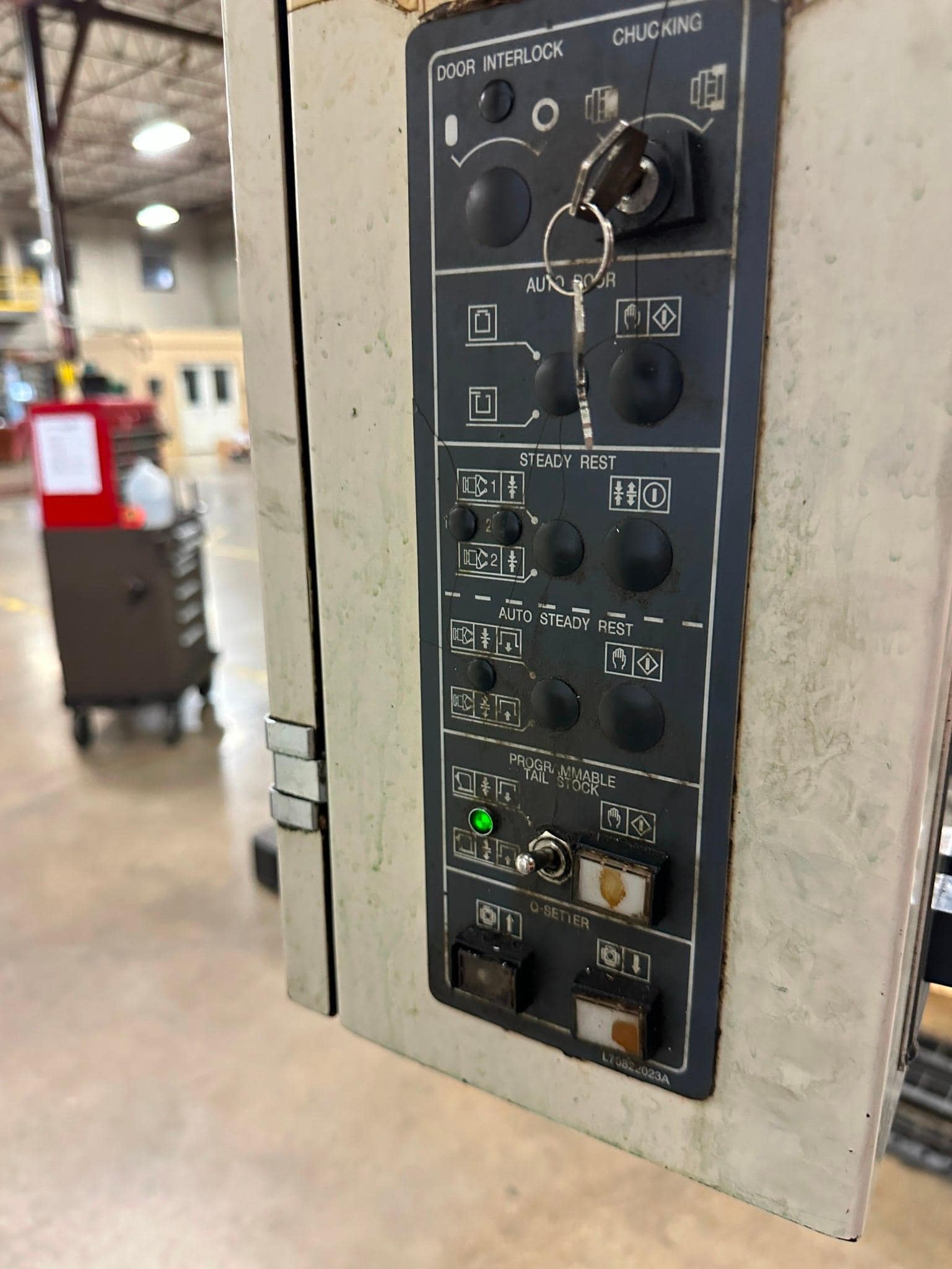

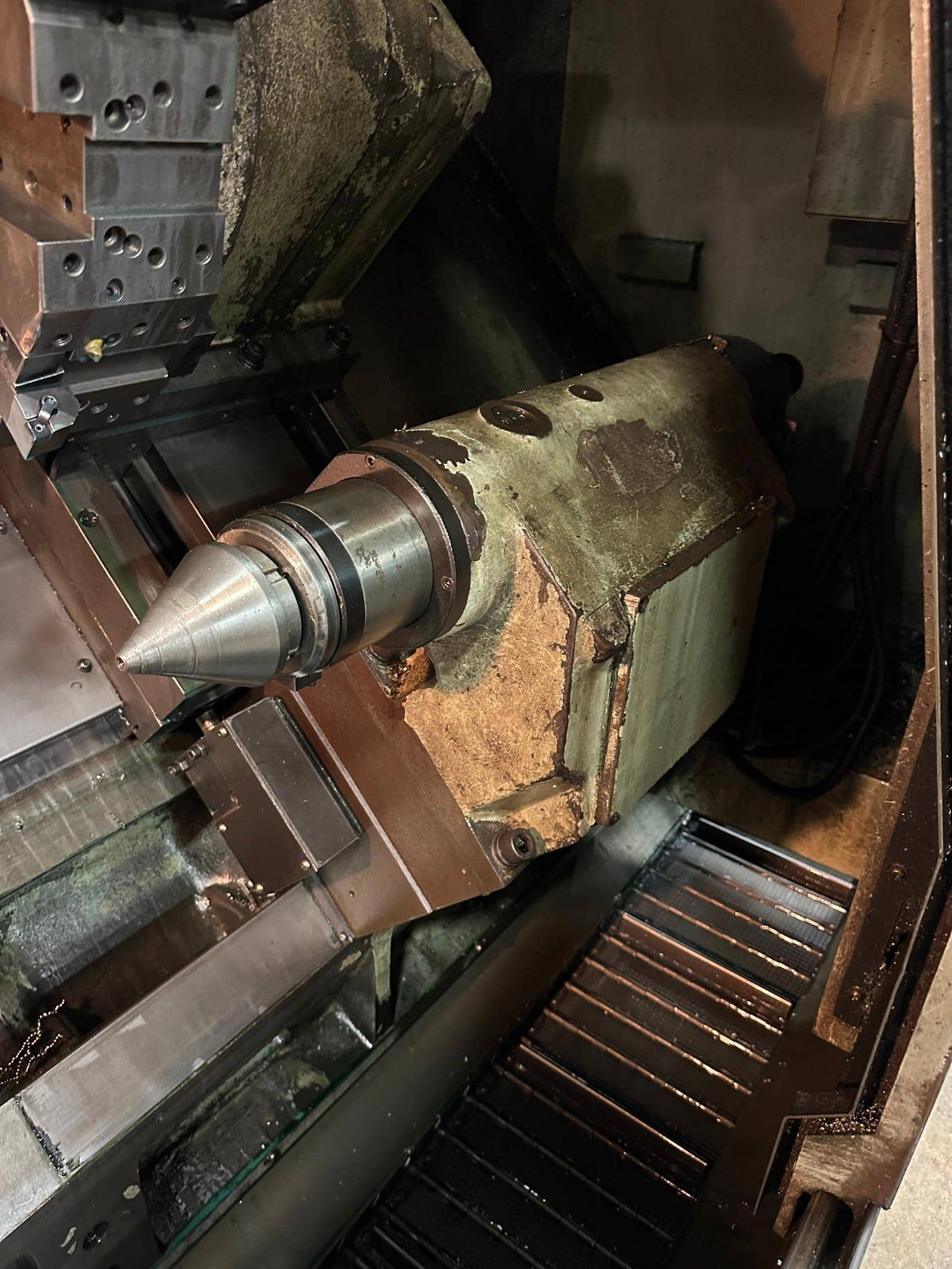

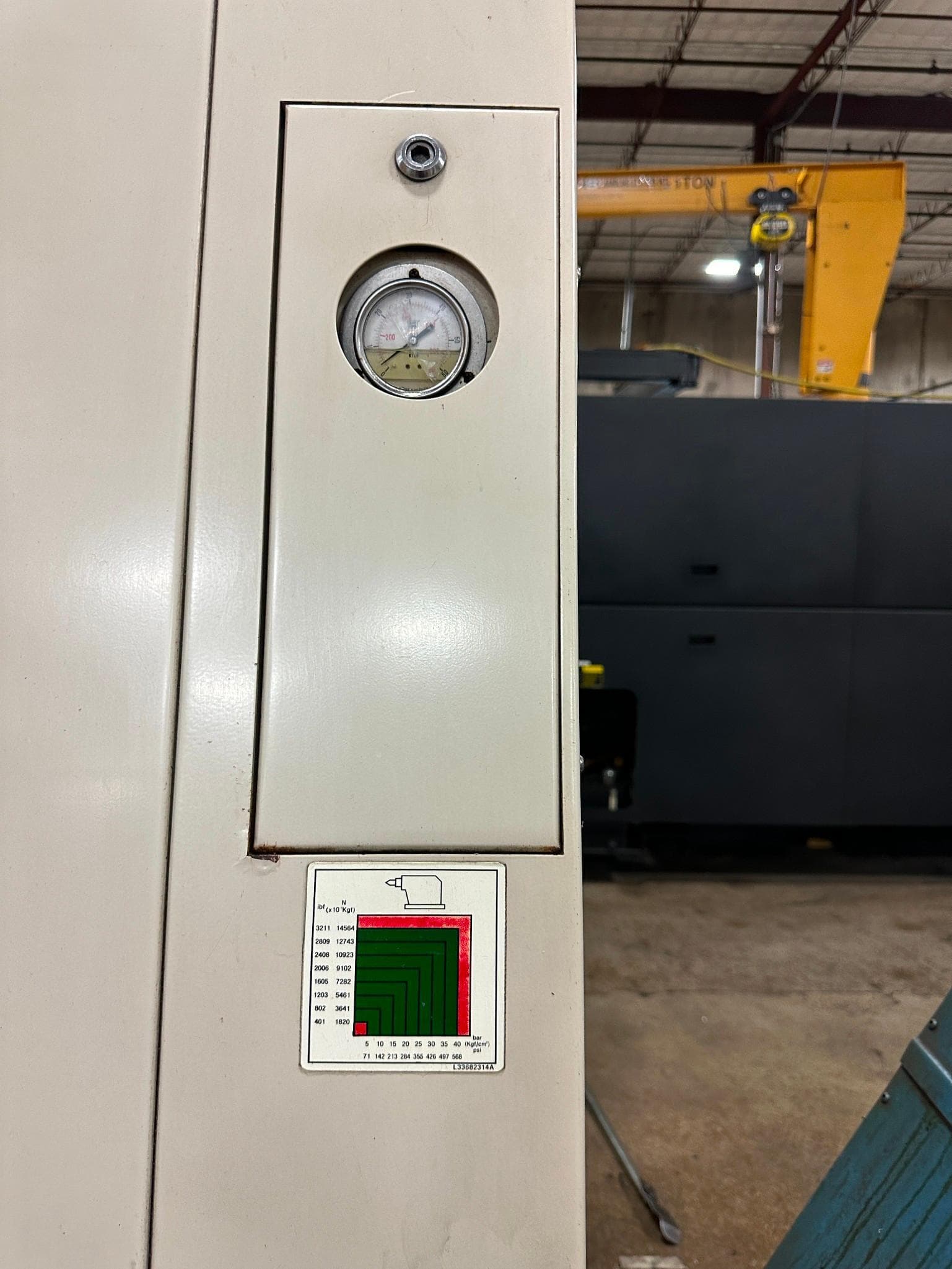

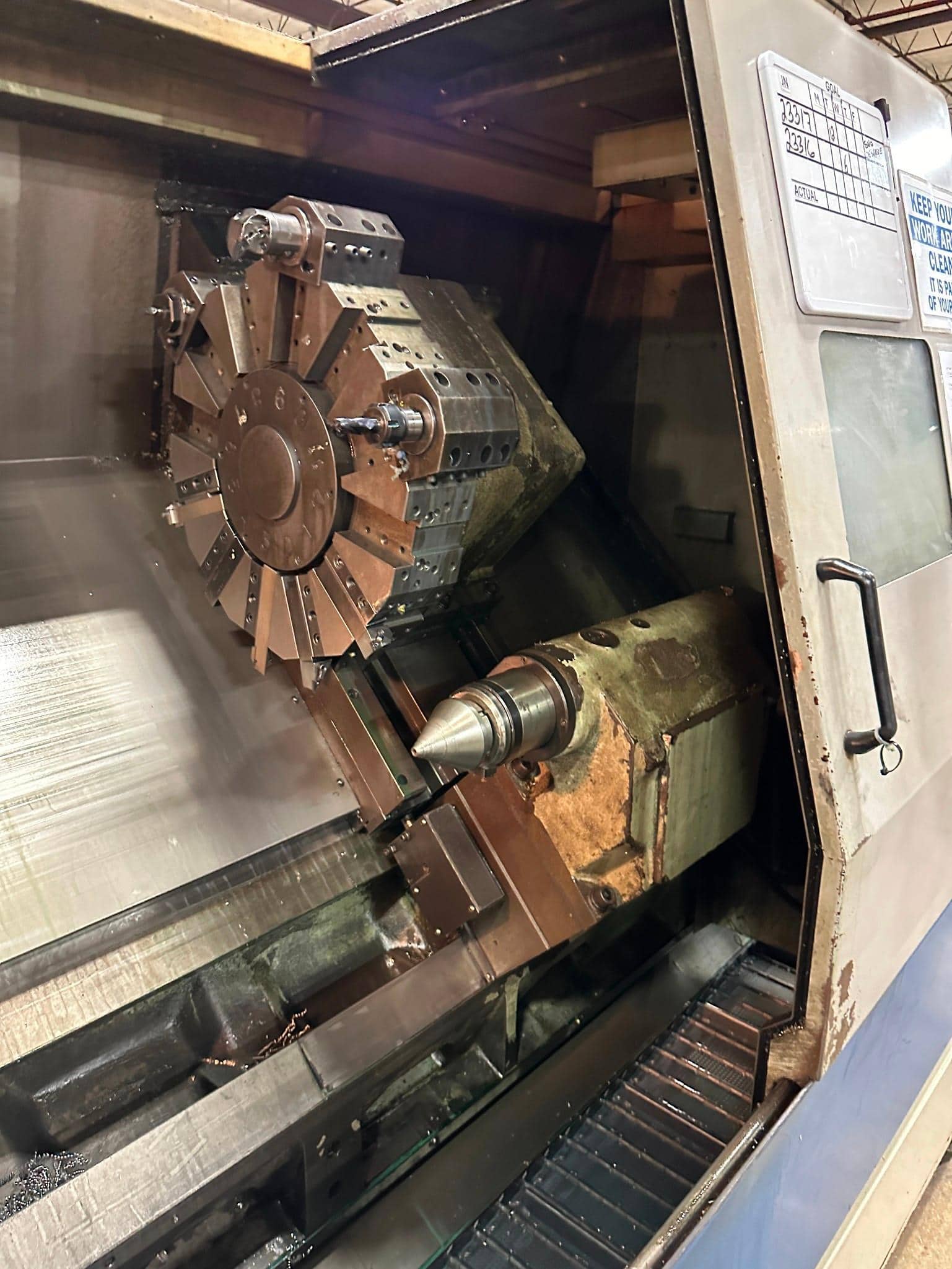

Programmable tailstock
Presetter

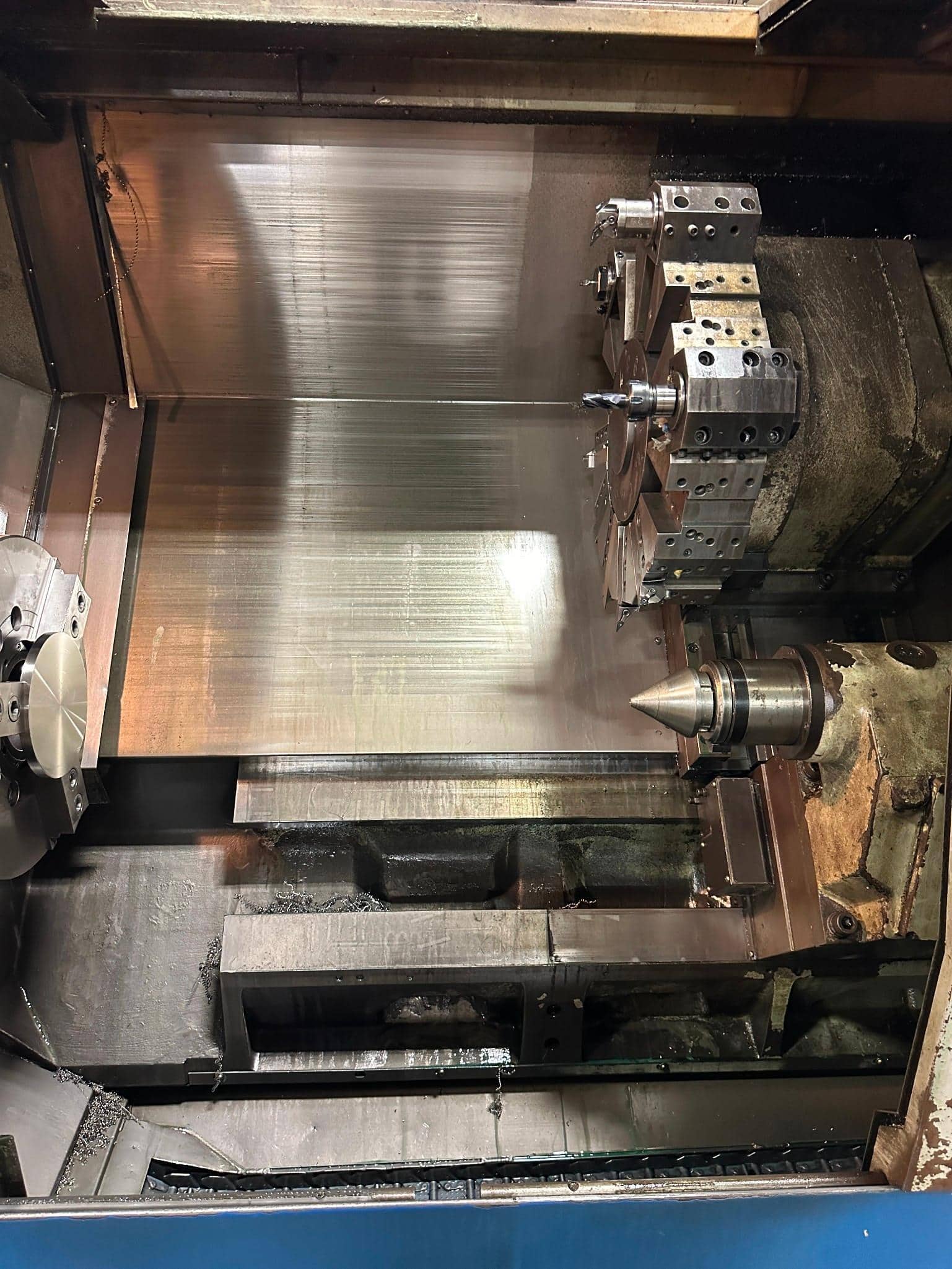

Note: Tool blocks shown are included; no tooling
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
