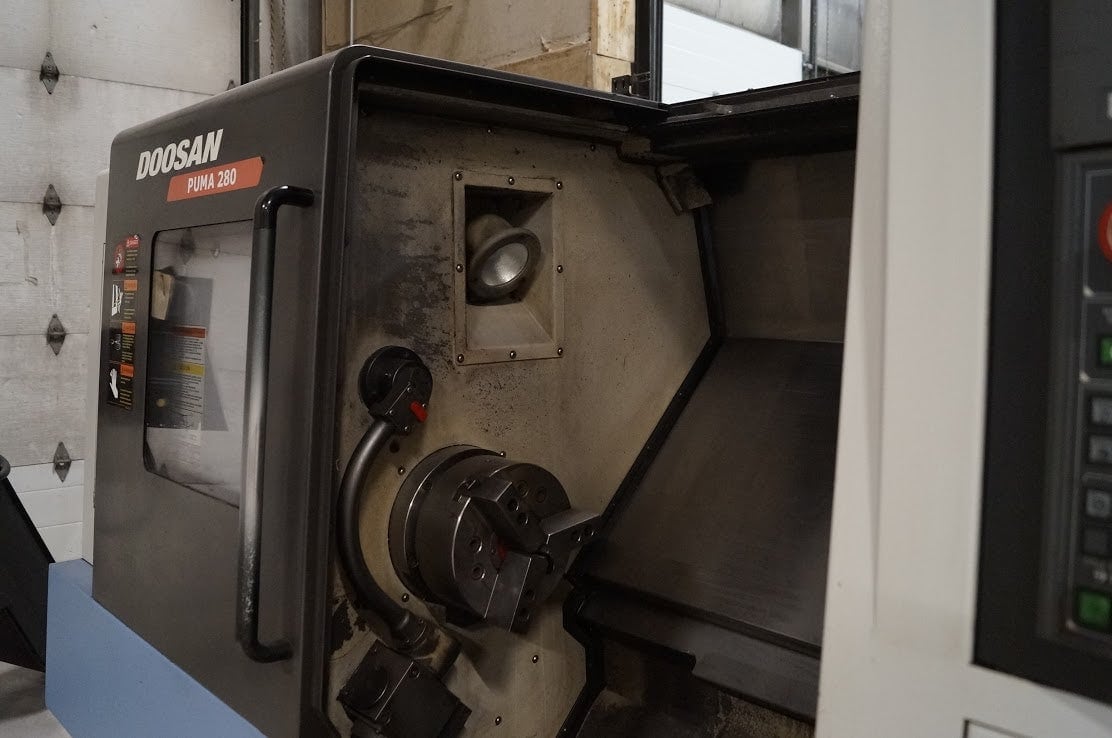

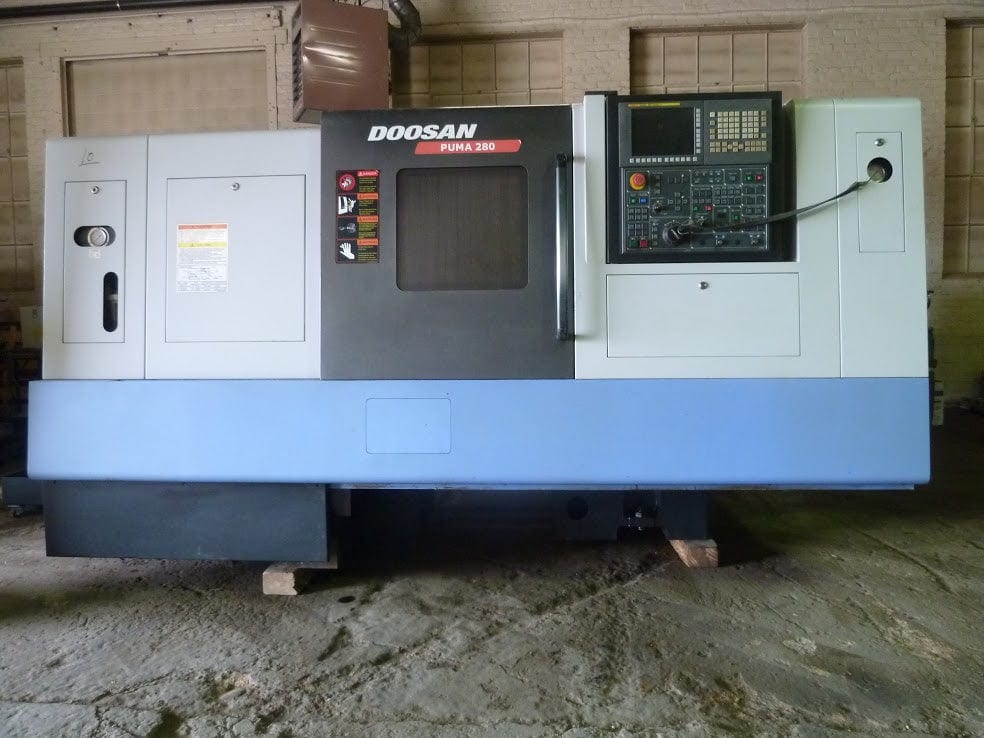

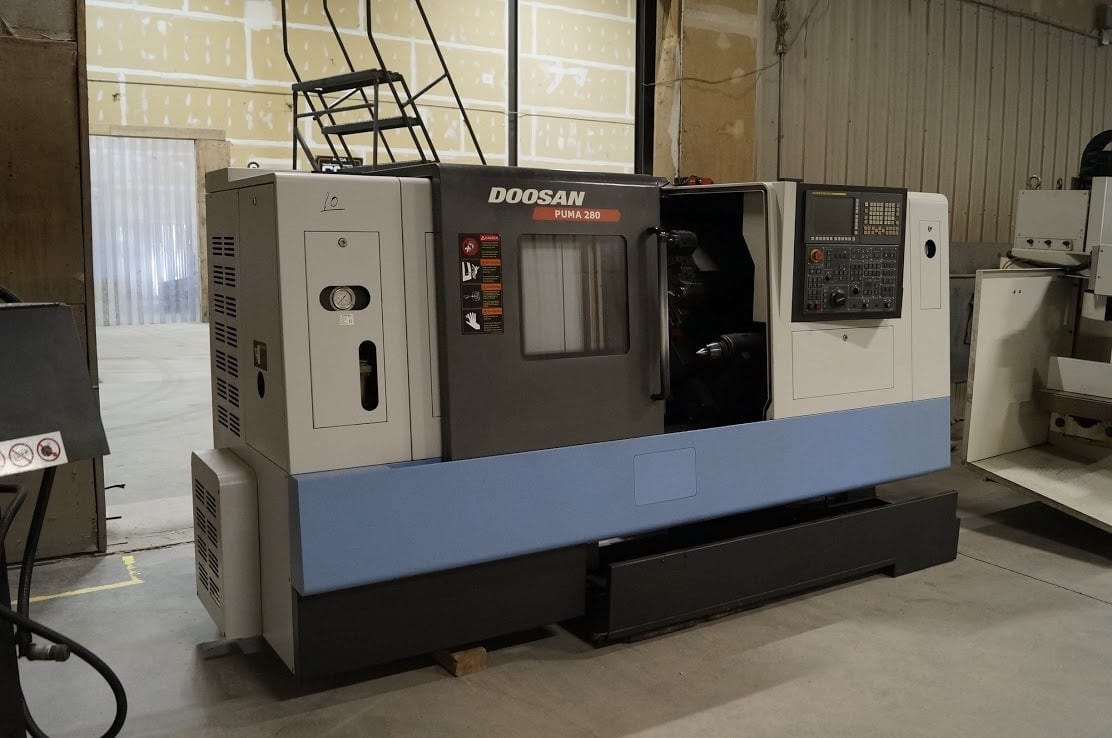

Doosan Puma 280, CNC Turning Center CNC Lathe, 2009
$28,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Turning Diameter: 16.14″
Max Turning Length: 24.8″
Max Bar Capacity: 3.04″
Swing Over Bed: 24.8″
Swing Over Carriage: 17.7″
Distance Between Centers: 27.8″
X Axis Travel: 9.53″
Z Axis Travel: 26.8″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

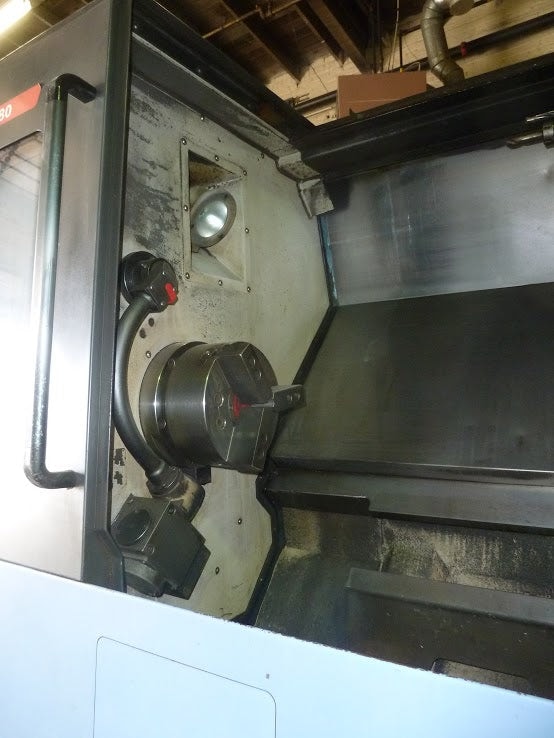

Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 0 – 3500 RPM
Spindle Motor: 30 HP

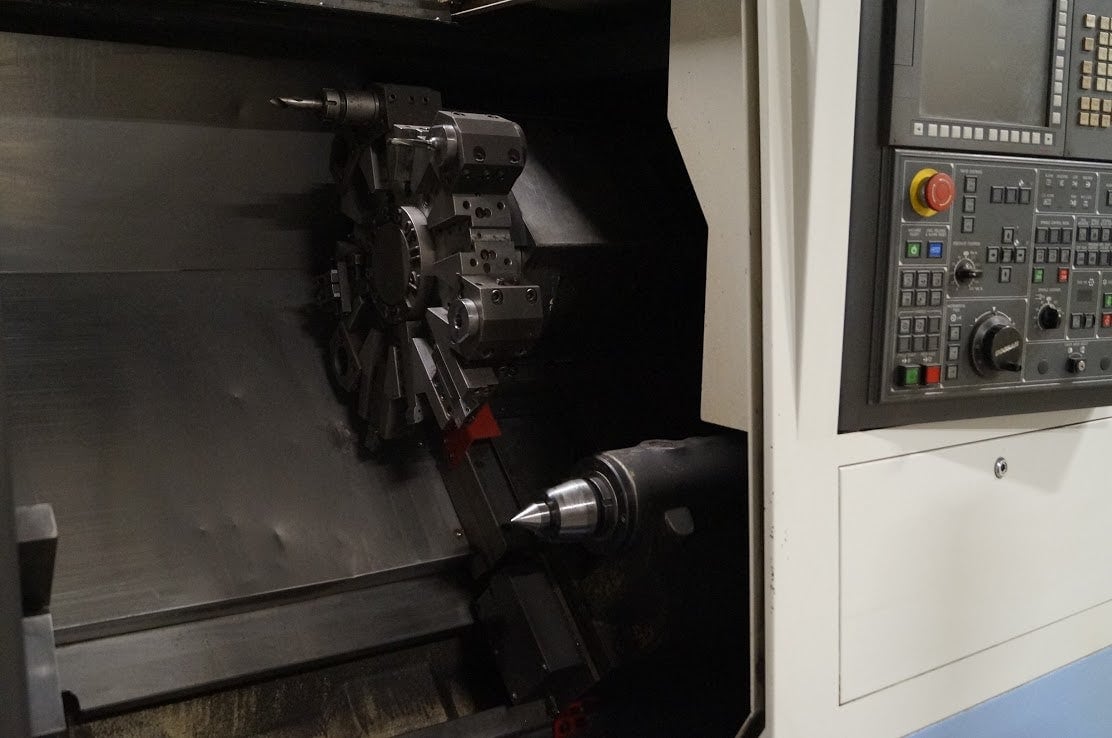

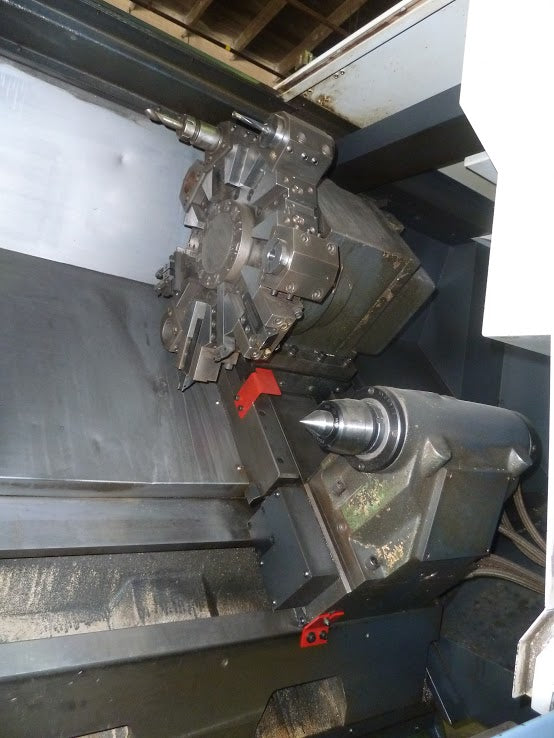

Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97″
Tailstock Quill Travel: 4.7″
General:
Power: 45 kva, 220v / 3-Phase
Overall Dimensions: 130″ x 77″ x 80″ High

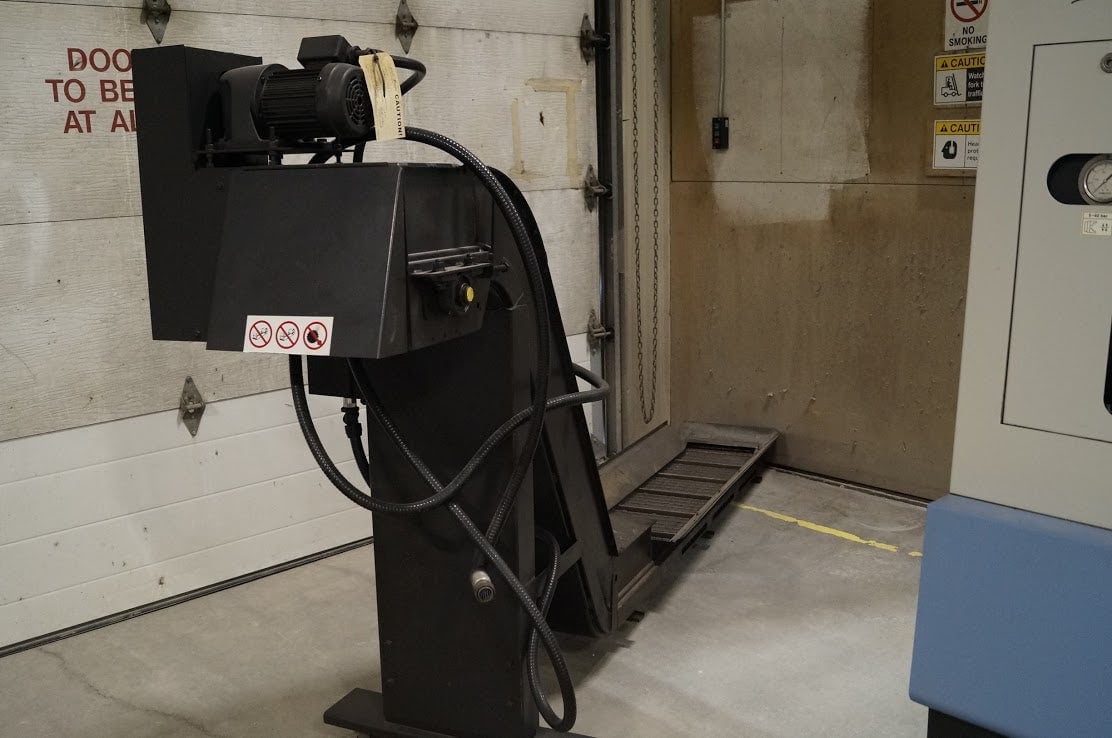

Overall Dimensions: 148″ x 77″ x 80″ High with Chip Conveyor
Weight: ~4700KG
EQUIPPED WITH:

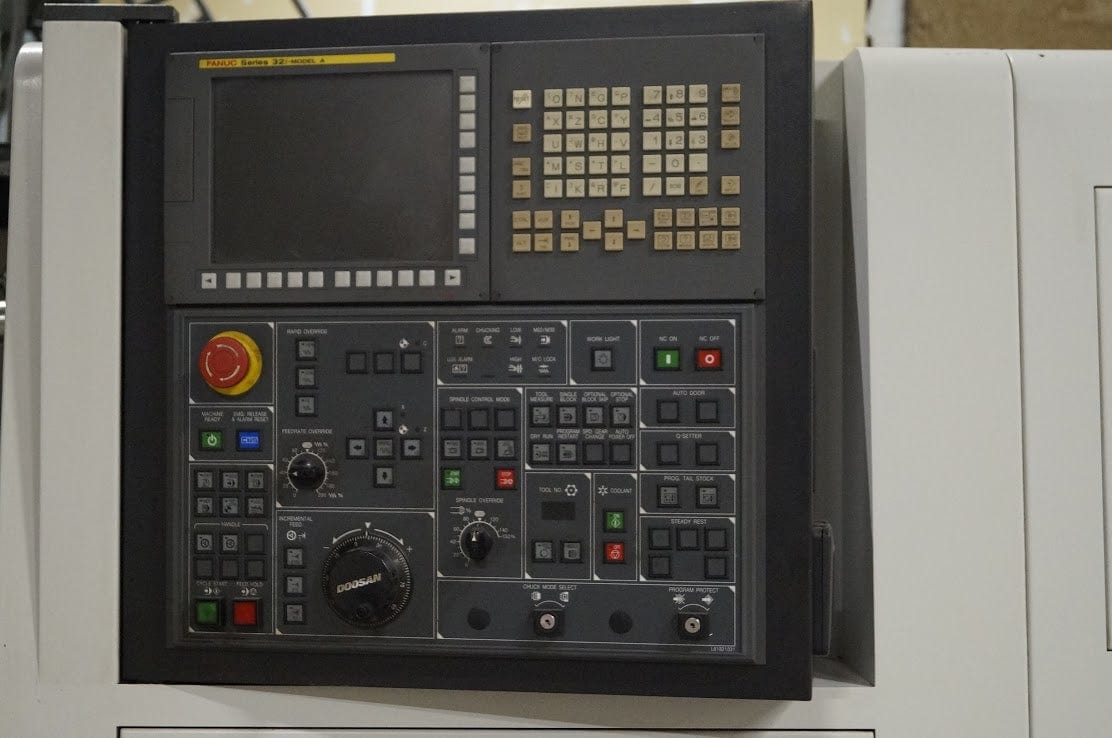

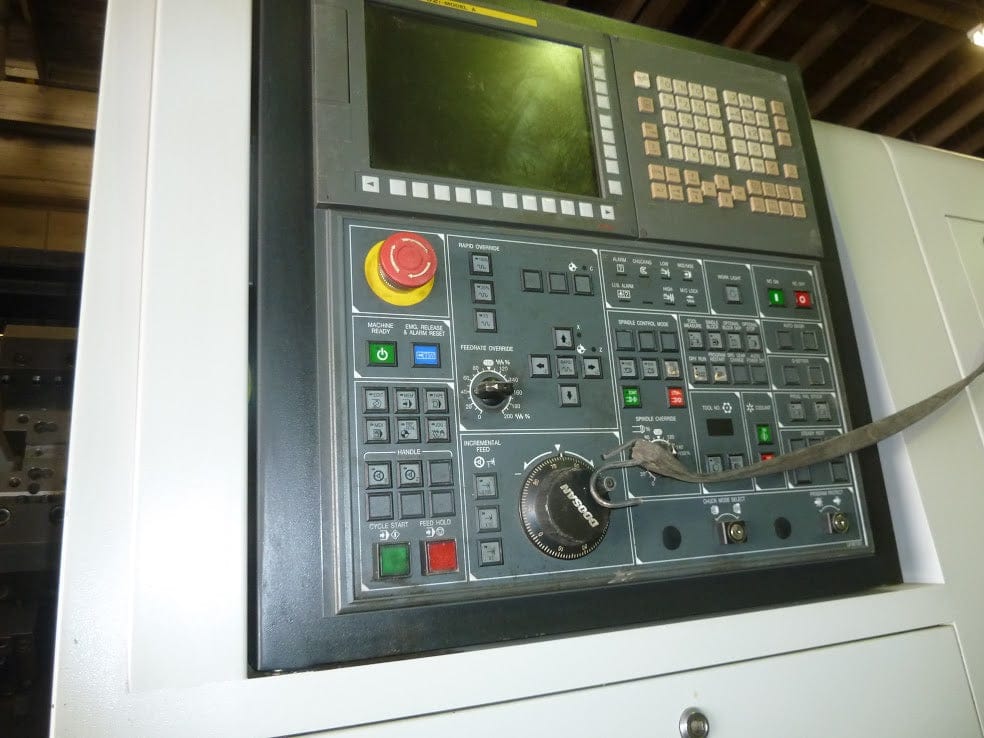

Fanuc Series 32i-Model A Control
