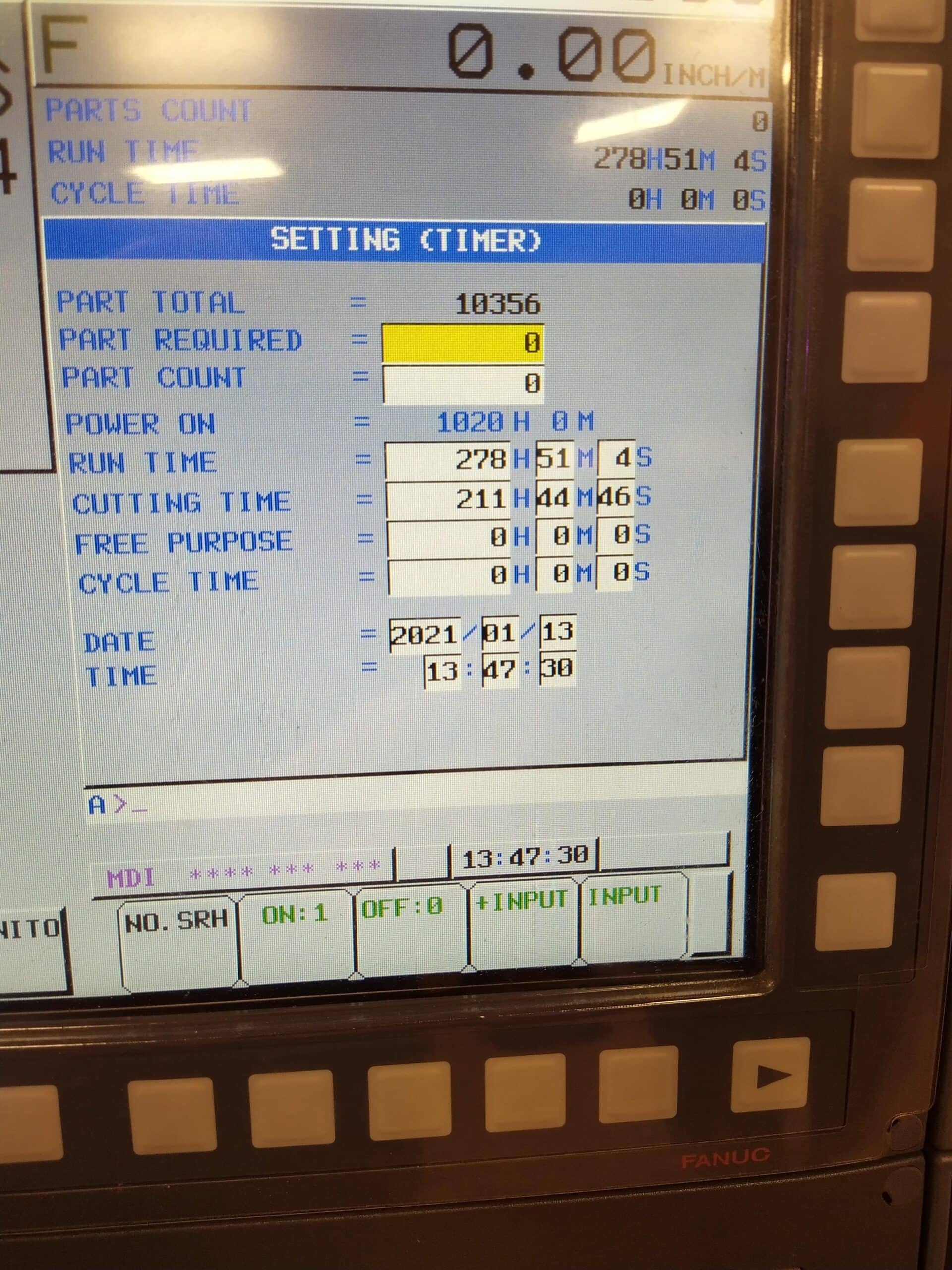

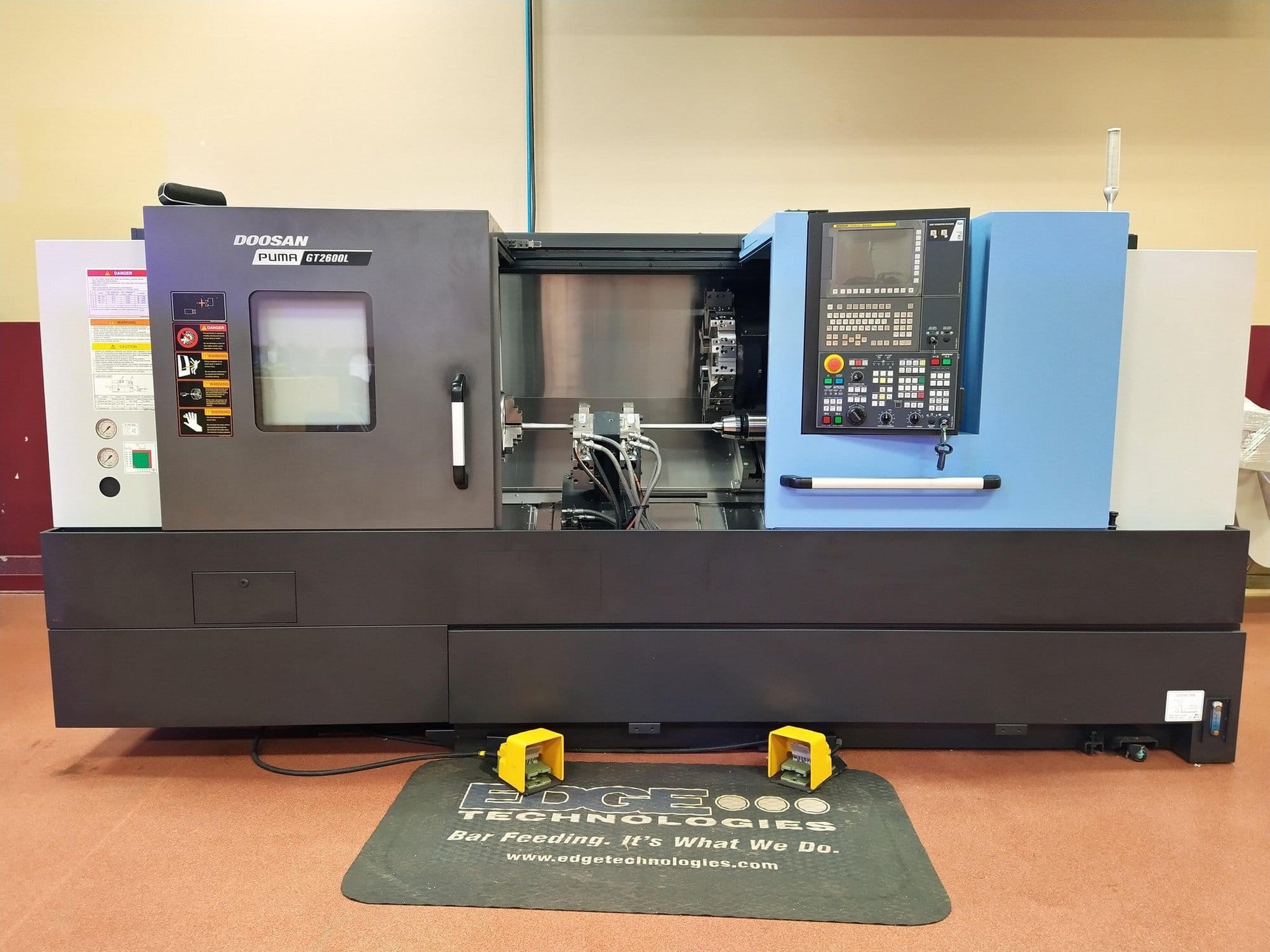

Doosan GT2600L CNC Lathe, 2018 – Programmable Tailstock, Tooling Included, Only 200 Hours!

CAPACITY:
Swing over bed​: 630 mm (24.8″)
Swing over carriage: ​460 mm (18.1″)
Maximum turning diameter: ​460 mm (18.1″)
Maximum turning length​: 1078 mm (42.4″)
Distance between spindle nose and tailstock center​: 1,263 mm (49.7″)

SPINDLE:
Spindle speed: ​3,500 rpm
Spindle nose​: A2-8
Draw tube: ID​82 mm (3.23″)
Standard chuck through hole: ID​82 mm (3.23″)
Spindle bore diameter​: 91 mm (3.58″)
AC spindle motor: (30 min. rating)​22 kW (30 hp)
Maximum spindle torque: (15 min. rating)​622 Nm (459 ft-lb)
Standard chuck size​:254 mm (10″)

BED, SADDLE & CROSS SLIDE:
Angle of slant bed​: 30 degree
X axis travel​: 265 mm (10.43″)
Z axis travel​: 1,100 mm (43.3″)
X axis guide way span: ​255 mm (10.0″)
Z axis guide way span​: 360 mm (14.2″)
X axis rapid traverse rate: ​24 m/min (945 ipm)
Z axis rapid traverse rate​: 30 m/min (1,181 ipm)
X axis ball screw diameter: ​32 mm (1.26″)
Z axis ball screw diameter​: 40 mm (1.57″)
X axis feed thrust (continuous): ​6,761 N (1,520 lb)
X axis feed thrust (intermittent)​: 9,465 N (2,127 lb)
Z axis feed thrust (continuous)​: 12,414 N (2,791 lb)
Z axis feed thrust (intermittent)​: 17,379 N (3,907 lb)
X axis repeatability: ​±0.002 mm (±0.00008″)
Z axis repeatability​: ±0.003 mm (±0.00012″)

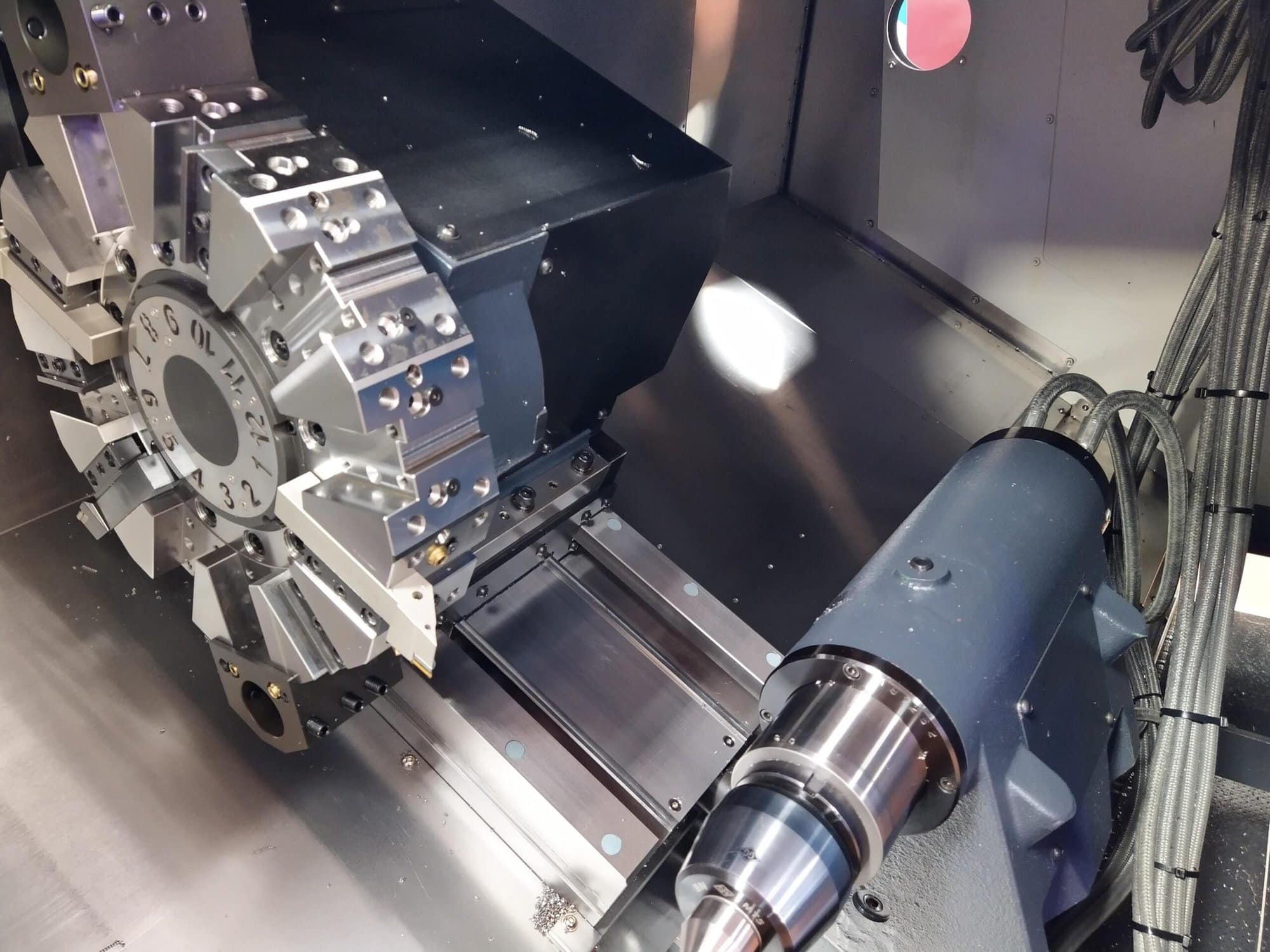

TURRET:
Number of tools​: 12
Tool holder type​: BMT-KEY
Turning tool shank size: ​(metric turret 25 mm) 1.0″
Boring bar diameter​: (metric turret 50 mm) 2.0″
Turret index time: (next station swivel time)​0.15 second
Tool selection​: Bi-directional
Curvic coupling diameter: ​203 mm (7.99″)
Turret clamping force​: 53 kN (11,915 lb)
Turret index repeatability: ​±0.0005 degree

TAILSTOCK:
Tailstock center​: MT #5 live
Tailstock quill diameter: ​100 mm (3.94″)
Tailstock quill stroke (programmable): ​100 mm (3.94″)
Maximum tailstock quill thrust: ​11 kN (2,473 lb)
Maximum tailstock hydraulic pressure: ​40 bar (580 psi)
Tailstock guide way span: ​​235 mm (9.25″)

COOLANT SYSTEM:
Coolant pump pressure​: 4.5 bar (65 psi)
Coolant pump motor​: .75 kW (1.0 hp)
Coolant tank capacity​: 268 l (71 gal)

HYDRAULIC / LUBRICATION:
Hydraulic tank capacity: ​13 l (3.4 gal)
Hydraulic oil required: *​Mobil DTE #24 or Shell Tellus 32
Way lubrication tank capacity: ​2.0 l (0.5 gal)
Way lubrication oil required: *​Mobil Vactra #2 or Shell Tonna T68

GENERAL:
Machine weight​: 5,700 kg (12,570 lb)
Floor space – length x width: ​3,735 mm x 1,630 mm (147″x64.2″)
Floor space – length with hinge belt chip conveyor​: 4,953 mm (195″)
Machine Height: ​1,720 mm (68″)
Height from floor to spindle center: ​1,047 mm (41.2″)
Voltage required: ​205-235V/3 ph/60 Hz
Power requirement: ​39 kVA (102 Amps @ 220 Volts)

Equipped With:

• Standard chuck specification: MH-210 10″ Samchully 3-jaw chuck. 254 mm (10″) diameter with 82 mm (3.23″) bore, 4.4 mm (.173″) jaw stroke – includes one set of soft jaws
• Hydraulic chuck actuator: SD-18582 with 82 mm (3.23″) through hole
• Programmable hydraulic tailstock (body clamp, drive pin and quill) – MT #5 live center
• Rigid tapping
• 65 psi multi-stage coolant pump
• Separate coolant tank with way lube oil skimmer
• Automated metered lubrication system
• P4 class spindle bearings and P4 class angular thrust bearings
• 580 psi hydraulic unit
• Safety features: fully enclosed work area, door interlock, hydraulic pressure safety switch, spindle Interlock, program protect, chucking signal
• 3 color signal tower and work light
• Tool box with operating tools
• Leveling bolts and plates
• Operation manuals, maintenance manuals, parts list, electrical drawings and factory test report

Tooling Included:

850418-00864 Tool holder – OD Extended – (R & L) (1″ sq)
2
L32510647C Tool holder – OD Face – (R & L) (1″ sq)
2
L31510617A Tool holder – OD – Wedge clamp (1″ sq)
2
L32510637G Tool holder – ID – 2.000″ ID
6
L32590517F Sleeves – Boring bar (6 pc kit) – 2.000″ OD X (0.500, 0.625, 0.750, 1.000, 1.250 & 1.500″ ID)
1
L33590577D Sleeves – U-Drill (4 pc kit) – 2.000″ OD X (0.750, 1.000, 1.250 & 1.500″ ID)
1
L32516103 Cap – U-Drill for ID holder – coolant through the drill / boring bar
