DMTG HVL-50 400mm HMC 2003- Excellent Condition, 4th Axis, BT40, Fanuc Control
$29,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Axis Nomenclature

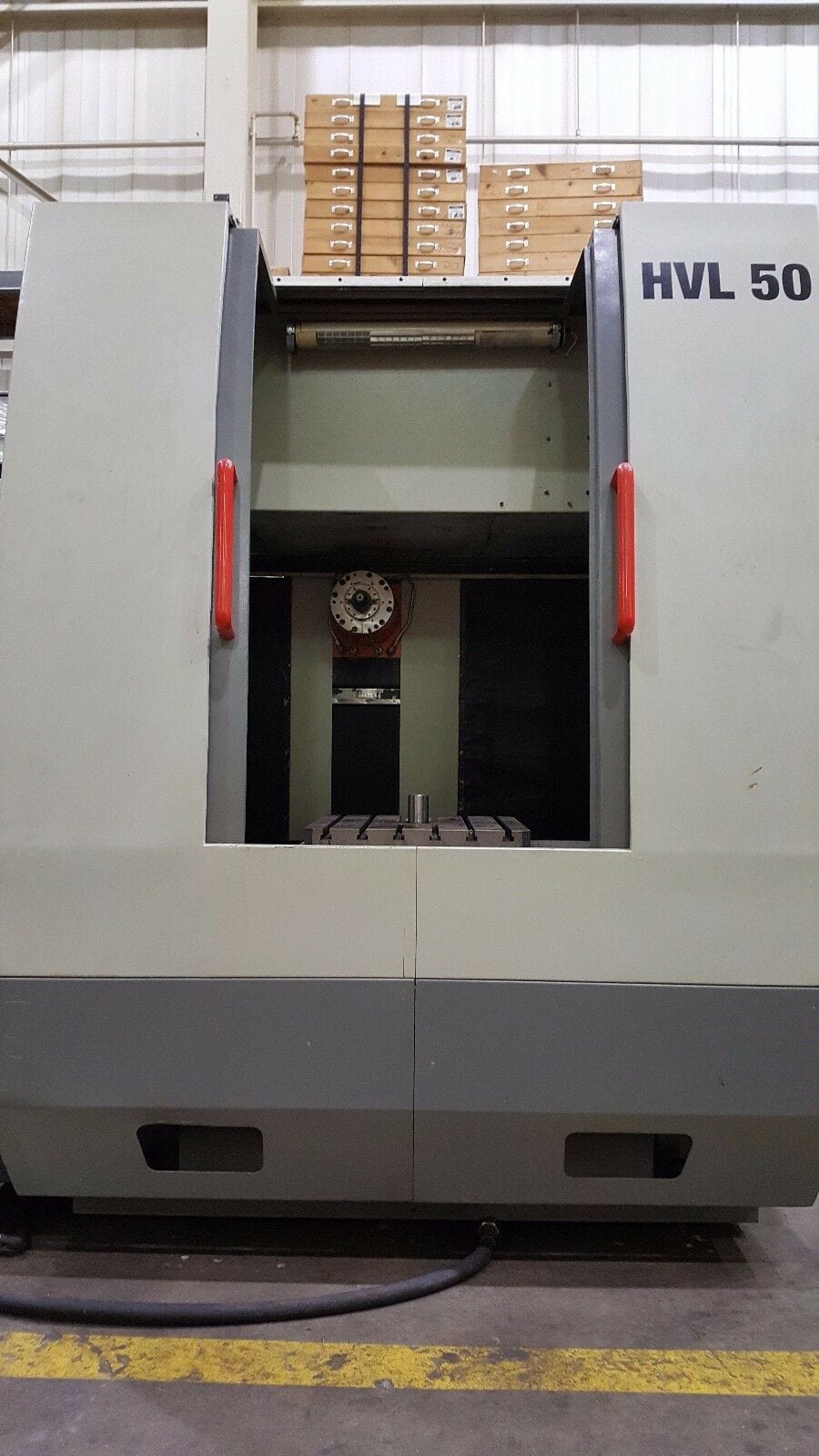

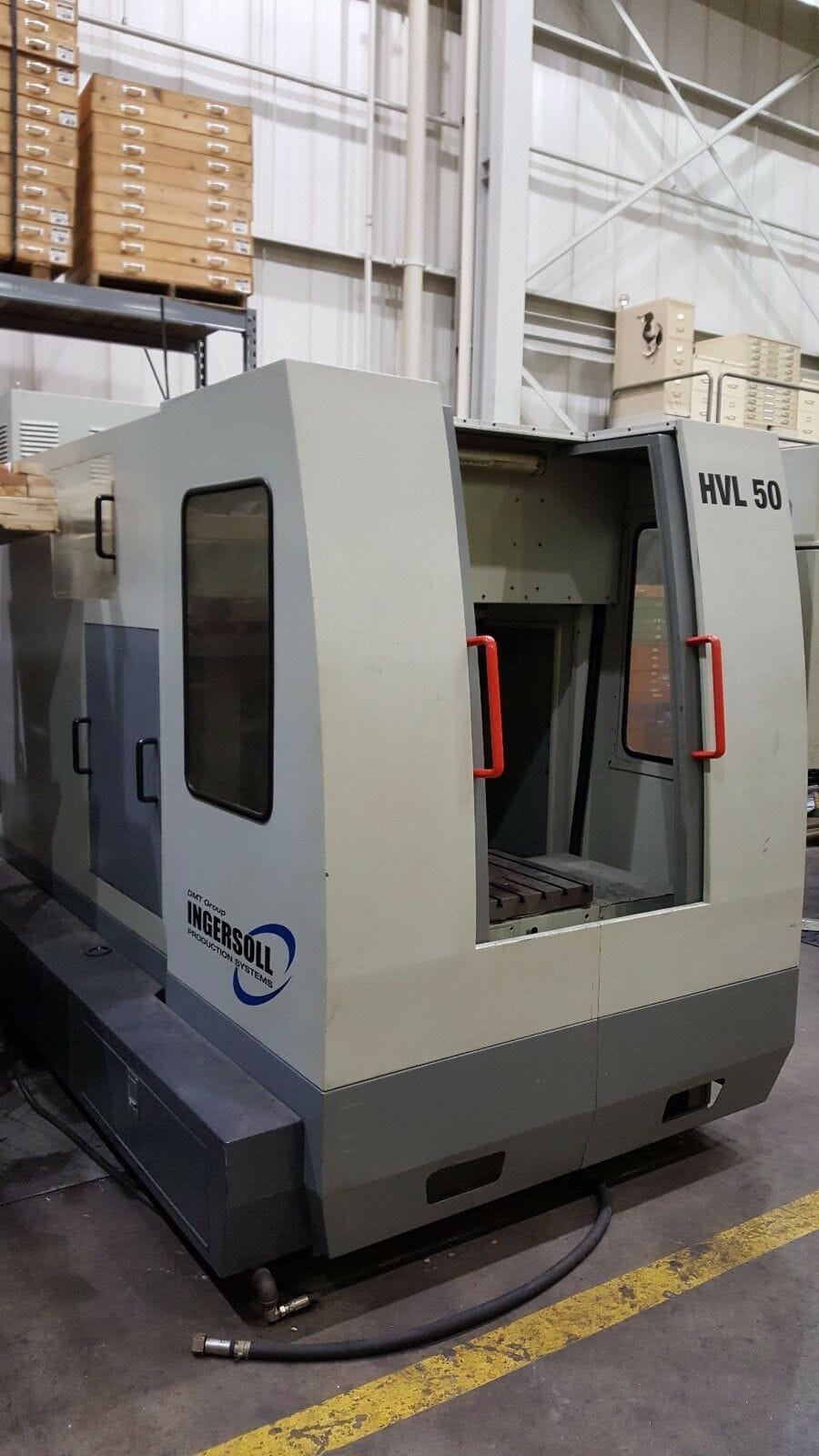

This machine is a 4-axis, CNC controlled, single head, Horizontal Milling Machining center, with a 15KW, 20HP spindle motor.
· X-axis: Traveling Column
· Y-axis: Saddle
· Z-axis: Table Slide
· B-axis: Rotary Table
Axis Travels
The total programmable axes travels in inches
· X-axis: 23.6 in
· Y-axis: 15.7 in
· Z-axis: 19.7 in
· B-axis: 360 Degree Continuous
Machine Capacity
The approximate working envelope is 15.75″ X 15.76″ X15.75″ (HxWxL). Using linear bearings, the machine is capable of the following:
· Feedrates: 394″/min
· Traverse Rates: 36 M/min
· Tool Adaption: MAS-1 BT40
Position Feedback
The Closed Loop operation of the machine is achieved using the Fanuc motor encoders.

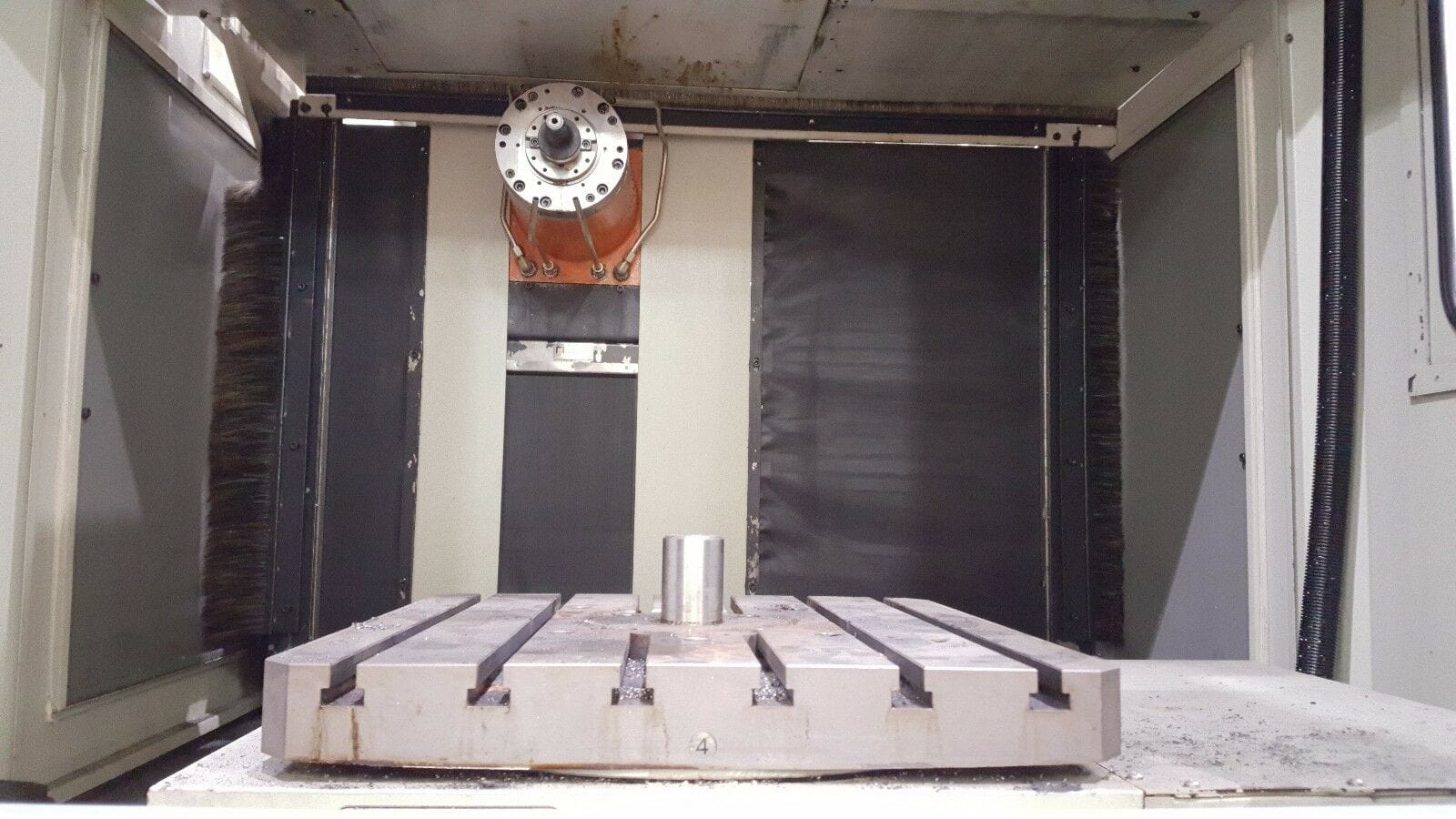

Table Description
The 15.75″ x 15.75″mm rotary table allows the part to be positioned in any orientation for machining.
Spindle Capacity
The 20 hp, 8,000 rpm spindle will deliver a minimum of 20HP at 1500 rpm.
Tool Changing System
System consists of a 16 pocket tool drum capable of changing tools in 1.2 seconds (tool to tool). System capacities are as follows:
· Max Weight: 5 kg
· Max Diameter: 3.1″
· Max Length: 11.8”

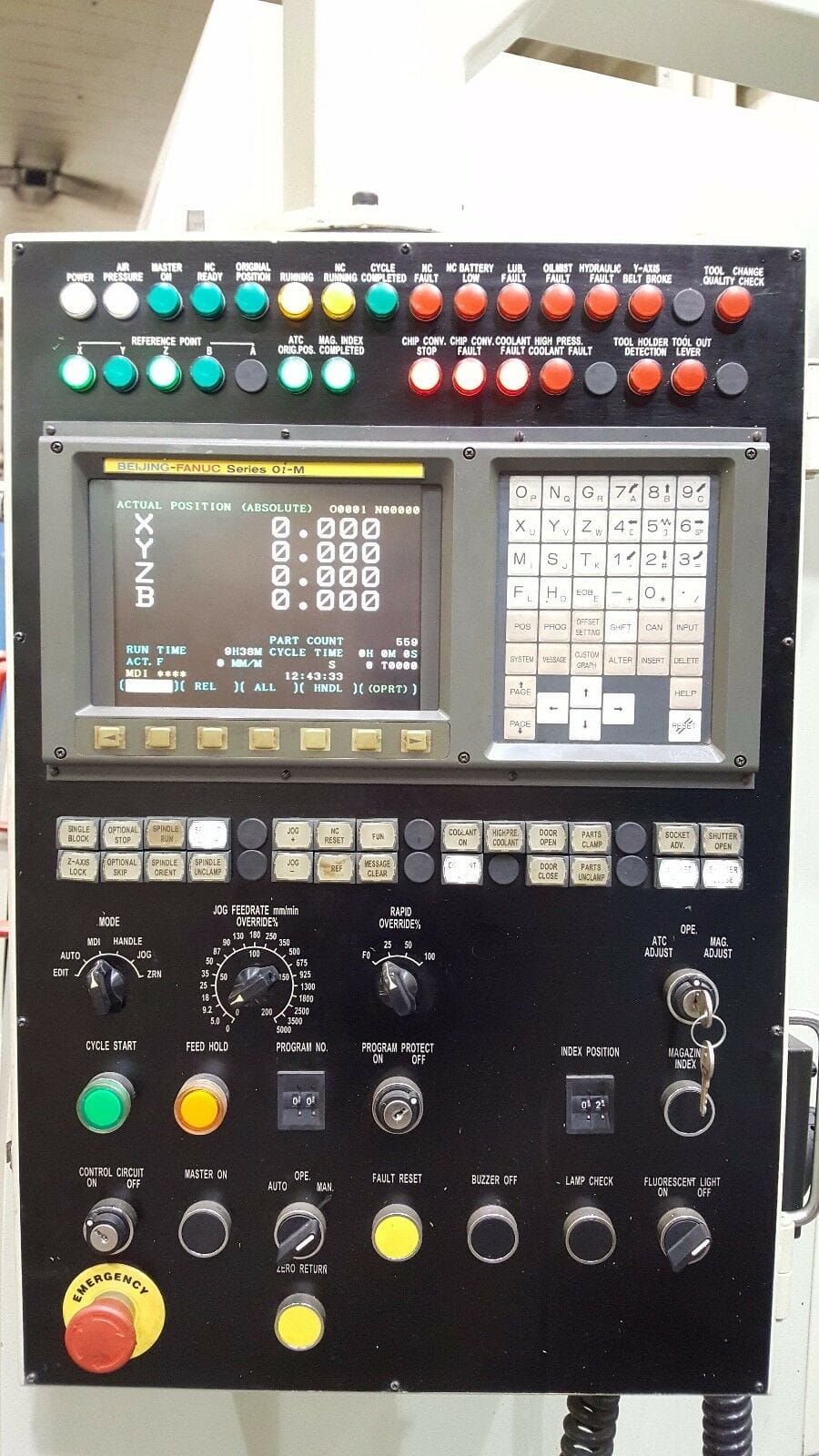

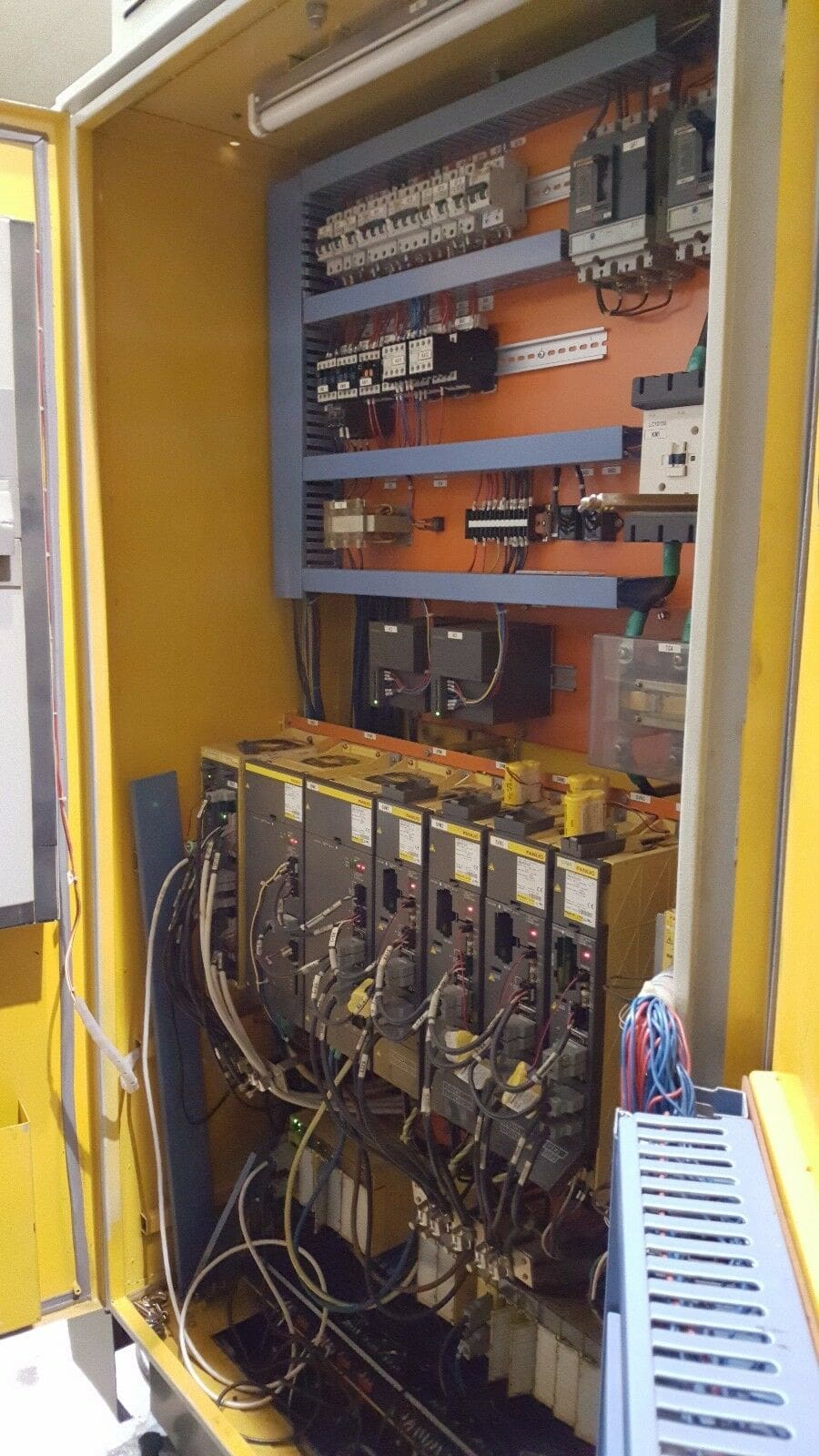

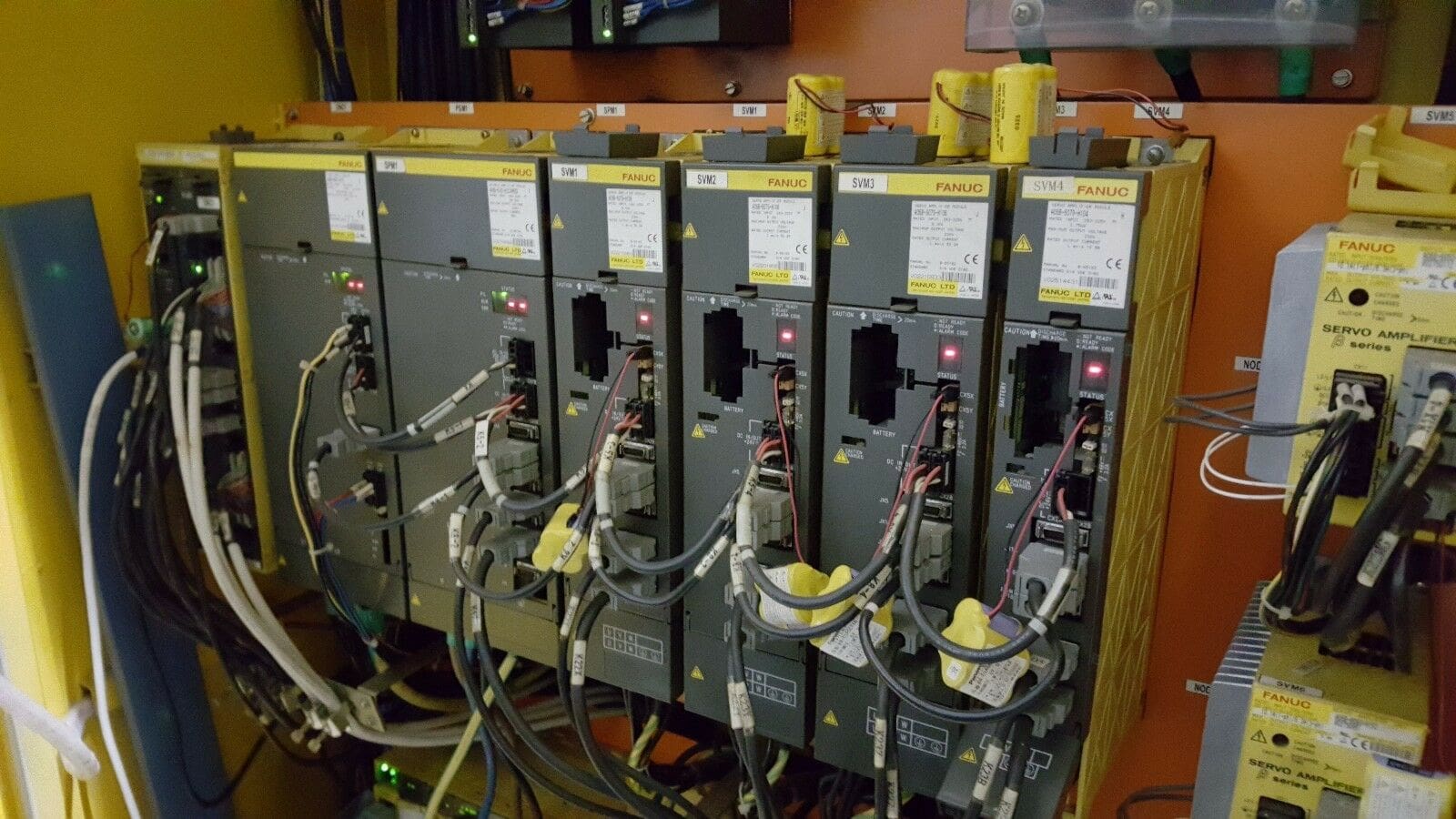

Control System
The machine is currently controlled by a Fanuc 0i CNC. The Fanuc platform provides single control architecture for discrete I/O, drives, motion and process control systems. However, the machine can be retrofitted to the following:
· Siemens 828D or 840D CNC
· Fanuc 30i, 31i or 32i CNC
