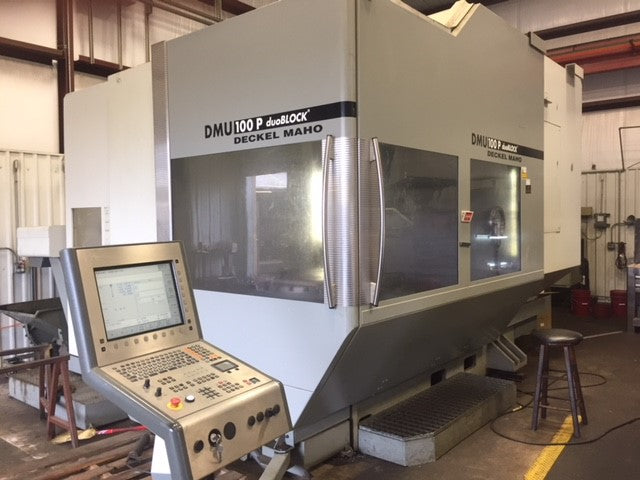

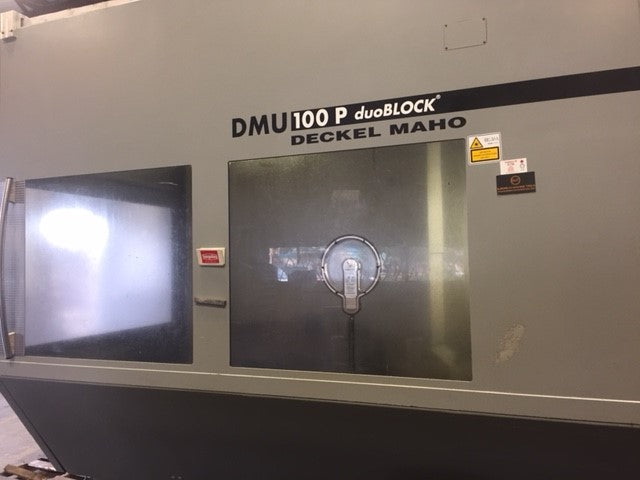

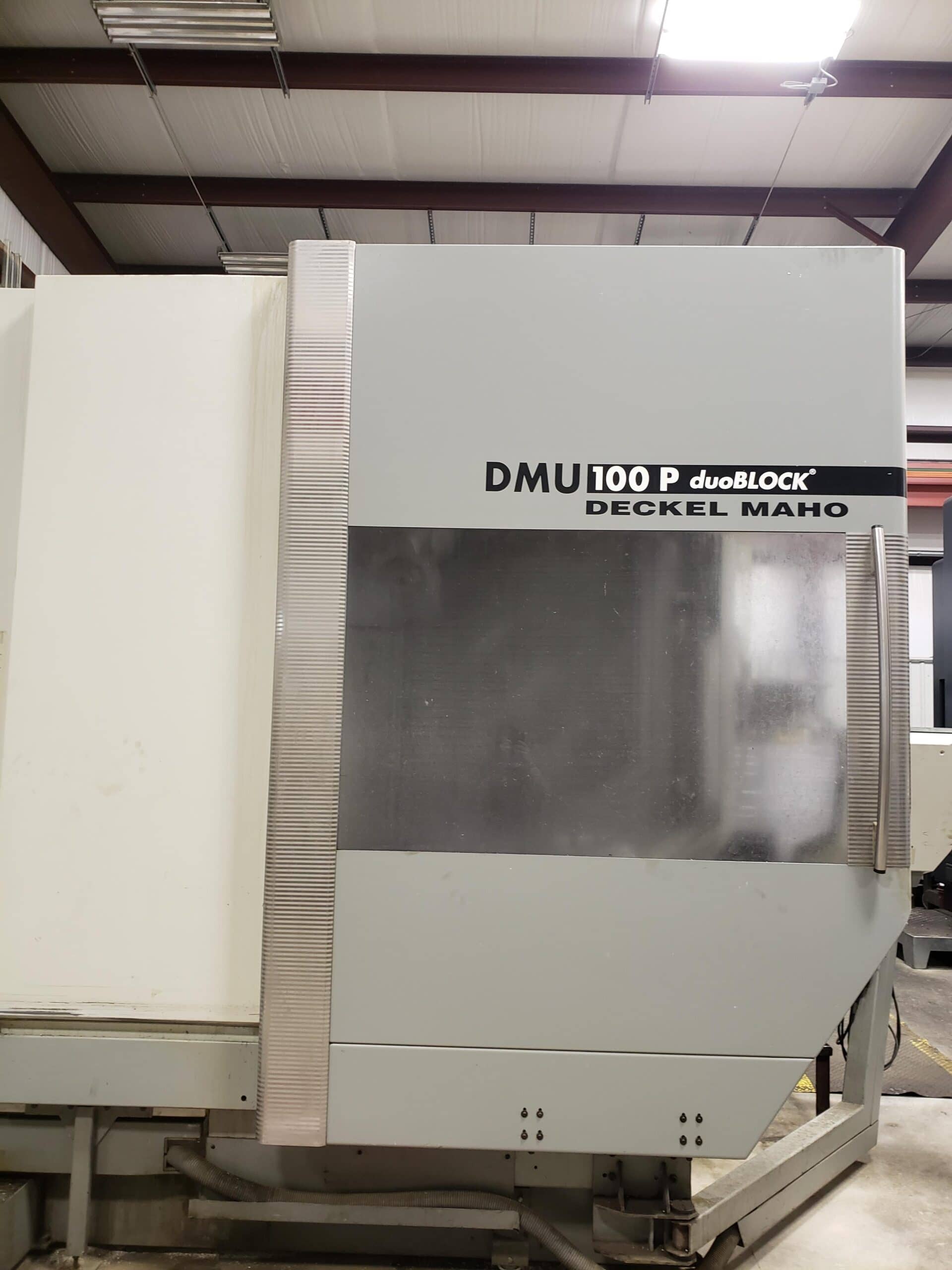

DMG Mori, Deckel Maho DMU 100 P DUOBLOCK, 5 Axis Machining Center, 2004
$109,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

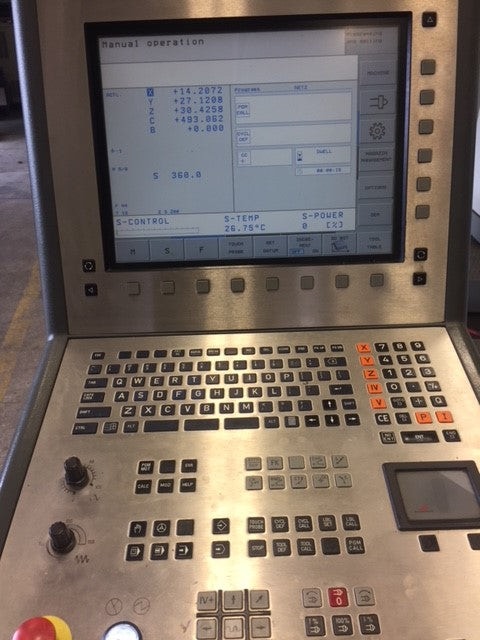

HEIDENHAIN iTNC 530 3-D control with 15″ TFT flat screen & handwheel
WORKING RANGE:
X axis (longitudinal): 39.4″ (1,000 mm)
Y axis (transverse): 39.4″ (1,000 mm)
Z axis (vertical): 39.4″ (1,000 mm)
MAXIMUM WORKPIECE DIMENSIONS:
Max. workpiece diameter: 49.2″ (1,250 mm)
Max. workpiece height: 62.2″ (1,580 mm)
Max. workpiece weight: 4,409 lbs (2,000 kg)

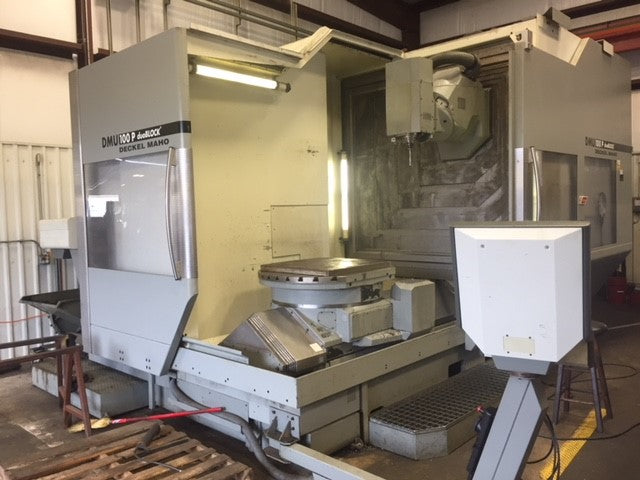

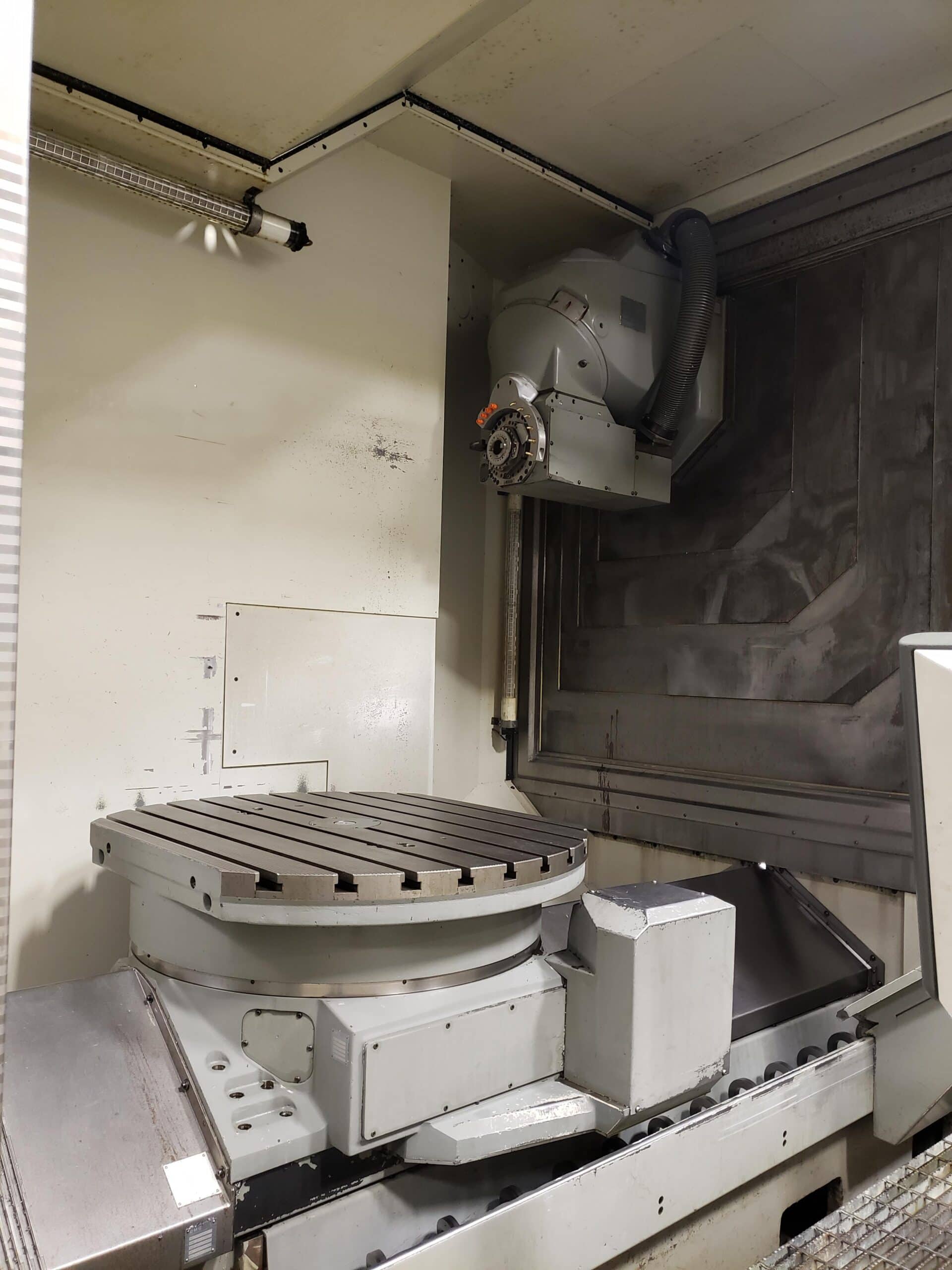

NC ROTARY TABLE 4TH AXIS (C-AXIS)
Clamping surface: 43.3″ diameter x 35.4″ (1,100mm diameter x 900mm)
Max. table load (Centered): 4,400 lbs (2,000 kg)
Max. torque (40%ED): 3,614 ft/lb (4,900 Nm)
Max. holding momentum (40%ED): 3,614 ft/lb (4,900 Nm)
Rapid Speed rotary axis (C-axis): 30 rpm
1 x T-slot 18 H7 (alignment groove, table centre)
8 x T-slot 18 H12 (clamping gloves)
Distance between T- Slots: 4″ (100mm)
NC COONTROLLED 5TH AXIS (UNIVERSAL MILLING HEAD, B-AXIS)
B axis: NC controlled range up to 190 degrees. From vertical position 0 degrees to the left -10 degrees (in direction of tool magazine) and to the right to horizontal position + 180 degrees = 3D190 degrees in total.
MAIN DRIVE
Type: AC controlled/digital
Spindle speed range: 20-18,000 rpm
Acceleration/deceleration: 2.2 seconds
Spindle bearing diameter front and rear: 3.15″ (80mm) and 2.36″ (60mm)
Spindle Taper: CAT 40
EQUIPPED WITH:
60 Position Tool Changer

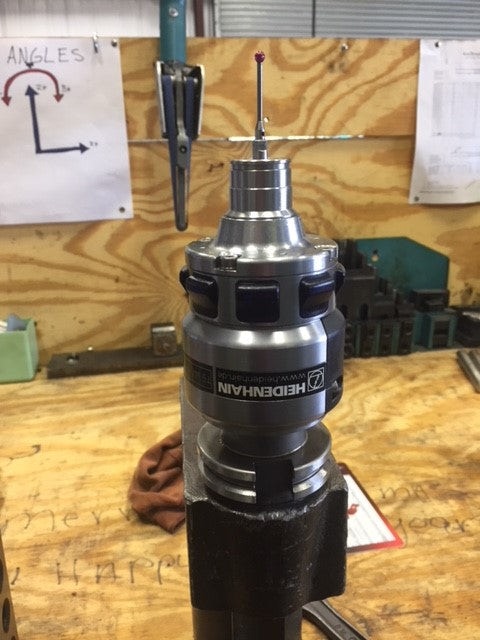

Heidenhain Measuring System
External Flood Coolant Pump
Fully Enclosed Potection Cabin

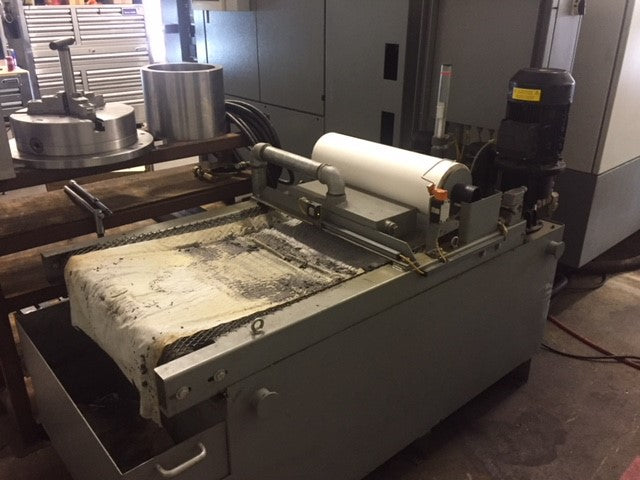

Coolant Tank: 158 gallon (600 l)
Chip Conveyor with Interval Control
Blum Laser Measuring Tool
