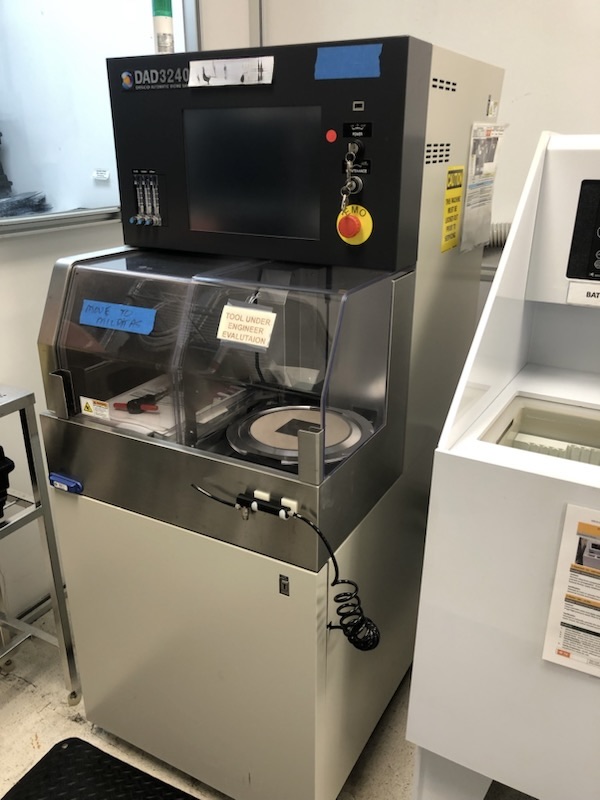

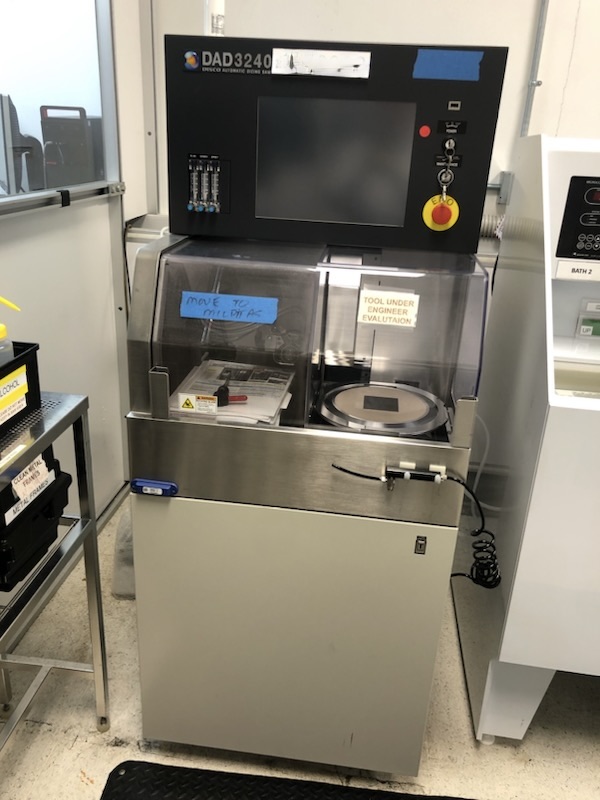

DISCO DAD3240 Dicing Saw, 2018

-Max. workpiece size: Φ8 inch / Square die 200mm
-X-axis:
-Cutting range: 210 mm
-Cutting speed: 0.1 ～ 600 mm/s
-Y-axis:
-Cutting range: 210 mm
-Index step: 0.0001 mm
-Z-axis:
-Max. stroke: 32.2 mm
-Moving resolution: 0.00005 mm
-θ-axis:
-Max. rotating angle: 320°
-Spindle:
-Rated output: 1.8 kW
-Rated torque: 0.29 N·m
-Rotation speed range: 6,000 ～ 60,000 min⁻¹
-Dimensions: 25.59″ × 37.40″ × 62.99″
-Weight: Approx. 1,168 pounds
