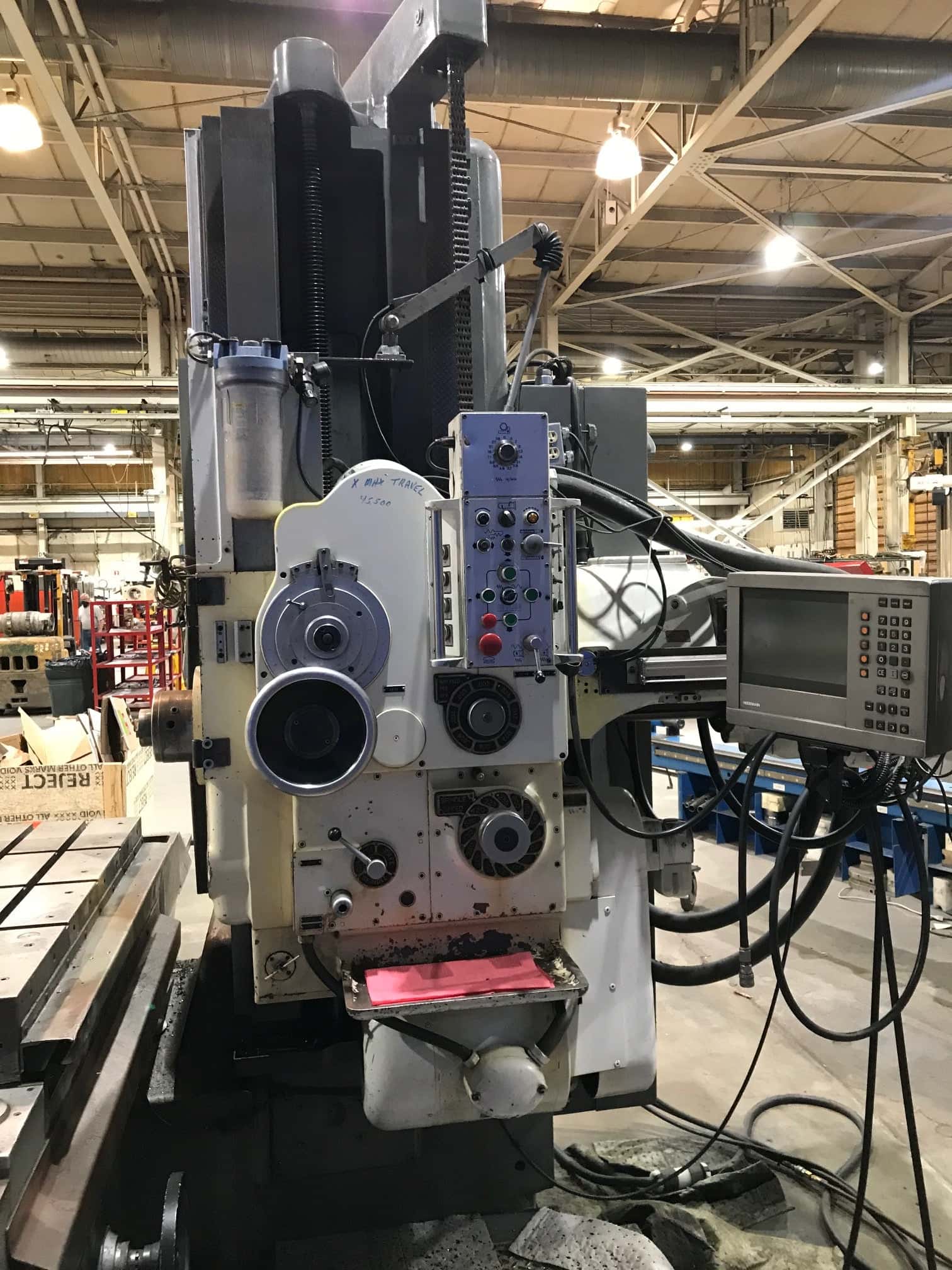

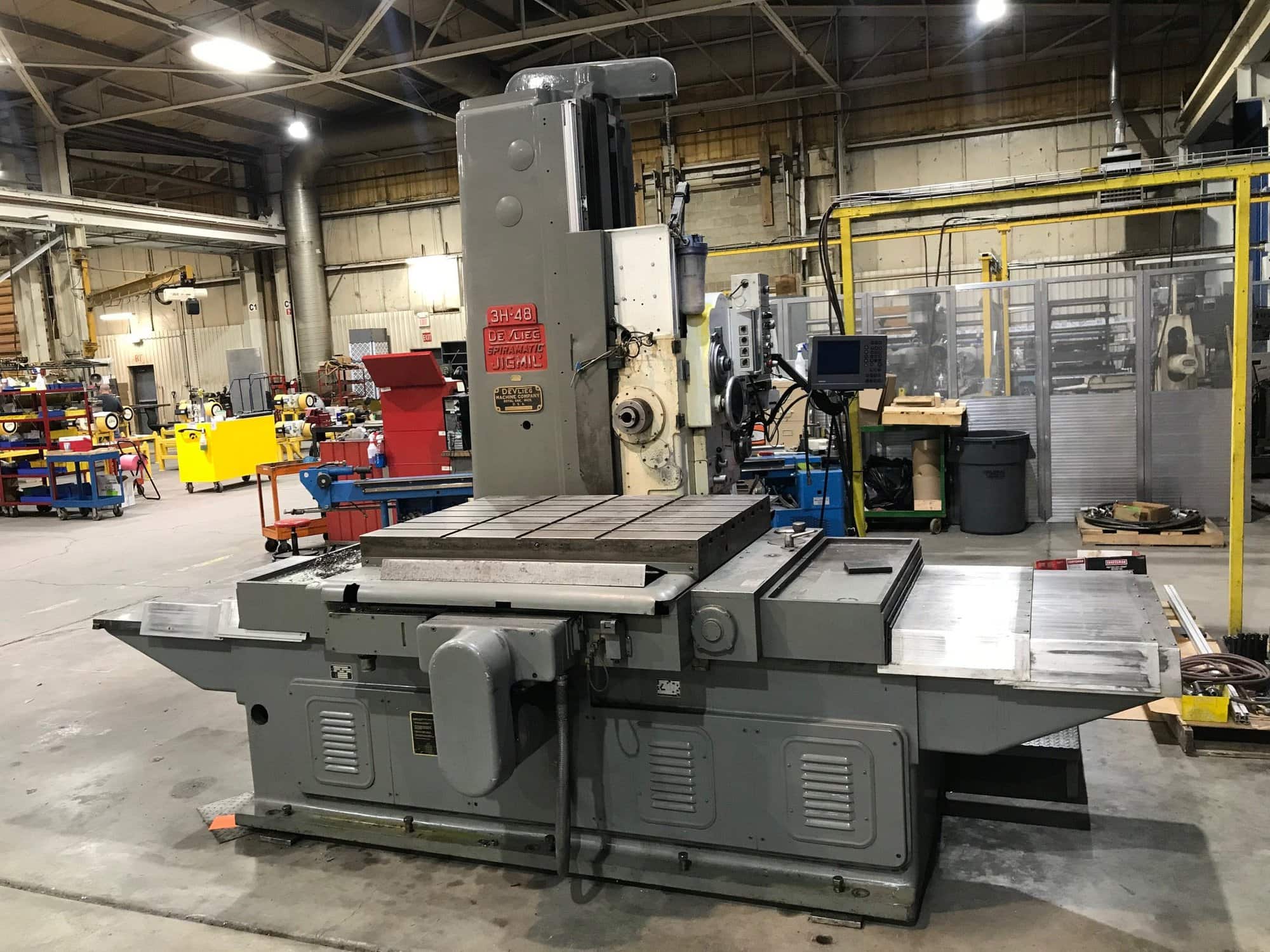

DeVlieg Spiramatic 3H-48 3″ Jig Mill- DRO, 1967
$9,475.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

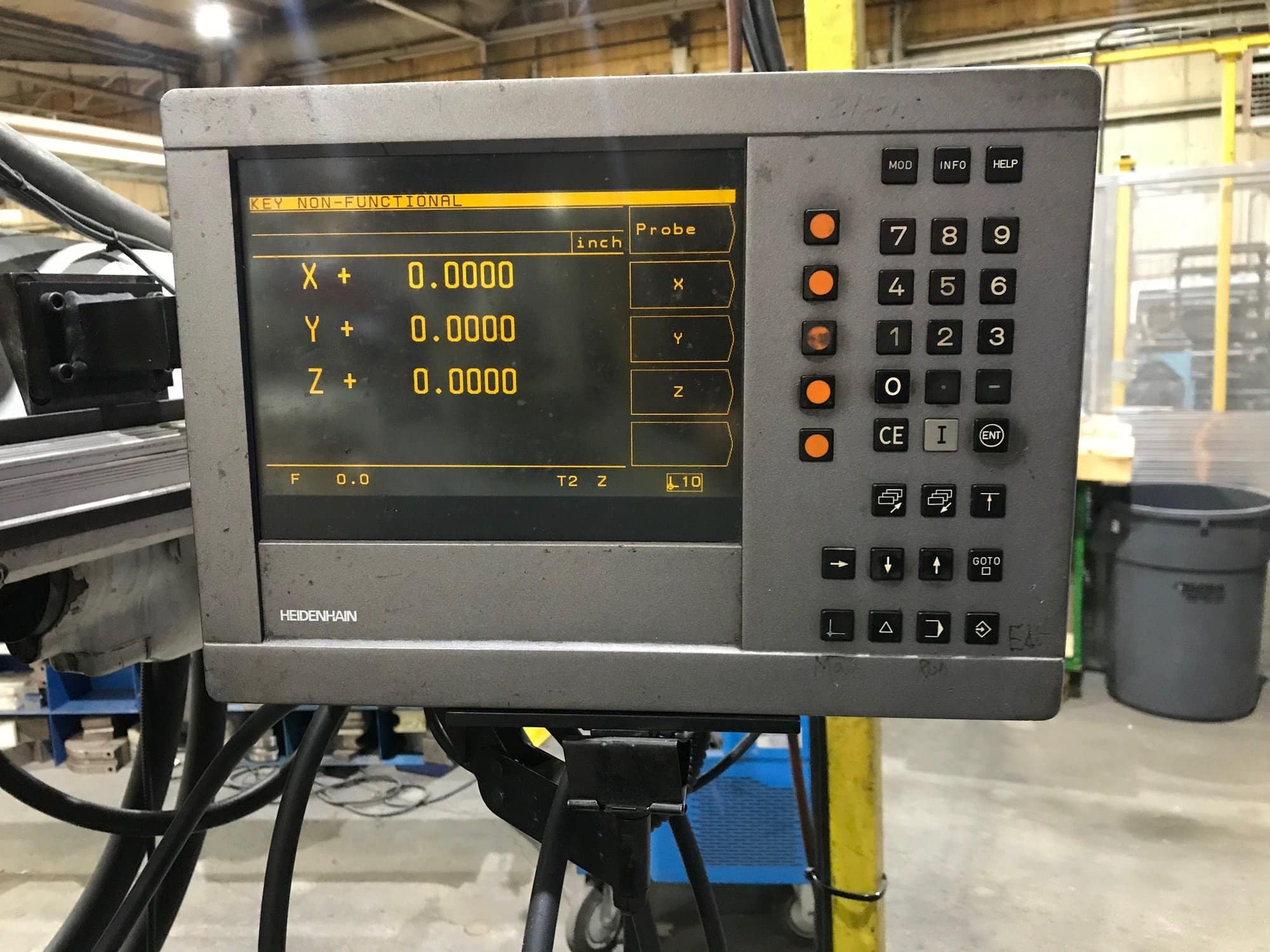

Heidenhain scales & readout
Diameter of Spindle Bar 3”
Spindle Nose – N.M.T.B. No. 40
Main Spindle Drive 7-1/2 HP
Spindle Bar Travel 16”
Horizontal Travel 48”
Vertical Travel (Hi-Column) 48”
Table Size 48”L x 35” W
Table Retraction 16”
Spindle Speeds (16) 25/1200 RPM
Spindle Bar Feeds (8) .002 – .024 IPR
Spindle Bar Rapid Traverse 95 IPM
Milling Feed Rates (16) .5 – 36 IPM
Milling Rapid Traverse 50 IPM (X), 150 IPM (X)
Floor Space 139” W x 157” L x 132” O.A.H.
Approximate Weight 29,000 lbs.
