Despatch, Inc. Oven, Maxon #408 Gas-Fired, 1999 **Make Offer**
$7,490.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

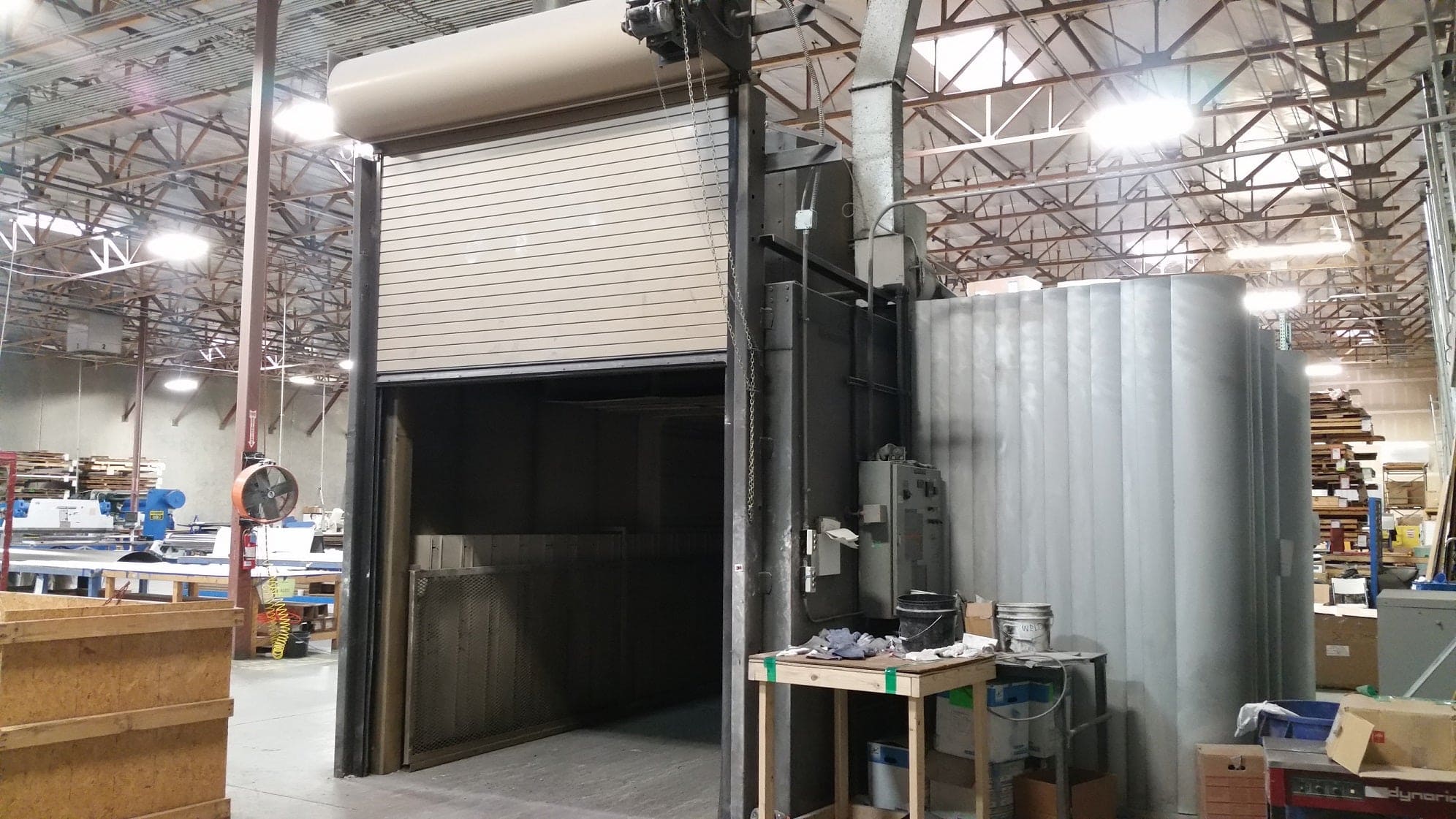

One (1) Gas-Fired Despatch, Inc. Oven.
750,000 BTUH single-burner input at 2-10” w.c. on natural gas
Gas-fired heater manufactured by Maxon: Model #408 Oven Pak AY.
Electrical Rating of Gas Controls:120v/60/1.
Main Gas Press. Reg. 1-1/4” Singer-America #1803 w/1-1/2” vent. Max Temp 500 degree F
Pilot Valve: ASCO #8040H8 3/8” – UL 373K.
Pilot Burner Gas Reg: Maxitrol RV-48 ½” – AGA.
Flame Safeguard: Maxon Flame Rod #64-27729.
Purge Timer: 22 min. Purge Card Honeywell ST7800A1148.
High/Low Gas Press. Switch: Chicago Safety 5-28RHLGP
Ignition Transformer: Dongan A06-SA6 115v, 6000 v. -UL
Partlow MIC2000 Temperature Controller
General Controls Safety Valves (two).
Pressure Sensors – Chicago Air Flow Switches.
Gas Safety Shutoff – Honeywell #AV0555A-1”.

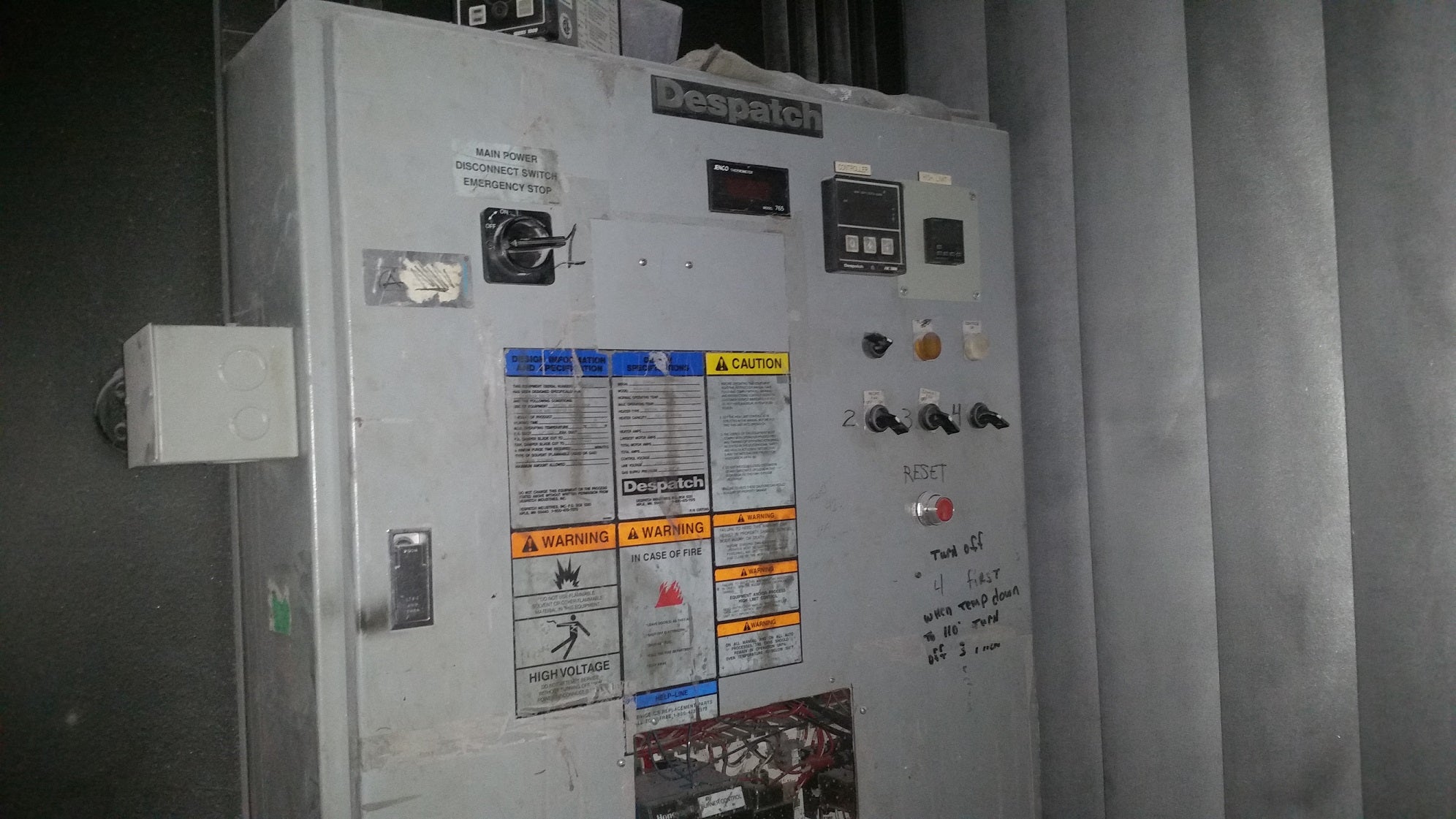

Control Panel – Built by Despatch, Inc.
Gas Operating Valve -UL
Dimensions:
Overall- 212″x148″x185″

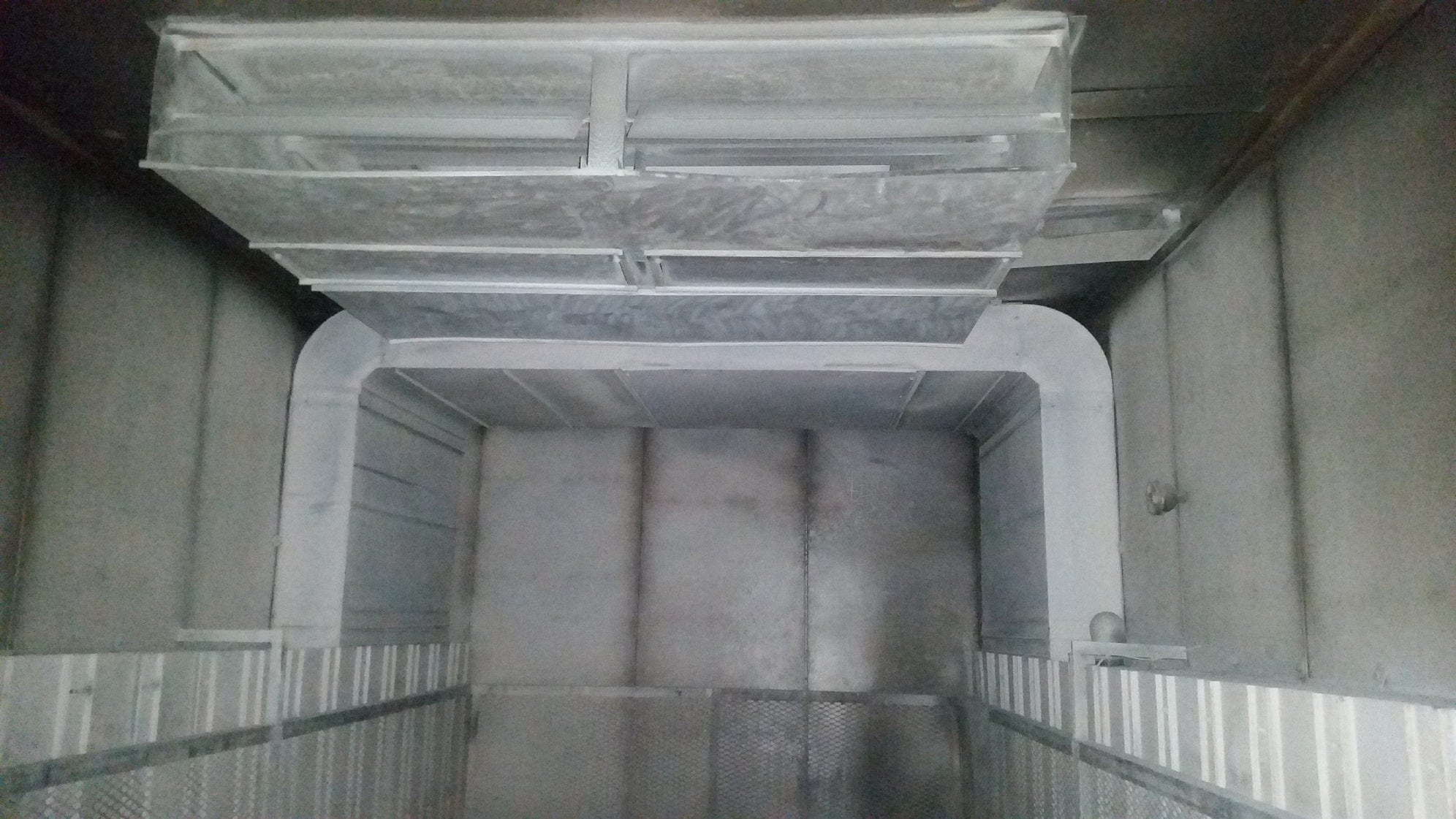

Inside- 194″x 98″x 106″
Opening: 100″ wide 94.5″ Tall
