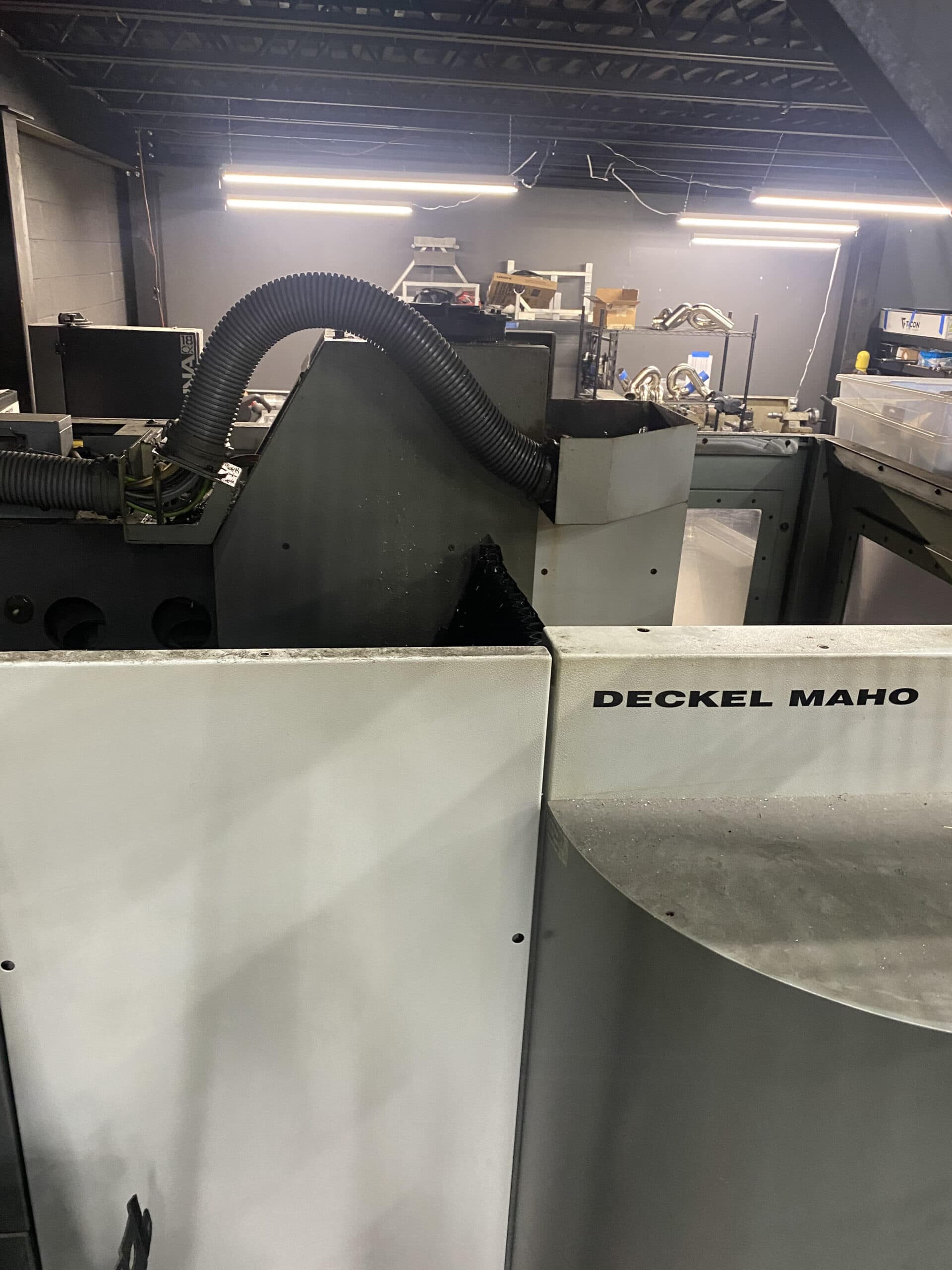

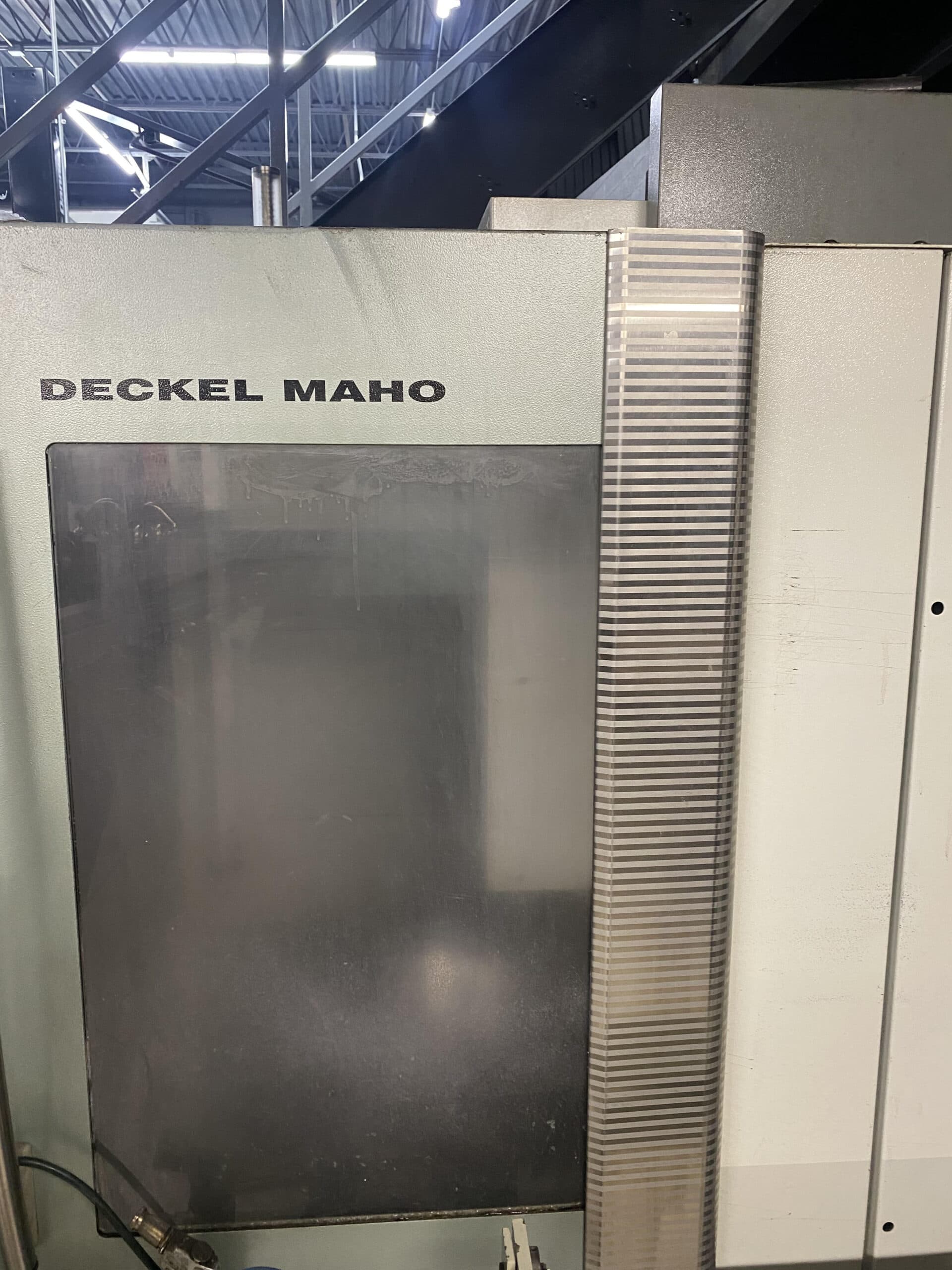

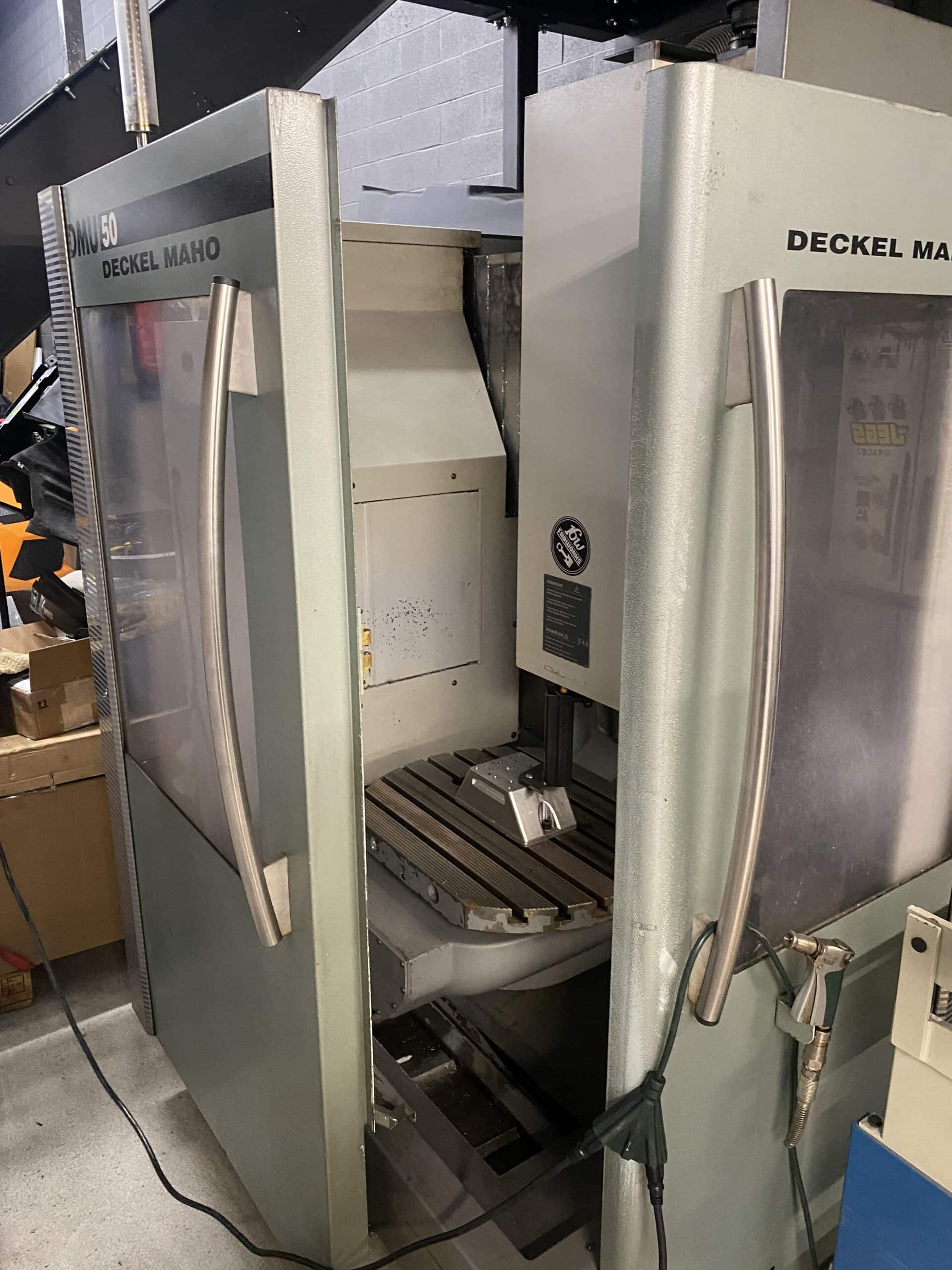

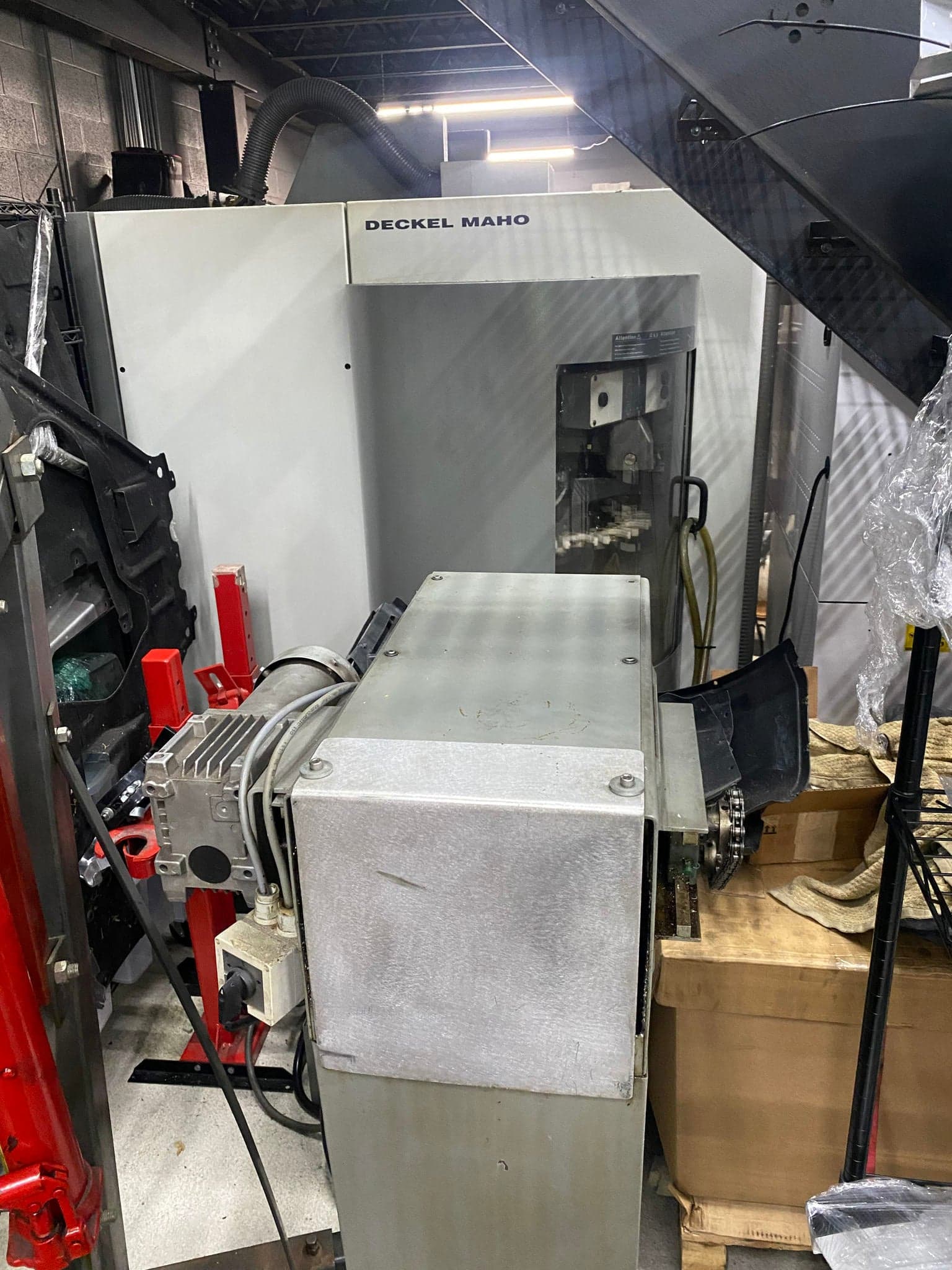

Deckel Maho DMU-50 VMC, 2005 – 5-Axis, Updated Software
$54,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max. X-Axis Travel: 19.7″
Max. Y-Axis Travel: 17.7″
Max. Z-Axis Travel: 15.7″
Max. Table Load: 661 Lbs.
Table Diameter: 24.8″
Max. Workpiece Height: 11.8″
Spindle Standard Rotational Speed: 10,000 RPM
Power (100% Power-On Time): 19.4 HP
Maximum Torque: 95.9 ft./lbs.
Tool Magazine Capacity: 16
Max. Rapid Transverse X/Y/Z Axis: 98.4 ft/min
Swivel Range of B-Axis: -5/+110°
C-Axis: 360 x 0.001°
Spindle Taper: SK40
Equipped With

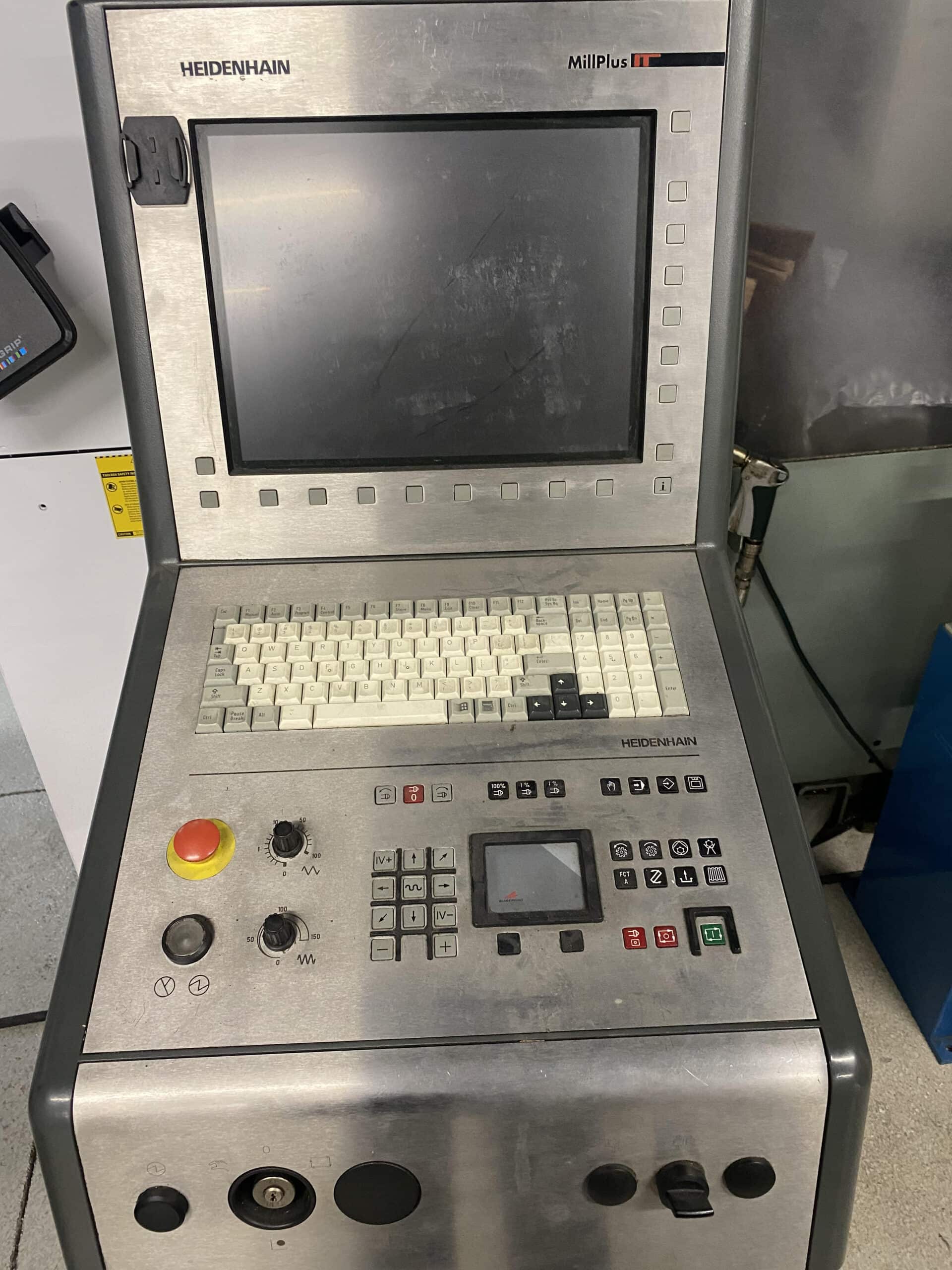

3D Heidenhain MillPlus iT Controller,
