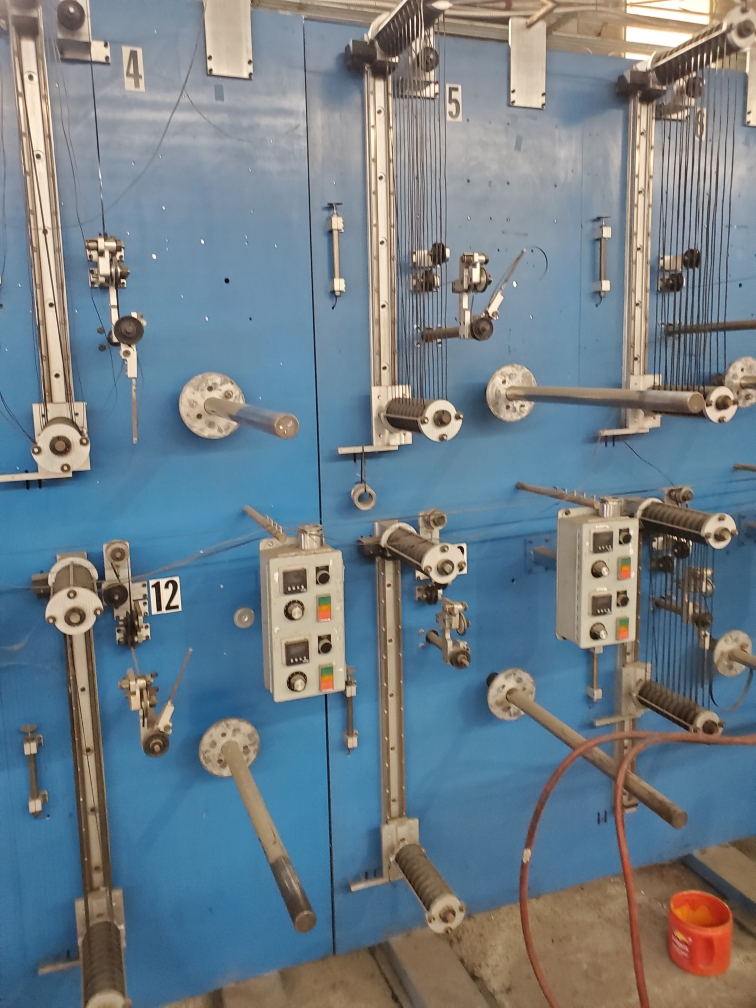

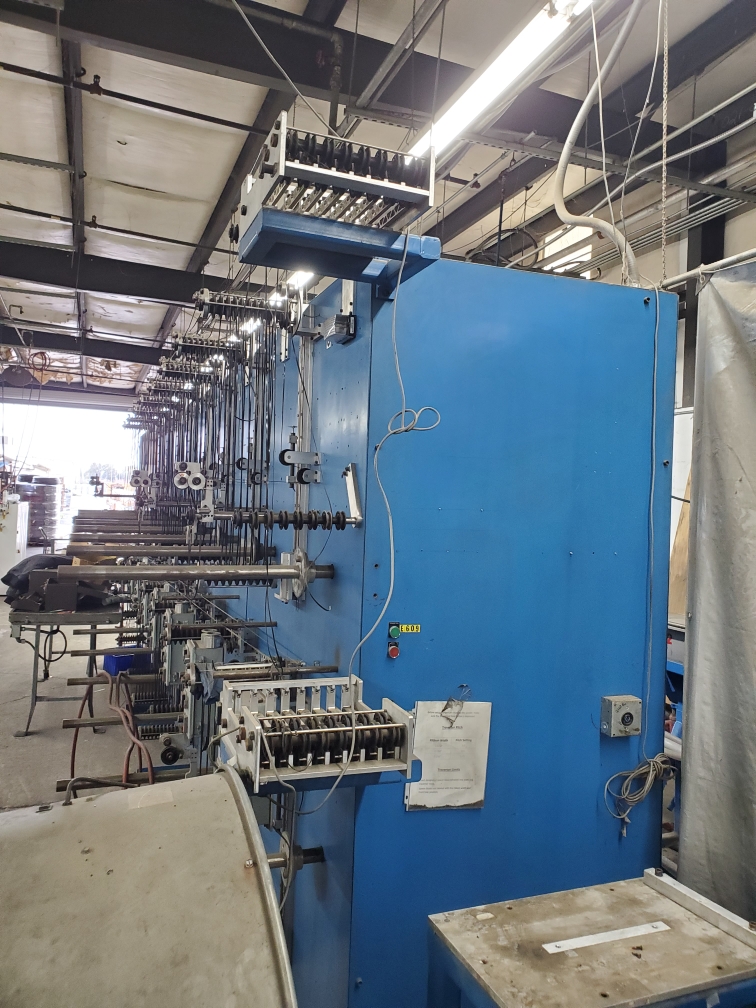

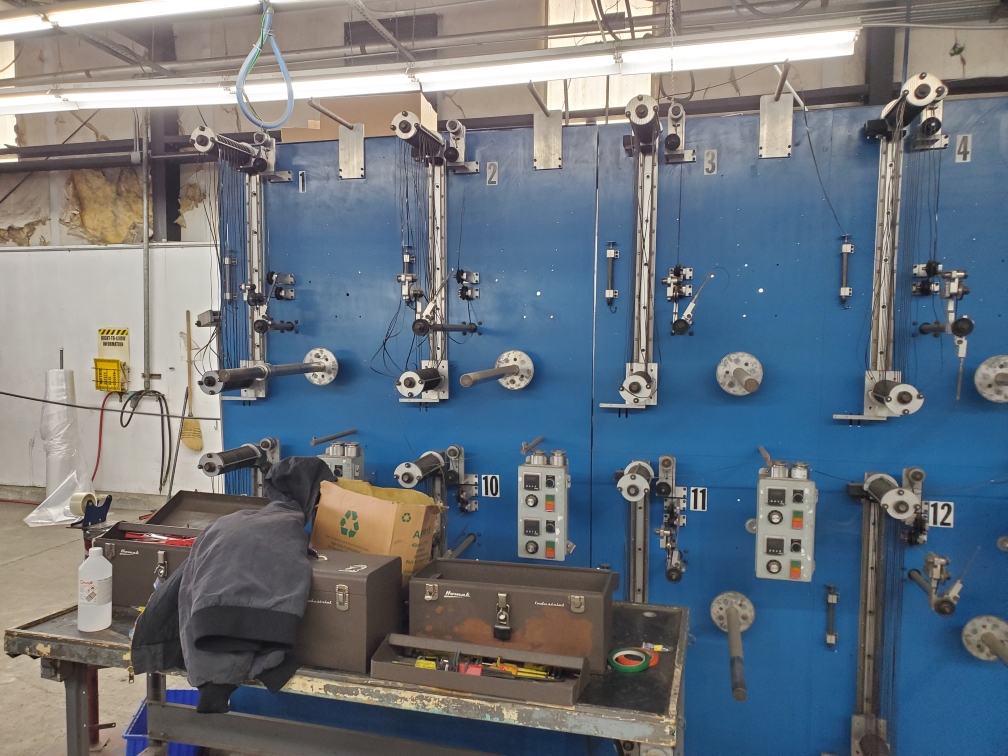

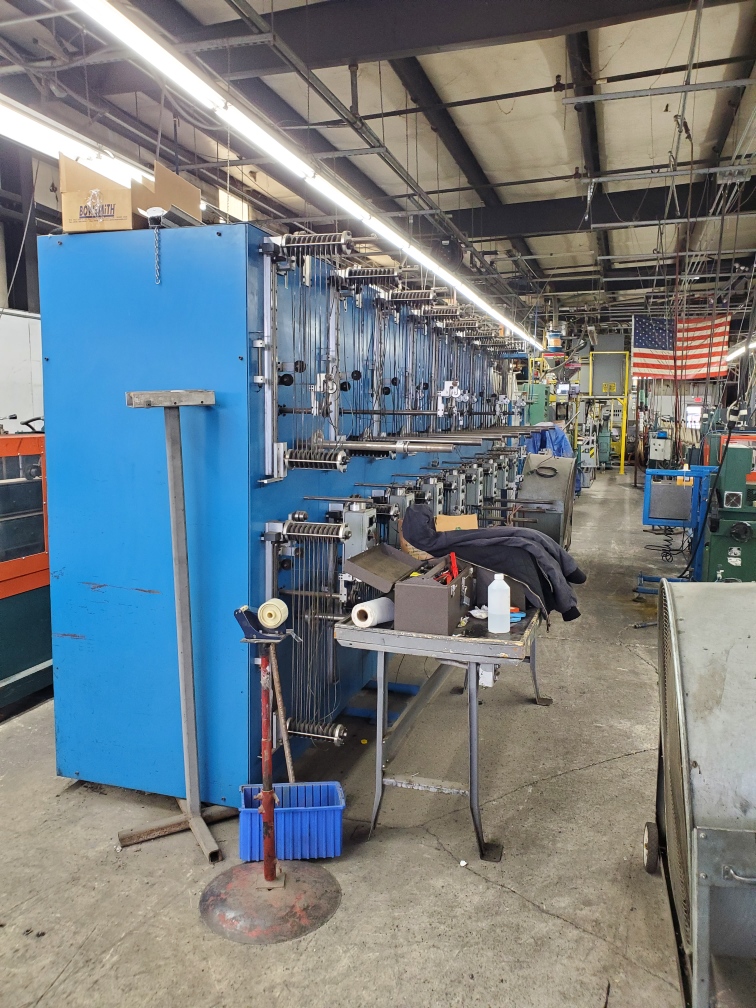

Custom 16 Station Winding Machine – UHING RG3-15-2MCRF Rolling Ring Traverse Drives

Name: Custom 16 Station Winding Machine - UHING RG3-15-2MCRF Rolling Ring Traverse Drives
SKU: 55624226606

$84,900.00

Custom 16 Station Winding Machine - UHING RG3-15-2MCRF Rolling Ring Traverse Drives - Image 2

Custom 16 Station Winding Machine - UHING RG3-15-2MCRF Rolling Ring Traverse Drives - Image 3

Custom 16 Station Winding Machine - UHING RG3-15-2MCRF Rolling Ring Traverse Drives - Image 4

Custom 16 Station Winding Machine - UHING RG3-15-2MCRF Rolling Ring Traverse Drives - Image 5

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Winder Motors: ½ HP 90 V DC

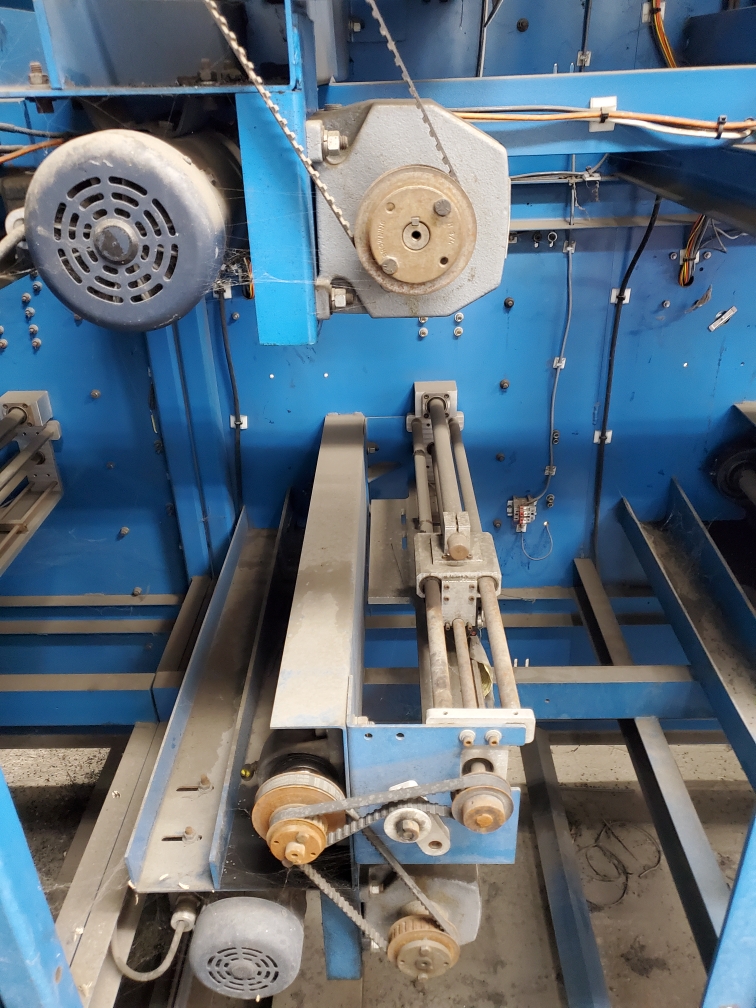

Traverse Drive: J. Uhing Rolling Ring Drive With Adjustable Pitch
Product Feed Rate: Regulated Via In-House Designed Accumulator
Control Enclosures: 8 Individual Enclosures (1 Per Pair Of Spools)
Spools: 16 Total
Maximum Speed: 120 ft/min Per Spool
Spool Capacity: 17,000 ft (30 lbs) On 12″ Diameter × 19-1/2″ Winding Width

Equipped With
— Individual Control Enclosures With Displays
— J. Uhing Rolling Ring Traverse Drive
— In-House Accumulator Feed Rate System
— All Available Manuals
