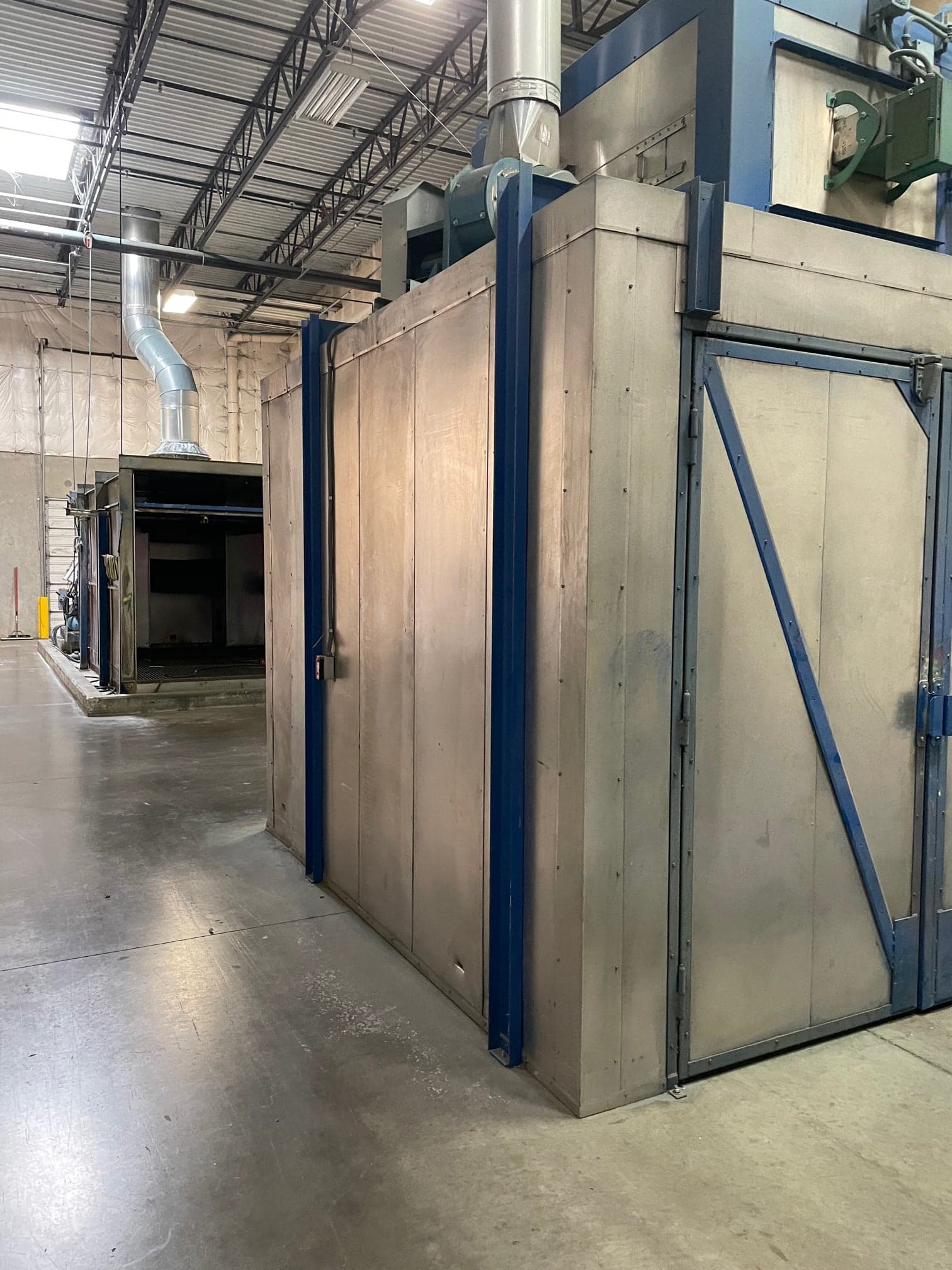

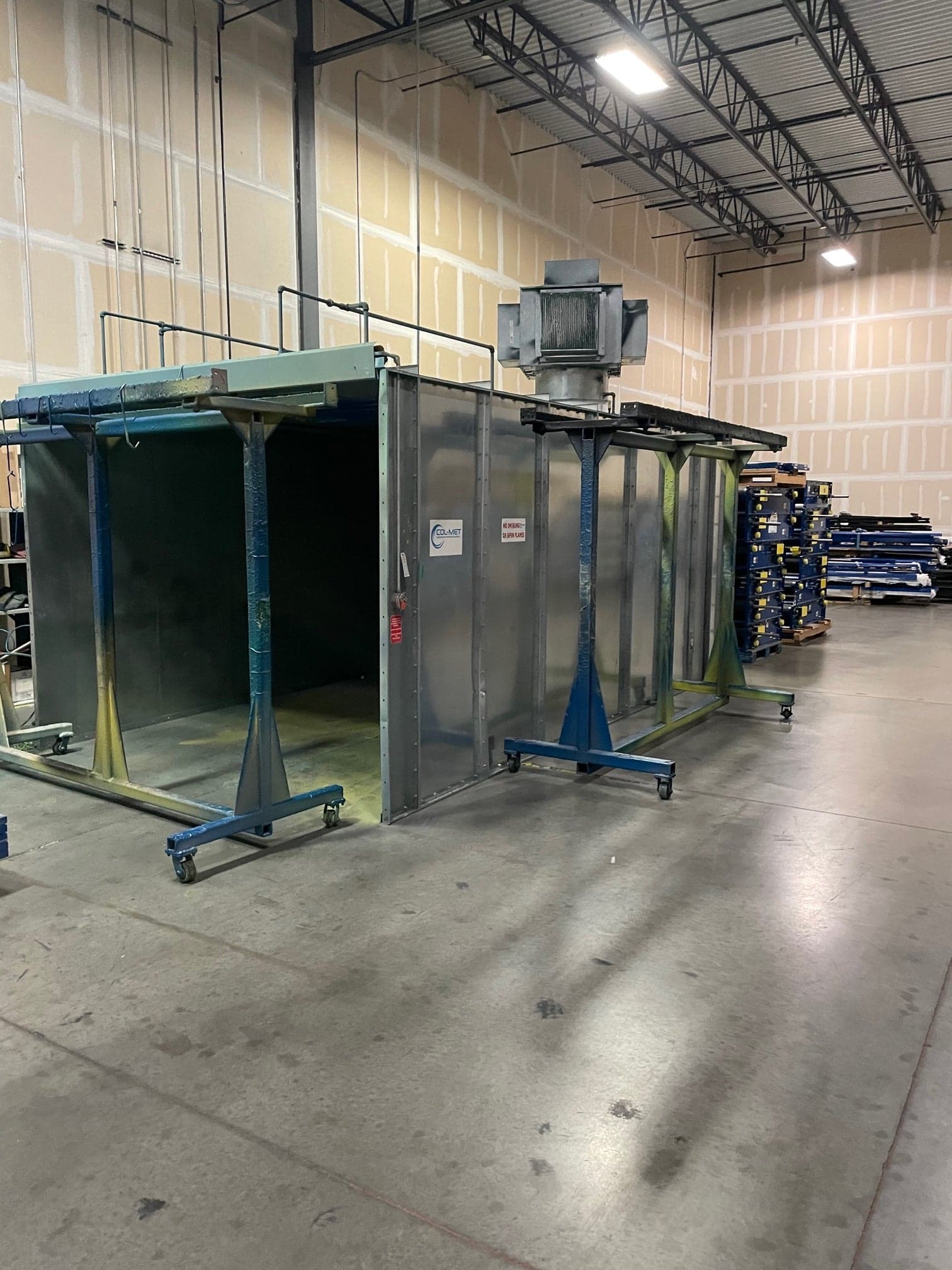

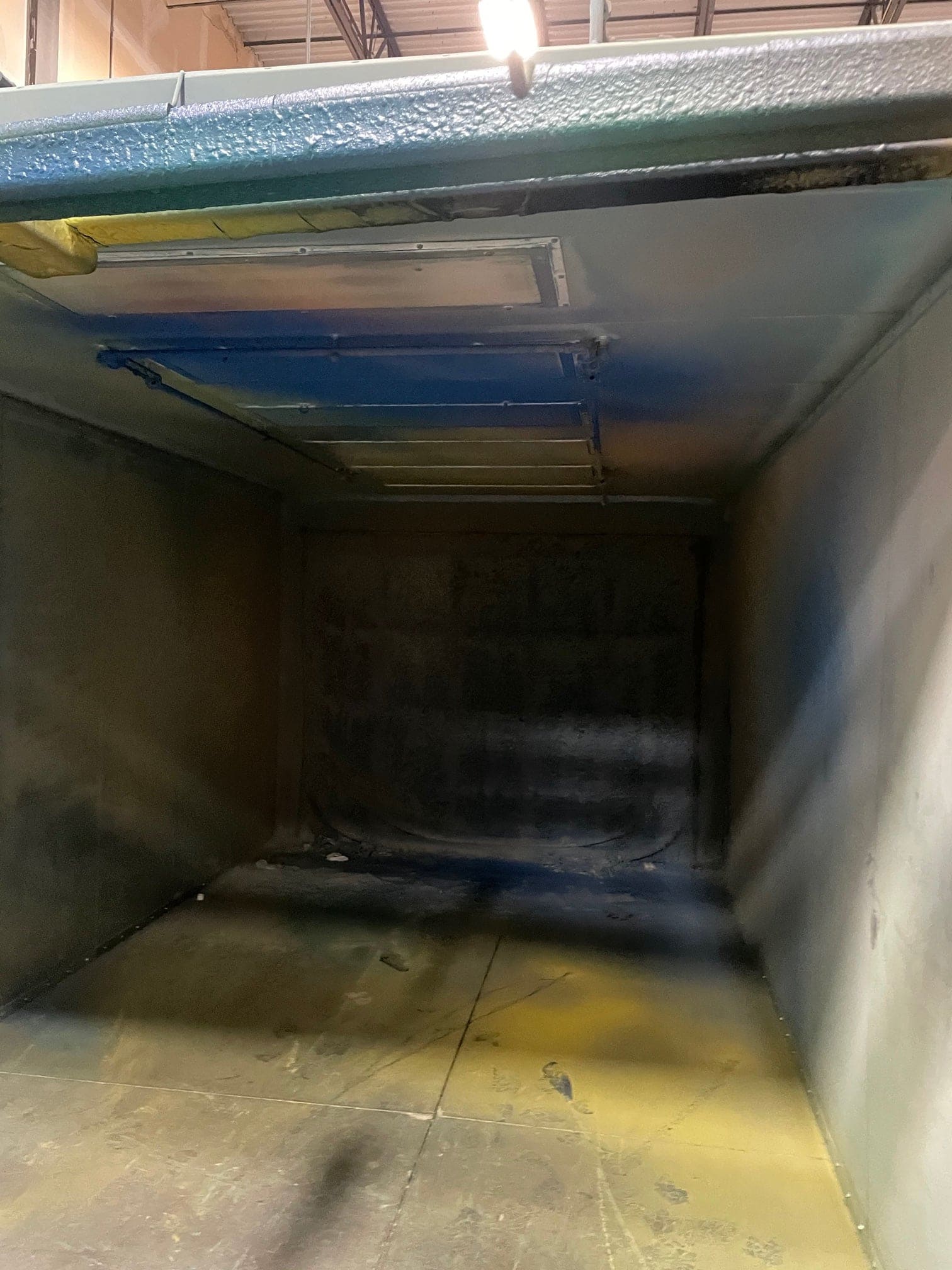

Col-Met 08-08-10SE Batch Oven, Washing Booth and Paint Booth, 2009
$20,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Working Dimensions
Length 10’1”
Width 8′
Height 9’2”
OVEN DATA
OPERATING TEMP. 450 °F
CIRC. FAN VOLUME 5,985 CFM
EXHAUST FAN VOL. 1,450 CFM
BURNER RATING 1MIL BTU
BTU/HR REQ’D 1,000,000 BTU/HR
PURGE CFM 1450
PURGE TIME 6 MIN
EXPLOSION VENT 65 S.F. AREA REQUIREMENTS
BURNER RATING 1 MIL BTU
Equipped with:

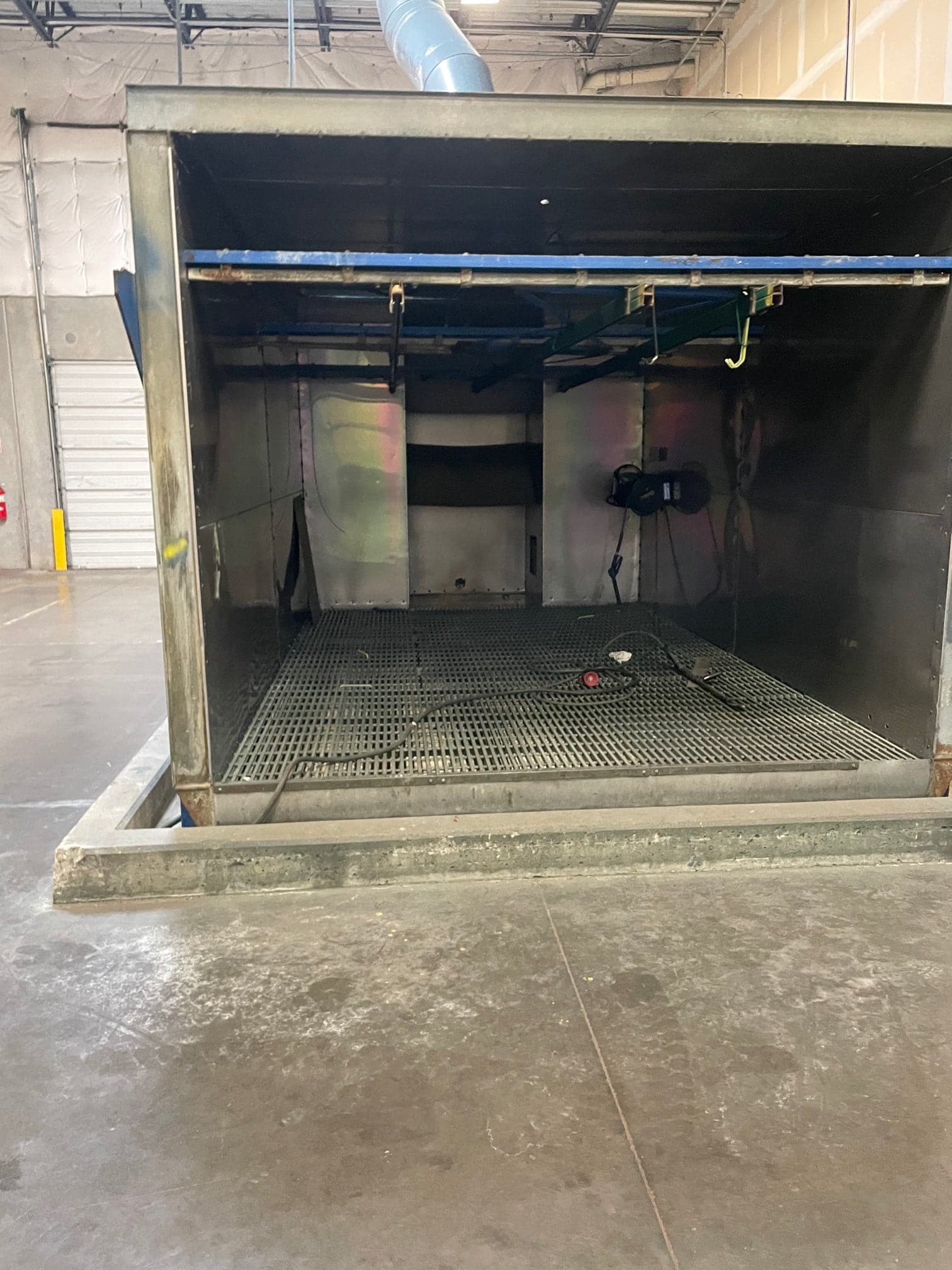

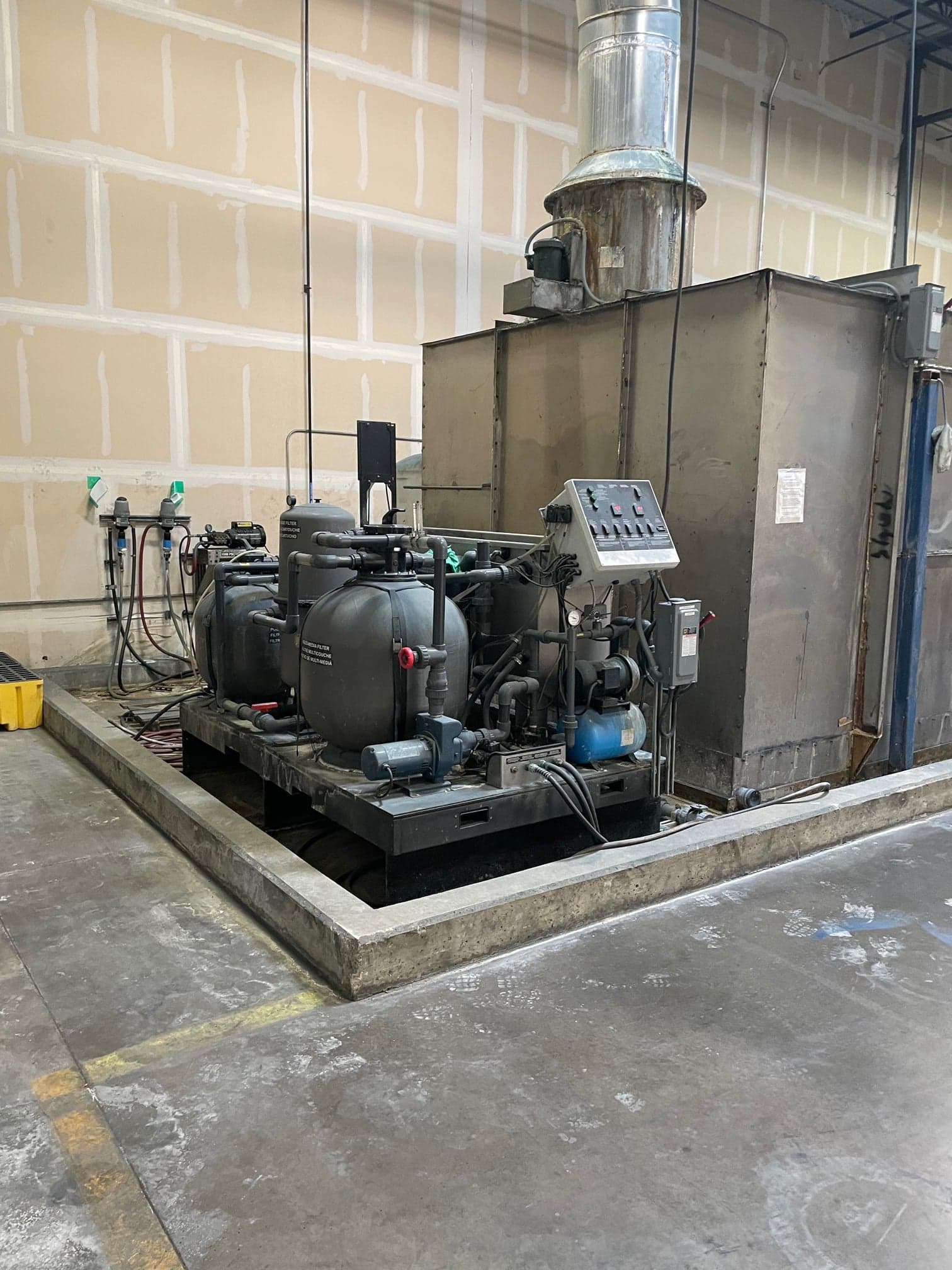

Washing Booth and Paint/Powder Booth
