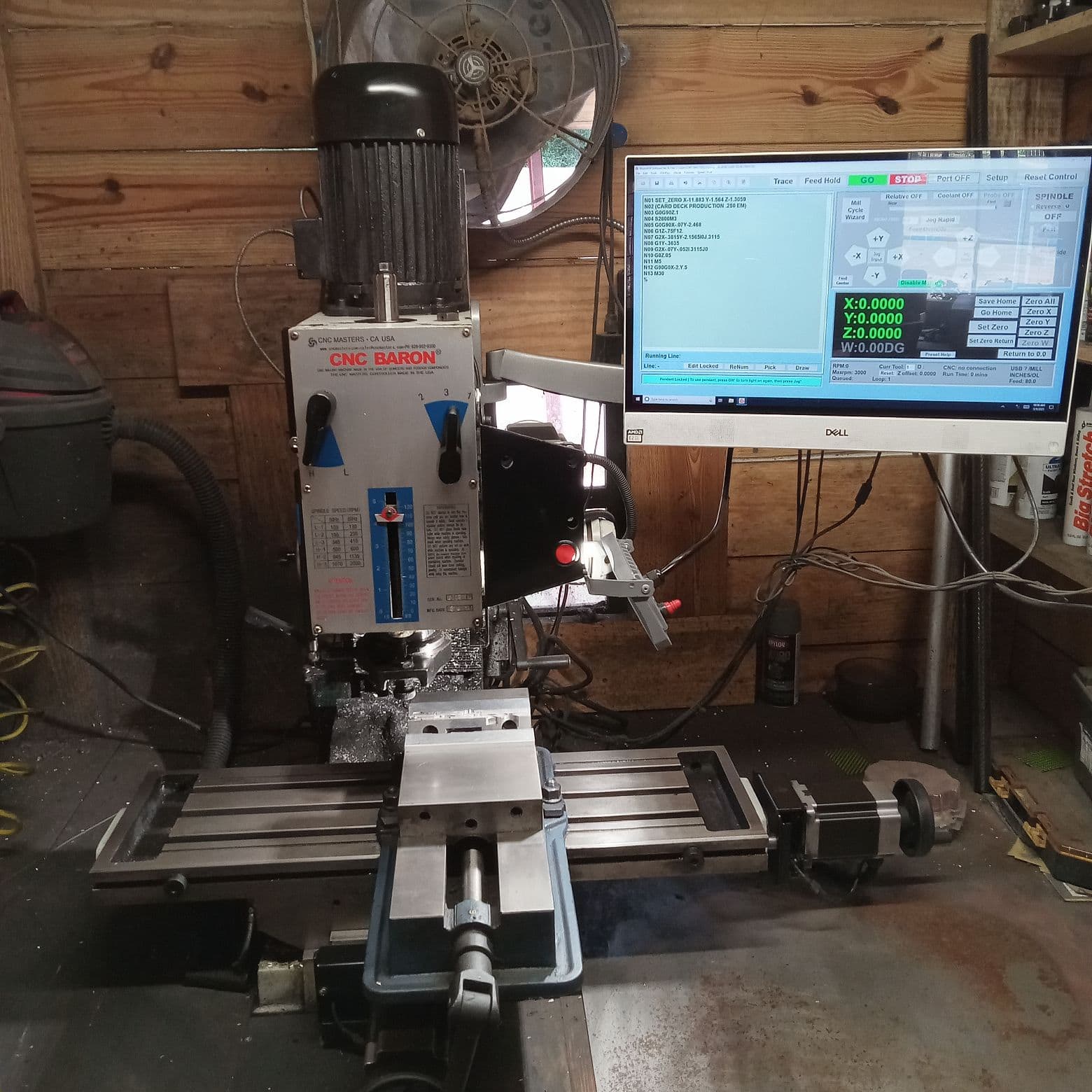

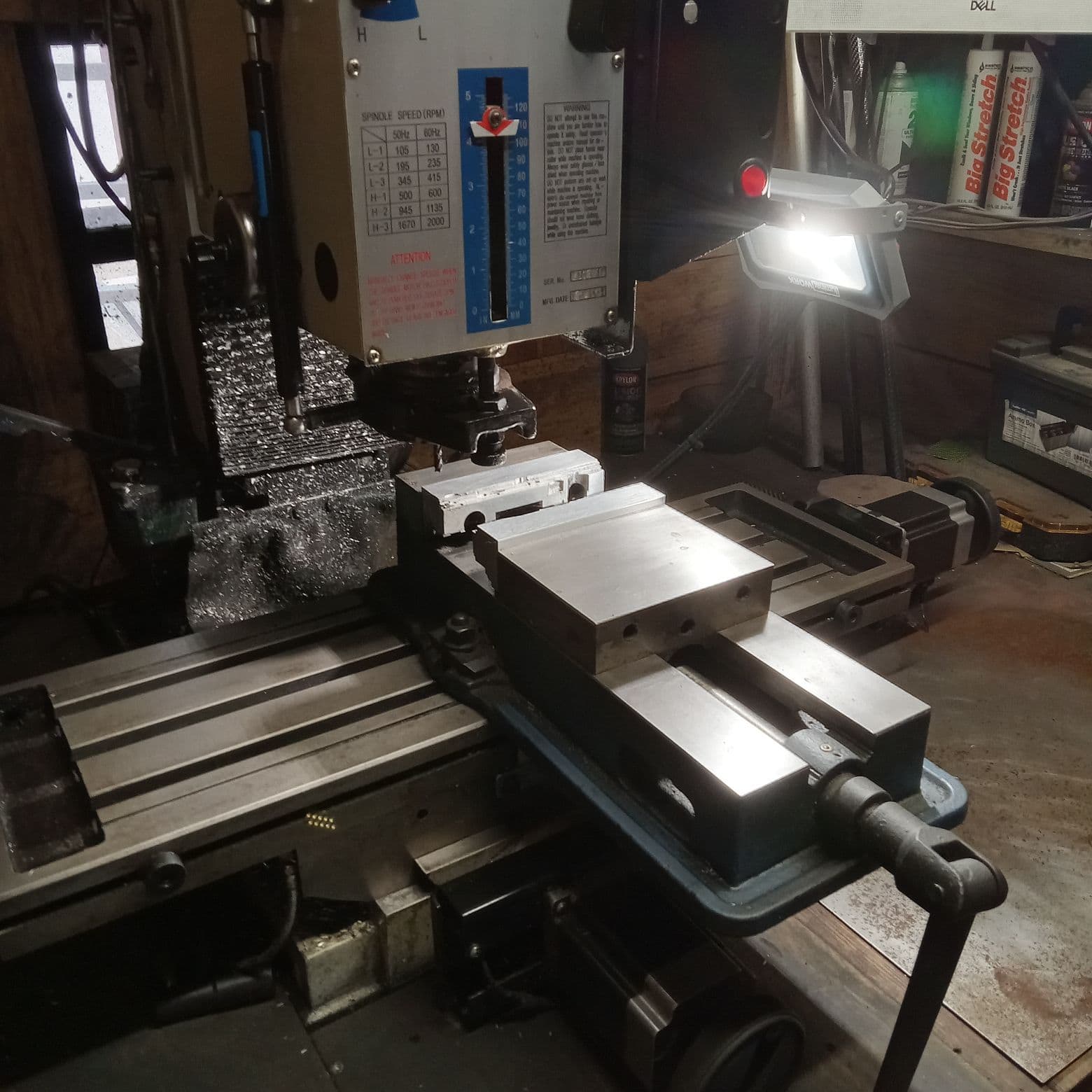

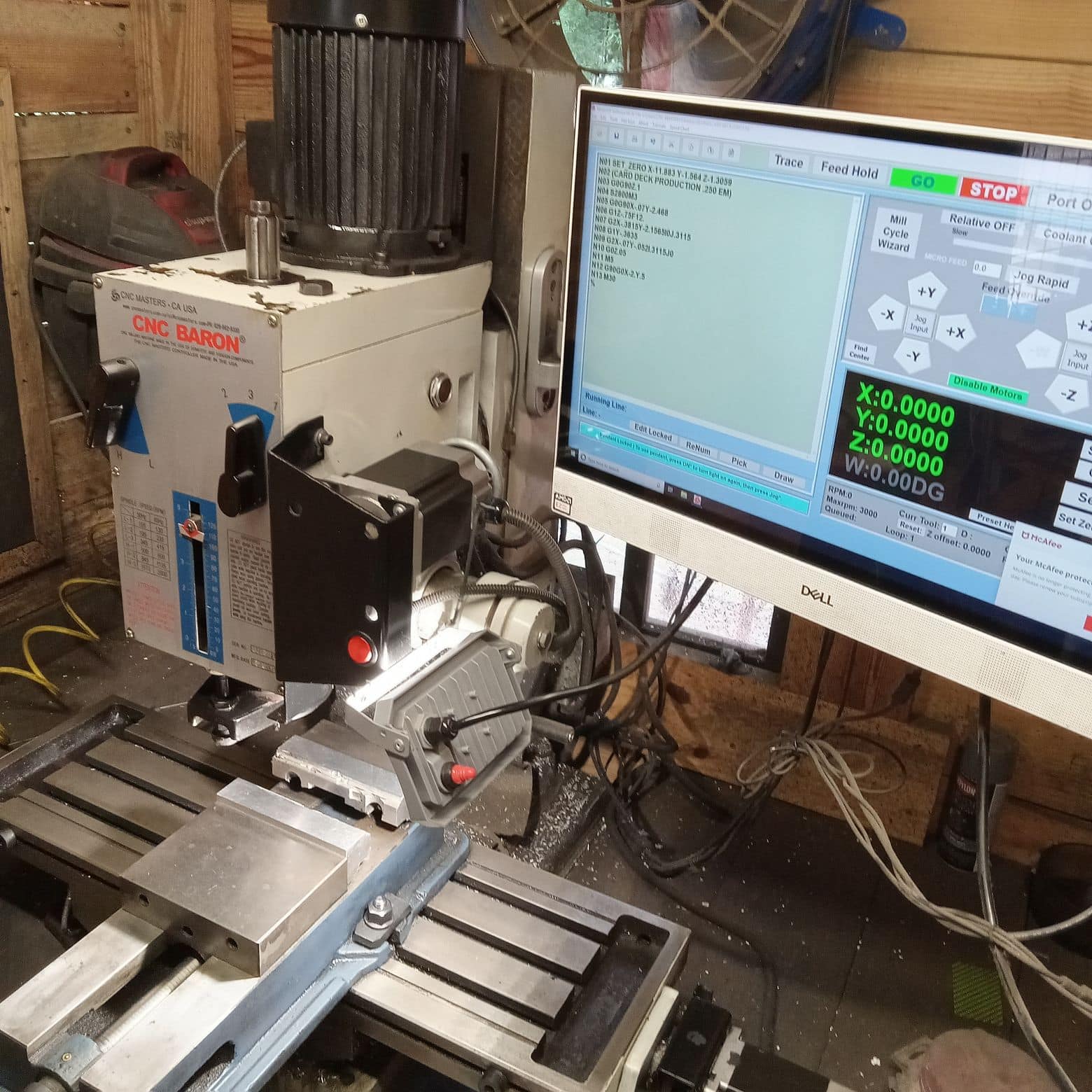

CNC Master’s Baron VMC, 2019 – 3,000 RPM
$3,400.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis: Left/Right Table Travel-21.5″
Y Axis: Front/Back Saddle Travel-7″
Z Axis: Spindle Up/Down Travel-5″
Maximum Distance from Spindle Nose to Table-18″
Swivel Angle of Headstock at Perpendicular Direction-+/- 90 Degrees
Drilling Capacity-.75″ (19.05 mm)
Face Mill Capacity-3” (76.2 mm)
End Mill Capacity-.75″ (19.05mm)
Working Area of Table – Table Specs with T-Slots-31.5″ x 9.5″
Spindle Taper R8 Collet
Spindle Motor and Power – Computer Variable Spindle Control 2 HP; 220-240vac single phase
Spindle 6 Speeds Gear Head with Oil Bath for Stronger Torque 60 HZ: 196, 388, 662, 893, 1768, 3000 RPMs
50 HZ: 163, 323, 552, 744, 1473, 2500 RPMs
Limit Switches on Opposite Ends of Travel X Y Z
Max Rapid on X Y Z 150 IPM (3810 mm/m)
One-Shot Oil Pump Lubricates Dovetail Ways, Tapered Gibs, and Quill
Computer Connection to Control Unit USB Port, Windows 10
Equipped With:
3,000 RPM Spindle Upgrade
Master Software
NO STAND
