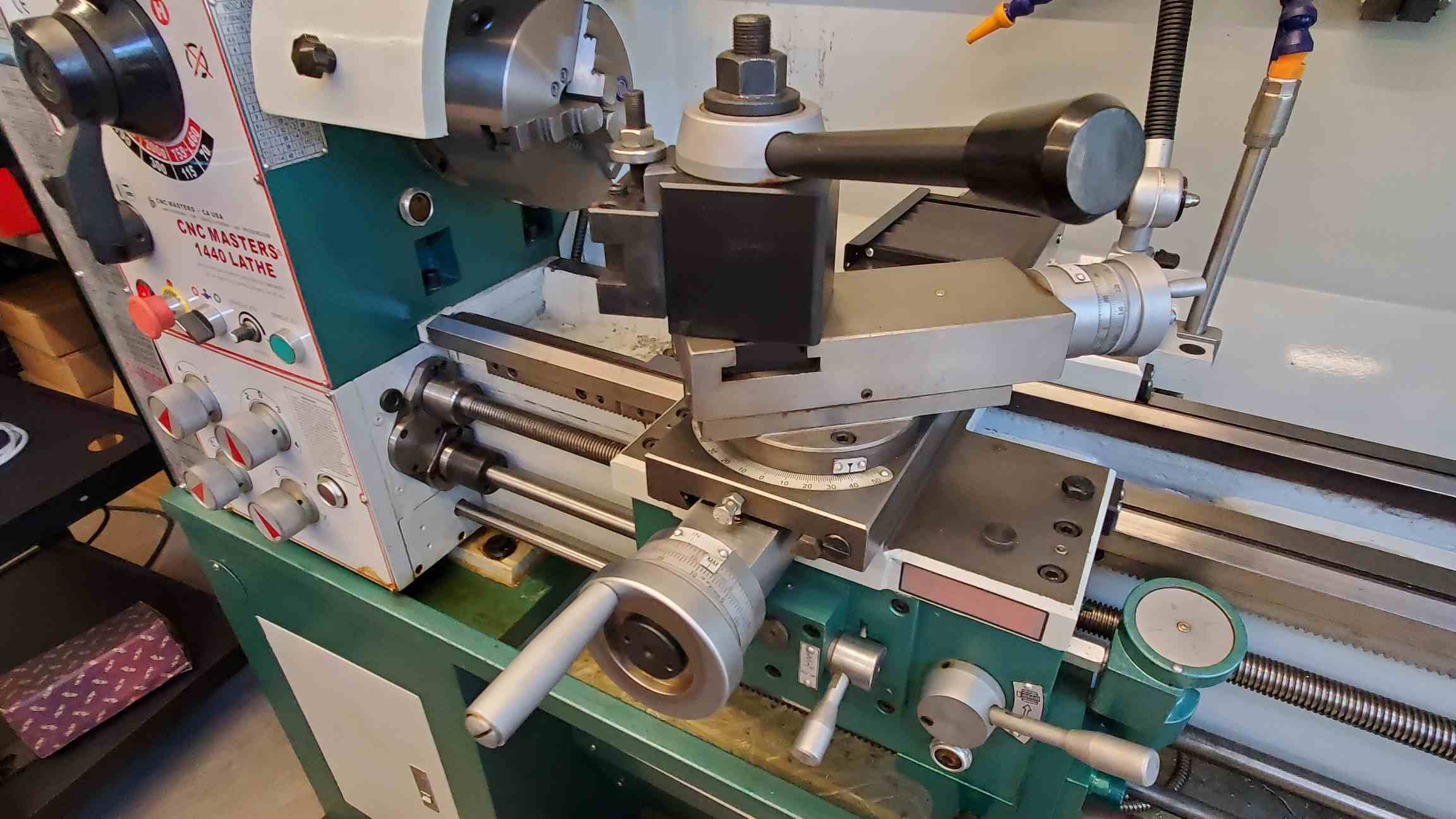

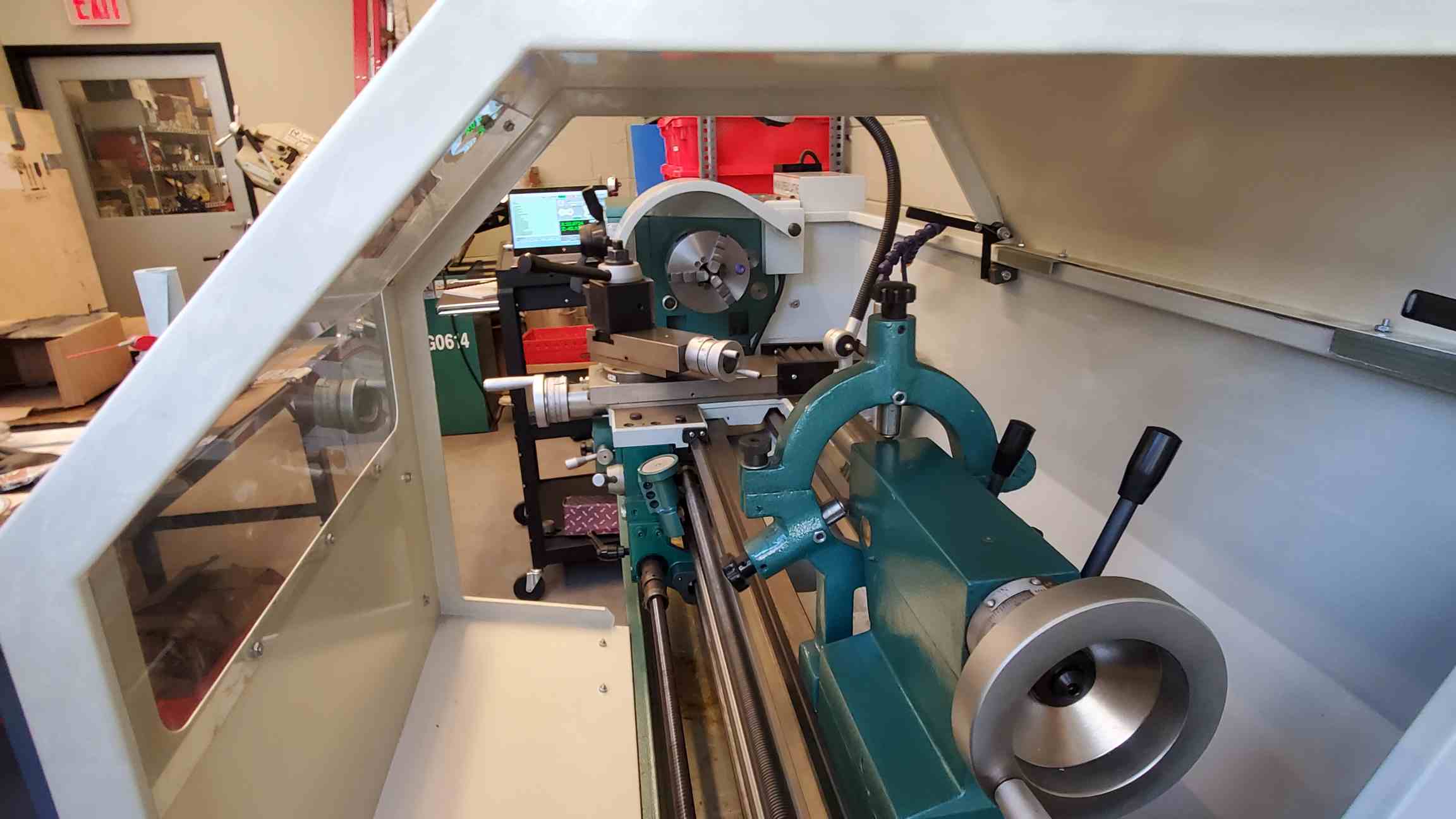

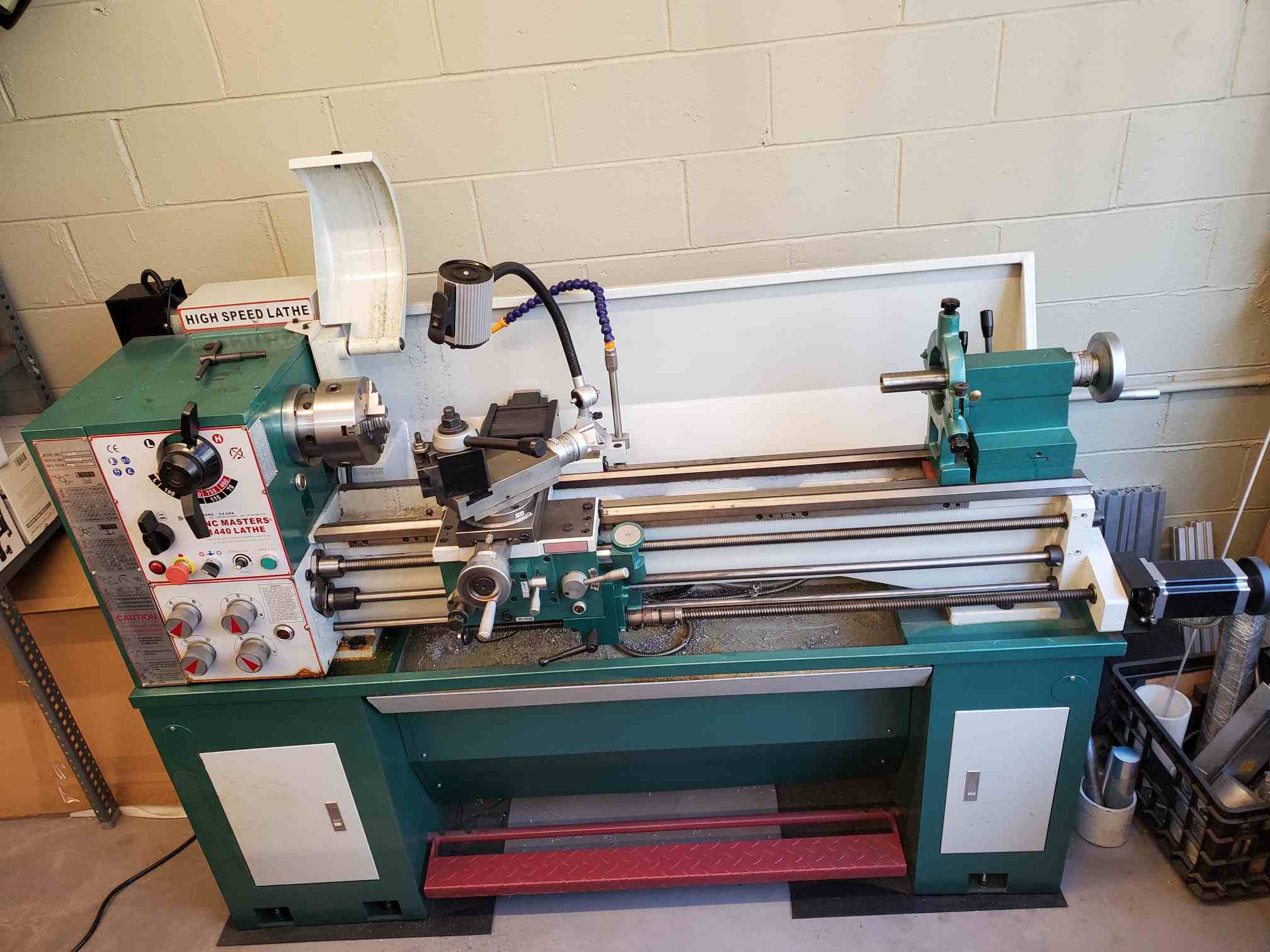

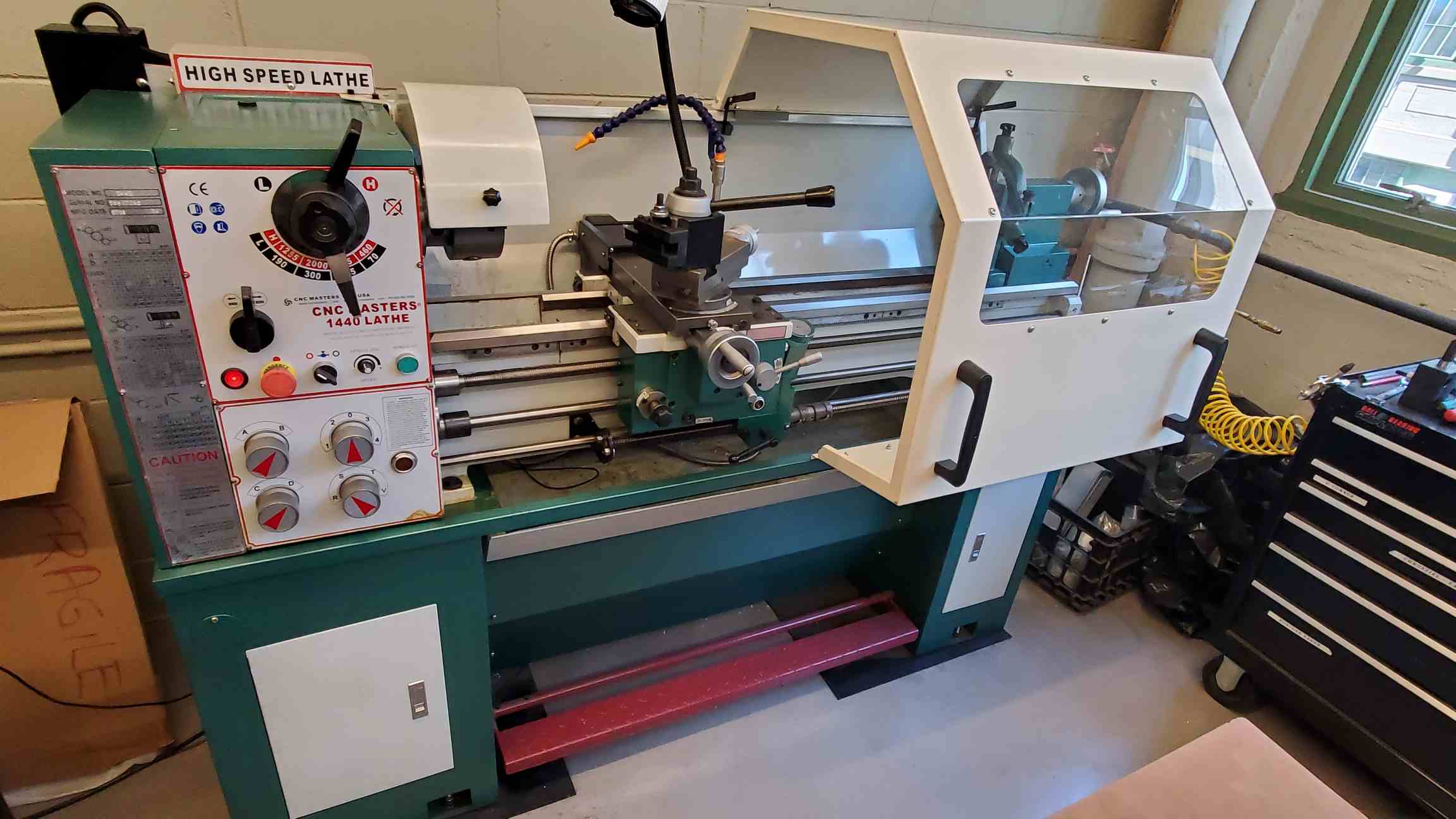

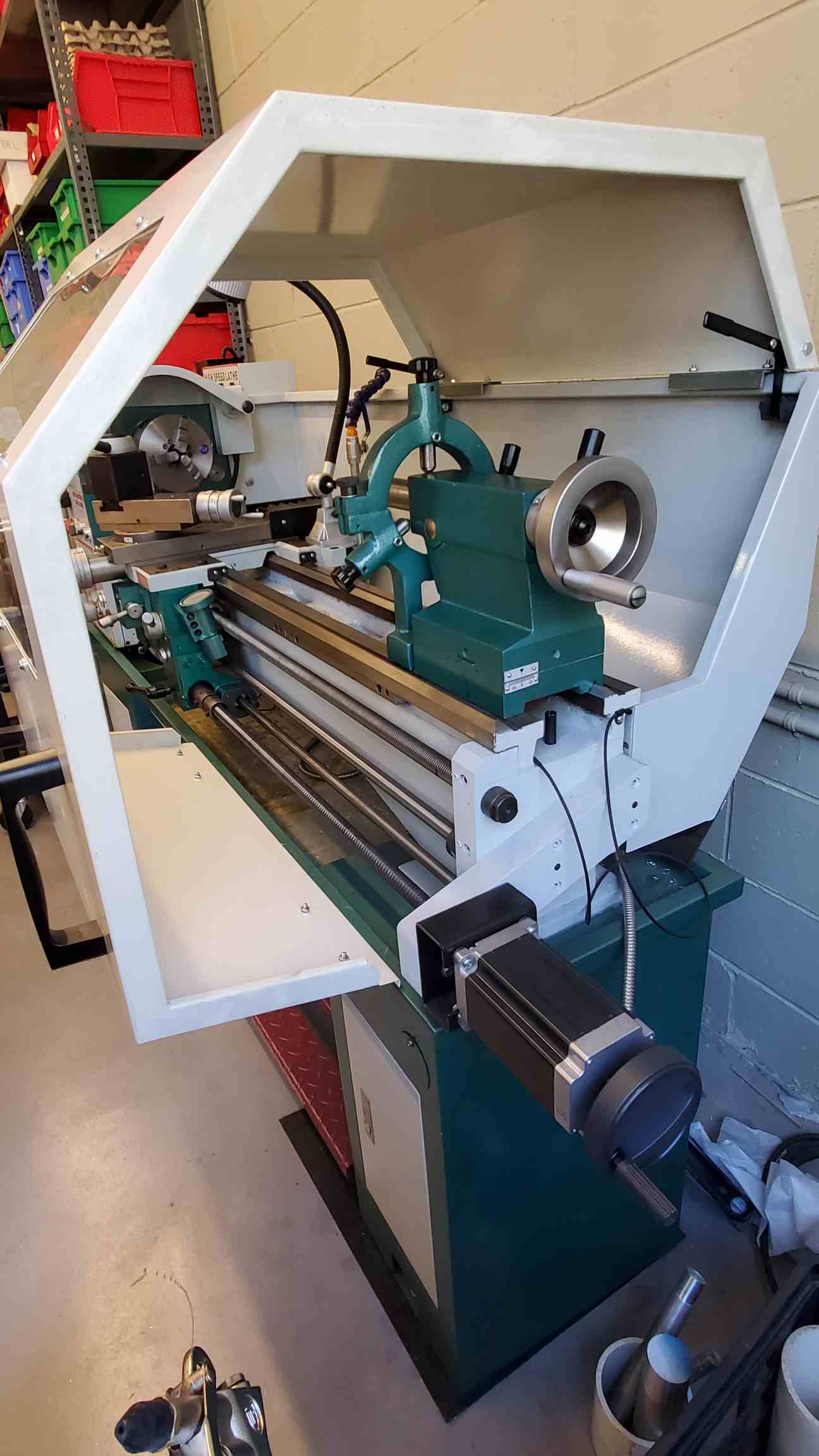

CNC Masters 1440 CNC Lathe, 2016 – Tailstock
$7,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 14″ Max Diameter
Swing Over Cross Slide: 8″
Cross Slide Travel: 6″
Carriage Travel: 34.5″
Distance between Centers: 40″
Length of Bed: 54″
Width of Bed: 7-3/8″
Hole thru spindle: 1-1/2″
Self Centering 3-Jaw: 6-1/4″ OD Size
Tailstock Spindle Travel: 4″
Top Tool Slide Travel: 3-3/4″
Headstock Spindle Taper: MT-5
Spindle Nose Mount: D1-4
Tailstock Spindle Taper: MT-3
Computerized Variable Spindle Control, Range of Spindle Speed with CSS (Constant Surface Speed) ability: 8 Speeds, 70-2000
Lead Screw Diameter: 7/8″
Feed Rod Diameter: 3/4″
Thread Per Inch of Lead Screw: 40
Thread Cutting Range: 4-112 TPI (Min 10 TPI on CNC Mode) Max 2.5 mm Thread Pitch
Main Spindle Motor: 2 HP
Net Weight (approx): 1695 LB
Accessories Weight: 104 LB
Total Shipping Weight: 1984 LB (185 LB crating and pallet)
Crate Size for shipping (approx): 82″x43″x64″
Machine Foot Print / Floor Space: 84″x 37″
Equipped With:
Tailstock
CNC Controller
